Surgical Instruments of Excellence
INTRODUCTION
Mercian has been established since 1968 as a supplier of high quality surgical instrumentation.
Mercian are proud to present within this brochure the world famous S&T Microsurgery Instruments
S&T were established in the town of Shaffhausen in Switzerland in 1966. S&T’s founders were at the forefront of microsurgery instrument design. With a reputation for high quality and precision workmanship, adapting forceps used in the watchmakers industry to fine instruments for use by the pioneers of early reconstructive micro surgery.
S&T offer a high level technical capability in combination with innovation and quality. Which are corner stones of the S&T philosophy and practiced during the manufacturer of every instrument. S&T Microsurgery Instruments are now well known to micro surgeons throughout the world and are globally recognised as the leaders in the field of microsurgery instruments.
Mercian have been their exclusive distribution partners in both the UK and Ireland for over 35 years offering their instruments to our hospitals.
STANDARDS
Mercian is certified to meet standard ISO 1348 5: 2016. Recognised as a mark of excellence applicable to our management systems, processes and procedures. We are subject to continual assessment of these procedures to ensure standards are maintained by an independent outside notified body.
Annual surveillance ensures our compliance with ISO 13485: 2016, MDD 93/42/EEC Annex II and MDR 2017/745.
WARRANTY
To ensure our instruments perform as expected, all Mercian instruments are covered by a 12 month warranty covering any manufacturing/material defect. Any instrument failing these standards will be repaired or replaced without charges.
since1968 established
MICRO VESSEL DILATORS

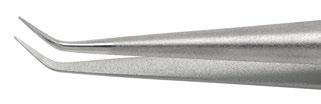

Vessel Dilator Angled
● 11cm/4¼" length
D- 5a.1 Super fine tips 0.1mm Ø
D- 5a.2 Tips 0.2mm Ø
D- 5a.3

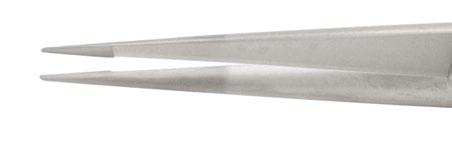

Vessel Dilator
● 13.5cm/53⁄8 " length
JFS- 3d.2
Straight tips 0.2mm Ø
JFL- 3d.3 Straight tips 0.3mm Ø
JFL- 3d.2 Straight tips 0.2mm Ø

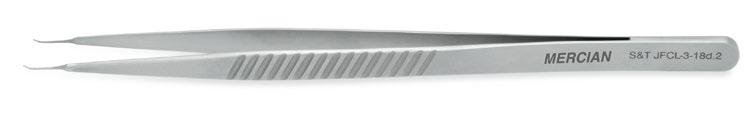

JFCL- 3d.2
JFAL- 3d.3 Angled tips 0.3mm Ø
Vessel Dilator Long
● 18cm/7" length
JF -3 -18d.3
Surgical Instruments of Excellence
Mercian Vessel Dilators have polished tips for interluminal vessel dilation. The entire area is opened to the same diameter and the pressure is distributed evenly.
Curved tips 0.2mm Ø Straight Tips 0.3mm Ø
JF -3 -18d.2 Straight Tips 0.2mm Ø
JFCL-3 -18d.2 Tips 0.3mm Ø
Curved Tips 0.2mm Ø
7mm handle width
9mm handle width
MICRO VESSEL DILATORS

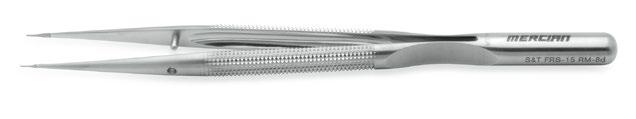

Round Bodied Vessel Dilator
● 15cm/6" length
● Straight tips
● Balanced forceps
FRS -15 RM- 8d.1 Tips 0.1mm Ø super fine
FRS -15 RM- 8d.3
Tips 0.3mm Ø
Surgical Instruments of Excellence
Weighted distal end perfectly balances forceps in the hand.

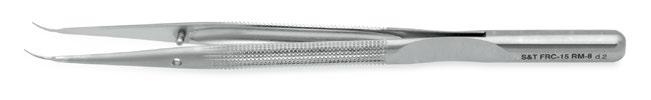

Round Bodied Vessel Dilator
● 15cm/6" length
● Curved tips
● Balanced forceps
FRC -15 RM- 8d.2
Tips 0.2mm Ø
Round Bodied Vessel Dilator
● 18cm/7" length
● Straight tips
● Balanced forceps
FRS -18 RM- 8d.1 Tips 0.1mm Ø super fine
FRS -18 RM- 8d.2 Tips 0.2mm Ø
FRS -18 RM- 8d.3 Tips 0.3mm Ø
Round Bodied Vessel Dilator
● 18cm/7" length
● Curved tips
● Balanced forceps
FRC -18 RM- 8d.2
Tips 0.2mm Ø
MICRO FORCEPS
Jewellers Forceps No.5
● 11cm/4¼" length
JF- 5 Tips 0.3mm Ø
JF- 5.1
Tips 0.1mm Ø super fine
Jewellers Forceps Long
● 15cm/6" length
MV2505 -15
Tips 0.3mm Ø
Jewellers Forceps
Surgical Instruments of Excellence

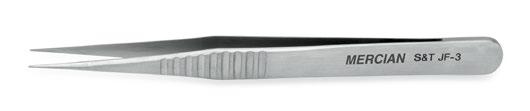

JF- 3 Tips 0.3mm Ø. 12cm/4¾" length
JF- 3 -18 Tips 0.3mm Ø. Longer length 18cm/7"
Jewellers Forceps
● 13.5cm/5³⁄8" length
JFS - 3
JFS - 3 .1
Tips 0.3mm Ø
Tips 0.1mm Ø super fine
Jewellers Forceps
● 13.5cm/5³⁄8" length
JF L- 3
Tips 0.3mm Ø
JF L- 3P Platform tips 0.3mm Ø
JF L- 3.1
Tips 0.1mm Ø super fine
Jewellers Forceps Angled
● 11cm/4¼" length
JFA - 5B Tips 0.3mm Ø
Pierse Forceps
● 12cm/4¾" length
JFP- 3
Tips 0.3mm Ø
Pierse Forceps have a micro hole in the tips which securely grip tissue with minimal trauma.

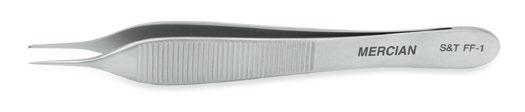

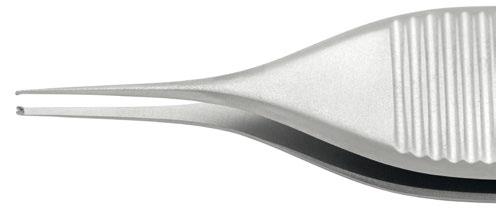

Micro Adson Fixation Forceps
● 12cm/4¾" length
● 1x 2 micro teeth
FF -1
Tips 0.3mm Ø
MICRO FORCEPS
Straight Round Bodied Platform Forceps
● Balanced forceps
Code
FRS -15RM8
FRS -15RM8.1
FRS -18RM8
FRS -18RM8 1 Length 15cm/6" 15cm/6" 18cm/7" 18cm/7" 0.3mm Ø 0.1mm Ø 0.5mm Ø 0.1mm Ø Tip size
Curved Round Bodied Platform Forceps
● Balanced forceps
Code
FRC -15RM8
Weighted distal end perfectly balances forceps in the hand.
Platform tips guarantee parallel
Tip size
FRC -18RM8 Length 15cm/6" 18cm/7" 0.3mm Ø 0.5mm Ø
Sorensen Angled Forceps
● Angled tips
● Balanced forceps Surgical Instruments
Code
FRAS -15RM 8
FRAS -18RM8
15cm/6" 18cm/7"
Platform tips guarantee parallel closure of the tips to allow secure grip on needle.
Tip size
Ø 0.2mm Ø
Angled tips are ideal for use as tying forceps, needle holders and used with the vessel coupler.
DeBakey Atraumatic Round Bodied Forceps
● DeBakey tips 1mm
With balanced end as illustrated* illustrated*
FRS -15RM- 8AT 15cm/6" length
FRS -18RM- 8AT 18cm/7" length
With regular end
FRS -15RB- 8AT 15cm/6" length
FRS -18RB- 8AT 18cm/7" length
MICRO SCISSORS

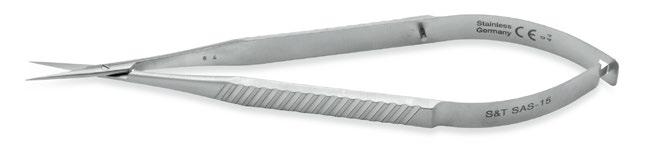

Straight Scissors Flat Handle
Adventitia scissors with pointed tips
Code
SAS -11
SAS -15
SAS -18
Length 11cm/4¼" 15cm/6" 18cm/7" 19mm 19mm* 20mm
Curved Scissors Flat Handle
Dissecting scissors with rounded tips Surgical
Blade length
SDC -11
SDC -15
SDC -18
Length 11cm/4¼" 15cm/6" 18cm/7" 19mm 19mm* 20mm

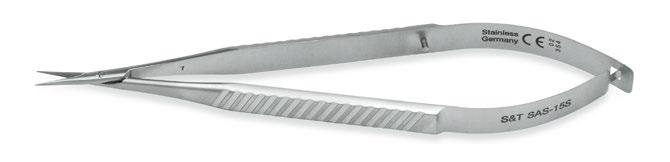

Straight Scissors Flat Handle
● 15cm/6" length
● Short blades 15mm long
SAS -15S
Adventitia scissors with pointed tips
Curved Scissors Flat Handle
● 15cm/6" length
● Short blades 15mm long
SDC -15S
Dissecting scissors with rounded tips
MICRO SCISSORS
Straight Nerve Cutting Scissors Flat Handle
Adventitias scissors with pointed tips
Surgical Instruments of Excellence
SAS -15T SAS -18T Length 15cm/6"* 18cm/7" 19mm 20mm
Blade length Code
Micro serrations for nerve & tendon cutting

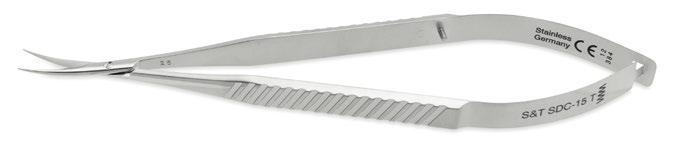

Curved Nerve Cutting Scissors Flat Handle
Dissecting scissors with rounded tips
SDC -15T SDC -18T Length 15cm/6"* 18cm/7" 19mm 20mm
Blade length Code
Micro serrations for nerve & tendon cutting
Super Fine Straight Scissors Flat Handle
● 15cm/6" length
● Blades 14mm long
SAS -15F14
Adventitia scissors with pointed tips

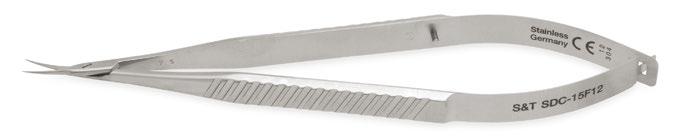

Super Fine Curved Scissors Flat Handle
● 15cm/6" length
● Blades 12mm long
SDC-15F12
Dissecting scissors with rounded tips
MICRO SCISSORS
Straight Scissors Round Handle
Adventitia scissors with pointed tips
SAS -15 R8
SAS -18 R8 Length 15cm/6" 18cm/7" 12mm* 14mm Blade
Curved Scissors Round Handle
Dissecting scissors with rounded tips
*illustrated
SDC -15 R8
SDC -18 R8 Length 15cm/6"* 18cm/7" 12mm 14mm
Super Fine Straight Scissors Round Handle
Adventitia scissors with pointed tips
SAS -15R - 8F14
SAS -18R - 8F14 Length 15cm/6"* 18cm/7" 14mm 14mm

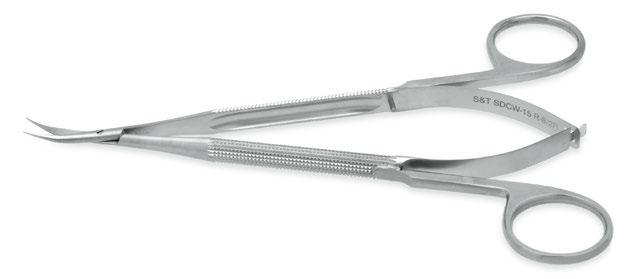

Super Fine Curved Scissors Round Handle
Dissecting scissors with rounded tips *illustrated
Blade length Code
SDC -15R - 8F12
SDC -18R - 8F12 Length 15cm/6"* 18cm/7" 12mm 12mm
MICRO SCISSORS
Blondeel Scissors Round Handle
● Curved blades
These scissors were designed by professor Phillip Blondeel for use in breast reconstruction utilising a perforator flap. A combination of ring handle design for preparation of fine structures, the round handle micro instrument handle allows the user to perform fine micro surgery.
Blade
Surgical Instruments of Excellence

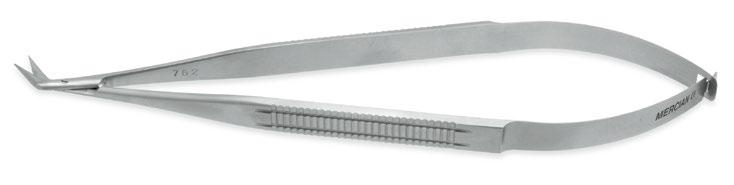

Micro Coronary Scissors Round Handle
● Blades angled to side
● 10mm blades
18cm/7" length
-18
-18
MV3125 - 20 MV3145 - 20
Micro Coronary Scissors Flat Handle
● Blades angled to side
● 10mm blades
- 20
- 20 MV3112 - 20
18cm/7" length
-18
-18
MV3112 -18A
20cm/8" length 125˚ angled*
MV3112 - 20A Swan- neck V- neck
-18
*illustrated Swan-Neck Scissors 125˚ angled
-18 MV3425 -20 MV3445 - 20
- 20
- 20
- 20 20cm/8" length
MV3412-20A Swan- neck V- neck SDC -15R-8-2R SDC -18R-8-2R
MV3412 -18A
MICRO NEEDLE HOLDERS
Castroviejo Micro Needle Holder
● Flat handled
● 0.4mm jaws suitable for 8/0 or smaller sutures
Curved Without Lock
14cm/5½" 18cm/7" C -14 C -18
Super Fine Castroviejo Micro Needle Holder
● 14cm/5½" length
● Flat handled
● 0.2mm jaws suitable for 10/0 and 11/0 sutures
● Curved
Without Lock
C -14.2
0.2mm jaws
Castroviejo Micro Needle Holder
● Flat handled
● Tungsten Carbide jaws
● Straight 1.2mm jaws suitable for 7/0 and 8/0 sutures
With lock
14cm/5½" 18cm/7"
21cm/8¼" 23cm/9"
Serrated jaws
MV1003 -14
MV1003 -18
MV1003- 21
MV1003- 23
Smooth jaws
MV1003 -14S
MV1003 -18S
MV1003- 21S
MV1003- 23S
Without lock
14cm/5½" 18cm/7" 21cm/8¼" 23cm/9"
Serrated jaws
MV1103 -14
MV1103 -18
MV1103- 21
MV1103- 23
MV1103 -14S
MV1103 -18S
MV1103- 21S
MV1103- 23S Smooth jaws
MICRO NEEDLE HOLDERS
Barraquer Micro Needle Holder
● Round bodied
● 0.4mm jaws suitable for 8/0 or finer sutures
13cm/5" 15cm/6" 18cm/7" Straight
BS -13- 8
BS -15- 8
BS -18- 8 B -13- 8 B -15- 8* B -18- 8

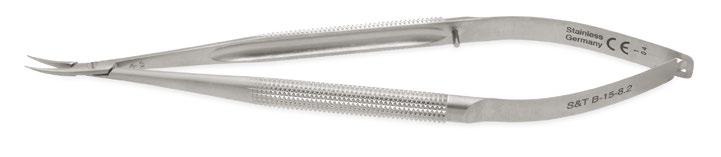

Super Fine Barraquer Micro Needle Holder
● Round bodied
● 0.2mm jaws
● Curved
● Suitable for 10/0 and 11/0 sutures
Without Lock Curved
15cm/6" 18cm/7"
B -15- 8.2 B -18- 8.2
0.2mm jaws
Double Action Micro Needle Holder
● Round bodied
● 0.4mm jaws
● Ideal for confined access
● Suitable for 8/0 and 9/0 sutures
Double action allows a reduced opening of the handle.
Weighted distal end perfectly balances needle holder in the hand.
Without Lock Curved
15cm/6" 18cm/7"
NH -15 RM- 8
NH -18 RM- 8
ACLAND® MICRO CLAMPS
● Light and compact design
● Extremely durable
● A unique gripping surface
● Matt or black finish
● Smooth sliding bar action on all approximator clamps
● Clamp profile with parallel sided jaws
Ordering details:
“A” or “V” Pattern?
The “V” pattern is the all-purpose clamp, used on all veins, and almost all arteries. The “A” pattern, available in all sizes, is designed for exceptionally thick-walled vessels and slippery arteries. The slight incurve of the tips of the “A” pattern jaw provides extra security against slippage.
CLAMPS - packed in pairs
V
A
V
A
V
A
V
A
V
A
V
A
SINGLE
Matt
Black Clamp Vessel Clamping code code size size force
ACLAND® MICRO CLAMPS
Ordering details:
DOUBLE CLAMPS WITH FRAME - frames are used to tie sutures onto during anastomosis
00408 V 00409 A
Matt Black Clamp Vessel Clamping code code size size force 00474 V 00473 A
V 00411 A
V 00413 A
Ordering details:
V 00475 A
V 00477 A

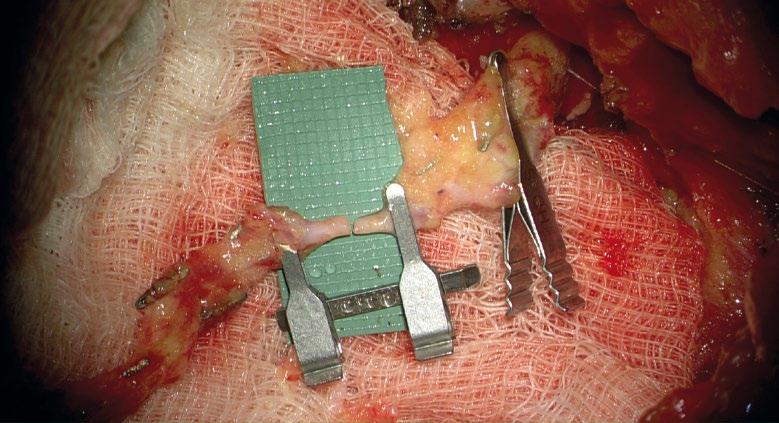

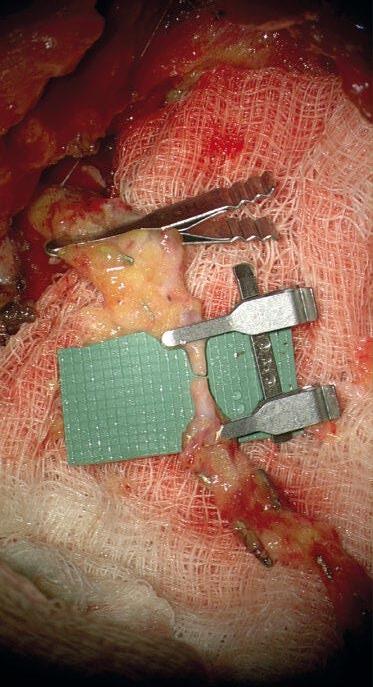

DOUBLE APPROXIMATING CLAMPS - used for end to end anastomosis on small vessels
00414 V 00415 A
Matt Black Clamp Vessel Clamping code code size size force 00480 V 00479 A
V 00417 A
V 00419 A
V 00481 A
-11
- 22
V 00483 A
33
ACLAND® MICRO CLAMPS
Acland Clamp Applicator Forceps
● 14cm/7" length
CAF - 4 Forceps for smaller sizes of the Acland Clamps: B -1 to B- 3
CAF - 5 Forceps for larger sizes of the Acland Clamps: HD- S & RD- S

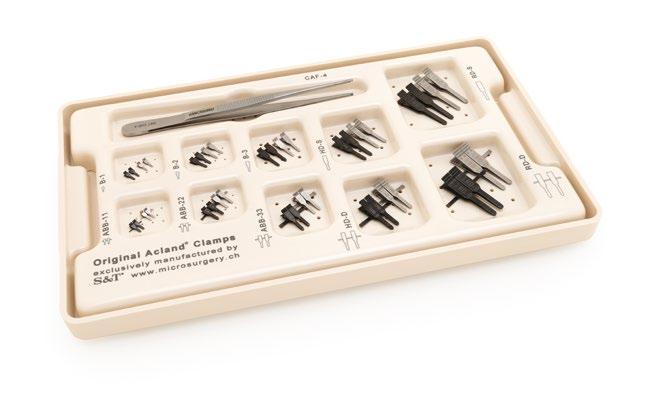

Acland Clamp Container
MV4400- 00
Compartments to store each clamp size

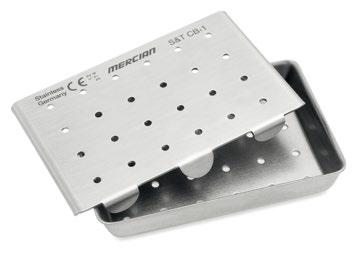

Acland Clamp Box
● With perforated sliding lid, holds a selection of clamp sizes safely
CB -1

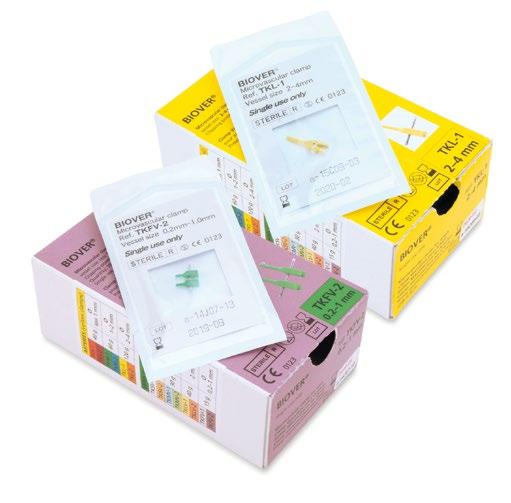

MICRO VESSEL CLAMPS
The Biover ® microvascular clamp is a high precision instrument and has been developed under the guidance of international surgeons.
● Highest quality (Polycarbonate & Stainless Steel)
● Single or double clamps sterile, ready for use
● Four sizes available for veins & three sizes for arterys
● Latex Free and Radiolucent
VEIN CLAMPS
Single Vein Clamps
TKFV -1
Clamping Force 15g/mm²
Double Approximating Clamps
TKFV - 2
Clamping Force 15g/mm²
For vessels between 0.2mm to 1mm Ø
TKSV -1
Clamping Force
20g/mm²
TKMV -1
Clamping Force
30g/mm²
TKSV - 2
Clamping Force 20g/mm²
For vessels less than 1mm Ø
TKMV - 2
Clamping Force 30g/mm²
For vessels between 1mm to 2mm Ø
TKLV -1
Clamping Force 40g/mm²
TKLV - 2
Clamping Force 40g/mm²
For vessels over 2mm Ø
● Exact pressure every use
● Supplied in boxes of 10
● Each box easily identified by a different colour
ARTERIAL CLAMPS
Single Artery Clamps Double Approximating Clamps
TKS -1
Clamping Force 40g/mm²
TKM -1
Clamping Force 60g/mm²
TKS- 2
Clamping Force 40g/mm²
For vessels less than 1mm Ø
TKL- 1
Clamping Force 120g/mm²
TKM- 2
Clamping Force 60g/mm²
For vessels between 1mm to 2mm Ø
TKL- 2
Clamping Force 120g/mm²
For vessels between 2mm to 4mm Ø
10 clamps per box

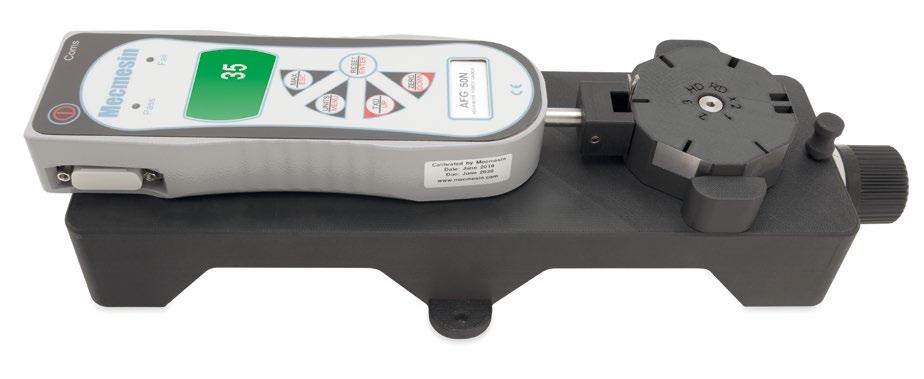

PRESSURE TESTER GAUGE
ACLAND CLAMP PRESSURE TESTER GAUGE
Ensuring your Acland Micro Vessel Clamps are applying the correct pressure onto delicate vessels is an essential consideration for successful anastomosis.
Each size of vessel clamp has its own validated pressure parameters carefully calibrated to the vessel size the clamp is designed to be used on.
This pressure can often vary depending on the age of the clamp and the amount of use.
Vessels can suffer damage if the clamp is applying too much pressure.
Equally if not sufficient pressure is applied then the vessel is not completely occluded resulting in a difficult anastomosis of the vessel with the vessel leaking blood obscuring the operating field.
An annual audit of Acland Micro clamps is recommended to test the pressures thus preventing incidents with non-conforming clamps considered good practice for Microsurgery sets.
Clamp is applied between two sensors on the Clamp Gauge where the applied pressure/force can then be accurately calculated.

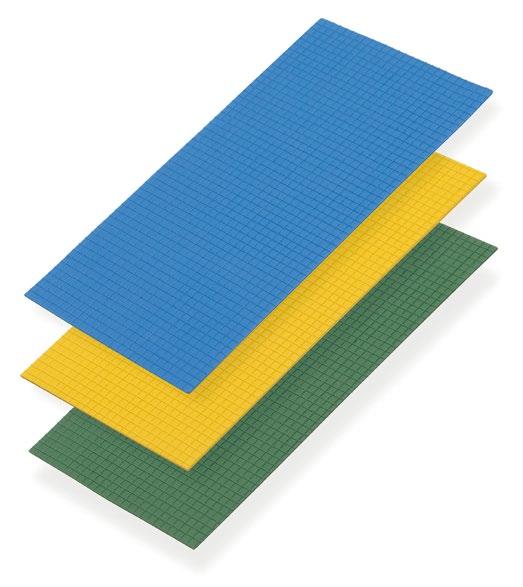

VISIBILITY BACKGROUND MATERIAL
TO ASSIST IN VISUALISING MICRO VESSELS DURING ANASTOMOSIS
Description: Silicon strip with 1mm grid on one side and plain on reverse side, available in blue, green and yellow colours. Packed in boxes of 12 pieces.
Application: For use in micro surgical anastomosis of micro vessels under a microscope to allow the surgeon to better visualise the detail of the vessels, being joined.
The Visibility Material can be used either with the grid side up to give the surgeon a scale of the vessel, alternatively the reverse plain side can also be used.
Th e materia l ha s a non e reflectiv e surfac e eliminating distractions from theatre lighting and has a non-tacky finish to aid mobilisation of the Vessel.
Ordering details:
Supplied sterile in boxes of 12 pieces
1mm grid one side and matt finish on reverse.
Size: 50mm x 25mm
● X- Ray opaque silicon material
● 1mm grid for accurate measurement of vessels
● Latex free material
● Sterile packed in boxes of 12
● Optimal colours to improve visibility of vessel and reduce eye fatigue

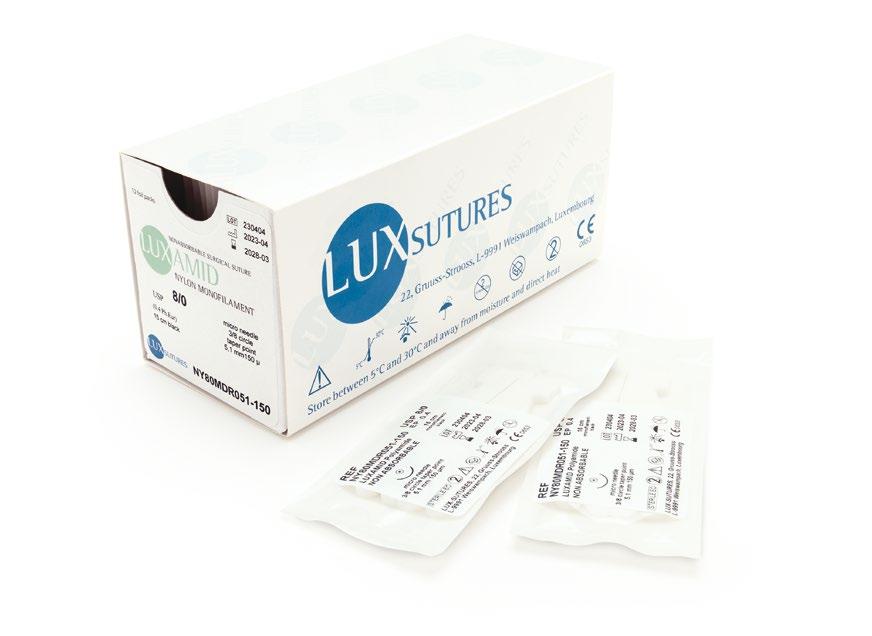

NONABSORBABLE SURGICAL SUTURE NYLON MONOFILAMENT
LUX SUTURES
Micro sutures are designed for easy penetration into vessels and nerves.
Robust enough to withstand repeated penetrations without any unnecessary deterioration of the point. The point design will enter tissues with the least amount of disturbance of neighbouring tissues, supporting fast wound healing.
● Available in sizes 8/0, 9/0,10/0 & 11/0
● 3/8 Taper point needle
Ordering details:
● Sterile packed in boxes of 12
● Nylon thread
Taper point needle precision point honed under the microscope.
3/8 Circle.
MICRO DISSECTION NEEDLES

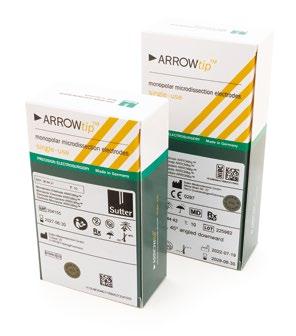

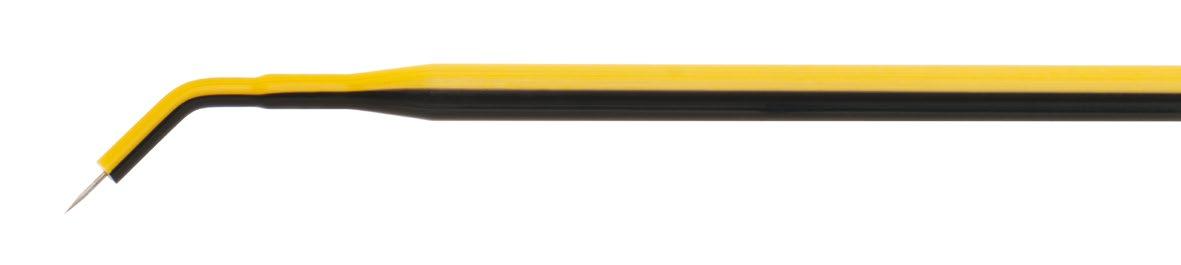

ARROWtip™ Monopolar Microdissection Electrodes
Precision and versatility for your surgical procedures
With their heat resistant, ultra-sharp tip design, the ARROWtip™ monopolar microdissection electrodes provide precision for cutting, tissue dissection and coagulation.
● Ultra-sharp tips for clean and precise dissection of tissue
● Heat-resistant material maintains tip sharpness
● Insulation prevents accidental burns
● Hexagonal shape prevents rotation of the electrode
Sterile packed in boxes of 10
INDICATIONS:
● Skin incisions
● Skin tumors
● Blepharoplasty
Ø 0.3mm tip
● Facelifts
● Tonsillotomy
● Pharyngeal tumors
● Endoscopic ear surgery
● Sinus surgery
● Larynx surgery
36- 44- 20
Sterile packed in boxes of 10
Ø 0.3mm tip
36- 44- 21
Sterile packed in boxes of 10
Ø 0.3mm tip
36- 44- 42
Sterile packed in boxes of 10
MICRO BIPOLAR FORCEPS
Supergliss® Bipolar Forceps Non-Stick Tips
The material specially developed for SuperGliss® non-stick forceps prevents overheating of the tips during coagulation.
12cm/4¾" length Tip size
78- 04- 37SG 0.2mm
78- 02- 37SG 0.4mm
78- 02- 38SG 0.7mm
78- 02- 43SG 1.0mm
Micro tip
Micro tip
Fine tip
Regular tip
18.5cm/7¼" length Tip size
78- 01- 54SG 0.4mm
78- 01- 52SG 0.7mm
78- 01- 51SG 1.0mm

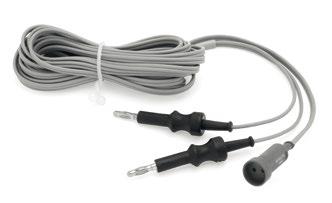

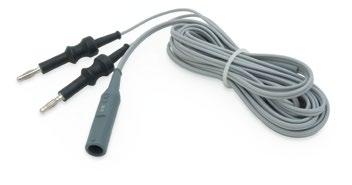

Bipolar Cables
Micro tip
Fine tip
Regular tip
● Fitting Block End Forceps
● Erbe BM780 Machine Fitting
● 4.5 metre length
37- 01- 38L
● Fitting Block End Forceps
● Banana Plug Vallylab Machine Fitting
● 4.5 metre length
37- 01- 35L
Bipolar Coagulation Unit BM780 MK II
A compact Electro Surgery machine
● Offering both Bipolar and Monopolar Coagulation
● Fitting the Mallis 2-Pin Forceps
● Banana Plug Vallylab Machine Fitting
● 4.5 metre length
37- 01- 35S
● Suitable for use in OPD Clinics for Plastic, Maxillofacial and Dermatology Surgery
● 70 Watts
● Footswitch control
36- 00- 80- 01

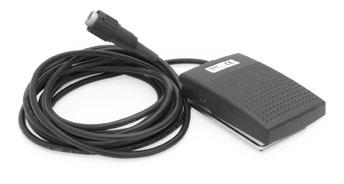

36- 01- 05 Footswitch

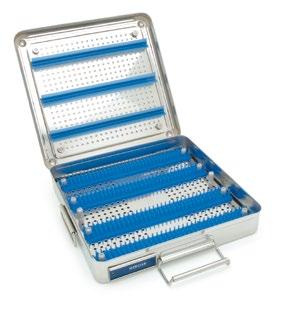

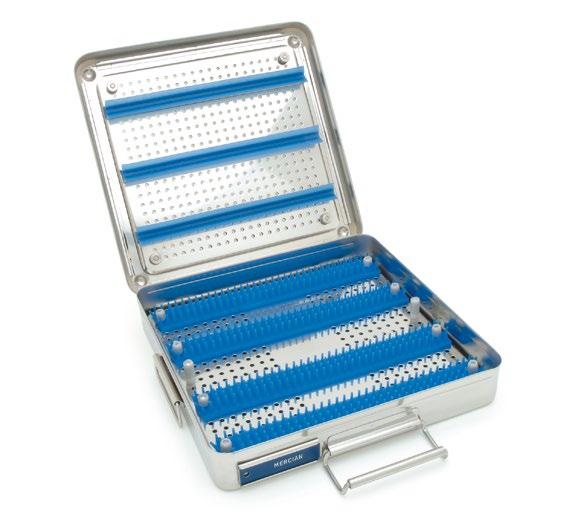

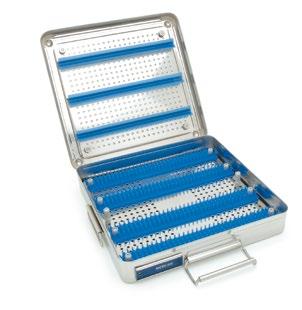

INSTRUMENT CONTAINERS
SINGLE TRAY CONTAINERSc
Internal Dimensions Code
B C
200 x 140 x 50mm
280 x 195 x 50mm
265 x 255 x 50mm
380 x 260 x 50mm
470 x 250 x 50mm
MV4026- 01
MV4026- 04
MV4026- 05
MV4026- 07
MV4026 -10
DOUBLE TRAY CONTAINERS
Internal Dimensions Code
B C
280 x 195 x 65mm
265 x 255 x 65mm
380 x 260 x 65mm
MV4026- 04D
MV4026- 05D
MV4026- 07D

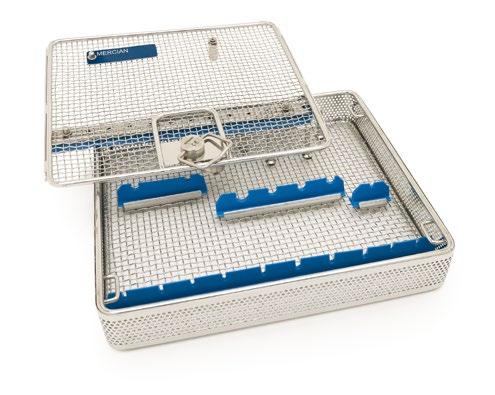

SINGLE TRAY BASKETSc
B C
x 250 x 40mm A9311
DOUBLE TRAY BASKETS
BASIC MICRO INSTRUMENT SET
Mercian offer a Basic Micro Surgery Instrument Set, equiping the surgeon with the basic Instruments for most micro surgery procedures.
Surgical Instruments of Excellence
Mercian Basic Micro Instrument Set
BMS -1
Complete set
Set consisting of the following instruments:
Qty Order code Description
1 MV4026- 05
Micro Scissors
1 SAS-15R8
Micro Instrument Container
Micro Scissors R/B, 15cm straight
1 SDC -15R8 Micro Scissors R/B, 15cm curved
Micro Needle Holders
1 B -15- 8 Micro Needle Holder R/B, 15cm curved
Micro Forceps & Dilator
1 FRS -15RM8 Suture Tying Forceps R/B, 15cm straight
1 FRC -15RM8 Suture Tying Forceps R/B, 15cm curved
2 JF - 5 Jewellers Forceps No.5, 11cm
1 D5a- 3 Micro Vessel Dilator, 11cm, 0.3mm tips
Acland Vessel Clamps & Forceps
1pr 00398V Single Acland Clamps B- 2V
1pr 00400V Single Acland Clamps B- 3V
1pr 00325V Single Acland Clamps HD- S
1 00416V Double Acland Vessel Clamp 2V
1 00418V Double Acland Vessel Clamp 3V
1 00326 Double Acland Vessel Clamp HD- S
1 CAF - 4 Acland Clamp Applying Forceps
1 CB -1 Acland Clamp Box
MICRO NERVE REPAIR SET
A set suitable for hand surgery procedures, for trimming and repairing nerves and tendens.
Mercian Micro Instrument Set for Nerve Repair Surgery
MNS -1
Set consisting of the following instruments:
Qty Order Code Description
1 MV4026 -01 Micro Instrument Container
1 B -15- 8 Micro Needle Holder R/B, 15cm curved
1 SAS -15T Micro Scissors Flat Handled, 15cm straight serrated blade
2 JF- 5 Jewellers Forceps No.5, 11cm
EXTENDED MICRO INSTRUMENT SET
This suggested set includes a comprehensive set of micro instruments to provide all options for complex micro reconstructive surgery procedures. The set includes variations on lengths and tip sizes and styles. Sorenson Angled Forceps are included for use with the coupler.
The Acland vessel clamps are offered in both aterial and venous sizes, covering the full span of vessel diameters.
Mercian Extended Micro Instrument Set
EMS -1
Complete set
Set consisting of the following instruments:
Qty
Order code Description
1 MV4026 -10
Micro Scissors
1 SAS -15R8
1 SDC -15R8
Surgical Instruments of Excellence
Micro Instrument Container
Micro Scissors R/B, 15cm straight
Micro Scissors R/B, 15cm curved
1 SAS -18R8 Longer Micro Scissors R/Bodied, 18cm straight
1 SDC -18R8 Longer Micro Scissors R/Bodied, 18cm curved
1 SAS -15T
Micro Scissors F/Handled, 15cm straight, micro serrations
1 SDC -15T Micro Scissors F/Handled, 15cm straight, micro serrations
Micro Needle Holders
1 B -15- 8 Micro Needle Holder R/Bodied, 15cm curved
1 B -18 - 8 Micro Needle Holder R/Bodied, 18cm curved
Micro Forceps & Dilators
2 D- 5a.2
1 JFCL- 3d.2
1 FRS -15RM-8d.3
1 FRC-15RM-8d.2
Micro Vessel Dilator, 11cm, 0.2mm tips, angled
Micro Vessel Dilator, 13.5cm, 0.2mm tips, curved
Micro Vessel Dilator, 15cm, 0.3mm tips, straight
Micro Vessel Dilator, 15cm, 0.2mm tips, curved
1 FRS-18RM-8d.2 Longer Micro Vessel Dilator, 18cm, 0.2mm tips, straight
1 FRC-18RM-8d.2 Longer Micro Vessel Dilator, 18cm, 0.2mm tips, curved
2 JF - 5
Micro Jewellers Forceps No.5, 11cm, 0.3mm tips
2 MV2505 -15 Micro Jewellers Forceps No.5, longer 15cm, 0.3mm tips
1 FF-1 Micro Fixation Forceps, 12cm, micro 1x 2 teeth
1 FRS -15RM 8 Micro Platform Forceps, R/Bodied, 15cm, straight
1 FRC -15RM 8 Micro Platform Forceps, R/Bodied, 15cm, curved
1 FRAS -18RM 8 Micro Sorenson Forceps, R/Bodied, 18cm, angled tips
1 FRS -18RM 8 Longer Micro Platform Forceps, R/Bodied, 18cm, straight
1 FRC -18RM 8 Longer Micro Platform Forceps, R/Bodied, 18cm, curved
1 FRS -15RM- 8AT Micro DeBakey Forceps, R/Bodied, 15cm, 1.1mm tips
Acland Vessel Clamps & Forceps
1pr 00396V Single Acland Vessel Clamp 1V
1pr 00397A Single Acland Vessel Clamp 1A
1pr 00398V Single Acland Vessel Clamp 2V
1pr 00399A Single Acland Vessel Clamp 2A
1pr 00400V Single Acland Vessel Clamp 3V
1pr 00401A Single Acland Vessel Clamp 3A
1pr 00325 Single Acland Vessel Clamp HD- S
1pr 00286 Single Acland Vessel Clamp RD- S
1 00414V Double Acland Vessel Clamp 1V
1 00415A Double Acland Vessel Clamp 1A
1 00416V Double Acland Vessel Clamp 2V
1 00417A Double Acland Vessel Clamp 2A
1 00418V Double Acland Vessel Clamp 3V
1 00419A Double Acland Vessel Clamp 3A
1 00326
Double Acland Vessel Clamp HD- S
1 00287 Double Acland Vessel Clamp RD- D
1 CAF - 4 Acland Clamp Applying Forceps
1 CB -1 Acland Clamp Box
LONG MICRO INSTRUMENT SET
This suggested set includes a set of micro instruments in a longer 18cm length, to provide an option for the deeper micro reconstructive surgery procedures.
The set includes all our most popular instruments, together with the 3 most popular middle sizes of our Acland vessel clamps regularly selected.
Mercian Long Micro Instrument Set
LMS -1
Set consisting of the following instruments: Complete set
Qty
Order code Description
1 MV4026- 05
Micro Scissors
1 SAS -18R 8
Micro Instrument Container
Surgical
Long Micro Scissors R/Bodied, 18cm straight
1 SDC -18R 8 Long Micro Scissors R/Bodied, 18cm curved
Micro Needle Holders
1 B -18 - 8 Longer Micro Needle Holder R/Bodied, 18cm curved
1 BS -18 - 8 Longer Micro Needle Holder R/Bodied, 18cm straight
Micro Forceps & Dilators
1 D- 5a.2
Micro Vessel Dilator, 11cm, 0.2mm tips, angled
1 FRS -18RM-8d.2 Longer Micro Vessel Dilator, 18cm, 0.2mm tips, straight
1 FRC -18RM-8d.2 Longer Micro Vessel Dilator, 18cm, 0.2mm tips, curved
2 MV2505 -15 Longer Micro Jewellers Forceps No.5, 15cm, 0.3mm tips
1 FRS -18RM 8 Longer Micro Platform Forceps, R/Bodied, 18cm, straight
1 FRC -18RM 8 Longer Micro Platform Forceps, R/Bodied, 18cm, curved
Acland Vessel Clamps & Forceps
1pr 00398V Single Acland Vessel Clamp 2V
1pr 00400V Single Acland Vessel Clamp 3V
1pr 00325 Single Acland Vessel Clamp HD- S
1pr 00286 Single Acland Vessel Clamp RD- S
1 00416V Double Acland Vessel Clamp 2V
1 00418V Double Acland Vessel Clamp 3V 1 00326 Double Acland Vessel Clamp HD- S
1 CAF - 4 Acland Clamp Applying Forceps
1 CB -1 Acland Clamp Box
SUPERFINE MICRO INSTRUMENT SET
This suggested set includes our superfine 0.1mm tip diameter dilators and micro forceps, designed to be used on extremely small vessels during Lymphoedema surgery. The needle holders included, feature very fine 0.2mm jaws to hold the fine 11/0 & 12/0 micro needles, for use on the smallest vessels less than 1mm in diameter.
Mercian Superfine Micro Instrument Set
SFS -1
Complete set
Set consisting of the following instruments:
Qty
Order code Description
1 MV4026 - 05
Micro Scissors
1 SAS -15R - 8F14
1 SDC -15R - 8F12
Micro Needle Holders
1 B -15 - 8.2
Micro Forceps & Dilators
2 D- 5a.1
1 FRS -15RM-8d.1
1 FRC -15RM-8d.2
2 JF - 5.1
2 JFL- 3.1
Micro Instrument Container
Surgical Instruments of Excellence
Superfine Micro Scissors R/Bodied, 15cm straight
Superfine Micro Scissors R/Bodied, 15cm curved
Superfine Micro Needle Holder R/Bodied, 15cm curved 0.2mm
Superfine Micro Vessel Dilator, 11cm, 0.1mm tips, angled
Superfine Micro Vessel Dilator, 15cm, 0.1mm tips, straight
Superfine Micro Vessel Dilator, 15cm, 0.2mm tips, curved
Superfine Micro Jewellers Forceps No.5, 11cm, 0.1mm tips
Superfine Micro Jewellers Forceps 13.5cm, 0.1mm tips
Acland Vessel Clamps & Forceps
1pr 00396V Single Acland Vessel Clamp 1V
1pr 00398V Single Acland Vessel Clamp 2V
1pr 00400V Single Acland Vessel Clamp 3V
1 00414V Double Acland Vessel Clamp 1V
1 00416V Double Acland Vessel Clamp 2V
1 00418V Double Acland Vessel Clamp 3V
1 CAF - 4 Acland Clamp Applying Forceps
1 CB -1 Acland Clamp Box
TENDON HOLDING FORCEPS

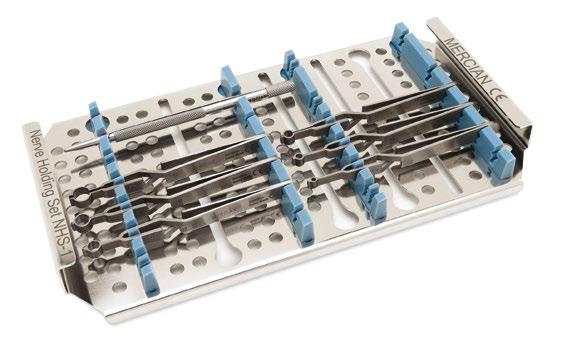

Meyer Nerve/Tendon Holding & Trimming Instrument Set NHS -1
Set of Six Forceps with Container and Blade Holders. CBS - 35 Box of Blades to fit Blade Holder. Set
Sterile Blades ● Box of 12 straight blades
35
1 ICN - 913 Sterilization Rack Holding Forceps
This set was developed to allow the surgeon to hold securely and trim the nerve ends with the correct size holding forceps avoiding trauma to the nerve. There is minimal loss of nerve end with this technique.
Blade Holder
BHS -12 Blade Holder
ARTERIOTOMY CLAMP
The Acland-Banis Arteriotomy Clamp was developed to ovecome the difficulties of creating a hole in the side of a vessel, in an end - to - side anastomosis. The device enables the surgeon to make an arteriotomy with an instrument that cuts the vessel the best -- a knife. The arteriotomy clamp picks up and holds the piece of the vessel wall that is to be excised. Then, with a single curving sweep of a straight blade that is held close against the clamp tip, the ellipse is excised. The result is a perfect arteriotomy, every time.
The clamp is a precision- made, cross - action forceps with a heavy closing pressure and a tapered, rounded, fenestrated tip. The hole in the tip is important because the tissue that is picked up can squeeze into it and be held firmly. There are three sizes of clamps, with tips 1.2, 1.8 and 2.4mm in diameter. Each clamp can cut a different size hole, depending on the depth of the tissue being picked up. Using the set of three clamps, holes can be cut with mean diameter ranging from 1 to 5mm.
USING THE CLAMP
1. Mobilise the vessel so that it can be rotated freely.
2. Apply occluding clamps, keeping the vessel at its natural state of resting tension.
3. Empty the occluded segment by finger pressure while momentarily releasing one clamp.
4. Remove adventitia thoroughly and widely around the planned arteriotomy site.
5. Rotate the vessel so that the site of arteriotomy is seen in clear profile.
6. Have the small vessel in view, with its end prepared and dilated, in order to judge its size.
7. With an arteriotomy clamp of appropriate size, carefully pick up a piece of vessel wall which is half as long and just as wide as the desired arteriotomy.
Arteriotomy Clamp
● Hole size in the tip 1.2mm Ø
ART -12
Arteriotomy Clamp
● Hole size in the tip 1.8mm Ø
ART -18
Arteriotomy Clamp
● Hole size in the tip 2.4mm Ø i iii
ART - 24
Note that because of the pressure which the tip of the clamp exerts, this step is irreversible.
8. With a CBS-35 blade held in metal - to- metal contact with the clamp tip, cut around the tip with a steady sweeping action.
Important!
With practiced use, the size of arteriotomy results is highly predictable. However, we strongly recommend a brief initial practice period on animal or fresh cadaver vessels. These vessels should be stretched out to their natural length and tension to simulate real conditions. Remember that the arteriotomy will be twice as long and just as wide as the piece which is picked up and excised.
SURGEONS OPERATING STOOLS
Backrest
The Severn Operating Stool with Backrest
● Comfortable Surgeon’s seat
● 5 anti-static castors
● Height adjustment with foot plate, height range 55cm to 78cm
GS3221- 67
The Avon Operating Stool without Backrest
GS3221- 65
Adjustable Armrest

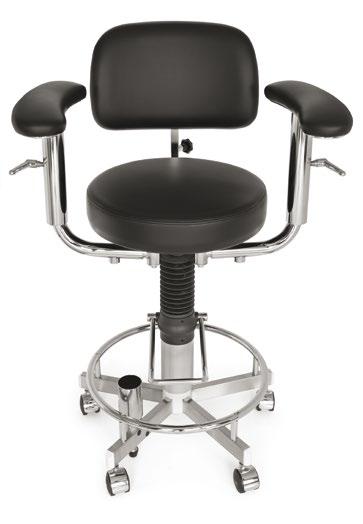

Trent Gas Operated Stool with Armrests
Suitable for all micro surgery including: Neuro, Ophthalmic & ENT Surgery.
● Armrests
● Hydraulic height adjustment with foot pump
● Adjustable backrest
● Foot brake
● Comfortable Surgeon’s seat
● 5 anti-static castors
● Height range 61cm to 76cm
GS3030- 00
Brake
Foot Pump
Foot plate for height adjustment
Foot plate for height adjustment
SURGEONS OPERATING STOOLS
Adjustable Armrest

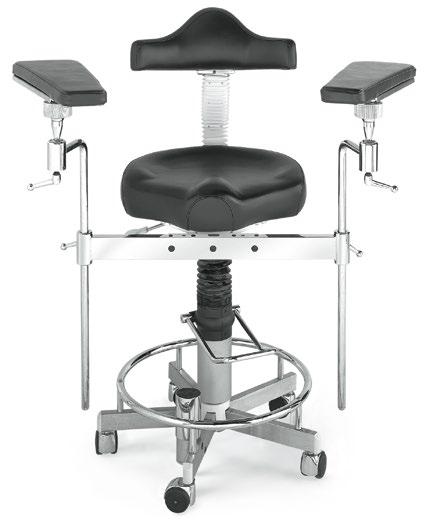

Coburg Micro Surgery Stool
Suitable for all micro surgery including: Neuro, Ophthalmic & ENT Surgery.
● Armrests with swivel ball joints, detachable and autoclavable
● Hydraulic height adjustment with foot pump
● Adjustable backrest
● Foot brake
● Comfortable Surgeon’s seat, either round or saddle shaped
● 5 anti-static castors
● Height range 61cm to 76cm

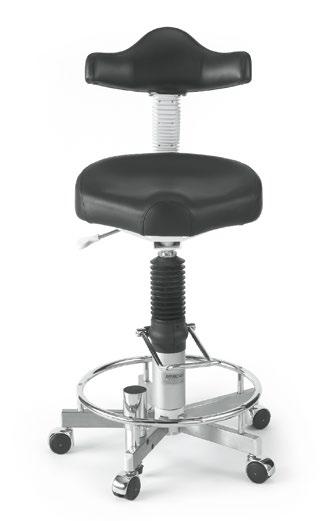

Coburg Stool
Suitable for all disciplines of surgery including: Neuro, Ophthalmic & ENT Surgery.
● Hydraulic height adjustment with foot pump
● Adjustable backrest
● Foot brake
● Comfortable Surgeon’s seat, either round or saddle shaped
● 5 anti-static castors
● Height range 61cm to 76cm
Surgical Instruments of Excellence
GS3016- 00S with Armrests + Saddle Seat
GS3016- 00R with Armrests + Round Seat
GS3014- 00S Saddle Seat without Armrest
GS3014- 00R
Round Seat without Armrest
Brake
Foot Pump
Foot Pump
Brake
CARE OF MICRO INSTRUMENTS
Instructions for reprocessing Micro Instruments
Micro Instruments are delicate in nature and require careful handling to avoid damage.
Precautions:
• Use a container to protect micro instruments from damage during transport and reprocessing.
• New Microsurgery Instruments should be processed 3 times prior to first use, to protect the vulnerable surface of new Instruments.
• Avoid use of mineral acids and harsh, abrasive cleaning agents.
• Do not use saline to clean instruments in Theatres, use sterile water.
• Ensure Instruments are processed following surgery within 3 hours.
• Instruments can be damaged by high alkaline detergents. pH range 8.0–11.0 are preferred.
Instructions From Point of Use:
Do not allow blood, debris or bodily fluids to dry on Microsurgery Instruments. Reprocess as soon as possible after use and within 3 hours of use.
If they cannot be reprocessed immediately, use an enzymatic foam spray cleaner to prevent protein’s from drying on surface.
Cleaning - Automated washer- disinfector machines:
Our Microsurgery Instruments are suitable to be processed through automated washer-disinfector machines which are CE marked and validated to ISO 15883-2:2024
Adhering to: HTM 01-01: Management and decontamination of surgical instruments: Part D - Washer-disinfectors
1. Place Microsurgery Instruments securely in a Mesh Basket/container with hedgehog matting to prevent damage to tips.
2. Use a soft brush to remove debris and blood from Micro Instruments, particularly the Acland Vessel Clamps.
3. Ensure that soft, high purity water which is controlled for bacterial endotoxins is used in the final rinse stage.
Cleaning parameters:
Process:
Washer Disinfector (Thermal)
Autoclaving
Final rise
Sterilization:
Parameters:
90°C (-0°C +5°C) for a minimum of 1 minute
Refer to the Sterilization section of these instructions.
Tap water/Reverse osmosis water is acceptable
Sterilize in a steam autoclave conforming to BS EN 285:2015+A1:2021 at a holding temperature of 134°C to 137°C for between 3 to 3.5 minutes.
Validated to EN ISO 17665:2024
Adhering to: Health Technical Memorandum 01-01: Management and decontamination of surgical instruments. Part C: Steam sterilization
CARE OF MICRO INSTRUMENTS
Magnetism in Micro Instruments
Surgical Instruments of Excellence
Magnetism of micro instruments is common occurrence, but a frustrating aspect of Microsurgery for Surgeons. It is not a reflection on the quality of the Instrument.
What is magnetism
Magnets work because of tiny particles (electrons).
These electrons spin and create small magnetic fields. In most things, these fields cancel out. However, in certain materials, like stainless steel, the tiny magnetic fields align in the same direction.
How do instruments become magnetised
Microsurgical instruments become magnetized over time due to various reasons.
1. Simple friction, contact between instruments against each other.
2. Contact with magnetic mats, used in Operating Theatres to hold instruments.
3. Exposure to magnetic fields in Theatres such as MRI scanners.
Why it's a problem in microsurgery
During microsurgery procedures, where instruments are extremely small, even a small amount of magnetism can cause micro needles to jump onto a needle holder and stick to Jaws of micro needle holders making release difficult. Surgery therefore becomes more difficult prolonging operating time.
Solution:
To demagnetize your micro instruments with a demagnetizer. Demagnetizers work by using electromagnets to create intense, high frequency, alternating current (AC) magnetic fields. This shifts the magnetic field randomly in the instrument so that electrons no longer align in the same direction.
Switch on the demagnetiser. Pass the instrument across the surface of the demagnetiser surface ensuring that you clear the end of the surface by a least a foot on both passes. This should be done repeatedly (perhaps 5 to 10 times) to ensure it is effective. Test on a needle to prove it is successful.
Contact Mercian who will be able to assist with this process.
MC/005/2026
All images and design within this brochure belong to Mercian Surgical and are protected by international copyright laws, reproduction of these images without permission are prohibited. ©
Surgical Instruments of Excellence since1968 established
Mercian Surgical Supply Co. Limited
10 Topaz Business Park, Topaz Way, Bromsgrove, Worcestershire B61 0GD. UK. Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com www.merciansurgical.com
