CHARACTERISTICS OF THE 'TOLLER DESIGN' BUR Three Cutting Blades with very course cross-cut which prevents clogging.

Six Blades provide clean, fast cutting with minimum vibration.

Long Shank permits deep penetration with increased visibility.

Reverse Twist of blades draws irrigating fluid to extreme cutting tip.

Throw-Off Ring prevents fluid from operating area entering the handpiece.

The Toller Tapered Bur features a 3 bladed reverse twist to the cutting edge to prevent the flute clogging up. This blade design also draws the irrigation fluid to the bur tip where it is needed most. ● The longer slim neck allows deeper penetration with increased visibility for the clinician. ● The throw off ring prevents fluid from backing into the handpiece. ● Tungsten Carbide neck ensures optimum strength, performance and durability.

Using a bur rather than a chisel to remove impacted molars reduces the post-operative swelling and discomfort. Avoids the possibility of lingual nerve damage and preserves bone structures.

Recommended technique It is recommended to use both Tapered Fissure and the Round Head Burs as a pair in conjunction to achieve a successful outcome.

When sectioning molars (the process of dividing up the tooth) start from the middle of the tooth;

3. Insert a Couplands Elevator into the fissures created – then rotate the elevator to split the tooth for ease of removal.

N.B; Use of the irrigation prevents both the overheating of the bur, structures and also the clogging of the bur flutes.

DO NOT; 1. Use the Tapered Bur to drill a downward hole in the molar - this has the potential to break the bur as it is not designed to cut on the end - only on the side!

2. Use the Round Head Bur to make the side cut - this results in the slot being too wide not allowing the Coupland Elevator tip enough purchase to twist and split the molar into two sections for easier removal.

1. Use the Toller 2.3mm Round Bur to make a hole in the centre of the molar.

2. Change burs to the Taper Fissure Bur, insert into the hole in the centre and work outwards using a ‘pistoning’ technique together with continual irrigation to ensure the flutes of the burs are kept clean and the cutting is efficient taking care not to apply too much pressure laterally. Deviation from this technique may result in the bur breaking.

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

ORAL SURGERY BURS

Surgical Instruments of Excellence

Toller Round Head Bur ● ●

Tungsten Carbide with blood ring ISO standard 2.35mm Ø shaft

Length

1/1

Length

50mm

70mm

Head size

2.3mm

2.3mm

Code No.

SB0144 -23 SB0170 -23 Sterile packed in boxes of 10

Toller Tapered Fissure Bur ● ●

Tapered Fissure Bur

Tungsten Carbide cross cut with blood ring ISO standard 2.35mm Ø shaft

Tungsten Carbide 50mm length ● Stronger neck ● ●

Cross cut

1/1

Length

50mm

70mm

Length

50mm

Head size

1.6mm

1.6mm

Head size

1.6mm

Code No.

SB0144 -16 SB0170 -16

Code No.

SB0450-16

Sterile packed in boxes of 10

1/1

Sterile packed in boxes of 10

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

1

ORAL SURGERY BURS

Surgical Instruments of Excellence

Round Head Bur Tungsten Carbide 44mm length ● ISO standard 2.35mm Ø shaft ● ●

Head size

1.0mm

1.2mm

1.4mm

1.6mm

1.8mm

2.1mm

44mm length SB1244 -10 SB1244 -12 SB1244 -14 SB1244 -16 SB1244 -18 SB1244 -21

1/1

Head size

2.3mm

2.7mm

3.1mm

4.0mm

5.0mm

6.0mm

44mm length SB1244 -23 SB1244-27 SB0244-31* SB0244-40* SB0244-50* SB0244-60* Sterile packed in boxes of 10

*Only available in stainless steel

Tapered Fissure Bur Tungsten Carbide 44mm length ● Cross cut ● ISO standard 2.35mm Ø shaft ● ●

1/1

Head size

1.0mm

Code No.

SB1444 -10 SB1444 -16 SB1444 -21

1.6mm

2.1mm

Sterile packed in boxes of 10

2

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

ORAL SURGERY BURS

Surgical Instruments of Excellence

Lindemann Side Cutting Burs ●

Stainless steel

35mm 20mm

10mm

Length

45mm

70mm

80mm

Code No.

SB0870-45

SB0870-65

SB0870-75

Sterile packed in boxes of 5

1/1

1/1

1/1

Apicectomy Bur Tungsten Carbide 44mm length ● Stainless steel ● ISO standard 2.35mm Ø shaft ● ●

Head size

0.8mm

Code No.

SB1244-08 Sterile packed in boxes of 10

1/1

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

3

ACRYLIC TRIMMER BURS

Surgical Instruments of Excellence

Bud Bur ● ●

Cross cut Stainless steel

Head size

5.0mm

6.0mm

50mm length Code No. SB0544 -50 SB0544-60 70mm length Code No. SB0570-50 SB0570-60 50mm sterile packed in boxes of 10 70mm sterile packed in boxes of 5

Diamond Dermabrasion Cone Bur ● ●

44mm length Stainless steel

Used in skin resurfacing procedures

Head size

7.0mm

Code No.

SB1644-70

1/1

Sterile packed in boxes of 5

4

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

ENT BURS

Surgical Instruments of Excellence

ENT Rosen Cutting Bur ● ●

70mm length Stainless steel

Head size

1.0mm

1.8mm

2.3mm

3.1mm

Code No. SB1170 -10 SB1170 -18 SB1170 -23 SB1170 -31

3.5mm

4.0mm

5.0mm

6.0mm

SB1170 -35 SB1170 -40 SB1170 -50 SB1170 -60

1/1

Sterile packed in boxes of 5

ENT Diamond Polishing Bur ● ●

70mm length Stainless steel

Head size

1.0mm

Code No.

SB1470 -10 SB1470 -15 SB1470 -18 SB1470 -23

3.0mm

1.5mm

4.0mm

1.8mm

5.0mm

2.3mm

6.0mm

SB1470 -30 SB1470 -40 SB1470 -50 SB1470 -60 1/1

Sterile packed in boxes of 5

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

5

SURGICAL HANDPIECES

Surgical Instruments of Excellence

Straight Oral Surgery Handpiece 1:1 transmission For 44mm + 50mm length burs ● Max speed 40,000RPM ● ●

PMRM1124

Irrigation nozzle

231-14- 03

Straight High Speed Handpiece 1:2 transmission For 44mm + 50mm length burs ● Max speed 80,000RPM ● ●

1600436-001

Single use bur guard prevents fluid ingress into handpiece

Bur Guard Single Use

1501317

Straight Oral Surgery Handpiece 1:1 transmission For 44mm + 50mm length burs ● Max speed 40,000RPM ● ●

MT1124-00

Contra-Angled Handpiece 1:1 transmission For latch burs ● Max speed 40,000RPM ● External irrigation ● ●

1600200- 001

Micro Rose Head Apicectomy Bur Plain cut 10mm length ● Stainless steel ● ●

Head size

0.6mm

1.0mm

Code No.

SB0110-06

SB0110-10

Sterile packed in boxes of 5

6

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

SURGICAL HANDPIECES

Surgical Instruments of Excellence

Straight Surgical Handpiece 1:1 transmission For 70mm length burs ● Max speed 40,000RPM ● ●

Irrigation nozzle

1600206 - 001

1500096-001

Angled Surgical Handpiece 1:1 transmission For 70mm length burs ● Max speed 40,000RPM ● ●

1600207- 001 Irrigation nozzle

1500096-001

Irrigation nozzle

1500097-001

Irrigation nozzle

1500096-001

Angled LONG Handpiece 1:1 transmission For 95mm length burs ● Max speed 40,000RPM ● ●

1600336- 001

Angled High Speed Handpiece 2x speed multiplier For 70mm length burs ● Max speed 80,000RPM ● ●

1600295- 001

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

7

MICRO SAW HANDPIECES

Surgical Instruments of Excellence

Reciprocating Micro Saw Handpiece ● ●

Max speed 15,000RPM Blade thickness 0.25mm

68-24 -10

Sterile packed blades in boxes of 12

14mm

18mm

Spanner

68-24 -13

68-24-14

68-24-20

22mm

26mm

68-24 -15

68-24-16

Osseoscalpel Micro Saw Handpiece Ideal for use on cranial bone Max. speed 20,000RPM ● Blade thickness 0.35mm ● ●

68-24-05

Sterile packed blades in boxes of 12 Spanner 68-24-20

8

18mm

24mm

68-24 -36

68-24-37

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

MICRO SAW HANDPIECES

Surgical Instruments of Excellence

Sagittal Micro Saw Handpiece ● ●

Max speed 20,000RPM Blade thickness 0.35mm

68-24 -02

Sterile packed blades in boxes of 12

6mm 15mm

Spanner

68-24-72

68-24-20

12mm

10mm 15mm

27mm

68-24 -73

68-24-74

Oscillating Micro Saw Handpiece ● ●

Max speed 15,000RPM Blade thickness 0.3mm

68-24-00

Spanner

Sterile packed blades in boxes of 5

68-24-20

14mm

6mm

10mm

15mm

68-24-24

68-24-25

68-24-26

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

9

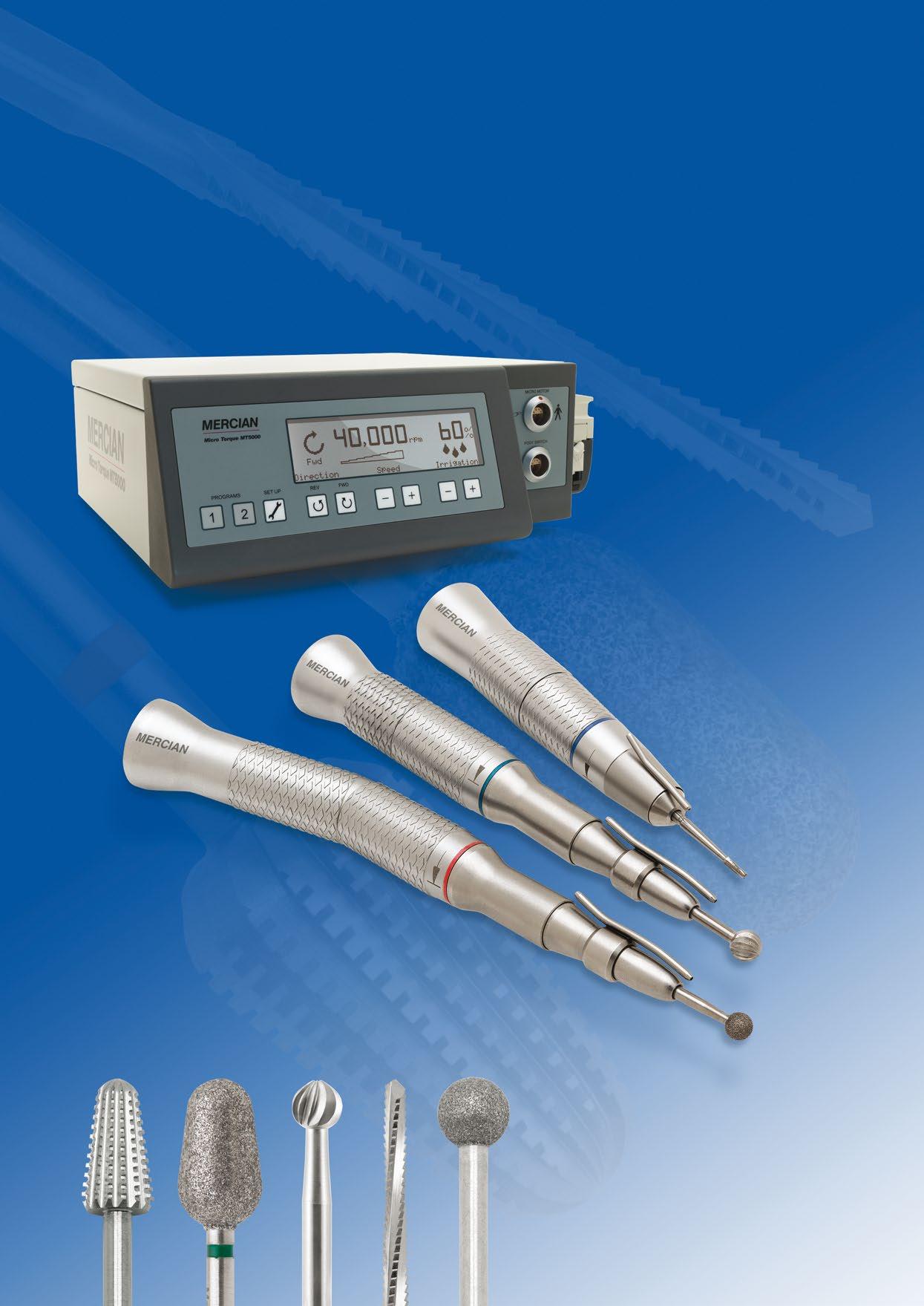

SURGICAL DRILL SYSTEM The MT5000 Micro Torque Surgical Drill is a multi speciality system, equipped with a state of the art powerful micro motor which is reliable and compatible with current handpieces.

Surgical Instruments of Excellence

The precisely controlled Irrigation System irrigates to optimise cutting efficiency.

The variation of handpieces available are ideally suited to Maxillo Facial and ENT Surgery.

Autoclavable micro motor Irrigation system ● Digital display ● Programmable settings ● Full handpiece range ● ●

Controlled Irrigation allows simple set up with lower settings for ENT Surgery

Controlled Irrigation Flow up to 100ml per minute Programmable Micro Motor Speed up to 40,000 RPM Forward & Reverse

Autoclavable Micro Motor self cooling, max 40,000 RPM

10

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

SURGICAL DRILL SYSTEM

Surgical Instruments of Excellence

Electronic Console with Irrigation Pump Micro processor controles Irrigation flow levels ● Forward & reverse direction ● 2 preset programmes ● ●

Code No.

MT5010-00

Irrigation Pump ●

Forward & reverse

Precise flow rates from 5ml up to 100ml per minute

Irrigation On/Off

Multifunction Footswitch Control Switches irrigation on & off Changes direction of Micro Motor forward & reverse ● Control of Micro Motor speed ● ●

Code No.

MT5011-00

Foot pedal to control speed

Mobile Stand ● ●

Drawer to hold accessories Convenient mobile platform for system

Code No.

MT5017-00

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

11

MICRO MOTOR & ACCESSORIES

Surgical Instruments of Excellence

Basch Micro Motor with Cable Speed from 500 to 40,000RPM Brushless design allows sterilization in an autoclave ● High torque micro motor 40 Ncm ● Intra fitting for handpieces ● Weight 115grams ● ●

Complete Motor and Cable Set

MT5012-00

Micro Motor only

MT5013-00

Cable only

MT5014-00

Sterile Irrigation Tubing MT5243-00

Sterile packed in boxes of 10

49-97-02

Wire Sterilising Basket for Motor Cable

MT5016-00

1600064-006

Clips

Lubrifluid Spray for Handpieces 500ml Can

For fixing sterile irrigation tubing onto cable (pack of 10)

(box of 6 cans) 1600064-006/1 (single can)

12

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

BIPOLAR FORCEPS

Surgical Instruments of Excellence

Bipolar Forceps

12.5cm/5" length

Tip size

700-600-011S

1mm

15cm/6" length

Tip size

700-600-039S

1.5mm

Regular tip

Broad tip

Bipolar Cables 37-01-38L

37-01-35L

Fitting Block End Forceps ● Erbe BM780 Machine Fitting ● 4.5 metre length

Fitting Block End Forceps ● Banana Plug Vallylab Machine Fitting ● 4.5 metre length

●

●

37-01-35S

Fitting the Mallis 2-Pin Forceps ● Banana Plug Vallylab Machine Fitting ● 4.5 metre length ●

Bipolar Coagulation Unit BM780 MK II ● ●

70 Watts Foot switch control

36-00-80-01 36-01-05

Tel: +44 (0) 844 879 1133 Email: info@merciansurgical.com

Foot Switch

13
