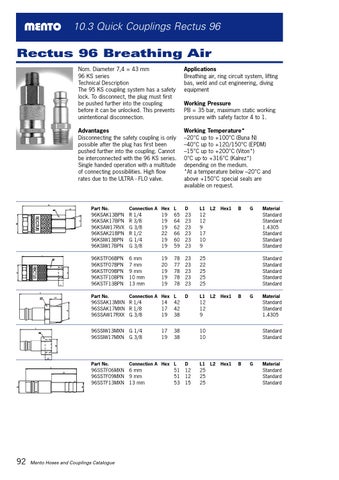

10.3 Quick Couplings Rectus 96
Rectus 96 Breathing Air Nom. Diameter 7,4 = 43 mm 96 KS series Technical Description The 95 KS coupling system has a safety lock. To disconnect, the plug must first be pushed further into the coupling before it can be unlocked. This prevents unintentional disconnection.
Applications Breathing air, ring circuit system, lifting bas, weld and cut engineering, diving equipment
Advantages Disconnecting the safety coupling is only possible after the plug has first been pushed further into the coupling. Cannot be interconnected with the 96 KS series. Single handed operation with a multitude of connecting possibilities. High flow rates due to the ULTRA - FLO valve.
Working Temperature* –20°C up to +100°C (Buna N) –40°C up to +120/150°C (EPDM) –15°C up to +200°C (Viton*) 0°C up to +316°C (Kalrez*) depending on the medium. *At a temperature below –20°C and above +150°C special seals are available on request.
Part No.
Connection A Hex L
D
L1
96KSAK13BPN 96KSAK17BPN 96KSAW17RVX 96KSAK21BPN 96KSIW13BPN 96KSIW17BPN
R 1/4 R 3/8 G 3/8 R 1/2 G 1/4 G 3/8
19 19 19 22 19 19
65 64 62 66 60 59
23 23 23 23 23 23
12 12 9 17 10 9
Standard Standard 1.4305 Standard Standard Standard
96KSTF06BPN 96KSTF07BPN 96KSTF09BPN 96KSTF10BPN 96KSTF13BPN
6 mm 7 mm 9 mm 10 mm 13 mm
19 20 19 19 19
78 77 78 78 78
23 23 23 23 23
25 22 25 25 25
Standard Standard Standard Standard Standard
Part No.
L2
Connection A Hex L
D
L1
L2
Hex1
Hex1
B
B
G
G
Material
Material
96SSAK13MXN R 1/4 96SSAK17MXN R 1/8 96SSAW17RXX G 3/8
14 17 19
42 42 38
12 12 9
Standard Standard 1.4305
96SSIW13MXN 96SSIW17MXN
G 1/4 G 3/8
17 19
38 38
10 10
Standard Standard
Part No.
Connection A Hex L
96SSTF06MXN 6 mm 96SSTF09MXN 9 mm 96SSTF13MXN 13 mm
92
Working Pressure PB = 35 bar, maximum static working pressure with safety factor 4 to 1.
Mento Hoses and Couplings Catalogue
51 51 53
D
L1
12 12 15
25 25 25
L2
Hex1
B
G
Material
Standard Standard Standard
