1 Air/Water Hoses

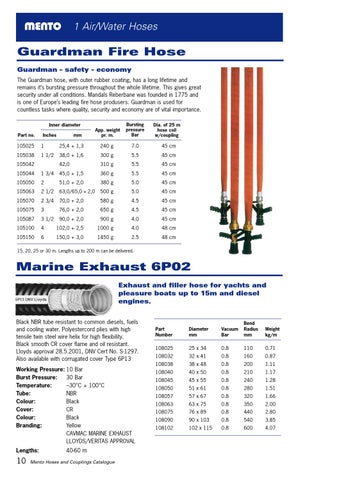

Guardman Fire Hose Guardman – safety – economy The Guardman hose, with outer rubber coating, has a long lifetime and remains it’s bursting pressure throughout the whole lifetime. This gives great security under all conditions. Mandals Reberbane was founded in 1775 and is one of Europe’s leading fire hose produsers. Guardman is used for countless tasks where quality, security and economy are of vital importance.
App. weight pr. m.
Bursting pressure Bar
Inner diameter Part no.
Inches
mm
Dia. of 25 m hose coil w/coupling
105025
1
25,4 + 1,3
240 g
7.0
45 cm
105038
1 1/2
38,0 + 1,6
300 g
5.5
45 cm
42,0
310 g
5.5
45 cm
105042 105044
1 3/4
45,0 + 1,5
360 g
5.5
45 cm
105050
2
51,0 + 2,0
380 g
5.0
45 cm
105063
2 1/2
63,0/65,0 + 2,0
500 g
5.0
45 cm
105070
2 3/4
70,0 + 2,0
580 g
4.5
45 cm
105075
3
76,0 + 2,0
650 g
4.5
45 cm
105087
3 1/2
90,0 + 2,0
900 g
4.0
45 cm
105100
4
102,0 + 2,5
1000 g
4.0
48 cm
105150
6
150,0 + 3,0
1450 g
2.5
48 cm
15, 20, 25 or 30 m. Lengths up to 200 m can be delivered.
Marine Exhaust 6P02 Exhaust and filler hose for yachts and pleasure boats up to 15m and diesel engines. Black NBR tube resistant to common diesels, fuels and cooling water. Polyestercord plies with high tensile twin steel wire helix for high flexibility. Black smooth CR cover flame and oil resistant. Lloyds approval 28.5.2001, DNV Cert No. S-1297. Also available with corrugated cover Type 6P13 Working Pressure: 10 Bar Burst Pressure: 30 Bar Temperature: –30°C + 100°C Tube: NBR Colour: Black Cover: CR Colour: Black Branding: Yellow CAVMAC MARINE EXHAUST LLOYDS/VERITAS APPROVAL Lengths:
10
40-60 m
Mento Hoses and Couplings Catalogue
Part Number
Diameter mm
Vacuum Bar
Bend Radius mm
Weight kg/m
108025
25 x 34
0.8
110
0.71
108032
32 x 41
0.8
160
0.87
108038
38 x 48
0.8
200
1.11
108040
40 x 50
0.8
210
1.17
108045
45 x 55
0.8
240
1.28
108050
51 x 61
0.8
280
1.51
108057
57 x 67
0.8
320
1.66
108063
63 x 75
0.8
350
2.00
108075
76 x 89
0.8
440
2.80
108090
90 x 103
0.8
540
3.85
108102
102 x 115
0.8
600
4.07
