SPORT

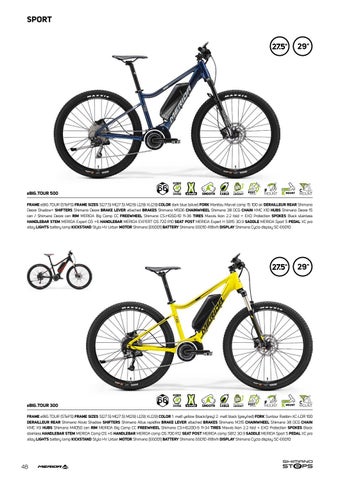

eBIG.TOUR 500 FRAME eBIG.TOUR (STePS) FRAME SIZES S(27.5) M(27.5) M(29) L(29) XL(29) COLOR dark blue (silver) FORK Manitou Marvel comp 15 100 air DERAILLEUR REAR Shimano Deore Shadow+ SHIFTERS Shimano Deore BRAKE LEVER attached BRAKES Shimano M506 CHAINWHEEL Shimano 38 DCG CHAIN KMC X10 HUBS Shimano Deore 15 cen / Shimano Deore cen RIM MERIDA Big Comp CC FREEWHEEL Shimano CS-HG50-10 11-36 TIRES Maxxis Ikon 2.2 fold + EXO Protection SPOKES Black stainless HANDLEBAR STEM MERIDA Expert OS +6 HANDLEBAR MERIDA EXPERT OS 720 R10 SEAT POST MERIDA Expert H SB15 30.9 SADDLE MERIDA Sport 5 PEDAL XC pro alloy LIGHTS battery lamp KICKSTAND Stylo HV Urban MOTOR Shimano [E6001] BATTERY Shimano E6010 418Wh DISPLAY Shimano Cyclo display SC-E6010
eBIG.TOUR 300 FRAME eBIG.TOUR (STePS) FRAME SIZES S(27.5) M(27.5) M(29) L(29) XL(29) COLOR 1. matt yellow (black/grey) 2. matt black (grey/red) FORK Suntour Raidon-XC-LOR 100 DERAILLEUR REAR Shimano Alivio Shadow SHIFTERS Shimano Altus rapidfire BRAKE LEVER attached BRAKES Shimano M315 CHAINWHEEL Shimano 38 DCG CHAIN KMC X9 HUBS Shimano M4050 cen RIM MERIDA Big Comp CC FREEWHEEL Shimano CS-HG200-9 11-34 TIRES Maxxis Ikon 2.2 fold + EXO Protection SPOKES Black stainless HANDLEBAR STEM MERIDA Comp OS +6 HANDLEBAR MERIDA comp OS 700 R12 SEAT POST MERIDA comp SB12 30.9 SADDLE MERIDA Sport 5 PEDAL XC pro alloy LIGHTS battery lamp KICKSTAND Stylo HV Urban MOTOR Shimano [E6001] BATTERY Shimano E6010 418Wh DISPLAY Shimano Cyclo display SC-E6010
48
