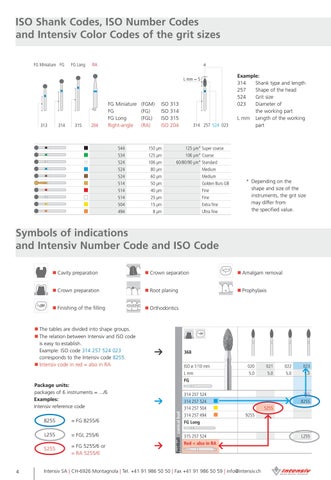

ISO Shank Codes, ISO Number Codes and Intensiv Color Codes of the grit sizes ø L mm = 5
313
314
315
204
FG Miniature FG FG Long Right-angle
(FGM) (FG) (FGL) (RA)
ISO ISO ISO ISO
313 314 315 204
314 257 524 023
Example: 314 Shank type and length 257 Shape of the head 524 Grit size 023 Diameter of the working part L mm Length of the working part
* Depending on the shape and size of the instruments, the grit size may differ from the specified value.
Symbols of indications and Intensiv Number Code and ISO Code Cavity preparation
Crown separation
Amalgam removal
Crown preparation
Root planing
Prophylaxis
Finishing of the filling
Orthodontics
The tables are divided into shape groups. The relation between Intensiv and ISO code is easy to establish. Example: ISO code 314 257 524 023 corresponds to the Intensiv code 8255. Intensiv code in red = also in RA
4
8255
= FG 8255/6
L255
= FGL 255/6
5255
= FG 5255/6 or = RA 5255/6
Football conical bud
Package units: packages of 6 instruments = .../6 Examples: Intensiv reference code
