Thermal Insulation

Typical Applications For Thermotron

350®:

• Insulation System for Flow-lines

• Insulation System for Production Risers

• Insulation System for Hull piping

• Insulation System for Tie-backs

• Insulation System for Spool

Typical Applications For Thermotron

350®:

1. The first layer is a corrosion coating that provides the pipe surface (the pipe is first steel grit blasted) with a film that is highly resistant to chemical attack and to cathodic disbondment.

2. The second layer consists of a bonding agent that works as a bonding layer between the top coat and the first layer of corrosion coating.

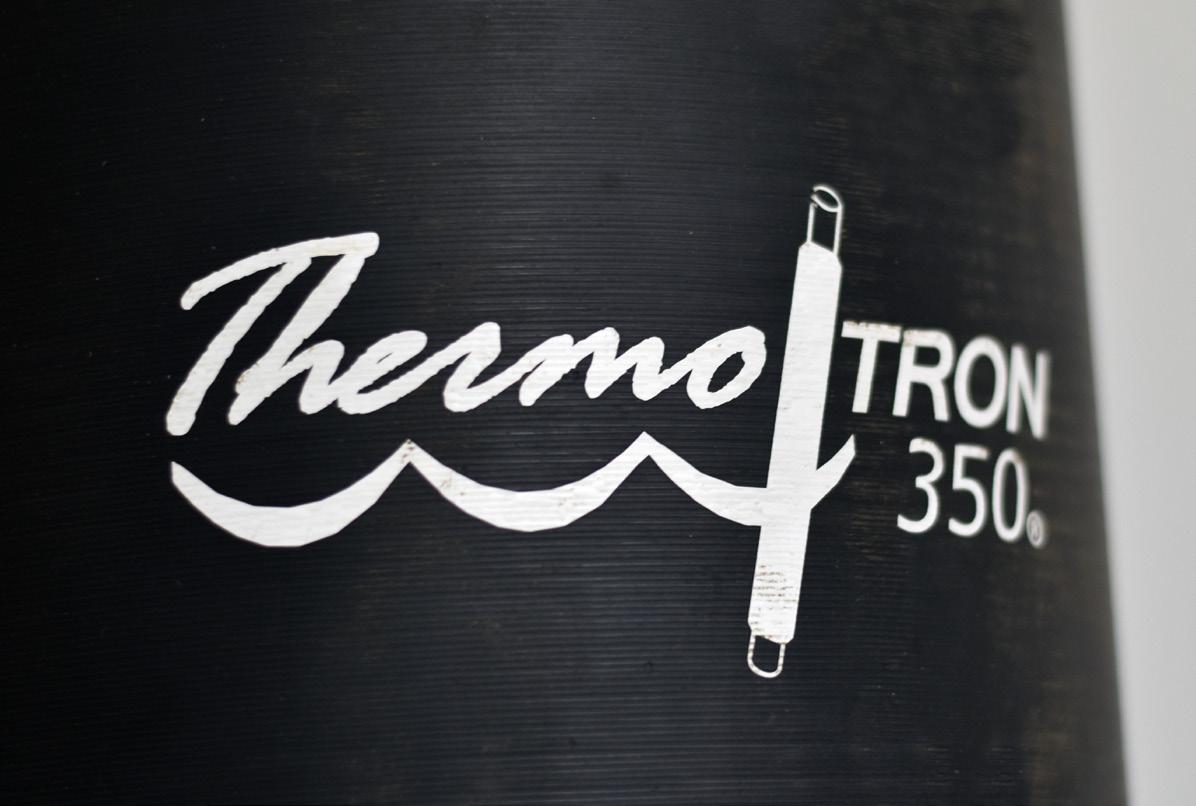

3. The third layer consists of extruded ThermoTRON 350™ 1” thick depending on the service conditions (the thickness could vary). The function of the third layer is to provide the system with excellent thermal insulation properties and both anticorrosive and mechanical protection.
