4. The Grid
E. +1 Grid
Advertisement

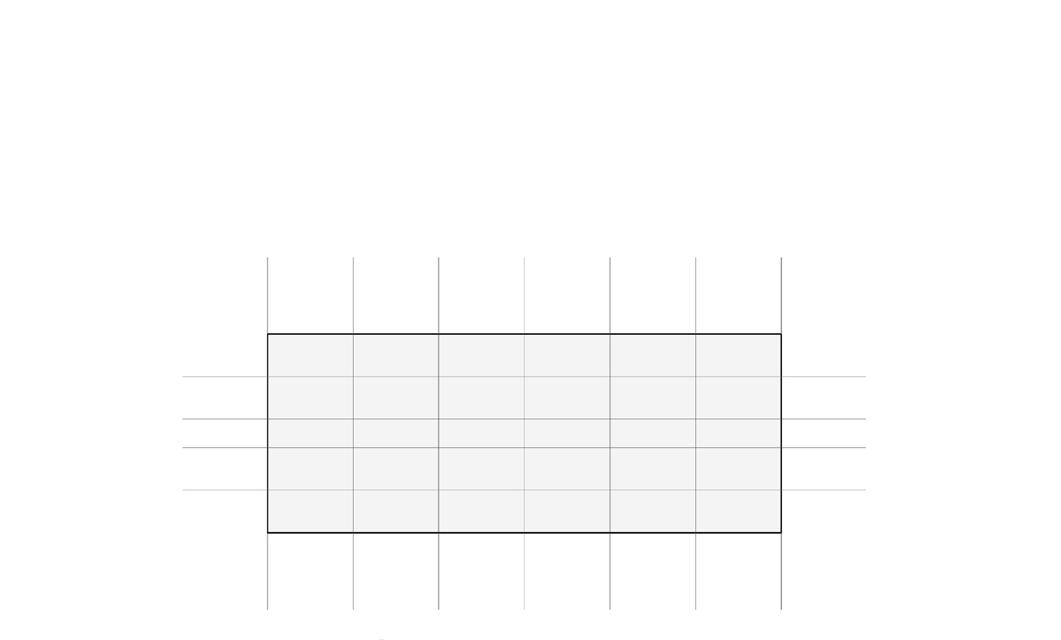

1. A +1 Grid system allows for a regular grid with an additional value on either axis which can create access ways throughout the floorplate.
2. If implemented, the +1 must be used as a passage way, corridor or any other circulation method the architect and inhabitant may see fit.

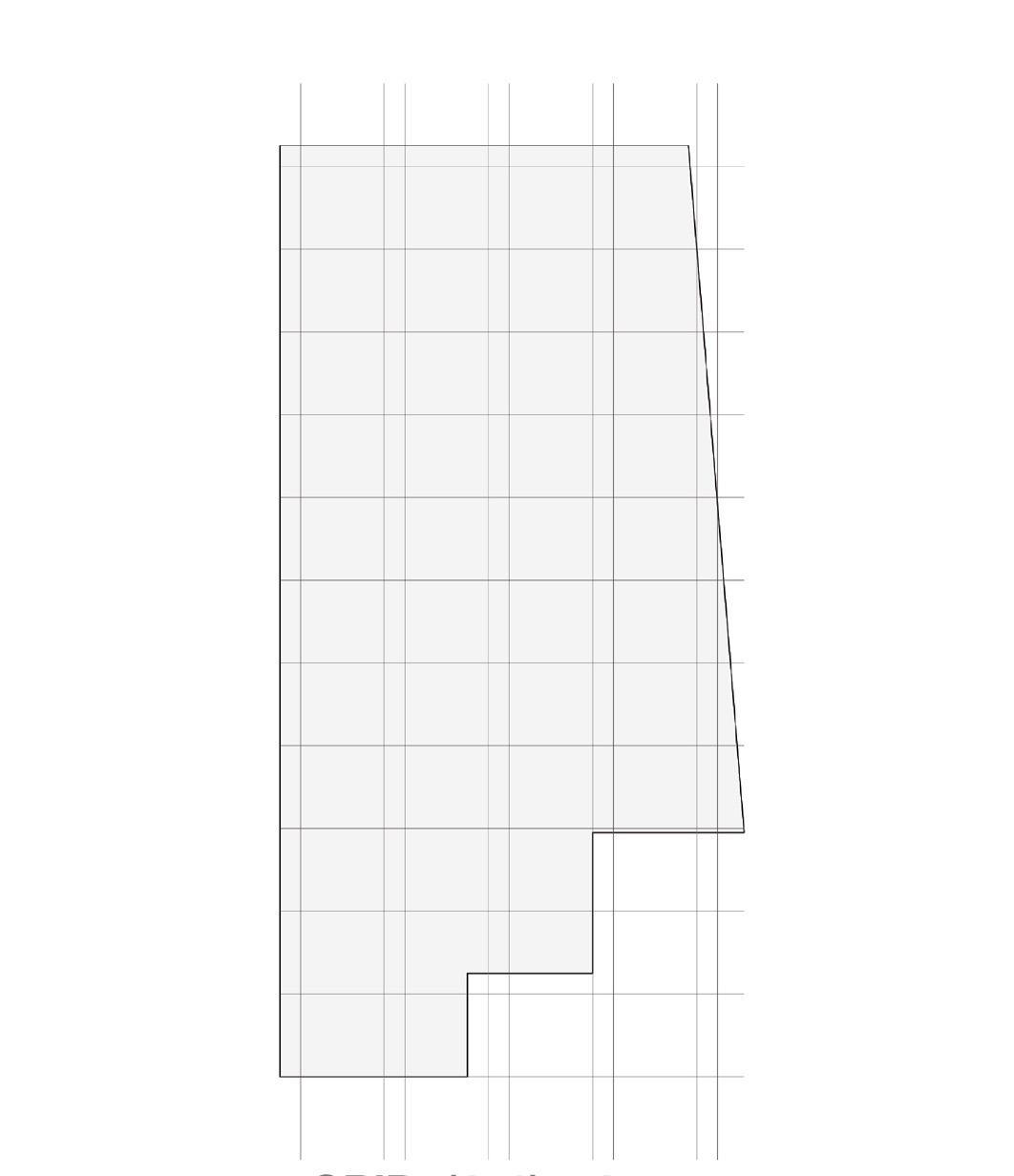

Site on Botany Road, Alexandria. This site uses a (4+1)x4m grid, which is a 4x4m grid with an additional meter for the corridors.
Alongside the +1, there are services and ammenties for all the residents of the building.
Site on Fotheringham Lane, Marrickville. This site uses a (4+1)x4m grid, which is a 4x4m grid with an additional meter for the corridors.
Alongside the +1, there are services and ammenties for all the residents of the building.
