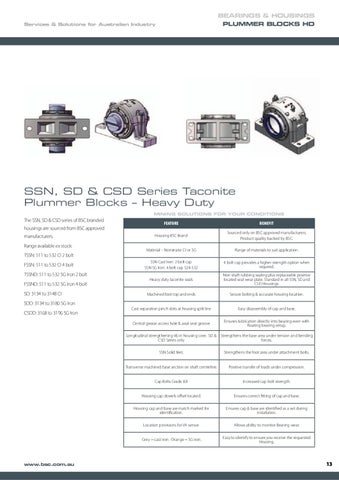

BEArINGS & hoUSINGS PlUMMEr BlockS hD
Services & Solutions for Australian Industry
SSn, Sd & cSd Series taconite Plummer Blocks – Heavy duty MINING SolUTIoNS for YoUr coNDITIoNS
The SSN, SD & CSD series of BSC branded housings are sourced from BSC approved manufacturers. Range available ex stock: TSSN: 511 to 532 CI 2 bolt FSSN: 511 to 532 CI 4 bolt TSSND: 511 to 532 SG Iron 2 bolt FSSND: 511 to 532 SG Iron 4 bolt SD: 3134 to 3148 CI SDD: 3134 to 3180 SG Iron CSDD: 3168 to 3196 SG Iron
FeaTure
BeneFiT
Housing BSC Brand
Sourced only on BSC approved manufacturers. Product quality backed by BSC.
Material – Nominate: CI or SG
Range of materials to suit application.
SSN Cast Iron: 2 bolt cap SSN SG Iron: 4 bolt cap 524-532
4 bolt cap provides a higher strength option when required.
Heavy duty taconite seals
Non shaft rubbing sealing plus replaceable positive located seal wear plate. Standard in all SSN, SD and CSD Housings.
Machined foot top and ends
Secure bolting & accurate housing location.
Cast separation pinch slots at housing split line
Easy disassembly of cap and base.
Central grease access hole & axial seat groove
Ensures lubrication directly into bearing even with floating bearing setup.
Longitudinal strengthening rib in housing core. SD & Strengthens the base area under tension and bending CSD Series only forces.
www.bsc.com.au
SSN Solid feet.
Strengthens the foot area under attachment bolts.
Transverse machined base section on shaft centreline.
Positive transfer of loads under compression.
Cap Bolts Grade 8.8
Increased cap bolt strength.
Housing cap dowels offset located.
Ensures correct fitting of cap and base.
Housing cap and base are match marked for identification.
Ensures cap & base are identified as a set during installation.
Location provisions for VA sensor
Allows ability to monitor Bearing wear.
Grey = cast iron. Orange = SG iron.
Easy to identify to ensure you receive the requested Housing.
13
