W Power Consumption

Low Voltage, Recessed Profile

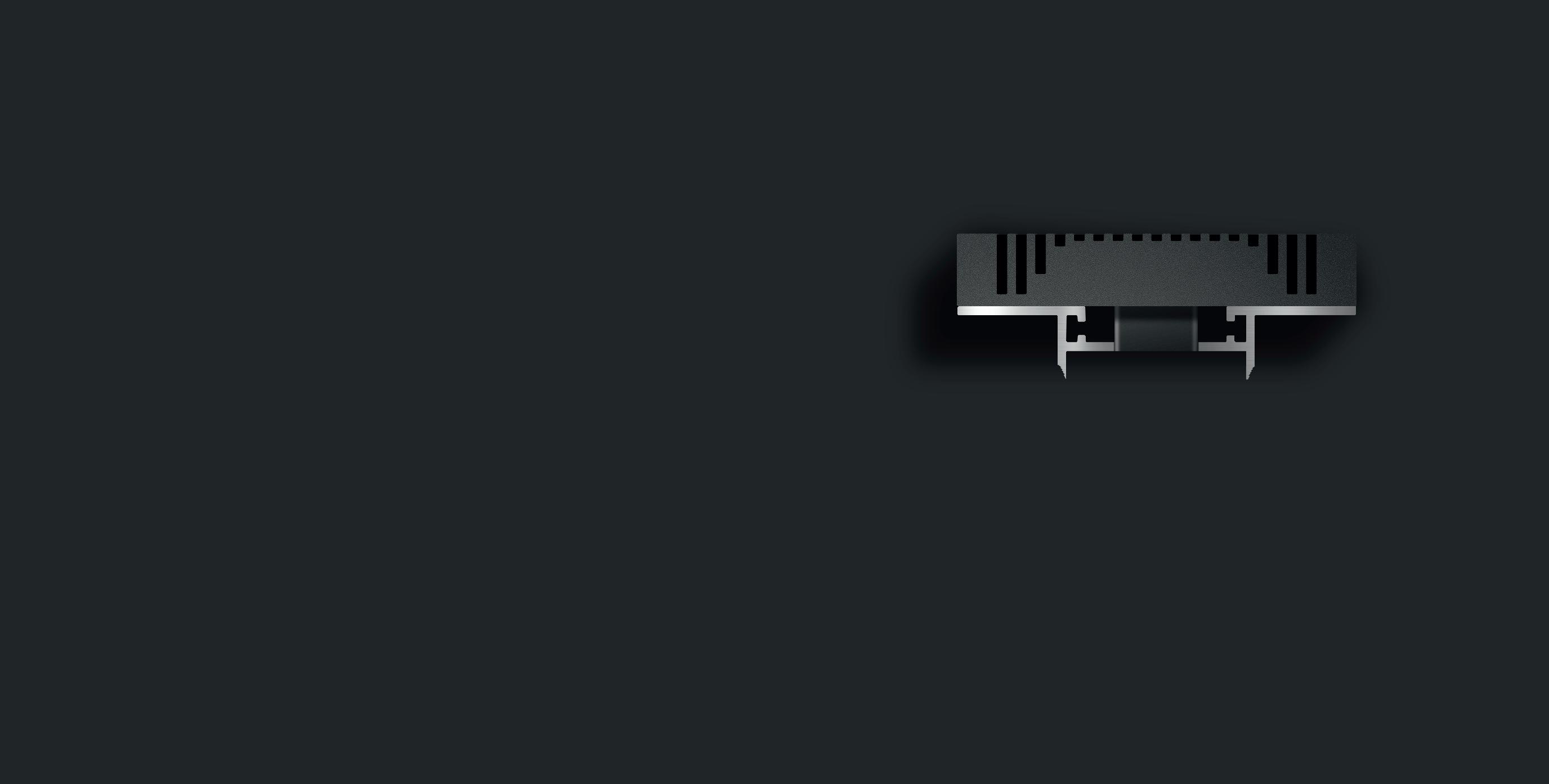

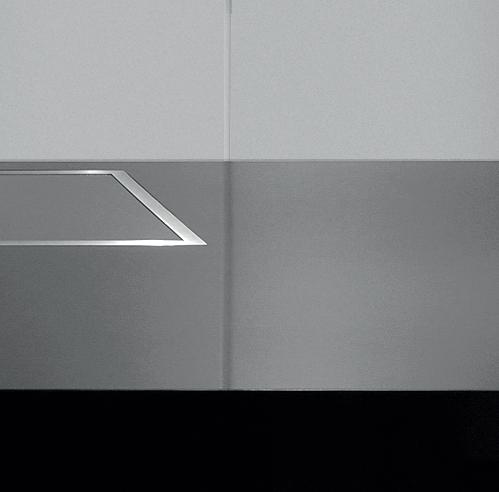

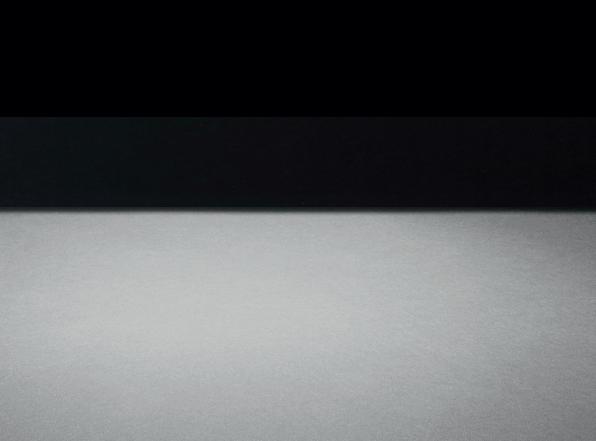

The MINUS 2 LINIAR is Apure’s profile solution compatible with Minus Series downlight fixtures. Available in a variety of lengths the Minus Two Liniare is suitable for new construction and retrofit drywall applications allowing for a sleek architectural alternative recessed in less than 25 mm (1′′).

Construction Specifications

• Extruded aluminum profile • Standard black anodized finish • White or custom RAL powder coating available • Available in 305 mm (1 ft), 610 mm (2 ft), 915 mm (3 ft), 2439 mm (8 ft)

• ETL Listed

21.4 mm • 13/16″ 120 mm • 4¾″

25 mm • 1″

55 mm • 2 3/16″

actual size

18.3 mm • 3/4″

In this revolutionary concept, NANO coating is paired with the innovative technology of the entire Apure Line to achieve a design so perfect that it appears to completely disappear into any architectural environment. The coating is able to absorb > 99.7% of any reflection, making Apure signature Louvers virtually invisible to the human eye. A manifestation of the essence of the Apure design philosophy and the ultimate in “invisible” illumination, the blacker than black NANO Accessories by Apure are, quite simply, the most subtle and elegant approach to lighting ever created.

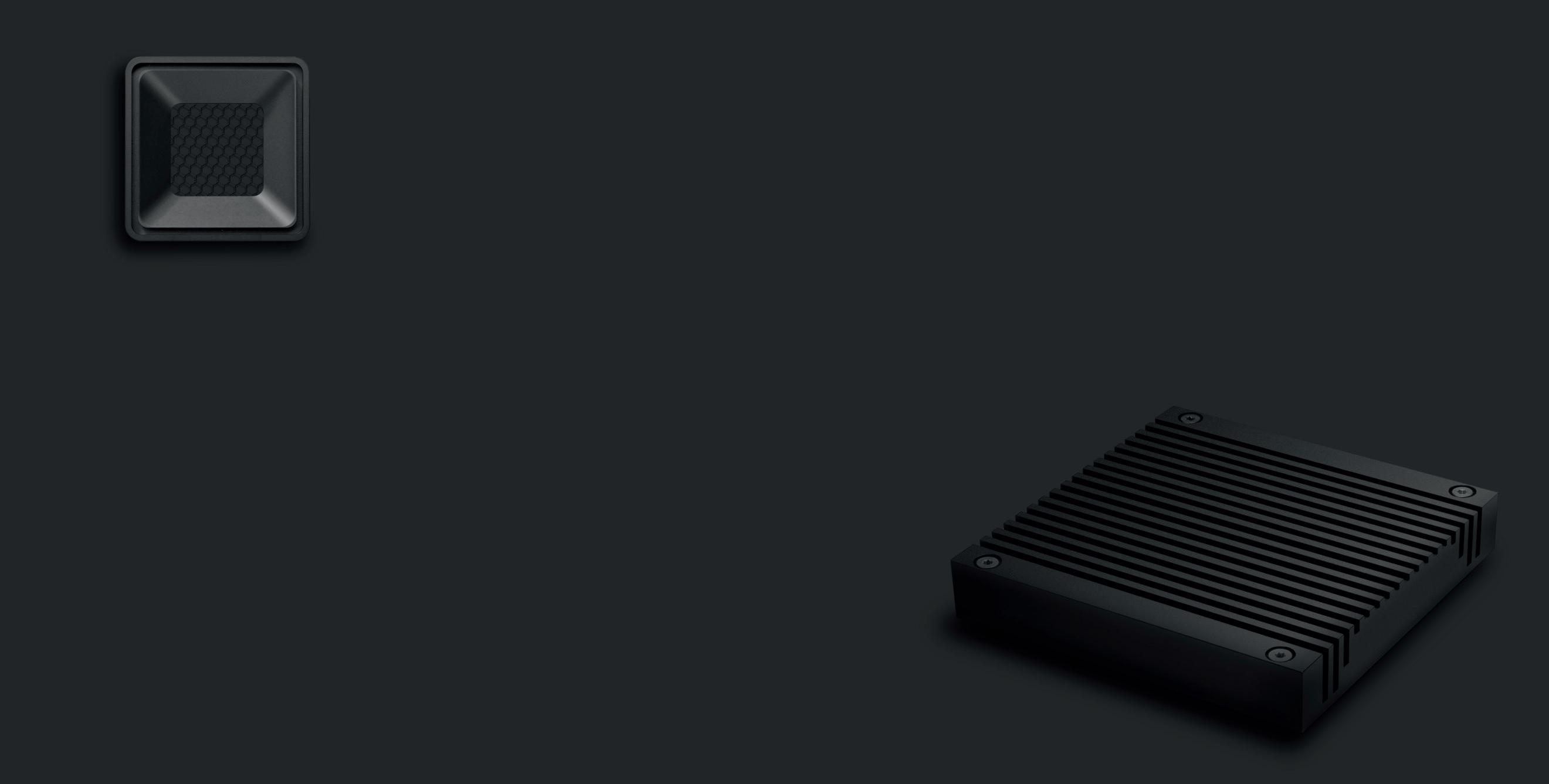

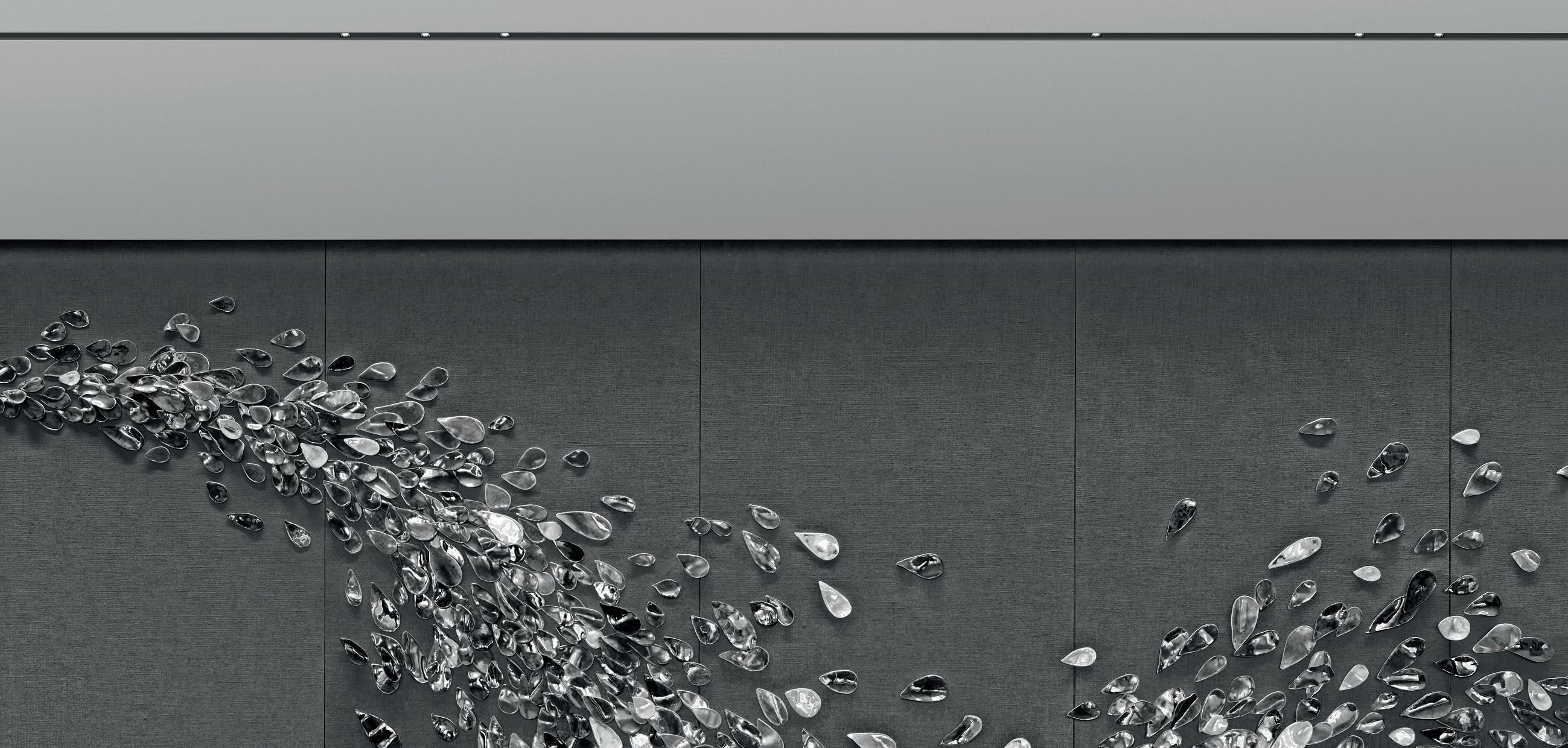

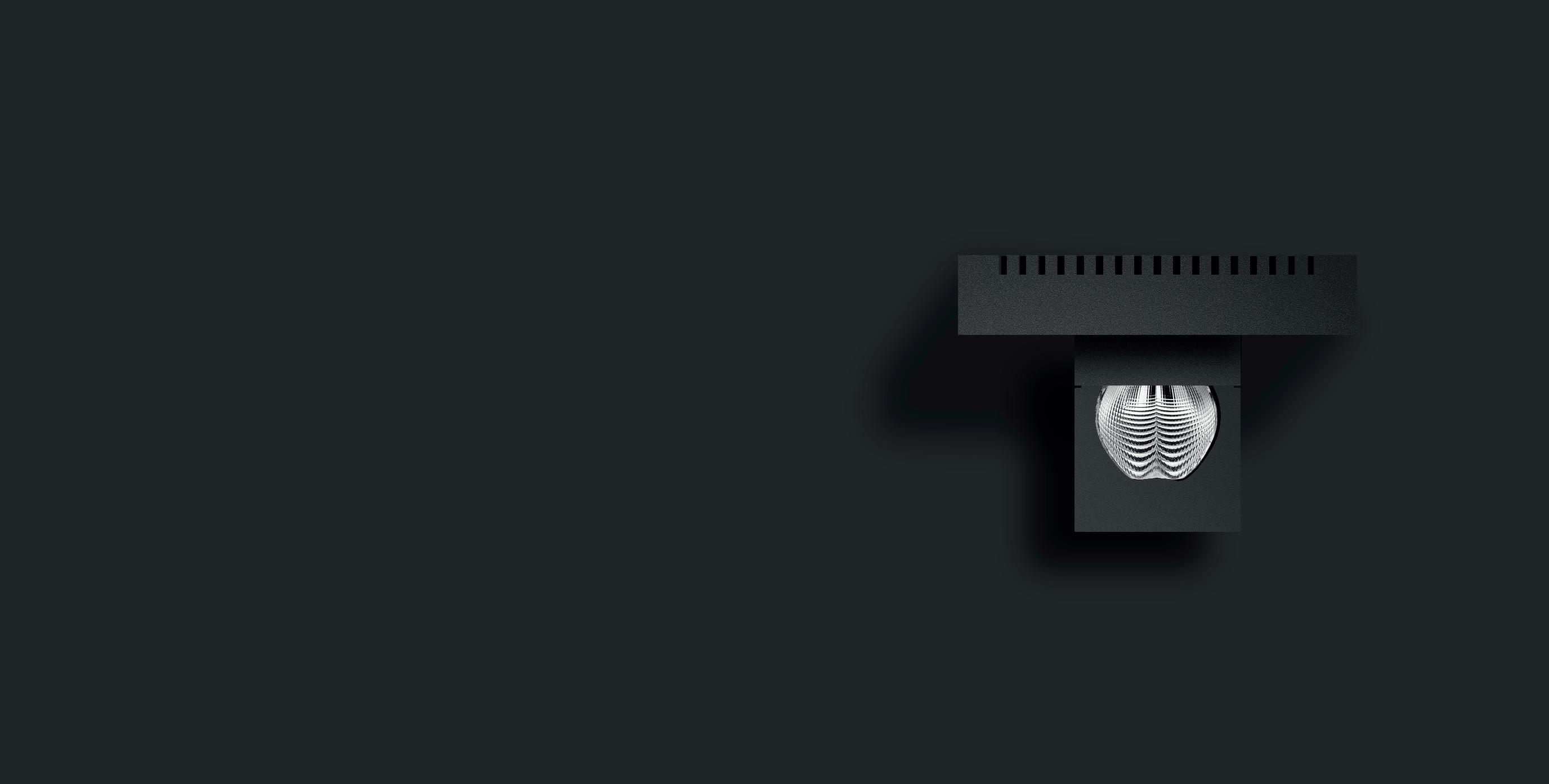

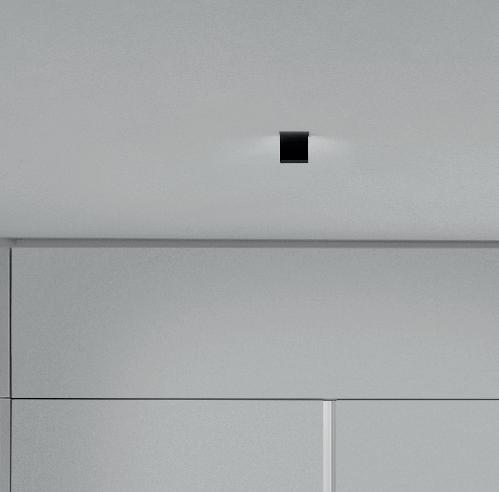

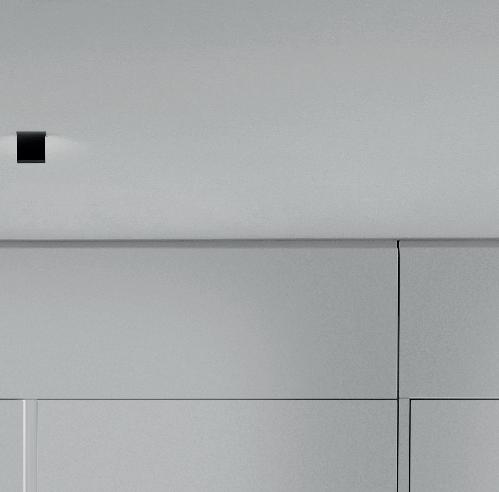

Designed and developed to fl awlessly illuminate walls and works of art, without carving any light scallops into the architectural structure, the 120 mm × 120 mm (4¾″ × 4¾″) MINUS 3 by Apure embraces a spoon-refl ector that sits invisibly in a semi-recessed square. Curated for discreet, yet impressive projection, the shape of the miniature Louver follows any given architectural line and becomes an integral part of the overall design aesthetic. Available in black, white, or any custom color, upon request.

Low Voltage, Semi-Recessed Downlight

Designed and developed to flawlessly illuminate walls and works of art, without carving any light scallops into the architectural structure, the 120 mm × 120 mm (43⁄4′′ × 43⁄4′′) MINUS 3 by Apure embraces a spoon-reflector that sits invisibly in a semirecessed square. Curated for discreet, yet impressive projection, the shape of the miniature Louver follows any given architectural line and becomes an integral part of the overall design aesthetic. Available in black, white, or any custom color, upon request.

• 1140 lm from source • 45º beam angle with longitudinal glare control (optimized cut-off) • High-performance Cree LED available in various color temperatures • SDCM Step-2 • Color Rendering Index (CRI) ≥ 90 • Custom integral microprocessor for thermal protection and equal light output

Electrical Specifications

• Class 2 Fixture • 14 W Power Consumption • 24 V DC Input for US/CAN • 12 V DC Input for EU/INT’L • Remote power up to 45 m (150 ft) • 0-100% dimmable (please see specification sheets for full details)

Installation Types

• Wall-washing • Can be installed in drywall, wood, stone, and metal ceilings

Listings / Patents

• ETL Listed, CE Listed • IC Rated • Plenum Rated / Airtight Rated • Dry Location Listed • Patent Pending

23.6 mm • 15/16″

60 mm • 2 3/8″ 120 mm • 4¾″

50 mm • 2″

actual size

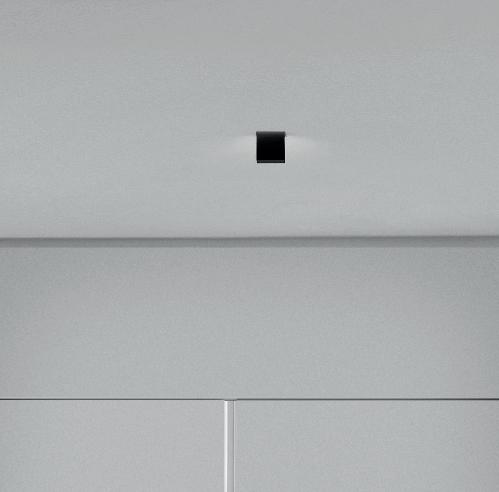

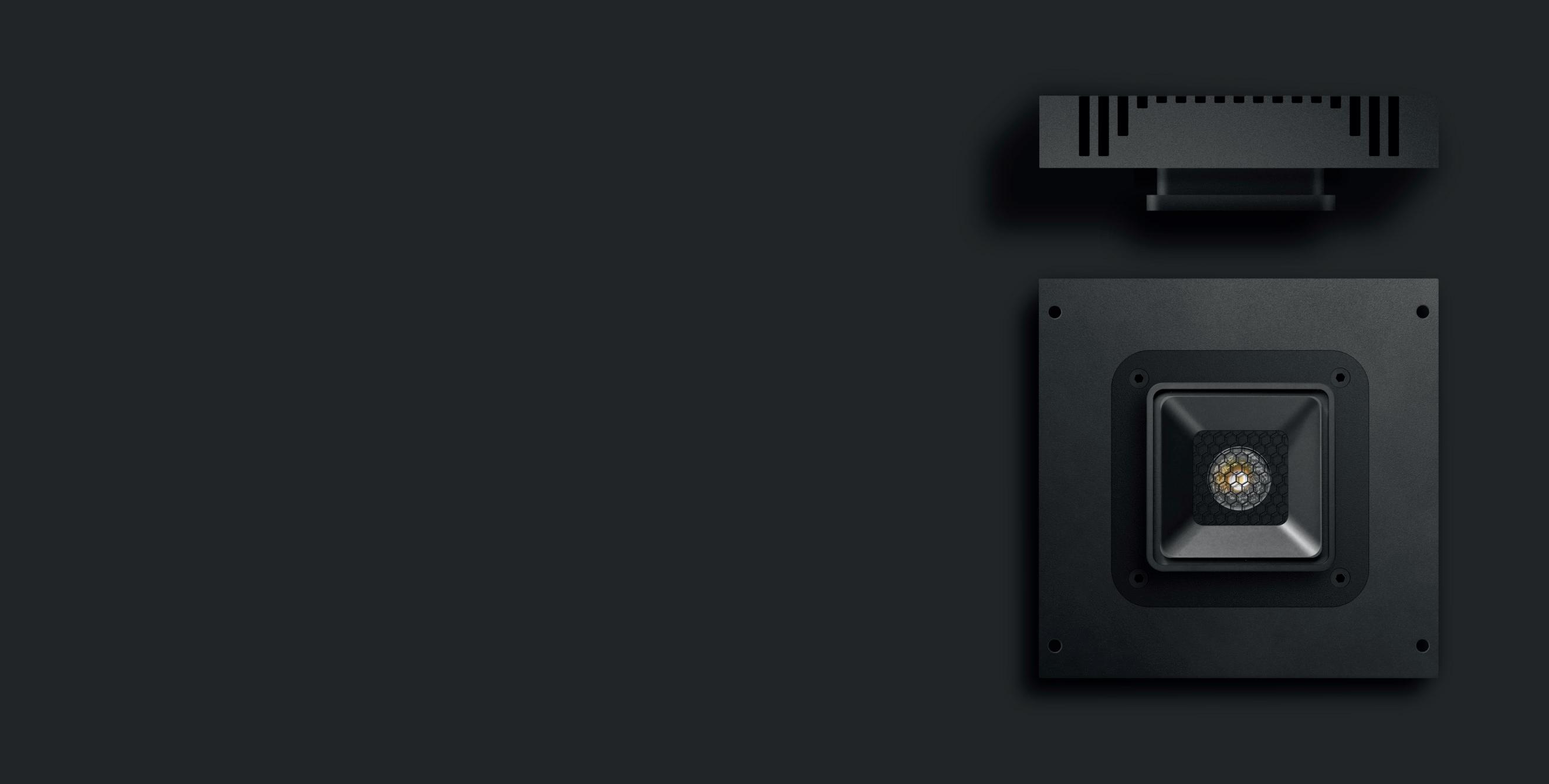

Highlighting Studio F·A·Porsche’s meticulous Louver design, the MINUS 4 by Apure features a powerful refl ector with 3 beam spreads, to accommodate the specialized requirements of architects and lighting designers. While in-keeping with the advanced technology and minimal depth of the entire MINUS Series, the visible 55 mm (2 3/16″) Louver encompasses lenses and glare preventers, which produce uniquely fl exible and extremely shallow, yet sophisticated, downlight illumination.

Low Voltage, Recessed Downlight

Highlighting Studio F·A·Porsche’s meticulous Louver design, the MINUS 4 by Apure features a powerful reflector with 3 beam spreads, to accommodate the specialized requirements of architects and lighting designers. While in-keeping with the advanced technology and minimal depth of the entire MINUS Series, the visible 55 mm (2 3/16′′) Louver encompasses lenses and glare preventers, which produce uniquely flexible and extremely shallow, yet sophisticated, downlight illumination.

• 1140 lm from source • Sharply defined 14º or 32º or 55º beam spread • High-performance Cree LED available in various color temperatures • SDCM Step-2 • Color Rendering Index (CRI) ≥ 90 • Custom integral microprocessor for thermal protection and equal light output

Electrical Specifications

Class 2 Fixture 14 W Power Consumption 24 V DC Input for US/CAN 12 V DC Input for EU/INT’L Remote power up to 45 m (150 ft) 0-100% dimmable (please see specification sheets for full details)

Installation Types

• General Lighting / Spot Lighting • Can be installed in drywall, wood, stone, and metal ceilings

Listings / Patents

• ETL Listed, CE Listed • IC Rated • Plenum Rated / Airtight Rated • Damp Location Listed • Patent Pending

19.4 mm • 3/4″

120 mm • 4¾″ 55 mm • 2 3/16″

120 mm • 4¾″

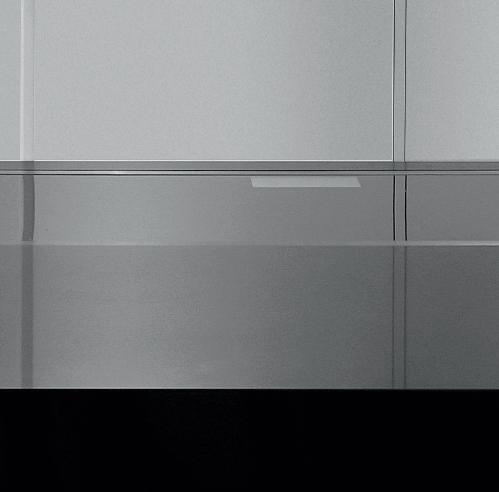

A revolution in wall lighting, the MINUS 5 by Apure delivers the highest performance in its class. With an overall visible size of less than 25 mm (1″), the minimalist, high-tech recessed lighting fi xture integrates virtually invisibly into any given architecture. Designed to be installed below eye level, the MINUS 5 illuminates staircases, corridors, and walkways with discreet, yet intriguing, fl air.
