V DC Input for EU/INT’L • Remote power up to 45 m (150 ft)

Low Voltage, Recessed Downlight

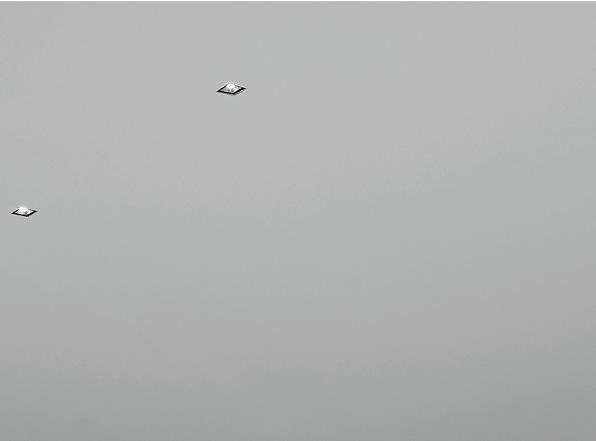

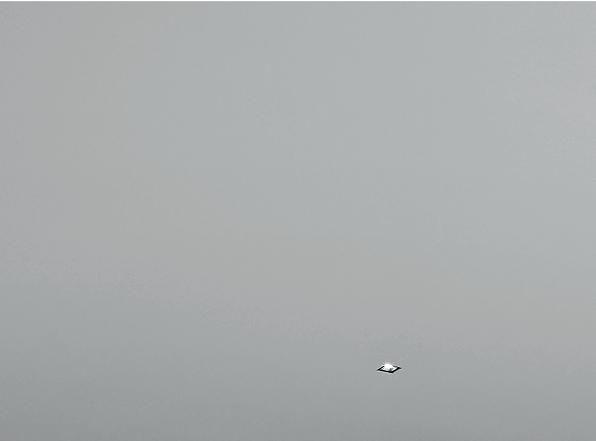

Featuring the never-before-developed lighting hardware and software of the MINUS 1, recessed in less than 25 mm (1′′), the MINUS 2 by Apure exhibits a unique Louver, designed and perfected by Studio F·A·Porsche. Distributing glare-free “invisible” light in either a 20 or 40 degree beam spread, the true to size luminaire powerfully illuminates spaces, while ensuring ceilings remain entirely unrevealed.

• 1140 lm from source • Sharply defined 20º or 40º beam spread • High-performance Cree LED available in various color temperatures • SDCM Step-2 • Color Rendering Index (CRI) ≥ 90 • Custom integral microprocessor for thermal protection and equal light output

Electrical Specifications

• Class 2 Fixture • 14 W Power Consumption • 24 V DC Input for US/CAN • 12 V DC Input for EU/INT’L • Remote power up to 45 m (150 ft) • 0-100% dimmable (please see specification sheets for full details)

Installation Types

• General Lighting / Spot Lighting / Outdoor Overhangs / Showers • Can be installed in drywall, wood, stone, and metal ceilings

Listings / Patents

• ETL Listed, CE Listed • IC Rated • Plenum Rated / Airtight Rated • Wet Location Listed

19.4 mm • 3/4″

120 mm • 4¾″ 25 mm • 1″

120 mm • 4¾″
