mkelectric.co.uk
120 90

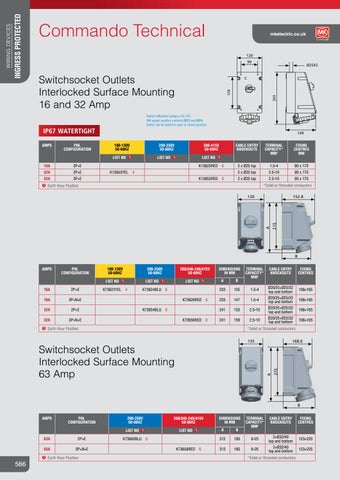

Switchsocket Outlets Interlocked Surface Mounting 16 and 32 Amp
PIN. CONFIGURATION
3P+E
32A
2P+E
32A
3P+E
243
149
100-130V 50-60HZ
200-250V 50-60HZ
380-415V 50-60HZ
LIST NO
LIST NO 16A
C
Switch Utilisation Category AC 22A Will accept auxiliary contacts 6813 and 6814 Switch can be locked in open or closed position.
IP67 WATERTIGHT AMPS
Ø25X2
170
INGRESS PROTECTED
CABLE ENTRY KNOCKOUTS
TERMINAL CAPACITY* MM2
FIXING CENTRES MM
2 x Ø25 top
1.5-4
90 x 170
2 x Ø25 top
2.5-10
90 x 170
2 x Ø25 top
2.5-10
90 x 170
LIST NO K13625RED 6
K13653YEL 4 K13655RED 6
*Solid or Stranded conductors
Earth Hour Position
A
152.8
215
120
B PIN. CONFIGURATION
100-130V 50-60HZ
200-250V 50-60HZ LIST NO
LIST NO 16A
2P+E
16A
3P+N+E
32A
2P+E
32A
3P+N+E
200/346-240/415V 50-60HZ
K73623YEL 4
LIST NO
K73624BLU 6 K73626RED 6 K73654BLU 6 K73656RED 6
DIMENSIONS IN MM
TERMINAL CAPACITY* MM2
CABLE ENTRY KNOCKOUTS
FIXING CENTRES
A
B
233
135
1.5-4
Ø20/25+Ø25/32 top and bottom
108×165
233
147
1.5-4
Ø20/25+Ø25/32 top and bottom
108×165 108×165 108×165
241
153
2.5-10
Ø20/25+Ø25/32 top and bottom
241
159
2.5-10
Ø20/25+Ø25/32 top and bottom
*Solid or Stranded conductors
Earth Hour Position
135
Switchsocket Outlets Interlocked Surface Mounting 63 Amp
168.6
275
AMPS
A
WIRING DEVICES
Commando Technical
B AMPS
PIN. CONFIGURATION
200-250V 50-60HZ LIST NO
63A 63A
566
2P+E 3P+N+E
Earth Hour Position
200/346-240/415V 50-60HZ LIST NO
K73660BLU 6 K73658RED 6
DIMENSIONS IN MM A
B
312
185
312
185
TERMINAL CAPACITY* MM2
CABLE ENTRY KNOCKOUTS
FIXING CENTRES
6-25
2×Ø32/40 top and bottom
123×225
6-25
2×Ø32/40 top and bottom
123×225
*Solid or Stranded conductors
