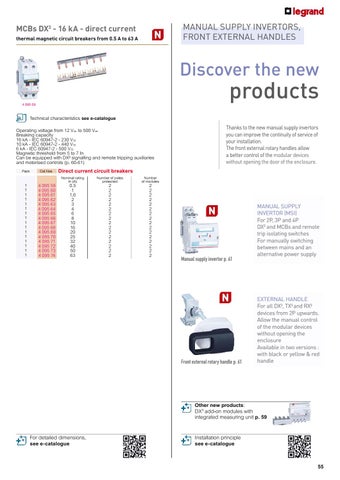

MANUAL SUPPLY INVERTORS, FRONT EXTERNAL HANDLES
MCBs DX3 - 16 kA - direct current thermal magnetic circuit breakers from 0.5 A to 63 A
Discover the new
products
4 095 69
Technical characteristics see e-catalogue Operating voltage from 12 V= to 500 V= Breaking capacity 16 kA - IEC 60947-2 - 230 V= 10 kA - IEC 60947-2 - 440 V= 6 kA - IEC 60947-2 - 500 V= Magnetic threshold from 5 to 7 In Can be equipped with DX3 signalling and remote tripping auxiliaries and motorised controls (p. 60-61) Pack
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Cat.Nos
4 095 59 4 095 60 4 095 61 4 095 62 4 095 63 4 095 64 4 095 65 4 095 66 4 095 67 4 095 68 4 095 69 4 095 70 4 095 71 4 095 72 4 095 73 4 095 74
Thanks to the new manual supply invertors you can improve the continuity of service of your installation. The front external rotary handles allow a better control of the modular devices without opening the door of the enclosure.
Direct current circuit breakers Nominal rating In (A)
0.5 1 1,6 2 3 4 6 8 10 16 20 25 32 40 50 63
Number of poles protected
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Number of modules
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Manual supply invertor p. 61
Front external rotary handle p. 61
MANUAL SUPPLY INVERTOR (MSI) For 2P, 3P and 4P DX3 and MCBs and remote trip isolating switches For manually switching between mains and an alternative power supply
EXTERNAL HANDLE For all DX3, TX3 and RX3 devices from 2P upwards. Allow the manual control of the modular devices without opening the enclosure Available in two versions : with black or yellow & red handle
Other new products: DX3 add-on modules with integrated measuring unit p. 59
For detailed dimensions, see e-catalogue
Installation principle see e-catalogue
