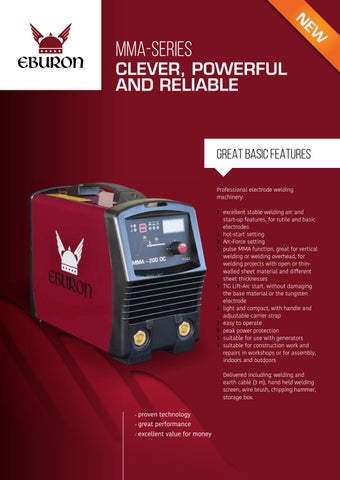

Eburon welder MMA

N EW

MMA-SERIES

CLEVER, POWERFUL AND RELIABLE

GREAT BASIC FEATURES Professional electrode welding machinery: › excellent stable welding arc and start-up features, for rutile and basic electrodes › hot-start setting › Arc-Force setting › pulse MMA function, great for vertical welding or welding overhead, for welding projects with open or thinwalled sheet material and different sheet thicknesses › TIG Lift-Arc start, without damaging the base material or the tungsten electrode › light and compact, with handle and adjustable carrier strap › easy to operate › peak power protection › suitable for use with generators › suitable for construction work and repairs in workshops or for assembly, indoors and outdoors Delivered including: welding and earth cable (3 m), hand held welding screen, wire brush, chipping hammer, storage box.

•

proven technology

•

great performance

•

excellent value for money

GUARANTEE

MADE IN EUROPE. PROVEN TECHNOLOGY.

Eburon is a European brand that offers its clients all the security expected from a top brand: a comprehensive guarantee and a technical support service that arranges repairs and replacements in no time.

MMA WELDING MACHINES Input Voltage [V]

160 DC

200 DC

1 x 230V (± 10%)

1 x 230V (± 10%)

Frequency [Hz]

50 / 60

50 / 60

Max. primary current (MMA/TIG) [A]

34 / 24

43 / 30

Maximum Power (MMA/TIG) [kVA]

7,8 / 5,5

9,9 / 6,9

74

80

O.C.V. - No-load voltage [V] Current regulation [A]

10 - 160

10 - 200

Duty Cycle (40°C-10 min) [40%]

160A

200A

Duty Cycle (40°C-10 min) [60%]

135A

160A

Duty Cycle (40°C-10 min) [100%]

105A

125A

Hot Start

✔

✔

Arc Force

✔

✔

2,5 - 3,2 (- 4,0)

2,5 - 3,2 - 4,0 (- 5,0)

IP 21S

IP 21S

Electrode diameter [ø mm] Protection class Insulation class

H

H

Weight [kg]

5,1

5,7

Guarantee

2 years

2 years

240 x 150 x 320

240 x 150 x 320

Dimensions H x W x L [mm]

TECHNICAL DATA

Eburon is a brand new value-for-money line of welding machines. Eburon MMA welders are ideal for those who need reliable, robust and solid welding power sources to do the job. Enjoy uncomplicated features and operator friendly controls. That use a proven durable technology. Incorporated into a strong casing on a heavy-duty chassis. Eburon does not have this complicated and sensitive features that come with many of todays welding machines. Instead, this powerful Eburon range of welders function easy and reliable in the most arduous and demanding environments.

SERVICED AND SUPPORTED BY LASTEK Presenting a new innovative brand from Lastek, the respected household name in the industry since 1958. With branches in Belgium, the Netherlands and Italy, together with a carefully selected global network of distributors, Lastek provides a professional and comprehensive support to customer service.

Quality control, commissioning, after-sales, maintenance, spare parts, service back-up are to found by a Lastek specialist near you.

ABOUT EBURON TOO CLEVER, EVEN FOR JULIUS CAESAR The name Eburon harbours a great piece of history. The Eburones were a Germanic tribe whose territory stretched across Belgium, to the Netherlands and Germany. In the first century BC, Roman emperor Julius Caesar conquered them, but they still succeeded in taking out around 6,000 Roman soldiers with a clever ambush.

CLEVER WELDING EQUIPMENT Eburon welding machines are as clever as the tribe they were named after. We have successfully conducted our research to focus upon achieving the perfect combination of durability and proven technology.

That resulted in a brand new, exceedingly reliable line of welding equipment that is great value for money. au rapport qualité/prix très intéressant.
