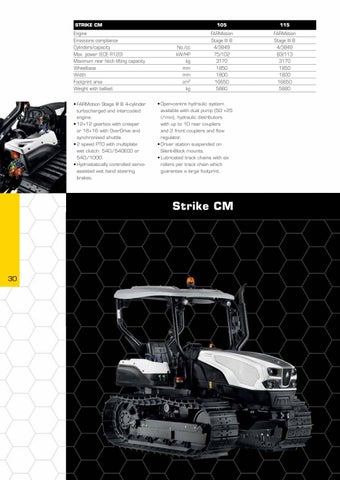

STRIKE CM
Engine Emissions compliance Cylinders/capacity Max. power (ECE R120) Maximum rear hitch lifting capacity Wheelbase Width Footprint area Weight with ballast • FARMotion Stage III B 4-cylinder turbocharged and intercooled engine. • 12+12 gearbox with creeper or 16+16 with OverDrive and synchronised shuttle. • 2 speed PTO with multiplate wet clutch: 540/540ECO or 540/1000. • Hydrostatically controlled servoassisted wet band steering brakes.
No./cc kW/HP kg mm mm cm2 kg
105
115
FARMotion Stage III B 4/3849 75/102 3170 1850 1800 16650 5880
FARMotion Stage III B 4/3849 83/113 3170 1850 1800 16650 5880
• Open-centre hydraulic system available with dual pump (50 +25 l/min), hydraulic distributors with up to 10 rear couplers and 2 front couplers and flow regulator. • Driver station suspended on Silent-Block mounts. • Lubricated track chains with six rollers per track chain which guarantee a large footprint.
Strike CM
30
