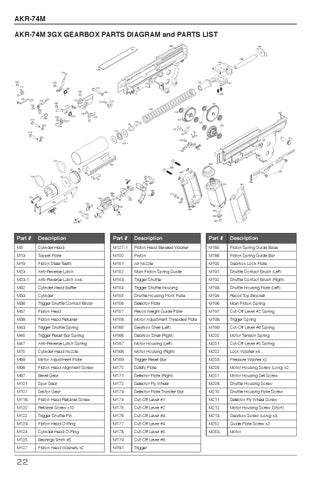

AKR-74M AKR-74M 3GX GEARBOX PARTS DIAGRAM and PARTS LIST 166
185
186
194 190
178 120
152
120 177
176
179
213
120
202
211
252 172
101
175
196
125
120
197
120
199
202
171
120
120
170 38
174
165
107
118
125
23
202
47
120
127-1
169
200
150
206
96
120
203
32
24
19
3
43 253 153
151
173
97
45
123 37
125
23-1
127
213
124
157
213
201
75
154 13
192
42
191
156
212 36
122
181
202
193
155
167
198
208
168
210
89 158 207
210
Part #
Description
Part #
Description
Part #
Description
M3
Cylinder Head
M127-1
Piston Head Beveled Washer
M185
Piston Spring Guide Base
M13
Tappet Plate
M150
Piston
M186
Piston Spring Guide Bar
M19
Piston Steel Teeth
M151
Air Nozzle
M190
Gearbox Lock Plate
M23
Anti-Reverse Latch
M152
Main Piston Spring Guide
M191
Shuttle Contact Brush (Left)
M23-1
Anti-Reverse Latch Axis
M153
Trigger Shuttle
M192
Shuttle Contact Brush (Right)
M32
Cylinder Head Buffer
M154
Trigger Shuttle Housing
M193
Shuttle Housing Plate (Left)
M33
Cylinder
M155
Shuttle Housing Front Plate
M194
Recoil Top Bracket
M36
Trigger Shuttle Contact Brush
M156
Selector Plate
M196
Main Piston Spring
M37
Piston Head
M157
Recoil Weight Guide Plate
M197
Cut-Off Lever #2 Spring
M38
Piston Head Retainer
M158
Motor Adjustment Threaded Plate
M198
Trigger Spring
M43
Trigger Shuttle Spring
M165
Gearbox Shell (Left)
M199
Cut-Off Lever #6 Spring
M45
Trigger Reset Bar Spring
M166
Gearbox Shell (Right)
M200
Motor Tension Spring
M47
Anti-Reverse Latch Spring
M167
Motor Housing (Left)
M201
Cut-Off Lever #5 Spring
M75
Cylinder Head Nozzle
M168
Motor Housing (Right)
M202
Lock Washer x4
M89
Motor Adjustment Plate
M169
Trigger Reset Bar
M203
Pressure Washer x2
M96
Piston Head Alignment Screw
M170
Safety Plate
M206
Motor Housing Screw (Long) x2
M97
Bevel Gear
M171
Selector Plate (Right)
M207
Motor Housing Set Screw
M101
Spur Gear
M172
Selector Fly Wheel
M208
Shuttle Housing Screw
M107
Sector Gear
M173
Selector Plate Transfer Bar
M210
Shuttle Housing Plate Screw
M118
Piston Head Retainer Screw
M174
Cut-Off Lever #1
M211
Selector Fly Wheel Screw
M120
Retainer Screw x10
M175
Cut-Off Lever #2
M212
Motor Housing Screw (Short)
M122
Trigger Shuttle Pin
M176
Cut-Off Lever #3
M213
Gearbox Screw (Long) x3
M123
Piston Head O-Ring
M177
Cut-Off Lever #4
M252
Guide Plate Screw x2
M124
Cylinder Head O-Ring
M178
Cut-Off Lever #5
M253
Motor
M125
Bearings 9mm x6
M179
Cut-Off Lever #6
M127
Piston Head Washers x2
M181
Trigger
