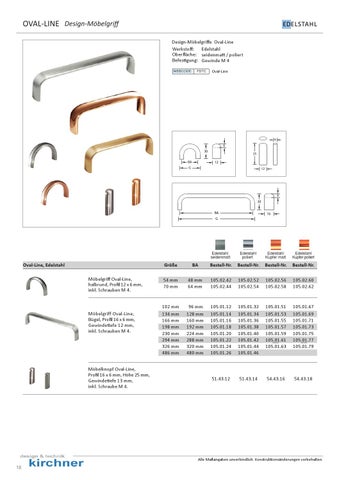

OVAL-LINE Design-Möbelgriff
EDELSTAHL Design-Möbelgriffe Oval-Line Werkstoff: Edelstahl Oberfläche: seidenmatt / poliert Befestigung: Gewinde M 4 WEBCODE:
FDTC
Oval-Line
6
6 30 BA
25
12
G
12
6 30 BA
16
G
Oval-Line, Edelstahl Möbelgriff Oval-Line, halbrund, Profil 12 x 6 mm, inkl. Schrauben M 4.
Möbelgriff Oval-Line, Bügel, Profil 16 x 6 mm, Gewindetiefe 12 mm, inkl. Schrauben M 4.
Möbelknopf Oval-Line, Profil 16 x 6 mm, Höhe 25 mm, Gewindetiefe 13 mm, inkl. Schraube M 4.
Edelstahl seidenmatt
Edelstahl poliert
Edelstahl Kupfer matt
Edelstahl Kupfer poliert
Größe
BA
Bestell-Nr.
Bestell-Nr.
Bestell-Nr.
Bestell-Nr.
54 mm 70 mm
48 mm 64 mm
105.02.42 105.02.44
105.02.52 105.02.54
105.02.56 105.02.58
105.02.60 105.02.62
102 mm 134 mm 166 mm 198 mm 230 mm 294 mm 326 mm 486 mm
96 mm 128 mm 160 mm 192 mm 224 mm 288 mm 320 mm 480 mm
105.01.12 105.01.14 105.01.16 105.01.18 105.01.20 105.01.22 105.01.24 105.01.26
105.01.32 105.01.34 105.01.36 105.01.38 105.01.40 105.01.42 105.01.44 105.01.46
105.01.51 105.01.53 105.01.55 105.01.57 105.01.59 105.01.61 105.01.63
105.01.67 105.01.69 105.01.71 105.01.73 105.01.75 105.01.77 105.01.79
51.43.12
51.43.14
54.43.16
54.43.18
Alle Maßangaben unverbindlich. Konstruktionsänderungen vorbehalten.
18
