Peak performance for proteins An improved peak fitting procedure enables a better determination of protein structures.

68

of atoms that contribute to NMR signals, and so the measured spectra are extremely complex. Interpreting the protein structure from these is difficult and requires sophisticated computer models. An obstacle to analyzing NMR spectra is that some of the signals are very small and detecting them against a noisy background is difficult. Some existing computer algorithms can manage such peak detection. In these the NMR signal is divided into small sections, known as “windows”. Then the algorithm determines the background for each window and extracts the NMR peaks. The trick is to find the right tradeoff, explains research leader Xin Gao from the Computer, Electrical and Mathematical Science and Engineering Division at KAUST. “On one hand, you need to remove the noise from the spectrum as much as possible,” says Gao. “On the other hand, there is the risk of accidentally removing real signals.”

The filtering algorithm developed by the researchers is an extension of prior schemes and makes it easier to find the right balance. It features a better detection of the edges of peaks in the spectra which other techniques tend to smooth over, thus making signals more difficult to isolate. The new algorithm is also independent of the window size used, which represents a considerable practical advance. The new detection leads to a better realtime study of protein dynamics, comments Gao. “We already have an in-house automated system that can determine small and medium size protein structures without human intervention. In future, we hope that by combining the proposed noise removal filter, and our in-house tools, we will be able to push the limit to larger proteins,” says Gao. 1. Cannistraci, C.V., Abbas, A. & Gao, X. Median Modified Wiener Filter for nonlinear adaptive spatial denoising of protein NMR multidimensional spectra. Scientific Reports 5, 8017 (2015).

KAUST

A

method to more accurately determine the structure of proteins using nuclear magnetic resonance (NMR) spectroscopy has been developed by researchers at KAUST1. Proteins play a key role in cell function, and vital to a protein’s performance is its molecular structure, which usually assumes a complex three-dimensional shape. A common method of identifying protein structures uses x-ray scattering techniques, but this approach requires proteins to be available in crystalline form. NMR offers a better approach because it can resolve molecular structures in cells, therefore being uniquely suited to also measure the dynamics of proteins. NMR measures an atom’s energetic states with high sensitivity and enables researchers to study the bonds between atoms in a molecule and even the local atomic geometry around the atoms. A protein can consist of many thousands

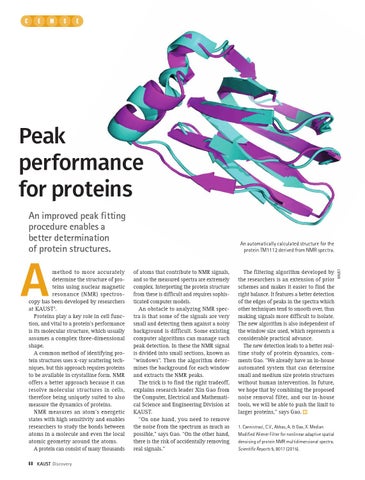

An automatically calculated structure for the protein TM1112 derived from NMR spectra.
