Katchakid Pool Fence Owner's Manual

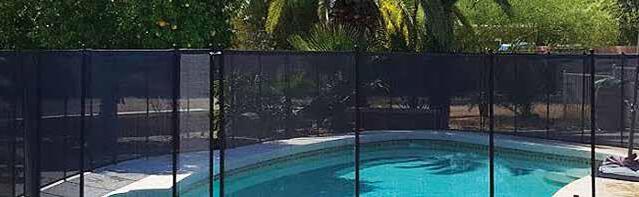

Katchakid® Pool Fence

OWNER’S MANUAL

Thank you... for choosing the Katchakid Pool Fence System. There are three important components that make your pool gate operate properly.

Please ensure that your pool gate is properly aligned, properly tensioned, and latching correctly. If you have any questions regarding your pool gate, please contact your original installer.

Although we make every effort to provide you with a carefully made and well tested product, we want to stress the following: As a swimming pool (spa or pond) owner be aware that you must ensure your child’s safety. There is a risk of accidents or drowning when around any body of water. Katchakid recommends “layers” of protection, of which our fence is one. You should not rely on any one layer to be impermeable. Please use your swimming pool with caution.

For service or maintenance, please contact your distributor or local Katchakid branch.

Your local Katchakid representative is: ___________________________________________________________________________________ For Authorized Service please call: _____________ – _____________ – _____________________ Installation Date: _____ / _____ /_____

WARNING The Katchakid Pool Fence is a supplementary pool safety aid, and not a substitute for the undivided and competent supervision of an adult. A Katchakid Pool Fence can never replace adult supervision, nor can it be a guarantee against drownings or other accidents.

Always close and lock the gate of your pool fence.

GATE POST ADJUSTMENT It is critical that your gate closes and securely latches each and every time you open and close your pool gate.

To ensure proper closure of your gate, your magnetic gate latch needs to be aligned properly. It is possible for your gate to become misaligned, especially if someone hangs on the gate frame. Equipped, adjustable gate brackets allow you to make minor adjustments to the alignment of your gate posts. By properly aligning your gate posts, you will be able to ensure correct alignment of the magnetic latch.

ADJUSTMENT: Simply remove the quick link, reposition the eye screw to a different slot in the adjustment bracket, and replace the quick link.

Check to make sure the gate closes properly and the latch engages properly.

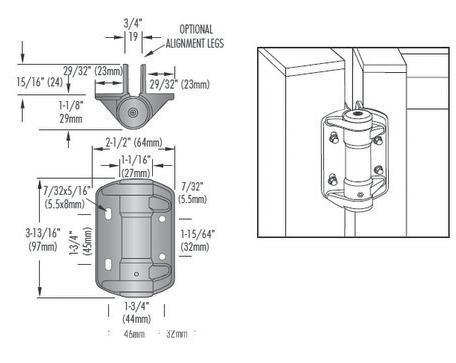

GATE HINGE ADJUSTMENT It is critical that your gate closes and securely latches each and every time you open and close your pool gate.

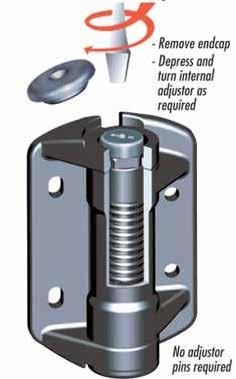

– Remove endcap – Depress and turn internal adjustor as required

Your gate will not close and latch properly unless the gate hinges are properly tensioned. Properly tensioned gate hinges will automatically swing the gate closed. This tension should be verified each time the gate closes to ensure a proper closure. The unique design allows the hinges to be finely adjusted for smooth closure at the turn of a screwdriver.

MAINTENANCE: Ensure proper closure of the gate frame each time the gate closes. Make appropriate adjustments to hinges as needed.

ADJUSTMENT: Simply remove the cap at the top of the hinge with a Phillips screwdriver. Depress and rotate the internal adjustor with a flat head screwdriver. The adjustor rises back into sleeve and the desired tension is fixed.

No adjustor pins required

Tru•Close gate hinges by D&D Technologies

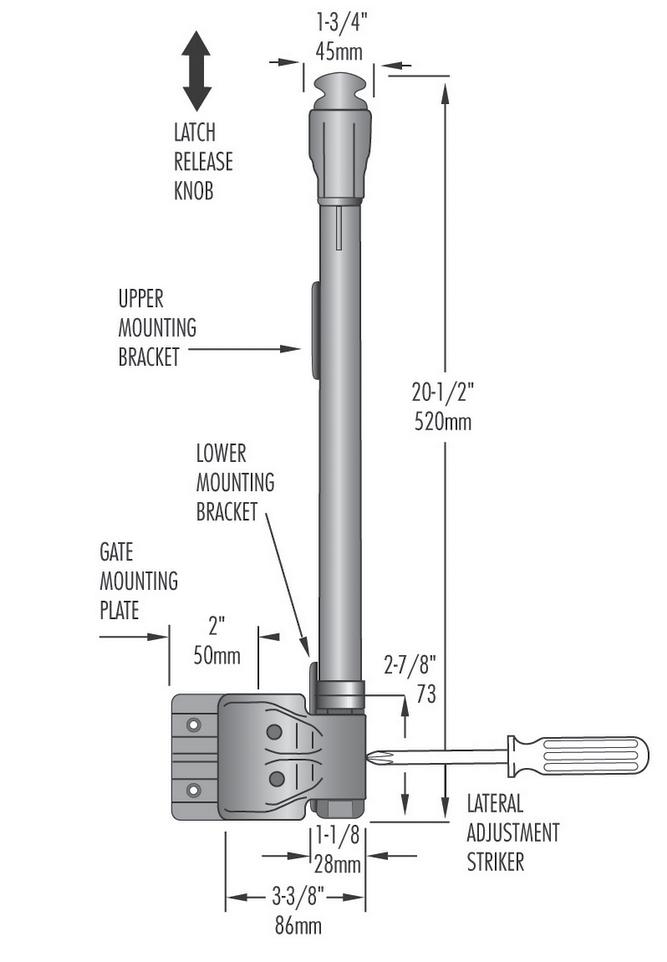

GATE LATCH ADJUSTMENT This is not a childproof latch. It offers child resistance only. It is critical that your gate closes and securely latches each and every time you open and close your pool gate.

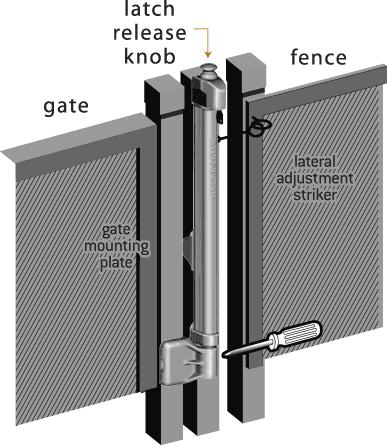

Your magnetic gate latch will not function properly if the striker body and latch body are not properly aligned. The striker body is adjustable left and right (horizontal) while the latch body is adjustable up and down (vertical). Together, these two adjustments allow you to properly align your magnetic latch. This alignment should be verified each time the gate closes to ensure proper latching.

If using this latch on a swimming pool gate, consult all appropriate local authorities for safety requirements. The latch will operate properly only if installed and maintained in accordance with these instructions.

MAINTENANCE: Remove key from lock after use. Regularly lubricate the key-lock part of this latch by spraying oil-based lubricant into the lock.

Do not lubricate any other part of the latch. Ensure all screws or bolts are tightened firmly and that the release knob and latching bolt are kept free of sand, debris, or ice, which could impair latch performance. Ensure proper alignment of the latch body and striker body each time the gate closes. Make appropriate adjustments if latch is misaligned.

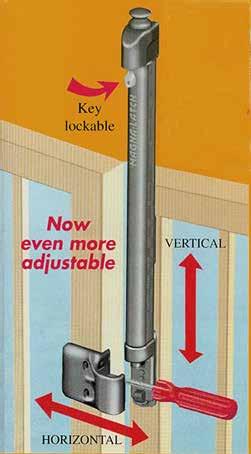

VERTICAL ADJUSTMENT: Remove “vertical adjustment screw”. Adjust “latch body” up or down. Replace “vertical adjustment screw”.

HORIZONTAL ADJUSTMENT: Patented MagnaLatch by D&D Technologies ®

Rotate “adjustment screw” to move “striker body” left or right.

CONTRACT & WARRANTY CONDITIONAL SALES CONTRACT 1. The Seller is hereby granted access to the aforementioned property for the purpose of measuring, installing, and or removing the fence for work and or repairs.

2. Title to the fence remains with the Seller until the balance has been paid in full. Payment in full is due upon the completion of installation.

3. The Buyer agrees to purchase the aforementioned fence at the price as stated in this estimate.

4. The Buyer may cancel this contract at any time prior to midnight of the third business day of this transaction by written notice. This contract cannot be canceled 72 hours before agreed installation.

5. The Buyer shall within three (3) days from delivery and or installation of the fence notify the Seller in writing of the necessity of making adjustments to the said fence. Failure to notify the Seller shall constitute as acceptance and fulfillment of contract.

6. The Seller is not responsible for damage on account of pre-existing defective surface conditions, or surface cleaning or runoff into the pool, if any.

7. Seller is not responsible for damage to any objects either above or below ground: including decking, tiles, pavers, coping, electrical lines, water lines, and pipes and gas lines. We will endeavor to avoid damage of any kind.

8. The Seller is not responsible for any sediment that may occur on the patio surface due to drilling.

9. The Seller is not responsible for damage to the fence caused by misuse, abuse, alteration, accidents, animals, adverse weather conditions, burglary, or any acts of God. 10. If the customer is not home at the time of installation, the fence will be installed per specifications above. Any changes made thereafter will be charged accordingly. Please keep children and dogs inside on the day of installation.

11. This estimate is valid for 90 days from the date of the estimate.

WARRANTY Limited Warranty: Katchakid warrants against defects in material and craftsmanship, including parts and labor for a period of eight (8) years from the date of purchase and installation (the “Warranty Period”). This warranty shall apply to the Katchakid Removable Pool Fence system (“Fence”) as installed by a Katchakid certified technician around the pool and/or spa for which it was designed and only when used according to manufacturer’s published specifications.’

Warranty Disclaimers: Buyer’s Fence is custom designed and installed for use only around the Buyer’s pool and/or spa. Any modification to the Fence by anyone other than a Katchakid Inc. certified technician voids this Warranty. The Warranty does not apply to damage caused, for example, by children, animals, acts of God, external heat sources (e.g. bar-b-q pits, pool heaters, ovens), unauthorized modification, misuse, accidents, weather, burglary, Buyer’s negligence, and accidents that occur when the Fence is not properly secured or stored. Katchakid

reserves the right to examine the product and circumstances of the alleged defect to determine whether the warranty is applicable.

Katchakid is not responsible for personal injury, seepage, sediment, or property damage that occurs during site assessment, drilling, installation or repairs, including, without limitation, damage to: fences, landscape, soil surfaces and landscape; wires, utility lines, pipes, sprinklers, sewer and septic lines; pool and spa decking, coping, surround, tile, filter, heaters, jets, water features and cleaning systems.

THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE GOODS PROVIDED ON THE FACE OF THIS CONTRACT. KATCHAKID DISCLAIMS ANY WARRANTY OF ANY OTHER KIND, INCLUDING ANY WARRANTY THAT THE GOODS ARE MERCHANTABLE OR FIT FOR A PARTICULAR PURPOSE.

WARNING The Katchakid Pool Fence is a supplementary pool safety aid, and not a substitute for the undivided and competent supervision of an adult.

A Katchakid Pool Fence can never replace adult supervision, nor can it be a guarantee against drownings or other accidents. Always close and lock the gate of your pool fence.

California 1-866-333-6387

Texas 1-888-552-8242

Arizona 1-888-552-8241

www.katchakid.com

Katchakid, Inc. 1330 Sherwood Forest Street Ste. 301 Houston, Texas 77043 Toll-Free 1-888-552-8242 CPSC Pool Safely collaborator Email: info@katchakid.com Remember, the Katchakid® barrier is a supplementary pool safety aid. The best safety around pools is undivided and competent adult supervision.

A Katchakid barrier can never replace adult supervision. Nor can it be a guarantee against drownings or other accidents.

©2026 Katchakid, Inc. All rights reserved.
