PORTFOLIO(2019-2023)

01 URBAN CENTER

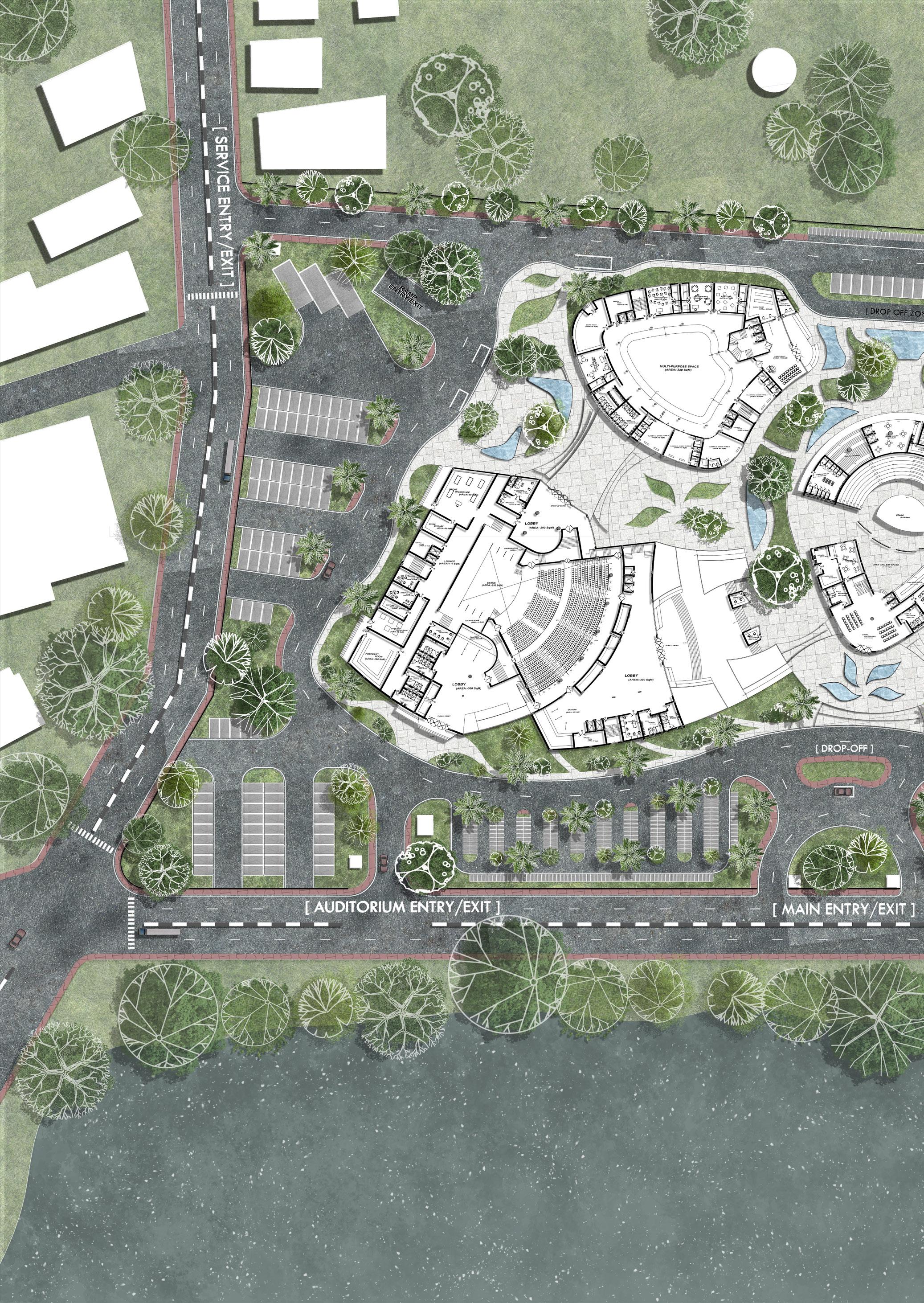

LOCATION | PATTINAPAKKAM,CHENNAI

SITE AREA | 3 Acre

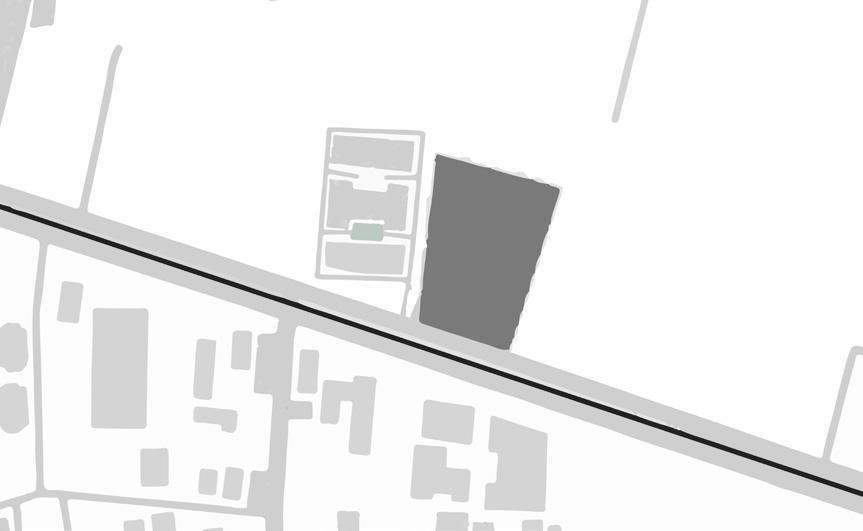

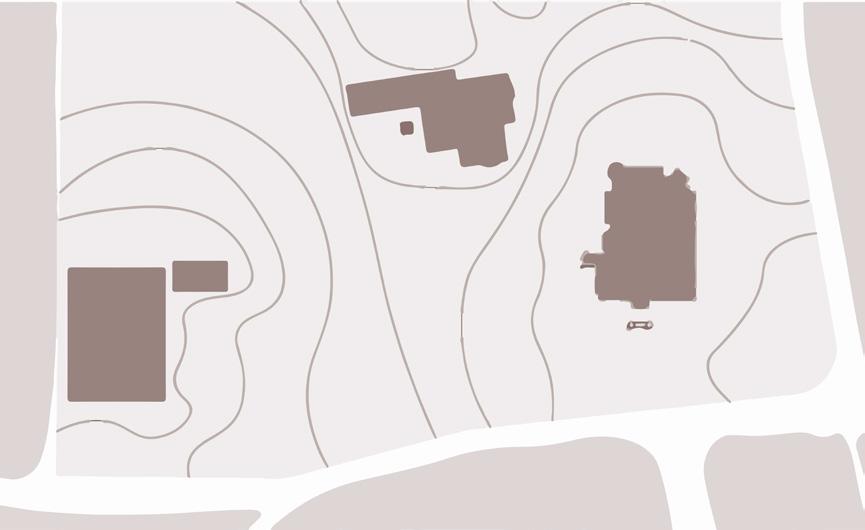

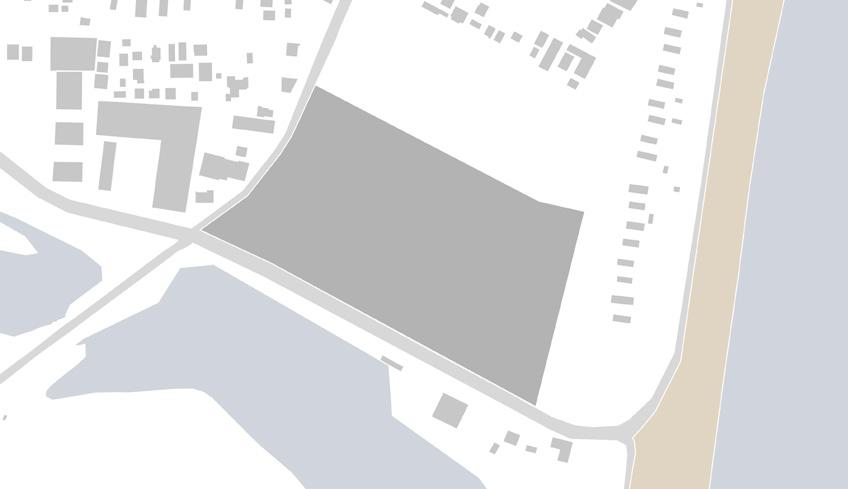

SITE

OBJECTIVE

objective of this preserve the culture, art and language of out the personal expression of literature, music and art, would CONCEPT

our society and to cherish it. “Life without the collective resources of our libraries, museums, theatres and galleries, or withwould be static and sterile”

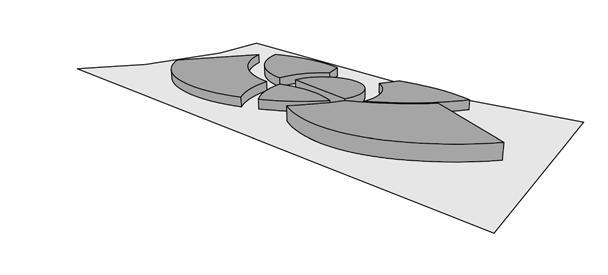

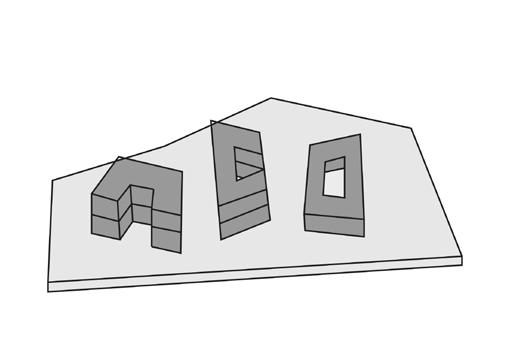

creating pathway for connectivity for all blocks by subractive process

Adding extra height on 1 & 2 block so it reseamble like silam(hill)

AUDITORIUM VIEW

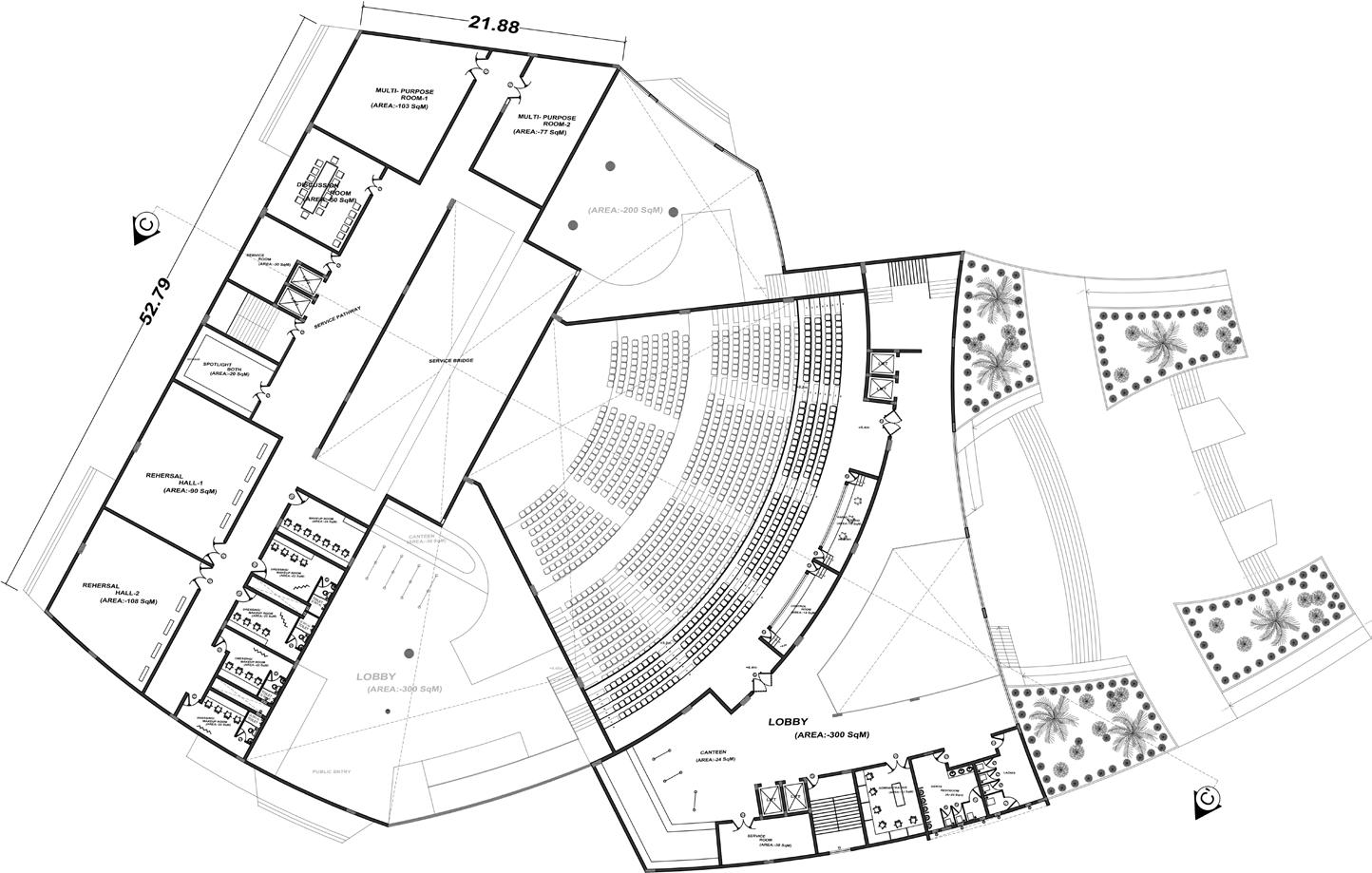

[EDUCATION SPACE & ADMIN]- SECOND FLOOR

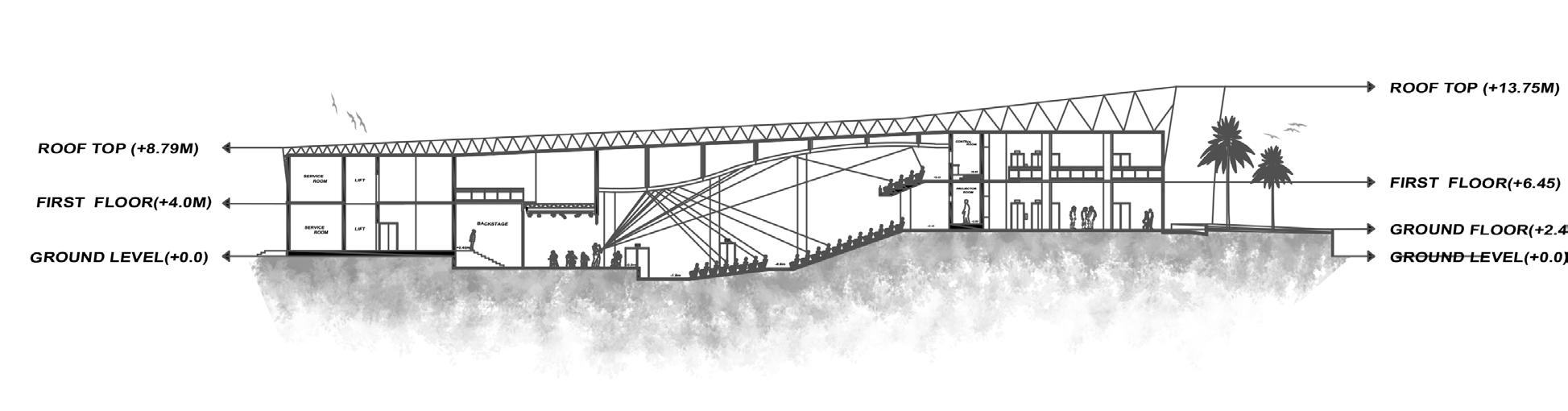

AUDITORIUM SECTION

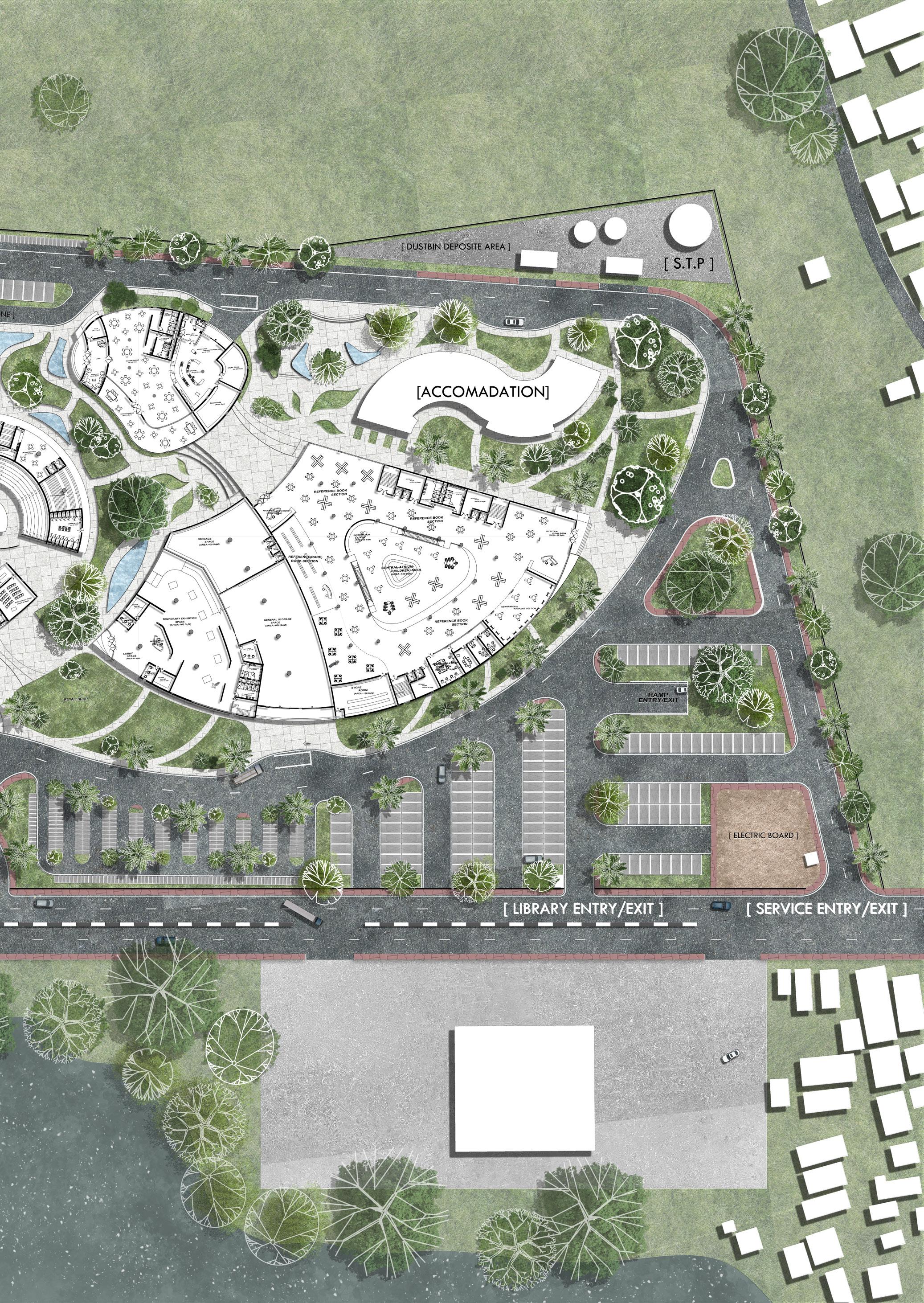

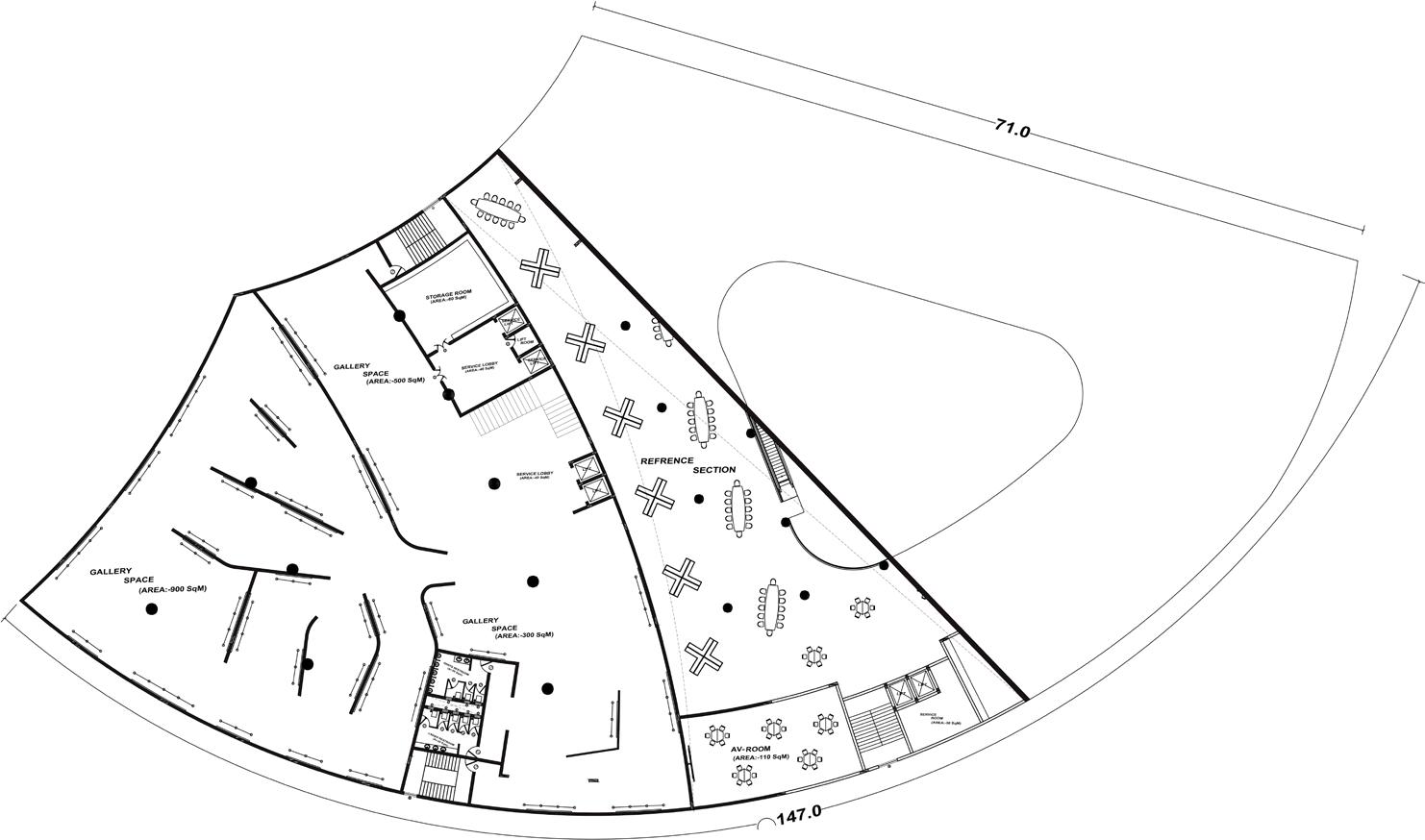

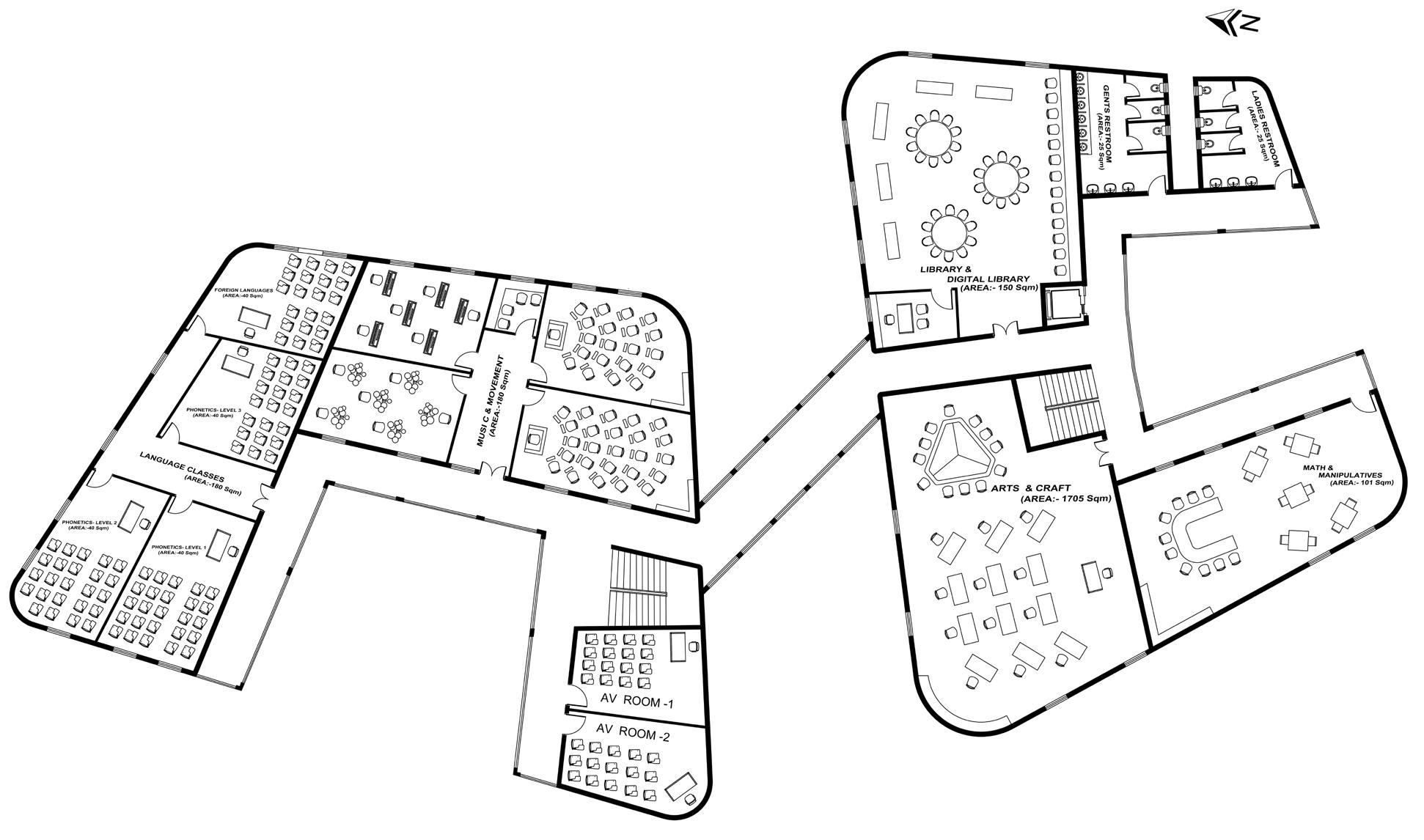

[MUSEUM & LIBRARY]- FIRST FLOOR

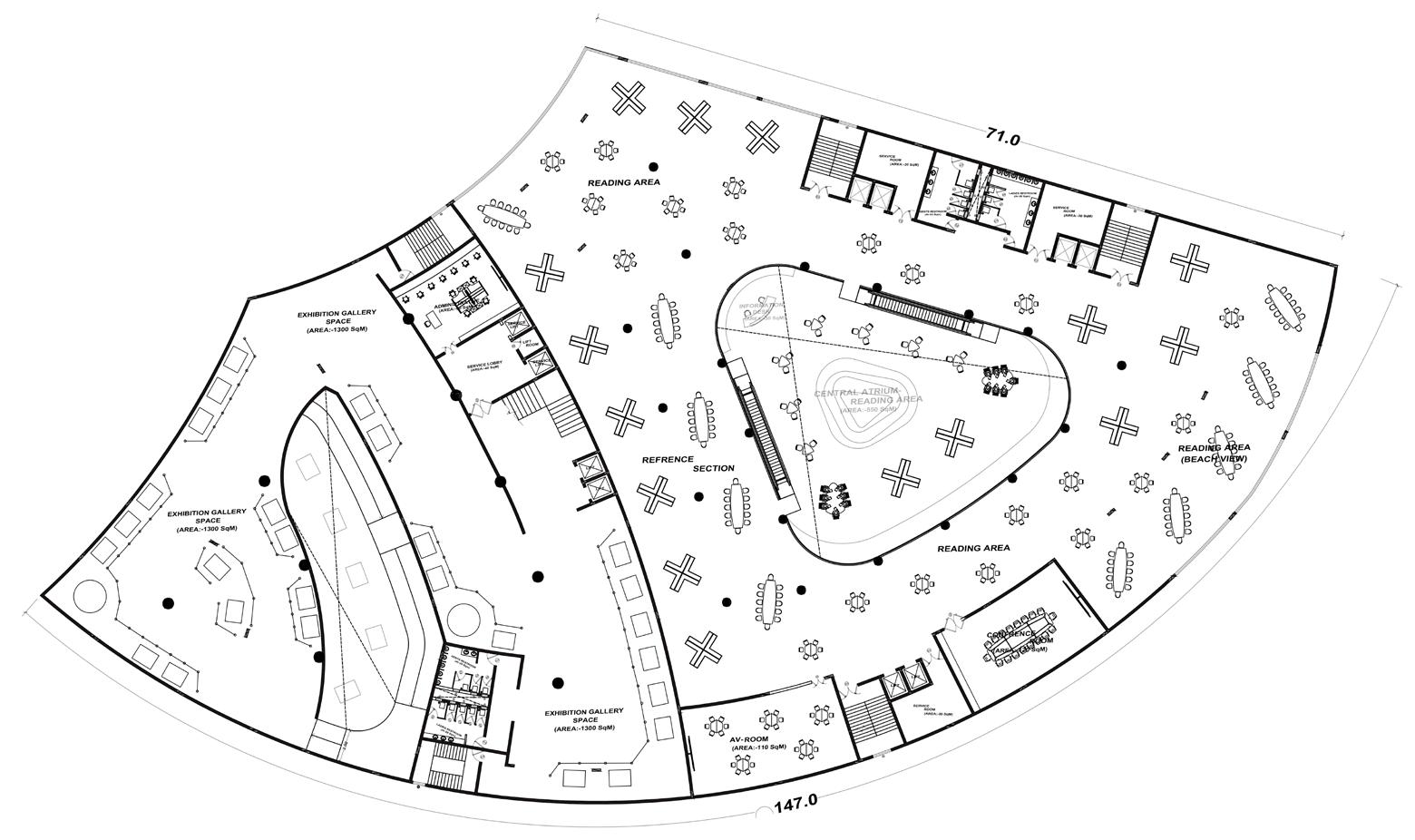

[MUSEUM & LIBRARY]- SECOND FLOOR

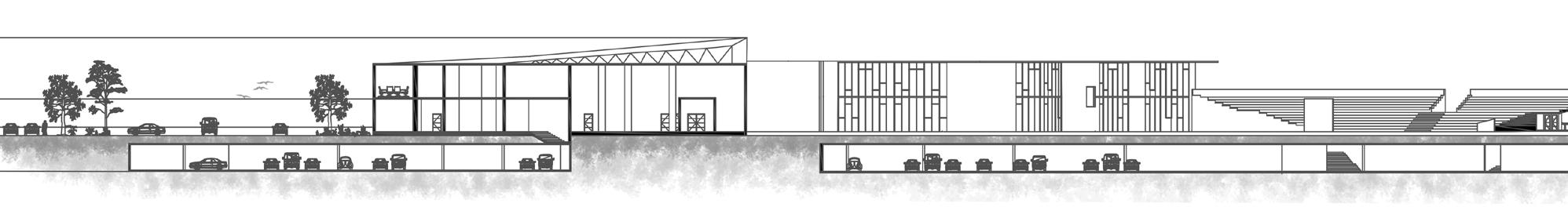

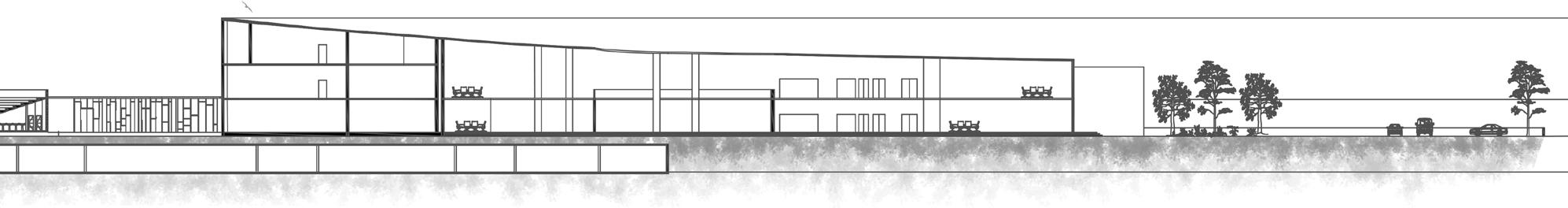

SITE SECTION-AA’

HIGH-RISE APPARTMENT

LOCATION | PORUR,CHENNAI

SITE AREA | 3 Acre

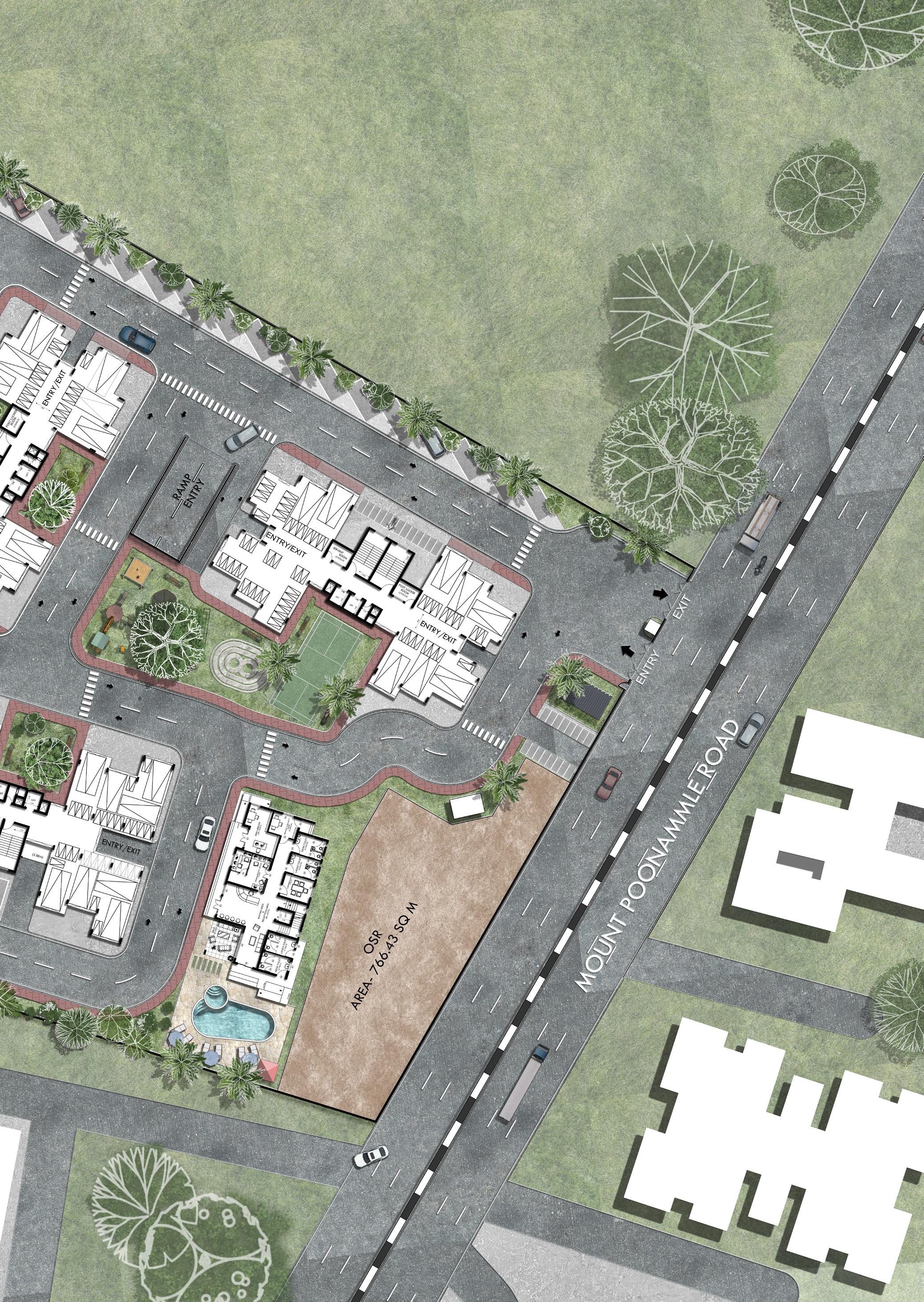

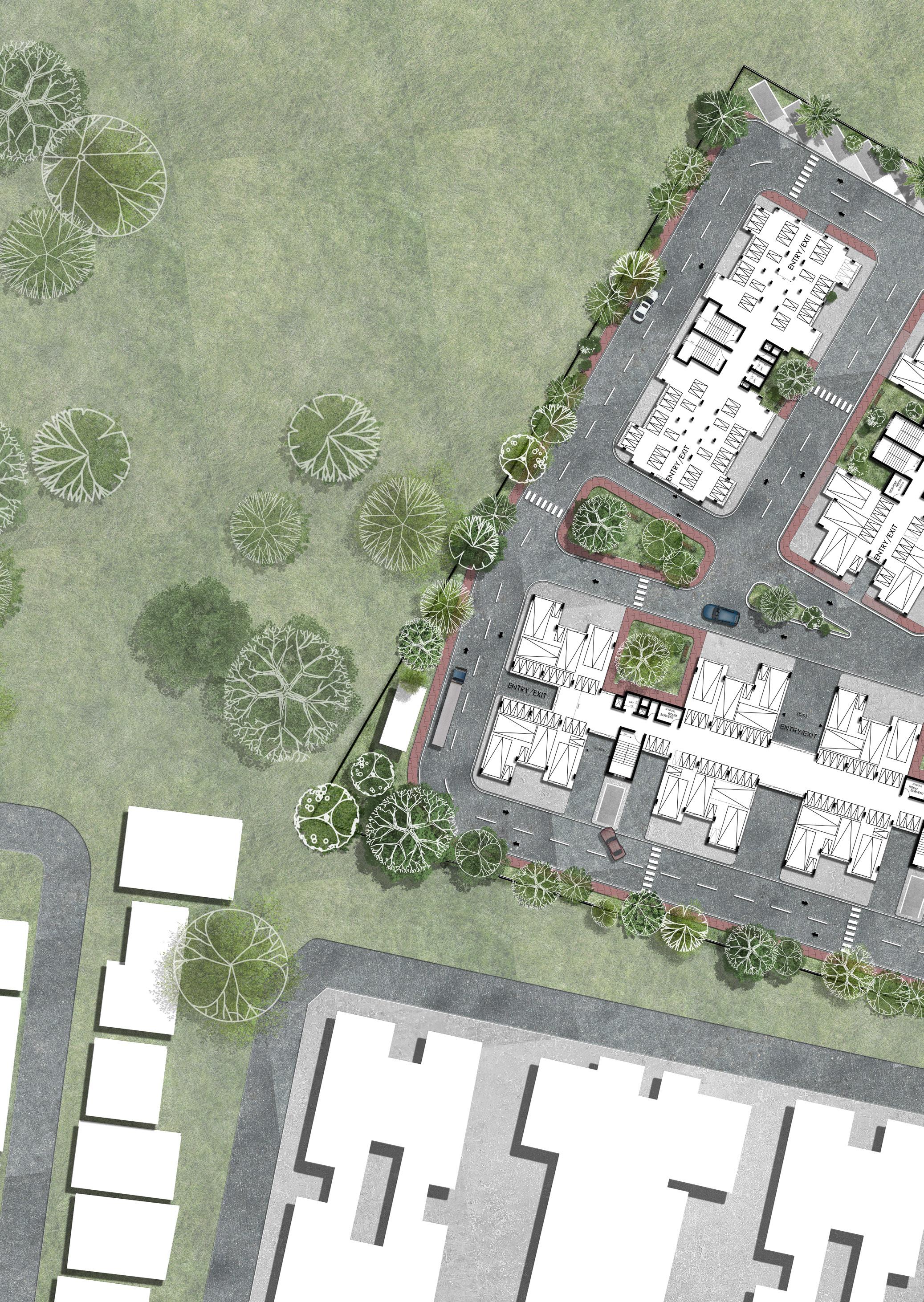

SITE

OBJECTIVE

Objective of this project is to create comfortable infrastructure provided and to design spaces these

KEY FEATURE

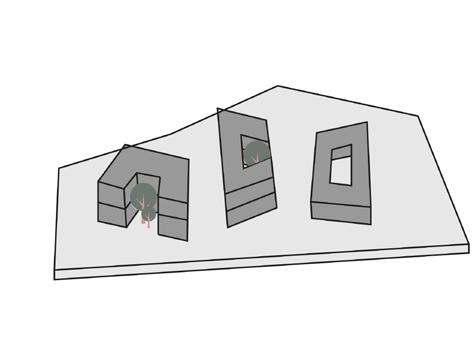

Form of this project is derived based on O.S.R, Setback provided which enhances the physical and visual For every 3 floors in each block Refugee area is provided resident

OVERAL VIEW

comfortable living conditions by providing access to sunlight, privacy, natural ventilation and open space with these enhances the physical and visual interaction and reduce isolation.

Setback and Providing infrastructure. For connectivity between 3 blocks, central garden is visual interaction and reduces isolation. For interaction between two units balcony is tilted 6 °. provided for emergency purpose and it is used as indoor gardening, a gathering place for every

TYPICAL FLOOR PLAN BLOCK-A (GF-1 FLOORS)

TYPICAL FLOOR PLAN BLOCK-A (2-9 FLOORS)

TYPICAL FLOOR PLAN BLOCK-B&C (0-14FLOORS)

HEAD ROOM(+51.15m)

PARAPET (+49.15m) WALL

TERRACE (+48.15m)

14th FLOOR (+45.15m)

13th FLOOR (+42.15m)

12th FLOOR (+39.15m)

11th FLOOR (+36.15m)

10th FLOOR (+33.15m)

FLOOR (+30.15m)

FLOOR (+27.15m)

7th FLOOR (+24.15m)

6th FLOOR (+21.15m)

5th FLOOR (+18.15m)

4th FLOOR (+15.15m)

TYPICAL FLOOR PLAN EWS (0-7FLOORS)

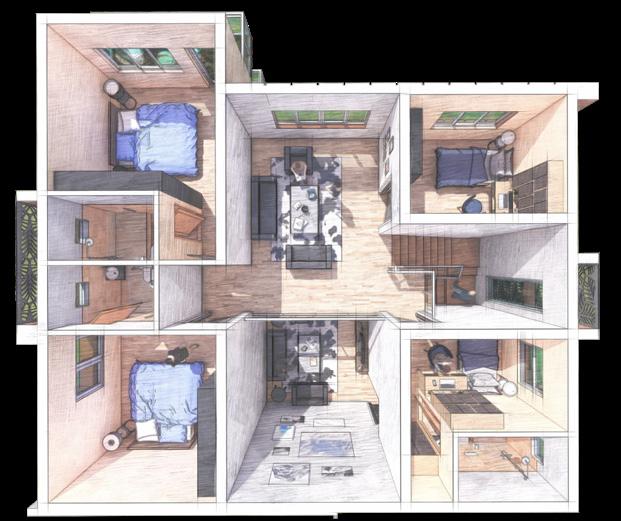

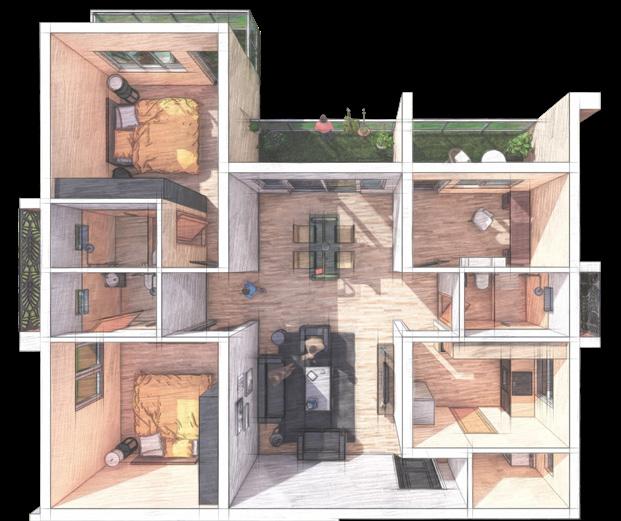

TOP VIEW OF 2.5 BHK

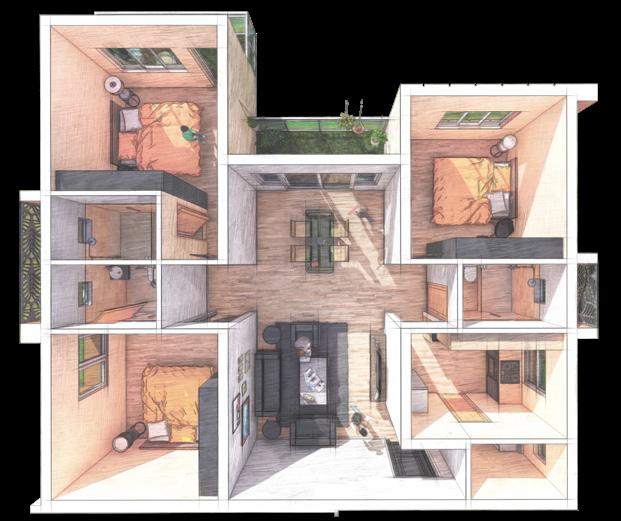

TOP VIEW OF 3 BHK TOP VIEW OF DUPLEX

HOLISTIC LEARNING CENTER

LOCATION | VIRUGABAKAM,CHENNAI

SITE AREA | 2 Acre

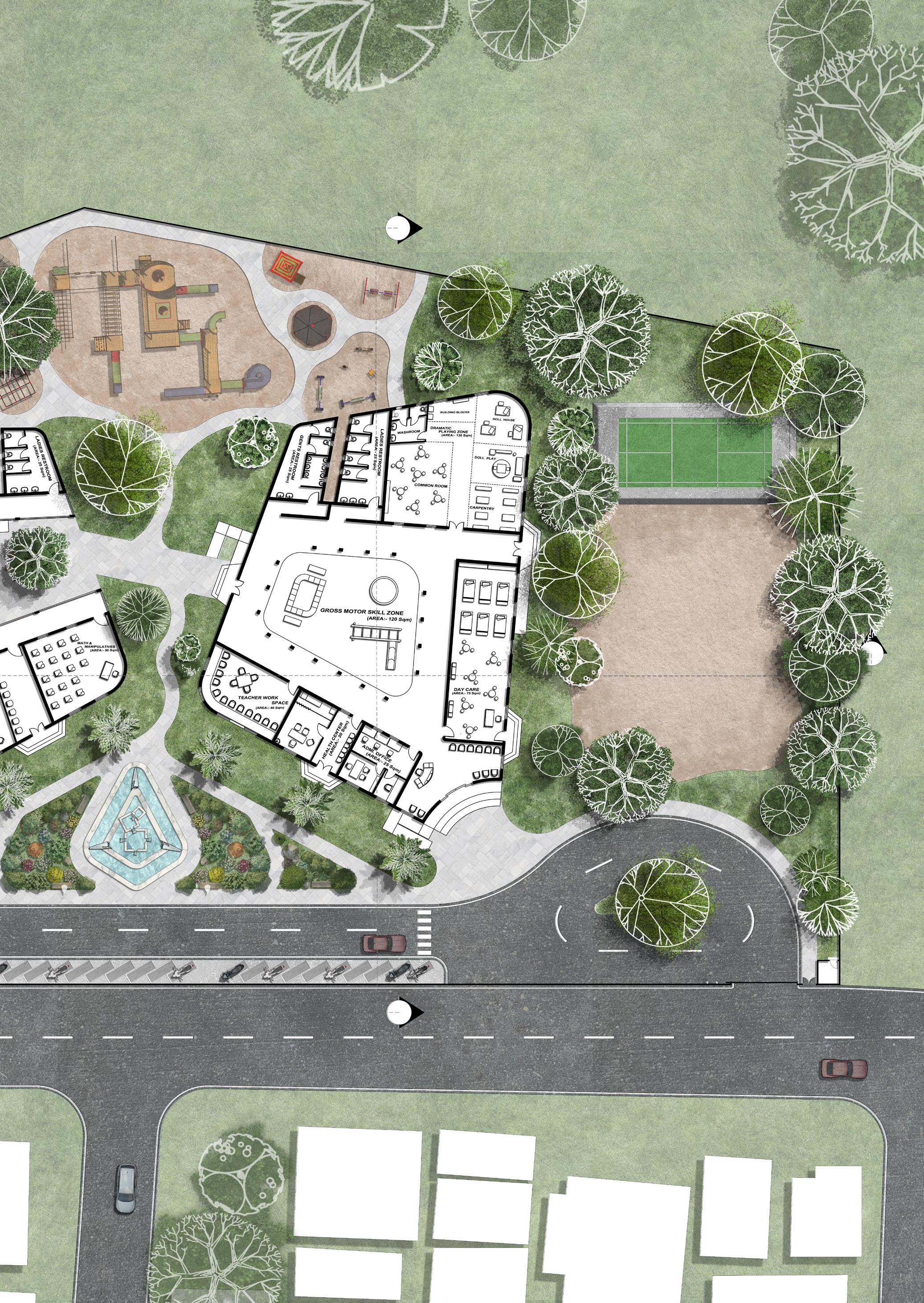

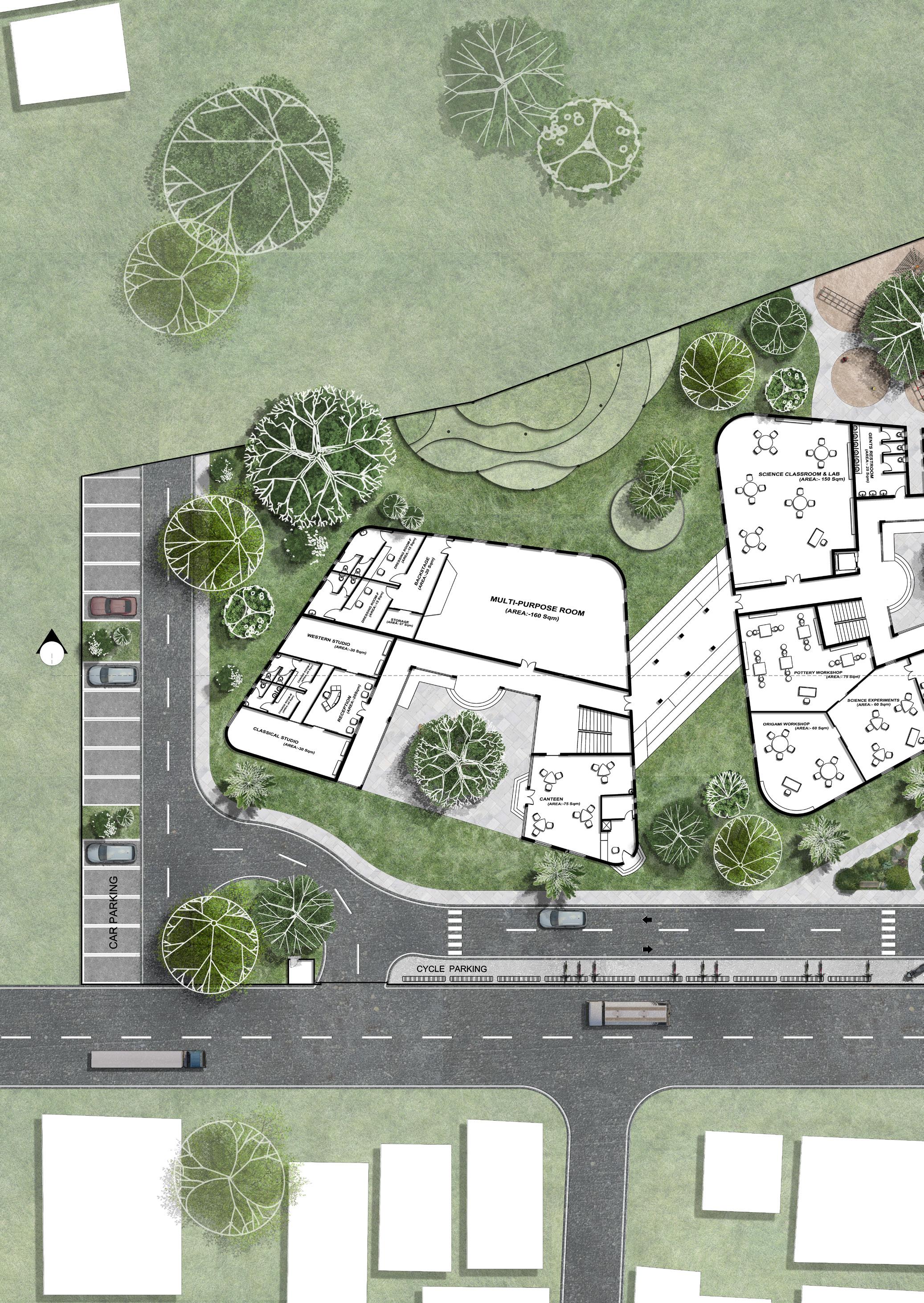

SITE

OBJECTIVE

Objective of this project is to Create comfortable & enjoyable ventilation and open space which interaction with nature. CONCEPT

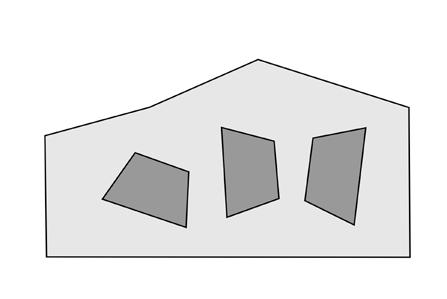

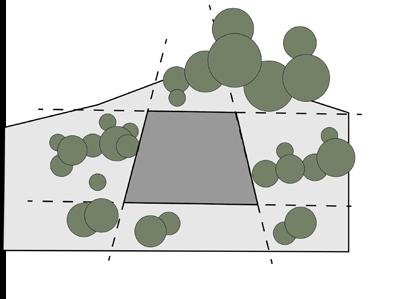

Attaining trapezium shape by connecting the closed boundry area of natural tress located on site

Adding multiple trapezium on site according to the requirements

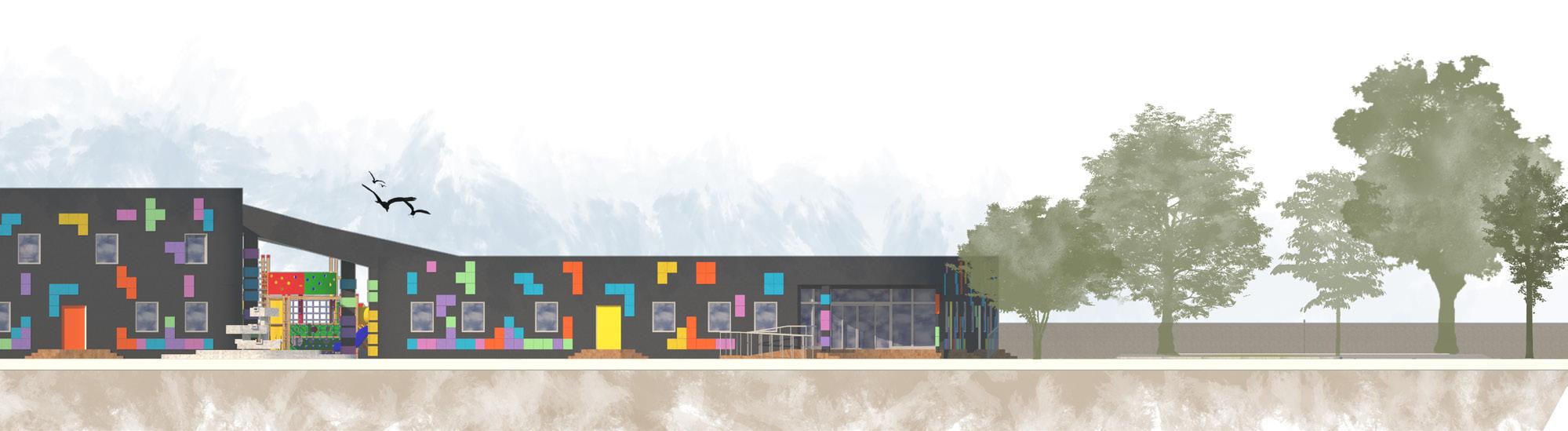

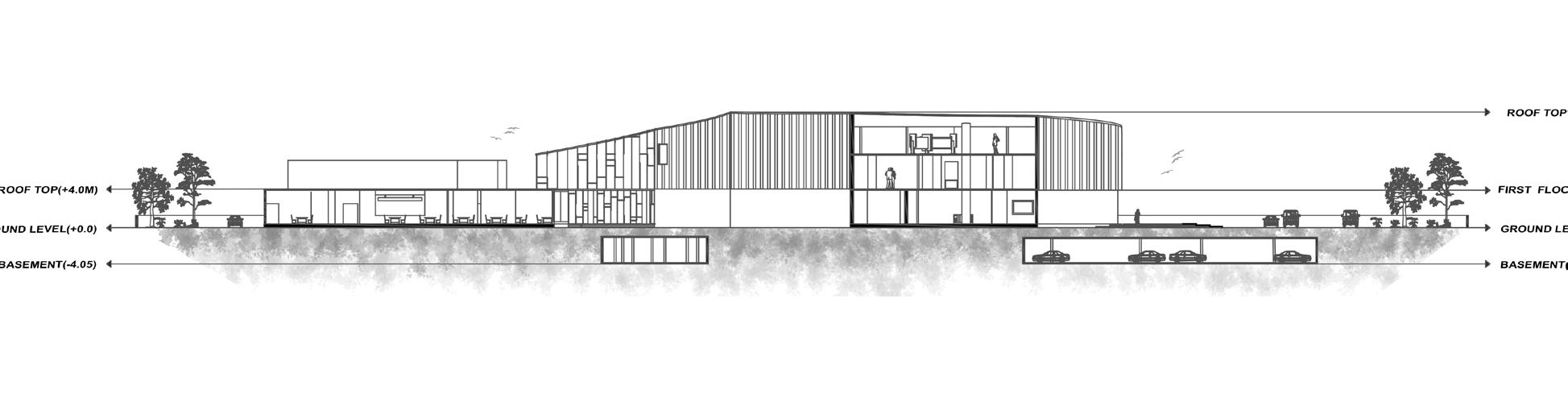

SECTION-AA’

BLOCK-B(1ST FLOOR)

PARK AREA FOR KIDS

SEATING AND LECTURE AREA FOR TEENAGERS

HEAD ROOM (+10.0m)

PARAPET (+8.4m)

WALL

FIRST FLOOR (+3.85m)

GROUND LVL (+0.0m)

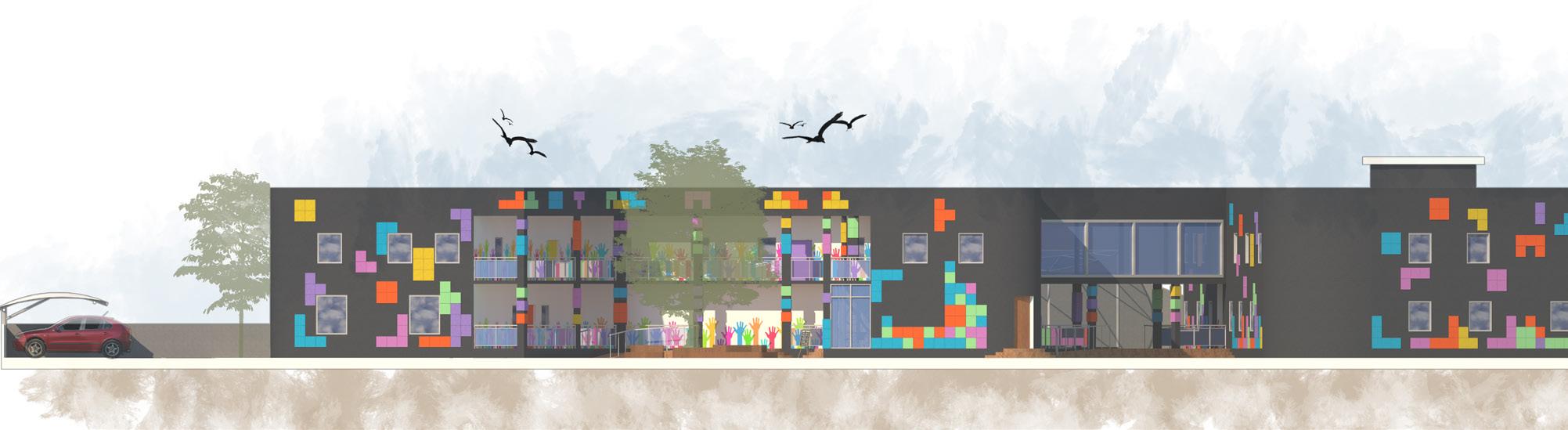

SECTION-AA’

CANTEEN AREA

OVERHEAD BRIDGE VIEW

GARDEN AREA VIEW

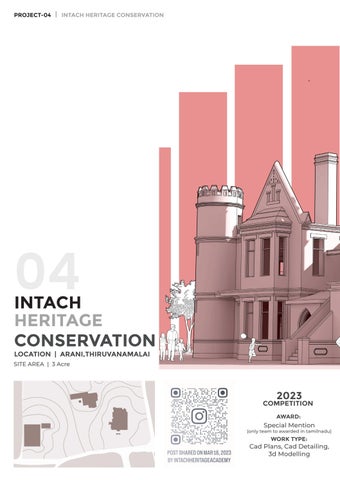

04 INTACH HERITAGE CONSERVATION

LOCATION | ARANI,THIRUVANAMALAI

SITE AREA | 3 Acre

2023 COMPETITION

AWARD: Special Mention (only team to awarded in tamilnadu)

WORK TYPE: Cad Plans, Cad Detailing, 3d Modelling

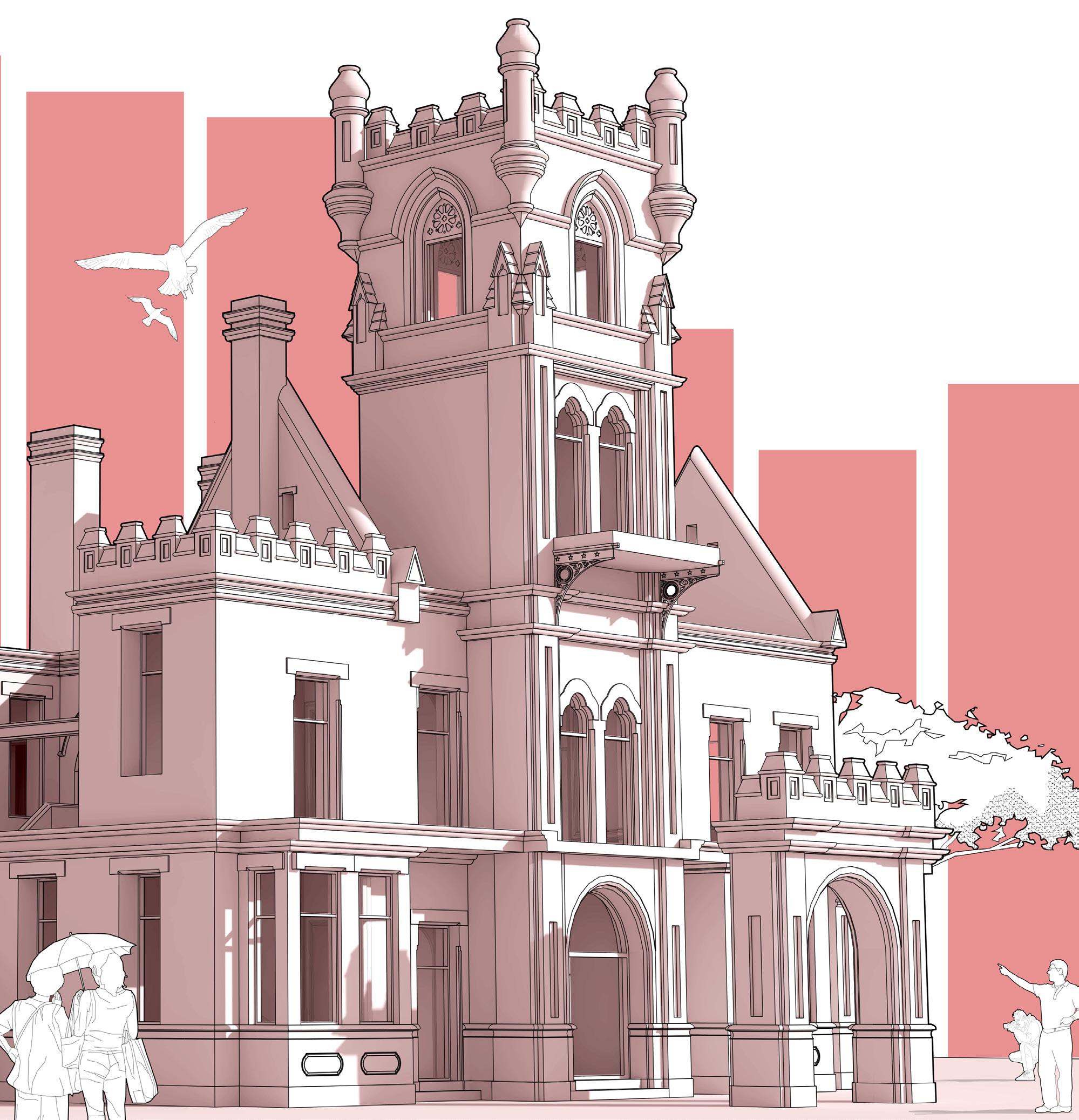

OVERALL VIEW

OBJECTIVE

The objective of the documentation is to promote the preservation and aprreciate heritage buildings.

Participants were tasked with documenting these architectural treasures to capture the historical significance, architectural details, and cultural value, aiming to raise awareness about the importance and foster a sense of pride in our cultural heritage.

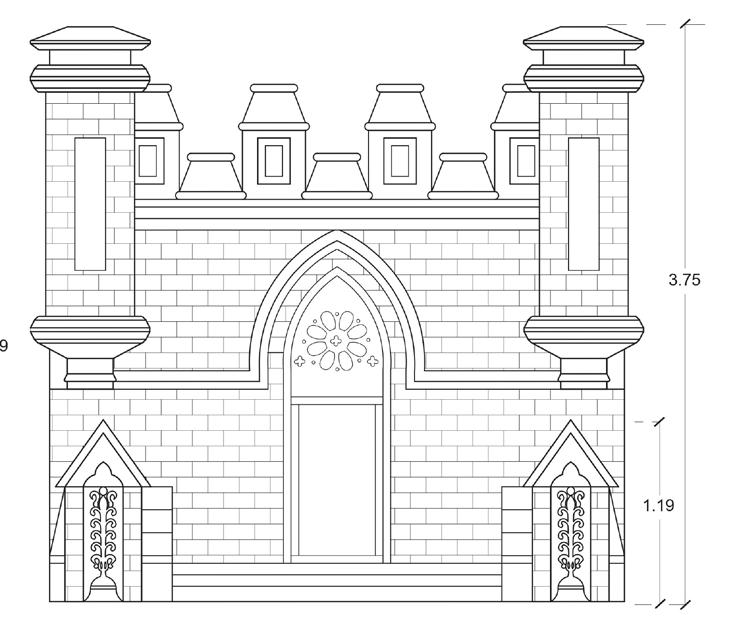

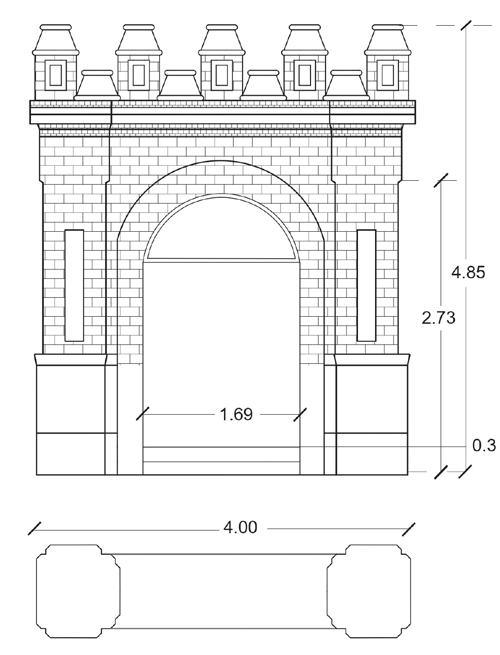

PORTICO

Portico, colonnaded porch or entrance to a structure, typically used in Greek Architecture, covered walkway supported by regularly spaced columns. The building had a magnificent portico in the front, which was teared down by the harsh climatic conditions.

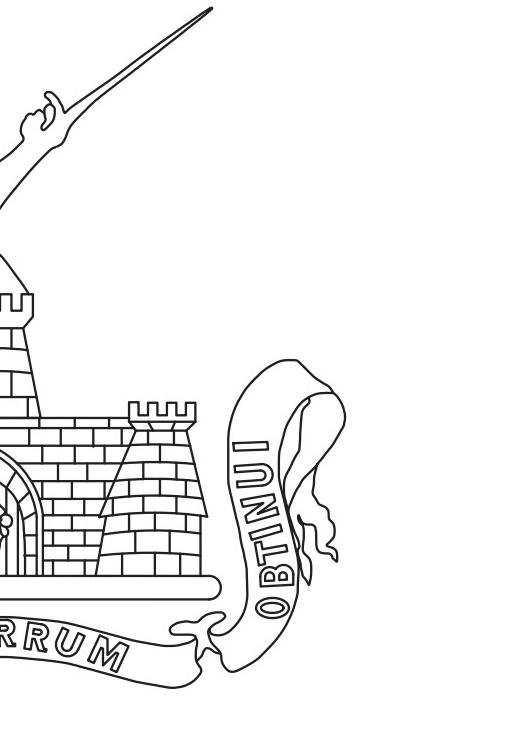

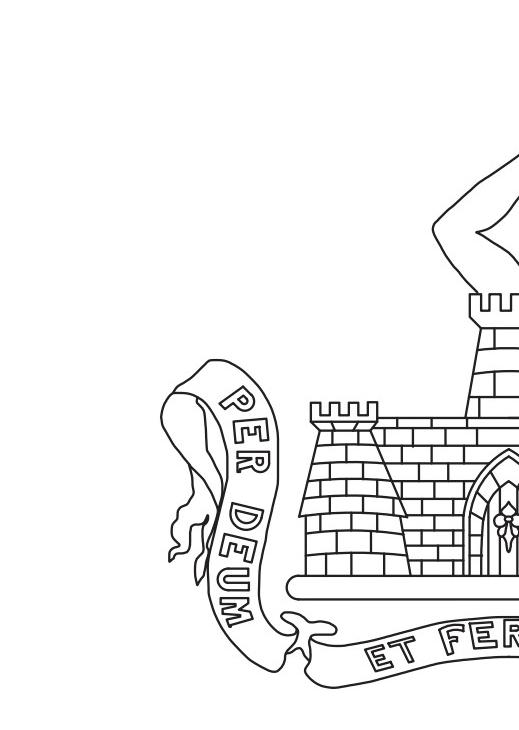

The logo holds Motto on the emblem “Per Deum

God and my sword

holds its own et Ferrum obtinui” translates to sword I have obtained.”

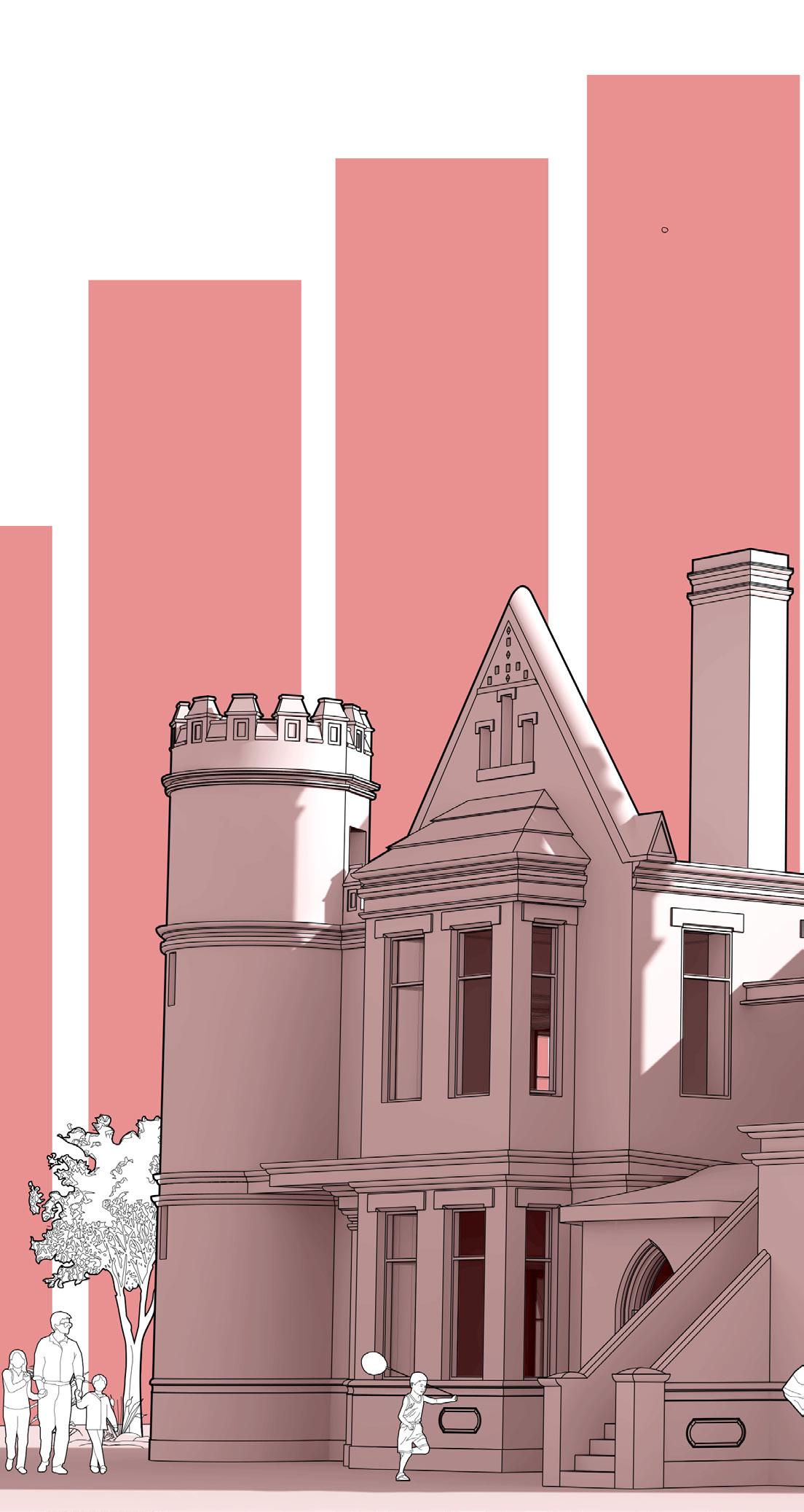

WATCH TOWER

The tower is located in the south wing of the building. The front is in red pointed brickwork relieved by Sholinghur Stone dressings. The internal fittings was comprised of all latest improvements during that time. The purpose of the tower is predicted to be a view point for the forest area. French style turrets were used in tower.

MACFARLANE’S CASTINGS BRACKETS

A bracket is a structural piece of metal jutting from a wall to carry a super incumbent weight. The bracket is made of Glasgow iron as an aesthetic element on the east wing balcony and Front watch tower area.

HOMAN’S FIREPROOF FLOOR

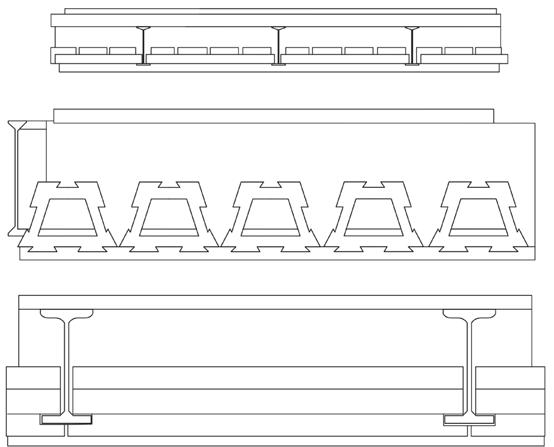

A principle feature in its construction is for the use of First time in India Messrs. Homan and Rodgers patent flat brick and iron joist floors. Considering that this is the First attempt of its kind (in India) for using iron joists in floor building technology to make it firproof.

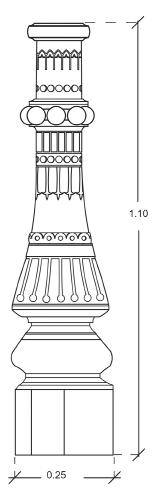

COLUMN BASE

This detail is not only enhances the aesthetics of the façade but also adds to the functional purpose by serving in quick down stream flow.

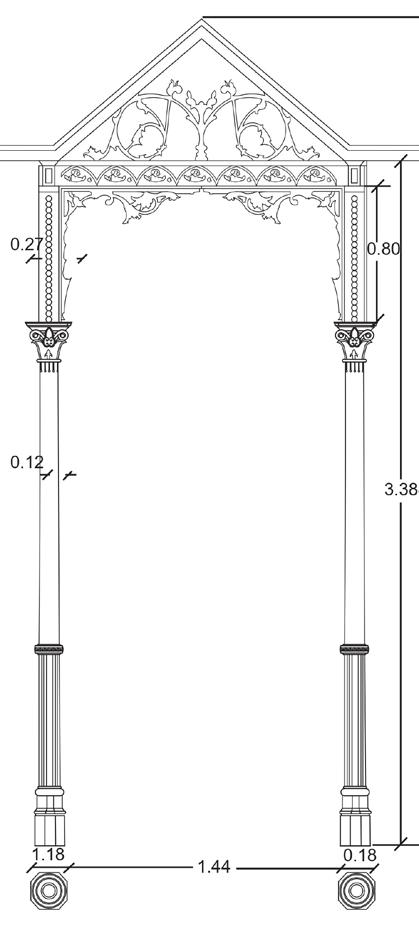

PITCHED ROOF(GABLE)

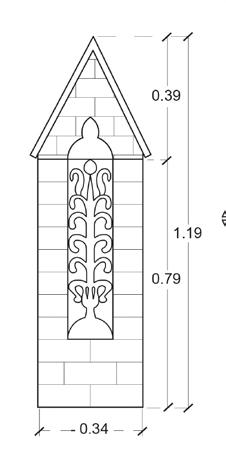

DECORATED GABLE

The iron jutting from the wall carries a super incumbent weight. The bracket is made of glassgow iron as an aesthetic element on the east wing balcony. It is detailed in order to decipher a royal facade

The pitched roof is located in It has cavity on the exterior plastered has small details on the gable avoid the harsh Columns are tall solid vertical of bricks provides support to possesses an alluring balcony aestheticdetailing. The columns glassgow iron pillars and act water.

ROOF(GABLE)

all four wings of the edifice. plastered to provide lighting. It wall. The roofs are pitched to harsh climate.

5.83

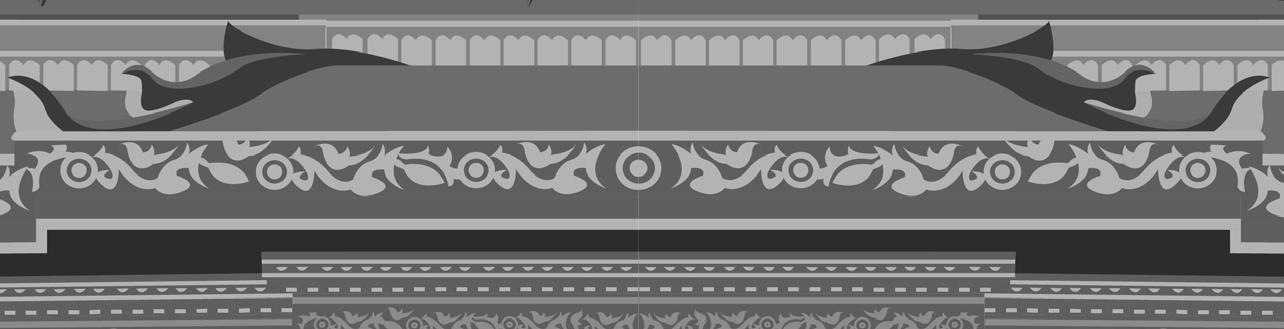

FLOOR PATTERN & WALLPAPER

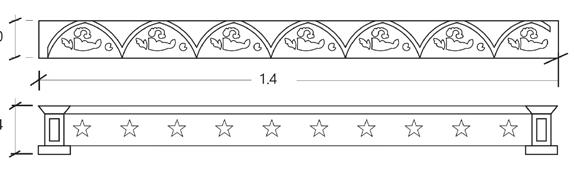

CORNICE PESUDO THREE CENTERED ARCH SEGMENTAL ARCH

2.54 3.45 1.68 1.20 2.06 1.96

IRON CAPITAL

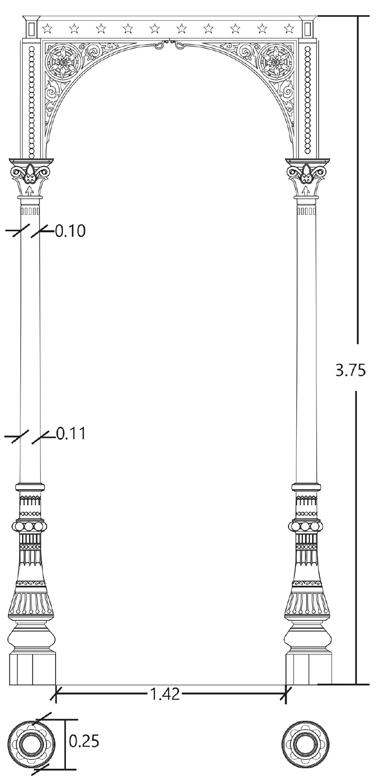

The Column was inspired from Greek Corinthian order. The capital has acanthus leafs on all the sides, volute and boss which are made up of Iron rather than traditional brick or concrete.

WING COLUMN 0.40 0.75 0.64

2.62 1.94 3.00 0.50 THREE POINTED ARCH THREE CENTERED ARCH

3.61

3.13 3.60 4.60

4.00 0.50

5.83 THREE POINTED ARCH

MISCELLANEOUS WORKS
