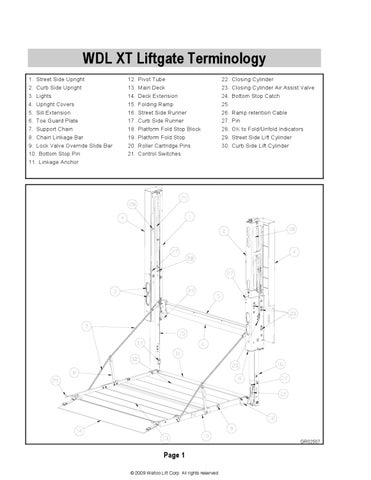

WDL XT Liftgate Terminology 1. Street Side Upright 2. Curb Side Upright 3. Lights 4. Upright Covers 5. Sill Extension 6. Toe Guard Plate 7. Support Chain 8. Chain Linkage Bar 9. Lock Valve Override Slide Bar 10. Bottom Stop Pin 11. Linkage Anchor
12. 13. 14. 15. 16. 17. 18. 19. 20. 21.
Pivot Tube Main Deck Deck Extension Folding Ramp Street Side Runner Curb Side Runner Platform Fold Stop Block Platform Fold Stop Roller Cartridge Pins Control Switches
22. 23. 24. 25. 26. 27. 28. 29. 30.
Closing Cylinder Closing Cylinder Air Assist Valve Bottom Stop Catch Ramp retention Cable Pin OK to Fold/Unfold Indicators Street Side Lift Cylinder Curb Side Lift Cylinder
GR02507
