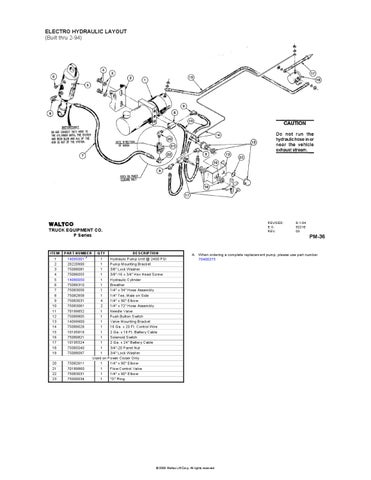

ELECTRO HYDRAULIC LAYOUT (Built thru 2-94)
WALTCO
REVISED: E.O. REV.
TRUCK EQUIPMENT CO. P Series
ITEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
PART NUMBER 14095001 A 20220900 75088081 75086055 14080050 75089310 75083056 75082858 75083031 75083061 70189852 75089805 14099900 75089026 10195616 75089821 10195524 75085040 75088097 75082611 70189860 75083031 75000034
8-1-04 5221E 03
PM-36
QTY DESCRIPTION 1 Hydraulic Pump Unit @ 2400 PSI 1 Pump Mounting Bracket 1 3/8" Lock Washer 1 3/8"-16 x 3/4" Hex Head Screw 1 Hydraulic Cylinder 1 Breather 1 1/4" x 34" Hose Assembly 1 1/4" Tee, Male on Side 4 1/4" x 90° Elbow 2 1/4" x 72" Hose Assembly 1 Needle Valve 1 Push Button Switch 1 Valve Mounting Bracket 1 16 Ga. x 20 Ft. Control Wire 1 2 Ga. x 16 Ft. Battery Cable 1 Solenoid Switch 1 2 Ga. x 24" Battery Cable 1 3/4"-20 Panel Nut 1 3/4" Lock Washer Used on Power Closer Only 1 1/4" x 90° Elbow 1 Flow Control Valve 1 1/4" x 90° Elbow 1 "O" Ring
A. When ordering a complete replacement pump, please use part number 70400275
