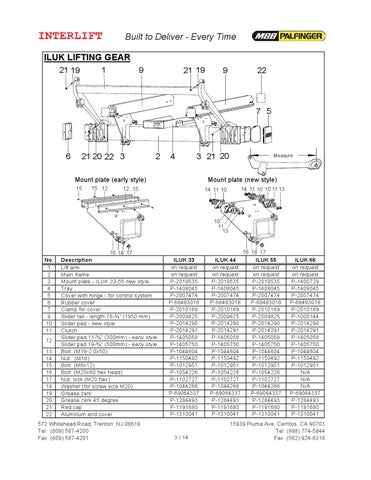

Built to Deliver - Every Time ILUK LIFTING GEAR 21 19
1
9
21 19
9
22
7 5
6
21 20 22 3
2
4
3 21 20
Mount plate (early style) 15
15 12
Measure
Mount plate (new style)
12 15
14 11 10
14 11 10 10 11 13
10 11 13
16 18 17
No. 1 2 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 19 20 21 22
Description Lift arm Main frame Mount plate - ILUK 33-55 new style Tray Cover with hinge - for control system Rubber cover Clamp for cover Slider rail - length 76-!" (1950 mm) Slider pad - new style Clutch Slider pad 11-!" (300mm) - early style Slider pad 19-!" (500mm) - early style Bolt (M16-2.0x50) Nut (M16) Bolt (M6x12) Bolt (M20x60 hex head) Nut, lock (M20 hex) Washer (for screw size M20) Grease zerk Grease zerk 45 degree Red cap Aluminum end cover
572 Whitehead Road, Trenton, NJ 08619 Tel: (609) 587-4200 Fax: (609) 587-4201
ILUK 33 on request on request P-2019535 P-1408045 P-2007474 P-68483018 P-2010169 P-2009825 P-2014290 P-2014291 P-1405058 P-1405750 P-1044604 P-1150492 P-1012951 P-1054226 P-1102727 P-1044266 P-69064337 P-1284493 P-1191680 P-1310041
3 / 14
ILUK 44 on request on request P-2019535 P-1408045 P-2007474 P-68483018 P-2010169 P-2009825 P-2014290 P-2014291 P-1405058 P-1405750 P-1044604 P-1150492 P-1012951 P-1054226 P-1102727 P-1044266 P-69064337 P-1284493 P-1191680 P-1310041
16 18 17 ILUK 55 on request on request P-2019535 P-1408045 P-2007474 P-68483018 P-2010169 P-2009825 P-2014290 P-2014291 P-1405058 P-1405750 P-1044604 P-1150492 P-1012951 P-1054226 P-1102727 P-1044266 P-69064337 P-1284493 P-1191680 P-1310041
ILUK 66 on request on request P-1400729 P-1408045 P-2007474 P-68483018 P-2010169 P-1000144 P-2014290 P-2014291 P-1405058 P-1405750 P-1044604 P-1150492 P-1012951 N/A N/A N/A P-69064337 P-1284493 P-1191680 P-1310041
