Anteo F3CL 30 Liftgate Parts Manual

F3CL 30

Da matr. a matr. From s.n. to s.n. Du n.s. au n.s. De matr. a matr.

Tavola Table

N° Nr.

Table Tabla

Nr. N°

Po s.

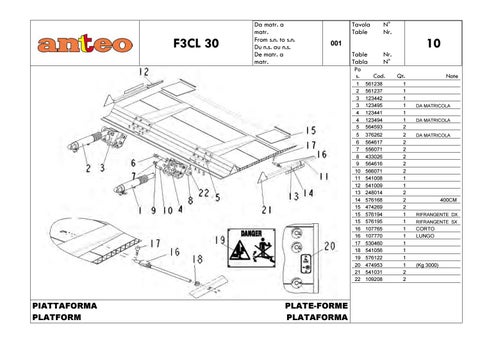

PIATTAFORMA PLATFORM

001

PLATE-FORME PLATAFORMA

Cod.

Qt.

1 2 3 3 4 4 5

561238 561237 123442 123495 123441 123494 564593

1 1 1 1 1 1 2

5 6 7 8 9 10 11 12 13 14 15 15 15 16 16 17 18 19 20 21 22

376262 564617 556071 433026 564616 566071 541008 541009 248014 576168 474269 576194 576195 107765 107770 530460 541056 576122 474953 541031 109208

2 2 2 2 2 2 1 1 2 2 2 1 1 1 1 1 1 1 1 2 2

Note

DA MATRICOLA DA MATRICOLA DA MATRICOLA

400CM RIFRANGENTE DX RIFRANGENTE SX

CORTO LUNGO

(Kg 3000)

Turn static files into dynamic content formats.

Create a flipbook

Anteo F3CL 30 Liftgate Parts Manual

Published on Oct 16, 2017

THE Liftgate Parts Co.

Anteo Cantilever Liftgate "The 5 cylinders F3CL 30 is a very power lift, heavy duty task with very high performances for intensive usage. The robust frame with reinforced strong articulation pins and big cylinders is designed for lift capacities of 2500 to 3000 kg. Platform Power opening that gives high speed of platform opening even with very low temperatures, hydraulic automatic tilt for a smooth and safer operation, high stiffness ideal to equip vehicles for customers that like high performances. The 5 - cylinders F3CL 30 is suitable for rigids, trailers and semi-trailers and when equipped with a longer platform (up to 2600 mm) can easily form the rear closure of the vehicle body."
