PRECISION GROUND Bearings

How to Specify

CROWDERTRACK To assist us in understanding your specific needs and processing your order flawlessly, there are three items we need to know, in addition to the dimensions, about your installation:

1

2 3 If

WE HAVE REDESIGNED our nylon ball bearing

wheels & hangers. The new and improved hangers will now be supplied with our new precision ground bearings.

Determine your door type requirements. Examples are: single track pocket, front, top or rear mounted, dual track bypassing, 2 single tracks employed as dual bypassing, bi-parting or bi-folding/pivot.

These new precision ground bearings will easily handle the same load capacity (weight) but are virtually silent and incredibly smooth. We have cycle tested * our new hangers to the equivalent of over 30 years of normal use (over 150,000 cycles) without experiencing any measurable wear or increase in noise.

Estimate or determine the door weight you will need to accommodate. A reference table below is shown to assist with this calculation. Determine your opening size. Charts of standard sizes and configurations, as well as hardware required are shown on each product page of this catalogue, where applicable. Consider allowances and clearances for recessed pockets where applicable.

* One cycle = one opening and one closing of the door

you require alternate configurations or have special track requirements, we would be more than happy to discuss your needs.

Average Door Weight (lbs) for 7ft [2134mm] 1-3/8” [34.9mm] thick Door Width

Hollow Wood Core

Solid Pine

Hollow Core Steel

Solid Oak

12” [305 mm]

14

21

28

35

18” [457 mm]

21

32

42

53

24” [610 mm]

28

42

56

70

30” [762 mm]

25

53

70

88

36” [914 mm]

42

63

84

105

For 8ft [2438mm] doors, 1-3/8” [34.9mm] thick, multiply by 1.14 for approx. weight For 7ft [2134mm] doors, 1-3/4” [44.5mm] thick, multiply by 1.25 for approx. weight For 8ft [2438mm] doors, 1-3/4” [44.5mm] thick, multiply by 1.50 for approx. weight NOTE: SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

Burlington, Ontario, Canada

|

New York, USA

3

kncrowder.com


Exposed Barn Door Systems

Track Series

Hanger Type

Weight

Page

CRT-100

Top, Strap & Glass Door Catch’N’Close Hangers

Up to 350 lbs. per door

11-15

CRT-50

Top, Strap & Glass Door Catch’N’Close Hangers

Up to 175 lbs. per door

17-21

CFT-200

Top, Strap & Glass Door Catch’N’Close Hangers

Up to 300 lbs. per door

25-33

Top & Strap Mount Catch’N’Close Hangers

Up to 200 lbs. per door

34-35

Catch’N’Close Product Information

Up to 300 lbs. per door

23

CRT-100

Catch’N’Close Glass Hangers

Up to 350 lbs. per door

15

CRT-50

Catch’N’Close Glass Hangers

Up to 175 lbs. per door

21

CFT-200

Catch’N’Close Glass Hangers

Up to 300 lbs. per door

33

•••

Catch’N’Close Glass Hangers

Up to 300 lbs. per door

57

•••

Catch’N’Close Glass Hangers

Up to 300 lbs. per door

59

CC-904 & CC-404

Zero Clearance Catch’N’Close Hangers

Up to 300 lbs. per door

37

CC-904 & CC-404

Easy Connect Catch’N’Close Hangers

Up to 200 lbs. per door

39

Flush Mount Ceiling Track with Catch’N’Close

Up to 300 lbs. per door

41

C-104

Zero Clearance Hangers

Up to 300 lbs. per door

87

C-104

Quick Release Hangers

Up to 200 lbs. per door

89

C-104

Heavy-Duty Nylon Wheel Hangers

Up to 450 lbs. per door

91

C-204

Heavy-Duty Steel Wheel Hangers

Up to 700 lbs. per door

93

C-104

Nylon Wheel Hangers

Up to 500 lbs. per door

97

Quick Release & Top Mount Hangers

Up to 150 lbs. per door

99

Top Mount & Concealed Hangers

Up to 75 lbs. per door

101

Zero Clearance & Easy Connect Catch’N’Close Hangers

Up to 300 lbs. per door

43

CC-908

Zero Clearance Catch’N’Close Hangers

Up to 300 lbs. per door

45

CC-908

Easy Connect Catch’N’Close Hangers

Up to 200 lbs. per door

47

Zero Clearance Catch’N’Close Hangers

Up to 300 lbs. per door

49

J -TRACK 300

Glass Systems

•••

Ceiling Track Systems

CC-905

C-411 & C-400

Barn Door Systems

C-350

CC-904 w/ CC-902

CC-908 & CC-408

Burlington, Ontario, Canada

|

New York, USA

4

kncrowder.com


Track Series

Hanger Type

Weight

Easy Connect Catch’N’Close Hangers

Up to 200 lbs. per door

51

C-108

Zero Clearance Hangers

Up to 300 lbs. per door

103

C-108

Quick Release Hangers

Up to 200 lbs. per door

105

C-108

Heavy-Duty Nylon Wheel Hangers

Up to 450 lbs. per door

107

C-108

Nylon Wheel Hangers

Up to 500 lbs. per door

109

CC-500

Zero Clearance Catch’N’Close Hangers

Up to 150 lbs. per door

53

CC-500

Easy Connect Catch’N’Close Hangers

Up to 150 lbs. per door

55

Top Mount Hangers

Up to 125 lbs. per door

111

Top Mount & Concealed Hangers

Up to 75 lbs. per door

113

Side Mount Hangers

Up to 60 lbs. per door

115

Bypass Systems

Barn Door Systems

CC-908 & CC-408

C-500 & C-538

C-600

•••

TYPE CC-HD-2X6 TYPE CC-2X6 & TYPE CC TYPE C-2X6, TYPE C & TYPE B

61

Heavy-Duty Easy Connect Catch’N’Close Hangers

Up to 300 lbs. per door

63

Easy Connect Catch’N’Close Hangers

Up to 150 lbs. per door

65

Quick Release & Top Mount Hangers

Up to 150 lbs. per door

67

68-69

2X4 Snap-on Aluminum Crowderframe Pocket Trim Kits

70-71

•••

Sound Sealing Pocket Doors

72-73

CST

Stacking Track Systems

Up to 300 lbs. per door

75

•••

Come-Along Systems

Up to 350 lbs. per door

77

•••

Crowderslide Telescoping Door Systems

Varies

79

•••

Strike & Jamb Kits

•••

Cantilever Door Systems

Varies

83

•••

High Security Door Systems

Varies

85

•••

Exterior Applications

Up to 450 lbs. per door

95

TYPE CC

Burlington, Ontario, Canada

Crowderframe Pocket Door Kit - How it all comes together

Extra Wide/High Pocket Door Kits and Bi-Parting Pocket Door Add-on Products

•••

Custom Systems

Crowderframe Pocket Door Systems

C-2035, C-2025

Page

|

New York, USA

81

5

kncrowder.com


Hanger Type

Weight

Center Pivot Hangers

Up to 250 lbs. per door

117

Easy Connect Pivot Kits

Up to 150 lbs. per door

119

Pivot Kits

Up to 50 lbs. per door

121

•••

Trackless Pivots

Up to 200 lbs. per door

123

•••

For 1-3/4” Thick Doors or greater

•••

124

•••

For 1-3/8” Thick Doors or smaller

•••

125

C-975 C-104 & C-204 CF-115 & CF-100

Door Guides

Crowder Folding Systems

Track Series

Lock Series

Page

Privacy Lock Sets

127-129

Security Lock Sets

131 133-135

Passage Sets

Door Locks & Pulls

Page

Bi-Parting Lock & Passage Sets

137

Barrier Free (ADA Compliant) Lock Sets

139 141-143

Barn Door Lock Sets Self-Latching Lock Sets

145

Flush Pulls

147

Edge Pulls

149

Glass Door Pulls

151

Door Handle Pulls

153-155

Colour Chart

156-157

Burlington, Ontario, Canada

|

New York, USA

6

kncrowder.com


Throw

A CURVE

into your Office or Home!

SPICE it Up!

KN CROWDER, A LEADER IN THE SLIDING DOOR T R A C K I N D U S T R Y, C A N C U R V E A N Y T R A C K Y O U T H R O W AT T H E M !

KNC’s curved door track system departs from the traditional and enables interesting spaces to be created using curved walls and doors. Sliding doors, whether curved or straight, save tremendous amounts of floor space compared to hinged doors. Curved tracks can be side-mounted or top mounted inside a pocket. Almost all tracks and guide channels can be curved to meet the exact specified dimensions. With a 36” [914 mm] minimum, any radius can be accommodated in any arc length. The curved sliding door track system is quiet and durable and ensures that the door’s glide is extremely smooth. KN Crowder is committed to innovation. We provide the sliding door industry with quality engineered, durable and time-tested hardware through our Crowdertrack line of sliding door products. Crowdertrack is as ‘smooth as flight’.

Burlington, Ontario, Canada

|

New York, USA

7

kncrowder.com


EXPOSED BARN DOOR SYSTEMS ARCHITECTURE & DESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

C ROW D E R RO U N D TR AC K S E R I E S

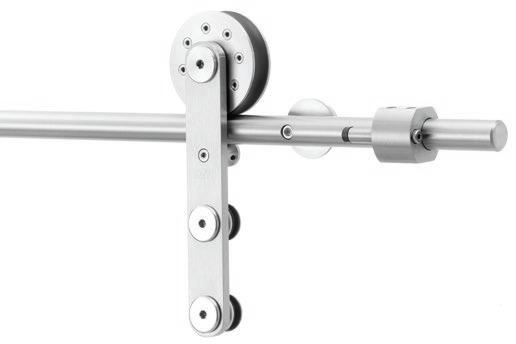

CRT-101-SS & CRT-101-BP Up to 350 lbs. [159 kg] per door Crowder Round Track 100 series features our classic top mount hangers for an ultra-modern look. 3-1/2” [88.9mm] Delrin wheels, precision ball bearings and shock absorbing stops come together to provide extremely smooth and quiet door operation. All CRT components are precision-machined 304 stainless steel finished in black or polished to a satin finish.

How to Specify/Order: Kit Code: CRT-101-SS X [track length] 1DR KIT Kit Code: CRT-101-BP X [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits) Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CRT-DP18 x 630 (Stainless Steel) CRT-DP18 x 622 (Black Finish) For 36” [914 mm] back to back handle pulls: CRT-DP36 x 630 (Stainless Steel) CRT-DP36 x 622 (Black Finish)

Burlington, Ontario, Canada

|

New York, USA

11

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D12E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

C ROW D E R RO U N D TR AC K S E R I E S

CRT-102-SS & CRT-102-BP Up to 350 lbs. [159 kg] per door Crowder Round Track 100 series features our classic strap mount hangers for an ultra-modern look. 3-1/2” [88.9mm] Delrin wheels, precision ball bearings and shock absorbing stops come together to provide extremely smooth and quiet door operation. All CRT components are precision-machined 304 stainless steel finished in black or polished to a satin finish.

How to Specify/Order: Kit Code: CRT-102-SS X [track length] 1DR KIT (For 1-3/4” [44.5 mm] door) Kit Code: CRT-102-38-SS X [track length] 1DR KIT (For 1-3/8” [34.9 mm] door) Kit Code: CRT-102-BP X [track length] 1DR KIT (For 1-3/4” [44.5 mm] door) Kit Code: CRT-102-38-BP X [track length] 1DR KIT (For 1-3/8” [34.9 mm] door) Note: [track length] = door width x 2 (for 1 door kits) Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CRT-DP18 x 630 (Stainless Steel) CRT-DP18 x 622 (Black Finish) For 36” [914 mm] back to back handle pulls: CRT-DP36 x 630 (Stainless Steel) CRT-DP36 x 622 (Black Finish) Burlington, Ontario, Canada

|

New York, USA

13

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D14E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

C ROW D E R RO U N D TR AC K S E R I E S FO R G L A S S D O O R S

CRT-103-SS & CRT-103-BP Up to 350 lbs. [159 kg] per door Crowder Round Track 100 series features our classic strap mount hangers for glass doors. 3-1/2” [88.9mm] Delrin wheels, precision ball bearings and shock absorbing stops come together to provide extremely smooth and quiet door operation. All CRT components are precision-machined 304 stainless steel finished in black or polished to a satin finish.

How to Specify/Order: Kit Code: CRT-103-12-SS X [track length] 1DR KIT (for 1/2” [12 mm] Glass) Kit Code: CRT-103-38-SS X [track length] 1DR KIT (for 3/8” [10 mm] Glass) Kit Code: CRT-103-12-BP X [track length] 1DR KIT (for 1/2” [12 mm] Glass) Kit Code: CRT-103-38-BP X [track length] 1DR KIT (for 3/8” [10 mm] Glass) Note: [track length] = door width x 2 (for 1 door kits) Optional Glass Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CRT-GDP18 x 630 (Stainless Steel) CRT-GDP18 x 622 (Black finish) For 36” [914 mm] back to back handle pulls: CRT-GDP36 x 630 (Stainless Steel) CRT-GDP36 x 622 (Black finish) Burlington, Ontario, Canada

|

New York, USA

15

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D16E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

Coming Soon with Catch’N’Close!

CROWDER ROUND TR ACK LIGHT-DUT Y SERIES

CRT-51-SS & CRT-51-BP Up to 175 lbs. [79 kg] per door Crowder Round Track 50 series is the light-duty version of our best-selling CRT-100 series. This hollow tube track system is still able to support up to 175 lbs. [79 kg] per door. 2-3/4” [69.9mm] Delrin wheels, precision ball bearings and shock absorbing stops come together to provide extremely smooth and quiet door operation. All CRT components are precision-machined 303 stainless steel finished in black or polished to a satin finish.

How to Specify/Order: Kit Code: CRT-51-SS X [track length] 1DR KIT Kit Code: CRT-51-BP X [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits) Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CRT-DP18 x 630 (Stainless Steel) CRT-DP18 x 622 (Black finish) For 36” [914 mm] back to back handle pulls: CRT-DP36 x 630 (Stainless Steel) CRT-DP36 x 622 (Black finish)

Burlington, Ontario, Canada

|

New York, USA

17

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D18E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

Coming Soon with Catch’N’Close!

CROWDER ROUND TR ACK LIGHT-DUT Y SERIES

CRT-52-SS & CRT-52-BP Up to 175 lbs. [79 kg] per door

Crowder Round Track 50 series is the light-duty version of our best-selling CRT-100 series. This hollow tube track system is still able to support up to 175 lbs. [79 kg] per door. 2-3/4” [69.9mm] Delrin wheels, precision ball bearings and shock absorbing stops come together to provide extremely smooth and quiet door operation. All CRT components are precision-machined 303 stainless steel finished in black or polished to a satin finish.

How to Specify/Order: Kit Code: CRT-52-SS X [track length] 1DR KIT (For 1-3/4” [44.5 mm] door) Kit Code: CRT-52-38-SS X [track length] 1DR KIT (For 1-3/8” [34.9 mm] door) Kit Code: CRT-52-BP X [track length] 1DR KIT (For 1-3/4” [44.5 mm] door) Kit Code: CRT-52-38-BP X [track length] 1DR KIT (For 1-3/8” [34.9 mm] door) Note: [track length] = door width x 2 (for 1 door kits) Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CRT-DP18 x 630 (Stainless Steel) CRT-DP18 x 622 (Black finish) For 36” [914 mm] back to back handle pulls: CRT-DP36 x 630 (Stainless Steel) CRT-DP36 x 622 (Black finish) Burlington, Ontario, Canada

|

New York, USA

19

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D20E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

Coming Soon with Catch’N’Close!

CROWDER ROUND TR ACK LIGHT-DUT Y SERIES FOR GL ASS DOORS

CRT-53-SS & CRT-53-BP Up to 175 lbs. [79 kg] per door Crowder Round Track 50 series is the light-duty version of our best-selling CRT-100 series. This hollow tube track system for glass doors is still able to support up to 175 lbs. [79 kg] per door. 2-3/4” [69.9mm] Delrin wheels, precision ball bearings and shock absorbing stops come together to provide extremely smooth and quiet door operation. All CRT components are precision-machined 303 stainless steel finished in black or polished to a satin finish.

How to Specify/Order: Kit Code: CRT-53-12-SS X [track length] 1DR KIT (for 1/2” [12 mm] Glass & Stainless Steel) Kit Code: CRT-53-38-SS X [track length] 1DR KIT (for 3/8” [10 mm] Glass & Stainless Steel) Kit Code: CRT-53-12-BP X [track length] 1DR KIT (for 1/2” [12 mm] Glass & Black Finish) Kit Code: CRT-53-38-BP X [track length] 1DR KIT (for 3/8” [10 mm] Glass & Black Finish) Note: [track length] = door width x 2 (for 1 door kits) Optional Glass Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CRT-GDP18 x 630 (Stainless Steel) CRT-GDP18 x 622 (Black finish) For 36” [914 mm] back to back handle pulls: CRT-GDP36 x 630 (Stainless Steel) CRT-GDP36 x 622 (Black finish) Burlington, Ontario, Canada

|

New York, USA

21

kncrowder.com


NEW TECHNOLOGY FROM KN CROWDER C L O S E S S L O W L Y , S A22F E L Y A N D S I L E N T L Y

C3D Design Inc, Toronto


ARCHITEC TURE & DESIGN COLLEC TION

®

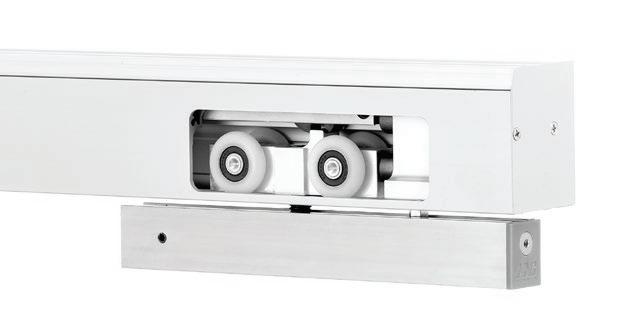

Crowdertrack ’s revolutionary technology allows sliding doors to close and stay closed -- safely, securely and silently, all with the introduction of the Catch‘N’Close ® closing system -Bouncing and slamming is no longer an issue for Crowdertrack’s sliding doors as the Catch’N’Close technology allows for smooth and controlled opening and closing of the door. The door will automatically slow and shut itself for the final few inches as the door travels to the open/closed position. No more jamming fingers or slamming doors. “Safety is a top concern at Crowder. The Catch’N’Close closing system allows the door to safely and securely close,” said Jeremy Crowder, Vice President K.N. Crowder. THE BENEFITS: Silent close If noise reduction and privacy is a priority, the Catch’N’Close closing system is ideal. Condominiums, hotels, hospitals, offices, conference rooms, long-term care facilities, bedrooms and bathrooms are just a few spaces that can benefit from this new technology. See it in action! Safety The Catch’N’Close closing system eliminates accidental closure of the door on users’ fingers. Residential and commercial facilities who are catering to small children, the elderly, or individuals who require additional care are perfect candidates for the system. Ease of use The Catch’N’Close closing system is extremely user friendly as the door gently glides into the open/closed position without user assistance. The user is no longer responsible for ensuring that the door is either in the fully open or closed position as the Catch’N’Close mechanism does it for them. The Technology K.N. Crowder is the first to use the gas spring technology to create a top of the line door closing system. The closing system can be installed on both the opening and closing ends of doors up to 300 lbs. [136 kg] or as narrow as 18 inches [457.2 mm] wide. It has been cycle tested for up to 50,000 cycles without fail. The Catch’N’Close closing system has the unique ability to safeguard the door and hardware from wear and tear. The system eliminates slamming; protecting the user, the door and the door frame. Installation The installation is easy as the Catch’N’Close closing system is hidden inside the Crowdertrack and requires no additional installation efforts. The product can be used on top/side mounted doors, pocket doors, single and bi-parting doors and some barn door applications. In the event there is any issue, or customers want to replace the closing device with a new one, there is no need to take apart the door or wall as the new closing system can easily be accessed or installed/removed from underneath the track. “Our customers have always wanted quality, highly functional products that look great! The Catch’N’Close closing system fits nicely into our collection of quality sliding door hardware”, said Jeremy Crowder, Vice President K.N. Crowder.

Burlington, Ontario, Canada

|

New York, USA

23

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D24E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

C ROW D E R FL AT TR AC K S E R I E S

Up to 300 lbs. [136 kg] per door Crowder Flat Track 200 series features our classic top mount hangers for an ultra-modern look. 4” [101.6 mm] Delrin wheels combined with our precision ball bearings provide extremely smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. The precision-machined 304 stainless steel solid flat track and hardware are polished to a satin finish.

How to Specify/Order: Kit Code: CFT-[ ]-201-SS X [track length] 1DR KIT [ ] = maximum door weight (CC1 for 150 lbs. [68 kg], CC2 for 200 lbs. [91 kg] or CC3 for 300 lbs. [136 kg]) Note: [track length] = door width x 2 (for 1 door kits)

Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CFT-DP18 x 630 (Stainless Steel) For 36” [914 mm] back to back handle pulls: CFT-DP36 x 630 (Stainless Steel)

Burlington, Ontario, Canada

|

New York, USA

25

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D26E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

C ROW D E R FL AT TR AC K S E R I E S

Up to 300 lbs. [136 kg] per door Crowder Flat Track 200 series features our classic top mount hangers for an ultra-modern look. 4” [101.6 mm] Delrin wheels combined with our precision ball bearings provide extremely smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. The precision-machined 304 stainless steel solid flat track and hardware are given a black finish.

How to Specify/Order: Kit Code: CFT-[ ]-201-BP X [track length] 1DR KIT [ ] = maximum door weight (CC1 for 150 lbs. [68 kg], CC2 for 200 lbs. [91 kg] or CC3 for 300 lbs. [136 kg]) Note: [track length] = door width x 2 (for 1 door kits) Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CFT-DP18 x 622 (Black finish) For 36” [914 mm] back to back handle pulls: CFT-DP36 x 622 (Black finish)

Burlington, Ontario, Canada

|

New York, USA

27

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D28E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

C ROW D E R FL AT TR AC K S E R I E S

Up to 300 lbs. [136 kg] per door Crowder Flat Track 200 series features our classic strap mount hangers for an ultra-modern look. 4” [101.6 mm] Delrin wheels combined with our precision ball bearings provide extremely smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. The precision-machined 304 stainless steel solid flat track and hardware are polished to a satin finish.

How to Specify/Order: Kit Code: CFT-[ ]-202-SS X [track length] 1DR KIT (For 1-3/4” [44.5 mm] door) Kit Code: CFT-[ ]-202-38-SS X [track length] 1DR KIT (For 1-3/8” [34.9 mm] door) [ ] = maximum door weight (CC1 for 150 lbs. [68 kg], CC2 for 200 lbs. [91 kg] or CC3 for 300 lbs. [136 kg]) Note: [track length] = door width x 2 (for 1 door kits) Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CFT-DP18 x 630 (Stainless Steel) For 36” [914 mm] back to back handle pulls: CFT-DP36 x 630 (Stainless Steel)

Burlington, Ontario, Canada

|

New York, USA

29

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D30E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

C ROW D E R FL AT TR AC K S E R I E S

Up to 300 lbs. [136 kg] per door Crowder Flat Track 200 series features our classic strap mount hangers for an ultra-modern look. 4” [101.6 mm] Delrin wheels combined with our precision ball bearings provide extremely smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. The precision-machined 304 stainless steel solid flat track and hardware are given a black finish.

How to Specify/Order: Kit Code: CFT-[ ]-202-BP X [track length] 1DR KIT (For 1-3/4” [44.5 mm] door) Kit Code: CFT-[ ]-202-38-BP X [track length] 1DR KIT (For 1-3/8” [34.9 mm] door) [ ] = maximum door weight (CC1 for 150 lbs. [68 kg], CC2 for 200 lbs. [91 kg] or CC3 for 300 lbs. [136 kg]) Note: [track length] = door width x 2 (for 1 door kits) Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CFT-DP18 x 622 (Black finish) For 36” [914 mm] back to back handle pulls: CFT-DP36 x 622 (Black finish) Burlington, Ontario, Canada

|

New York, USA

31

kncrowder.com


EXPOSED BARN DOOR SYSTEMS A R C H I T E C T U R E & D32E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

C ROW D E R FL AT TR AC K S E R I E S FOR GLASS DOORS

CFT-203-SS & CFT-203-BP Up to 300 lbs. [136 kg] per door Crowder Flat Track 200 series features our classic strap mount hangers for glass doors. 4” [101.6 mm] Delrin wheels combined with our precision ball bearings provide extremely smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. The precisionmachined 304 stainless steel solid flat track and hardware are finished in black or polished to a satin finish. How to Specify/Order: Kit Code: CFT-[ ]-203-12-SS X [track length] 1DR KIT (for 1/2” [12 mm] Glass & Stainless Steel) Kit Code: CFT-[ ]-203-38-SS X [track length] 1DR KIT (for 3/8” [10 mm] Glass & Stainless Steel) Kit Code: CFT-[ ]-203-12-BP X [track length] 1DR KIT (for 1/2” [12 mm] Glass & Black Finish) Kit Code: CFT-[ ]-203-38-BP X [track length] 1DR KIT (for 3/8” [10 mm] Glass & Black Finish) [ ] = maximum door weight (CC1 for 150 lbs. [68 kg], CC2 for 200 lbs. [91 kg] or CC3 for 300 lbs. [136 kg]) Note: [track length] = door width x 2 (for 1 door kits) Optional Door Handle Pulls: For 18” [457 mm] back to back handle pulls: CFT-GDP18 x 630 (Stainless Steel) CFT-GDP18 x 622 (Black finish) For 36” [914 mm] back to back handle pulls: CFT-GDP36 x 630 (Stainless Steel) CFT-GDP36 x 622 (Black finish) Burlington, Ontario, Canada

|

New York, USA

33

kncrowder.com


ARCHITEC TURE & DESIGN COLLEC TION

®

Coming Soon!

C R O W D E R J -T R A C K 3 0 0 S E R I E S

CJT-CC-301 Crowder J-Track 300 Series features our classic top mount hangers. This series is ideal for customizing the colour of your track! Our precision ball bearings and Delrin wheels provide

extremely

smooth

and

quiet

door

operation. The Catch’N’Close closing system completes the package by gently guiding the door into position without any assistance. This extruded aluminum track can be anodized, powder coated or painted any colour you can come up with.

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

Burlington, Ontario, Canada

|

New York, USA

34

kncrowder.com


ARCHITEC TURE & DESIGN COLLEC TION

®

Coming Soon!

C R O W D E R J -T R A C K 3 0 0 S E R I E S

CJT-CC-302 Crowder J-Track 300 Series features our classic strap mount hangers. This series is ideal for customizing the colour of your track! Our precision ball bearings and Delrin wheels provide

extremely

smooth

and

quiet

door

operation. The Catch’N’Close closing system completes the package by gently guiding the door into position without any assistance. This extruded aluminum track can be anodized, powder coated or painted any colour you can come up with.

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

Burlington, Ontario, Canada

|

New York, USA

35

kncrowder.com


CEILING TR ACK SYSTEMS ARCHITECTURE & DESIGN COLLECTION

Design: Alana Fletcher Interiors, Millwork: Nick Day Design, Builder: DB Custom Home, Architect: Setless Design


ARCHITEC TURE & DESIGN COLLEC TION

®

Z E RO C LE A R A N C E C ATC H ’ N ’ C LO S E H A N G E R S

CC-810 Up to 300 lbs. [136 kg] per door

CC-410 Up to 150 lbs. [68 kg] per door

Minimalistic by design, the CC-810 and CC-410 hangers remove distraction from the room. The minimal clearance reduces light and sound entry, making it the ultimate sliding door system. Our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: CC-[ ]-810 X [track length] 1DR KIT [ ] = maximum door weight (2 for 200 lbs. [91 kg] or 3 for 300 lbs. [136 kg]) Kit Code: CC-[ ]-410-W X [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: CC-[ ]-410-B X [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

37

kncrowder.com


CEILING TR ACK SYSTEMS ARCHITECTURE & DESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

®

E A S Y CO N N EC T C ATC H ’ N ’ C LO S E H A N G E R S

CC-993 Up to 200 lbs. [91 kg] per door

CC-493 Up to 150 lbs. [68 kg] per door

For a quick and easy install, the CC-993 and CC-493 hangers are perfect for the job. The top plate is mounted to the top of the door and accepts the Easy Connect stud, therefore reducing installation time. Our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: CC-2-993 X [track length] 1DR KIT Kit Code: CC-[ ]-493-W X [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: CC-[ ]-493-B X [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

39

kncrowder.com


FLUSH MOUNT CEILING TRACK A R C H I T E C T U R E & D40E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

FLU S H M O U NT C E I LI N G TR AC K

CCFC-810 Up to 300 lbs. [136 kg] per door Minimalistic by design, the CC-810 zero clearance hanger paired with the CC-905 flush mount ceiling track remove distraction from the room by levelling the track with the ceiling. The CC-810 hangers reduce light and sound entry, while our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The addition of the Catch’N’Close closing system enables the door to glide into position without assistance. Available in clear, bronze or black anodized or powder-coated.

How to Specify/Order: Kit Code: CCFC-[ ]-810 X [track length] 1DR KIT [ ] = maximum door weight (2 for 200 lbs. [91 kg] or 3 for 300 lbs. [136 kg]) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

41

kncrowder.com


BARN DOOR SYSTEMS ARCHITECTURE & DESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

®

ZERO CLEAR ANCE C ATC H ’ N ’ C LO S E HANGER

EASY CONNECT C ATC H ’ N ’ C LO S E HANGER

CCB-810 Up to 300 lbs. [136 kg] per door

CCB-993 Up to 200 lbs. [91 kg] per door

Sleek and simple, these side-mounted kit combinations feature a modern track with subtle detailing that can be paired with our zero clearance hangers to minimalize light and sound entry or with our Easy Connect hangers for a quick and easy install. Our nylon wheels with precision ball bearings always make for smooth and quiet door operation. Our patented Catch’N’Close closing system adds to the sleekness by gently guiding the door into position without any assistance. Available in clear, bronze or black anodized or powder-coated.

How to Specify/Order: Kit Code: CCB-[ ]-810 X [track length] 1DR KIT [ ] = maximum door weight (2 for 200 lbs. [91 kg] or 3 for 300 lbs. [136 kg]) Kit Code: CCB-2-993 X [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

43

kncrowder.com


BARN DOOR SYSTEMS A R C H I T E C T U R E & D44E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

Z E RO C LE A R A N C E C ATC H ’ N ’ C LO S E H A N G E R S

CCS-810 Up to 300 lbs. [136 kg] per door

CCS-410 Up to 150 lbs. [68 kg] per door

For a more elementary look, these side-mounted kit combinations pair a one-piece track with hangers that minimalize light and sound entry. Our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. Available in clear, bronze or black anodized or powder-coated.

How to Specify/Order: Kit Code: CCS-[ ]-810 X [track length] 1DR KIT [ ] = maximum door weight (2 for 200 lbs. [91 kg] or 3 for 300 lbs. [136 kg]) Kit Code: CCS-[ ]-410-W X [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: CCS-[ ]-410-B X [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

45

kncrowder.com


BARN DOOR SYSTEMS A R C H I T E C T U R E & D46E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

E A S Y CO N N EC T C ATC H ’ N ’ C LO S E H A N G E R S

CCS-993 Up to 200 lbs. [91 kg] per door

CCS-493 Up to 150 lbs. [68 kg] per door

For a quick and easy install, the CC-993 and CC-493 hangers are perfect for the job. The top plate is mounted to the top of the door and accepts the Easy Connect stud, therefore reducing installation time. Our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The Catch’N’Close closing system gently guides the door into position without any assistance. Available in clear, bronze or black anodized or powder-coated.

How to Specify/Order: Kit Code: CCS-2-993 X [track length] 1DR KIT Kit Code: CCS-[ ]-493-W X [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: CCS-[ ]-493-B X [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

47

kncrowder.com


BARN DOOR SYSTEMS A R C H I T E C T U R E & D48E S I G N C O L L E C T I O N

Hotel Monville, Montreal


ARCHITEC TURE & DESIGN COLLEC TION

®

Z E RO C LE A R A N C E C ATC H ’ N ’ C LO S E H A N G E R S

CCSF-810 Up to 300 lbs. [136 kg] per door

CCL-410 Up to 150 lbs. [68 kg] per door

For an ultra-modern look, these kit combinations feature a smooth undetailed fascia that can be clear, bronze or black anodized, or powder-coated any colour to add to your vision. The zero clearance hangers reduce light and sound entry, along with the visual space between the track and door, making it the ultimate sliding barn door system. Our nylon wheels with precision ball bearings always make for smooth and quiet door operation. Our patented Catch’N’Close closing system adds to the sleekness by gently guiding the door into position without any assistance.

How to Specify/Order: Kit Code: CCSF-[ ]-810 X [track length] 1DR KIT [ ] = maximum door weight (2 for 200 lbs. [91 kg] or 3 for 300 lbs. [136 kg]) Kit Code: CCL-[ ]-410-W X [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: CCL-[ ]-410-B X [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

49

kncrowder.com


BARN DOOR SYSTEMS ARCHITECTURE & DESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

®

E A S Y CO N N EC T C ATC H ’ N ’ C LO S E H A N G E R S

CCSF-993 Up to 200 lbs. [91 kg] per door

CCSF-493 Up to 150 lbs. [68 kg] per door

For a more uniform look, this all-in-one side-mounted kit covers the track and any gap between the track and door. Equipped with our Easy Connect hangers, this kit makes installation a breeze. Our nylon wheels with precision ball bearings always make for smooth and quiet door operation. Our patented Catch’N’Close closing system adds to the sleekness by gently guiding the door into position without any assistance. Available in clear, bronze or black anodized or powder-coated.

How to Specify/Order: Kit Code: CCSF-2-993 X [track length] 1DR KIT Kit Code: CCSF-[ ]-493-W X [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: CCSF-[ ]-493-B X [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

51

kncrowder.com


BYPA SS SYSTE MS

ARCHITECTURE & DESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

®

Z E RO C LE A R A N C E C ATC H ’ N ’ C LO S E H A N G E R

CCD-410 Up to 150 lbs. [68 kg] per door Our bypass systems are now available with Catch’N’Close. This kit includes our zero clearance hangers which reduce light and sound entry, along with the visual space between the track and the door, making it the ultimate bypass system. As always, our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The addition of the Catch’N’Close closing system enables the door to glide into position without any assistance. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: CCD-[ ]-410-W X [track length] 2DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: CCD-[ ]-410-38-B X [track length] 2DR KIT (ideal for 1-3/8” [34.9 mm] doors) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Note: [track length] = door width x 2 (for 2 door kits)

Burlington, Ontario, Canada

|

New York, USA

53

kncrowder.com


BYPA SS SYSTE MS

ARCHITECTURE & DESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

®

E A S Y CO N N EC T C ATC H ’ N ’ C LO S E H A N G E R

CCD-493 Up to 150 lbs. [68 kg] per door Our bypass systems are now available with Catch’N’Close. For a quick and easy install, choose our CC-493 hanger. The top plate is mounted to the top of the door and accepts the Easy Connect stud, therefore reducing installation time. As always, our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The addition of the Catch’N’Close closing system enables the door to glide into position without any assistance. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: CCD-[ ]-493-W X [track length] 2DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: CCD-[ ]-493-38-B X [track length] 2DR KIT (ideal for 1-3/8” [34.9 mm] doors) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Note: [track length] = door width x 2 (for 2 door kits)

Burlington, Ontario, Canada

|

New York, USA

55

kncrowder.com


GLASS SYSTEMS

ARCHITECTURE & DESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

®

C ATC H ’ N ’ C LO S E G L A S S H A N G E R S

Up to 300 lbs. [136 kg] per door

Effortless and worry-free describe the feeling of using our patented Catch’N’Close system with your glass doors. Each hanger comes with our signature precision ball bearing nylon wheels to ensure smooth and quiet operation. Our Catch’N’Close closing system enables the door to gently glide into position safely and without any assistance. Continuous hanger and fascia are both options for this series and are available in clear, bronze or black anodized or powder-coated.

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

Burlington, Ontario, Canada

|

New York, USA

57

kncrowder.com


GLASS SYSTEMS

A R C H I T E C T U R E & D58E S I G N C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

S I D E M O U NT C ATC H ’ N ’ C LO S E G L A S S H A N G E R S

Up to 300 lbs. [136 kg] per door

Effortless and worry-free describe the feeling of using our patented Catch’N’Close system with your glass doors. Each hanger comes with our signature precision ball bearing nylon wheels to ensure smooth and quiet operation. Our Catch’N’Close closing system enables the door to gently glide into position safely and without any assistance. Continuous hanger and fascia are both options for this series and are available in clear, bronze or black anodized or powder-coated.

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

Burlington, Ontario, Canada

|

New York, USA

59

kncrowder.com


CROWDERFRAME POCKET DOOR KITS ARCHITECTURE & DESIGN COLLECTION


SLOT 3/4 in [19.1 mm]

ARCHITEC TURE & DESIGN COLLEC TION

2 in [50.8 mm] 3/4 in [19.1 mm] 2 in [50.8 mm] ARROW ID ON CP-913 GUIDE TO POINT TOWARDS POCKET

®

C ATC H ’ N ’ C LO S E C ROW D E R FR A M E P O C K E T D O O R K IT

DB

H OW IT A LL CO M E S TO G E TH E R TYPE CC-1W Catch’N’Close Crowderframe Pocket Door Kit shown

CATCH’N’CLOSE CLOSING DEVICES

DB

CP-493 EASY CONNECT POCKET HANGER

CC-493 EASY CONNECT CATCH’N’CLOSE HANGER CP-008 CATCH’N’CLOSE CROWDERFRAME CLIP

DB

HEADER BRACKET & CP-403 HEADER TRACK

STUD AT BACK OF POCKET

ARROW ID ON CP-200 GUIDE TO POINT TOWARDS POCKET

CP-HB2X4 HEADER BRACKET

SECURING STEEL UPRIGHTS ARROW ID ON CP-913 GUIDE TO POINT TOWARDS POCKET TOP

CC-100 CATCH’N’CLOSE IN-TRACK STOPS

BOT TOM

OF

OF DO OR

FRONT EDGE OF DOOR

TO P

BOT

DOO R

TOM

1/2 in [12.7 mm] SETBACK REQUIRED

SUGGESTED MINIMUM 1/2 in [12.7 mm] SETBACK REQUIRED BOTH ENDS

OF

OF D

OO

R

DO

FRONT EDGE OF DOOR

OR

BACK EDGE OF DOOR

TOP

BOT TOM OF BOT DOO TMOUNT OM R OF DOO HALFWAY R SUGGESTED MINIMUM

FRONT EDGE OF DOOR

TOP OF DO TO P OR OF DOO R

BOT

C-99 RUBBER DOME BUMPER & SPACER UP THE 1/2 in [12.7 mm]STUD SETBACK REQUIRED BOTH ENDS WASHERS

1/2 in [12.7 mm] SETBACK REQUIRED 1 in [25.4 mm] WIDE

ADD ADDITIONAL BLOCKING (BY OTHER) IF REQUIRED

OF DOO

TOP

BOT

TOM

OF DO O

R

SUGGESTED MINIMUM 1/2 in [12.7 mm] SETBACK REQUIRED BOTH ENDS

CP-2X4 FOOT BRACKETS

OF D

FRONT EDGE OF DOOR

TOP

BOT T 1/2 in [12.7 mm] SETBACK REQUIRED

OM

OF D

OF DOO R

BACK EDGE OF DOOR

OF DOOR

SNAP AND SECURE CP-830 DRYWALL SUPPORTS TOP

OF DOO

R

Burlington, Ontario, Canada

|

New York, USA

BOT TOM OF BOT DO TO M OR OF DO SUGGESTED MINIMUMOR

TOP OF DOO TOP R OF DOO R

1/2 in [12.7 mm] SETBACK REQUIRED BOTH ENDS

CATCH’N’CLOSE SLOT FRONT EDGE

61

BOT OF TOM DOO R

O

BOT [19.1 mm] OF TOM DOO R

C-914 GUIDE CHANNEL RECESSED IN BOTTOM OF DOOR

OO R

DO

3/4 in

BACK EDGE OF DOOR

OO R

OF

2 in [50.8 mm

GUIDE CHANNEL SHOULD PROTRUDE OUT BACK EDGE OF DOOR BY 1 in [25.4 mm]

FOOT BRACKET, STEEL UPRIGHTS & CP-913 GUIDE

2 [2

FRONT EDGE OF DOOR

R

BOT OF TOM DOO R

TOM

GUIDE CHA PROTRUDE OUT HEIGH DOORADJUS BY HEX

FRONT EDGE OF DOOR

LOCKING NU

BOT T 1/2 in [12.7 mm] SETBACK REQUIRED 5/8 in [15.9 mm] WIDE

HEIG

OM

OF D

OO R

LOCKING NU

FRONT EDGE OF DOOR

LOC

HEIGHT ADJUSTMENT SPINWHEEL NUT

BACK EDGE OF DOOR

kncrowder.com

3 ADJU [19 HEX D

BOT OF TOM DOO R


CROWDERFRAME POCKET DOOR KITS A R C H I T E C T U R E & D 62 ESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

®

BEST IN CLASS

2 X6 H E AV Y- D UT Y P O C K E T D O O R K IT

New! TYPE CC-HD-2X6 Up to 300 lbs. [136 kg] per door For 2X6 Wall Construction Our best-selling Crowderframe Pocket Door Kit now comes in a heavy-duty version specifically engineered for 2X6 wall construction! This complete kit eliminates the need for shim kits, making installation fast and easy. As always, our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The Catch’N’Close closing system enables the door to glide into position without any assistance.

INSTALL VIDEO

Additional features: • Complete with larger, heavy-duty roll formed steel uprights for less deflection and easy to screw into for drywall fastening. • The NEW CC-998 Easy Connect Top Mount Hangers allow you the choice to install the door before OR after the drywall goes up. They also allow for height and plumb adjustments while the door is up. • New Catch’N’Close slot makes installation or replacement of Catch'N'Close devices simple. No removing trim, the door, or cutting into the drywall required. • Faster and easier installation than a traditional pocket built on-site. • For single or bi-parting door applications. How to Specify/Order: Type CC-2HD-2X6 Heavy-Duty 2X6 Catch’N’Close Crowderframe Pocket Door Kit For maximum door weight of 200 lbs. [91 kg] Type CC-3HD-2X6 Heavy-Duty 2X6 Catch’N’Close Crowderframe Pocket Door Kit For maximum door weight of 300 lbs. [136 kg] For doors from 30” [762 mm] to 72” [1828 mm] wide x 78” [1981 mm] to 120” [3048 mm] high, please provide door size when specifying/ordering. Burlington, Ontario, Canada

|

New York, USA

63

kncrowder.com


CROWDERFRAME POCKET DOOR KITS A R C H I T E C T U R E & D 64 ESIGN COLLECTION


ARCHITEC TURE & DESIGN COLLEC TION

®

Our Catch'N'Close Crowderframe Pocket Door Kits have been perfected. In addition to our best-selling Type CC kit for 2X4 wall construction, we now offer a kit specifically engineered for 2X6 wall construction.

BEST IN CLASS

New!

Improved!

TYPE CC-2X6 For 2X6 Wall Construction Up to 150 lbs. [68 kg] per door

TYPE CC For 2X4 Wall Construction Up to 150 lbs. [68 kg] per door

This addition to the line up eliminates the need for shim kits, making installation fast and easy. As always, our nylon wheels with precision ball bearings allow for smooth and quiet door operation. The Catch'N'Close closing system enables the door to glide into position without any assistance. Additional features: • Complete with roll formed steel uprights for less deflection and easy to screw into for drywall fastening. • The NEW CC-493 Easy Connect Top Mount Hangers allow you the choice to install the door before OR after the drywall goes up. They also allow for height and plumb adjustments while the door is up. • New Catch’N’Close slot makes installation or replacement of Catch'N'Close devices simple. No removing trim, the door, or cutting into the drywall required. • Faster and easier installation than a traditional pocket built on-site. • For single or bi-parting door applications. • Trim kit available for 2X4 wall construction only (see pages 70-71). How to Specify/Order: Type CC-[ ]W-2X6 Catch’N’Close Crowderframe Pocket Door Kit (ideal for 1-3/4” [44.5 mm] doors in 2X6 wall construction) Type CC-[ ]W Catch’N’Close Crowderframe Pocket Door Kit (ideal for 1-3/4” [44.5 mm] doors in 2X4 wall construction) Type CC-[ ]B Catch’N’Close Crowderframe Pocket Door Kit (ideal for 1-3/8” [34.9 mm] doors in 2X4 wall construction) [ ] = maximum door weight (75 for 75 lbs. [34 kg] or 1 for 150 lbs. [68 kg]) Available for doors from 30” [762 mm] to 48” [1219 mm] wide x 80” [2032 mm] to 120” [3048 mm] high, please provide door size when specifying/ordering. Burlington, Ontario, Canada

|

New York, USA

65

kncrowder.com


CROWDERFRAME POCKET DOOR KITS

Burlington, Ontario, Canada

|

New York, USA

66

kncrowder.com


New!

Improved!

For 2X6 Wall Construction Up to 150 lbs. [68 kg] per door

For 2X4 Wall Construction Up to 150 lbs. [68 kg] per door

T YPE C-2X6

T YPE C

Our Type C Crowderframe Pocket Door Kit now comes in a 2X6 version. This complete kit specifically engineered for 2X6 wall construction, eliminates the need for shim kits, making installation fast and easy. For a quick and easy install, we chose our C-411 Quick Release Hangers for these pocket door kits. Check out the drawings above to see how easily the door connects and adjusts! Our nylon wheels with precision ball bearings ensure smooth and quiet door operation.

Improved! T YPE B

For 2X4 Wall Construction Up to 125 lbs. [57 kg] per door Our C-400 hangers combined with nylon wheels with precision ball bearings ensure smooth and quiet door operation.

Additional features for all kits above: • Complete with roll formed steel uprights for less deflection and easy to screw into for drywall fastening. • Choose to install the door before OR after the drywall goes up. • Adjust door height and plumb while the door is up. • Faster and easier installation than a traditional pocket built on-site. • For single or bi-parting door applications. How to Specify/Order: Type C-W-2X6 Crowderframe Pocket Door Kit (ideal for 1-3/4” [44.5 mm] doors in 2X6 wall construction) Type C-W Crowderframe Pocket Door Kit (ideal for 1-3/4” [44.5 mm] doors in 2X4 wall construction) Available for doors from 18” [457 mm] to 48” [1219 mm] wide x 80” [2032 mm] to 120” [3048 mm] high, please provide door size when specifying/ordering. Type B-B Crowderframe Pocket Door Kit (ideal for 1-3/8” [34.9 mm] doors) Available for doors from 18” [457 mm] to 36” [914 mm] wide x 80” [2032 mm] to 96” [2438 mm] high, please provide door size when specifying/ordering. Burlington, Ontario, Canada

|

New York, USA

67

kncrowder.com


FOR EXTR A WIDE AND/OR HIGH POCKET DOORS

All Crowderframe Pocket Door Kits are available to accommodate a wide range of door sizes. Depending on the kit, we can handle doors from 18" [457 mm] to 72" [1829mm] wide x 78" [1981 mm] to 120" [3048 mm] high and up to 2-1/2" [64 mm] thick.

How to Specify/Order: Please contact KN Crowder at: customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

Burlington, Ontario, Canada

|

New York, USA

68

kncrowder.com


FOR BI-PARTING POCKET DOORS

How to Specify/Order Add-On Products: Joiner Kit For bi-parting door applications, please specify as follows: For 2X4 wall construction: CPD-2X4-JOINER KIT as an add-on in addition to two (2) single Crowderframe Pocket Door Kits. For 2X6 wall construction: CPD-2X6-JOINER KIT as an add-on in addition to two (2) single 2X6 Crowderframe Pocket Door Kits.

Burlington, Ontario, Canada

|

New York, USA

69

kncrowder.com


SNAP-ON ALUMINUM CROWDERFRAME POCKET TRIM KIT CP-TK-2X4 FOR T YPE CC CATCH’N’CLOSE POCKET DOOR KITS The latest and greatest in pocket door framing! This kit is quick to install and allows easy access for any required maintenance. Bye-bye traditional wood trim finishing! Key Product Features: • Allows for the door to be installed after the drywall is in place • No visible fasteners - simply caulk if desired and paint to finish • Clear anodized finish, can be painted on-site or we can custom finish in advance • This kit is specifically designed for standard 2X4 wall construction using 1/2” [12.7 mm] drywall and 1-3/4” [44.5 mm] doors • Features our newly designed C-917 guide channel complete with pile insert to reduce sound and light transfer TYPE CC-W CATCH’N’CLOSE CROWDERFRAME POCKET DOOR KIT WITH CP-TK-2X4 POCKET TRIM KIT DIMENSION DETAILS

P

SECTION VIEW

2X4 WOOD CONSTRUCTION BY OTHERS

2X4 WOO CONSTRUCTIO BY OTHE

3 5/8 in ([92.1 mm])

3 5/8 ([92.1 m 1/2 in [12.7 mm] DRYWALL

2 1/8 in [54.0 mm] CLEARANCE BETWEEN UPRIGHTS

CP-403 HEADER TRACK

STEEL UPRIGHTS

STE UPRIGH

MINIMUM ROUGH OPENING HEIGHT FOR STANDARD KITS: 92 1/2 in [2350 mm] FOR EXTRA HEIGHT KITS: 104 1/2 in [2654 mm]

CP-430 FASCIA

HORIZONTAL CASING/TRIM BY OTHERS

CC-493 EASY CONNECT HANGER

1/2 in [12.7 mm]

CP-TK-TC2X4 TRIM COVER CASING (SNAPS ON) 1/4 in [6.4 mm] SUGGESTED SET-BACK OF TRIM BY OTHERS

CP-TK-C2X4 TRIM CLIP (SCREWS ON TO FRAMING & POCKET DOOR HARDWARE ACCORDINGLY)

2 1/2 in [63.5 mm]

CP-TK-TA2X4 INSIDE TRIM COVER (SNAPS ON C/W PILE INSERT)

1 1/4 in [31.8 mm] 1 3/16 in [30.1 mm]

1/4 in [6.4 mm] SET-BACK

TRIM KIT DOOR HEIGHT RANGE: MIN 6'-8" (80 in) [2032 mm] 6'-10" (82 in) [2083 mm] 7'-0" (84 in) [2134 mm] MAX 2150 mm EXTRA HEIGHT TRIM KIT DOOR HEIGHT RANGE: MIN 7'-8" (92 in) [2337 mm] 7'-10" (94 in) [2388 mm] 8'-0" (96 in) [2438 mm] MAX 2455 mm

1/4 in [6.4 mm] GAP CLEARANCE FILLED BY PILE INSERT (ASSUMING 1 3/4 in [44.5 mm] DOOR)

84 in [2133.3 mm] APPROXIMATE FINISHED OPENING HEIGHT BASED ON TRIM KIT AS INSTALLED (BASED ON 84 in [2134 mm] HIGH DOOR)

1 in [25.4 mm]

C-917 GUIDE CHANNEL (C/W PILE INSERT) MIN 3/8 in [9.5 mm]

3/16 in [4.8 mm] GAP CLEARANCE (ASSUMING 1 3/4 in [44.5 mm] DOOR)

GUIDE SYSTEM AS REQUIRED

29/32 in [22.9 mm] CP-913 GUIDE

Burlington, Ontario, Canada

|

New York, USA

1 11/16 in [42.8 mm]

70

kncrowder.com


HOW TO SPECIFY/ORDER: KIT CODE: CP-TK-2X4 For applications where a single TYPE CC-W CATCH’N’CLOSE CROWDERFRAME POCKET DOOR KIT is used. Suitable for one door kit from: 18” [457 mm] to 36” [914 mm] wide x 80” [2032 mm] to 84” [2134 mm] or 2150 mm high x 1-3/4” thick [44.5 mm] FULL POCKET DOOR KIT is NOT included, must be purchased separately. For other door sizes or custom applications, please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

TYPE CC-W CATCH’N’CLOSE CROWDERFRAME POCKET DOOR KIT WITH CP-TK-2X4 POCKET TRIM KIT DIMENSION DETAILS

PLAN VIEW

SINGLE DOOR ROUGH OPENING WIDTH CALCULATION: (DOOR WIDTH X 2) + 3/8 in [9.5 mm] = RO WIDTH EXAMPLE: 36 in [914.4 mm] WIDE DOOR X 2 = 72 in [1828.8 mm] PLUS 3/8 in [9.5 mm] = 72 3/8 in [1838.3 mm]

5/8 in [15.9 mm] SUGGESTED THICKNESS OF STRIKE FINISHING JAMB (BY OTHERS) MUST BE INSTALLED 5/8 in [15.9 mm] STRIKE SIDE OVERLAP

34 5/16 in [871.5 mm] APPROXIMATE FINISHED OPENING WIDTH BASED ON TRIM KIT AS INSTALLED (BASED ON 36 in [914.4 mm] WIDE DOOR)

1 3/16 in [30.4 mm]

36 13/16 in [935.0 mm] APPROXIMATE POCKET DEPTH BASED ON TRIM KIT AS INSTALLED (BASED ON 36 in [914.4 mm] WIDE DOOR)

2 1/2 in [63.5 mm]

2 1/8 in [54.0 mm] CLEARANCE BETWEEN UPRIGHTS

1/2 in [12.7 mm]

4 5/8 in [117.5 mm] FINISHED THICKNESS OF WALL WITH 1/2 in DRYWALL

2 1/4 in [57.2 mm] SUGGESTED WIDTH OF STRIKE FINISHING JAMB (BY OTHERS) MUST BE INSTALLED

Burlington, Ontario, Canada

|

1/4 in [6.4 mm] SET-BACK

New York, USA

1/4 in [6.2 mm] GAP CLEARANCE FILLED BY PILE INSERT (ASSUMING 1 3/4 in [44.5 mm] DOOR)

71

C-917 GUIDE CHANNEL (C/W PILE INSERT) CP-TK-TC2X4 TRIM COVER CASING (SNAPS ON) CP-TK-C2X4 TRIM CLIP (SCREWS ON TO FRAMING & POCKET DOOR HARDWARE ACCORDINGLY) CP-TK-TA2X4 INSIDE TRIM COVER (SNAPS ON C/W PILE INSERT)

kncrowder.com


SOUND SEALING POCKET DOORS

W-88N USING KNC WEATHERSTRIP PRODUCTS Extruded Aluminum with

SURFACE MOUNTED ON DOOR: W-47S

Neoprene Insert

9/32" [7.1mm]

Clear Anodized Aluminum and Silicone

W-88N

1 13/32" [36mm] 1" [25.4mm]

SURFACE MOUNTED ON DOOR: W-47S

3/8" Extruded Aluminum with [9.5mm] Neoprene Insert

5/8" [15.9mm]

21/32" Clear Anodized [16.7mm] Aluminum and Silicone

3/16" [4.7mm] 9/32" [7.1mm] 9/32" [6.8mm]

1 13/32" [36mm] 1" [25.4mm] 5/8" [15.9mm]

3/8" [9.5mm] 21/32" [16.7mm]

3/16" [4.7mm] 9/32" [6.8mm]

W

K S S ( B

CC-904 Track CC-993 Easy Connect

CC-904 Track CC-993 Easy Connect

Catch’N’Close Hanger

Catch’N’Close Hanger

W-28

Kerf Mounted Seamless Santoprene Elastomeric Skin Seal (Available in Black, Brown, or White)

W-23

CC-904 Track 19/32" [15.1mm] CC-993 Easy Connect

17/32" [13.5mm]

Catch’N’Close Hanger 9/16"

3/32" [2.4mm]

KERFW-28 Kerf Mounted Seamless Santoprene MOUNTED Elastomeric Skin Seal

5/8" [15.9mm]

21/32" [16.7mm]

(Available in Black, Brown, or White)

19/32" [15.1mm]

W-37-1

9/16" [14.3mm]

1 3/32" [27.8mm]

[

KERF 1" MOUNTED [25.4mm]

Floor Guide

5/8" [15.9mm] 1/8" [3.5mm]

C-913

Floor Guide (x2)

21/32" [16.7mm]

3/8" [9.6mm]

W-37-1

Clear: Anodized Aluminum For more information on KNC Weatherstrip products please visit NOTES: Pocket framing, header, and trim work by others.

with Nylon Forkncrowder.com/wstripping more information on KNC Weatherstrip products please visit : Brush

C-914

17/32" [13.5mm]

1 3/8" [34.6mm]

[9.5mm]

kncrowder.com/wstripping

Clear Anodized Aluminum with Nylon Brush

Extruded Aluminum with Pile

3/8" [9.5mm]3/8"

C-913

W-23

CT-55

Clear Anodized Aluminum with Nylon3/32" Brush[2.4mm]

Guide Channel

Catch’N’Close Hanger

[14.3mm]

3/8" [9.5mm]

C-914

CC-904 Track CC-993 Easy Connect

Clear Anodized Aluminum with Nylon Brush

CT-55

NOTES: Pocket framing, header, and trim work by others. For single track kits only. For single track kits only.

1 3/32" [27.8mm]

Extruded Aluminum with Pile

1 3/8" [34.6mm]

3/8" [9.5mm]

Guide Channel

Burlington, Ontario, Canada

C-913 Floor Guide

1/8" [3.5

|

New York, USA

1"72 [25.4mm]

C-913

Floor Guide (x2)

kncrowder.com

3/8" [9.6mm]


nnect er

LOCKING & LATCHING

SOUND SEALING POCKET DOORS USING KNC WEATHERSTRIP PRODUCTS

mm]

ONMOUNTED DOOR: W-47S SURFACE Anodized ON DOOR: W-47S Clear Aluminum and1Silicone 13/32" [36mm]

C-90 Series

Clear Anodized Aluminum and Silicone

1 13/32" [36mm] 1" [25.4mm]

1" [25.4mm]

5/8" [15.9mm]

5/8" [15.9mm]

21/32" [16.7mm]

21/32" [16.7mm]

W-31

W-28

Kerf Mounted Seamless W-31 Santoprene Elastomeric Skin Seal Seamless Kerf Mounted (Available in Black, Santoprene Elastomeric Brown, or White) Skin Seal (Available in Black, Brown, or White)

W-28

Kerf Mounted Seamless Santoprene Elastomeric Skin Seal (Available Black, Brown, or White) KerfinMounted Seamless Santoprene

Elastomeric Skin Seal 19/32" Brown, [15.1mm]or White) (Available in Black,

3/8" [9.5mm]

3/32" [2.4mm]3/8" [9.5mm] 15/32" [11.9mm]

3/32" [2.4mm]

[14.3mm]

9/16" [14.3mm]

3/32" [2.4mm] 3/8"

[9.5mm]

KERF MOUNTED

1/4" [6.4mm]

19/32"9/16" [15.1mm]

3/32" [2.4mm]

15/32" [11.9mm]

1/4" [6.4mm]

KERF MOUNTED WE ATHERSTRIP & AUTOMATIC DOOR BOT TOM OPTIONS

CC-904 Track CC-998 Heavy-Duty

Easy Connect Catch’N’Close Hanger

CC-904 Track CT-55 Heavy-Duty CC-998

Extruded Aluminum with Pile Easy Connect Catch’N’Close Hanger

1 3/8" [34.6mm]

3/8" [9.5mm]

KERF MOUNTED

KERF MOUNTED

USING KNC’S AUTOMATIC DOOR BOTTOMS ON SLIDING DOORS In order to use KNC’s Automatic Door Bottoms, a sliding door lock must be installed to pull and hold the door shut which in turn USING KNC’S AUTOMATIC DOOR BOTTOMS will activate ADB’s plunger (see above for details). Two C-913 ON the SLIDING DOORS Floor Guides will be required; one on each side of the door.

In order to use KNC’s Automatic Door Bottoms, a sliding door

For more information on Automatic Door Bottoms please visit : lock must be installed to pull and hold the door shut which in turn kncrowder.com/autodoor

will activate the ADB’s plunger (see above for details). Two C-913 Floor Guides will be required; one on each side of the door.

NOTES: Pocket framing, header, and trim work by others.

For more information on Automatic Door Bottoms please visit :

kncrowder.com/autodoor CT-53B CT-53S

CT-55

Extruded Aluminum with Brush Seal

Extruded Aluminum with Silicone Seal

15/16" [23.8mm]

15/16" [23.8mm]

1/8" [3.5mm]

NOTES: Pocket framing, header, and trim work by others.

Extruded Aluminum with Pile 3/8" [9.6mm]

1 3/8" [34.6mm]

e

1/8" [3.5mm]

SURFACE MOUNTED

C-80 or C-80 or C-90 Series

1 5/8" CT-53B[41.3mm]

Extruded Aluminum with Brush Seal

1/8" [3.5mm] 3/8" [9.6mm]

1 5/8" CT-53S [41.3mm]

Extruded Aluminum with Silicone Seal

15/16" [23.8mm]

C-913 Floor Guide (x2) 5/16" [7.8mm]

15/16" [23.8mm] 5/16" [7.8mm]

1 5/8" [41.3mm]

1 5/8" [41.3mm]

C-913 Floor Guide (x2) 5/16" [7.8mm]

Burlington, Ontario, Canada

|

New York, USA

73

5/16" [7.8mm]

kncrowder.com


Burlington, Ontario, Canada

|

CUSTOM SYSTEMS

New York, USA

74

kncrowder.com


C ROW D E R S TAC K I N G TR AC K S YS TE M S

CST-700 Series Up to 200 lbs. [91 kg] per door Our CST folding partition stacking door systems range from light to heavy-duty, taking care of all your room division needs. Ideal for convention centers,

event

venues,

conference

rooms,

hospitality, etc. The applications are endless! Our strategically designed hangers come with axial bearings to carry the door and allow pivoting or cornering as required.

Coming Soon! 300 lbs. [136 kg] Heavy-Duty System

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

Burlington, Ontario, Canada

|

New York, USA

75

kncrowder.com


Burlington, Ontario, Canada

|

New York, USA

CUSTOM SYSTEMS 76

kncrowder.com


®

CO M E-A LO N G S YS TE M

CRITICAL DIMENSIONS

CA-134-3 2-1/8" 2-1/8" [54 [54 mm] Up to 200 lbs. [91 kg] permm] door

CA-134-3HD HEAVY-DUTY Up to 350 lbs. [159 kg] per door

This is the system of choice if you have multiple doors that need to move as one! Our Come-Along System allows all doors to move by simply opening/closing the lead door; successive doors follow along. This system also eliminates recessing guide channels in the floor. Our patented Catch’N’Close closing system can be added to enable the doors to glide into position without any assistance. Track and hardware components are chosen separately to integrate with the Come-Along System. 3/8" [9.5 mm]

CA-134 NS SIO EN M I LD CA ITI CR

3/8" [9.5 mm]

CA-134-3 Come-Along set for 3 doors includes: 4 PCS CA-134 2 PCS CA-38

1/4" [6.4 mm]

CA-38

CA-200 or CA-913 Side Mount Guides when used, must be installed directly below CA-38 bracket(s).

PLAN VIEW: Typical 3-panel application with pocket.

How to Specify/Order:

MINIMUM DOOR OVERLAP = 2” [50.8 MM]

NS SIO EN IM D L CA ITI CR

Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information. 3/8" [9.5 mm] 1/4" [6.4 mm]

Burlington, Ontario, Canada

|

New York, USA

77

kncrowder.com


TELESCOPING DOOR SYSTEM Burlington, Ontario, Canada

|

New York, USA

C R O W D E R D I S P L AY S Y S T E M S 78

kncrowder.com Hunter Leggitt Studio


CROWDERSLIDE TELESCOPING DOOR SYSTEM The Crowderslide System is a heavy-duty telescoping track system allowing individual panels to slide in and out, to view the elements on display. For Retail Displays, this system may be used to showcase doors and door frames, slatwall or building material to name a few; maximizing use of expensive floor space. Mounted in sturdy frame (by others), panels can be organized to minimize the space between them. Manufactured to suit application requirements. The installation shown at lower right, produced 1600 sq. ft. [148.6 sq. m.] of display within 160 sq. ft. [14.9 sq. m.] of floor space.

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

Burlington, Ontario, Canada

|

New York, USA

79

kncrowder.com


SLIDING DOOR STRIKE & JAMB KIT H O S P I T A L & O F F80I C E C O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

Coming Soon!

CC S F -J S T S YS TE M Our CCSF-JST (Catch’N’Close Side Mount Track, Hardware, Jamb, Strike & Trim) systems are designed to finish off the entire opening with anodized or powder-coated aluminum snap-on covers and trim that create a seamless and uniform look. Using our CCSF-993 Catch’N’Close Barn Door Series, a full height strike jamb allows for privacy or security lock sets to be used without the need to build a jamb out from the wall. Complete Jamb, Strike & Trim system comes with pile inserts to improve sound and light transmission around the door when closed. Ideal for hospitality, medical, commercial and office applications.

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information. Burlington, Ontario, Canada

|

New York, USA

81

kncrowder.com


CANTILEVER DOOR SYSTEM H O S P I T A L C82O L L E C T I O N


ARCHITEC TURE & DESIGN COLLEC TION

®

C A NTI LE V E R D O O R S YS TE M Our Cantilever System is essential for hospitals, assisted living spaces, or anywhere you would need a gap in the track. This system allows for a sliding door to travel over an opening in the track as wide as 16” [406mm]. These gaps are designed for specific needs such as a patient lift tracking system travelling from one room to the next. Our Catch’N’Close closing system enables the door to glide into position without any assistance. Available in clear, bronze or black anodized or a custom finish.

Heavy-Duty Floor Stop Guide System How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information. Burlington, Ontario, Canada

|

New York, USA

83

kncrowder.com


HIGH SECURITY DOOR SYSTEM Burlington, Ontario, Canada

|

New York, USA

H O S P I TA L C O L L E C T I O N 84

kncrowder.com


HIGH SECURITY DOOR SYSTEM KNC has always aimed to make the highest quality sliding door track and hardware but also tackles new challenges and custom applications. This is where our one of a kind and a first in Canada, High Security Door System comes in. Our High Security Door System provides the standard smooth and quiet sliding door operation with the addition of security. This system is ideal for hospitals & high security facilities which will prevent users from tampering with the assembly or operation of the door. C-108S glass C-110S 2-13/16"

KNCROWDER

HIGH SECURITY DOOR SYSTEM

CGH-10 for 10 mm

new

[71.4 mm]

1/2" [12.7 mm]

Custom Systems

C-110S SECURITY FASCIA TORX TAMPER-PROOF STAINLESS STEEL BOLTS WITH SQUARE NUTS FOR SLOT

C-108

C-110

C-810

C-810S Continuous Security Hanger

6-5/32" [156.4 mm]

C-108S SECURITY TRACK C-810S CONTINUOUS SECURITY HANGER (COMPLETE WITH END CAPS & STAINLESS STEEL TORX SCREW FASTENERS)

C-810S

C-810

2-1/8" [54 mm]

THIS PAGE SHOWS A COMPLETE SIDE-MOUNT HIGH SECURITY DOOR SYSTEM.

1-3/4" THICK DOOR ONLY 1/2" [12.7 mm]

C-108S

C-810S

BRUSH SEAL

3" [76.2 mm]

C-914 CSM-913-2HD

C-110S

C-90L-CC

Guide System

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information. Burlington, Ontario, Canada

|

New York, USA

CSM-913-2HD

85

kncrowder.com


CEILING TR ACK SYSTEMS Burlington, Ontario, Canada

|

New York, USA

86

kncrowder.com


Z E RO C LE A R A N C E H A N G E R S

C-810 Up to 300 lbs. [136 kg] per door

C-410 Up to 150 lbs. [68 kg] per door

This ceiling track system allows for minimal clearance between the door and track, reducing light and sound entry. Our nylon wheels with precision ball bearings always ensure smooth and quiet door operation. This all-in-one kit comes with a wrench and Allen key for easy adjustment in the field. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: C-810 x [track length] 1DR KIT Kit Code: C-410-W x [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: C-410-B x [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

87

kncrowder.com


CEILING TR ACK SYSTEMS Burlington, Ontario, Canada

|

New York, USA

88

kncrowder.com


Q U I C K R E LE A S E H A N G E R

C-911 Up to 200 lbs. [91 kg] per door This heavy-duty hanger comes standard with nylon wheels and precision ball bearings for smooth and quiet door operation. Installation is fast and easy thanks to the Quick Release hanger assembly. Levelling and adjusting the height is also a breeze; only requiring one person. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: C-911 x [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kit)

Burlington, Ontario, Canada

|

New York, USA

89

kncrowder.com


H E AV Y- D U T Y C E I L I N G T R AC K S YS T E M S Burlington, Ontario, Canada

|

New York, USA

90

kncrowder.com


N Y LO N W H E E L H A N G E R S We have the capability to support extremely large and heavy doors; up to 450 lbs. [204 kg] per door! Our nylon wheels with precision ball bearings ensure smooth and quiet door operation. For top mounted, single, bi-parting, bypassing or pocket doors. Available in clear, bronze or black anodized, mill finish or powder-coated.

C-818-HD Up to 450 lbs. [204 kg] per door

C-994

C-993

Up to 350 lbs. [159 kg] per door

Up to 250 lbs. [113 kg] per door

How to Specify/Order: Kit Code: [hanger series] x [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits) E.G. C-818HD X 72” 1DR KIT Burlington, Ontario, Canada

|

New York, USA

91

kncrowder.com


H E AV Y- D U T Y T R AC K S YS T E M S Burlington, Ontario, Canada

|

New York, USA

92

kncrowder.com


S TE E L W H E E L H A N G E R S We have the capability to support extremely large and heavy doors; up to 700 lbs. [318 kg] per door! Our precision ball bearing steel wheeled hanger kits work for top mounted, single, bi-parting, bypassing, pocket or side mounted doors. Available in clear, bronze or black anodized, mill finish or powder-coated.

C-995 Up to 450 lbs. [204 kg] per door

C-207-8

C-205-8

Up to 700 lbs. [318 kg] per door

Up to 600 lbs. [272 kg] per door

C-207-4

C-205-4

C-206-4

Up to 500 lbs. [227 kg] per door

Up to 300 lbs. [136 kg] per door

Up to 225 lbs. [102 kg] per door

How to Specify/Order: Kit Code: [hanger series] x [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits) E.G. C-207-8 X 72” 1DR KIT Burlington, Ontario, Canada

|

New York, USA

93

kncrowder.com


E X T E R I O R A P P L I C AT I O N S Burlington, Ontario, Canada

|

New York, USA

94

kncrowder.com


S TA I N LE S S S TE E L H A N G E R S Our stainless steel hangers are ideal for applications that are exposed to moisture, saltwater and other external factors. Installation is fast and easy thanks to the Easy Connect Hanger assembly. We recommend these hangers be teamed up with our C-104 or C-108 Crowdertrack in clear, bronze or black anodized.

New!

C-998-SS Up to 450lbs. [205 kg] per door

C-400-SS Up to 125lbs. [57 kg] per door

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information. Burlington, Ontario, Canada

|

New York, USA

95

kncrowder.com


CEILING TR ACK SYSTEMS Burlington, Ontario, Canada

|

New York, USA

96

kncrowder.com


N Y LO N W H E E L H A N G E R S For smooth and quiet door operation, choose our nylon wheel kits. Great for top mounted single, bi-parting, bypassing, or pocket doors. Available in clear, bronze or black anodized, mill finish or powder-coated.

C-107-8 Up to 500 lbs. [227 kg] per door

C-107-4 Up to 350 lbs. [159 kg] per door

C-105-8 Up to 400 lbs. [181 kg] per door

C-105-4 Up to 200 lbs. [91 kg] per door

C-106-4 Up to 175 lbs. [79 kg] per door

How to Specify/Order: Kit Code: [hanger series] x [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits) E.G. C-107-8 x 72” 1DR KIT Burlington, Ontario, Canada

|

New York, USA

97

kncrowder.com


CEILING TR ACK SYSTEMS Burlington, Ontario, Canada

|

New York, USA

98

kncrowder.com


Q U I C K R E LE A S E H A N G E R

TO P M O U NT H A N G E R

C-411 Up to 150 lbs. [68 kg] per door

C-400 Up to 125 lbs. [57 kg] per door

This medium-duty Quick Release hanger

This top mount hanger comes with our

comes standard with precision ball bearing,

precision ball bearing, nylon tire wheels and

nylon tire wheels and allows for fast and easy

is ideal for solid core doors. Features vertical

installation. Levelling and adjusting the height

adjustment by threaded door top plate and

is easy and only requires one person. For

locknut. For top mounted single, bi-parting,

top mounted single, bi-parting, bypassing or

bypassing or pocket doors.

pocket doors.

Available in clear, bronze or black anodized,

Available in clear, bronze or black anodized,

mill finish or powder-coated.

mill finish or powder-coated.

How to Specify/Order: Kit Code: C-411-W X [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: C-411-B X [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) Kit Code: C-400-W X [track length] 1DR KIT (ideal for 1-3/4” [44.5 mm] doors) Kit Code: C-400-B X [track length] 1DR KIT (ideal for 1-3/8” [34.9 mm] doors) Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

99

kncrowder.com


CEILING TR ACK SYSTEMS Burlington, Ontario, Canada

|

New York, USA

100

kncrowder.com


TO P M O U NT H A N G E R

CO N C E A LE D H A N G E R

C-350 Up to 75 lbs. [34 kg] per door

C-300 Up to 75 lbs. [34 kg] per door

This light-duty series is top hung and features

This light-duty hanger is great for plywood

vertical adjustment by threaded door top

or special material doors. The concealed

plate and locknut. For top mounted single,

track and hanger only require 1” [25.4 mm]

bi-parting, bypassing, or pocket doors.

of headroom and strongly anchors through

Available in clear, bronze or black anodized,

the door. For top mounted single, bi-parting, bypassing, or pocket doors.

mill finish or powder-coated.

Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: C-350 X [track length] 1DR KIT Kit Code: C-300 X [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

101

kncrowder.com


BARN DOOR SYSTEMS Burlington, Ontario, Canada

|

New York, USA

102

kncrowder.com


Z E RO C LE A R A N C E H A N G E R

C-810 Up to 300 lbs. [136 kg] per door

This barn doors system allows for minimal clearance between the door and the track, reducing light and sound entry. Our nylon wheels with precision ball bearings ensure smooth and quiet door operation. This all-in-one kit comes with optional fascia and a wrench and Allen key for easy adjustment in the field.

How to Specify/Order: Kit Code: C-810-108 x [track length] 1DR KIT Optional Fascia Kit Code: C-810-110-CA x [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

103

kncrowder.com


BARN DOOR SYSTEMS Burlington, Ontario, Canada

|

New York, USA

104

kncrowder.com


Q U I C K R E LE A S E H A N G E R

C-911 Up to 200 lbs. [91 kg] per door

This heavy-duty hanger comes standard with nylon wheels and precision ball bearings for smooth and quiet door operation. Installation is fast and easy thanks to the Quick Release hanger assembly. Levelling and adjusting the height is also a breeze; only requiring one person. For single or bi-parting barn door applications. Available in clear, bronze or black anodized or powder-coated.

How to Specify/Order: Kit Code: C-911-108 x [track length] 1DR KIT Optional Fascia Kit Code: C-911-110-CA x [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

105

kncrowder.com


H E AV Y- D U T Y B A R N D O O R S YS T E M S Burlington, Ontario, Canada

|

New York, USA

106

kncrowder.com


N Y LO N W H E E L H A N G E R S These barn door systems provide an uncomplicated look; hiding the track, hanger and any gaps. Our nylon wheels with precision ball bearings ensure smooth and quiet door operation. Available in clear, bronze or black anodized or powder-coated.

C-818HD-110 Up to 450 lbs. [204 kg] per door

C-994-110 Up to 350 lbs. [159 kg] per door

C-993-110 Up to 250 lbs. [113 kg] per door

How to Specify/Order: Kit Code: [hanger series]-108 x [track length] 1DR KIT Optional Fascia Kit Code: [hanger series]-110-CA x [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits)

Burlington, Ontario, Canada

|

New York, USA

107

kncrowder.com


BARN DOOR SYSTEMS Burlington, Ontario, Canada

|

New York, USA

108

kncrowder.com


N Y LO N W H E E L H A N G E R S Precision ball bearing nylon wheels for smooth and quiet door operation. For single or bi-parting barn door applications. Available in clear, bronze or black anodized or powder-coated.

C-106-4 Up to 175 lbs. [79 kg] per door

C-107-8 Up to 500 lbs. [227 kg] per door

C-107-4 Up to 350 lbs. [159 kg] per door

C-105-8 Up to 400 lbs. [181 kg] per door

C-105-4 Up to 200 lbs. [91 kg] per door

C-103-4 Up to 200 lbs. [91 kg] per door

How to Specify/Order: Kit Code: [hanger series]-108 x [track length] 1DR KIT Optional Fascia Kit Code: [hanger series]-110-CA x [track length] 1DR KIT Note: [track length] = door width x 2 (for 1 door kits) Burlington, Ontario, Canada

|

New York, USA

109

kncrowder.com


BYPA SS SYSTE MS Burlington, Ontario, Canada

|

New York, USA

110

kncrowder.com


TO P M O U NT H A N G E R S

C-5 3 8 Up to 125 lbs. [57 kg] per door For 1-3/8” [34.9 mm] thick doors

C-5 0 0 Up to 125 lbs. [57 kg] per door For 1-3/4” [44.5 mm] thick doors

These top mount hangers come with our precision ball bearing, nylon tire wheels and is ideal for solid core doors. Features vertical adjustment by threaded door top plate and locknut. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: C-500-W x [track length] 2DR KIT Kit Code: C-538-B x [track length] 2DR KIT Optional Fascia Kit Code: C-500F-W x [track length] 2DR KIT Optional Fascia Kit Code: C-538F-B x [track length] 2DR KIT Note: [track length] = door width x 2 (for 2 door kits)

Burlington, Ontario, Canada

|

New York, USA

111

kncrowder.com


BYPA SS SYSTE MS Burlington, Ontario, Canada

|

New York, USA

112

kncrowder.com


TO P M O U NT H A N G E R

CO N C E A LE D H A N G E R

C-600 Up to 75 lbs. [34 kg] per door

C-650 Up to 75 lbs. [34 kg] per door

This light-duty series is top hung and features

This light-duty hanger is great for plywood or

vertical adjustment by threaded door top

special material doors. The concealed track and

plate and locknut.

hanger only require 1” [25.4 mm] of headroom

Available in clear, bronze or black anodized,

and strongly anchors through the door.

mill finish or powder-coated.

Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: C-600 X [track length] 2DR KIT Kit Code: C-650 X [track length] 2DR KIT Note: [track length] = door width x 2 (for 2 door kits)

Burlington, Ontario, Canada

|

New York, USA

113

kncrowder.com


BYPA SS SYSTE MS Burlington, Ontario, Canada

|

New York, USA

114

kncrowder.com


S I D E M O U NT H A N G E R S

C-2035 Up to 60 lbs. [27 kg] per door

C-2025 Up to 60 lbs. [27 kg] per door

Interchangeable hangers allow this system to be used for 3/4” [19 mm] thick or 1-3/8” [34.9 mm] thick doors. Slotted holes on the hanger allow for vertical adjustment. Available with plain track or track with built-in fascia. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Kit Code: C-2035-CA x [track length] 2DR KIT Kit Code: C-2025 x [track length] 2DR KIT Note: [track length] = door width x 2 (for 2 door kits)

Burlington, Ontario, Canada

|

New York, USA

115

kncrowder.com


CROWDER FOLDING SYSTEMS Burlington, Ontario, Canada

|

New York, USA

116

kncrowder.com


C E NTE R PI VOT H A N G E R

C-180HD Up to 250 lbs. [113 kg] per panel/leaf

These heavy-duty center pivoting hangers are used to create pivoting room dividers that can also be stacked back-to-back against a wall or within hide-away enclosures. Doors must be moved individually and cannot be hinged together. Available in clear, bronze or black anodized, mill finish or powder-coated.

How to Specify/Order: Please contact KN Crowder at customerservice@kncrowder.com or 1-866-999-1KNC(1562) for more information.

Burlington, Ontario, Canada

|

New York, USA

117

kncrowder.com


CROWDER FOLDING SYSTEMS Burlington, Ontario, Canada

|

New York, USA

118

kncrowder.com


E A S Y CO N N EC T PI VOT K IT S

CF-415 Up to 120 lbs. [54 kg] per panel/leaf

CF-515 Up to 150 lbs. [68 kg] per panel/leaf

This medium-duty bi-folding kit comes with

This heavy-duty bi-folding kit comes with ball

precision ball bearing, nylon tire wheels and

bearing steel wheels and our Easy Connect

our Easy Connect hangers. This combination

hangers, which allow for easy installation and

ensures easy installation and adjustment,

adjustment.

along with smooth and quiet door operation.

How to Specify/Order: Kit Code: CF-415 X [track length] 2DR KIT Kit Code: CF-515 X [track length] 2DR KIT Note: [track length] = door width x 2 (for 2 door kits)

Burlington, Ontario, Canada

|

New York, USA

119

kncrowder.com


CROWDER FOLDING SYSTEMS Burlington, Ontario, Canada

|

New York, USA

120

kncrowder.com


PI VOT K IT S

CF-115 Up to 50 lbs. [23 kg] per panel/door

CF-100 Up to 20 lbs. [9 kg] per panel/door

This medium-duty system is great for bi-folding

Easy to install, this kit features our nylon

doors in constant use. The CF-115 hanger

wheels for smooth bi-folding movement. The

comes with ball bearing wheels with nylon

spring-loaded pivot and nylon bushings allow

tires, which allow for smooth operation. Hinges

for silent and easy use. Brackets are adjustable

by others.

for plumb. Ideal for light or louvre type doors. Hinges by others.

How to Specify/Order: Kit Code: CF-115 X [track length] 2DR KIT Kit Code: CF-100 X [track length] 2DR KIT Note: [track length] = door width x 2 (for 2 door kits)

Burlington, Ontario, Canada

|

New York, USA

121

kncrowder.com


CROWDER FOLDING SYSTEMS Burlington, Ontario, Canada

|

New York, USA

122

kncrowder.com


TR AC K LE S S PI VOT S

CF-116 Up to 50 lbs. [23 kg] per door

CF-409 Up to 200 lbs. [91 kg] per door

This medium to light-duty trackless pivot features angle brackets to be routered and recessed into the door.

This heavy-duty trackless pivot features all-steel zinc plated mounting plates along with thrust bearing on the bottom pivot plate.

How to Specify/Order: Kit Code: CF-116 Kit Code: CF-409

Burlington, Ontario, Canada

|

New York, USA

123

kncrowder.com


DOOR GUIDE SYSTEMS

For 1-3/4” [44.5 mm] Thick Doors (or greater)

C-914 GUIDE CHANNEL

1” [25.4 mm] wide x 29/32” [23 mm] high

CSM-913-2HD SIDE MOUNT GUIDE

3” [76.2 mm] wide x 3” [76.2 mm] high

C-913 FLOOR GUIDE

Single Round Bar Handle Pull 2” [50.8 mm] wide x 1” [25.4 mm] high

C-913SL SPRING LOADED GUIDE

C-913-2 DOUBLE ROLLER FLOOR GUIDE 4” [101.6 mm] wide x 1” [25.4 mm] high

CSM-913 SIDE MOUNT GUIDE

Plate 3” [76.2 mm] long x 1-1/4” [31.8 mm] wide 1-3/4” [44.5 mm] wide x 1-1/2” [38.1 mm] high Distance from wall to center of guide 1-1/2” Hole size required in door Ø 3/4” [19.1 mm] x [38.1 mm] MIN. 3” [76.2 mm] deep

C-202 DOUBLE GROOVE GUIDE THRESHOLD

C-202-3 TRIPLE GROOVE GUIDE THRESHOLD

C-202S DOUBLE GROOVE SLOPED GUIDE THRESHOLD

C-202S-3 TRIPLE GROOVE SLOPED GUIDE THRESHOLD

4-1/4” [108 mm] wide x 9/16” [14.3 mm] high

5-11/32” [135.4 mm] wide x 9/16” [14.3 mm] high

C-20 0 GUIDE

2” [50.8 mm] wide x 3/4” [19.1 mm] high

Burlington, Ontario, Canada

|

New York, USA

6-3/16” [157.2 mm] wide x 9/16” [14.3 mm] high

7-15/32” [189.4 mm] wide x 9/16” [14.3 mm] high

C-913D -134 BYPASS GUIDE

1-1/2” [38.1 mm] wide x 13/16” [20.6 mm] high Center to Center of guides 2-1/8” [54 mm]

124

C-20 0B SPRING LOADED GUIDE

Body 1-3/8” [34.9 mm] long x 5/8” [15.9 mm] wide Hole size required in door Ø 1/2” [12.7 mm] x 13/16” [20.6 mm] deep kncrowder.com


DOOR GUIDE SYSTEMS

For 1-3/8” [34.9 mm] Thick Doors (or smaller)

C-201 GUIDE CHANNEL

5/8” [15.5 mm] wide x 3/4” [19.0 mm] high

C-20 0 GUIDE

2” [50.8 mm] wide x 3/4” [19.1 mm] high

CSM-20 0 SIDE MOUNT GUIDE

C20 0D -138 BYPASS GUIDE

1-3/4” [44.5 mm] wide x 1-1/2” [38.1 mm] high Distance from wall to center of guide 1-1/2” [38.1 mm]

C-1205 NYLON GUIDE

Large piece 2-7/8” [73 mm] long x 1-1/8” [28.6 mm] wide x 3/4” [19.1 mm] high Small piece 1-7/16” [36.5 mm] long x 5/8” [15.9] wide x 3/4” [19.1 mm] high

C-20 0B SPRING LOADED GUIDE

Body 1-3/8” [34.9 mm] long x 5/8” [15.9 mm] wide Hole size required in door Ø 1/2” [12.7 mm] x 13/16” [20.6 mm] deep

1-1/2” [38.1 mm] wide x 13/16” [20.6 mm] high Center to Center of guides 1-3/4” [44.5 mm]

C-1201 CENTER NYLON GUIDE

1-3/4” [44.5 mm] long x 1/2” [12.7 mm] wide x 3/4” [19.1 mm] high

C-1202 OFFSET NYLON GUIDE

1-3/4” [44.5 mm] long x 1/2” [12.7 mm] wide x 3/4” [19.1 mm] high

C-238 DOUBLE GROOVE GUIDE THRESHOLD

C-238-3 TRIPLE GROOVE GUIDE THRESHOLD

C-238S DOUBLE GROOVE SLOPED GUIDE THRESHOLD

C-238S-3 TRIPLE GROOVE SLOPED GUIDE THRESHOLD

3-1/2” [88.9 mm] wide x 9/16” [14.3 mm] high

5-7/16” [138.1 mm] wide x 9/16” [14.3 mm] high

4-19/32” [116.4 mm] wide x 9/16” [14.3 mm] high

Burlington, Ontario, Canada

|

New York, USA

6-11/32” [160.8 mm] wide x 9/16” [14.3 mm] high

125

kncrowder.com


DOOR LOCKS & PULL S

PRIVACY LOCK SETS Burlington, Ontario, Canada

|

New York, USA

DOOR LOCKS & PULLS 126

kncrowder.com


DOOR LOCKS & PULL S

C-90L-ET

C-90L-OT

Privacy Lock & Edge Pull Set

Occupancy Privacy Lock & Edge Pull Set

C-92L-ET

C-92L-OT

Privacy Lock Set

Occupancy Privacy Lock Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

127

kncrowder.com


DOOR LOCKS & PULL S

P R I VAC Y LO C K S E T S

C-80L-ET

Privacy Lock & Edge Pull Set

C-60L-RET

C-60L-SET

Privacy Lock & Edge Pull Set

Privacy Lock & Edge Pull Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

128

kncrowder.com


DOOR LOCKS & PULL S

P R I VAC Y LO C K S E T S

C-62L-RET

C-62L-SET

Privacy Lock Set

Privacy Lock Set

C-30

C-35

Privacy Lock & Edge Pull Set

Round Privacy Lock & Edge Pull Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

129

kncrowder.com


DOOR LOCKS & PULL S

SECURITY LOCK SETS Burlington, Ontario, Canada

|

New York, USA

DOOR LOCKS & PULLS 130

kncrowder.com


DOOR LOCKS & PULL S

C-90L-CT

C-90L-CC

Security Lock & Edge Pull Set

Double Security Lock & Edge Pull Set

C-92L-CT

C-92L-CC

Security Lock Set

Double Security Lock Set

C-80L-CT

Security Lock & Edge Pull Set How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

131

kncrowder.com


DOOR LOCKS & PULL S

PASSAGE SETS Burlington, Ontario, Canada

|

New York, USA

DOOR LOCKS & PULLS 132

kncrowder.com


DOOR LOCKS & PULL S

C-91-BB

Edge Pull With Blank Flush Pulls

C-91-BHBH

Edge Pull With Blank Flush Pulls With Swing Out Handles

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

133

kncrowder.com


DOOR LOCKS & PULL S

PA S SAG E S E T S

C-21-BB

C-2180

Edge Pull with Blank Flush Pulls

Edge Pull with Blank Flush Pulls

C-2171

C-2172

Edge Pull with Blank Flush Pulls

Edge Pull with Blank Flush Pulls

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

134

kncrowder.com


DOOR LOCKS & PULL S

PA S SAG E S E T S

C-23

C-25

Wood Door Pull for 1-3/8”

Wood Door Pull for 1-3/4”

C-34

C-40

Edge Pull with Round Passage Door Pulls

Edge Pull with Passage Door Pulls

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

135

kncrowder.com


BI-PARTING LOCK AND PASSAGE SETS DOOR LOCKS & PULLS


DOOR LOCKS & PULL S

C-90S-BB

C-90L-ET

Passage Strike & Edge Pull Set

Privacy Lock & Edge Pull Set

C-90L-OT

C-90L-CT

Occupancy Privacy Lock & Edge Pull Set

Security Lock & Edge Pull Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

137

kncrowder.com


BARRIER FREE (ADA COMPLIANT) LOCK SETS DOOR LOCKS & PULLS


DOOR LOCKS & PULL S

C-92L-HLDP

C-92L-HL

Complete Barrier Free (ADA Compliant) Privacy Lock Set

Barrier Free (ADA Compliant) Privacy Lock Set

C-50P

Barrier Free (ADA Compliant) Pocket Passage Pulls

C-50FP

Full Privacy, Barrier Free (ADA Compliant) Pocket Lock Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

139

kncrowder.com


BARN DOOR LOCK SETS DOOR LOCKS & PULLS


DOOR LOCKS & PULL S

C-94BL-ET

Barn Door Privacy Lock Set

C-94BL-CT

Barn Door Security Lock Set

C-94BL-OT

Barn Door Occupancy Privacy Lock Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

141

kncrowder.com


DOOR LOCKS & PULL S

BA R N D O O R LO C K S E T S

C-94BL-HLDP

Complete Barrier Free (ADA Compliant) Barn Door Lock Set

C-94BL-HL

Barrier Free (ADA Compliant) Barn Door Lock Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

142

kncrowder.com


DOOR LOCKS & PULL S

BA R N D O O R LO C K S E T S

C-94BL-SET

Barn Door Privacy Lock Set

C-54BL

Round Barrier Free (ADA Compliant) Privacy Barn Door Lock Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

143

kncrowder.com


S E LF- L ATCHING LO CK S E TS DOOR LOCKS & PULLS


DOOR LOCKS & PULL S

C-95SL-CHL

C-95SL-OIHL

Self-Latching Barrier Free (ADA Compliant) Cylinder & Handle Lever Lock Set

Self-Latching Barrier Free (ADA Compliant) Handle Lever & Occupancy Indicator Lock Set

C-95SL-CT

C-95SL-OT

Self-Latching Flush Pull Cylinder & Handle Lever Lock Set

Self-Latching Flush Pull Thumb Turn & Occupancy Indicator Lock Set

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

145

kncrowder.com


DOOR LOCKS & PULL S

FLUSH PULLS Burlington, Ontario, Canada

|

New York, USA

DOOR LOCKS & PULLS 146

kncrowder.com


DOOR LOCKS & PULL S

C-90B

C-72

C-90BH

C-80B

C-60RB

C-71

C-60SB

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

147

kncrowder.com


DOOR LOCKS & PULL S

EDGE PULLS Burlington, Ontario, Canada

|

New York, USA

DOOR LOCKS & PULLS 148

kncrowder.com


DOOR LOCKS & PULL S

C-91

C-61

C-21

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

149

kncrowder.com


DOOR LOCKS & PULL S

GLASS DOOR PULLS Burlington, Ontario, Canada

|

New York, USA

DOOR LOCKS & PULLS 150

kncrowder.com


DOOR LOCKS & PULL S

CGP- 012

For 1/2” [12 mm] glass

CGP- 038

For 3/8” [10 mm] glass

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

151

kncrowder.com


DOOR LOCKS & PULL S

DOOR HANDLE PULLS Burlington, Ontario, Canada

|

New York, USA

DOOR LOCKS & PULLS 152

kncrowder.com


DOOR LOCKS & PULL S

C-90DP

Double Handle Pulls 7-3/4” [197 mm]

C-90SP

Single Handle Pull 7-3/4” [197 mm]

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

153

kncrowder.com


DOOR LOCKS & PULL S

D O O R H A N D LE PU LL S

CFT-SP36/SP18 X 630

CFT-DP36/DP18 x 630

Double Flat Bar Handle Pulls (36” [914 mm] or 18” [457 mm])

Single Flat Bar Handle Pull (36” [914 mm] or 18” [457 mm])

CFT-DP36/DP18 X 622

CFT-SP36/SP18 X 622

Double Flat Bar Handle Pulls (36” [914 mm] or 18” [457 mm])

Single Flat Bar Handle Pull (36” [914 mm] or 18” [457 mm])

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

154

kncrowder.com


DOOR LOCKS & PULL S

D O O R H A N D LE PU LL S

CRT-SP36/SP18 X 630

CRT-DP36/DP18 X 630

Double Round Bar Handle Pulls (36” [914 mm] or 18” [457 mm])

Single Round Bar Handle Pull (36” [914 mm] or 18” [457 mm])

CRT-DP36/DP18 X 622

CRT-SP36/SP18 X 622

Double Round Bar Handle Pulls (36” [914 mm] or 18” [457 mm])

Single Round Bar Handle Pull (36” [914 mm] or 18” [457 mm])

How to Specify/Order: Lock Series x Finish Please see pages 156-157 for available finishes. Burlington, Ontario, Canada

|

New York, USA

155

kncrowder.com


ARCHITEC TURE & DESIGN COLLEC TION

D O O R LO C K S & PU LL S CO LO U R C H A RT

626 Dull Chrome

605 Bright Brass

606 Dull Brass

613 Oil Rubbed Bronze

C-21

618 Bright Nickel Plated -

C-2171

-

-

C-2172

-

-

C-2180

-

C-21-BB

-

C-23

-

-

-

-

-

C-25

-

-

-

-

-

C-30

-

C-34

-

C-35

-

C-40

-

C-50 Series

-

C-54BL

-

-

-

-

-

-

C-60 Series C-61 C-62 Series C-71 C-72 C-80 Series C-90 Series C-91 Series C-92 Series C-94 Series C-95 Series CFT Series

-

-

-

-

-

CRT Series

-

-

-

-

-

CGP Series

-

-

-

-

-

Burlington, Ontario, Canada

|

New York, USA

156

kncrowder.com


ARCHITEC TURE & DESIGN COLLEC TION

D O O R LO C K S & PU LL S CO LO U R C H A RT

619 Dull Nickel Plated

622 Flat Black Coated

625 Bright Chrome

C-21

630 Satin Stainless Steel

WH White Powder Coat

-

C-2171

-

-

-

C-2172

-

-

-

C-2180

-

-

C-21-BB

-

-

C-23

-

-

-

C-25

-

-

-

C-30

-

C-34

-

-

C-35

-

-

C-40

-

C-50 Series

-

C-54BL

-

-

-

-

-

C-60 Series

-

-

C-61

-

-

C-62 Series

-

-

C-71

-

-

C-72

-

-

C-80 Series

-

-

C-90 Series

-

-

C-91 Series

-

-

C-92 Series

-

-

C-94 Series

-

-

C-95 Series

-

-

CFT Series

-

-

-

CRT Series

-

-

-

CGP Series

-

-

-

Burlington, Ontario, Canada

|

New York, USA

157

kncrowder.com


R E A LLY ??? Y E S WE C A N

158

Burlington, Ontario, Canada

|

New York, USA

158

kncrowder.com


Burlington, Ontario, Canada

|

New York, USA

159

kncrowder.com


ARCHITEC TURE & DESIGN COLLEC TION

Other Products by K.N. Crowder Mfg. Inc. ED AND OP

MAY 2020

K. N. CROWDER MFG. INC.

D FOR ATE

CANAD I AN

ER

N OW

EST. 1949

WEATHERSTRIP THRESHOLDS AUTOMATIC DOOR BOTTOMS ASTR AGALS STAIR NOSINGS Family owned and operated for over 70 years

kncrowder.com

K.N. CROWDER MFG. INC. 1220 Burloak Drive, Burlington, Ontario L7L 6B3

K.N. CROWDER INC. 210 Eighth Street South Lewiston, New York 14092

Toll Free Tel: 1 866 999 1KNC (1562) Email: customerservice@kncrowder.com Burlington, Ontario, Canada

|

New York, USA

160

kncrowder.com

Profile for k.n.crowder

KNC Sliding Door Track & Hardware

K.N. Crowder is committed to providing the Sliding Door Industry with quality engineered, durable, time-tested door hardware. For 70 years...

KNC Sliding Door Track & Hardware

K.N. Crowder is committed to providing the Sliding Door Industry with quality engineered, durable, time-tested door hardware. For 70 years...

Recommendations could not be loaded

Recommendations could not be loaded

Recommendations could not be loaded

Recommendations could not be loaded
