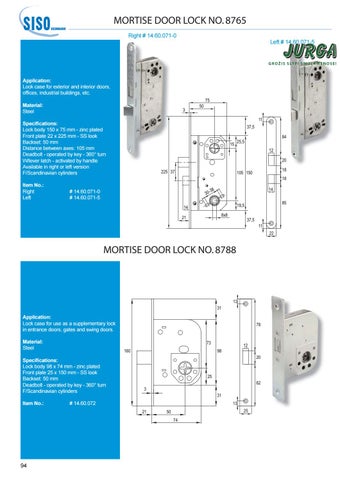

MORTISE DOOR LOCK NO. 8765 Right # 14.60.071-0 Left # 14.60.071-5
Application: Lock case for exterior and interior doors, offices, industrial buildings, etc. Material: Steel
3
75
11
Specifications: Lock body 150 x 75 mm - zinc plated Front plate 22 x 225 mm - SS look Backset: 50 mm Distance between axes: 105 mm Deadbolt - operated by key - 360° turn W/lever latch - activated by handle Available in right or left version F/Scandinavian cylinders Item No.: Right Left
50
37,5 15
84
25,5 12
20 225 37
18
105 150
30-
# 14.60.071-0 # 14.60.071-5
18 14
38
85
19,5
14 8x8
21
37,5
11 22
MORTISE DOOR LOCK NO. 8788
13 31
Application: Lock case for use as a supplementary lock in entrance doors, gates and swing doors. 73
Material: Steel
20
25 62
3 31 13
# 14.60.072 21
25
50 74
94
12
98
160
Specifications: Lock body 98 x 74 mm - zinc plated Front plate 25 x 150 mm - SS look Backset: 50 mm Deadbolt - operated by key - 360° turn F/Scandinavian cylinders Item No.:
78
