Eco Lecture Hall

Cafe Over the Tyne
Advertisement

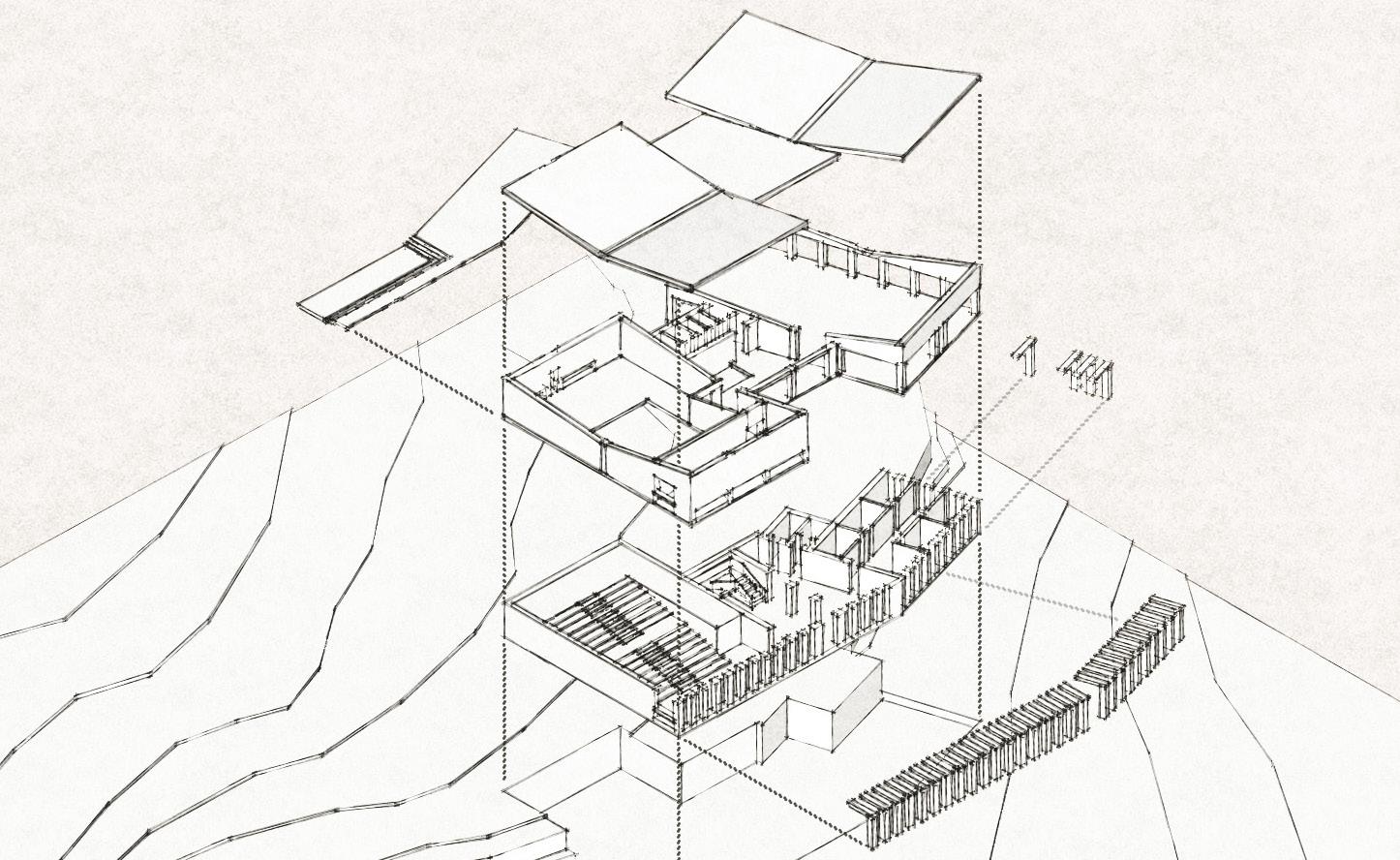

The Composition of The Waypoint - Exploded Axonometric

Weathered Corrugated Steel Roof
Emulating bird wings whilst matching the reflective nature of the Smokehouses
Lowered aspect to give a close up, calming moment with the retention pond
External Seating Cafe
Following the form of the roof, enhancing the view over the tyne
Circulation Core
Spacious and cladded in weathered steel matches the roofs materiality and allows comfortable access to all spaces
Bird Viewing Box
Creates focused views over the kittiwake ledges of the collonade
Veterinary
Ensures the safety of all the birds around the site
Honey Shop Foyer
Allows the community to benefit from selling locally produced products
Double Height Eco Lecture Hall
Curates the background of the rewilded nature reserve and tyne for sustainability specific lectures
Creates a spacious, calming environment upon entry
The Collonade
Gives a sense of the pier, celebrating the areas nautical pride
Visiting from the Ferry

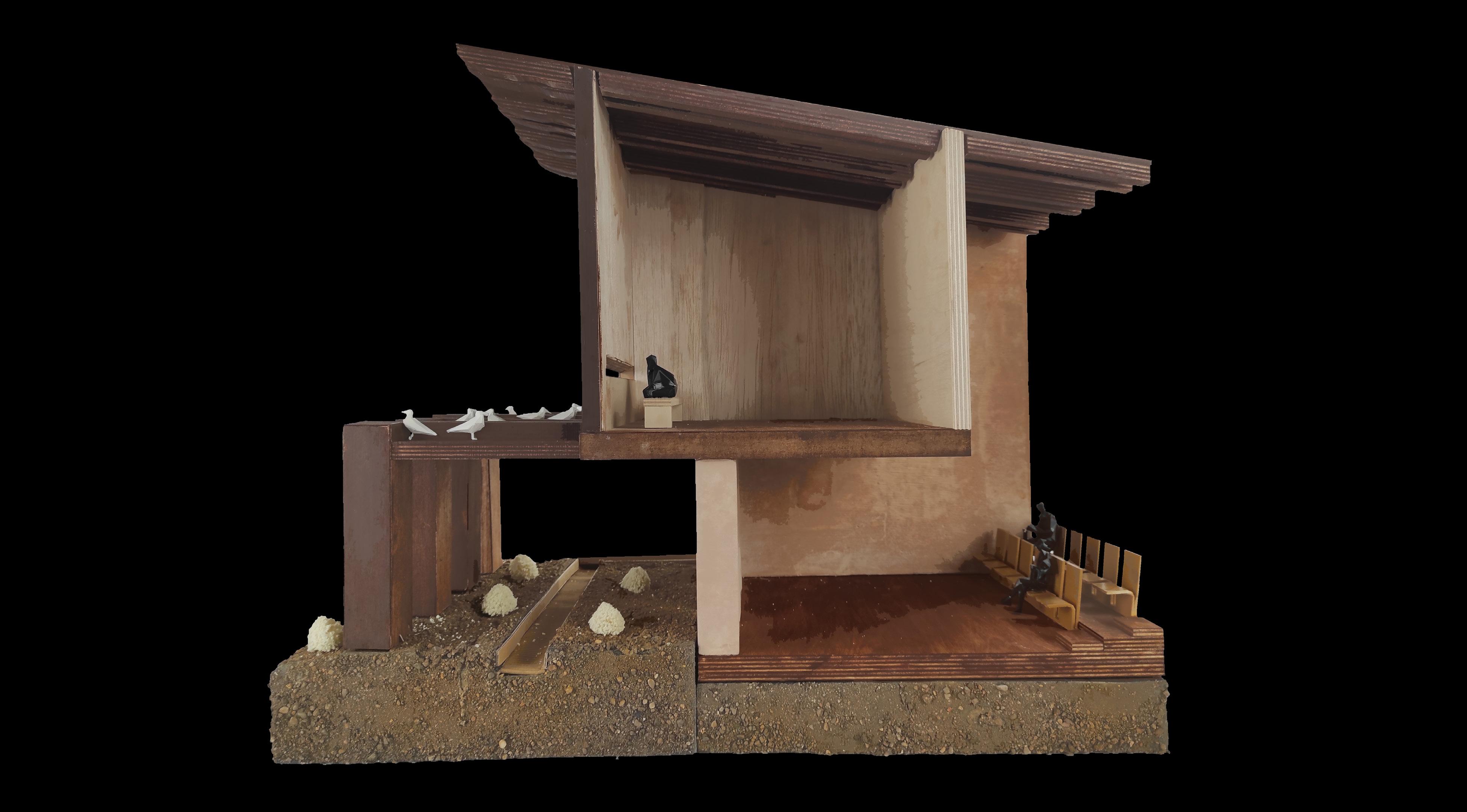

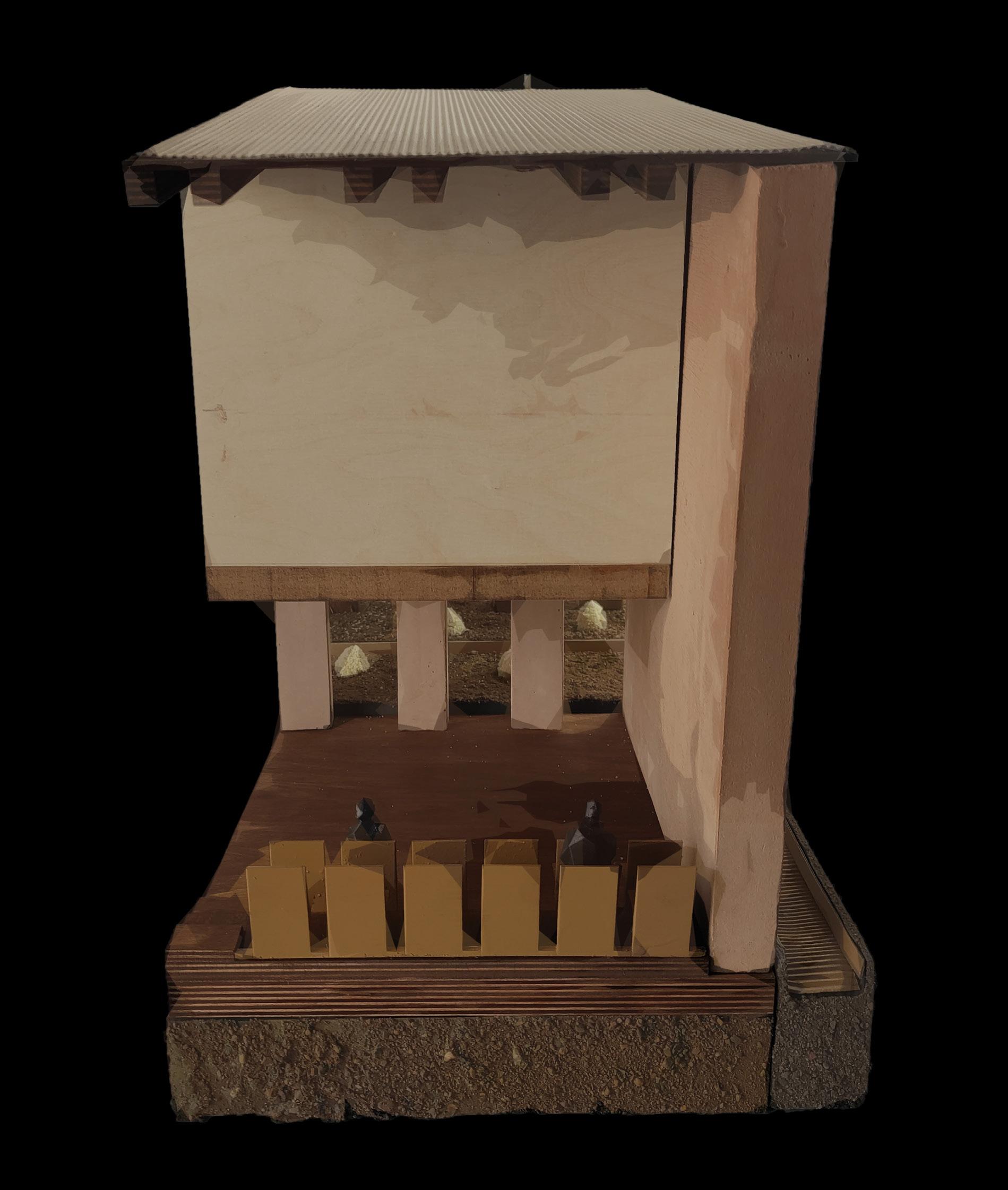

1:20 Module Model of The Wapoint

Model Vision
