MAKING SPACES WORK. Session 4 : Navisworks, make it work! Cherry Man, Norman Disney & Young Kevin Thickett, Norman Disney & Young

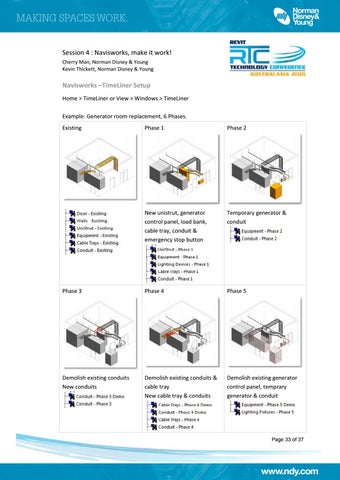

Navisworks –TimeLiner Setup Home > TimeLiner or View > Windows > TimeLiner Example: Generator room replacement, 6 Phases. Existing
Phase 1
Phase 2
New unistrut, generator control panel, load bank, cable tray, conduit & emergency stop button
Temporary generator & conduit
Phase 3
Phase 4
Phase 5
Demolish existing conduits New conduits
Demolish existing conduits & cable tray New cable tray & conduits
Demolish existing generator control panel, temprary generator & conduit
