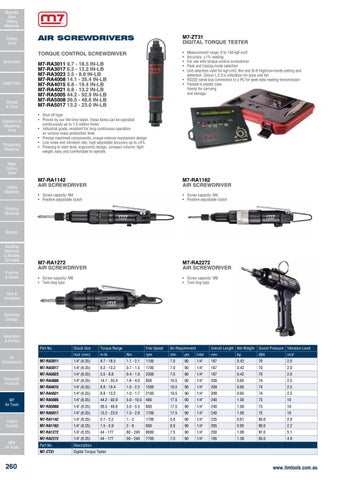

AIR SCREWDRIVERS
M7-ZT31 DIGITAL TORQUE TESTER
TORQUE CONTROL SCREWDRIVER
• • • • •
Measurement range: 0 to 150 kgf-cm2 Accuracy: ±1% reading For use with torque control screwdriver Peak and tracing mode selection Unit selection valid for kgf-cm2, Nm and lb-ft High/low-limits setting and detection. Colour L.E.D.s indication for pass and fail • RS232 serial bus connection to a PC for peak data reading transmission • Packed in plastic case. Handy for carrying and storage.
M7-RA3011 9.7 - 18.5 IN-LB M7-RA3017 6.2 - 13.2 IN-LB M7-RA3023 3.5 - 8.8 IN-LB M7-RA4008 14.1 - 35.4 IN-LB M7-RA4015 8.8 - 19.4 IN-LB M7-RA4021 8.8 - 13.2 IN-LB M7-RA5005 44.2 - 92.9 IN-LB M7-RA5008 26.5 - 48.6 IN-LB M7-RA5017 13.2 - 23.0 IN-LB • Shut off type • Proven by our life-time tester, these items can be operated continuously up to 1.5 million times • Industrial grade, excellent for long continuous operation on various mass production lines • Precise machined components, unique internal mechanism design. • Low noise and vibration rate, high adjustable accuracy up to ±5%. • Pressing to start level, ergonomic design, compact volume, light weight, easy and comfortable to operate.
Metal Cutting Saws Drilling Machines
M7-RA1142 AIR SCREWDRIVER
M7-RA1162 AIR SCREWDRIVER
• Screw capacity: M4 • Positive adjustable clutch
• Screw capacity: M4 • Positive adjustable clutch
M7-RA1272 AIR SCREWDRIVER
M7-RA2272 AIR SCREWDRIVER
• Screw capacity: M8 • Twin dog type
• Screw capacity: M8 • Twin dog type
Grinding Machines
Benders Bevelling Machines & Welding Carriages Punches & Shears
Fans & Ventilators
Workshop Storage
Generators & Pumps Part No.
Air Compressors
Pneumatic Products
M7 Air Tools
Impact Sockets
NPK Air Tools
260
M7-RA3011
Chuck Size
Torque Range
Free Speed
Air Requirement
Overall Length Net Weight
Sound Pressure Vibration Level
Inch (mm)
in-lb
Nm
rpm
cfm
psi
Inlet
mm
kg
dBA
m/s²
1/4" (6.35)
9.7 - 18.5
1.1 - 2.1
1100
7.0
90
1/4"
187
0.42
70
2.0
M7-RA3017
1/4" (6.35)
6.2 - 13.2
0.7 - 1.5
1700
7.0
90
1/4"
187
0.42
70
2.0
M7-RA3023
1/4" (6.35)
3.5 - 8.8
0.4 - 1.0
2300
7.0
90
1/4"
187
0.42
70
2.0
M7-RA4008
1/4" (6.35)
14.1 - 35.4
1.6 - 4.0
800
10.5
90
1/4"
209
0.65
74
2.5
M7-RA4015
1/4" (6.35)
8.8 - 19.4
1.0 - 2.2
1500
10.5
90
1/4"
209
0.65
74
2.5 2.5
M7-RA4021
1/4" (6.35)
8.8 - 13.2
1.0 - 1.7
2100
10.5
90
1/4"
209
0.65
74
M7-RA5005
1/4" (6.35)
44.2 - 92.9
5.0 - 10.5
480
17.5
90
1/4"
240
1.00
75
10
M7-RA5008
1/4" (6.35)
26.5 - 48.6
3.0 - 5.5
800
17.5
90
1/4"
240
1.00
75
10
M7-RA5017
1/4" (6.35)
13.2 - 23.0
1.5 - 2.6
1700
17.5
90
1/4"
240
1.00
75
10
M7-RA1142
1/4" (6.35)
0.7 - 2.2
1-3
1700
5.0
90
1/4"
235
0.61
80.0
2.0
M7-RA1162
1/4" (6.35)
1.5 - 5.9
2-8
600
6.0
90
1/4"
265
0.95
90.0
2.2
M7-RA1272
1/4" (6.35)
44 - 177
60 - 240
8000
7.5
90
1/4"
200
1.06
97.0
5.1
44 - 177
59 - 240
7700
7.0
90
1/4"
195
1.38
93.0
4.9
M7-RA2272
1/4" (6.35)
Part No.
Description
M7-ZT31
Digital Torque Tester
