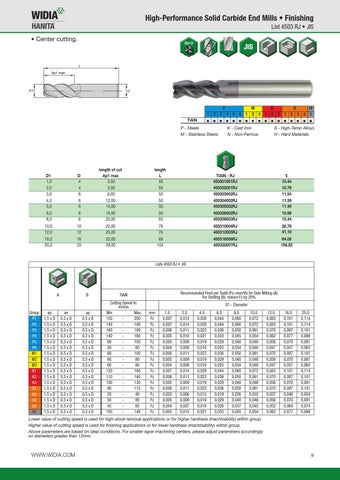

High-Performance Solid Carbide End Mills • Finishing List 4503 RJ • JIS • Center cutting.
P TiAlN
1
2
3
4
5
6
1
M 2 3
1
K 2 3
1
2
3
4
H 1
䢇
䢇
䢇
䢇
䢇
䢇
䢇
䢇
䢇
䢇
䢇
䢇
䢇
䢇
䢇
P - Steels M - Stainless Steels
䢇
K - Cast Iron N - Non-Ferrous
䢇
S
S - High-Temp Alloys H - Hard Materials
D1 1,0 2,0 3,0
D 4 4 6
length of cut Ap1 max 3,00 3,00 8,00
length L 50 50 50
TiAlN - RJ 450301001RJ 450302001RJ 450303002RJ
£ 10.44 10.79 11.54
4,0 5,0
6 6
12,00 14,00
50 50
450304002RJ 450305002RJ
11.39 11.49
6,0 8,0
6 8
16,00 20,00
50 63
450306002RJ 450308003RJ
10.86 15.44
10,0 12,0
10 12
22,00 25,00
76 76
450310004RJ 450312005RJ
26.76 41.10
16,0 20,0
16 20
32,00 38,00
89 104
450316006RJ 450320007RJ
64.09 106.92
Lists 4503 RJ • JIS
A
Group P1 P2 P3 P4 P5 P6 M1 M2 M3 K1 K2 K3 S1 S2 S3 S4 H1
ap 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D 1,5 x D
ae 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D 0,3 x D
B
TiAlN
ap 0,5 x D 0,5 x D 0,5 x D 0,3 x D 0,5 x D 0,3 x D 0,5 x D 0,5 x D 0,5 x D 0,5 x D 0,5 x D 0,5 x D 0,5 x D 0,5 x D 0,5 x D 0,5 x D 0,3 x D
Cutting Speed Vc m/min Min Max 150 200 140 190 160 180 140 160 60 100 50 80 80 100 60 80 60 80 120 160 110 140 100 130 90 115 20 40 50 80 45 65 100 140
Recommended Feed per Tooth (Fz=mm/th) for Side Milling (A). For Slotting (B), reduce Fz by 20%. D1 - Diameter mm Fz Fz Fz Fz Fz Fz Fz Fz Fz Fz Fz Fz Fz Fz Fz Fz Fz
1,0 0,007 0,007 0,006 0,005 0,005 0,004 0,006 0,005 0,004 0,007 0,006 0,005 0,006 0,003 0,005 0,004 0,005
2,0 0,014 0,014 0,011 0,010 0,009 0,008 0,011 0,009 0,008 0,014 0,011 0,009 0,011 0,006 0,009 0,007 0,010
4,0 0,028 0,028 0,023 0,021 0,019 0,016 0,023 0,019 0,016 0,028 0,023 0,019 0,023 0,013 0,019 0,016 0,021
6,0 0,044 0,044 0,036 0,033 0,029 0,025 0,036 0,029 0,025 0,044 0,036 0,029 0,036 0,019 0,029 0,026 0,033
8,0 0,060 0,060 0,050 0,045 0,040 0,034 0,050 0,040 0,034 0,060 0,050 0,040 0,050 0,026 0,040 0,037 0,045
10,0 0,072 0,072 0,061 0,054 0,048 0,040 0,061 0,048 0,040 0,072 0,061 0,048 0,061 0,032 0,048 0,045 0,054
12,0 0,083 0,083 0,070 0,062 0,056 0,047 0,070 0,056 0,047 0,083 0,070 0,056 0,070 0,037 0,056 0,052 0,062
16,0 0,101 0,101 0,087 0,077 0,070 0,057 0,087 0,070 0,057 0,101 0,087 0,070 0,087 0,046 0,070 0,064 0,077
20,0 0,114 0,114 0,101 0,088 0,081 0,065 0,101 0,081 0,065 0,114 0,101 0,081 0,101 0,054 0,081 0,074 0,088
Lower value of cutting speed is used for high-stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Above parameters are based on ideal conditions. For smaller taper machining centers, please adjust parameters accordingly on diameters greater than 12mm.
