INTEGRATION AND FORM DEVELOPMENT

Access To Site

Facade System

RESPONSIVE FACADE

Façade elements can be programmed to respond to climatic factors, to improve energy efficiency, to reduce solar heat again, or for aesthetic reasons. Incorporating 2 types of facade i.e. automated facade and stationary facade. They respond according to the sunlight. Automated facade adjusts the louvers itself according to the sunlight and the shaded facade has every kind of panel with different density to allow every amount of light to penetrate.

1. AUTOMATED FACADE 2. SHADING FACADE

OVERALL FORM

SINGLE PANEL

FORM DEVELOPMENT

Stage Of Openings

EXTERNALLY INTERNALLY

CONCEPTUAL SKETCH

5 PANEL WITH DIFFERENT DENSITY OF PATTERN

CHUNK OF PANEL CREATING THE SKIN Scale and proportion of the skin according to human scale

GROUND FLOOR PLAN

6TH FLOOR PLAN

15TH FLOOR PLAN

23RD FLOOR PLAN

16TH FLOOR PLAN

UPPER BASEMENTLOWER BASEMENT

The Layer House

Building Construction

CO-DESIGNED WITH :- MS. ANKITA THUKRAL MS. VENIKA SIKKA

MENTOR:- PROF. TANAYA VERMA

PROF. T S RAVICHANDRAN

PROF. RAKTIM SAHA

Design Brief

(SEMESTER 8)

Home automation or domotics is building automation for a home, called a smart home or smart house. A home automation system will monitor and/or control home attributes such as lighting, climate, entertainment systems, and appliances. It may also include home security such as access control and alarm systems.

Creating a residential project that contains many automated systems that could make life easier for the client. The client brief need to be decided itself and that residential project needs to the created according to that .

Site Analysis

LOCATION:

LANDMARK:

Near Vivo 53-54 Station, Rapid Metro, on Park Drive Lane , Golf course road , gurgaon

Vivo 53-54 Station, Rapid Metro

Client Brief

Age : 70 (M), 65 (F)

Spaces Required :

-Bedroom

-Washroom

-Pooja Room/Mandir

Age : 45 (M), 41 (F)

Professions : Hotel

Franchise Owner (M), Lawyer (F)

Spaces Required :

Age : 15 (M), 12 (F)

Spaces Required : -Bedroom -Washroom -Study Room

The main material for the house is rammed earth and there is a good usage of passive design techniques.such as natural ventilation , natural sunlight used in a very productive way and solar powered artificial lighting.

The spaces are designed accoring to the need of the client by using design principles giving a major concept of bilateral axis for visual connectivity between the spaces.

The spaces are stacked vertically according to the privacy of the family. for that the more public spaces are given on the grounf floor with some private area and rest of the private area are given on the first floor

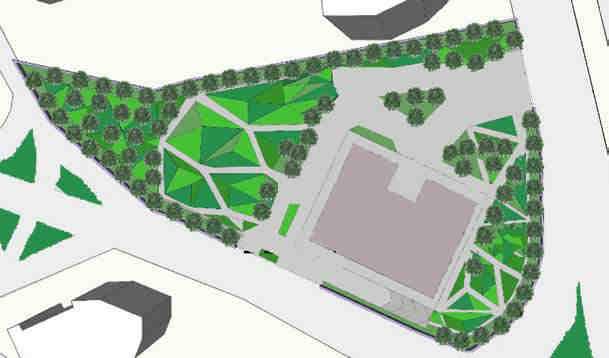

Concept Site Plan

Visual Connectivity Rammed Earth

GRASS PAVER DECK MAIN BUILDING DECK

WITH

Rammed earth is a structural wall syatem built from natural mineral soilcompacted in thin layer within sturdy formwork

The strength and durability of the wall results from the densification of a clay , sand and gravel matrix.
