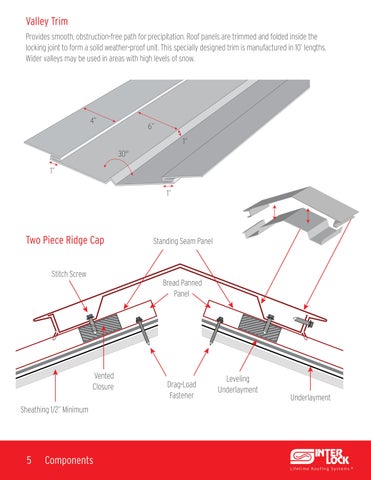

Valley Trim Provides smooth, obstruction-free path for precipitation. Roof panels are trimmed and folded inside the locking joint to form a solid weather-proof unit. This specially designed trim is manufactured in 10’ lengths. Wider valleys may be used in areas with high levels of snow.
4”
6” 1” 30°
1” 1”
Two Piece Ridge Cap Stitch Screw
Bread Panned Panel
Vented Closure Sheathing 1/2” Minimum
5
Standing Seam Panel
Components
Drag-Load Fastener
Leveling Underlayment
Underlayment
