Customized refreshing solutions
All the systems Vento Kit and Linea Kit nebulize sterilized water, meaning without viruses and bacteria.
Linea Kit Vento Kit
Optimal solution for:
• outdoor gazebos
• verandas
• outdoor walkways
• refreshing systems for outdoor umbrellas
• beach volleyball, futsal/tennis pitches/courts
Optimal solution for:
• industrial workshops
• covered outdoor areas of restaurants, bars and bakeries
• parks and gardens
• gyms
• fishmongers' & greengrocers'
Linea Kit
Vento Kit
Choose your line kit Code
ZX.KL40
Equipped with water inlet Kit
Linea Kit 10 nozzles 6,75m
Linea Kit 20 nozzles 14,25m
Linea Kit 30 nozzles 21,75m
Linea Kit 40 nozzles 29,25m

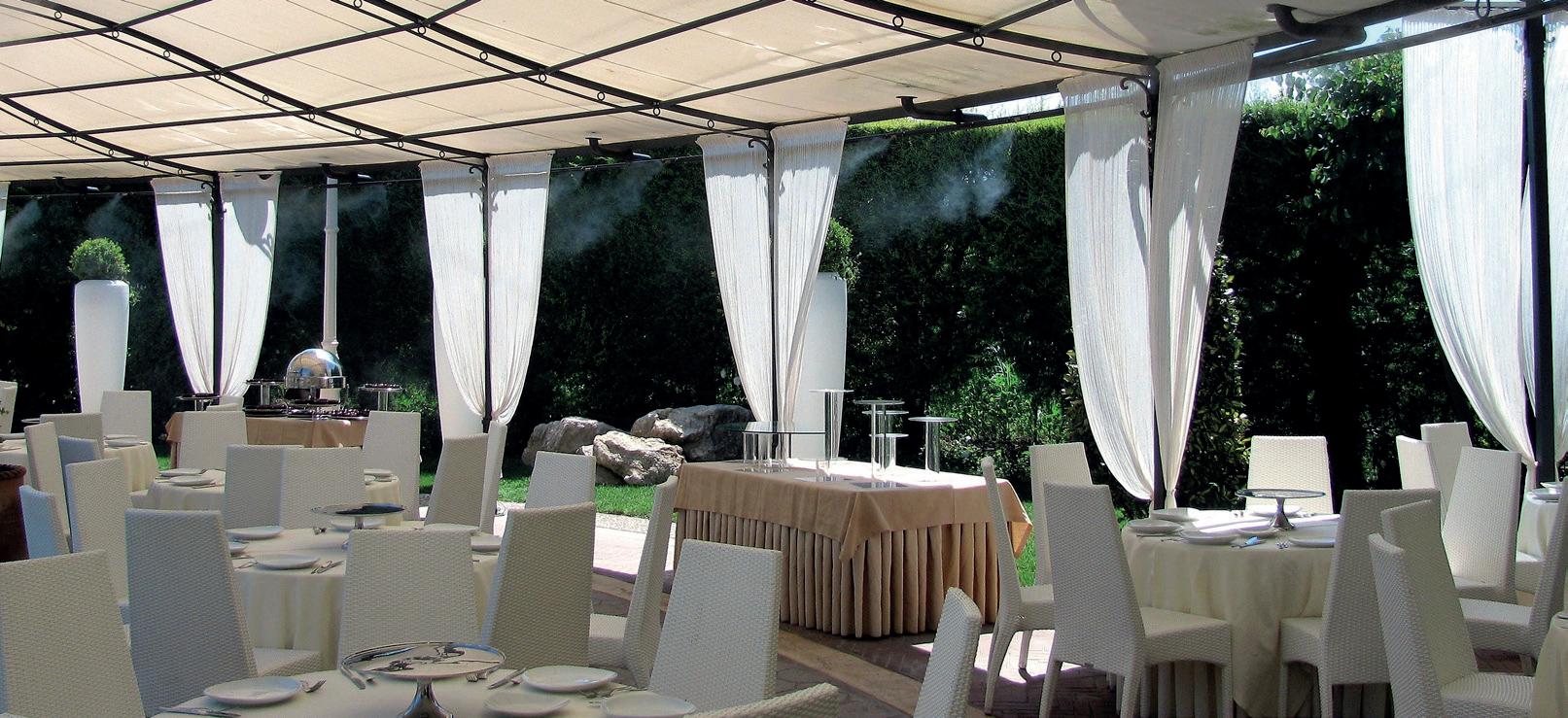

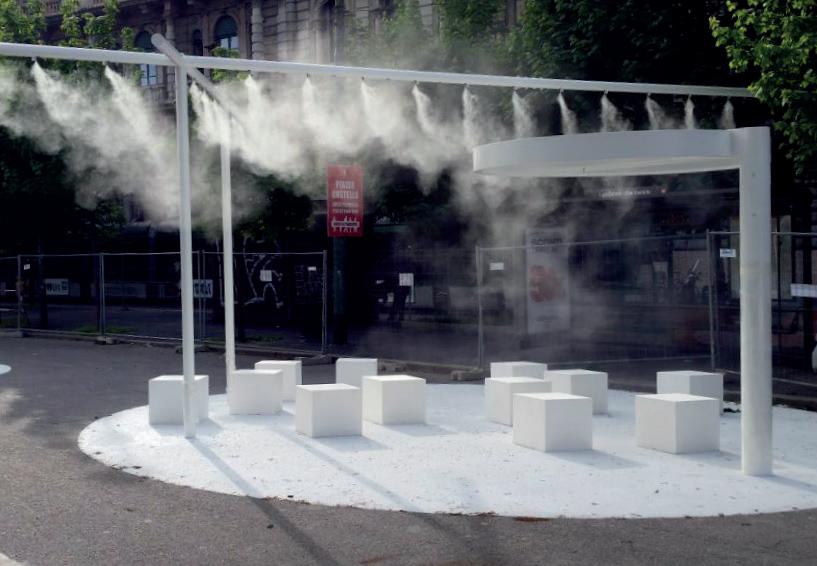

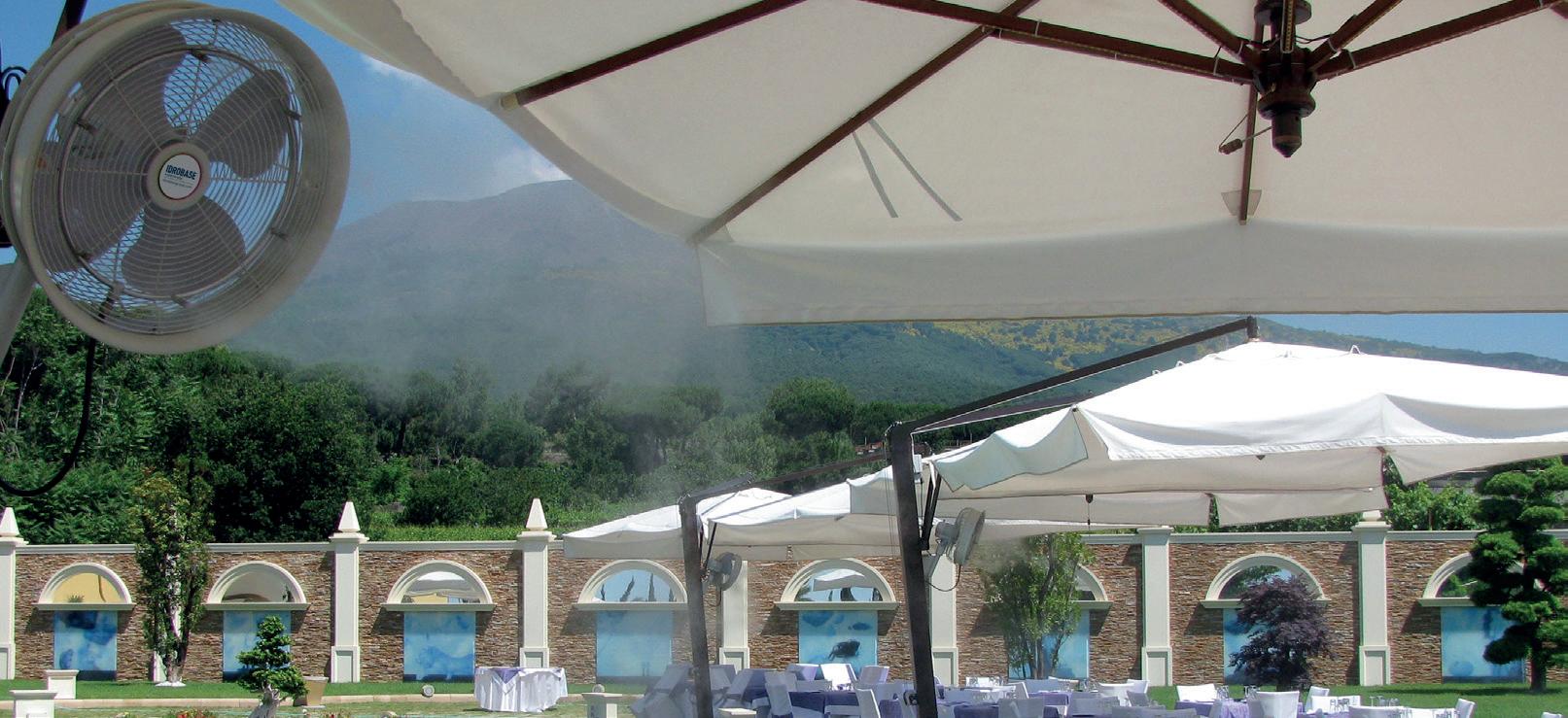

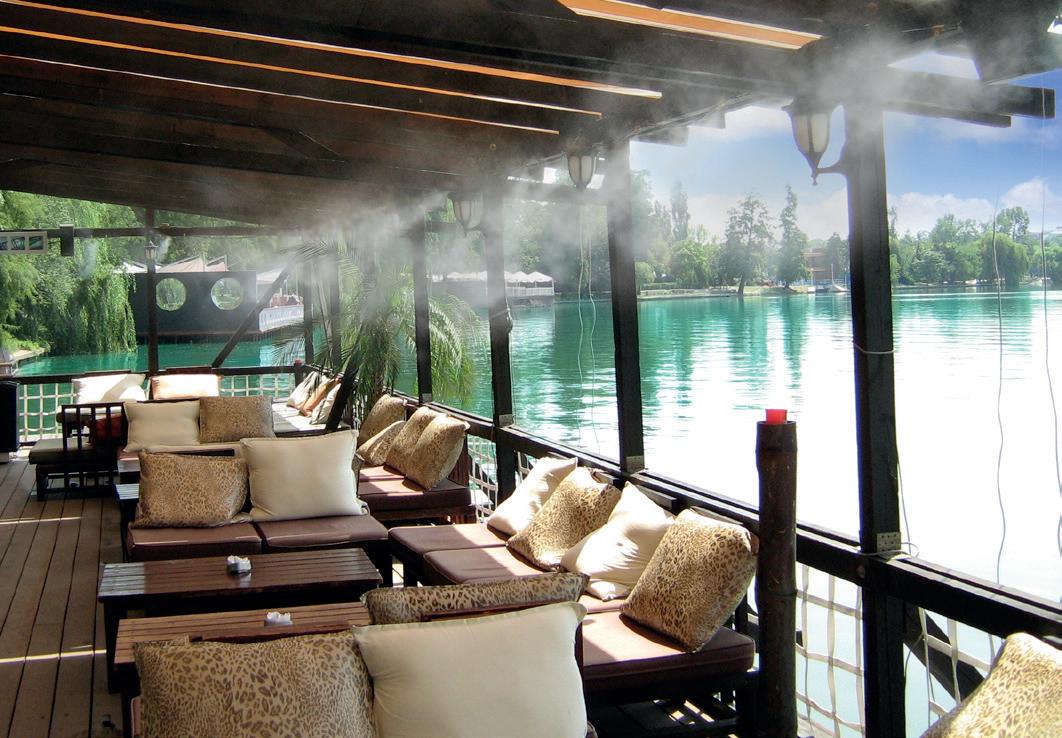

Cooling systemRepelling mosquitoes, Tenuta Primero Resort
Example Linea Kit composition

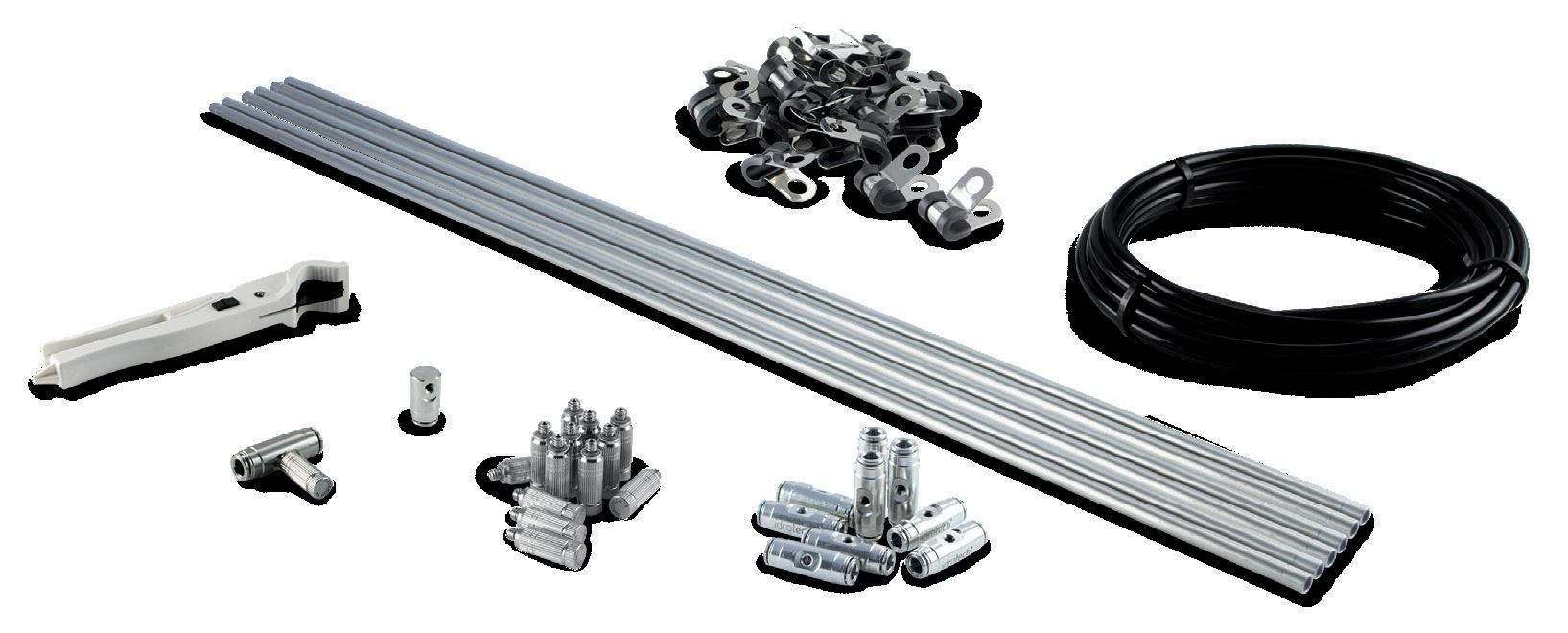

Linea kit
Straight nozzle holder Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm
End of line nozzle holder Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm
End of line for high pressures, with automatic discharge valve, 10/24UNC/2A
Rubberised SS pipe clamp, for polyamide pipe and AISI 304 SS pipe fixing ø6.35mm
Tube cutter for polyamide pipe ø2-12mm
Recommended accessory
ZX.KPI
ZX.0519
Emergency kit: 2 cleanable fog nozzles in nickel-plated brass, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread
End of Line Kit: hp + autom.disch.10/24UNC/2A
Linea
ZX.KV2-24
ZX.KV4-24
ZX.KV2-20
ZX.KV4-20
ZX.KV6-20
ZX.KV8-20
ZX.KV2-18
ZX.KV4-18
ZX.KV6-18
ZX.KV8-18

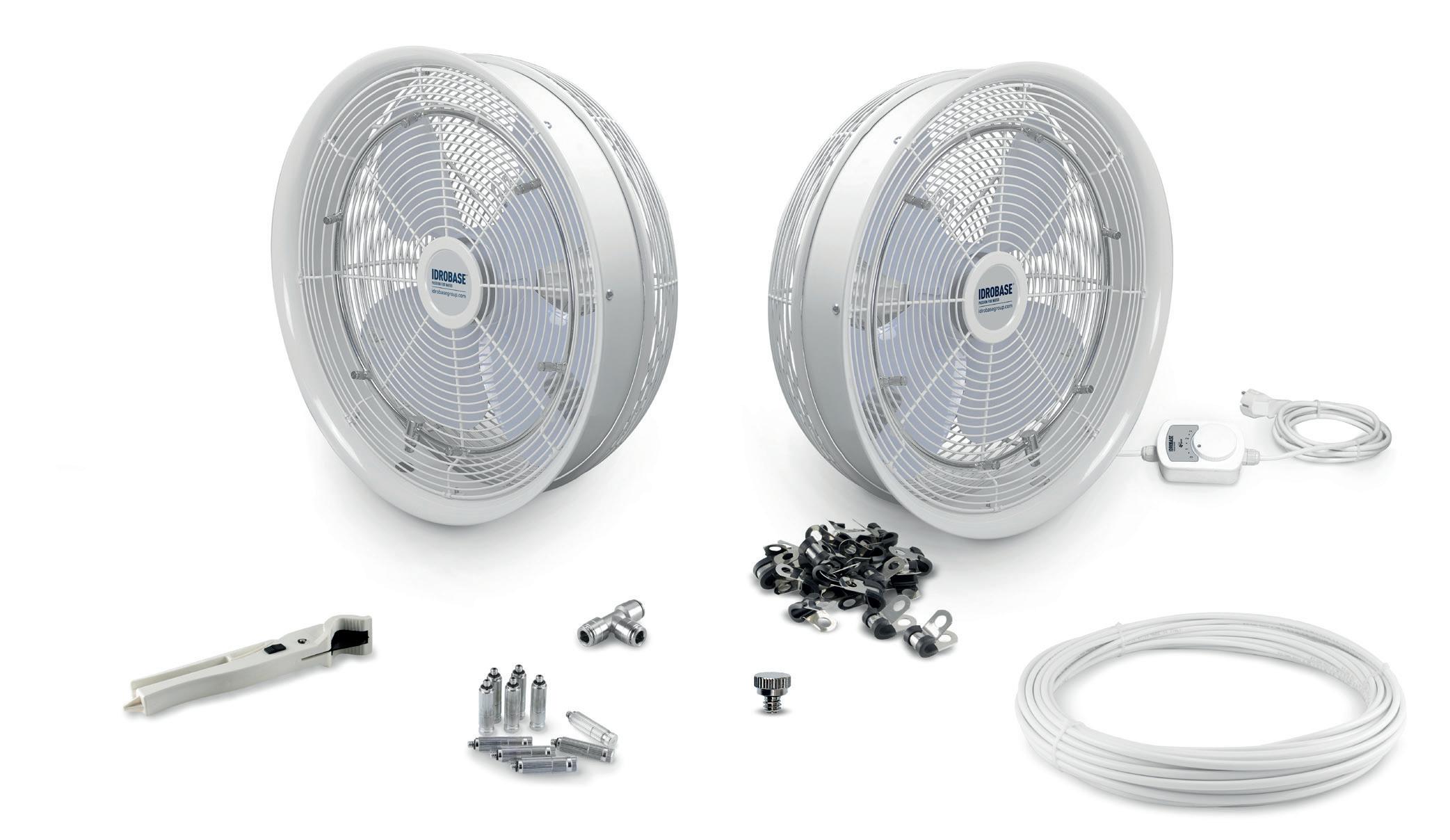

KIT MIST FAN 24"
Vento Kit Composition
Vento Kit Description
Mist Fan 24”- 58cm 3 speeds, 90° swinging, complete with a wall mounting bracket, white colour, AISI 304 stainless steel nozzle holder ring, 8 holes, power cable length 2.2m. Air flow rate 10.280m3/h, 142W, 230V-50Hz. Coverage 60m2
brass cap 10/24UNC/2A thread
pipe junction Slip-Lock quick coupling, in
Recommended accessory Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread
Example
Vento Kit Compatibility
KIT MIST FAN 20"

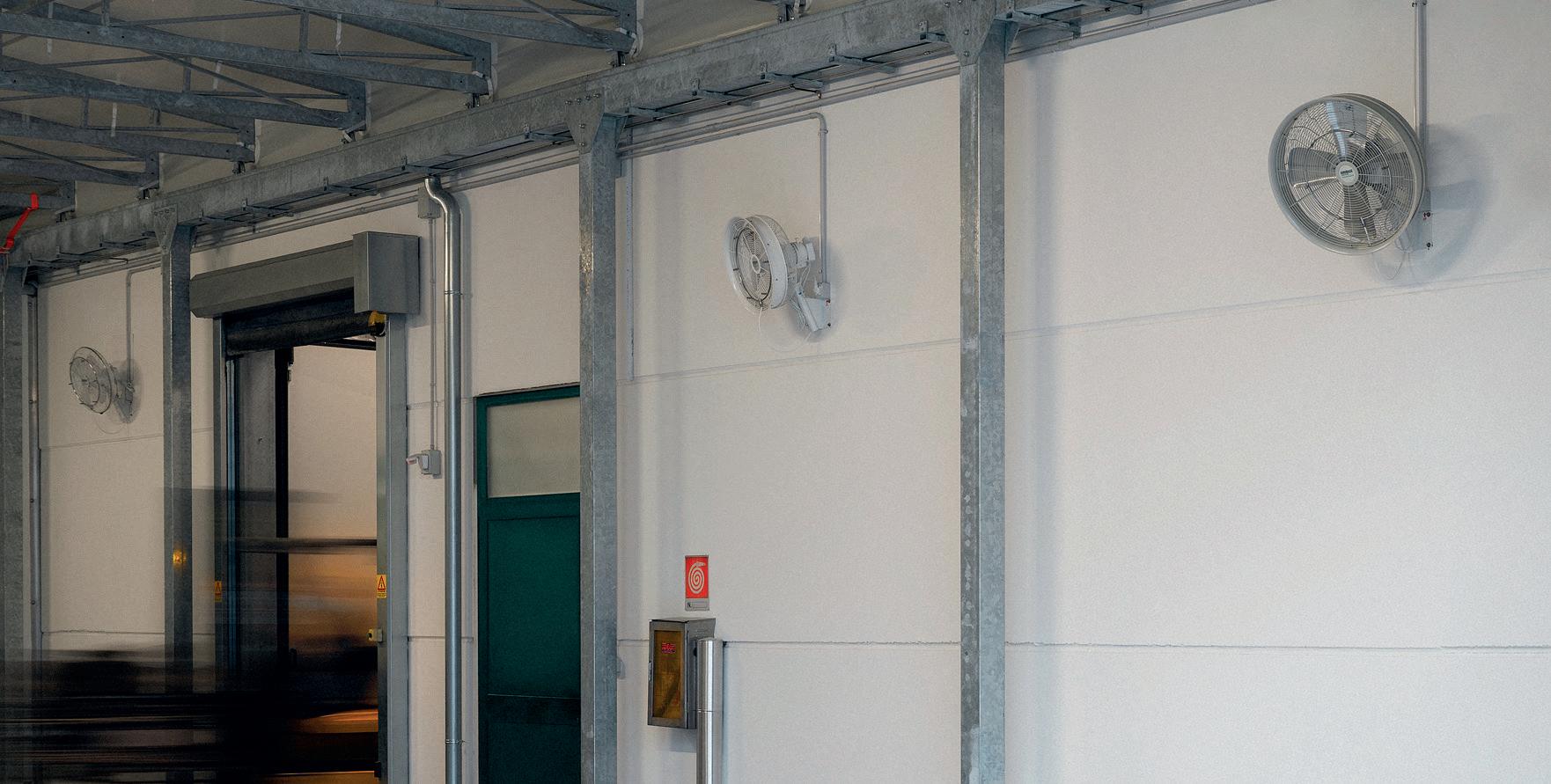

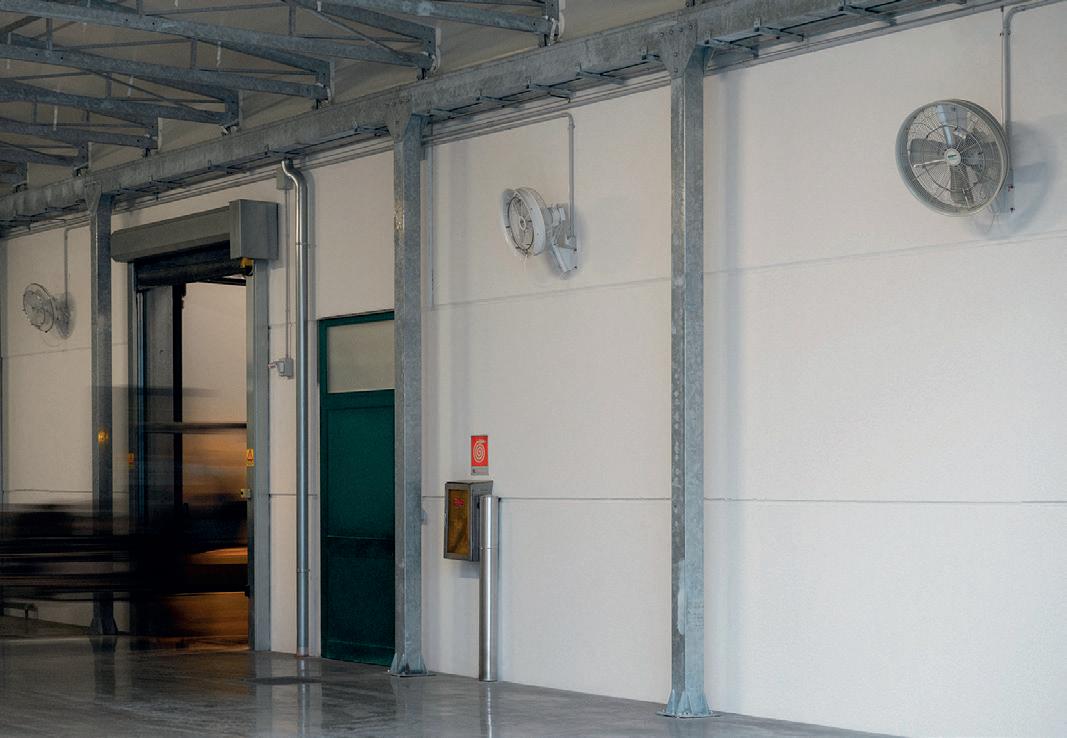

For covered areas

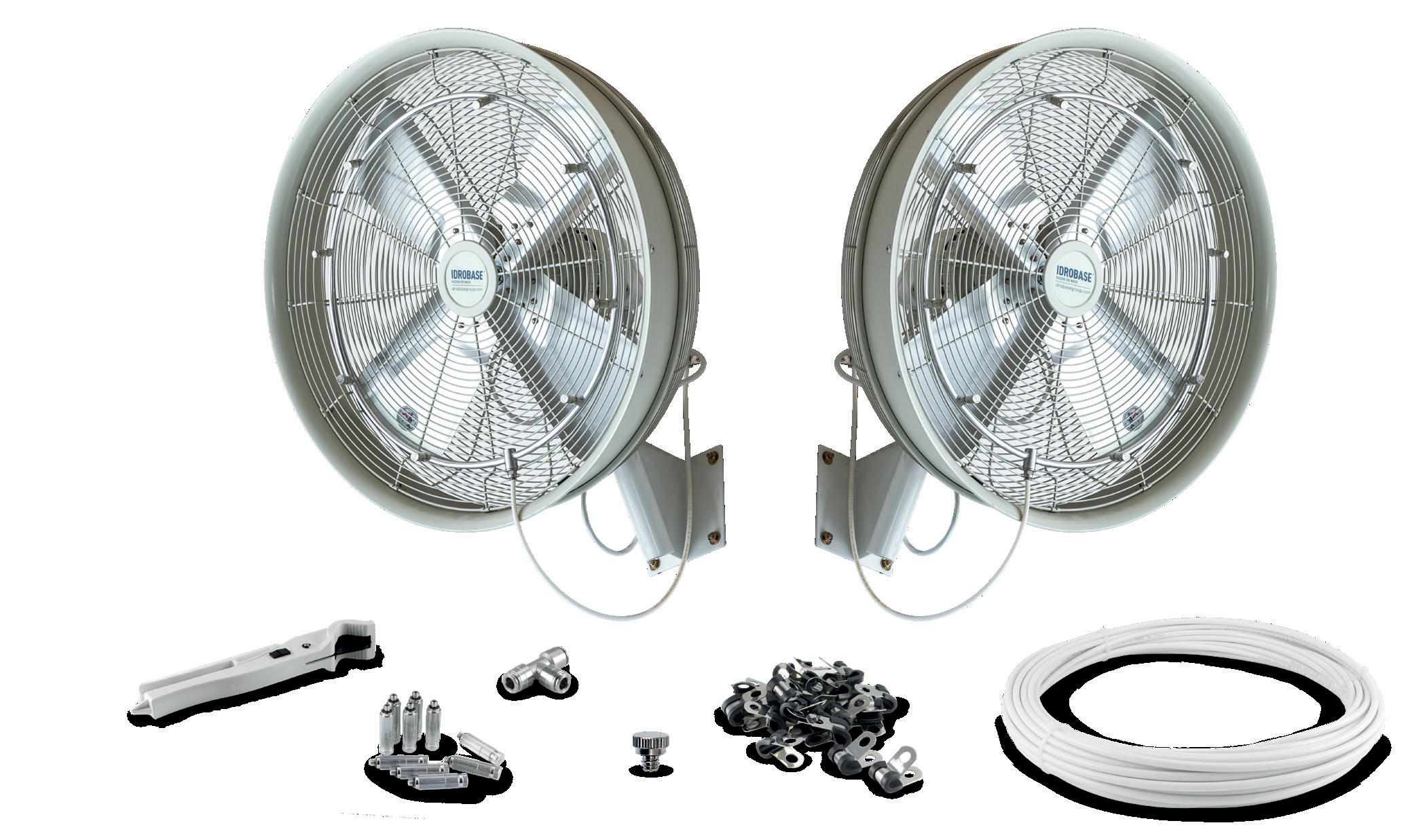

Example Vento Kit Composition
Vento Kit Description
Mist Fan 20”- 51.5cm 3 speeds, 90° swinging, complete with a wall mounting bracket, white colour, AISI 304 stainless steel nozzle holder ring, 6 holes, power cable length 2.2m. Air flow rate 2940m3/h, 74W, 230V-50Hz. Coverage 40m2
Cleanable fog nozzle in AISI 303 stainless steel, complete with anti-drop valve, 10/24UNC/2A thread, flow factor 015
Nickel-plated brass cap 10/24UNC/2A thread
"Tee" pipe junction Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm

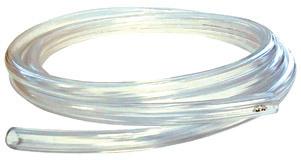

H.p. polyamide pipe ø6.35mm, rolls of 25m, white
Tube cutter for polyamide pipe ø2-12mm
Rubberised stainless steel pipe clamp, for polyamide pipe fixing ø6.35mm
Recommended accessory
Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread
KIT MIST FAN 18"
Example Vento Kit Composition
Vento Kit Description
For covered areas
Mist Fan 18”- 46cm, 3 speeds, complete with wall mounting bracket, AISI 304 stainless steel nozzle holder ring, 6 holes, pre-set for mounting on wall, swinging 90°, colour white, length of power cable 2.2m. Air flow rate 9000m3/h, 125W, 230V-50Hz. Coverage 50m2
Cleanable fog nozzle in AISI 303 stainless steel, complete with anti-drop valve, 10/24UNC/2A thread, flow factor 015
Nickel-plated brass cap 10/24UNC/2A thread
"Tee" pipe junction Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm
H.p. polyamide pipe ø6.35mm, rolls of 25m, white
Tube cutter for polyamide pipe ø2-12mm
Rubberised stainless steel pipe clamp, for polyamide pipe fixing ø6.35mm
Recommended accessory
Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread

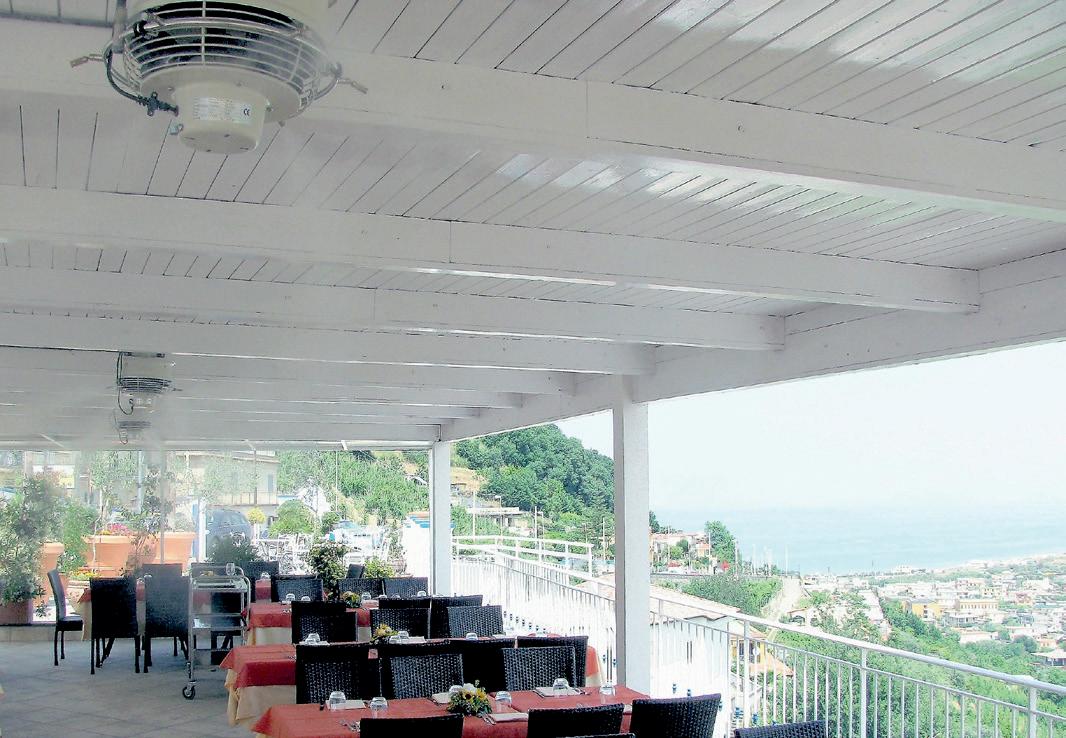

KIT FAN 360° PANORAMA
For covered areas
Mist Fan 360 Panorama video
Example Vento Kit Composition
Vento Kit Description
Fan 360° Panorama. Single speed, pre-set for ceiling mounting, complete with holder ring for 8 nozzles, colour white, air flow rate 600m3/h, 100W, 230V-50Hz.
Recommended accessory
FAN 360° PANORAMA LED
4 seasons
Continuous use
Silent working

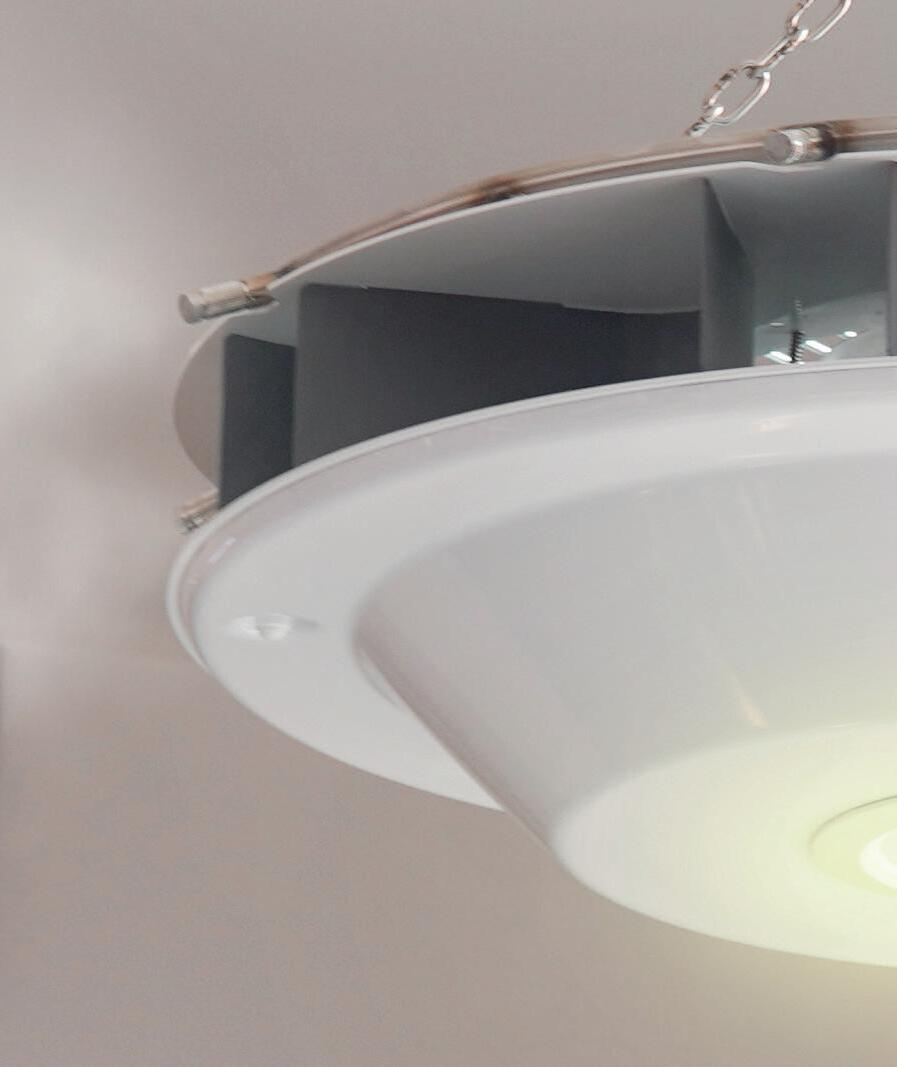

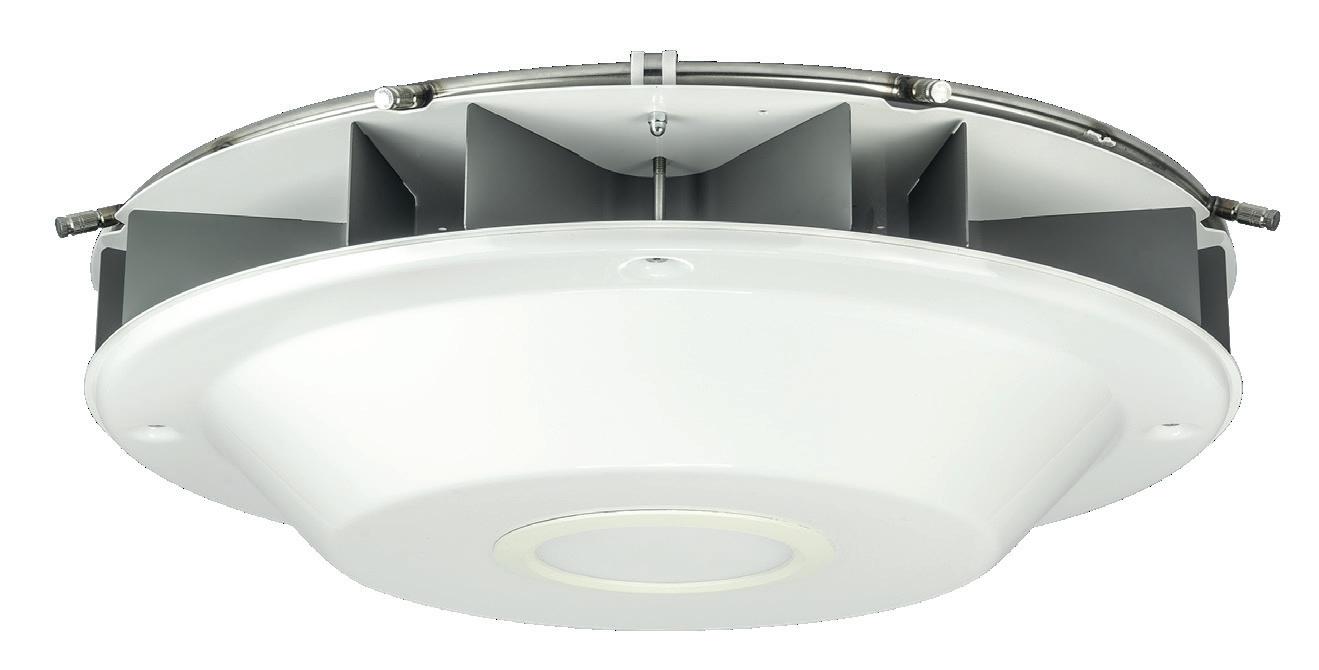

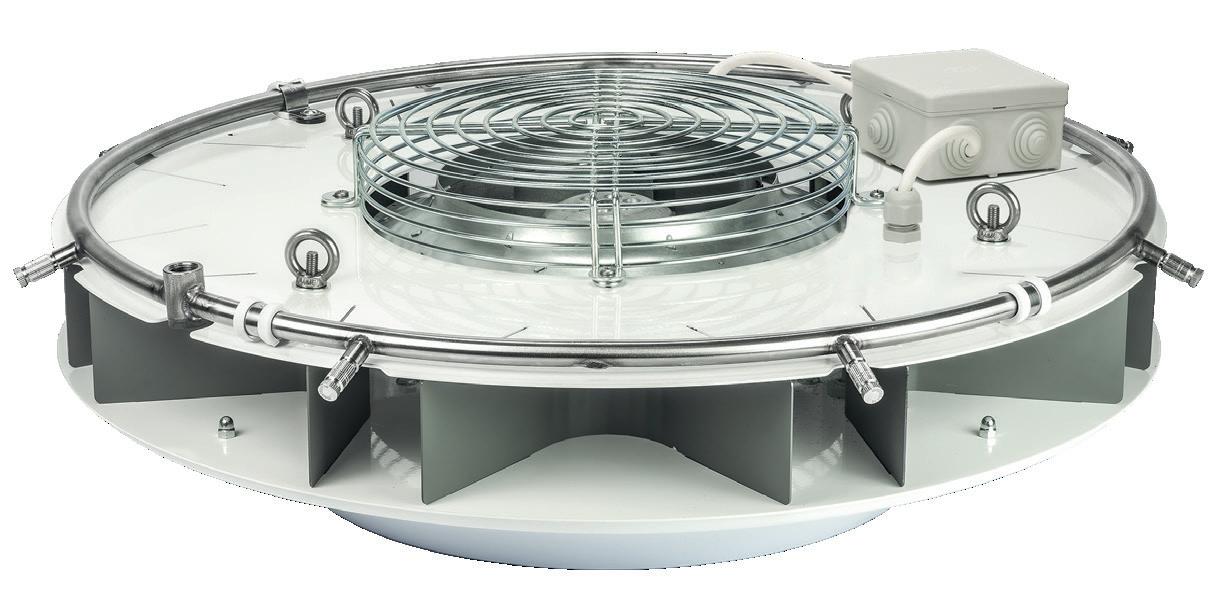

Fan 360° Panorama Led
Fan 360° Panorama Led has been designed to nebulize high pressure water combined with 360° radial ventilation; equipped with LEDs for lighting.

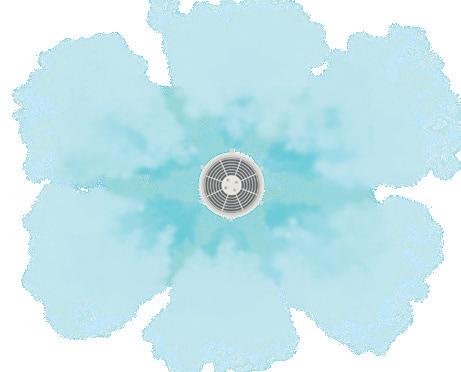

Ideal for cooling, humidification and dust suppression.
• Illuminates
• Nebulizes
• Changes the air
• The quietest on the market
• Ideal for continuous use
Technical features
Technical features
Ideal for:
Cools
Terraces/patios, gazebos, bars/restaurants
Regulates humidity
Paper mills, printing, weaving
Dust suppression
Cement plants, construction sites
Technical features
• Epoxy powder: coated steel
• Protection rating: IP54
• Ring max. operating pressure: 70bar
• Operating temperature: 5-40°C
• Nebulizing ring: AISI 304 stainless steel ring
• Nozzles set-up: 8x10/24 UNDC
• Nozzles: 8x2 - 0,5 l/min
• Fan diameter: 580 mm
• Air flow rate: 6000 m3/h
• Maximum coverage: 95 m2
• Fan jet: 5,5 m
Illumination
• Type: Led
• Power: 12W
• Brightness: 1020lm
• Power supply: 220V
• Lighting angle: 120°
ZX.5007-L
Misting system pumps
Silent working
Considerably reduces the temperature Keeps mosquitoes away

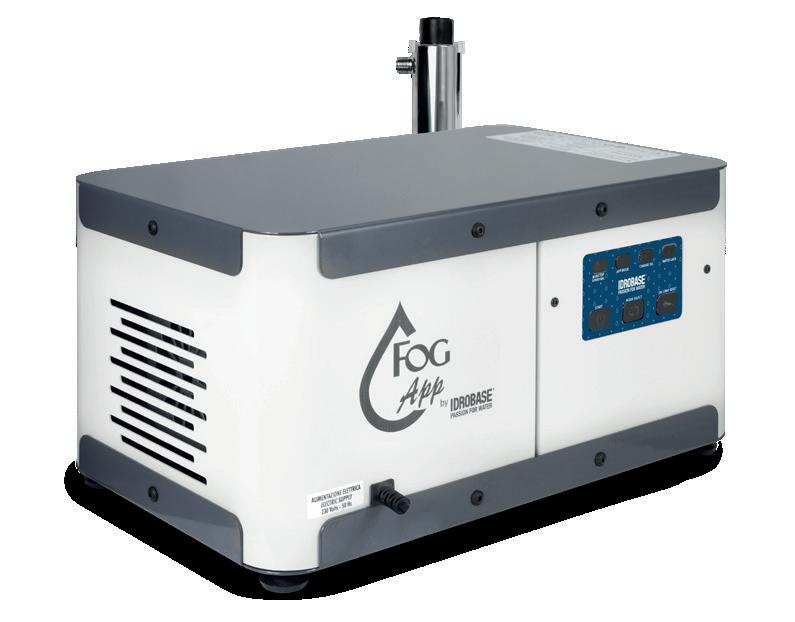

Fog module 60bar 230V-50/60Hz

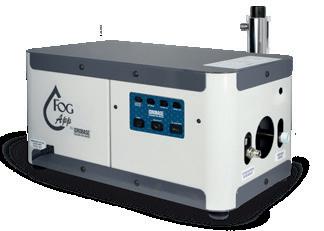

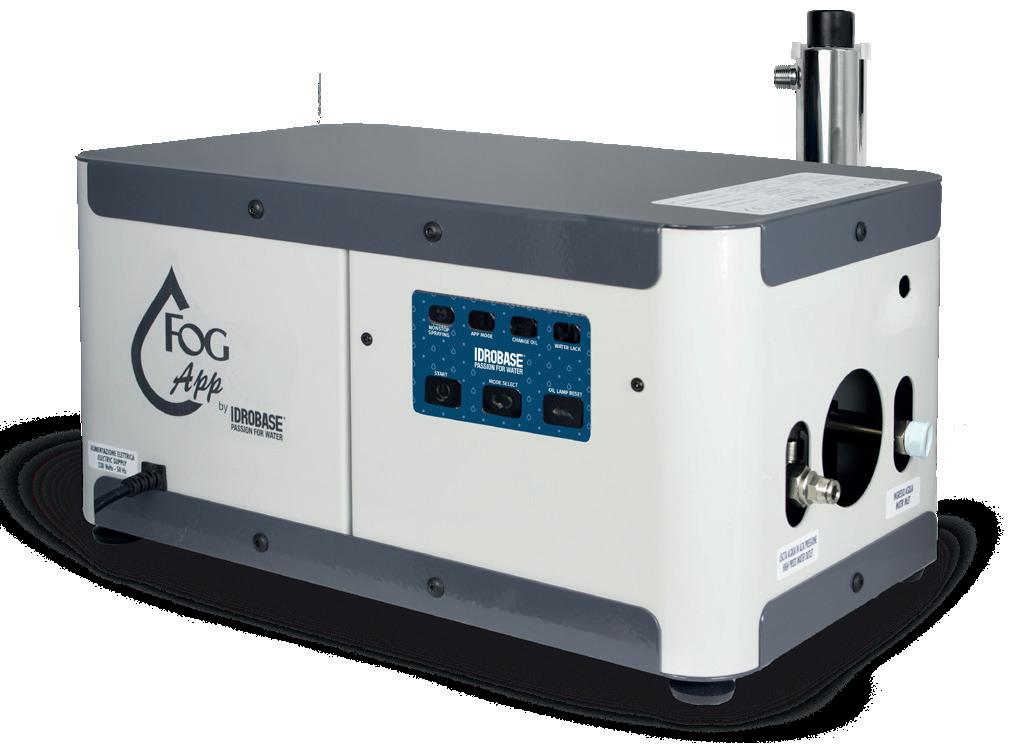

Fog App: the new solution for refreshing outdoor areas via smartphones
Fog App: what does this fog module do?
Simple and effective
Fog App is the smartest solution to refresh bars/restaurants, patios and gazebos in small and medium-sized areas. The system can be connected to both ventilation and in-line cooling systems and can be controlled conveniently from the application via a smartphone

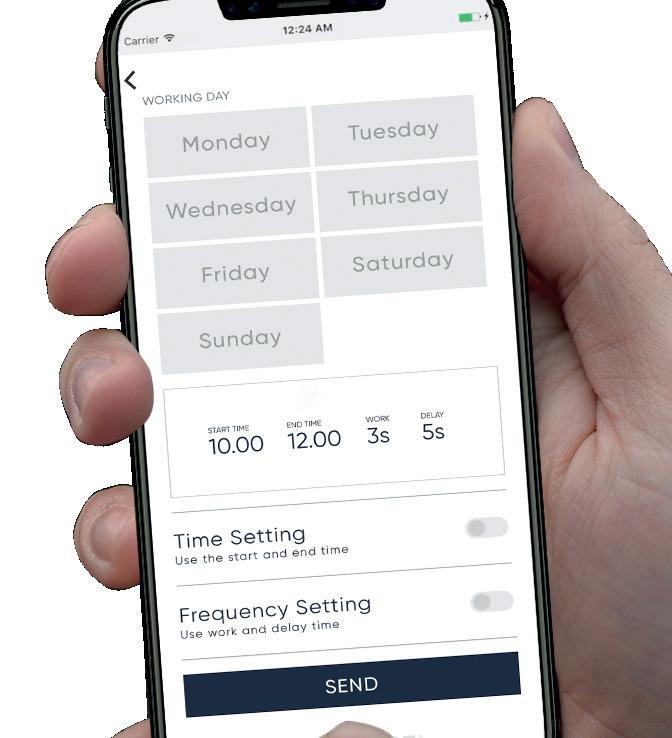

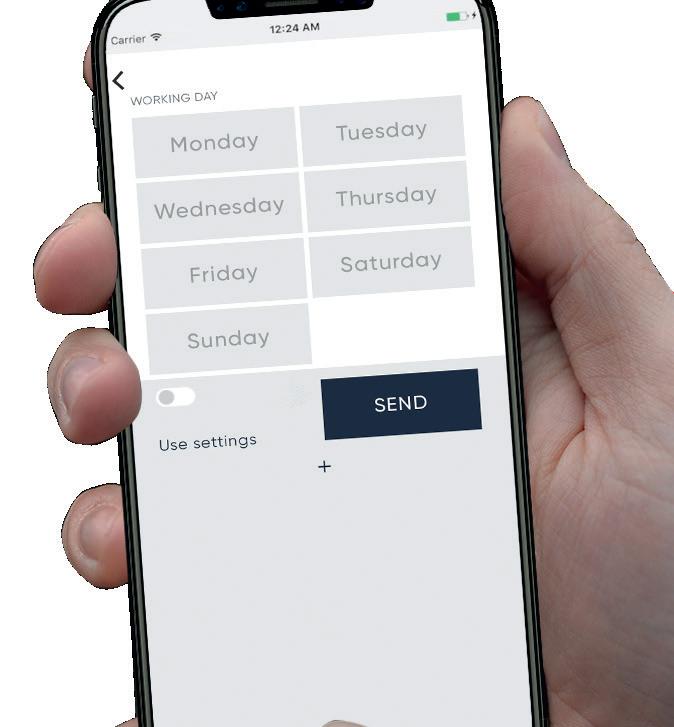

Simple mode to select: - operation time: - up to max 4 time slots - work/pause time: with min work time of 3s and min pause time of 15s
Advanced mode to select: - operation time: time slots as required - work/pause time: customised for each time slot with min work time of 3s and min pause time of 15s
Water supply kit
Nebulizes sterilized water

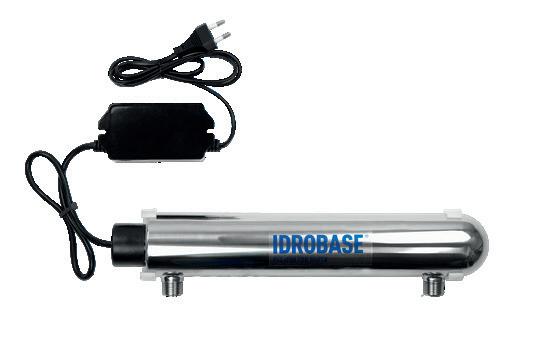

UV water sterilizer lamp (included)
Technical features
ZX.FA1.5
ZX.FA2.0
APP 2.0
*The max number of nozzles has been calculated by using a nozzle with flow rate factor 015 (0.047l/min) at 60bar
FOG APP is compatible with:
Linea kit ZX.KL30 e ZX.KL40 Kit Vento ZX.KV6-20, ZX.KV8-20, ZX.KV6-18, ZX.KV8-18, ZX.KV6-360, and ZX.KV4-P
Accessories page 128

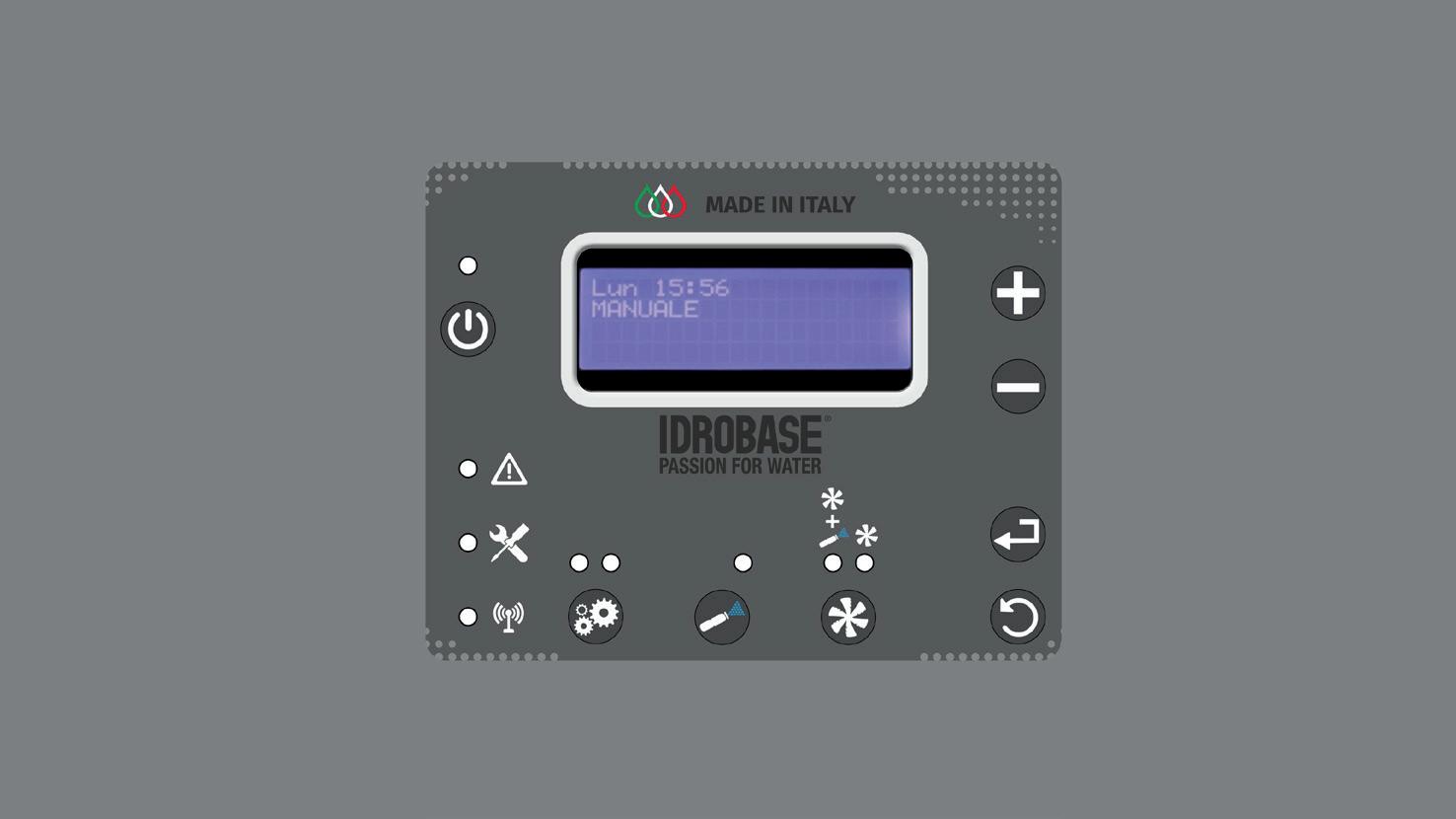

Fog App control panel
Mode activation light Manual/Non Stop
System ON/OFF
Selector of work mode (manual/via app)
Technical features
Frame made of galvanised painted plate
• Electric pump 3 pistons, axial, with brass head
• Thermal protection against current surge
• Unloader valve
LP pressure switch due to lack of water
• Solenoid valve l.p. water inlet
• Solenoid valve h.p. for pressure discharge

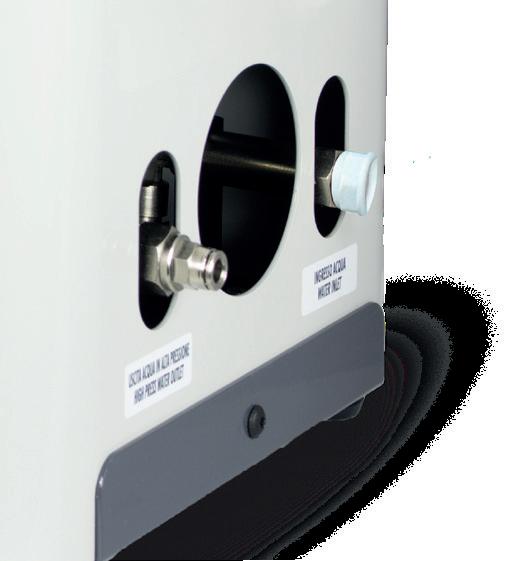

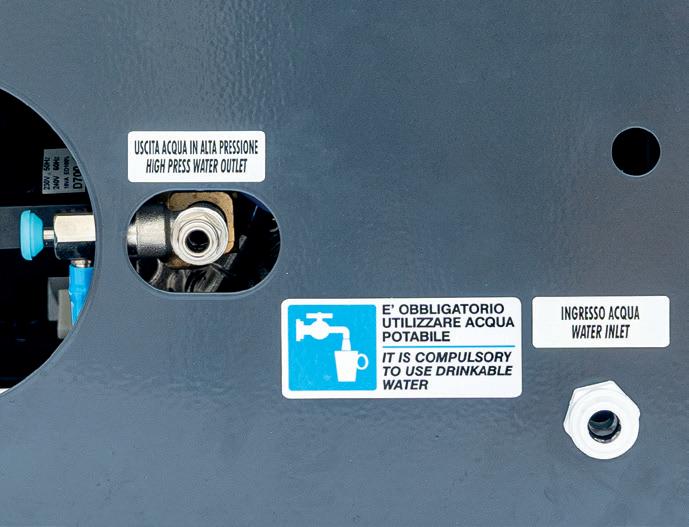

• Inlet, Slip-Lock ø9.6mm Outlet, Slip-Lock ø6.35mm
• Instrument panel with 3 touch buttons for:
- machine ON/OFF
- Manual mode selection or Bluetooth activation for smartphone control
- Alarms reset for maintenance
• Possibility to manage 3 different modes via the app:
- Nonstop: the Fog module works in continuous mode
- Simple mode: selection of days of the week, selection of max 4 time slots, work/pause time selection with min 3s work time and min 15s pause time
- Advanced mode: selection of the days of the week, selection of max 20 time slots, selection of work/pause times customised for each time slot with min 3s work time and min 15s pause time Dimensions

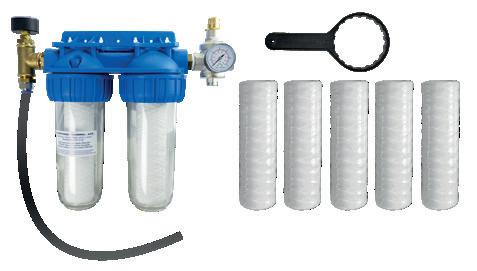

5” water inlet kit complete with pressure stabiliser - 3/8”
Considerably reduces the temperature No wet Keeps mosquitoes away
Fog module 60bar 230V-50Hz
Compact and versatile
The most compact and versatile solution for cooling, creating fog effects and humidifying small and medium sized areas.
Equipped with an integrated analog timer, it allows to optimize system performance even in adverse environmental conditions.
Slip-Lock
Nebulizes sterilized water Standard Standard
Technical
ZX.5095-D
ZX.5090-D

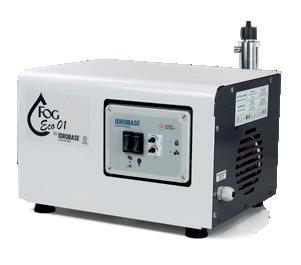

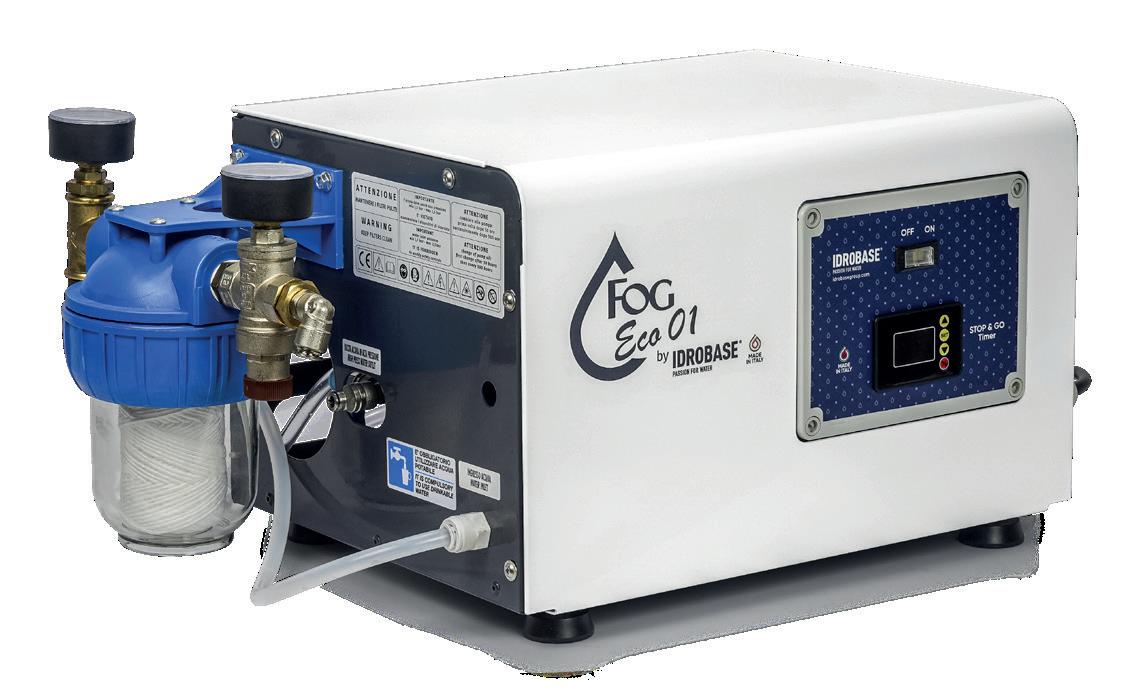

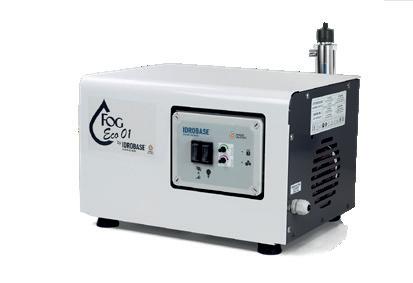

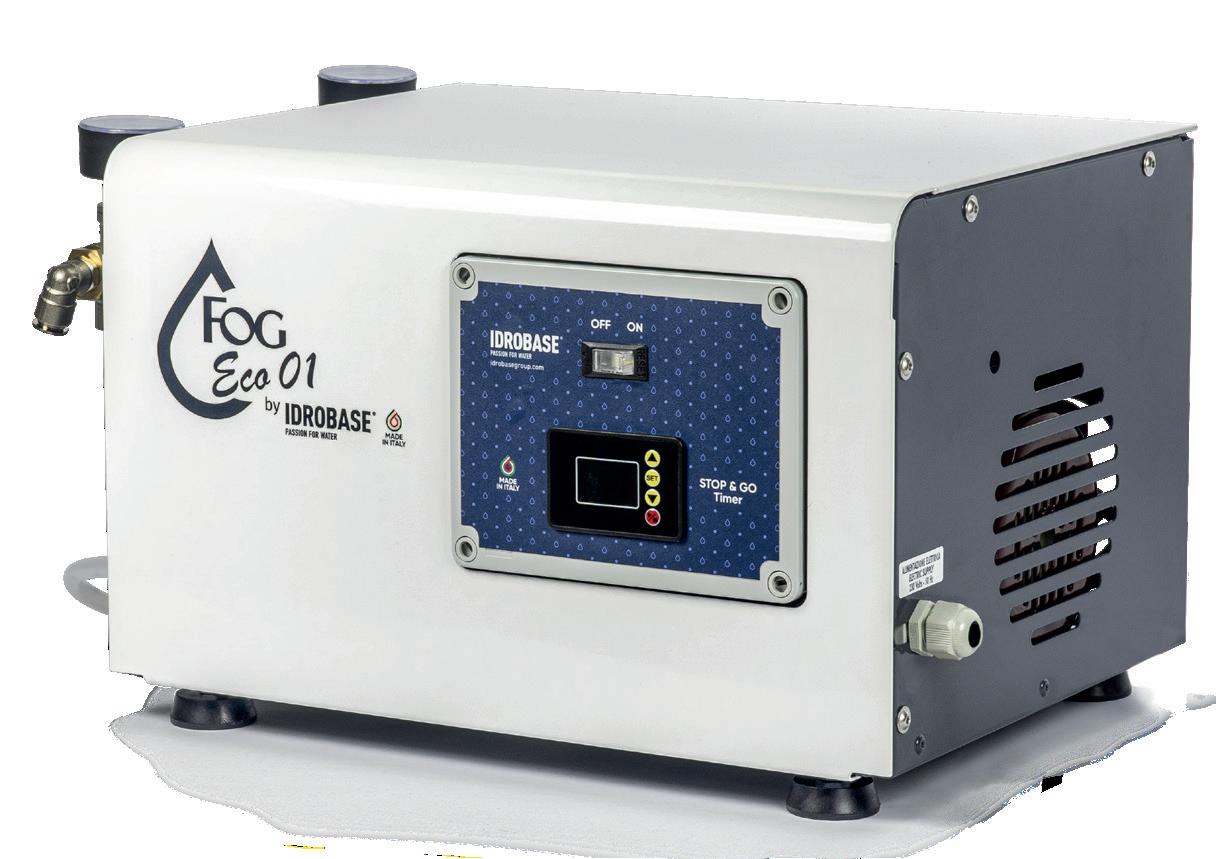

FOG ECO 0.5 DIGITAL 10
FOG ECO 1 DIGITAL 20
*The max number of nozzles has been calculated by using a nozzle with flow rate factor 15 (0.047l/min) at 60bar **230V/60Hz and 110V/60Hz versions available upon request
FOG ECO is compatible with:
Linea Kit
Vento Kit
ZX.KL10 and ZX.KL20
ZX.KV2-20, ZX.KV4-20, ZX.KV2-18, ZX.KV4-18 and ZX.KV2-P
Optional Accessories page 128
WiFi socket for ON/OFF control by smartphone

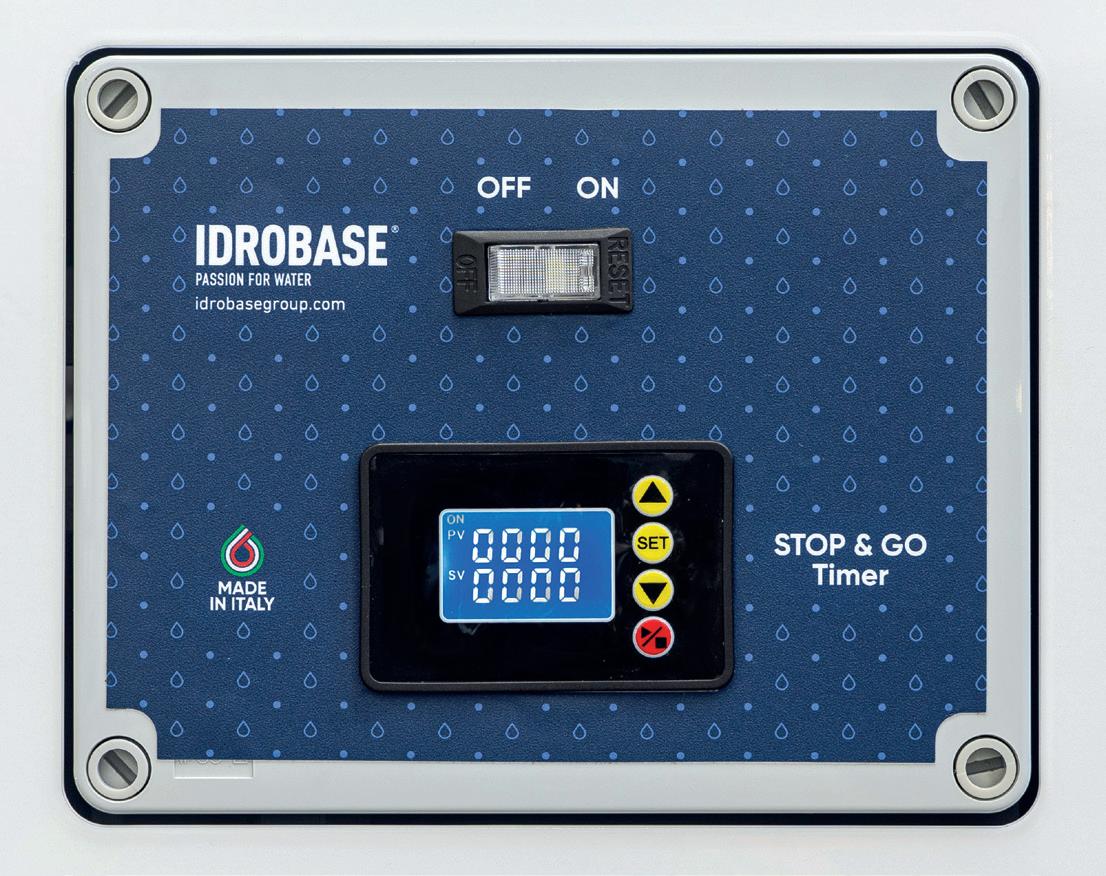

Fog Eco controls
features ON-OFF thermal switch
Technical features
• Frame made of painted steel
• Axial motor pump with two ceramic pistons 0.5 and 1l/min complete with by-pass valve Electric control panel - with pre-settings ON-OFF 0-60”
• Solenoid valve high pressure for pressure discharge
Programmable digital work-pause timer
• Pressure switch- low pressure no water supply
• Slip-lock inlet ø9.6mm Outlet, Slip-Lock ø6.35mm
• Dimensions LxDxH: 450 x 300 x 280mm
ZX.2373
Nebulizes sterilized water
UV water sterilizer lamp (included)
Water inlet kit complete with pressure stabilizer (included)
Probes Control panel Fog module 60bar from 10 to 128 nozzles 230V-50Hz
• Simple and compact
• Electronic control panel with built-in thermostat and humidstat
• Pre-setting for humidity and temperature probes
• System can be activated remotely
Fog Extra to cool, humidify, suppress dust and odours and many more Fog Extra How does it work?

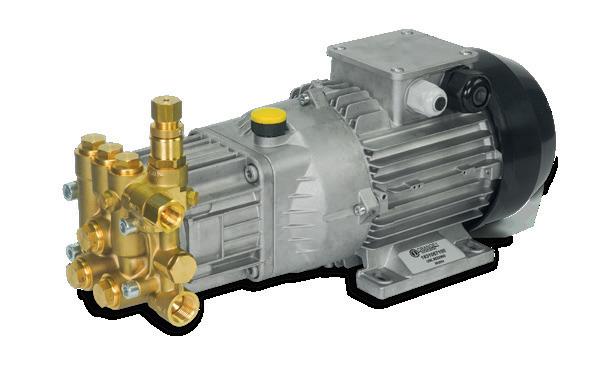

Axial pump with three piston with brass head and ceramic steel pistons (for 2,4 and 6l/min flow rate versions)
New pump
Old pump
Axial pump with
2 pistons
ZX.FL-05
ZX.FL-1

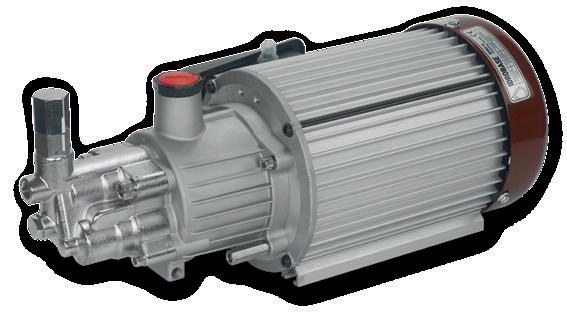

Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve, electric motor 1350Rpm
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 60bar
** 230V/60Hz and 110V/60Hz versions available upon request
Axial pump with 3 pistons
ZX.FL-2
ZX.FL-4
ZX.FL-6
Axial motor pump with three ceramic-coated steel pistons, brass head, integrated by-pass valve, electric motor 1450Rpm
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 60bar
INCLUDED Accessories page 84

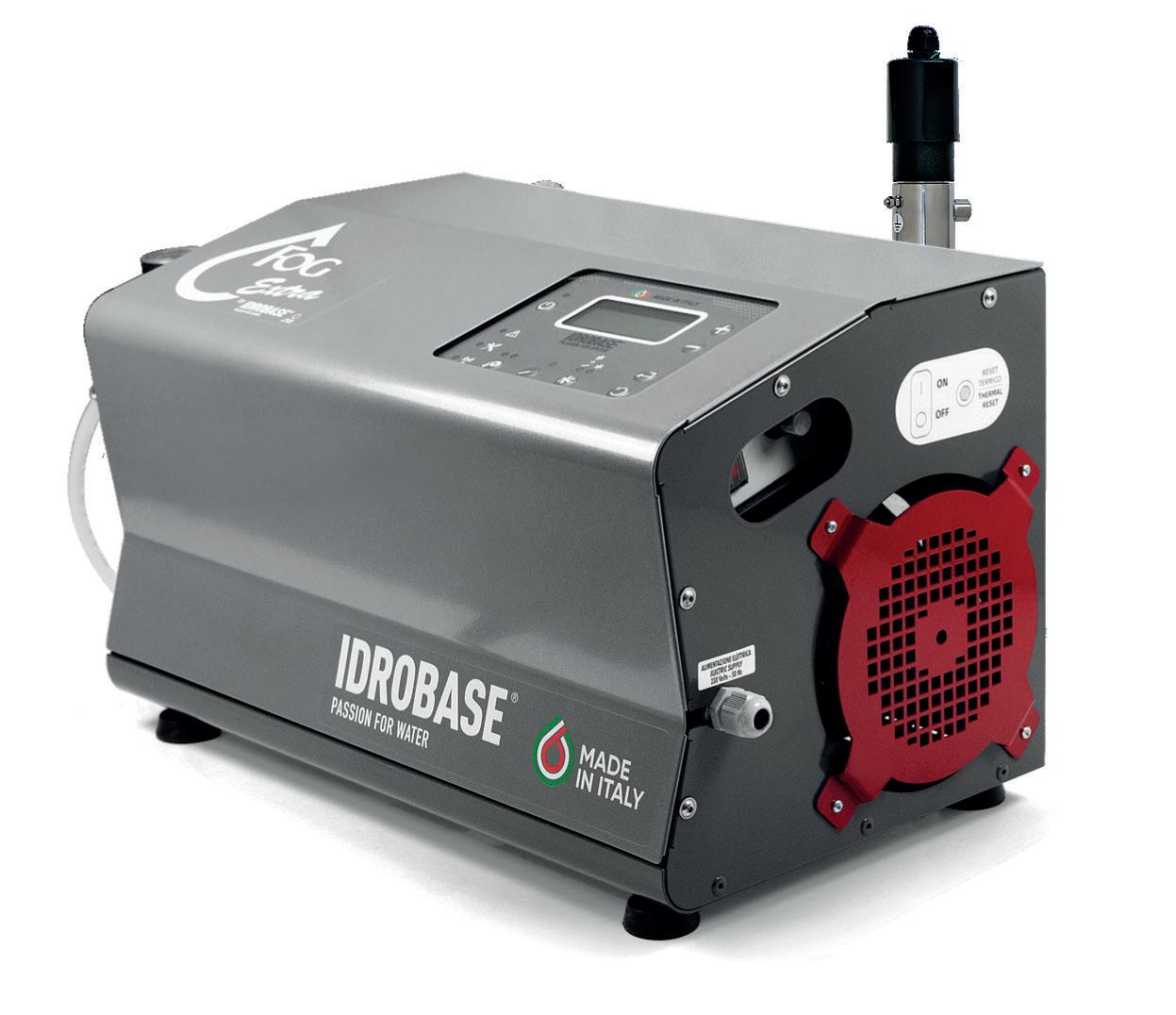

Fog Extra Controls
• Humidstat standard
• Thermostat standard
Display interface
Water failure alarm
Hose breakage / water leak alarm
Maintenance set page 91
• Cyclical ON/OFF timer
Pump maintenance set 500hours
• Weekly time slot programmer Hour counter and Maintenance schedule
• Pre-setting for connection of 230V ventilation systems
Technical features
Frame made of painted steel
• Built-in unloader valve
• L.p. solenoid valve 230V-50Hz, inlet water
H.p. solenoid valve 230V-50Hz, to discharge line pressure
• Electrical panel complete with:ON/OFF thermal cutout, electronic
• Pre-setting for remote connection
Setting buttons
board for management of anti-drip and timer system
• Slip-lock inlet ø9,6mm
• Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2l/min), ø9,6mm (for versions 4 and 6l/min)
• H.p. switch for no water supply and pipe breaks
• Dimensions WxLxH: 600 x 300 x 300mm
COOLING ACCESSORIES

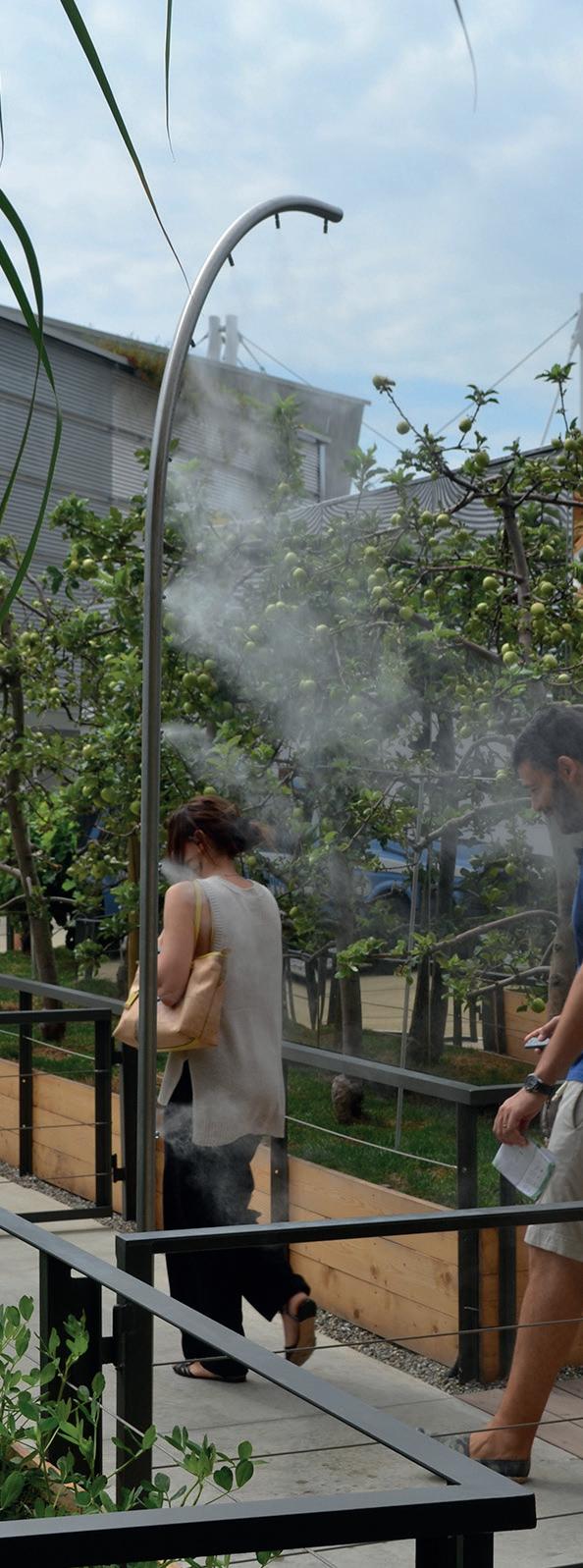

Stelo Rinfrescante
Refreshing accessory with pre-drilled AISI 304 stainless steel structure, complete with 8 fog nozzles with 0.15mm holes with anti-drip system. With underground connections and ground fixing of the structure.
Straightforward, quick installation, no special tools required.
The pipe junction connectors are made of AISI 304 SS and are equipped with compression fitting and a Slip-Lock connector to accommodate a high pressure polyamide pipe (max 60bar) ø9.6x5mm. They must be connected to a nebulisation system
RINFRESCANTE 60bar
Number of accessories for each module Pumping modules
Code Description
App Fog Eco Fog Extra
ZX.6002
ZX.6000
Ø 300 mm
35 mm
QR-Code Picture Code Description

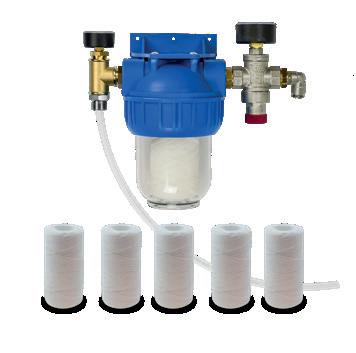

Water supply kit

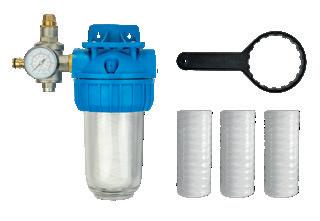

5” water inlet kit complete with pressure stabiliser,
7” water inlet kit complete with pressure stabilizer for hard water SaniFog Fisso
Humidity probe 4:20 mA (for standard humidstat), with 20m cable
Humidity probe (for standard thermostat), with 20m cable

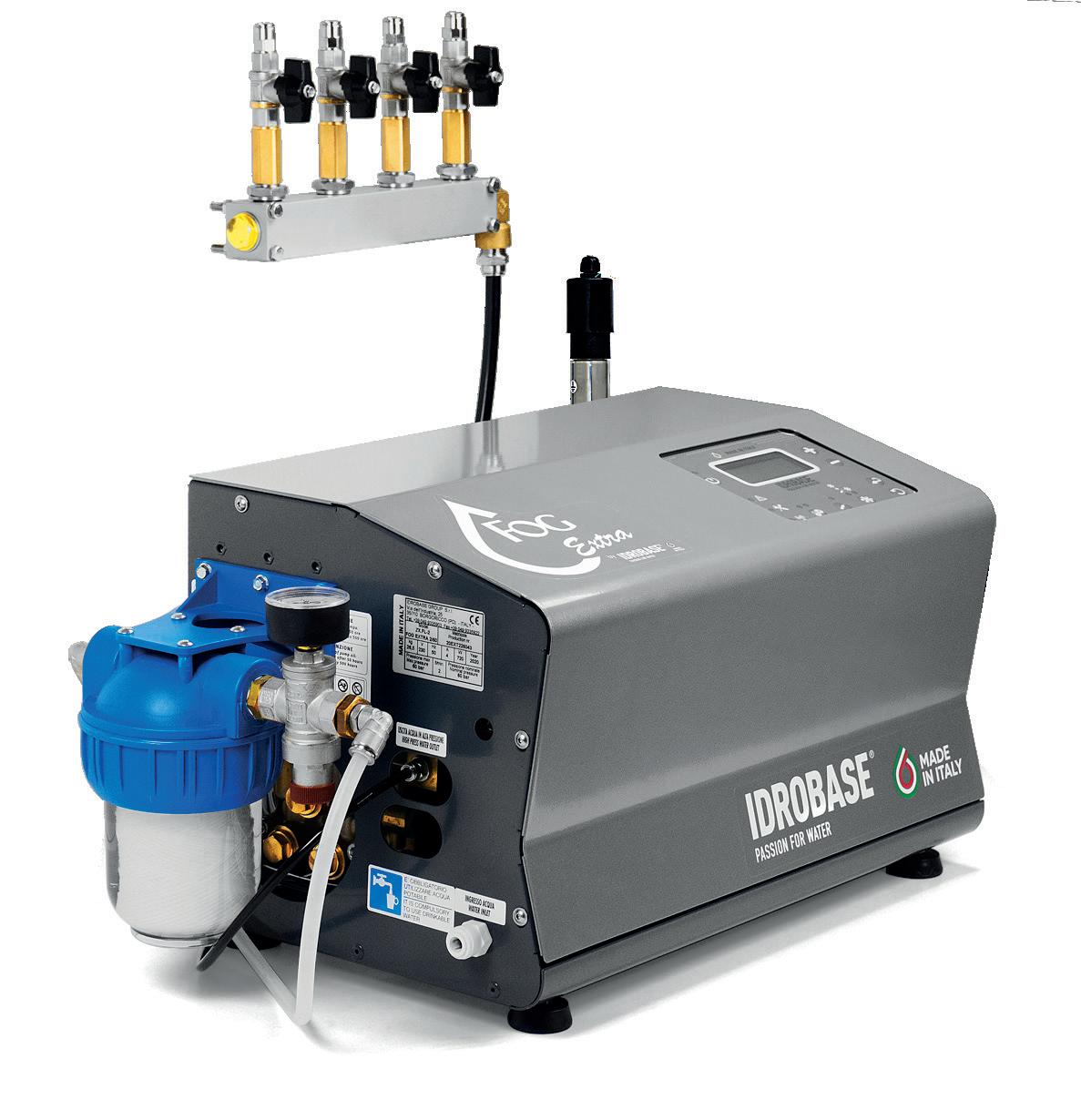

Manifold 4 outlet kit complete with ball valves
WiFi socket for ON/OFF control by smartphone

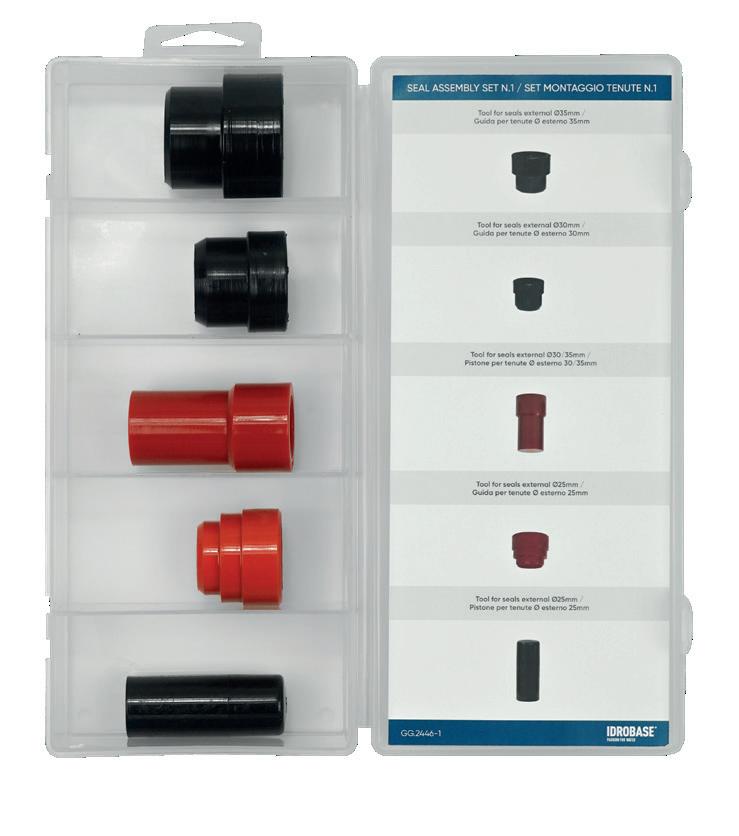

Set A - pump maintenance 500 hours consisting of:
500hrs - h.p. industrial pumps maintenance
Set C - pump maintenance 1000 hours consisting of:
1000hrs - h.p. industrial pumps maintenance
0,5L
10ml Threadlocker medium 25ml Technical grease

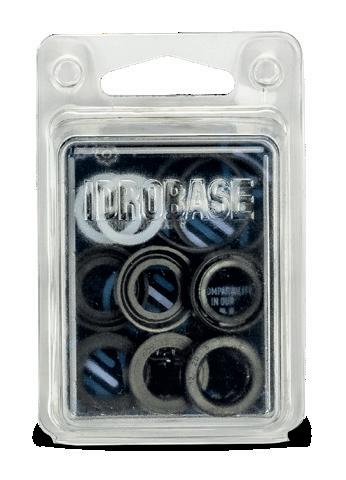

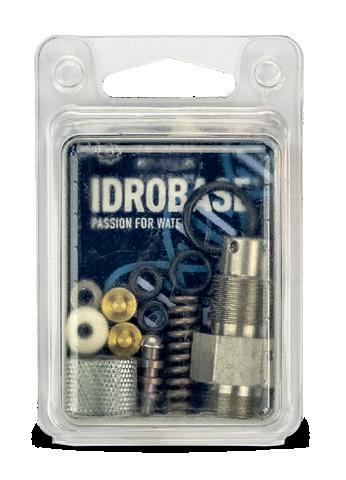

Kit water seals + plunger oil seals

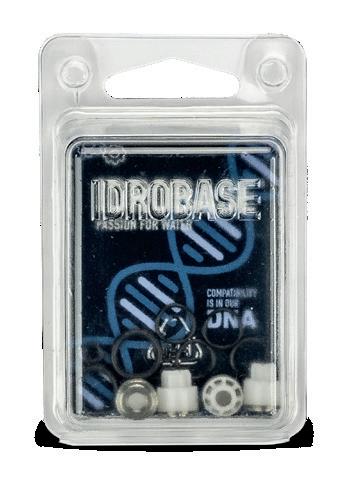

Valves + O-Rings kit

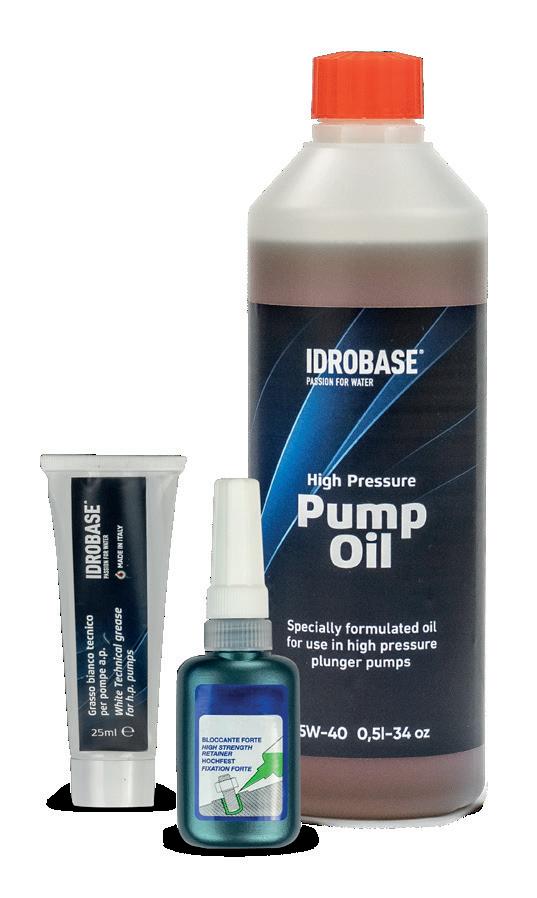

Mineral oil for h.p. pumps
Kit water seals + plunger oil seals
Valves + O-Rings kit
Set of ceramic plungers
0,5L Mineral oil for h.p. pumps
10ml Threadlocker medium
Technical grease
Set E - machine maintenance 500 hours consisting of:
By-pass valve
Set F - machine maintenance 3000 hours consisting of:
By-pass valve

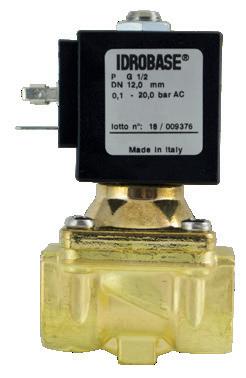

Solenoid valve brass, NC, 3/8” FF, 230V, (1)
Solenoid valve brass, NC, 1/4” FF, 230V, (2)
Discharge valve (3)
High pressure brass filter G1/4” F-M, (4)
Pressure switch (5) Pressure switch cap (6)
MAINTENANCE SET PUMP AND MACHINE MAINTENANCES
AND MACHINE MAINTENANCE
A Set A
Pump manintenance at: 500 hours, 1.500 hours, 2.500 hours, ecc
C Set C
Pump manintenance at: 1.000 hours, 2.000 hours, 3.000 hours, ecc
E Set E
Machine manintenance at: 500 hours, 1.000 hours, 1.500 hours, ecc
F Set F
Machine manintenance at: 3.000 hours, 6.000 hours, 9.000 hours, ecc
PUMP AND MACHINE MAINTENANCE A
FOG ECO 0.5
FOG ECO
ZX.5090 FOG ECO 1
FOG APP ZX.FA1.5 FOG APP 1.5
ZX.FA2.0 FOG APP 2.0
FOG EXTRA-05
ZX.FL-1 FOG EXTRA-1
FOG EXTRA
ZX.FL-2 FOG EXTRA-2
ZX.FL-4 FOG EXTRA-4
FOG EXTRA-6
Code Description

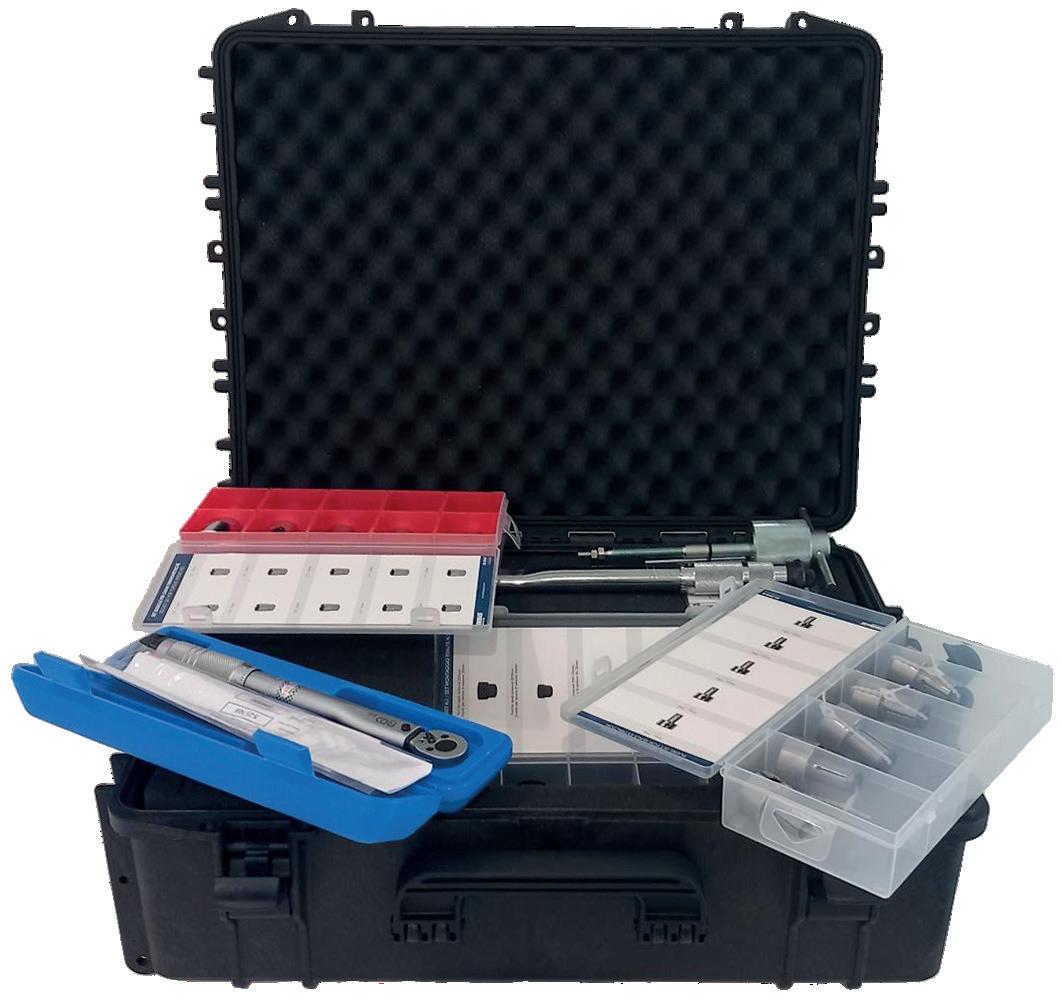

Complete set of special tools for h.p. pump maintenance
ZX.2348

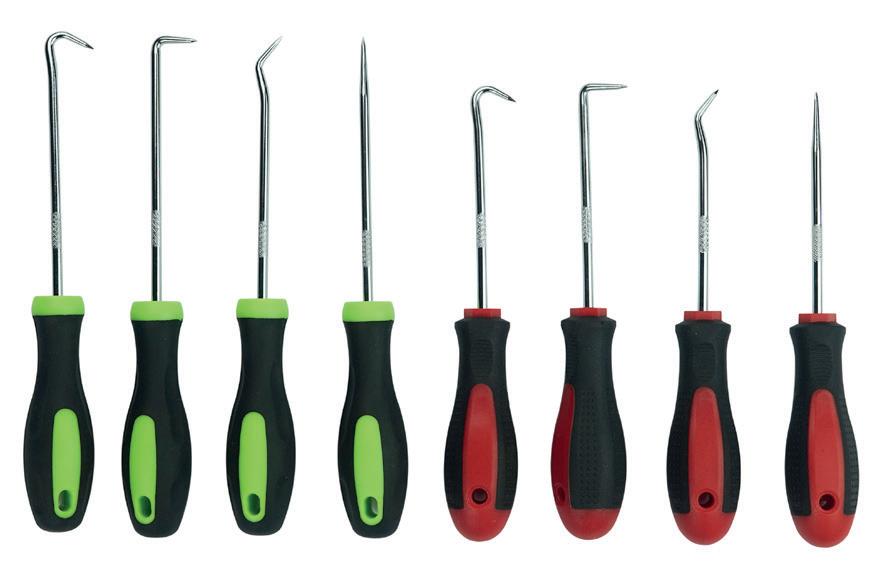

Tool
Tool
Tool
Tool
Tool
Tool

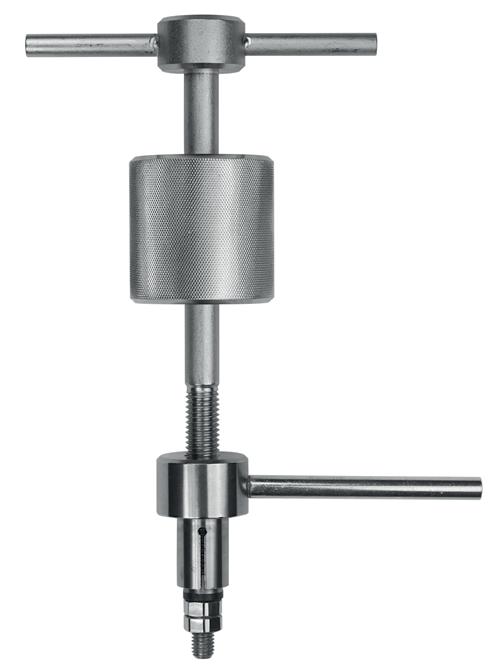

Extractor with pliers
Pliers ∅14
Pliers ∅20

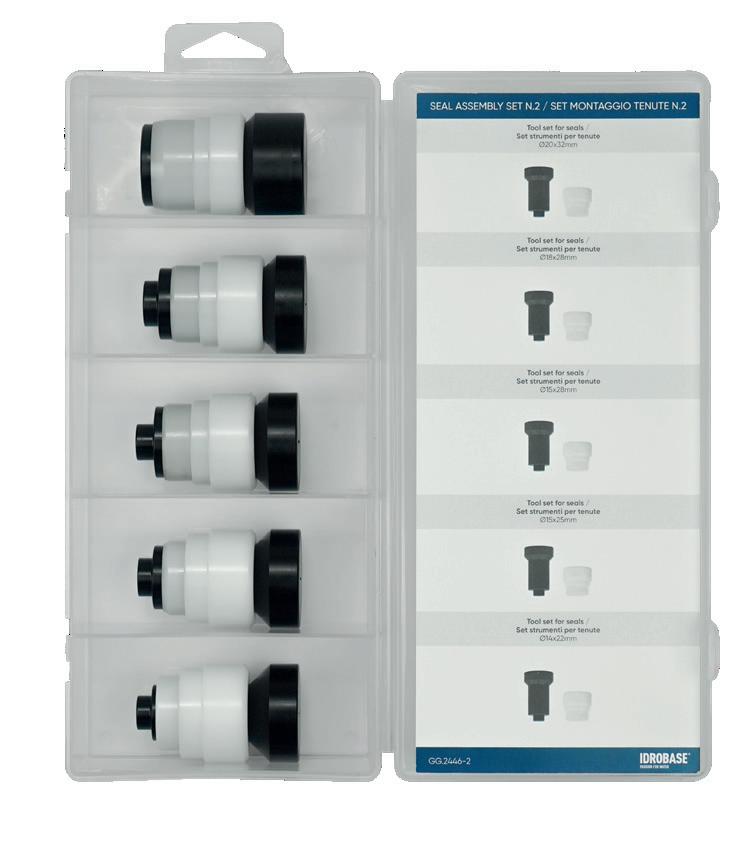

Piston oil seals extraction/insertion set

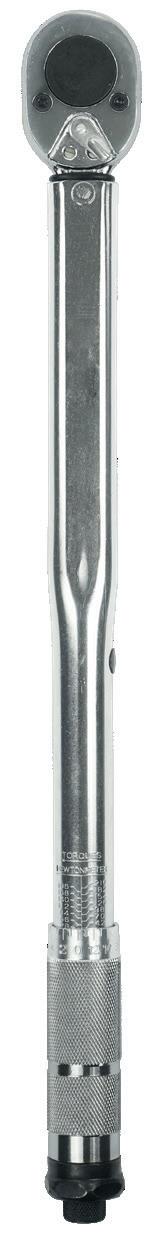

Torque wrench, 1/2” - 30/210 Nm

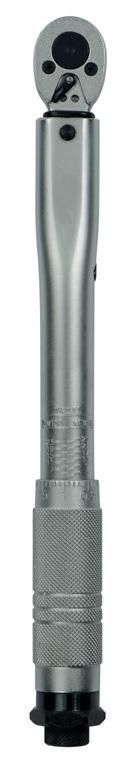

Torque wrench, 3/8” - 5/25 Nm
∅18,0/21,5mm
∅25,0/29,5mm
Sockets for torque wrenche 3/8” - 5/6mm
Socket for torque wrenche 3/8” - 13mm
Socket for torque wrenche 3/8” - 15mm
Socket for torque wrenche 3/8” - 17mm
Socket for torque wrenche 3/8” - 19mm
Socket for torque wrenche 1/2” - 21mm
Socket for torque wrenche 1/2” - 22mm
Socket for torque wrenche 1/2” - 24mm
Socket for torque wrenche 1/2” - 27mm
Socket for torque wrenche 1/2” - 30mm
Pliers ∅15
Pliers ∅18
Pliers ∅22
