INDEX/APPLICATION AREAS
DUST SUPPRESSION
Complete solution for dust suppression, in all industrial contexts.
PM2.5 / PM10 ABATEMENT
Solutions with excellent quality standards for PM2.5 and PM10 abatment.
PM2.5 PM10
ODOUR NEUTRALIZATION
The right misting project to suppress odours in the industrial field.
SCENOGRAPHIC
Design and realization of fog systems for scenic effects thanks to the understanding of professional mistcaping technics.
ANIMALS COOLING SYSTEM
Misting systems for all types of breeding farms to increase animal health.
ENVIRONMENT COOLING SPECIAL PROJECTS DISINFECTION
Engineering and design services for industrial cooling with misting systems.
HUMIDIFICATION
Fog systems specifically conceived for the humidification in industrial contexts.
Fog systems studied and customized according to the individual needs, in order to grant the maximum efficiency and attention to the environment.
Protect farms from the spread of illnesses with industrial fog systems.

APPLICATIONS SAY IT ALL
We are changing the rules of the pressure water market.
Idrobase Group is the most complete solution to overcome the continual challenges of the pressure water market.
Passion and innovation are the pivotal points of our ever-growing business. Since 1986, year after year, we have passed from the role of pursuers to the one of being followed, always trying to interpret the needs of an ever-changing market.
We shape our future by living intensely our present, we develop strategies to look forward, we innovate and create new product lines, we always hold in due consideration the welfare of those who use our systems, preserving the environment and contributing to keep the world cleaner.



(Project by Watercube Srl with the collaboration of Idrobase Group Srl)
DUST SUPPRESSION


90 pressure 80bar, flow rate 42l/min, fan jet 90m, nozzles: 135 in 3 rings (45 each.)


pressure 70bar, flow rate 21l/min, fan jet 21m, nozzles: 30 in 1 ring AISI 304 stainless steel


pressure 80bar, flow rate 21l/min, fan jet 33m, nozzles: 30 in 1 ring AISI 304 stainless steel

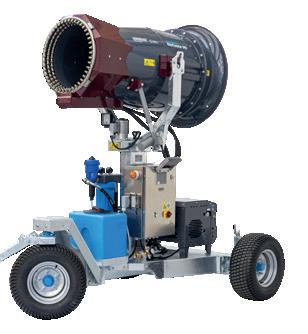

Fog Maker Elefante
Fog Maker Elefantino
Fog Maker Rino
DUST SUPPRESSION

Fog 70 Var3 pressure 70bar, flow rate from 12,6 to 42l/min, nozzles: 86, high flow rates for dedusting, 14 ramps Ø20mm, pipes Ø22, Ø20 e Ø16
On a conveyor belt for mineral rocks

Fog 70 Basico pressure 70bar, flow rate 21l/min polyamide pipe Ø9,6mm e Ø12,7mm


Mining extraction
India Lithuania
Page 104
DUST SUPPRESSION


Fog 70 Extra
pressure 70bar, flow rate 42l/min, stainless steel pipe Ø12mm and polyamide pipe Ø9,6mm, nozzles: 300 flow rate 30

Fog 70 Touch (x4)


pressure 70bar, flow rate 42l/min (x3) and flow rate 70l/min (x1), polyamide pipe Ø9,6 and Ø12,7mm and nebulization head with 5 nozzles each
DUST SUPPRESSION

Fog 70 Basico (x2)
pressure 70bar, flow rate 15l/min, stainless steel pipe Ø16x2mm for line and ring, stainless steel pipe Ø14x1,5mm connection line from module to ramps

Fog 70 Basico




pressure 70bar, flow rate 11l/min, stainless steel pipe Ø12x1mm for customized ramps, stainless steel pipe Ø14x1,5mm connection line from module to ramps
South Africa
DUST SUPPRESSION
During the processing of building materials


Fog 70 Touch (x2)
pressure 70bar, flow rate 42l/min (x1) and flow rate 21l/min (x1), polyamide pipe Ø9,6 and Ø12,7mm, nozzles: 342 flow rate 30 and 40, dosing kit
On a coal conveyor belt in a power station


Fog 70 Var 3
pressure 70bar, flow rate 8l/min, stainless steel pipe Ø12x1mm for customized ramps, stainless steel pipe Ø14x1,5mm connection line from module to ramps
DUST SUPPRESSION
At an airport construction site


Fog Maker Elefantino pressure 70bar, flow rate 21l/min, fan jet 21m, nozzles: 30 in 1 ring AISI 304 stainless steel
In a cement factory


Fog 70 Basico pressure 70bar, flow rate 18l/min, stainless steel pipe Ø12x1mm for customized ramps
United Arab Emirates
South Korea
Page 28



Industrial area
China
Italy
Page 18
Fog Maker Elefante 90 pressure 80bar, flow rate 42l/min, fan jet 90m, nozzles: 135 in 3 rings (45 each)
Fog Maker Elefante 90 pressure 80bar, flow rate 42l/min, fan jet 90m, nozzles: 135 in 3 rings (45 each)




Smog roads and cities
South Korea
Fog Maker Elefante 60 Autonomo pressure 60bar, flow rate 33l/min, fan jet 75m, nozzles: 156 in 3 rings (52 each), mobile configuration with hydraulic arm
PM2.5/PM10 ABATEMENT
Smog roads and cities China


Fog Maker Elefante 60 pressure 60bar, flow rate 42l/min, fan jet 75m, nozzles: 156, configuration with generator and hydraulic column
area


Fog Maker Elefantino pressure 80bar, flow rate 15l/min, fan jet 21m, nozzles: 30 in 1 ring AISI 304 stainless steel
Industrial
South Korea
Data sheet
Smog roads and cities
ABATEMENT


Fog Maker Elefante 60 Autonomo pressure 60bar, flow rate 33l/min, fan jet 75m, nozzles: 156 in 3 rings (52 each), mobile configuration with hydraulic arm




Fog Maker Elefantino pressure 80bar, flow rate 15l/min, fan jet 21m, nozzles: 30 in 1 ring AISI 304 stainless steel
Tunnel construction
South Korea
South Korea
ODOUR NEUTRALIZATION




ODOUR NEUTRALIZATION




pressure 70bar, flow rate 11l/min, polyamide

pressure 70bar, flow rate 14l/min polyamide pipe Ø9,6 e Ø12,7
Sewage Italy
Page 202
Page 104
Fog 70 Var3 pressure 70bar, flow rate 11l/min, polyamide pipe with nozzles, + dosing kit
Algeria
Italy
In a water purification plant
Sewage
Fog 70 Basico
pipe with noozles + dosing kit
Fog 70 Neutra-Odori
ODOUR NEUTRALIZATION
Waste disposal





Waste treatment
Italy
Italy
Fog Maker Rino pressure 80bar, flow rate 15l/min, fan jet 33m nozzles: 30 in 1 ring AISI 304 stainless steel, on shelf, dosing kit
Page 36
Catalogue
Fog Maker Elefante pressure 60bar, flow rate 33l/m, fan jet 75m, nozzles: 156 in 3 rings (52 each), dosing kit, configuration with hydraulic arm
ODOUR NEUTRALIZATION






Page 104
Fog 70 Var3
pressure 70bar, flow rate 11l/min, stainless steel pipe Ø12x1, from 44 to 146 nozzles + dosing kit
Fog 70 Var3
pressure 70bar, flow rate 18l/min, stainless steel pipe Ø12x1, from 60 to 240 nozzles, dosing kit
Fog 70 Basico
pressure 70bar, flow rate 13l/min, polyamide pipe with nozzles, dosing kit
SCENOGRAPHIC
Water vapor simulation at the Baths of Caracalla - Rome Italy



Fog 70 Basico pressure 70bar, flow rate 42l/min, custom-designed ramp 18m, nozzles: 60
SCENOGRAPHIC
Water vapor simulation at the Baths of Caracalla - Rome Italy




Fog70 Basico pressure 70bar, flow rate 42l/min, custom-designed ramp 18m, nozzles: 60
SCENOGRAPHIC




Morocco Pavilion Installation - Expo Dubai 2020
United Arab Emirates
Fog 70 Var3
pressure 70bar, flow rate 21l/min, double pump box, polyamide pipe, nozzles: 280
SCENOGRAPHIC




Poland Pavilion Installation - Expo Dubai 2020
United Arab Emirates
Fog 70 Basico pressure 70 bar, flow rate 6l/min, with polyamide pipe, nozzles: 87
SCENOGRAPHIC
Kuwait Pavilion Installation - Expo Milano 2015




Fog 70 Basico pressure 70bar, flow rate 8l/min, polyamide rings (x4) with 22 rings (x88), with kit water inlet and UV lamp
Italy
SCENOGRAPHIC
USA Pavilion Installation - Expo Milano 2015



Fog 70 Basico pressure 70bar, flow rate 18l/min, stainless steel pipe (x16) with head nozzles 6 nozzles flow rate 40 (x96), with kit water inlet and UV lamp
Italy




Sheikh Jaber Al Hamad Cultural Center - Kuwait City (Project by Watercube Srl with the collaboration of Idrobase Group Srl)
SCENOGRAPHIC




Fog 70 Basico pressure 70bar, flow rate 11l/min, misting arcs (5) with 18 nozzles each on custom-made polyamide pipe
Serravalle Designer Outlet Village - Alessandria (Project by Watercube Srl with the collaboration of Idrobase Group Srl)
SCENOGRAPHIC




Pompeii MaxiMall - Torre Annunziata, Naples (Project by Watercube Srl with the collaboration of Idrobase Group Srl)
Fog 70 Extra pressure 80bar, flow rate 26l/min, polymide pipe Ø9,6 and Ø12,7mm, nozzles: 145, flow rate 40 + UV lamp
Italy
SCENOGRAPHIC

Fog 70 Extra pressure 80bar, flow rate 26l/min, polymide pipe Ø9,6 and Ø12,7mm, nozzles: 145, flow rate 40 + UV lamp
In
a park


Fog 70 Var3 pressure 70bar, flow rate 21l/min, stainless steel pipe Ø9,6mm and Ø12mm
South Korea
Poland
Bródnowski park – Warsaw
Page 202
SCENOGRAPHIC
In a park


Poland
SCENOGRAPHIC



Russia
Zaryade park - Moscow
Fog 70 Basico (x3) pressure 70bar, flow rate 42l/min polyamide pipe Ø9,6 and Ø12,7mm, nozzles: 350, flow rate 30
ANIMALS COOLING SYSTEM
Complete misting and ventilation system at the “cow town” in Egypt Egypt



Vento Fresco Fog 70 Basico (x60): pressure 70bar, flow rate 33l/min, + circulator air (x2.750): Ø130cm, with stainless steel ring (Ø80cm) with 8 nozzles (22.000 total nozzles) Case study
ANIMALS COOLING SYSTEM
Complete misting and ventilation system at the “cow town” in Egypt Egypt



Vento Fresco Fog 70 Basico (x60): pressure 70bar, flow rate 33l/min, + circulator air (x2.750): Ø130cm, with stainless steel ring (Ø80cm) with 8 nozzles (22.000 total nozzles)
Case study
ANIMALS COOLING SYSTEM
Pig breeding Italy


Fog 70 Basico pressure 70bar, flow rate 11l/min pipes and nozzles (147) in stainless steel Ø12x1


Fog 70 Basico pressure 70bar, flow rate 21l/min, stainless steel pipe Ø12x1mm, connection line pipe, from module to nozzle line, made of SS Ø14x1,5mm, brass compression fittings, nozzles: 280
Raising hens
Japan
Page 202
Page 74
ANIMALS COOLING SYSTEM




Aviary
United Arab Emirates
Horse Riding
Page 202
Page 51
Italy
Kit Vento Fog 60 Extra (x1): pressure 60bar, flow rate 2l/min + Mist Fan 20” (x8) with stainless steel ring with 6 nozzles, polyamide pipe Ø6,35mm and Slip-Lock fittings
ENVIRONMENT COOLING/SCENOGRAPHIC
In a park




South Korea
Fog Multi Ambiente pressure 70bar, flow rate 11l/min, stainless steel pipe Ø9,6mm and Ø12mm, 84 nozzles
ENVIRONMENT COOLING/SCENOGRAPHIC
Kindergarten France

pressure 60bar, flow rate 6l/min, stainless steel pipe, nozzles: 128 + Stelo Rinfrescante (x12)
In a playground





Fog Box
pressure 70bar, flow rate 11l/min, stainless steel pipe Ø9,6mm and Ø12mm
Page 202
Page 127
Page 70
South Korea
Fog Box
COOLING




Fog Maker Elefante 60 (x2) pressure 60bar, flow rate 33l/m, fan jet 75m, nozzles: 156 in 3 rings (52 each), configuration on metal base with accessory system to reduce noise

Fog 70 Basico pressure 70bar, flow rate 33l/min, polyamide pipe Ø9,6 and Ø12,7mm with 440 nozzles
Sziget Festival - Budapest Hungary
Data sheet
COOLING
Euro 2020 fan zone - Budapest


Fog 70 Basico pressure 70bar, flow rate 4l/min, polyamide pipe Ø9,6 and Ø12,7mm with 10 nozzles per pipe (50 nozzles in total)


Fog Maker Elefante 60 (x2) pressure 60bar, flow rate 33l/m, fan jet
75m, nozzles: 156 in 3 rings (52 each), configuration on metal base with accessory system to reduce noise
COOLING




Seoul Garden Expo
Fog Maker Elefante pressure 60bar, flow rate 33l/m, fan jet
75m, nozzles: 156 in 3 rings (52 each), configuration on metal base with accessory system to reduce noise
South Korea
COOLING




Seoul Garden Expo
Fog Box Salute pressure 70bar, flow rate 21l/min, polyamide pipe Ø9,6 and Ø12,7mm with 200 nozzles (100 slip lock with 2 holes at 120°)
South Korea
COOLING
In a bar

In a bar




In a private event


Page 178
Oasi
pressure 60bar, nozzles: 6, analogue timer for pause/work cycles, remote control
Atmosfera 90 (x8)
pressure 60bar, 6 nozzles, analogue timer for pause/work cycles, water run-out time 6 hours
Duetto
pressure 60bar, 12 nozzles, analogue timer for pause/work cycles, water run-out time 3 hours
France
France
Italy
COOLING
In a hotel





France Pavilion - Expo Milano 2015
Aurora (x20) pressure 60bar, 6 nozzles, analogue timer for pause/work cycles, remote control
Fog Eco press. 60bar, f. rate 0,5l/min, + Stelo Rinfrescante with 10 noz.
Italy Macau
COOLING

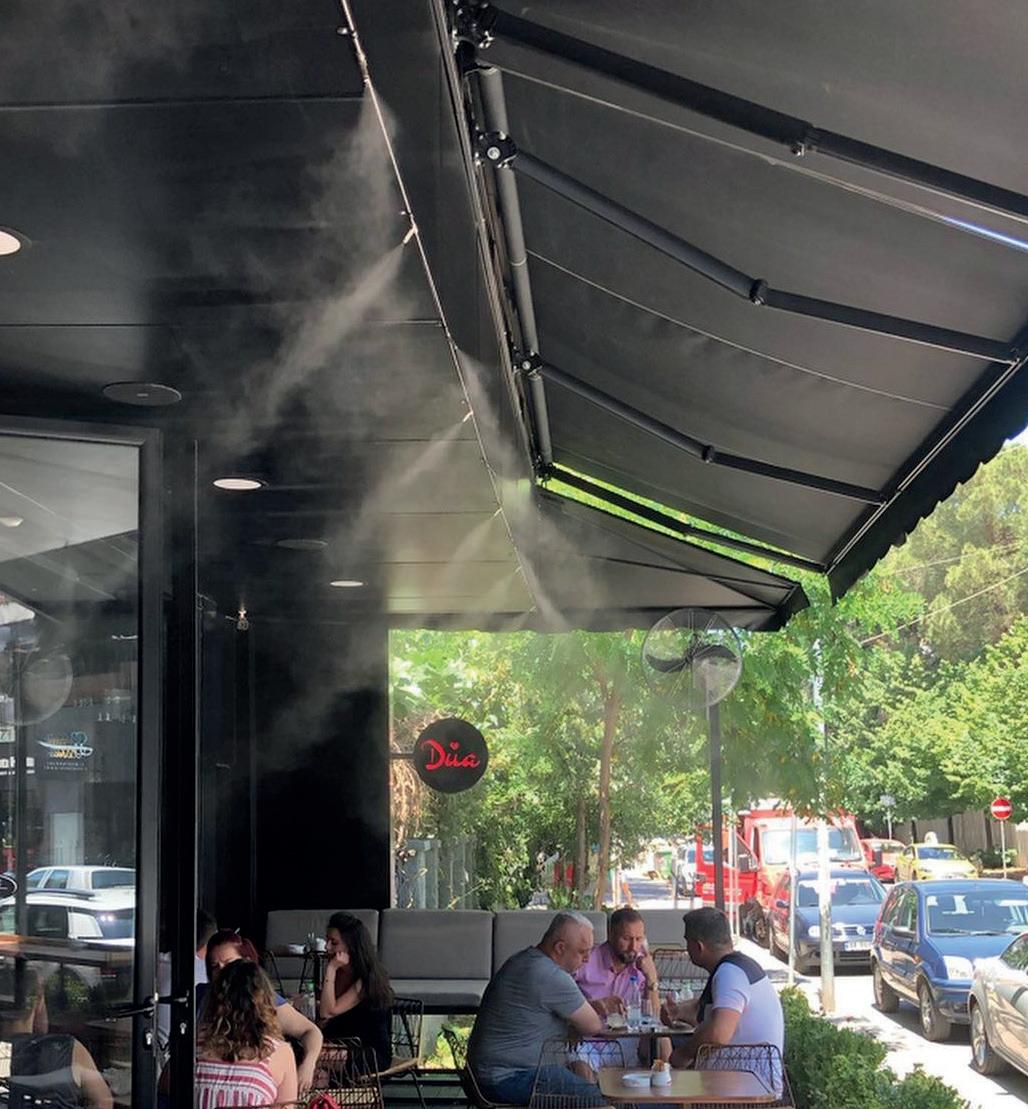

In a bar

pressure 60bar, flow rate 1l/min + Linea Kit with 20 nozzles,
steel pipe, polyamide pipe Ø6,35mm, coverage 14,5m


In a bar
Kit Linea
Fog Eco:
stainless
Kit Linea
Fog Extra: pressure 60bar, flow rate 2l/min + Linea Kit with 40 nozzles, stainless steel pipe, polyamide pipe Ø6,35mm, coverage 29m
Page 114
Albania
Albania
COOLING
In a restaurant

In the garden of a hotel


Kit Linea
Fog Extra: pressure 60bar, flow rate 1l/min + Linea Kit with 20 nozzles, polyamide pipe Ø6,35mm, coverage 14,5m
Italia
Albania
Kit Vento Fog Eco: pressure 60bar, flow rate 1l/min + Mist Fan 20” (x4) with ring with 6 nozzles, polyamide pipe Ø6,35mm, coverage 160m2
Page 115
ENVIRONMENT COOLING
In an industrial sector


In an industrial sector


Fog 70 Extra pressure 80bar, flow rate 13l/min + Mist Fan 24” (x20) with AISI 304 stainless steel ring with 8 nozzles, polyamide pipe Ø6,35 e Ø9,6mm and Slip-Lock fittings
Kit Vento
Fog Extra: pressure 60bar, flow rate 2l/min + Fan 360° Panorama (x4) with ring with 8 nozzles, polyamide pipe Ø6,35mm, coverage 200m2
ENVIRONMENT COOLING
In a factory


pressure 70bar, flow rate 4l/min 72 nozzles flow rate 15, polyamide pipe + Mist Fan 18” (x24) with AISI 304 stainless steel ring with 6 nozzles

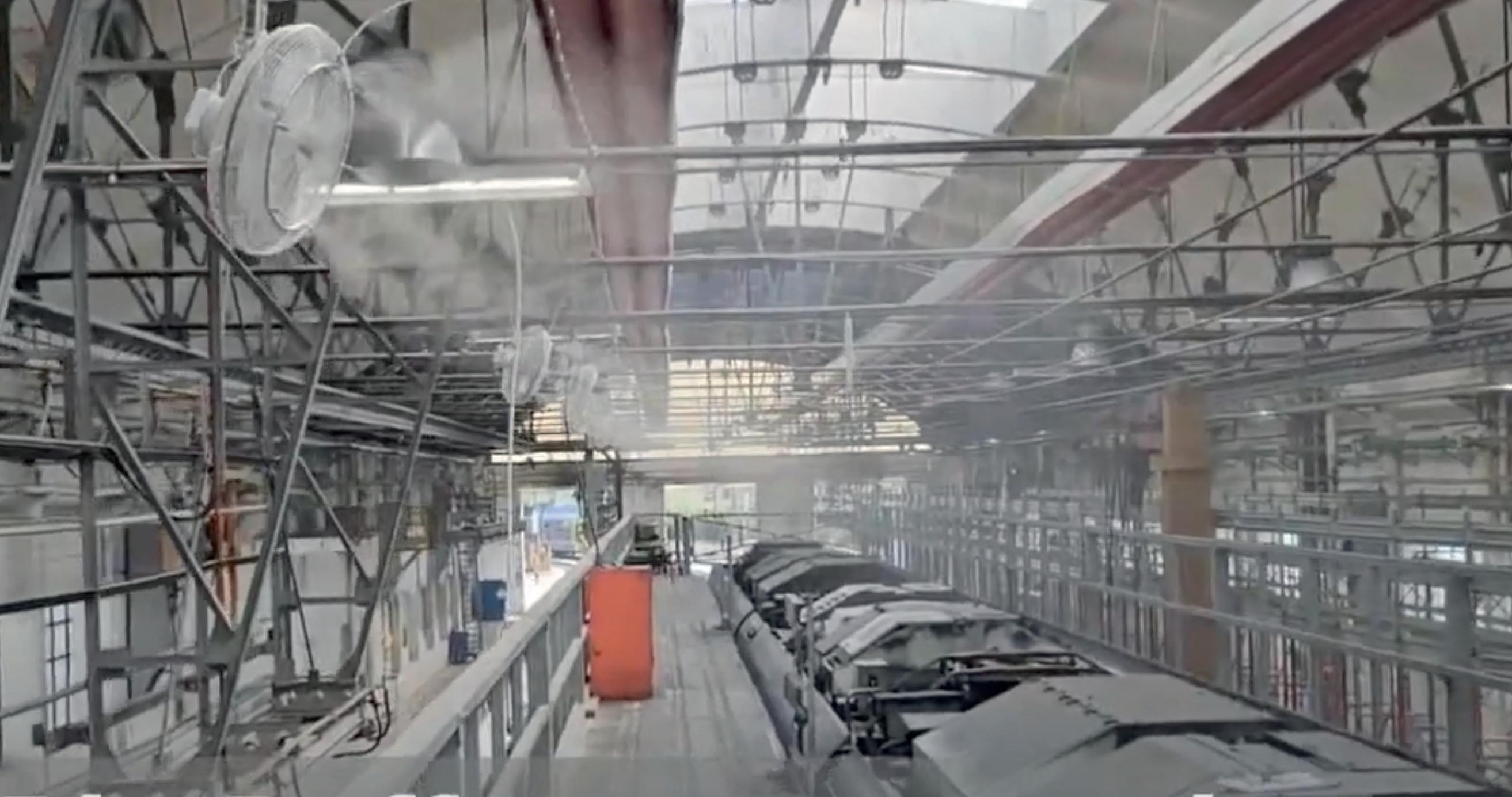

In a train repair shop Italy


pressure 70bar, flow rate 2l/min polyamide pipe Ø9,6 and Ø12mm + Mist Fan 20” (x6), with AISI 304 stainless steel ring with 6 nozzles flow rate15
Fog 70 Extra (x4)
Fog 70 Extra (x1)
ENVIRONMENT COOLING
In an industrial sector Italy


Atmosfera 90
press. 60bar, 6 nozzles, analogue timer for pause/work cycles, water runout time 6 hrs



In an industrial sector Italy
Fog 60 Extra pressure 60bar, flow rate 4l/min, + Industrial Mist Fan (x2), 8 nozzles + Mist Fan 24” (x2), 8 nozzles
Mist Fan 20” (x2), 6 nozzles
Mist Fan 18” (x2), 6 nozzles
Fog 60 Extra press. 60bar, f. rate 1l/min, + Industrial Mist Fan: 20” (x2), poliam. ring with 8 nozzles
ENVIRONMENT COOLING
In a food industry


Fog 60 Extra (x1)
press. 60bar, flow rate 4l/min, polyam. pipe Ø9,6mm, 32 nozz. flow rate 15, humidity probe and temperature probe + Mist Fan 18” (x8), AISI 304 stainless steel nozzle holder ring, 6 nozzles
In an industrial sector


80


60bar, 12 nozzles, analogue timer for pause/work cycles, water runout time 3 hours
In an industrial sector Italy Italy
Italy
Page 225 Page 68
Duetto pressure
Fog 70 Extra (x1) press. 70bar, f. rate 11l/min,
nozzles flow rate 15, polyam. pipe Ø9,6mm, humidity probe and temperature probe + Mist Fan 18” (x36)
HUMIDIFICATION




Italy
Botanical Garden of Padua
Fog 70 Var2 multizona press. 70bar, flow rate 15l/min with kit water inlet with filter and UV lamp, timer for pause/work and remote control for humidity management, stainless steel pipe Ø12mm, nozzles from 60 to 200
HUMIDIFICATION
Botanical Garden


70 Var3 pressure 30-70bar, flow rate 42l/min, nozzles: from 168 to 560 with adapter for 5 nozzles
In a greenhouse

70 Aperto press. 70bar, f. rate 8l/min, SS pipe Ø12mm and compression fittings inox Ø12mm, 107 nozzles


United Kingdom
Page 202
Page 217
Page 104
Fog
Fog
Kit Vento Fog Extra: press. 60bar, port. 1l/min + Mist Fan 18” (x4) con corona in acciaio inox AISI 304 da 6 ugelli
South Korea
HUMIDIFICATION

Fog 60 Extra pressure 60bar, flow rate 1l/min, polyamide pipe Ø9,6 and Ø12mm fitting Ø9,6 and Ø12mm, flow rate 30



Peru
In a wine cellar
Italy France
HUMIDIFICATION
In a supermarket




Rubber processing industry
Wood processing industry Morocco Lithuania
Page 142
Humi Extra pressure 60bar, flow rate 2l/min stainless steel pipe kit Ø12mm, 24 total nozzles
Fog 70 Extra press. 70bar, flow rate 21l/min + Fan 360° Panorama (x40) with stainless steel ring with 8 nozzles
Fog 70 Var3
press. 70bar, f. rate 15l/min + Fan 360° Panorama (x25) with stainless steel ring with 8 nozzles
SPECIAL PROJECTS
Reproduction “storm in the pool”




Fog Maker Elefantino + Fog Maker Elefante Fog Maker Elefantino (x2) to recreate a thick fog and Fog Maker Elefante (x6) to simulate a storm lashed by wind and pouring rain to produce a strong crosswind
SPECIAL PROJECTS
Reproduction “storm in the pool”





Fog Maker Elefantino + Fog Maker Elefante
Fog Maker Elefantino: pressure 70bar, flow rate 21l/min, fan jet 21m, nozzles: 30 in 1 ring AISI 304 stainless steel
Fog Maker Elefante: pressure 60bar, flow rate 33l/m, fan jet 75m, nozzles: 156 in 3 rings (52 each)


Ida pressure 100bar, flow rate 21l/min, with dosing kit and vehicle wash kit, photocell activation and anti-ice device United
Trucks





Ida
pressure 100bar, flow rate 21l/min, with dosing kit and vehicle wash kit, photocell activation and anti-ice device
Ida
pressure 100bar, flow rate 21l/min, with dosing kit and vehicle wash kit, photocell activation and anti-ice device
Greece
Russia
Trucks
Trucks
Page 160
DISINFECTION
Kindergarten

Fog Maker Lince Disinfettante
pressure 60bar, flow rate 1l/min, fan jet 7m, nozzles: 13 in 1 ring AISI 304 stainless steel

In an gym - in a school

Fog Maker Lince
pressure 60bar, flow rate 1l/min, fan jet 7m, nozzles: 13 in 1 ring AISI 304 stainless steel


South Korea
France
DISINFECTION
In a disco



Fog Maker Lince pressure 60bar, flow rate 1l/min, fan jet 7m, nozzles: 13 in 1 ring AISI 304 stainless steel
Of an ambulance

Spain



SaniFog Big
ENGLISH
Copyrights© to this catalogue belong to IDROBASE GROUP® Srl. Reading, reference and dissemination in paper or electronic formats for personal use are permitted. Use for commercial purposes is not permitted, nor is any type of alteration except with the written consent of IDROBASE GROUP® Srl.
This catalogue cancels and supersedes the earlier version.
This catalogue provides general information on the products supplied by IDROBASE GROUP® Srl.
It is intended for retailers, system engineers, designers and more generally, all those who are already adequately familiar with said products, the materials from which they are made, their characteristics, efficiency and operation; it is therefore not intended for consumers who, in order to handle, install or perform any operation with the goods described here, must necessarily contact qualified and skilled personnel.
Also, with regard to skilled personnel, this catalogue should be considered a mere commercial tool, not containing the necessary technical specifications - which may be obtained free of charge from Idrobase, and as such, not suitable for use as a single go-to reference tool for the design, construction or installation of any kind of system.
The illustrations, technical characteristics, functions and other information given here about individual products, systems, installations and the like are based on the current state of the art: however, only the most immediately applicable information can be reproduced here, without any consideration for the global data necessary to design, implement and install any system, which must therefore be carefully assessed by designers, system engineers and installers.
Therefore, for specific indications on all products in the catalogue, please contact our main office, where competent staff are always on hand to answer any additional queries.
All the illustrations reproduced here may be slightly different from actual products and therefore, they should simply be intended as closely representing real items.
We reserve the right to introduce changes in all the products. For this reason, too, it is advisable to directly contact our main office.
In case of doubts regarding interpretation, the original Italian text will prevail.
When a new reprint is published, the present edition will no longer be valid.
Idrobase Group Srl Via dell’Industria, N. 25 35010 Borgoricco (PD) Italia
T: +39 049 9335903 r.a.
www.idrobasegroup.com info@idrobasegroup.com

Recognition of maximum commercial reliability
