PRO SERIES
IDRO.V2-60

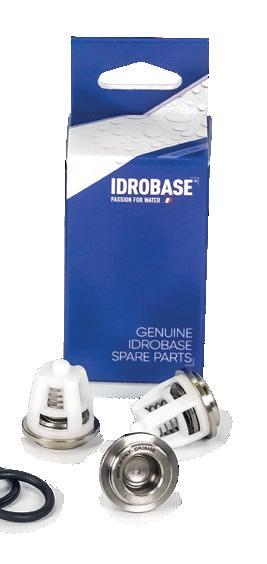

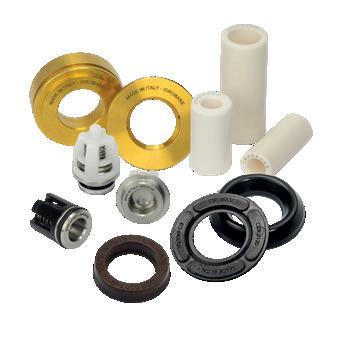

Kit Dolly V2, valves + O-rings quantity 3x6
IDRO.ORV2-50
Set Dolly V2-50 OR, O-ring for valves Kit Dolly V2 quantity 1x50
IDRO.10-23
Nickeled brass head, for Dolly Pumps PRO series quantity 1
IDRO.KIT-P2
IDRO.KIT-V2 14mm 50mm 20mm
Kit Dolly P2, ceramic plungers ø20x50 quantity 1x3
IDRO.LPS2-60

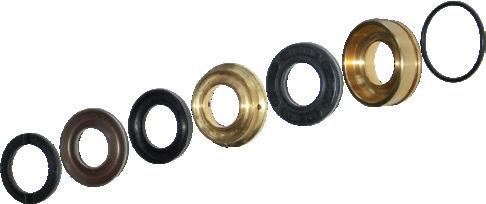

Set Dolly S2-60 LP, l.p. seals ø20x35 quantity 1x60
Set Dolly V2-60, valves + O-rings quantity 3x60
IDRO.KIT-C2

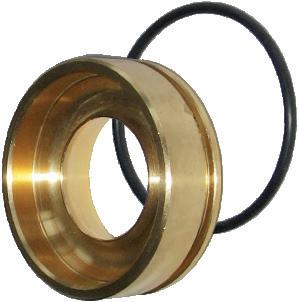

Kit Dolly C2, nickeled brass + O-ring quantity 2x6
IDRO.KIT-CR2
Kit Dolly CR2, pre-assembled connecting rod-plunger guide quantity 1x3
IDRO.KIT-S2
Kit Dolly S2, seal packing ø20 quantity 4x3
IDRO.LPS2-500
IDRO.V2-500
Set Dolly V2-500, valves + O-rings quantity 3x500
IDRO.KIT-PC2
Kit Dolly PC2, nickeled brass + O-ring, with threaded hole G1/4” F quantity 2x1
IDRO.KIT-PF2
Kit Dolly PF2, piston screws quantity 5x3
IDRO.HPS2-60
Set Dolly S2-60 HP, h.p. seals ø20x35 quantity 1x60
IDRO.RSS2-60
Set Dolly S2-500 LP, l.p. seals ø20x35 quantity 1x500
Set Dolly S2-60 RS, restop rings ø20 quantity 1x60
For pumps:
• IDRO.150-15 IDRO7
• IDRO.150-21 IDRO8
• IDRO.170-15 IDRO12
• IDRO.200-15 IDRO10
• IDRO.200-21 IDRO11
IDRO.ORC2-50
Set Dolly C2-50 OR, O-rings for Kit Dolly C2 and PC2 quantity 1x50
IDRO.KIT-LPF2

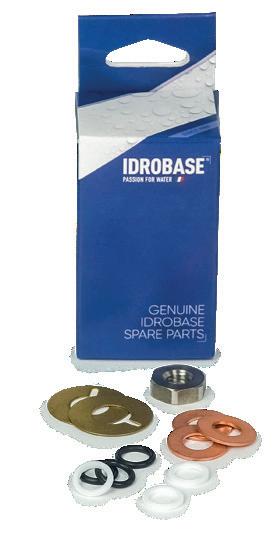

Kit Dolly LPF2, O-ring and washers for plunger bolts quantity 4x3
IDRO.HPS2-500
Set Dolly S2-500 HP, h.p. seals ø20x35 quantity 1x500
IDRO.RSS2-500
Set Dolly S2-500 RS, restop rings ø20 quantity 1x500
DOLLY SPARE PARTS FOR DOLLY PUMPS
IDROBASE PRO SERIES
IDRO.KIT-R2
Kit Dolly R2, complete seal packing ø20x35 quantity
7x1
IDRO.KIT-HR2
Kit Dolly HR2, head rings ø20 quantity 1x6
IDRO.KIT-OS2
IDRO.KIT-RR2
Kit Dolly RR2, intermediate rings + restop ø20 quantity 2x3
IDRO.HR2-60
IDRO.KIT-PR2
Kit Dolly PR2, packing retainers + O-rings ø20 quantity 2x3
Set Dolly HR2-60, head rings ø20 quantity 1x60
IDRO.OS2-60

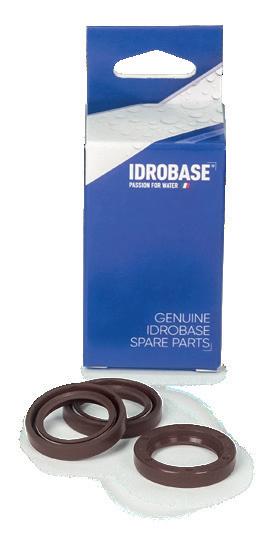

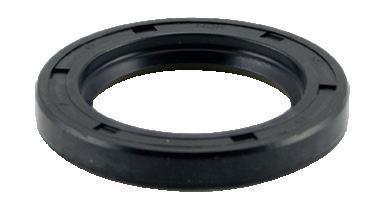

Kit Dolly OS2, plunger oil seals ø22x32x5.5 quantity 1x3
IDRO.KIT-OC2
IDRO.ORPR2-50
Set Dolly PR2-50 OR, O-ring for Kit Dolly PR2 quantity 1x50
IDRO.HR2-500
Set Dolly HR2-500, head rings ø20 quantity 1x500
IDRO.OS2-500
Set Dolly OS2-60, plunger oil seals ø22x32x5.5 quantity 1x60
IDRO.KIT-OL2
Kit Dolly OC2, shaft oil seals ø30x55x7 quantity 1x2
Kit Dolly OL2, oil level indicator quantity
Set Dolly OS2-500, plunger oil seals ø22x32x5.5 quantity 1x500
IDRO.KIT-CC2

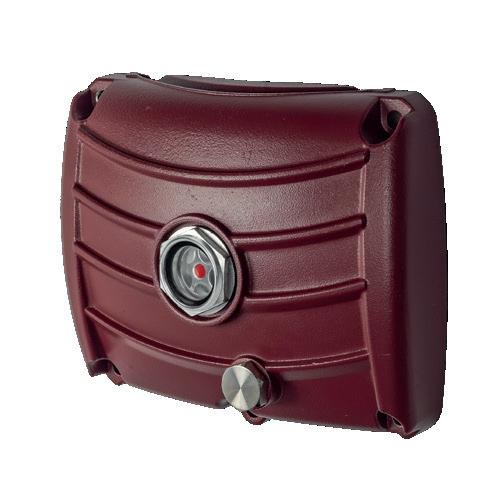

Kit Dolly CC2, complete red crankcase cover quantity
Optional Code Description
ME.T003
ME.T002
ME.T011
ME.T006
ME.T007
ME.T020
CDR.0591
CDR.0592
ME.T106
ME.T024
IDRO.KIT-PB2
Electric motor 5,5HP 3x400V-50Hz H100, F ø24
Electric motor 7,5HP 3x400V-50Hz H112, F ø24
Electric motor 10,0HP 3x400V-50Hz H132, F ø24
Electric motor 5,5HP 3x400V-50Hz H100, M ø28
Electric motor 7,5HP 3x400V-50Hz H112, M ø28
motor 10HP 3x400V-50Hz H132, M ø38
Flexible coupling and cover H100-112
Flexible coupling and cover H132
Electric motor 5,5HP 3x400V-50Hz M ø28
Electric motor 7,5HP 3x400V-50Hz M ø28
Pulley and belt kit 1:1
Pump mounting feet kit complete with screws
3x400V 50/60Hz electrical box with a 12A three-phase thermal switch, 5m power cable
3x400V 50/60Hz electrical box with a 16A three-phase thermal switch, 5m power cable

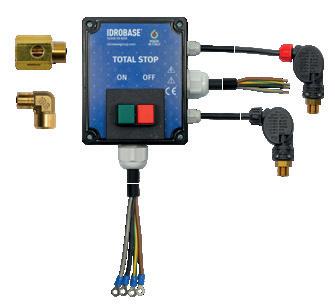

3x400V 50/60Hz electrical box with a 12A three-phase thermal switch, total stop and 5m power cable
3x400V 50/60Hz electrical box with a 16A three-phase thermal switch, total stop and 5m power cable
Painted bracket for electrical box, complete with gasket and fixing screws
Optional Code Description
ACCESSORIES
ZX.V220M-000
CDR.7SS504N2R
Unloader valve, G3/8 M, 220bar 30Lpm
Stainless steel pressure gauge, ø50mm, 0-315bar, G1/4M, radial
IDRO.KIT-PC2
Nickeled brass + O-ring, with threaded hole G1/4” F
CDR.GF4M3
CDR.7504
Brass h.p. elbow, G3/8” M-G1/4” F, pressure max 300bar, temperature 5-150°C
Inlet water filter G1/2F-M 300mcr-50mesh
Optional Code Description
ZN.CC100B1Z1Z
ZN.CC200B1Z1Z
H.p. hose R1 5/16”, 315bar, 10m, M22x1,5 F-F
H.p. hose R1 5/16”, 315bar, 15m, M22x1,5 F-F
CDR.1992
ZX.7115
ZX.7116
ZX.7117
C.MEG2504
C.MEG25045
C.MEG2505
C.MEG2506
C.MEG25065
C.MEG2507
PRO1 spray gun, 310bar, 45l/min, 160°C, G3/8” M - G1/4” F
Lance, 700mm, G1/4” M-1/4” NPT-F
Lance, 900mm, G1/4” M-1/4” NPT-F
Lance, 1200mm, G1/4” M-1/4” NPT-F
H.p. nozzle 25° angle, flow rate 040, 1/4” NPT-M
H.p. nozzle 25° angle, flow rate 045, 1/4” NPT-M
H.p. nozzle 25° angle, flow rate 050, 1/4” NPT-M
H.p. nozzle 25° angle, flow rate 060, 1/4” NPT-M
H.p. nozzle 25° angle, flow rate 065, 1/4” NPT-M
H.p. nozzle 25° angle, flow rate 070, 1/4” NPT-M
Technical features
Pump maintenance set 750hours

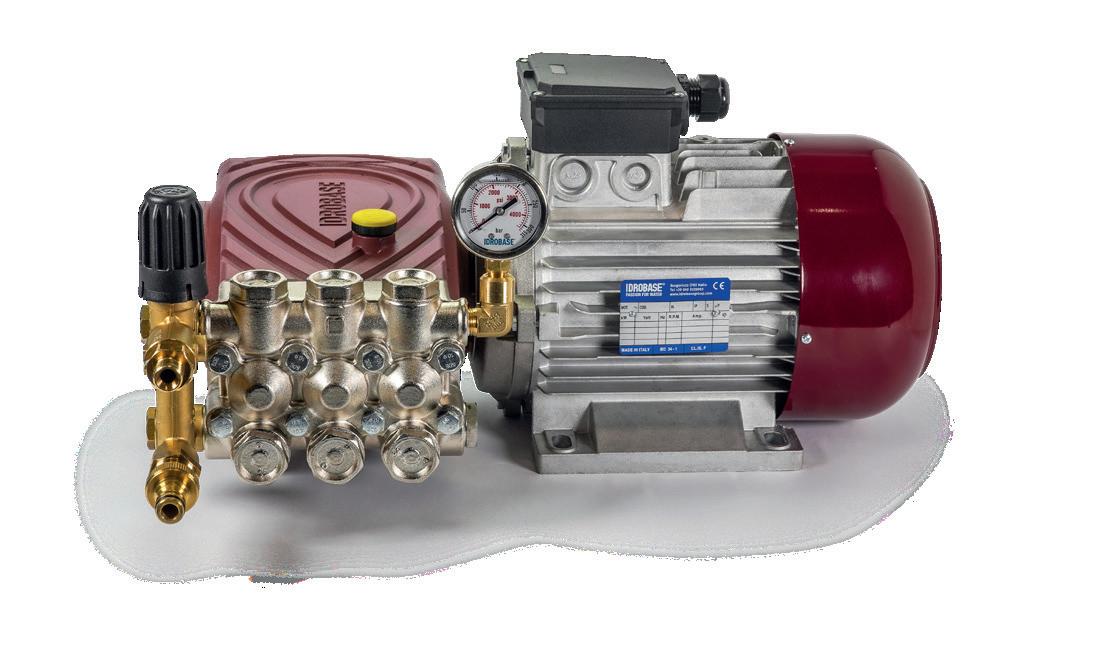

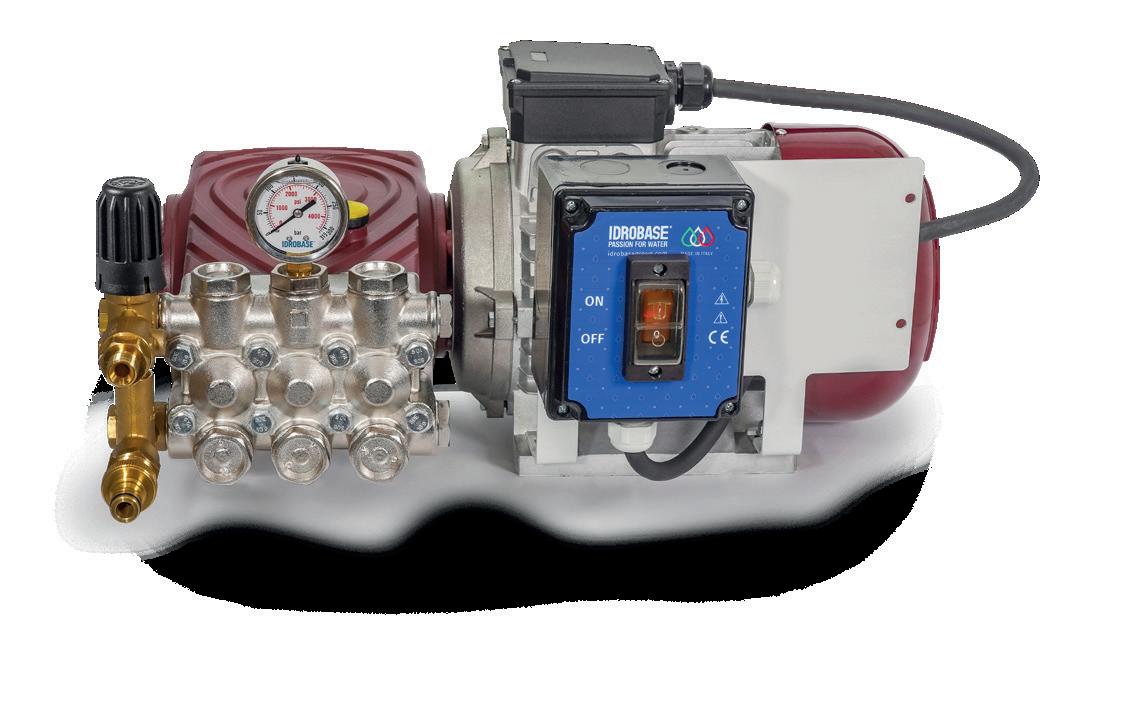

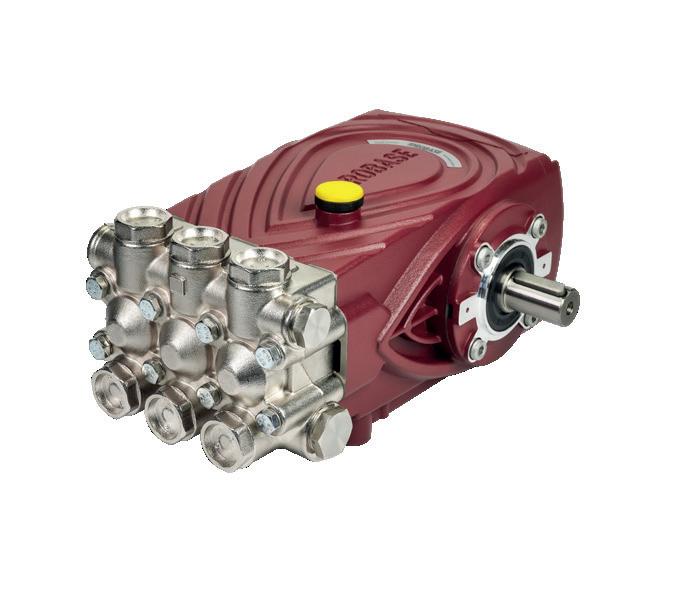

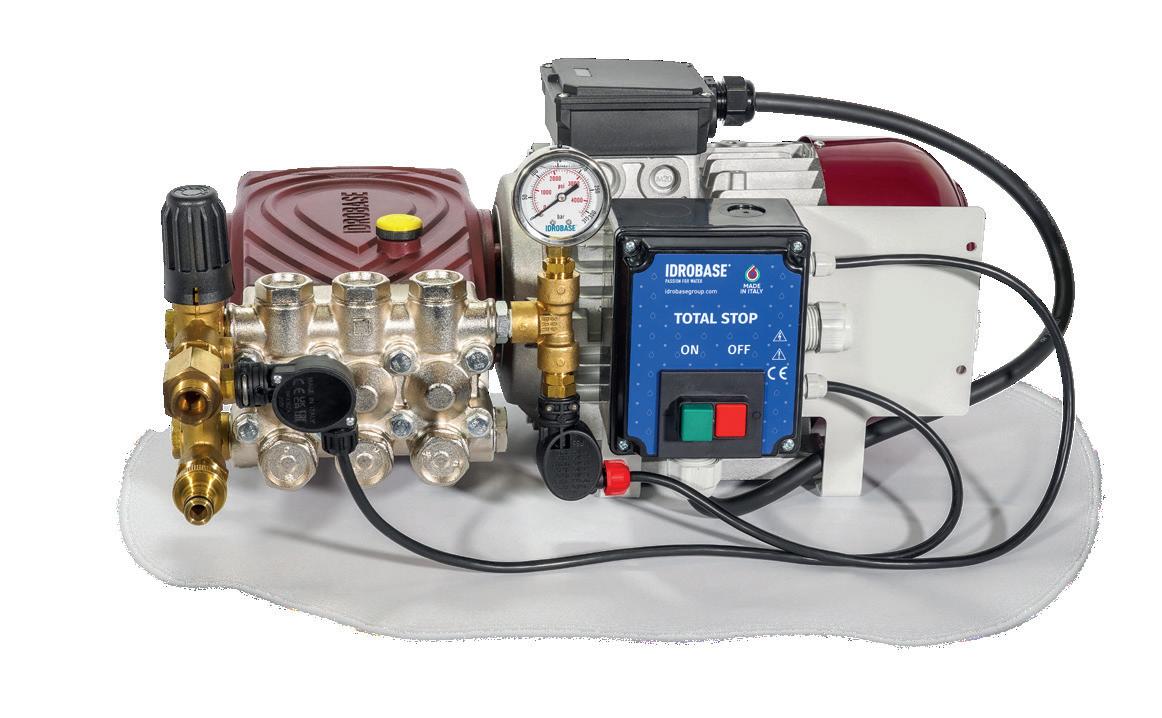

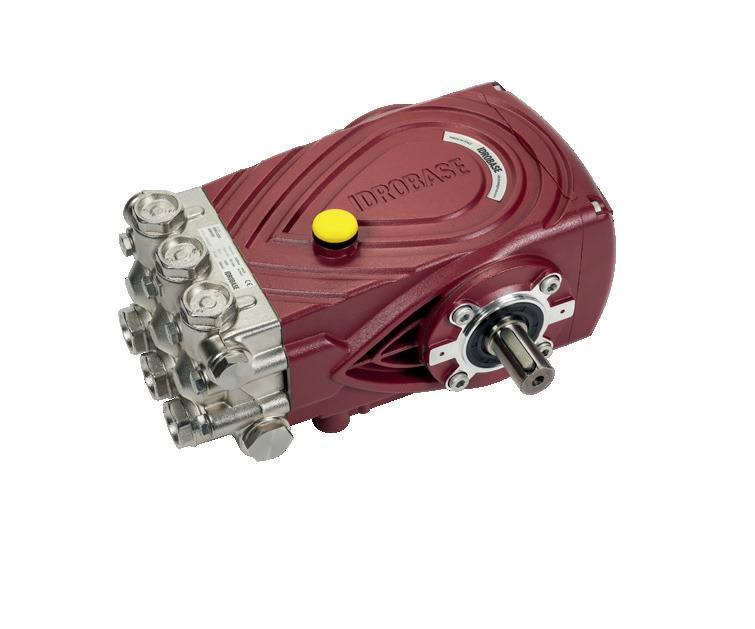

• Professional crankshaft pump, brass head, 3 ceramic pistons, complete with unloader bolt valve with filter gasket and pressure gauge.
Electric motor 1450Rpm 50Hz
ZX.B150-15-SC
ZX.B150-21-SC
ZX.B200-15-SC
Technical features
Professional crankshaft pump, brass head, 3 ceramic pistons, complete with unloader bolt valve with filter gasket and pressure gauge. Electric motor (1450Rpm 50Hz) complete with IP55 electrical box with magneto-thermal ON/OFF switch
By-pass
ZX.B150-15-BP
ZX.B150-21-BP
ZX.B200-15-BP
Total Stop
ZX.B150-15-TS
ZX.B150-21-TS
ZX.B200-15-TS
