MISTING BOOK

EN

applications say it all

Idrobase Group Headquarters

We are changing the rules of the pressure water market

Idrobase Group is the most complete solution to overcome the continual challenges of the pressure water market. Passion and Innovation are the pivotal points of our evergrowing business. Since 1986, year after year, we have passed from the role of pursuers to the one of being followed, always trying to interpret the needs of an ever-changing market. We shape our future by living intensely our present, we develop strategies to look forward, we innovate and create new product lines, we always hold in due consideration the welfare of those who use our systems, preserving the environment and contributing to keep the world cleaner.

The page numbers written inside refer to the related page of the “Catalogue of Solutions 2017”

www.idrobasegroup.it

www.enjoyyourfurniture.com

cooling

USA PAVILION - With the special appearance of the First Lady, Michelle Obama

Idrobase misting system have a prominent position at the USA Pavilion. These systems have been designed to create a visual effect of great impact at the entrance. The misting system Fog 70 Basico 18l/min. - 70bar supplies a manifold with 16 outlets that merge into stainless steel bars with 6 nozzles each. A system that combines cooling with scenic effects made by Idrotech misting systems with fog and lights. A cooling that is particularly welcome during these hot summer days.

4 HUMIDITY
ITALY
// at 360°

KUWAIT PAVILION

• Fog 70 Basico module [ pag.452 ]

• UV lamp [ pag.530 ]

• Nozzle Rings made with polyamide line [ pag.506/509 ]

• Double filter kit [ pag.528 ]

5
HUMIDITY
ITALY
scenic // of external area

// of external area

HUMIDITY

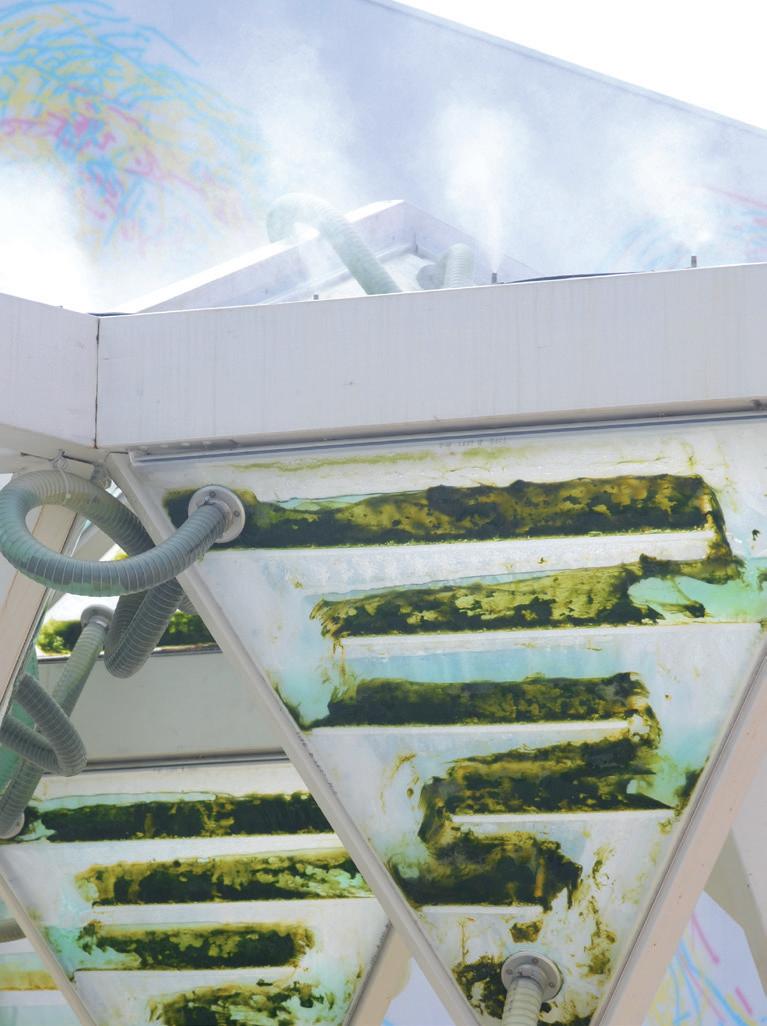

FUTURE FOOD DISTRICT

This is a misting system both scenic and refreshing, designed to keep fresh the seaweed inside the panels of the entrance structure of the pavilion. Thanks to Idrotech misting system the humidity level is always under control. The water droplets have a size of about 10 microns and immediately evaporate minimizing the effect wet.

6
ITALY
scenic

HUMIDITY

FRANCE PAVILION

France pavilon at Expo is characterized by Perfect Cool misting systems.

• Stelo Rinfrescante [ pag.424 ]

• Fog Eco [ pag.436 ]

• Nozzles, accessories and special fittings [ pag.518 ]

7
cooling // at 360°

cooling

// of external area

SANTIAGO BERNABÉU - REAL MADRID STADIUM

• Fog 70 Big [ pag.454 ]

• Pipe line made of SS [ pag.510 ]

8 spain
HUMIDITY

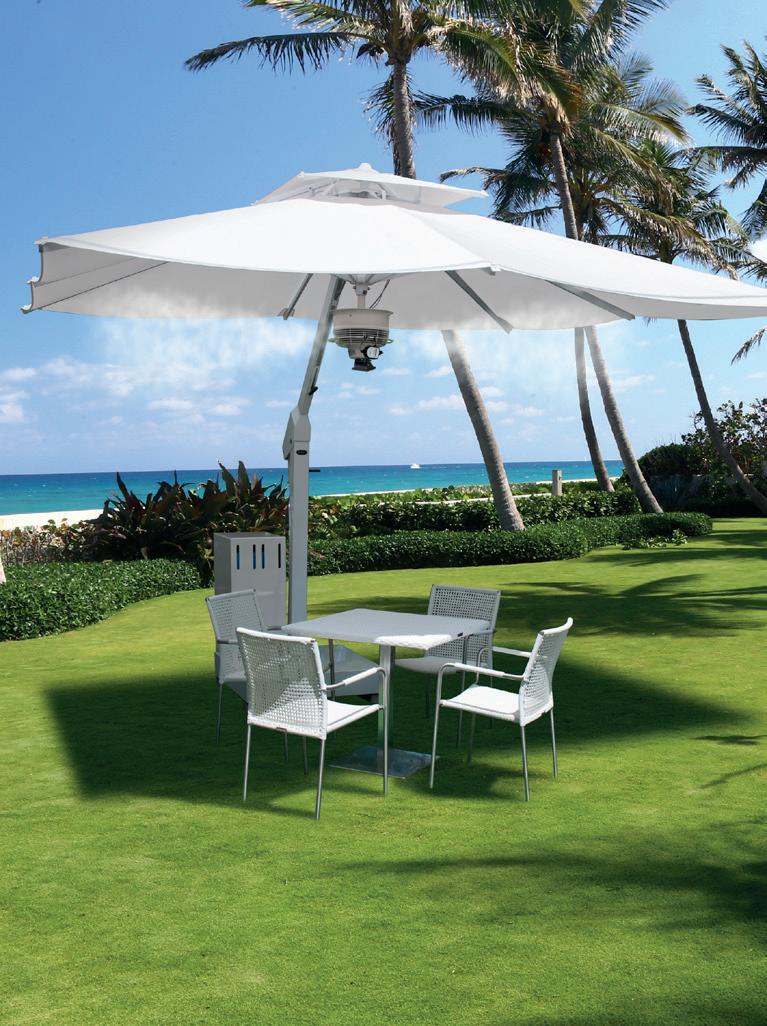

Discover Enjoy your Life range for outdoor furniture: a complete solution, a patented collection for outdoor areas. All the details that make Enjoy your Life a unique range of products: to refresh gardens, swimming pool, gazebo, hotel, bar, restaurants, beaches...

9 italy HUMIDITY cooling // at 360°

HUMIDITY

• Fog 70 Var 3 MULTI-ZONE [ pag.468 ]

• Custom made ramps nozzles with Ø12x1 SS pipe on SS frame

• Humidistats with probe for each area [ pag.537 ]

• Intercepting area Solenoid valve kit

10 bielorussia
inside ice rinks
humidification //
11 australia HUMIDITY humidification
of fruit and vegetable counters
//
1. Fog-60 module [ pag.440 ] 2. Water treatment kit with filter and UV lamp [ pag.528-530 ] 3. Pause/Work and washing line Timer8 [ pag.536 ] 4. Washing line kit [ pag.536 ]

humidification

// of a greenhouse for roses

HUMIDITY

• Fog 70 Aperto [ pag.148 ]

• SS Ø12x1 line [ pag.511 ]

• Compression fittings made of SS [ pag.512 ]

• Humidistat remote control [ pag.537 ]

12 russia

humidification

// with moisture stabilisation of wine casks

• Fog 40 module [ pag.437 ]

• Humydistat kit [ pag.537 ]

• Polyamide line [ pag.506 ]

13
spain HUMIDITY

scenic

// design of fountains of mist and light

• Fog Ambiente module [ pag.462 ]

• Dosing pump [ pag. 533 ]

• Water treatment kit with filter and UV lamp [ pag.530 ]

• Nozzle Rings made with polyamide line [ pag.506 ]

14 india
HUMIDITY

// with moisture stabilisation of wine casks

BOTANICAL GARDEN OF PADUA

• 1 Fog modul 70 bar Var 2 MULTI-ZONE [ pag.468 ]

• Water treatment kit with filter and UV lamp [ pag.530 ]

• Pause/Work timer [ pag.536-544 ]

• SS Ø12x1 line [ pag.511 ]

15 ITALY
humidification

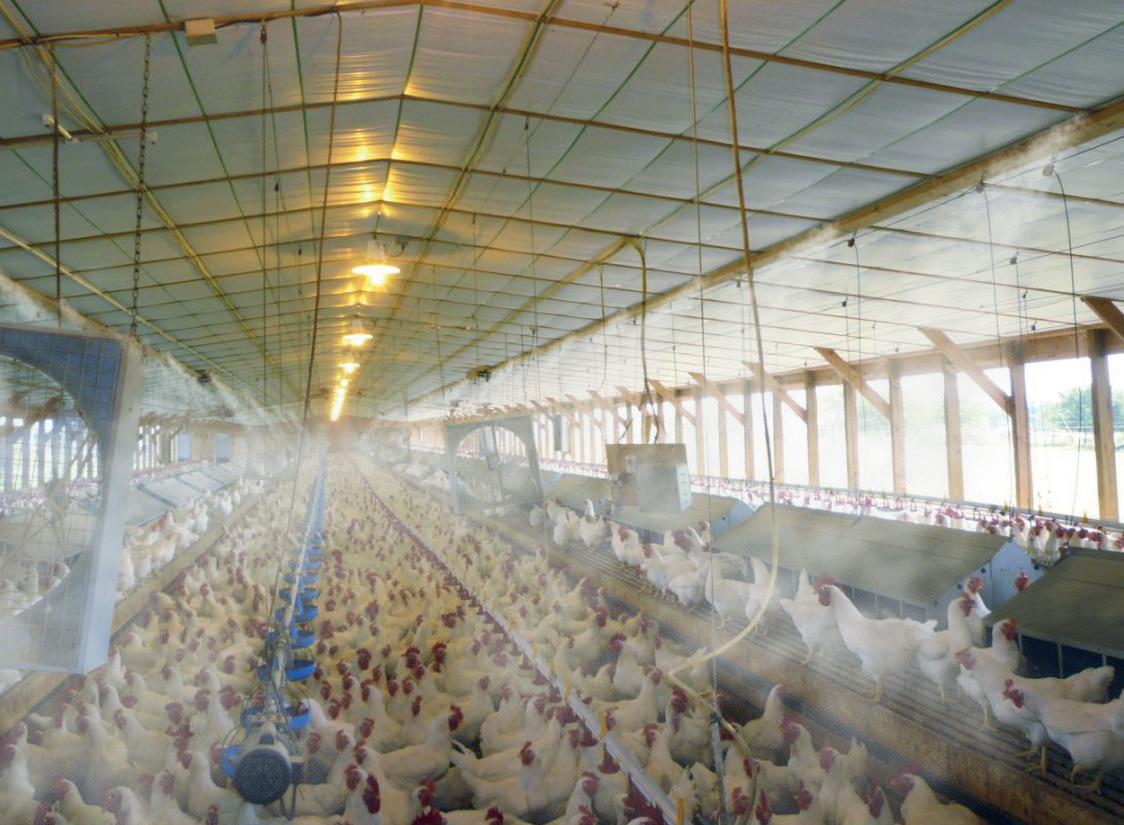

Temperature reduction

in a poultry farm

• Fog 70 Basico module [ pag.452 ]

• Pipe line made of SS Ø12X1 [ pag.511 ]

• Connection line pipe, from module to nozzle line, made of SS Ø14x1,5 [ pag.513 ]

• Brass compression fittings [ pag.512 ]

16 Japan
HUMIDITY
//

// in a cattle farm

• Fog 70 Basico Inox module [ pag.452 ]

• Polyamide line Inox [ pag.506-514 ]

17 hungary HUMIDITY
reduction
temperature

Dust prevention

// in a mineral rock crusher

• Fog 70 Libero [ pag.446 ]

• Tailor-made SS Ø12X1 pipe line ramps [ pag.511 ]

• Connection line to ramps, made of SS Ø14x1,5 [ pag.513 ]

18
south africa
before After

• 2 Fog 70 Basico modules [ pag.452 ]

• Line and Pipe ring made of SS Ø12X1 [ pag.511 ]

• SS Ø14x1,5 connection line from module to ramps [ pag.513 ]

19 ITALY Dust prevention // in a building tunnel

dust suppression

// on a coal conveyor belt in a power station

HUMIDITY

• Fog 70 IC Ambiente [ pag. 460 ]

• Tailor-made ramp line with SS Ø12X1 pipe [ pag.511 ]

• Connection line to ramps, made of SS Ø14x1,5 [ pag.513 ]

20
ITALY
21 ITALY HUMIDITY
odour neutralization // in waste treatment plant
• Elefante high pressure Fog Maker with hydraulic arm on base unit, 156 nozzles on three 52 nozzles rings, flow rate: 33 l/m. [ pag.486 ]

dust suppression

// in a cement factory

HUMIDITY

• 2 Fog 70 Aperto modules [ pag.448 ]

• Fans with 6/8 nozzles rings [ pag.538 ]

• Fixed line with Ø9,6 and Ø12,7 polyamide pipe [ pag.507/509 ]

22
croatia

• Fog 70 Libero[ pag.446 ]

• Ø9,6 and Ø12,7 polyamide pipe line [ pag.507/509 ]

23
HUMIDITY dust PREVENTION // on a mineral rock conveyor belt
INDIA
24
HUMIDITY disinfection of vehicles // entering and exiting an animal farm IDA
russia
Pump unit
1.
Disinfecting dosing unit kit
2.
Kit to connect pump unit
3.
Vehicle wash kit
4.
Kit to disinfect the body of the truck
Platform kit You can find the complete solution on (pag. 490)
5.
6.

• Fog 70 Var 3 [ pag.468 ]

• Polyamide line with nozzles [ pag.506/509 ]

• Dosing unit kit of chemical product [ pag.533 ]

25 ITALY HUMIDITY odour neutralization // in a water purification plant

• 1 Fog 70 Basico module [ pag.452 ]

• Polyamide line with nozzles [ pag.506/509 ]

• Dosing unit kit of chemical product [ pag.533 ]

26
romania HUMIDITY

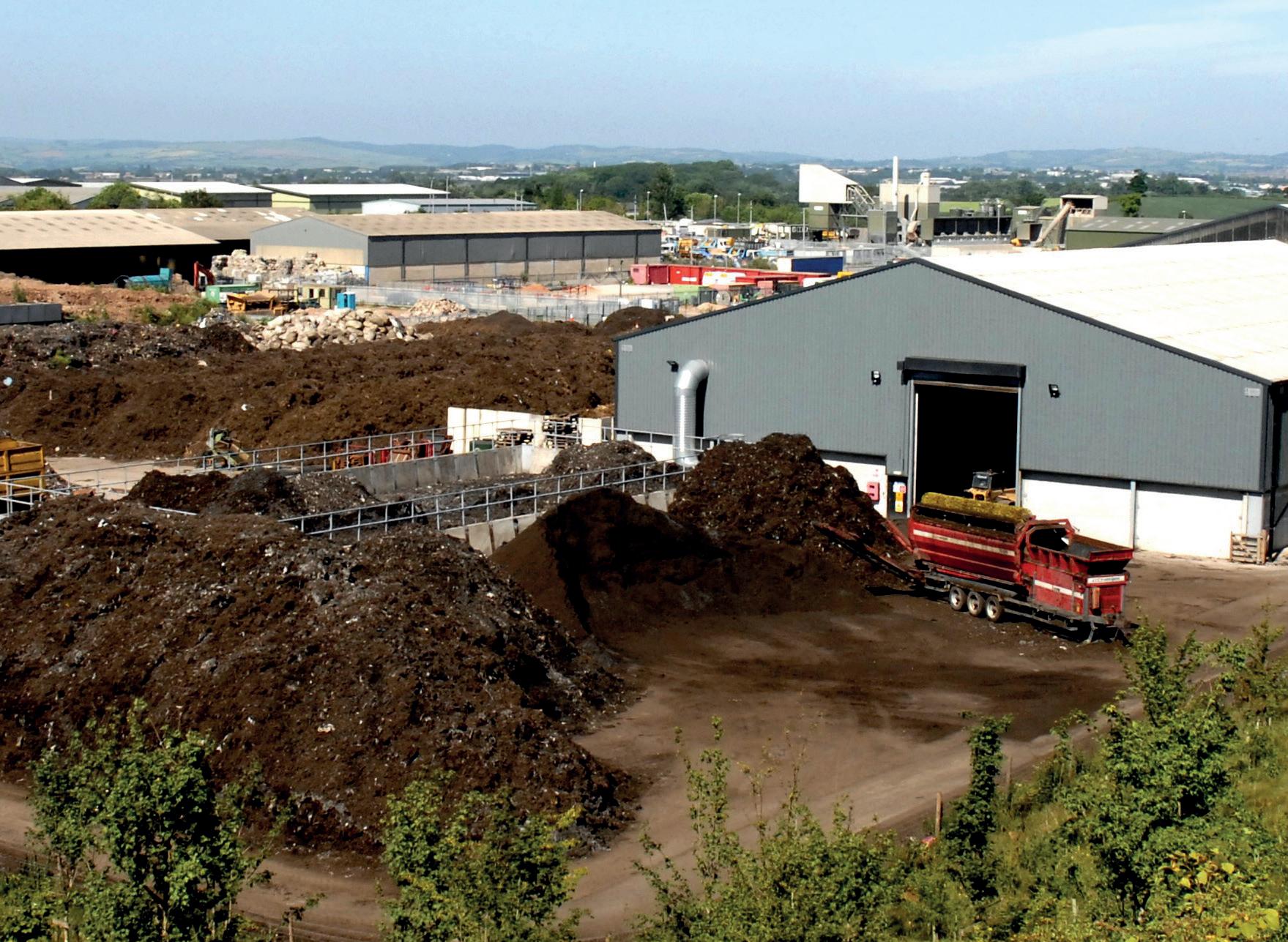

odour neutralization
// of a compost site

Temperature reduction

// of cooling towers in an air conditioning system

• Fog 70 Aperto module [ pag.448 ]

• Tailor-made nozzle ramps with SS Ø12x1 pipe [ pag.511 ]

• Kit flex pipes and connections

27
Saudi arabia
HUMIDITY

• Fog-60 module [ pag.440 ]

• Pause/Work timer and thermostat [ pag.536-544 ]

• Treatment water kit, filter [ pag.528 ]

• UV lamp [ pag.530 ]

28
ITALY
// in work areas
HUMIDITY
cooling

You can find the complete range of Fog Makers from page 476 to 494

29 HUMIDITY cooling // of wide external areas

• Fog-60 module [ pag.440 ]

• Pause/Work timer [ pag.536-544 ]

• Polyamide line [ pag.506 ]

30 ITALY
HUMIDITY
cooling // in service station
