Fog App: how to use the fog module with your smartphone
Fog App: what does this fog module do?

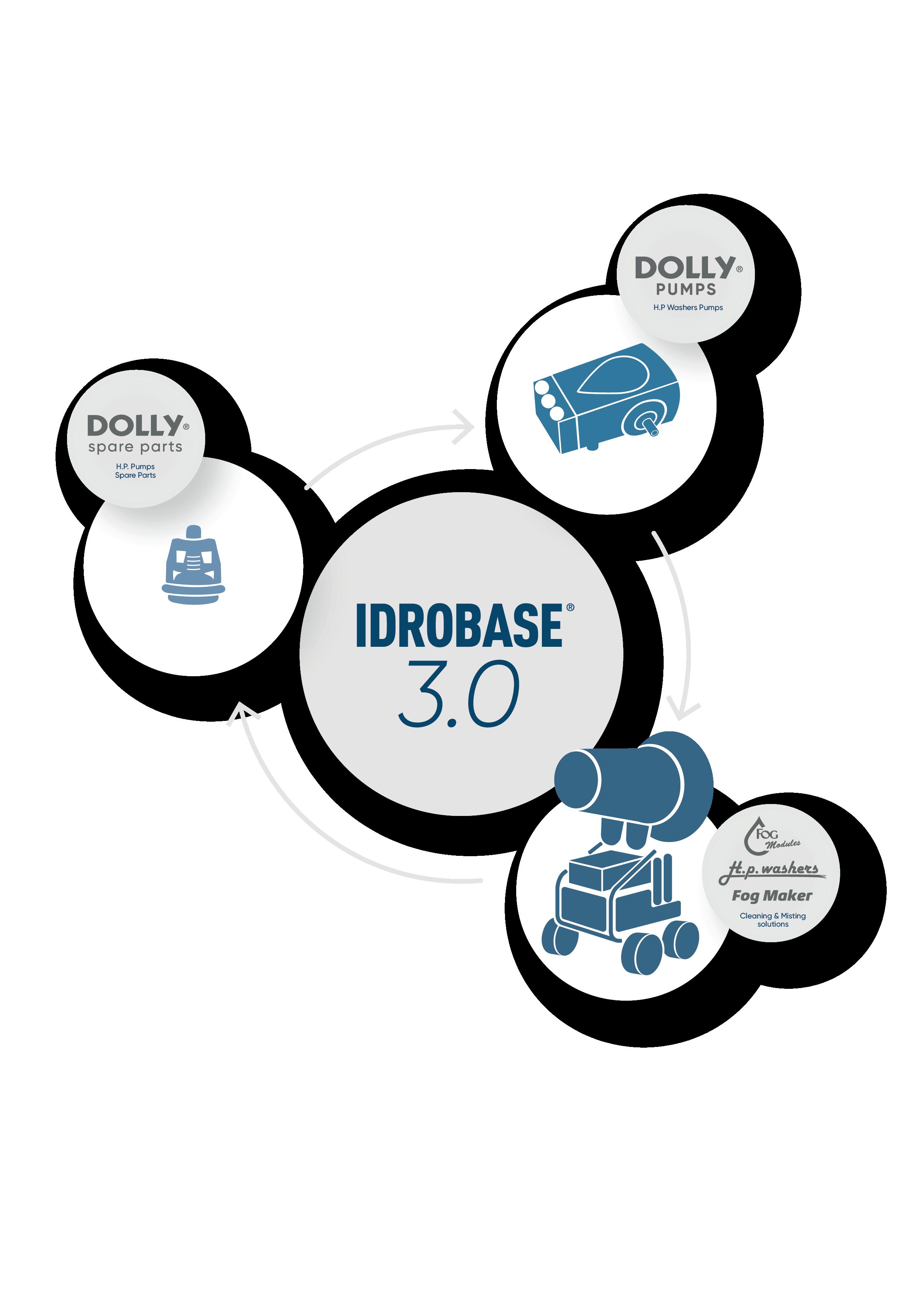

IDROBASE 3.0: THE ECOSYSTEM THAT ENHANCES EVERY ELEMENT.
IDROBASE 3.0 is a comprehensive solution that brings together:
• the reliability of Dolly Spare Parts®
• the patented and guaranteed quality of Dolly Pumps®

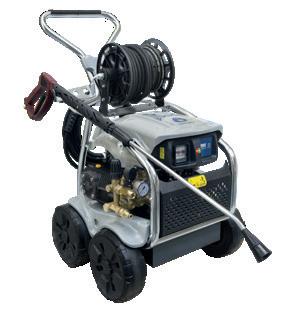

• the high performance of h.p. washers , fog makers and misting systems
You can now move from simply repairing your pump, thanks to the world’s N.1 Dolly Spare Parts catalogue, to replacing it with a Dolly Pump featuring Idrobase-branded internal components, and all the way to selecting a complete Made in Italy solution for the cleaning and misting sectors.
Three elements within one integrated system, connected and aligned by a coherent industrial vision focused on performance and long-term durability.

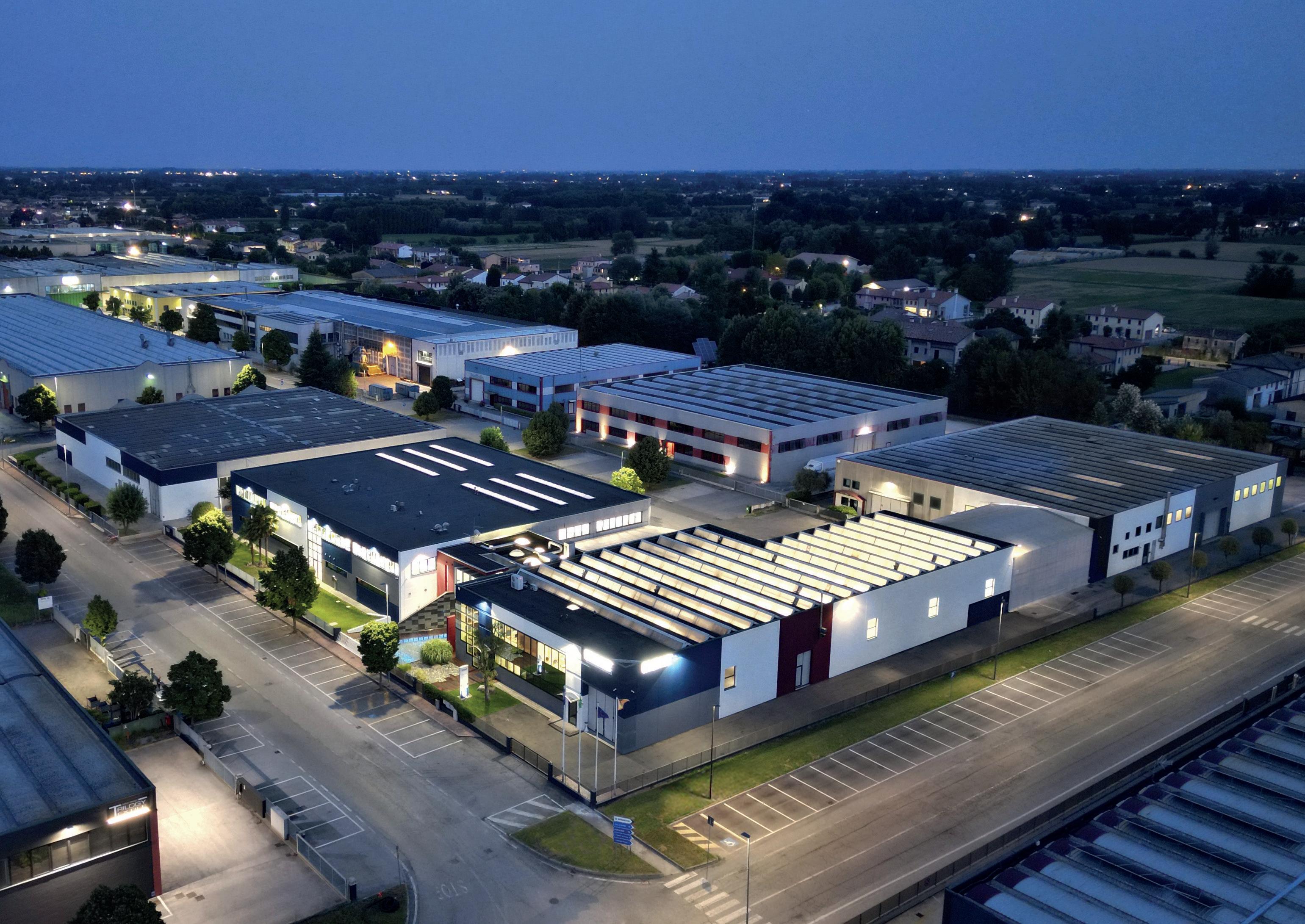

HEADQUARTERS OFSOLUTIONS
Borgoricco, Padova, Italy
A WORLD OF INNOVATIONS

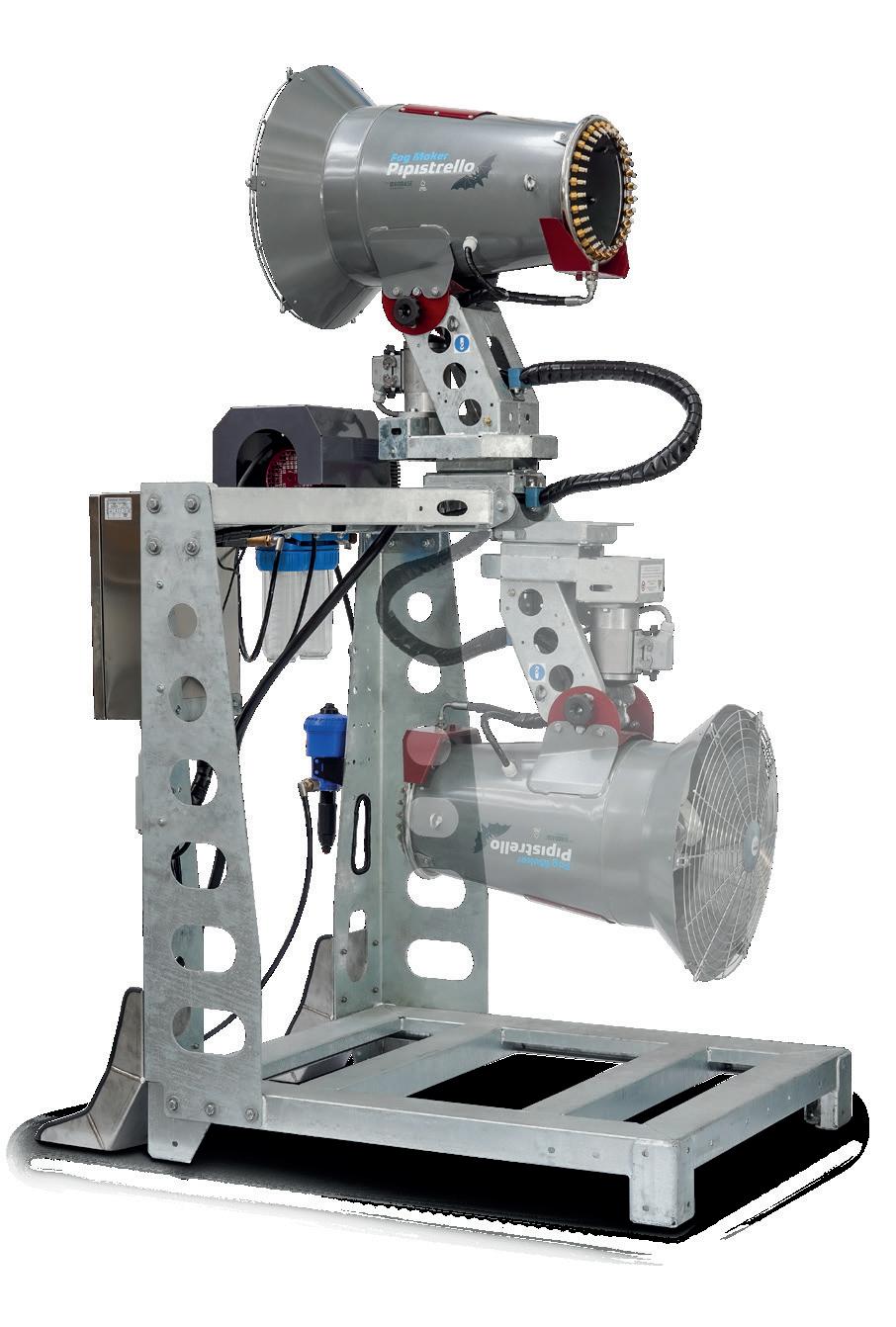

Ready to use: - 3 hours for assembly Compared to
Transport costs: telescopic column
*Included in: FOG
From 2,2 to 4,8 l/min moduls with IDRO9 pump
Up to 16 independent zones Remotely controllable and manageable

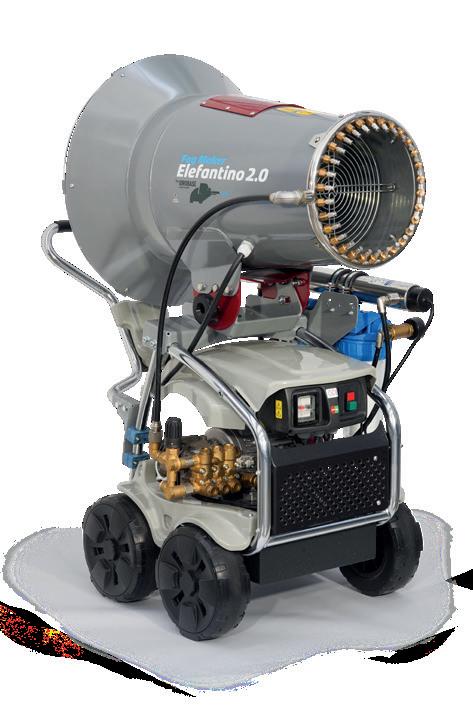

Compared to the Fog Maker Elefantino
Extra discount on purchase price Trasport costs Compared to the Fog Maker Gufo
Compared to the Fog Maker Airone
Compared to previous model
From 0,4 to 13 l/min flow rate
Internet interface
12 BUSINESS DIVISIONS
Cleaning & Misting tailor-made systems
Industrial Misting

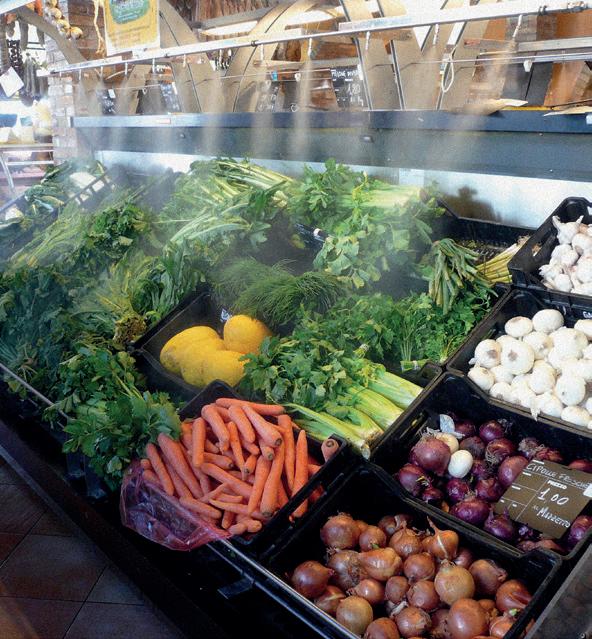

Humi Food
ENJOY YOUR LIFE NIGHT AND DAY
Outdoor Furniture
IDROTECH

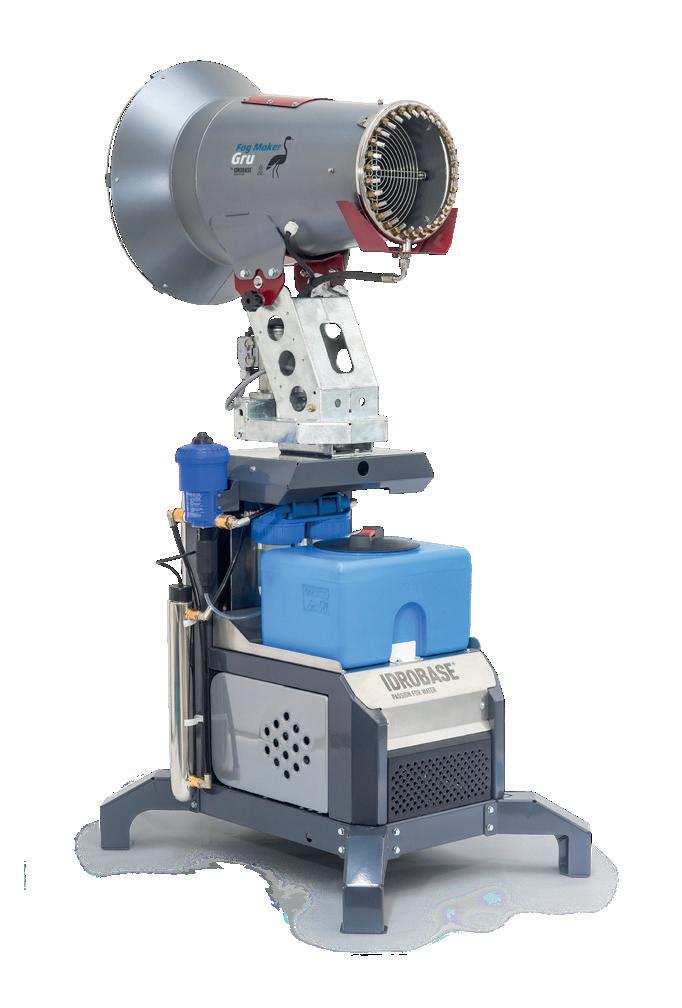

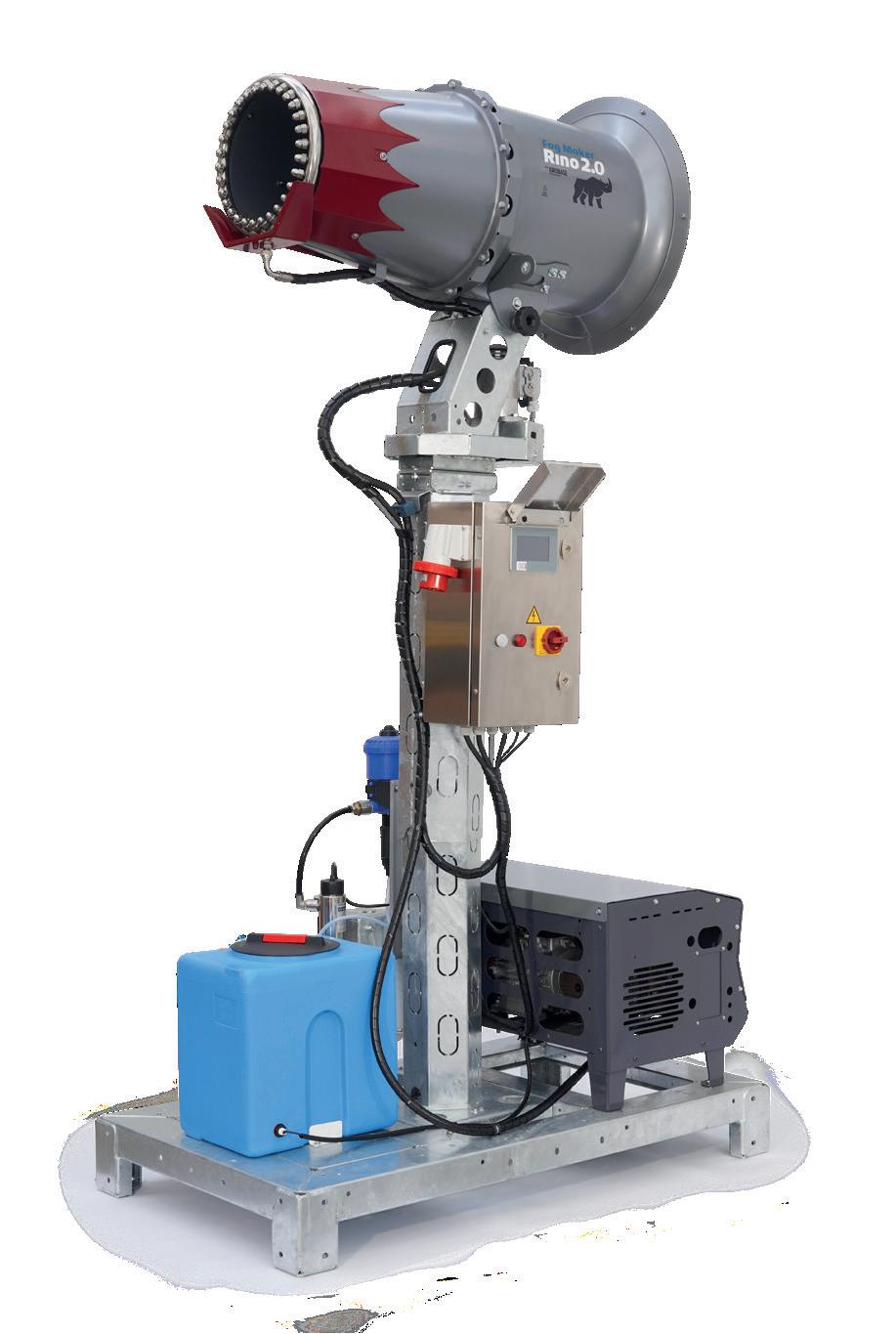

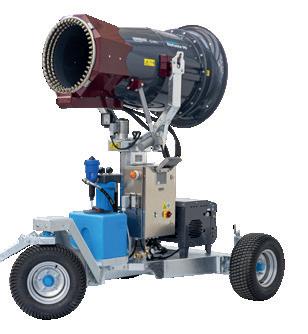

Fog Makers Cannons
Residential & Commercial Misting
BKM ®, Disinfection & Sanitization
CLUB DEL MISTING
Misting Accessories
IDRO INNOVA
IDROTECH
IDROTECH
IDROSAN
Dolly Spare Parts ® for pumps
Washers Accessories & Spare Components
OUR COMMERCIALS
ALICE DE BIASE
Commercial department
alice.d@idrobasegroup.com
+39 049 9336739
+39 334 9399868
ITA/ENG/ESP/FRA
SILVIA VANZO
Commercial department
silvia.v@idrobasegroup.com
+39 049 9336726
+39 351 5970267
Silvia_CdR
ITA/ENG/ESP/DEU
TOMMASO GAZZIGNATO Idrobase Ningbo manager
tommaso.g@idrobasegroup.com
+39 049 9336756
+39 349 0080257
tommy_italy
ITA/ENG
NAZARIO CONTI
Perfect Cool Commercial - Kit misting ready to use
nazario.c@idrobasegroup.com
+39 0541 395121
+39 349 3929028
ITA/ESP
CHRISTIAN DI FLUMERI
Perfect Cool Commercial - Kit misting ready to use
christian.d@idrobasegroup.com
+39 0541 395121
+39 329 0110403
ITA/ENG
OUR TECHNICIANS
DANIEL GASPARINI
Quality & Technical department
daniel.g@idrobasegroup.com
+39 049 9336768
+39 329 1297086
ITA/ENG
LUCA SARTOR
Technical department manager
luca.s@idrobasegroup.com
+39 049 9336755
+39 348 7004172
ITA/ENG

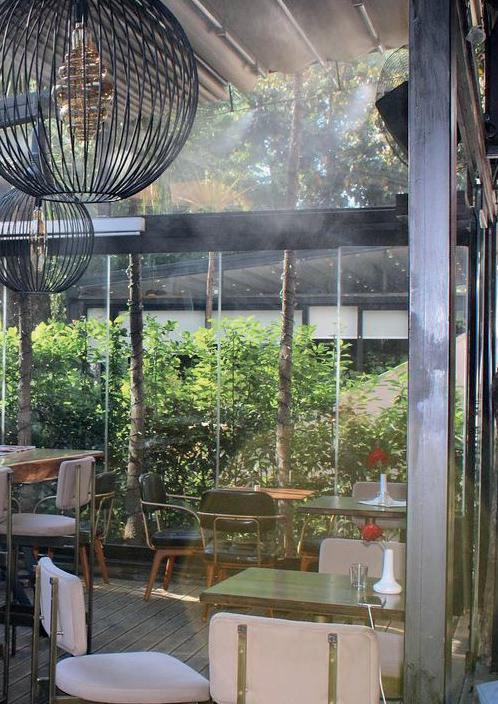

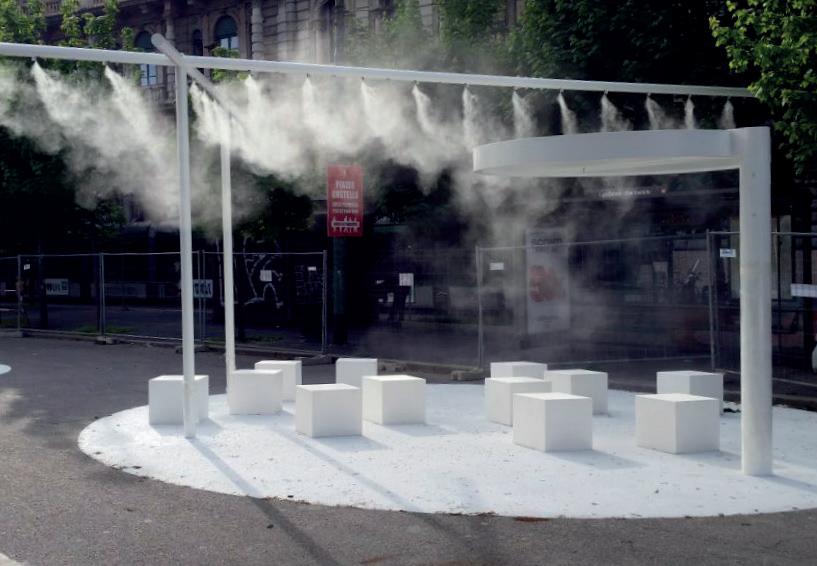

Customized refreshing solutions

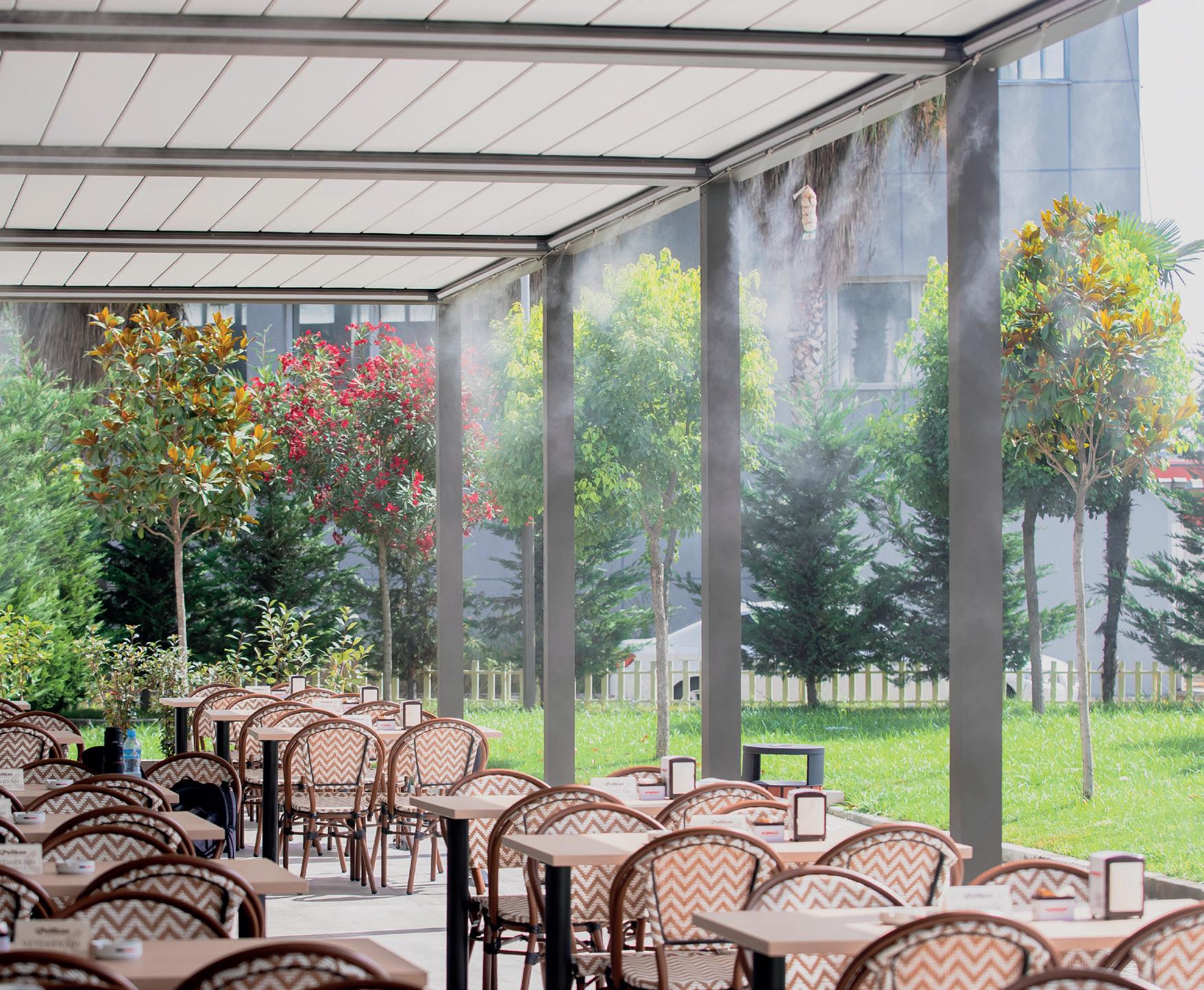

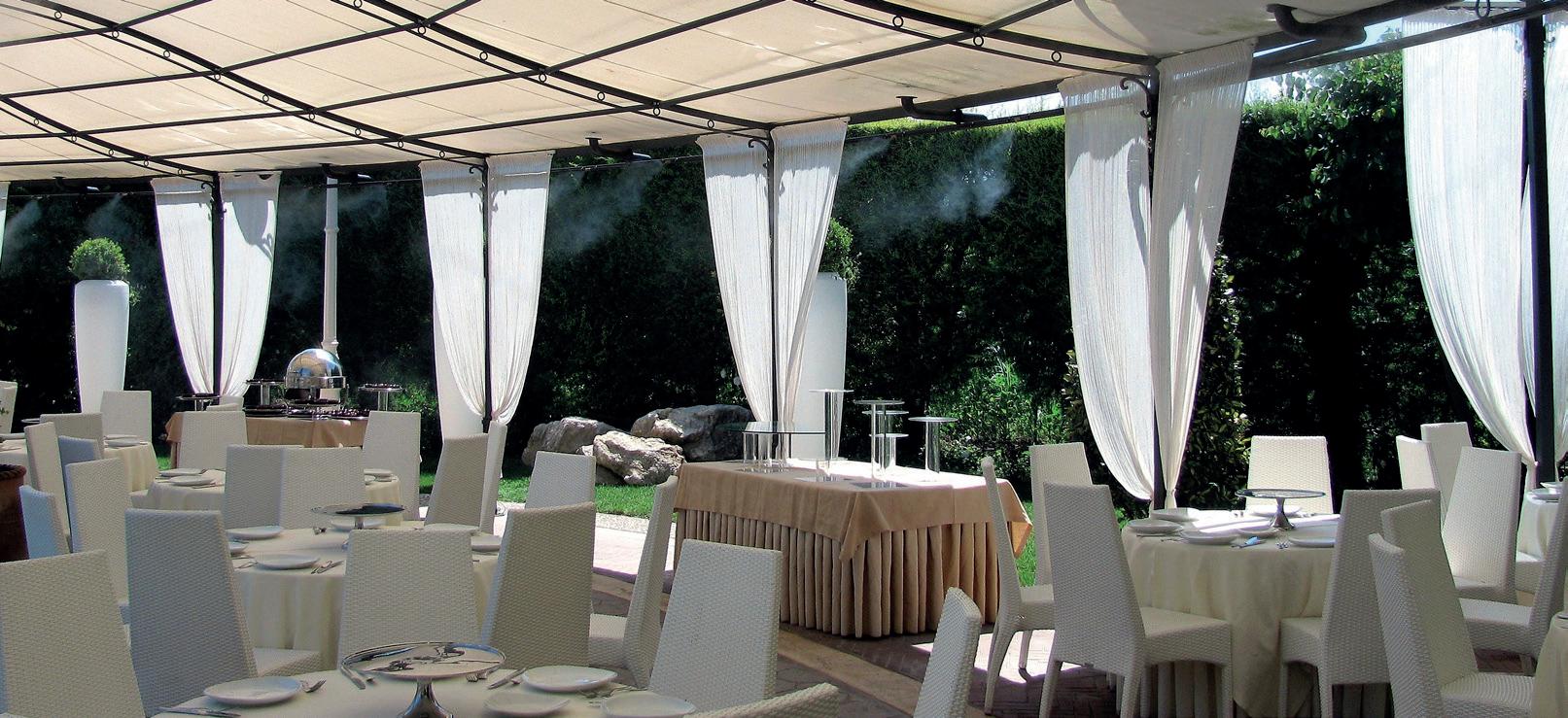

All the systems Vento Kit and Linea Kit nebulize sterilized water, meaning without viruses and bacteria.
Linea Kit Vento Kit

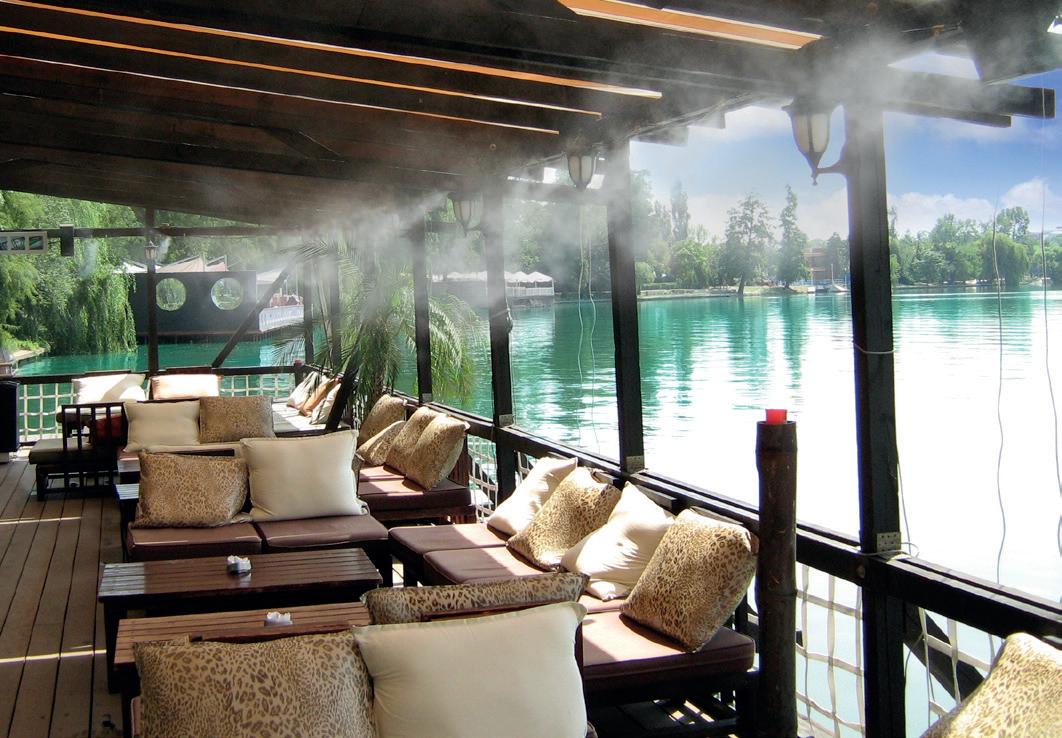

Optimal solution for:
• outdoor gazebos
• verandas
• outdoor walkways

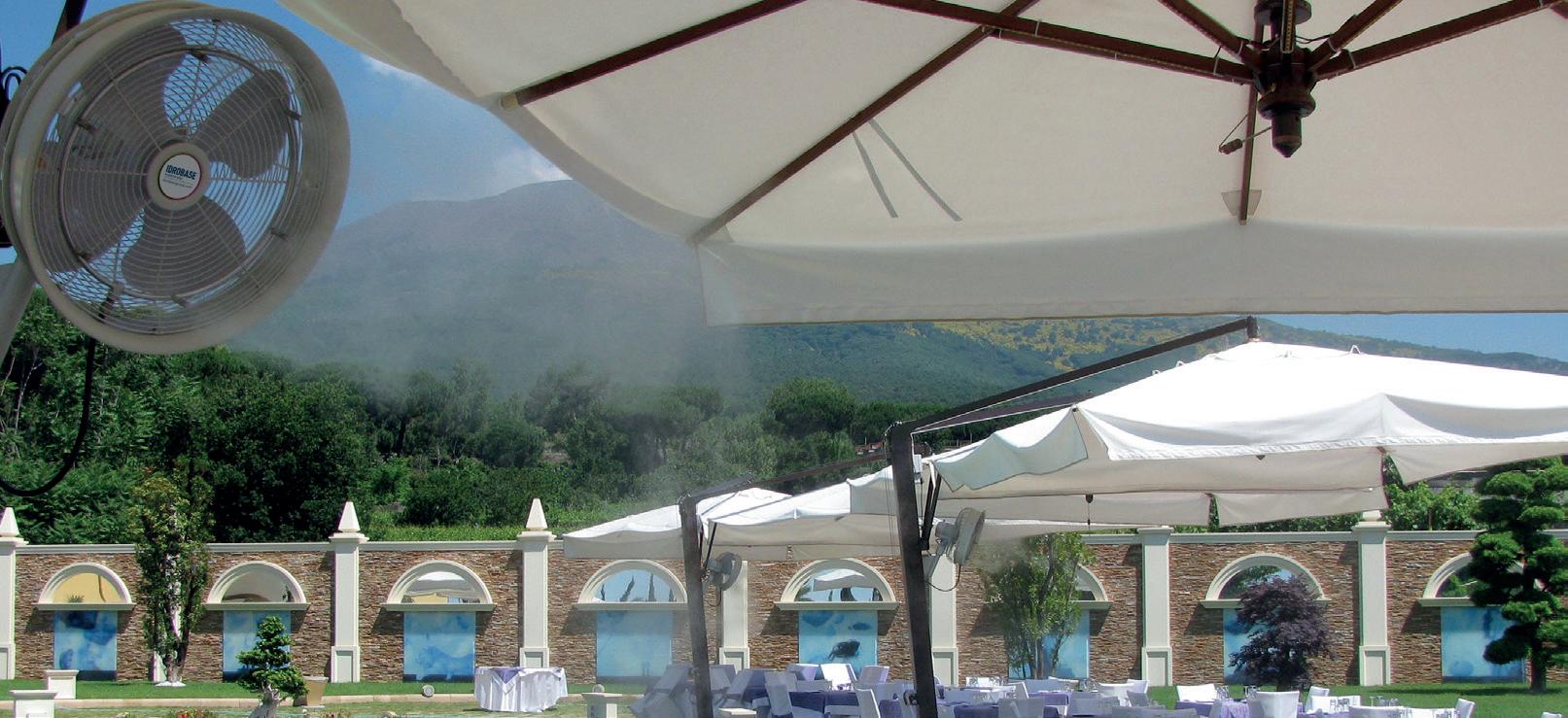

• refreshing systems for outdoor umbrellas
• beach volleyball, futsal/tennis pitches/courts

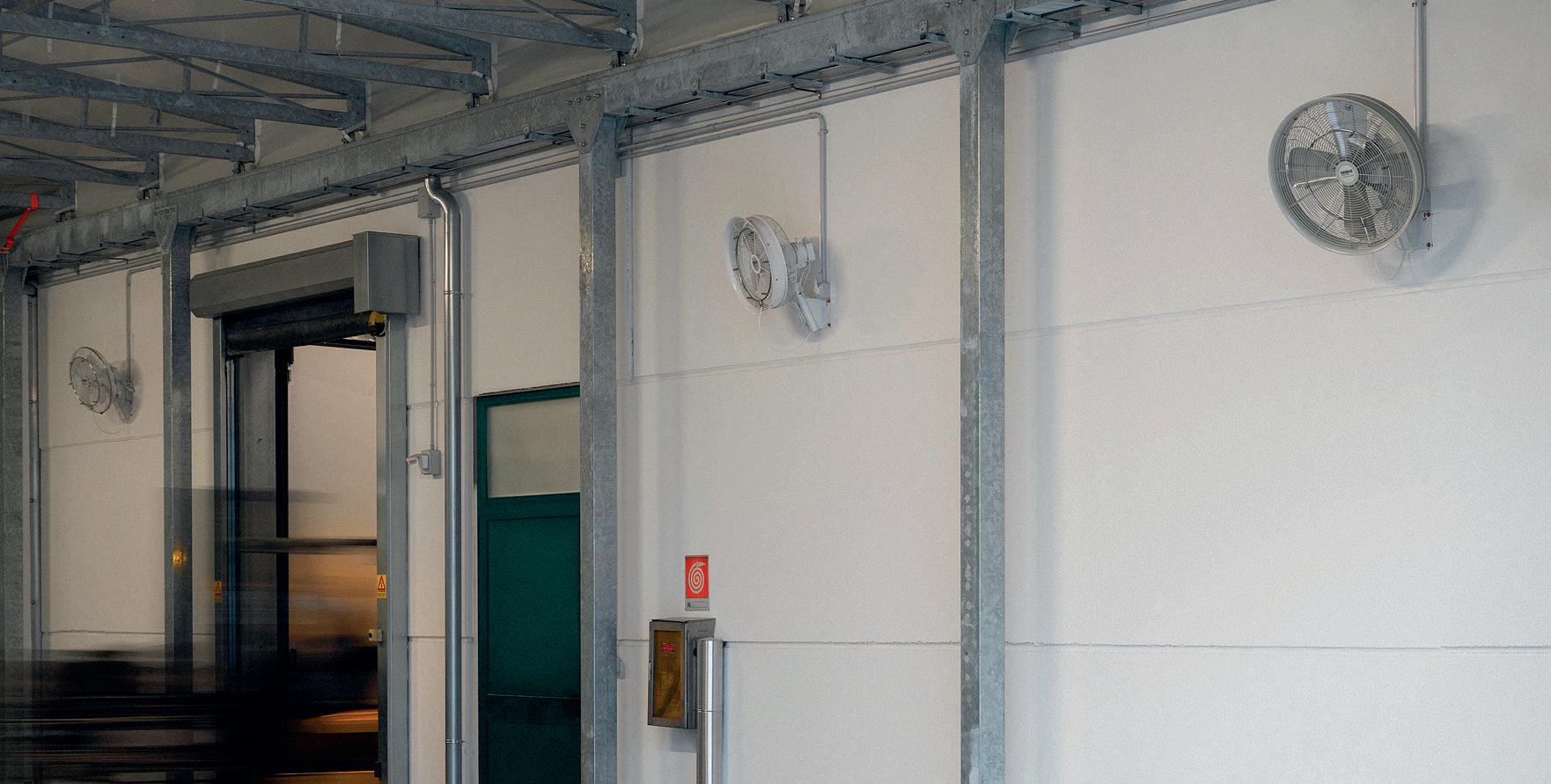

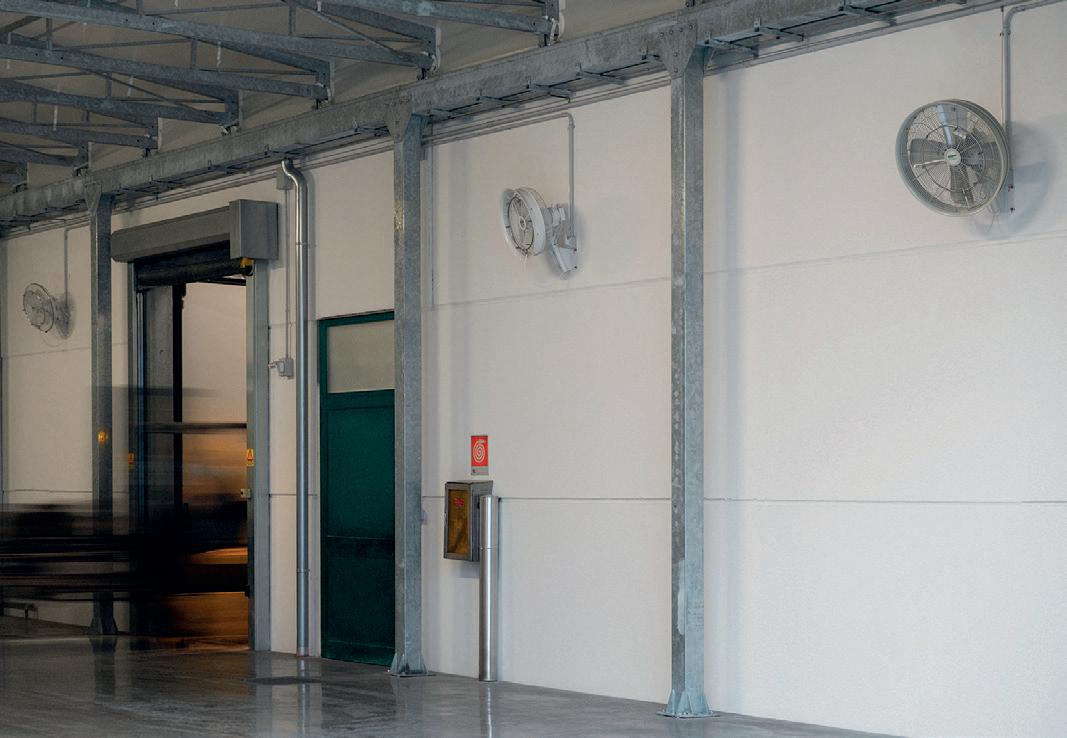

Optimal solution for:
• industrial workshops
• covered outdoor areas of restaurants, bars and bakeries

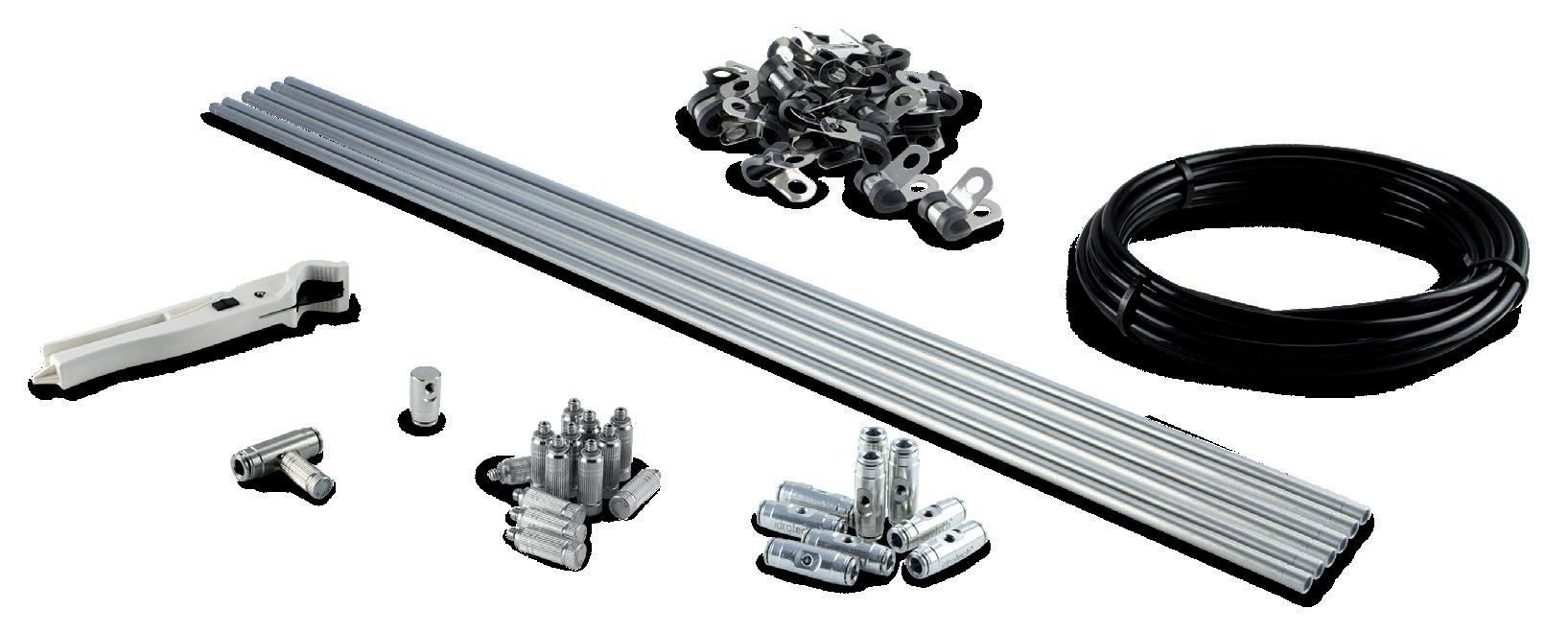

Straight nozzle holder Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm
End of line nozzle holder Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm
End of line for high pressures, with automatic discharge valve, 10/24UNC/2A
Rubberised SS pipe clamp, for polyamide pipe and AISI 304 SS pipe fixing ø6.35mm
Recommended accessory
Emergency kit: 2 cleanable fog nozzles in nickel-plated brass, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread
End of Line Kit: hp + autom.disch.10/24UNC/2A
Linea
ZX.KV2-24
ZX.KV4-24
ZX.KV4-20
ZX.KV6-20
ZX.KV8-20
ZX.KV2-18
ZX.KV4-18
ZX.KV6-18
ZX.KV8-18

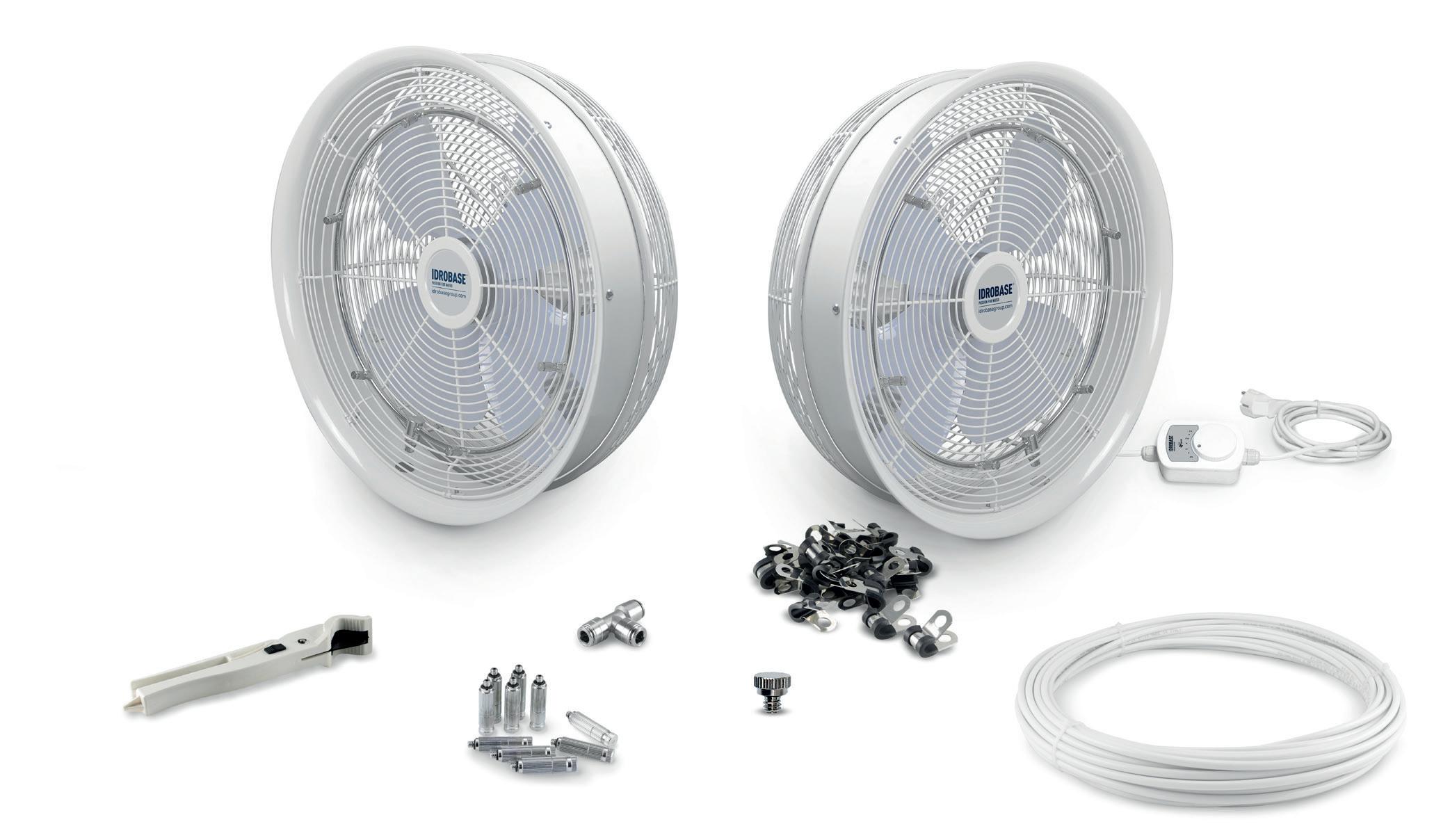

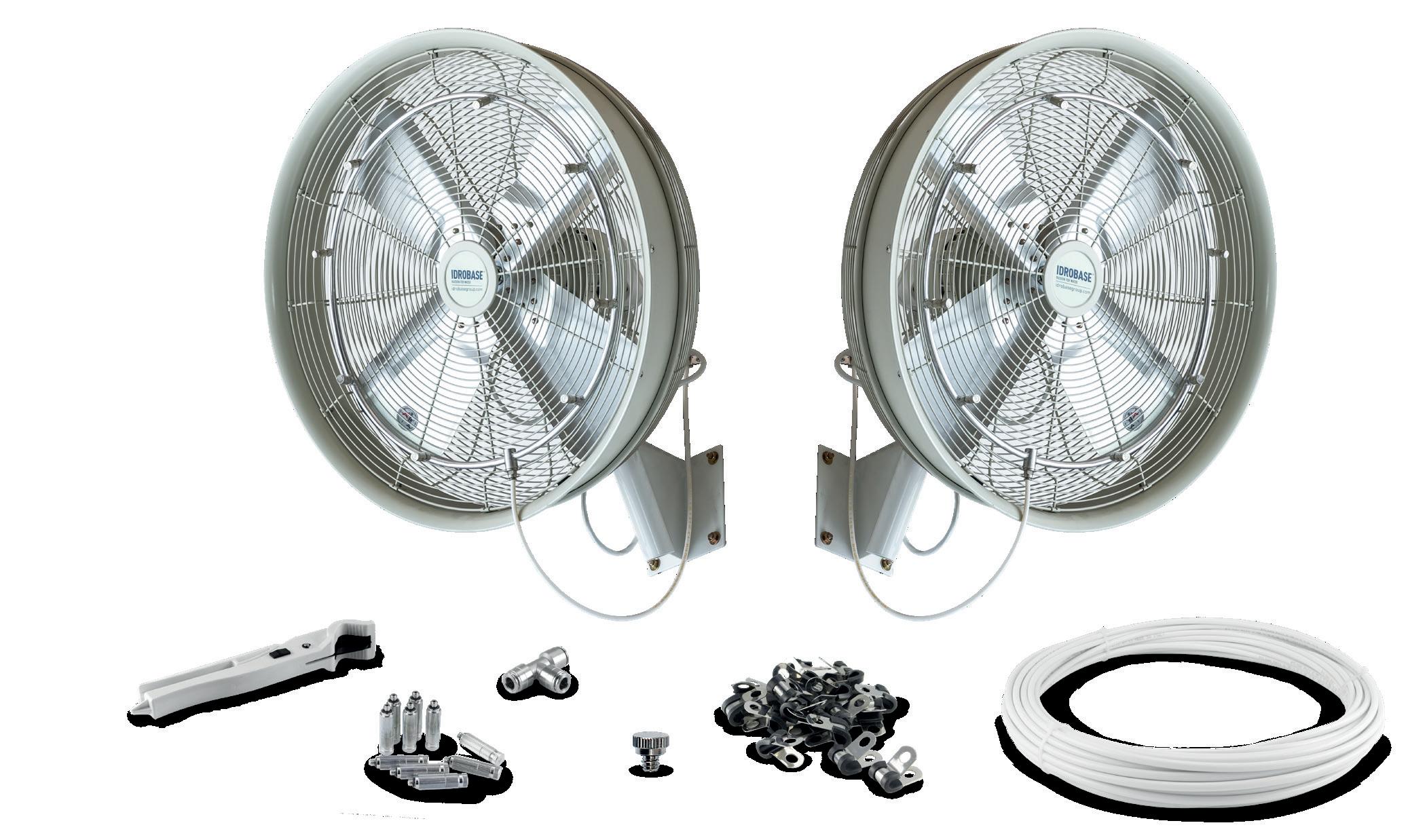

KIT MIST FAN 24"
Vento Kit Composition
Vento Kit Description

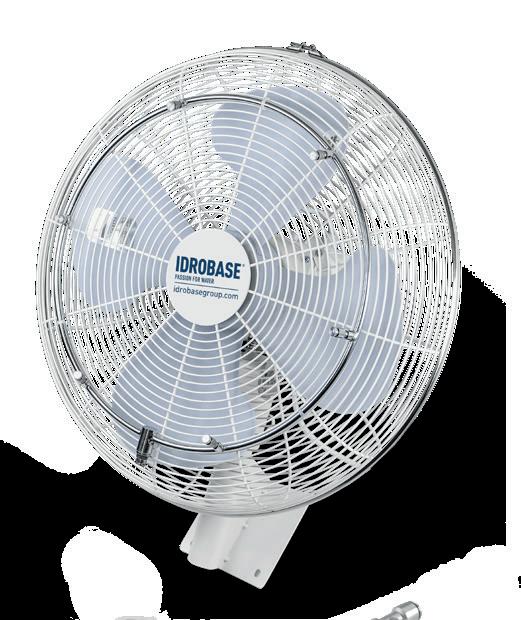

Mist Fan 24”- 58cm 3 speeds, 90° swinging, complete with a wall mounting bracket, white colour, AISI 304 stainless steel nozzle holder ring, 8 holes, power cable length 2.2m. Air flow rate 10.280m3/h, 142W, 230V-50Hz. Coverage 60m2
brass cap 10/24UNC/2A thread
pipe junction Slip-Lock quick coupling, in
Recommended accessory Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread
Example
Vento Kit Compatibility
KIT MIST FAN 20"
For covered areas
Example Vento Kit Composition
Vento Kit Description
Mist Fan 20”- 51.5cm 3 speeds, 90° swinging, complete with a wall mounting bracket, white colour, AISI 304 stainless steel nozzle holder ring, 6 holes, power cable length 2.2m. Air flow rate 2940m3/h, 74W, 230V-50Hz. Coverage 40m2

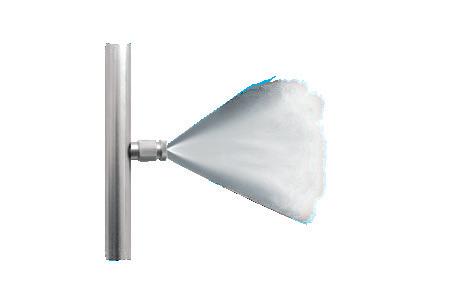

Cleanable fog nozzle in AISI 303 stainless steel, complete with anti-drop valve, 10/24UNC/2A thread, flow factor 015
Nickel-plated brass cap 10/24UNC/2A thread
"Tee" pipe junction Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm
H.p. polyamide pipe ø6.35mm, rolls of 25m, white
Tube cutter for polyamide pipe ø2-12mm
Rubberised stainless steel pipe clamp, for polyamide pipe fixing ø6.35mm
Recommended accessory
Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread
KIT MIST FAN 18"
Example Vento Kit Composition
Vento Kit Description
For covered areas
Mist Fan 18”- 46cm, 3 speeds, complete with wall mounting bracket, AISI 304 stainless steel nozzle holder ring, 6 holes, pre-set for mounting on wall, swinging 90°, colour white, length of power cable 2.2m. Air flow rate 9000m3/h, 125W, 230V-50Hz. Coverage 50m2
Cleanable fog nozzle in AISI 303 stainless steel, complete with anti-drop valve, 10/24UNC/2A thread, flow factor 015
Nickel-plated brass cap 10/24UNC/2A thread
"Tee" pipe junction Slip-Lock quick coupling, in nickel-plated brass, ø6.35mm
H.p. polyamide pipe ø6.35mm, rolls of 25m, white
Tube cutter for polyamide pipe ø2-12mm
Rubberised stainless steel pipe clamp, for polyamide pipe fixing ø6.35mm
Recommended accessory
Emergency kit: 2 cleanable fog nozzles in AISI 303 stainless steel, 1 pipe "tee" junction Slip-Lock quick coupling, 1 Slip-Lock line end cap, 2 rubberised stainless steel pipe caps, 1 cap with 10/24UNC/2A thread

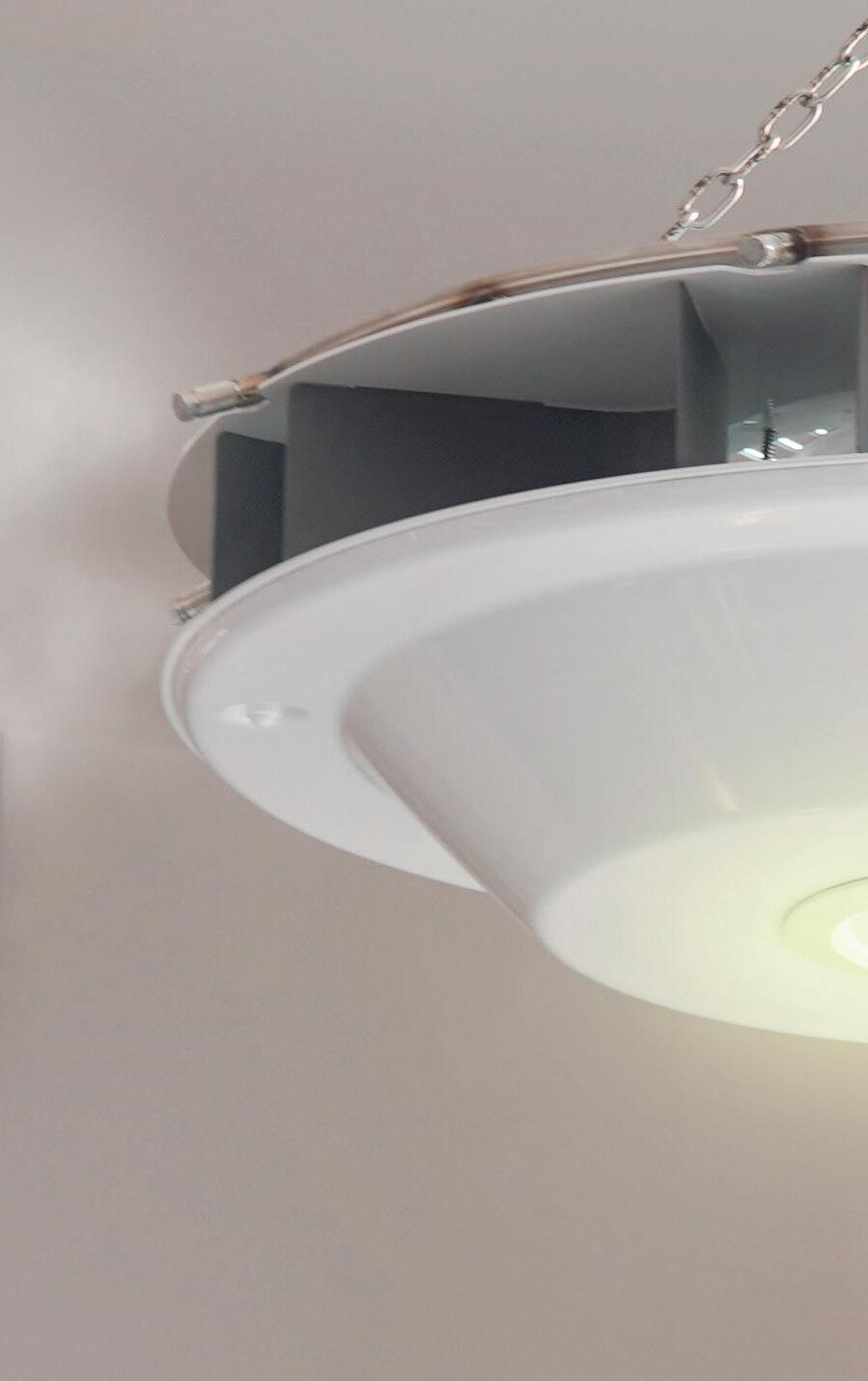

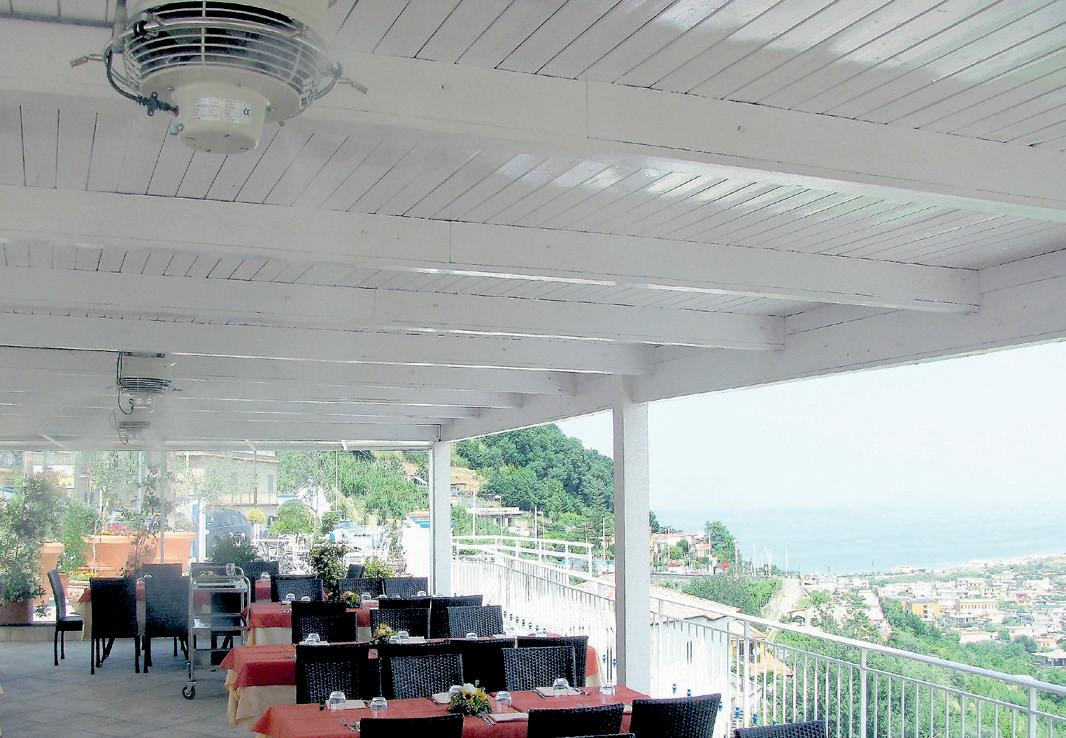

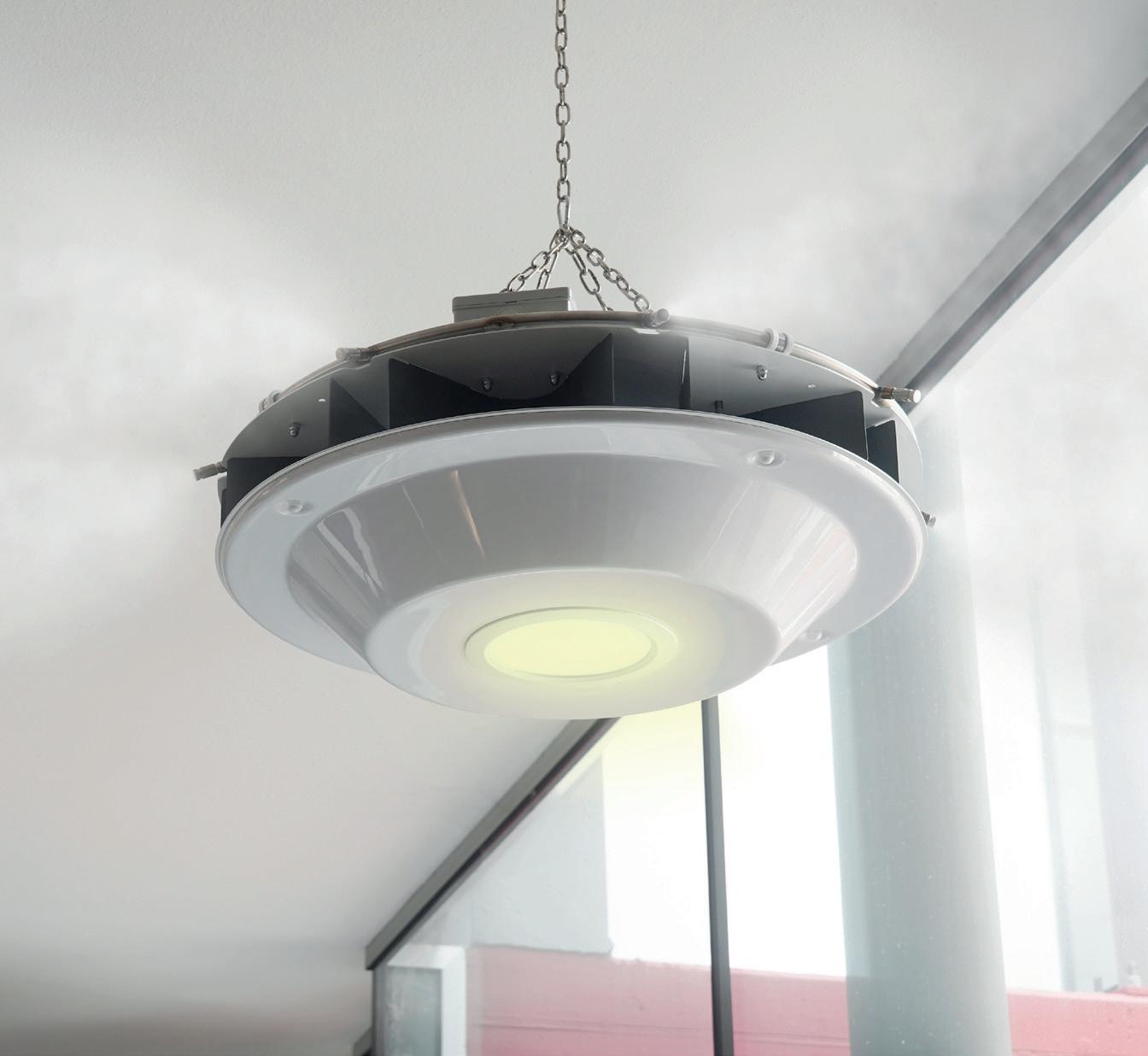

KIT FAN 360° PANORAMA LED
For covered areas
Panorama LED 360Cooling
Example Vento Kit Composition
Vento Kit Description

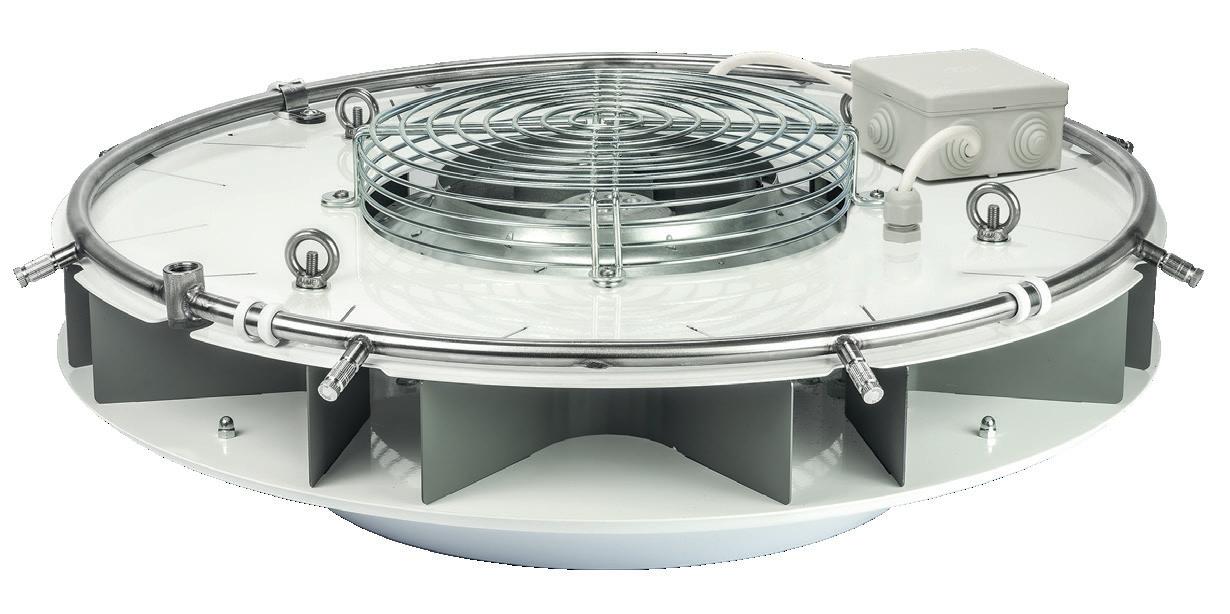

Fan 360° Panorama Led. Single speed, pre-set for ceiling mounting, complete with holder ring for 8 nozzles, colour white, air flow rate 600m3/h, 100W, 230V-50Hz.
Recommended accessory
:

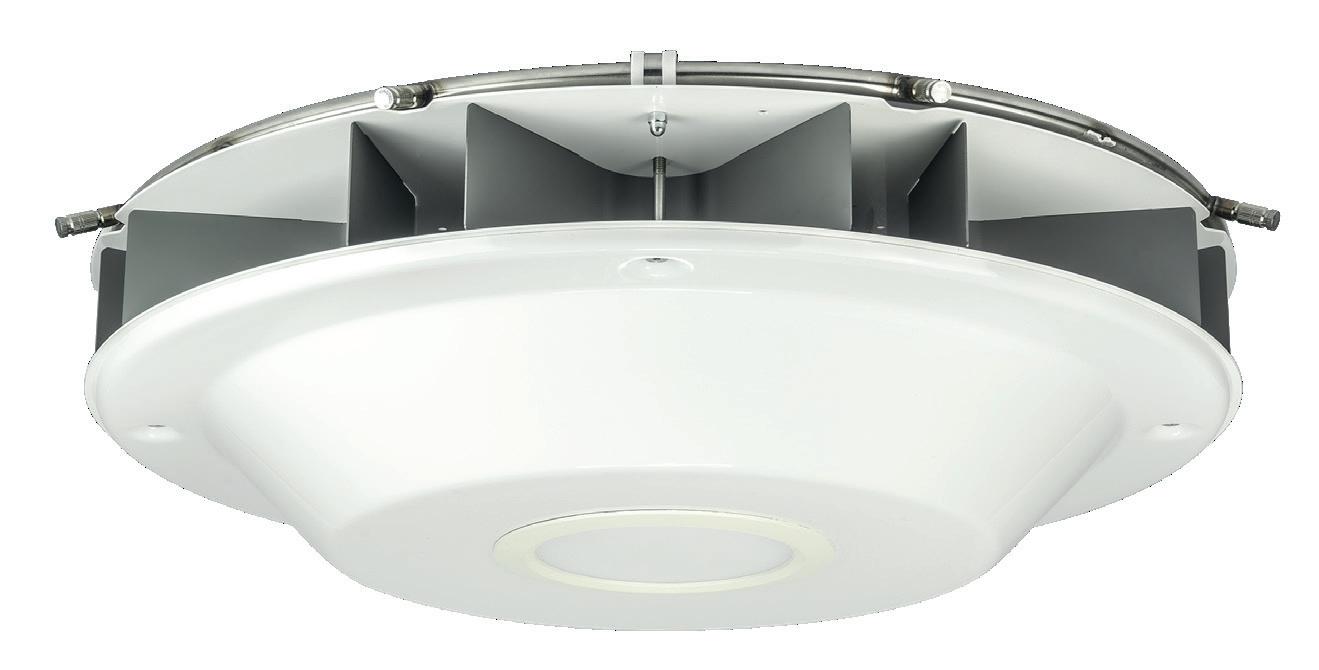

FAN 360° PANORAMA LED
Fan 360° Panorama Led

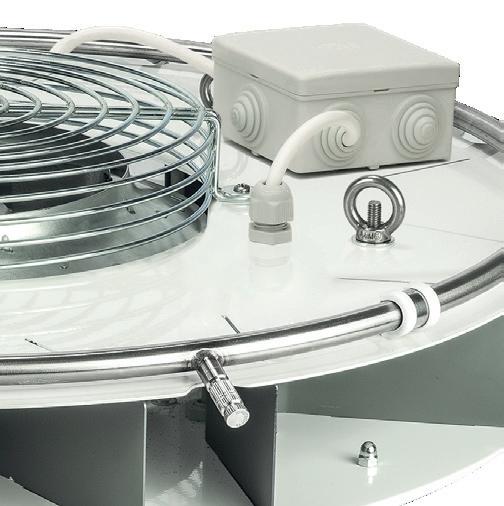

Fan 360° Panorama Led has been designed to nebulize high pressure water combined with 360° radial ventilation; equipped with LEDs for lighting.
Ideal for cooling, humidification and dust suppression.
Technical features
ZX.5007-L
Ideal for:

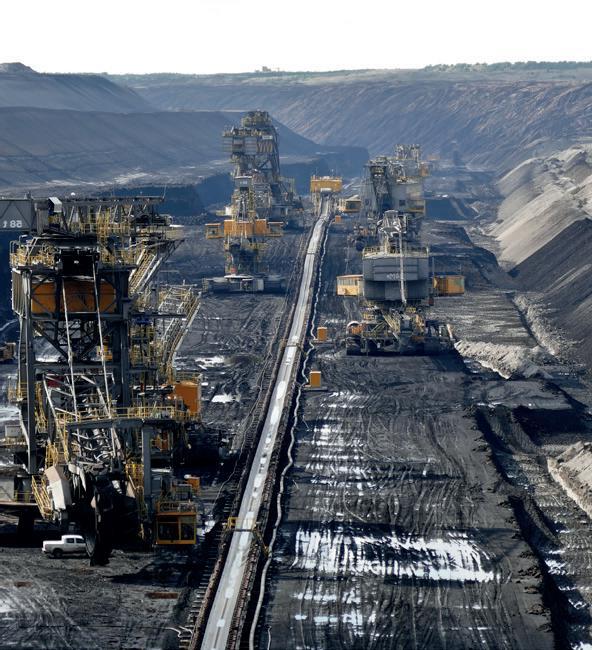

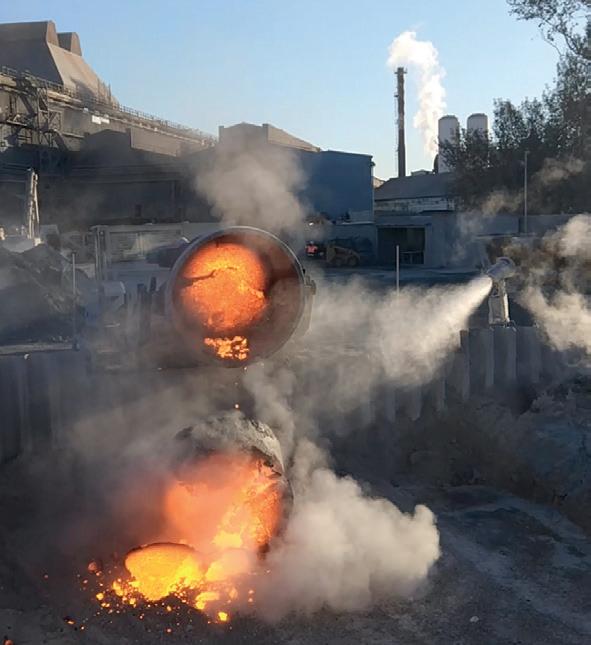

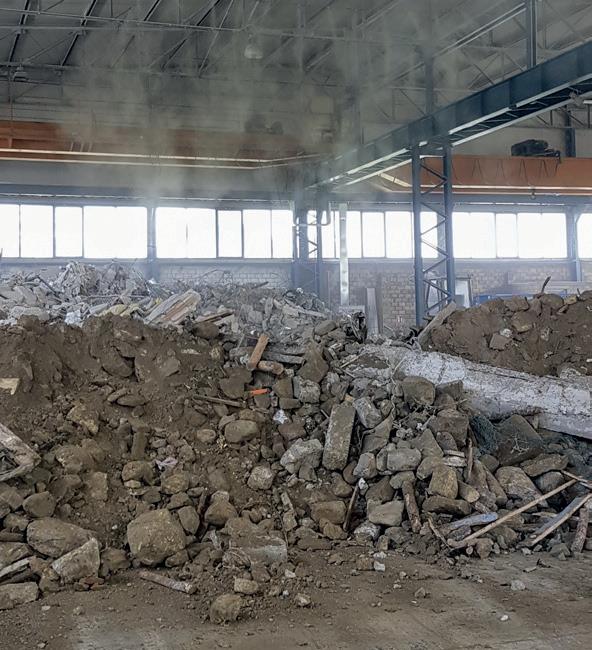

Dust suppression Cement plants, construction sites Code
Cools Terraces/patios, gazebos, bars/restaurants
Regulates humidity Paper mills, printing, weaving
Technical features
• Epoxy powder: coated steel
• Protection rating: IP54
• Ring max. operating pressure: 70bar
• Operating temperature: 5-40°C
• Nebulizing ring: AISI 304 stainless steel ring
• Nozzles set-up: 8x10/24 UNDC
• Nozzles: 8x2 - 0,5 l/min
• Fan diameter: 580 mm
• Air flow rate: 600 m3/h
• Maximum coverage: 95 m2
• Fan jet: 5,5 m
Illumination
• Type: Led
• Power: 12W
• Brightness: 1020lm
• Power supply: 220V
• Lighting angle: 120°

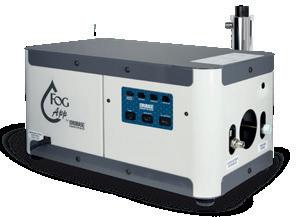

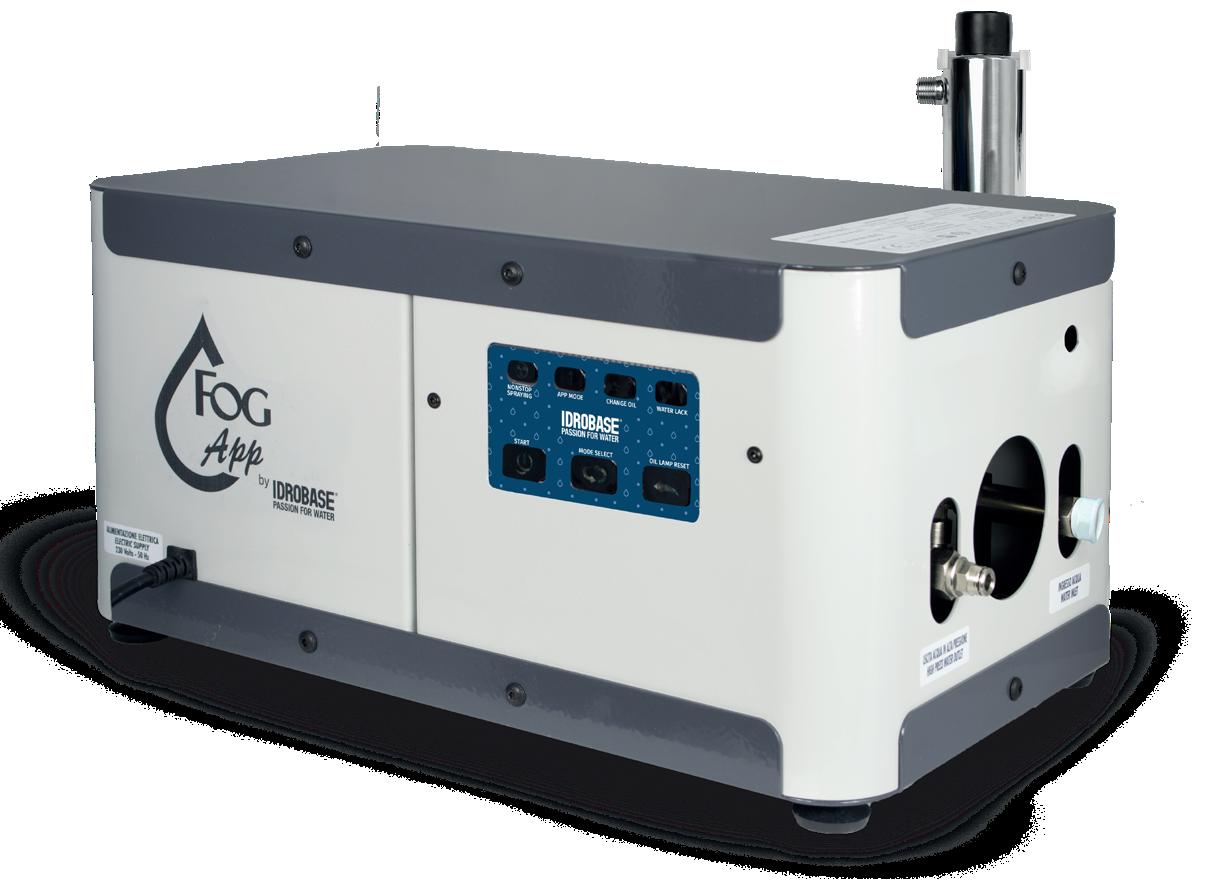

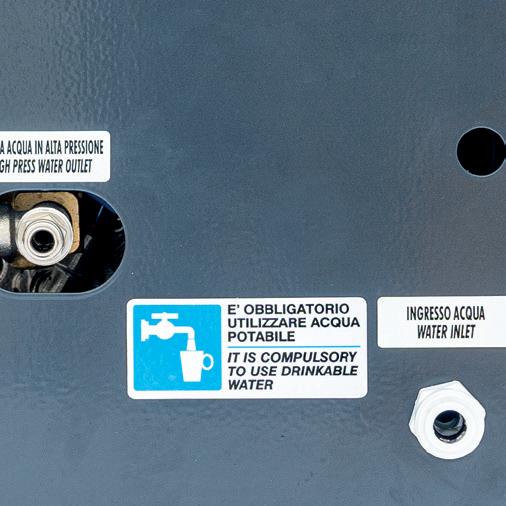

Fog module 60bar 230V-50/60Hz

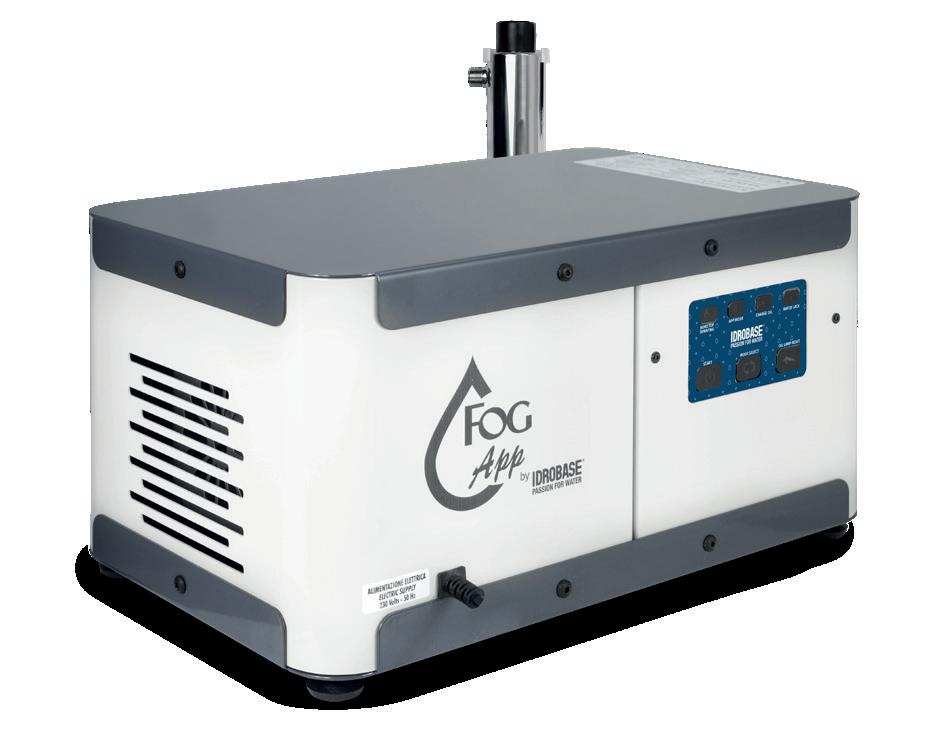

Fog App: the new solution for refreshing outdoor areas via smartphones
Fog App: what does this fog module do?
Considerably reduces the
Simple and effective
Fog App is the smartest solution for domestic use. The system can be connected to both ventilation and in-line cooling systems and can be controlled conveniently from the application via a smartphone
Water supply kit UV water sterilizer lamp (included)
Technical features
Code Model
ZX.FA2.0
Axial pump with 3 ceramic pistons, head in nickel-plated brass, integrated bypass valve, electric motor 1300Rpm
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 60bar
FOG APP is compatible with:
Linea kit
ZX.KL30 e ZX.KL40 Kit Vento
ZX.KV6-20, ZX.KV8-20, ZX.KV6-18, ZX.KV8-18, ZX.KV6-360, and ZX.KV4-P
INCLUDED
Pump maintenance set 500hours
Fog App control panel
Mode
System ON/OFF
App mode activation light
Simple mode to select:
- operation time:
- up to max 4 time slots
- work/pause time: with min work time of 3s and min pause time of 15s
- work/pause time: customised for each time slot with min work time of 3s and min pause time of 15s
- Manual mode selection or Bluetooth activation for smartphone control
- Alarms reset for maintenance

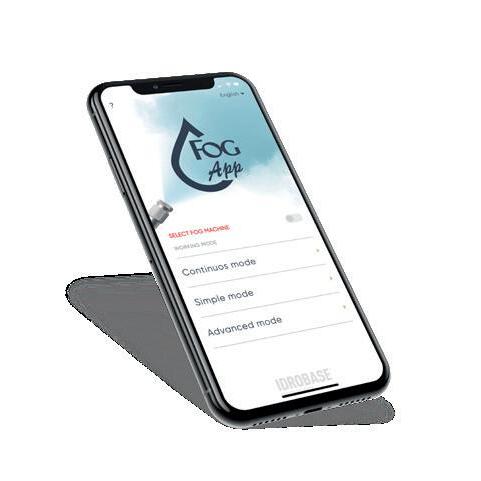

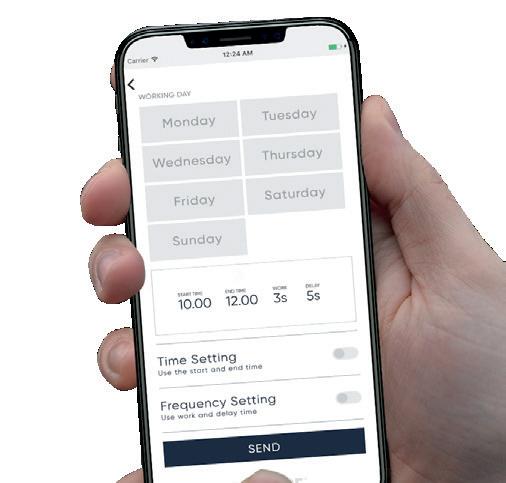

• Possibility to manage 3 different modes via the app:
- Nonstop: the Fog module works in continuous mode
- Simple mode: selection of days of the week, selection of max 4 time slots, work/pause time selection with min 3s work time and min 15s pause time
- Advanced mode: selection of the days of the week, selection of max 20 time slots, selection of work/pause times customised for each time slot with min 3s work time and min 15s pause time
Dimensions WxLxH: 415x250x215mm
UV water sterilizer lamp (included)

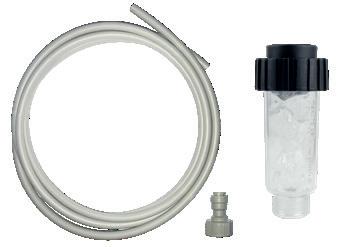

Water inlet kit complete with pressure stabilizer (included)
Considerably reduces the temperature Keeps mosquitoes away

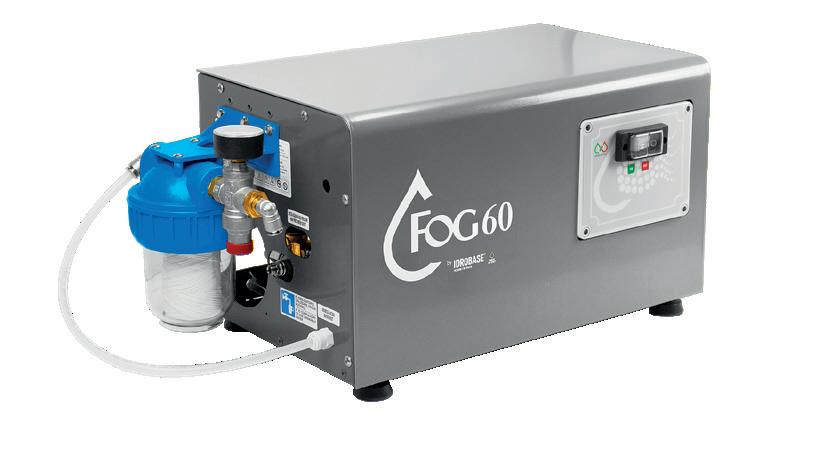

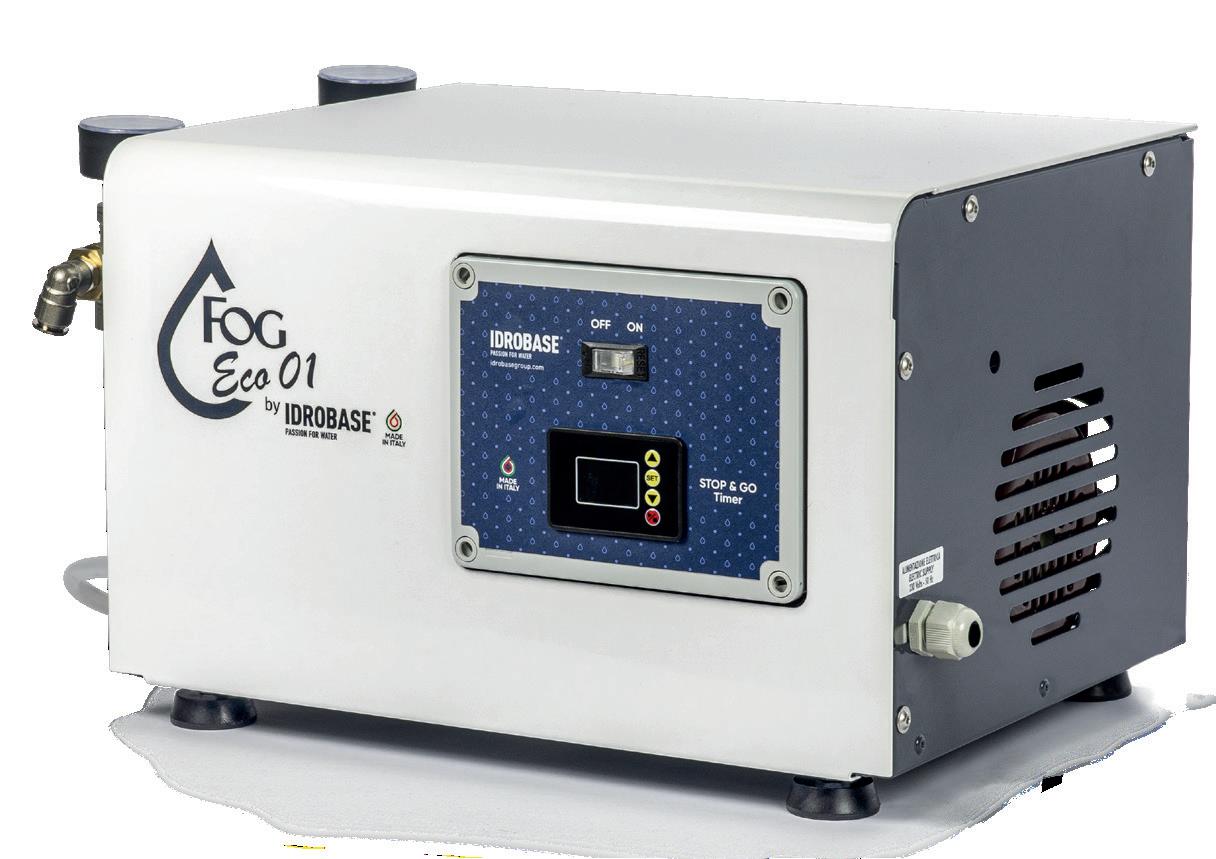

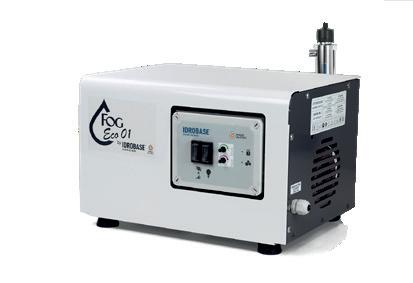

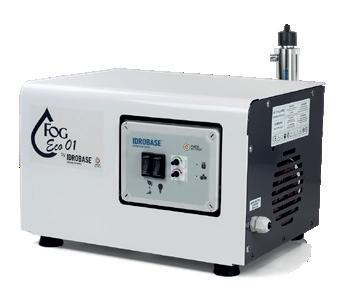

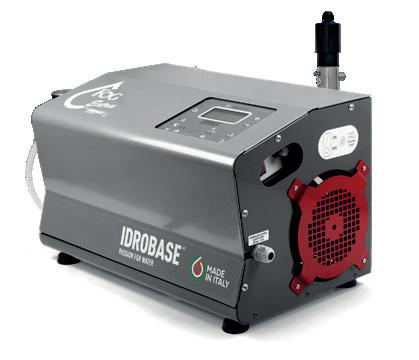

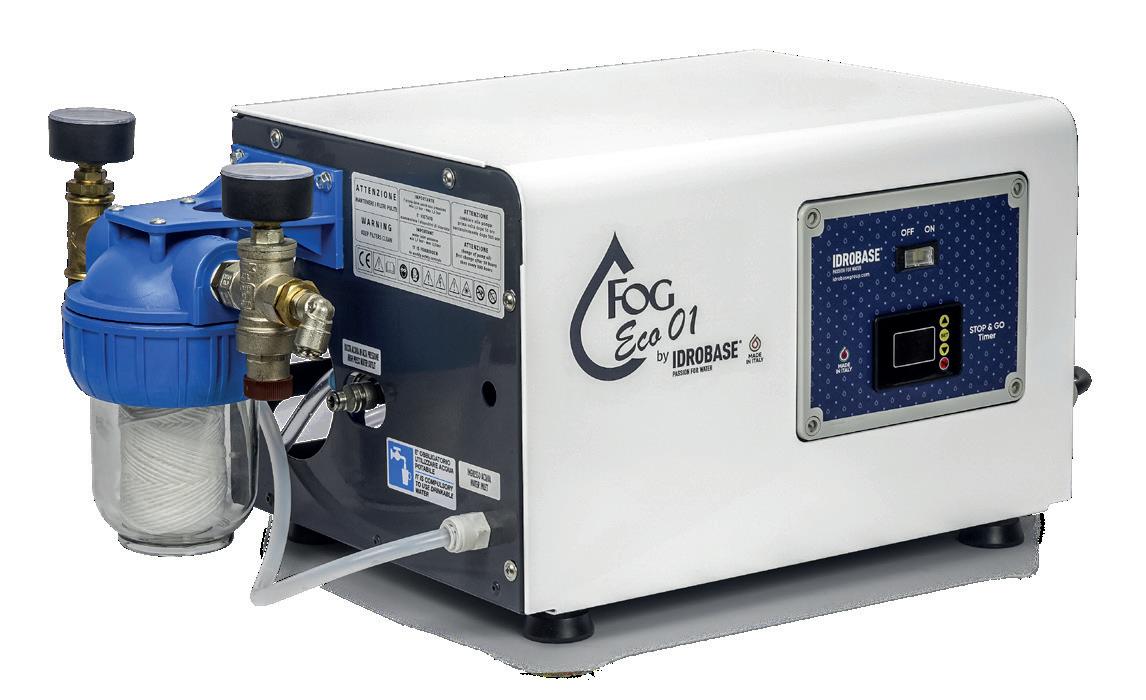

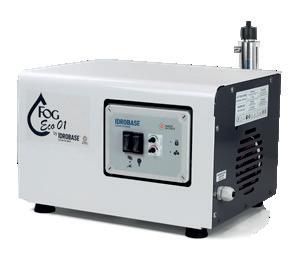

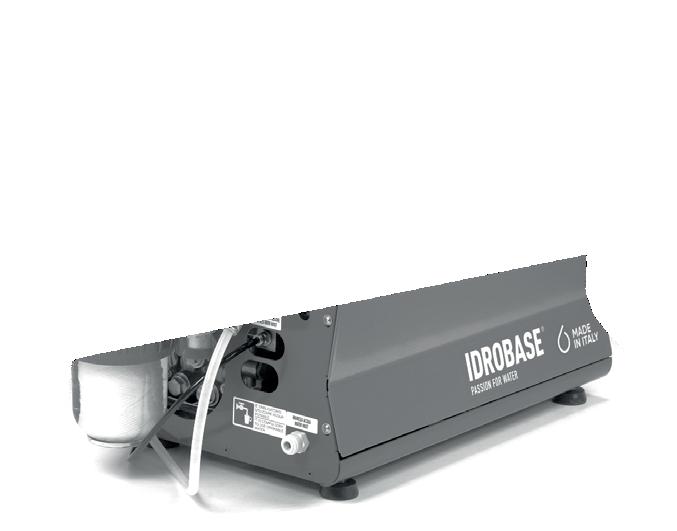

Fog module 60bar 230V-50Hz
Compact and versatile
The most compact and versatile solution for cooling, creating fog effects and humidifying small and medium sized areas. Equipped with an integrated analog timer, it allows to optimize system performance even in adverse environmental conditions. Slip-Lock connectors for
Silent working
Nebulizes sterilized water
Technical features
ZX.5095-D
ZX.5090-D
*The max number of nozzles has been calculated by using a nozzle with flow rate factor 15 (0.047l/min) at 60bar **230V/60Hz and 110V/60Hz versions available upon request
FOG ECO is compatible with:
Linea Kit
Vento Kit
ZX.KL10 and ZX.KL20
ZX.KV2-20, ZX.KV4-20, ZX.KV2-18, ZX.KV4-18 and ZX.KV2-P
INCLUDED
Pump maintenance set 500hours
Optional
WiFi socket for ON/OFF control by smartphone

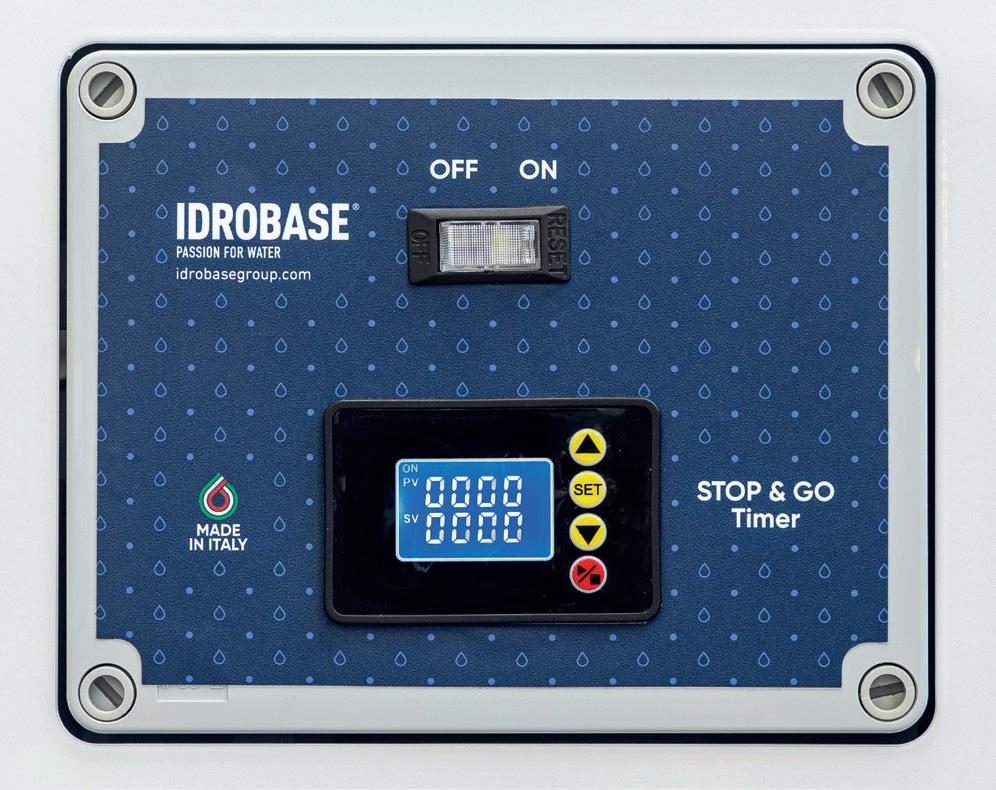

Fog Eco controls
Technical features
• Frame made of painted steel
Axial motor pump with two ceramic pistons 0.5 and 1l/min complete with by-pass valve
• Electric control panel - with pre-settings ON-OFF 0-60”
Solenoid valve high pressure for pressure discharge
• Pressure switch- low pressure no water supply

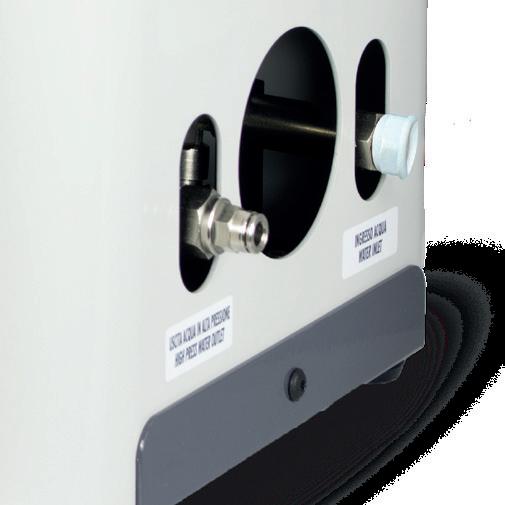

• Slip-lock inlet ø9.6mm
• Outlet, Slip-Lock ø6.35mm
Dimensions LxDxH: 450x300x280mm
ZX.2373
(included)
Water inlet kit complete with pressure stabilizer (included)

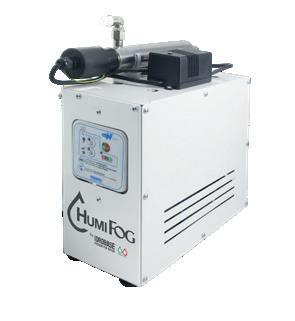

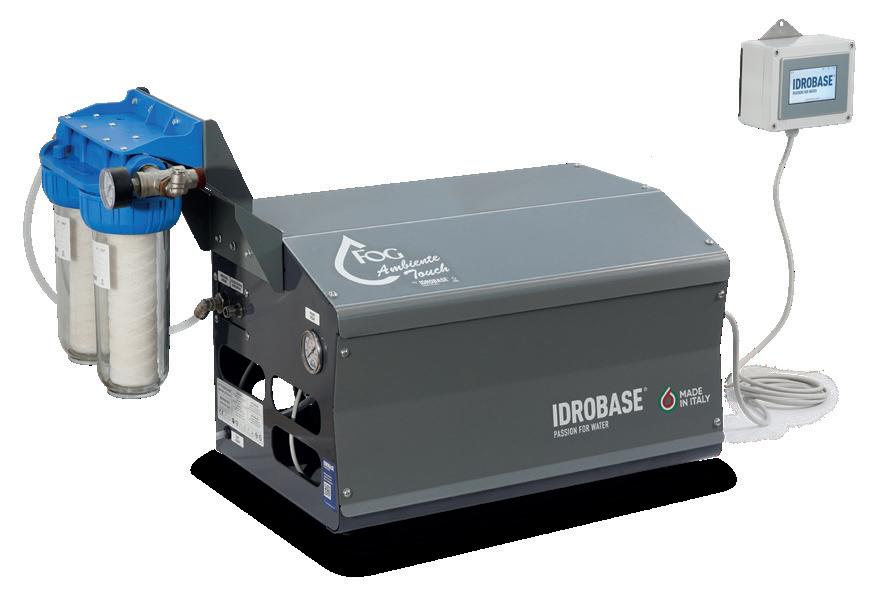

• Simple and compact
• Electronic control panel with built-in thermostat and humidstat
• Pre-setting for humidity and temperature probes
• System can be activated remotely

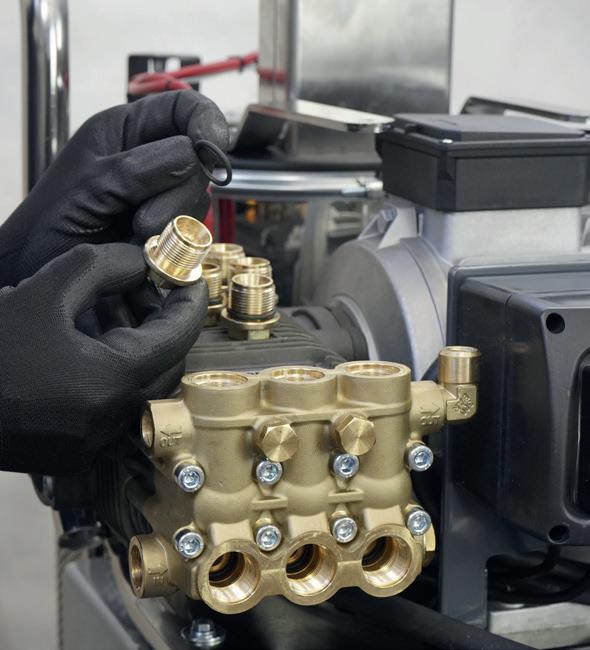

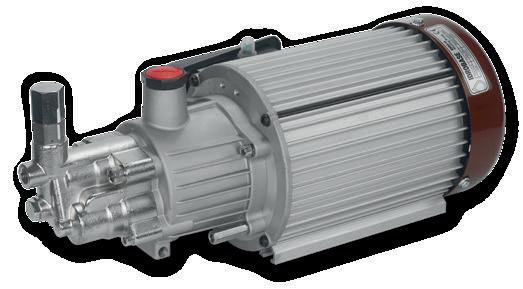

Three-piston axial pump with ceramic pistons, nickel-plated brass head, and integrated by-pass valve. (for 2,2, 3,6 and 4,8l/min flow rate versions)

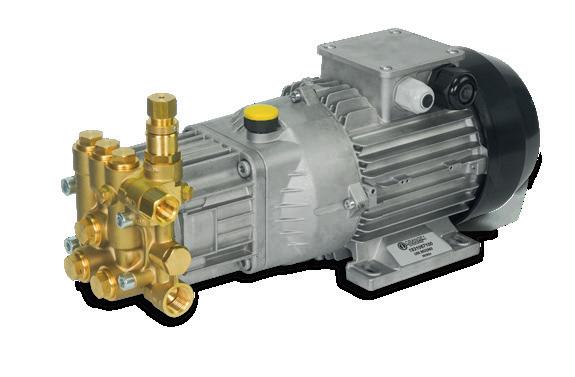

IDRO9 pump Old pump
Old pump VS new IDRO9 pump
UV water sterilizer lamp
Axial pump with 2 pistons
ZX.FX-05
ZX.FX-1
Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar
** 230V/60Hz and 110V/60Hz versions available upon request
Axial pump with 3 pistons

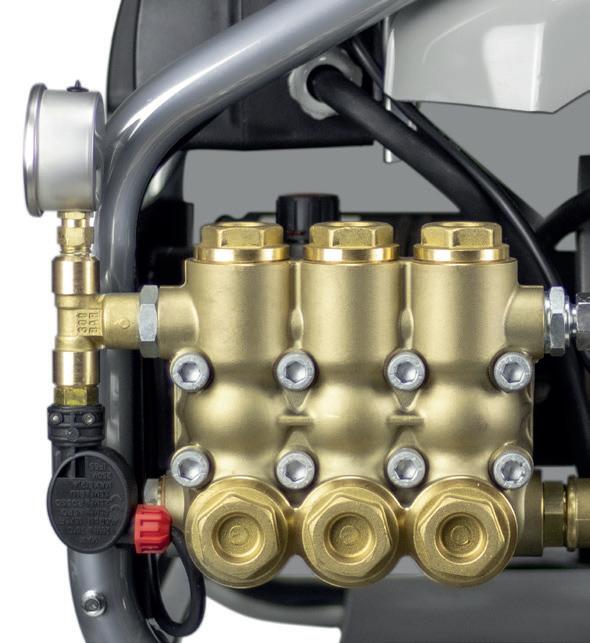

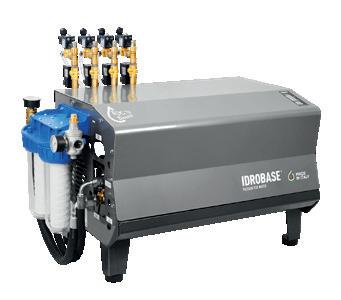

IDRO9 pump
ZX.FX-2.2
ZX.FX-3.6
ZX.FX-4.8
2.0-4.8
Axial motor pump with three ceramic pistons, nickel-plated brass head, integrated by-pass valve
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar
INCLUDED
Pump maintenance set 750hours

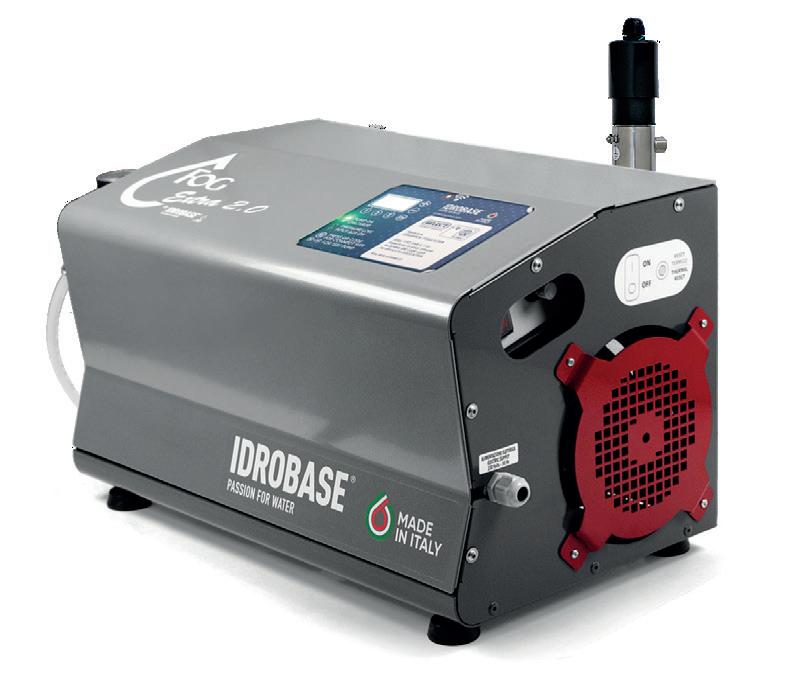

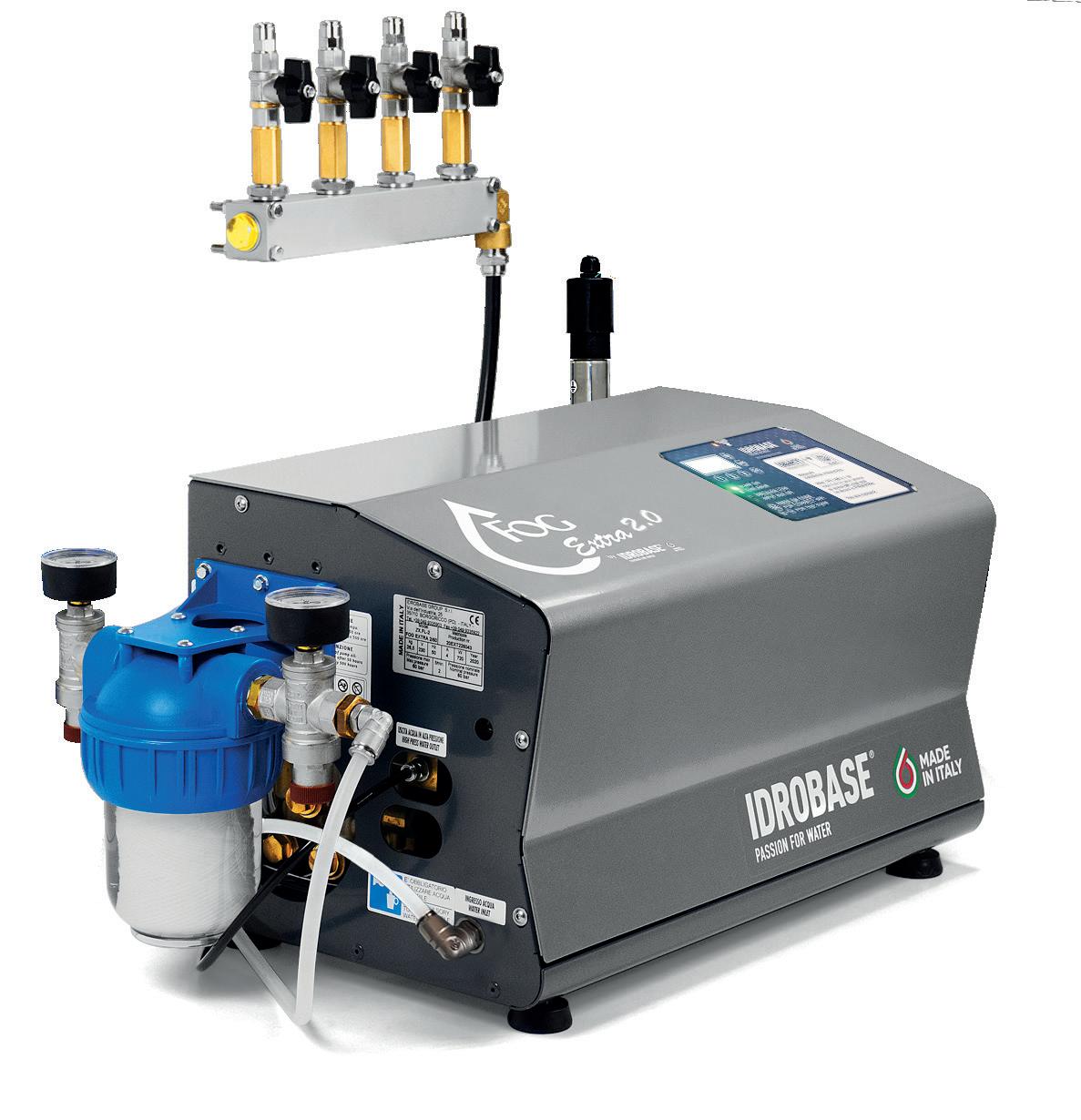

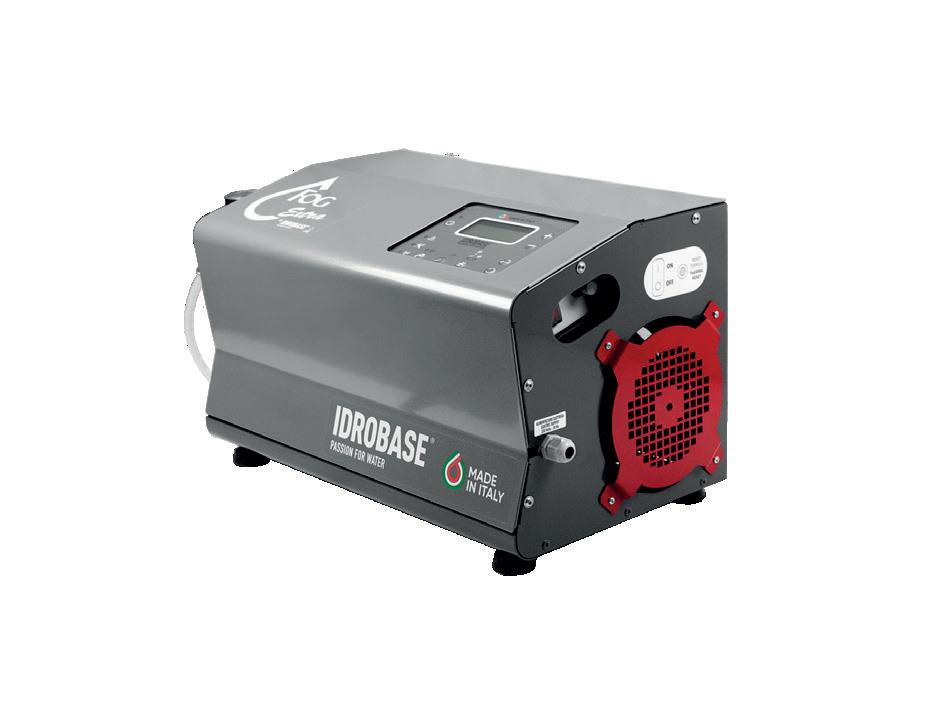

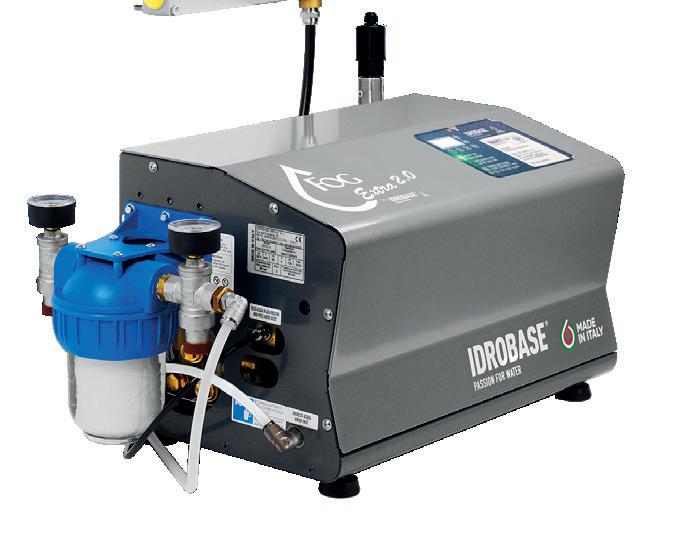

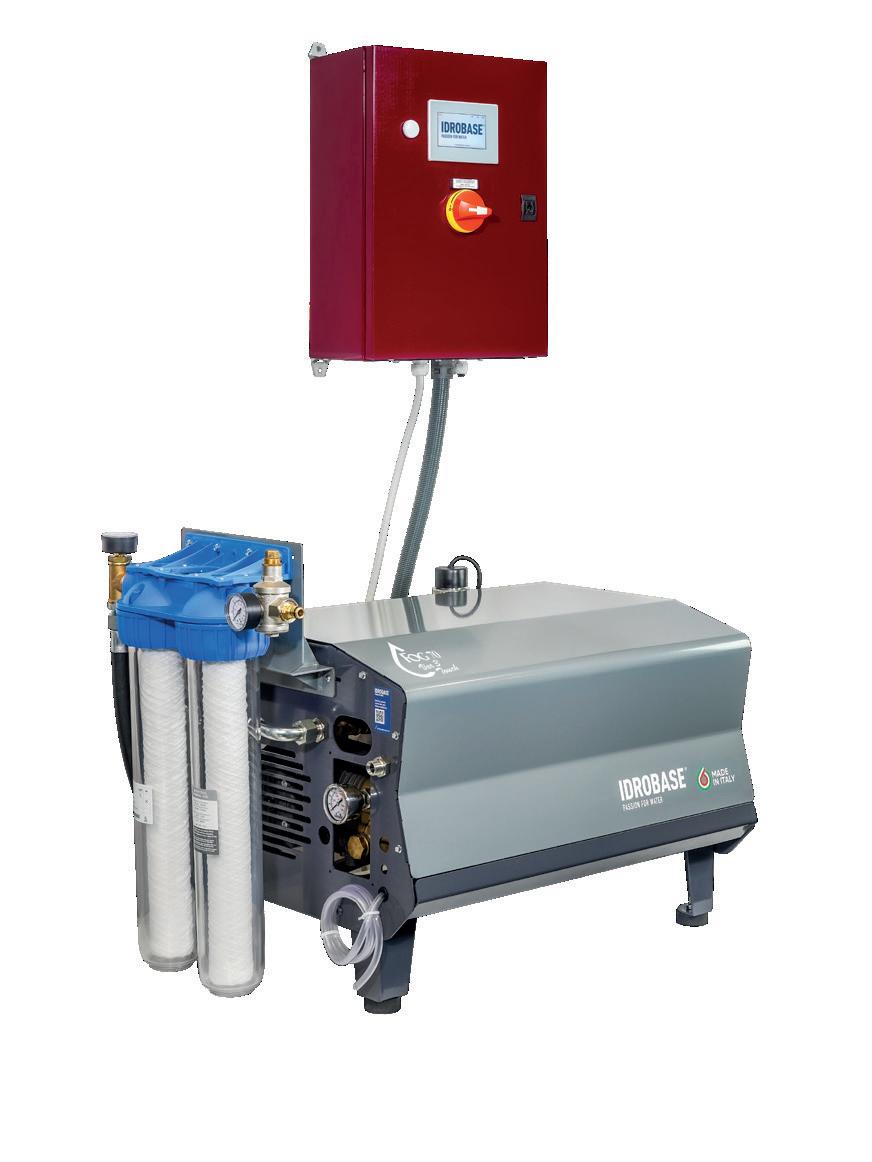

Control panel Fog Extra 2.0
• Graphic display
• 5 operating modes
Temperature setting
• Humidity setting
• On/Off timer
Hourly/weekly calendars

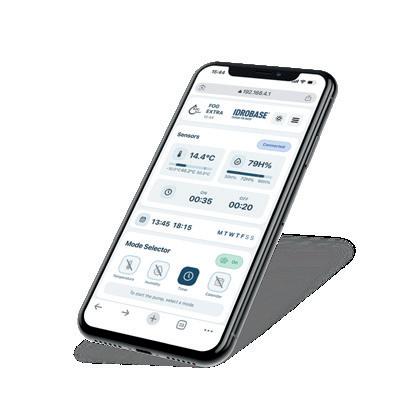

• App access via QR Code
Third language setting
Technical features
• Frame made of painted steel
• Built-in unloader valve
• L.p. solenoid valve 230V-50Hz, inlet water
H.p. solenoid valve 230V-50Hz, to discharge line pressure
• Electrical panel complete with:ON/OFF thermal cutout, electronic board for management of anti-drip and timer system
• Slip-lock inlet ø9,6mm Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2,2l/min), ø9,6mm (for versions 3,6 and 4,8l/min)
Maintenance check
• Integrated Wi-Fi antenna
• Battery-powered clocks
Aux input
• Programmable drain time
• Programmable water shortage time
Possible expansion via ModBUS
• H.p. switch for no water supply and pipe breaks
• Dimensions WxLxH: 600x300x300mm
COOLING ACCESSORIES

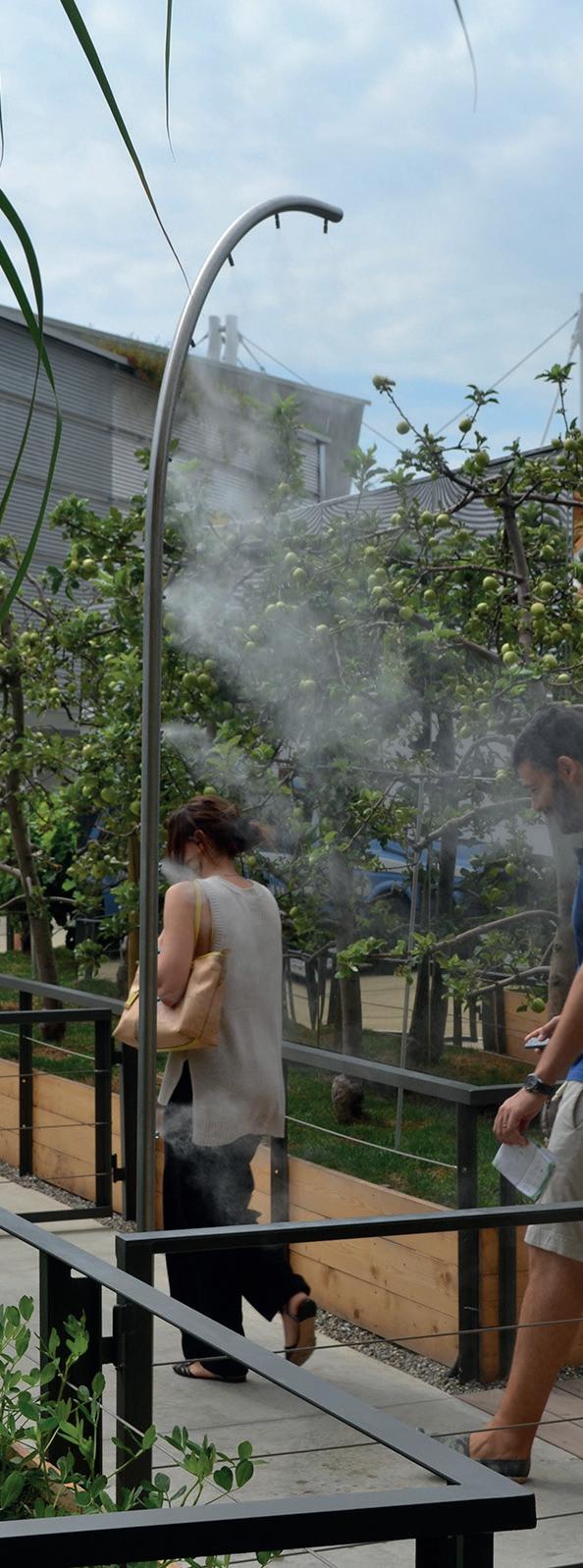

Stelo Rinfrescante
Refreshing accessory with pre-drilled AISI 304 stainless steel structure, complete with 8 fog nozzles with 0.15mm holes with anti-drip system. With underground connections and ground fixing of the structure.
Straightforward, quick installation, no special tools required.
The pipe junction connectors are made of AISI 304 SS and are equipped with compression fitting and a Slip-Lock connector to accommodate a high pressure polyamide pipe (max 60bar) ø9.6x5mm. They must be connected to a nebulisation system
STELO RINFRESCANTE 60bar 0,5l/min 89 x 89cm
Number of accessories for each module Pumping modules
ZX.6002
ZX.6002
Ø 300 mm
35 mm
Code Description

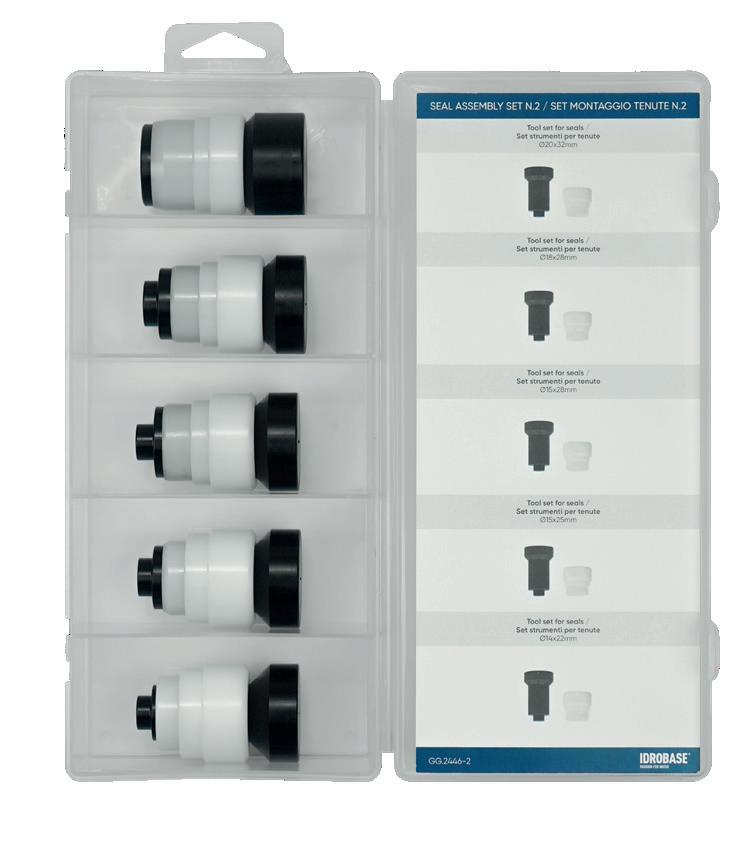

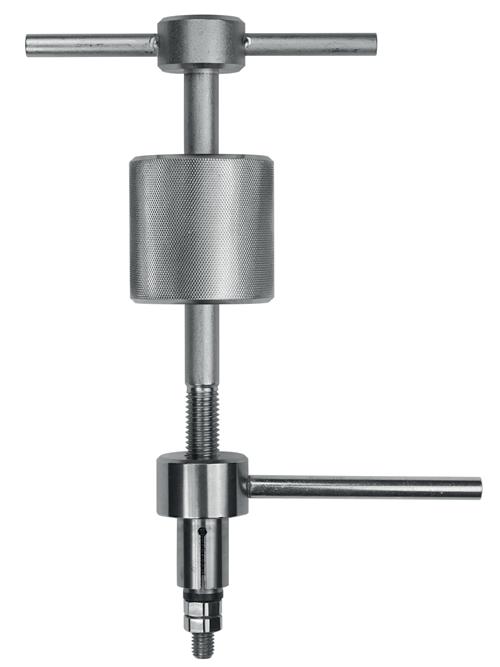

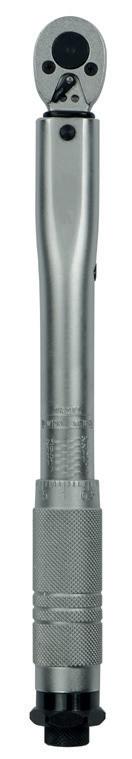

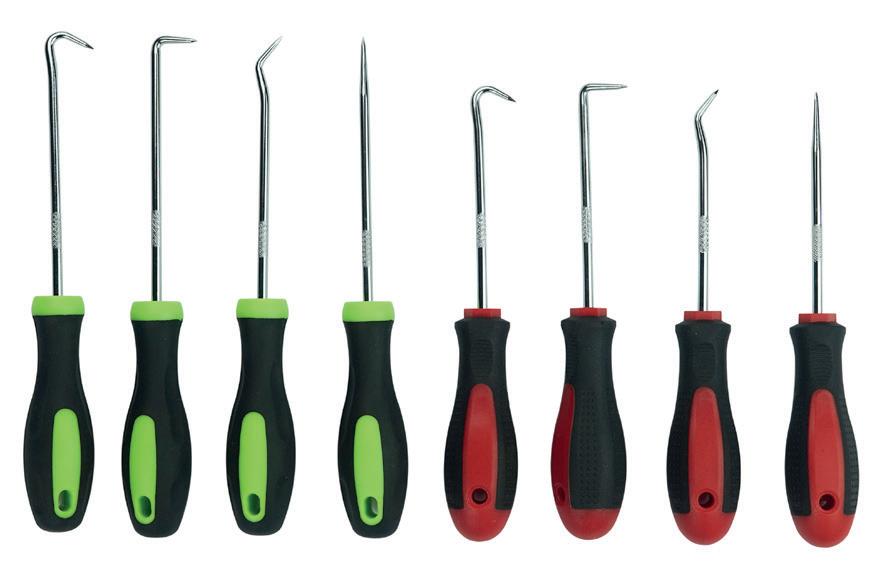

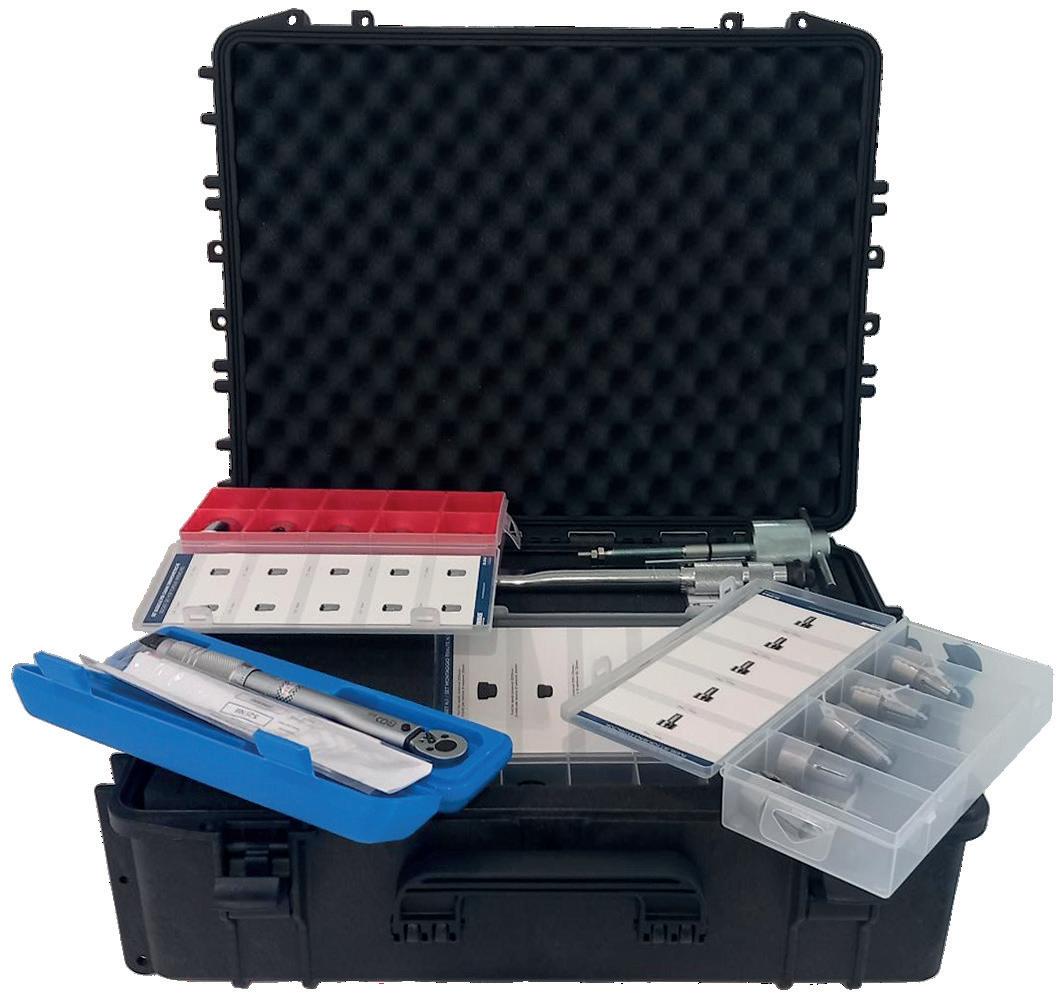

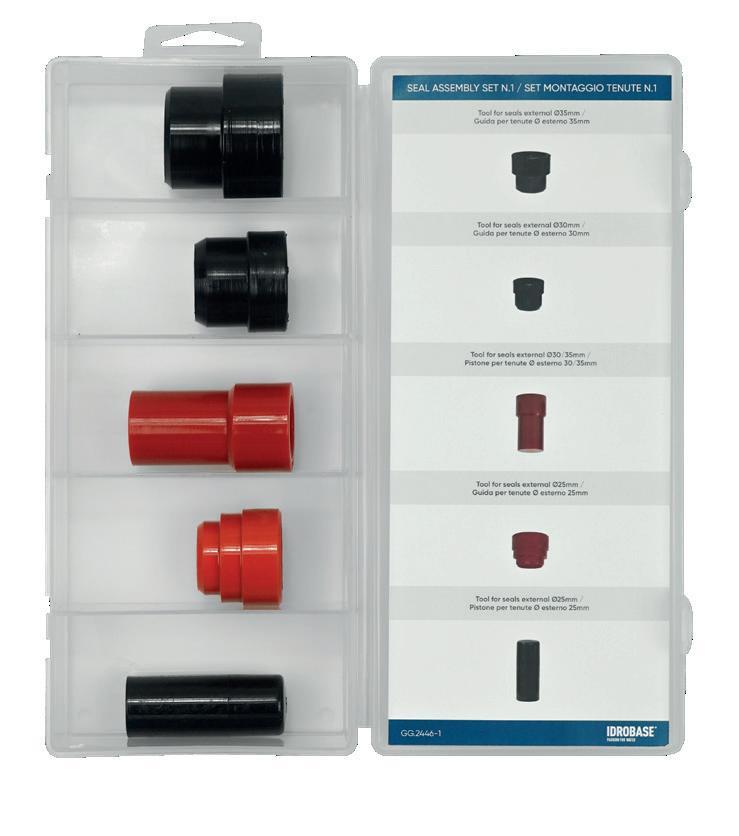

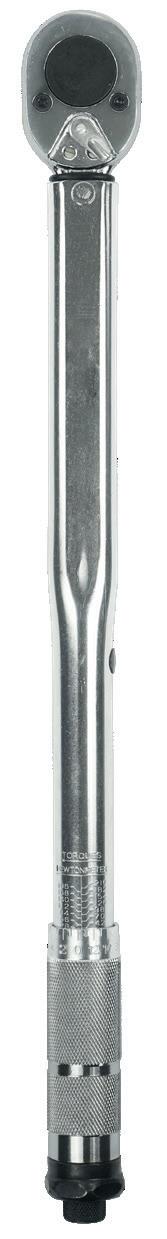

Complete set of special tools for h.p. pump maintenance Code Description
