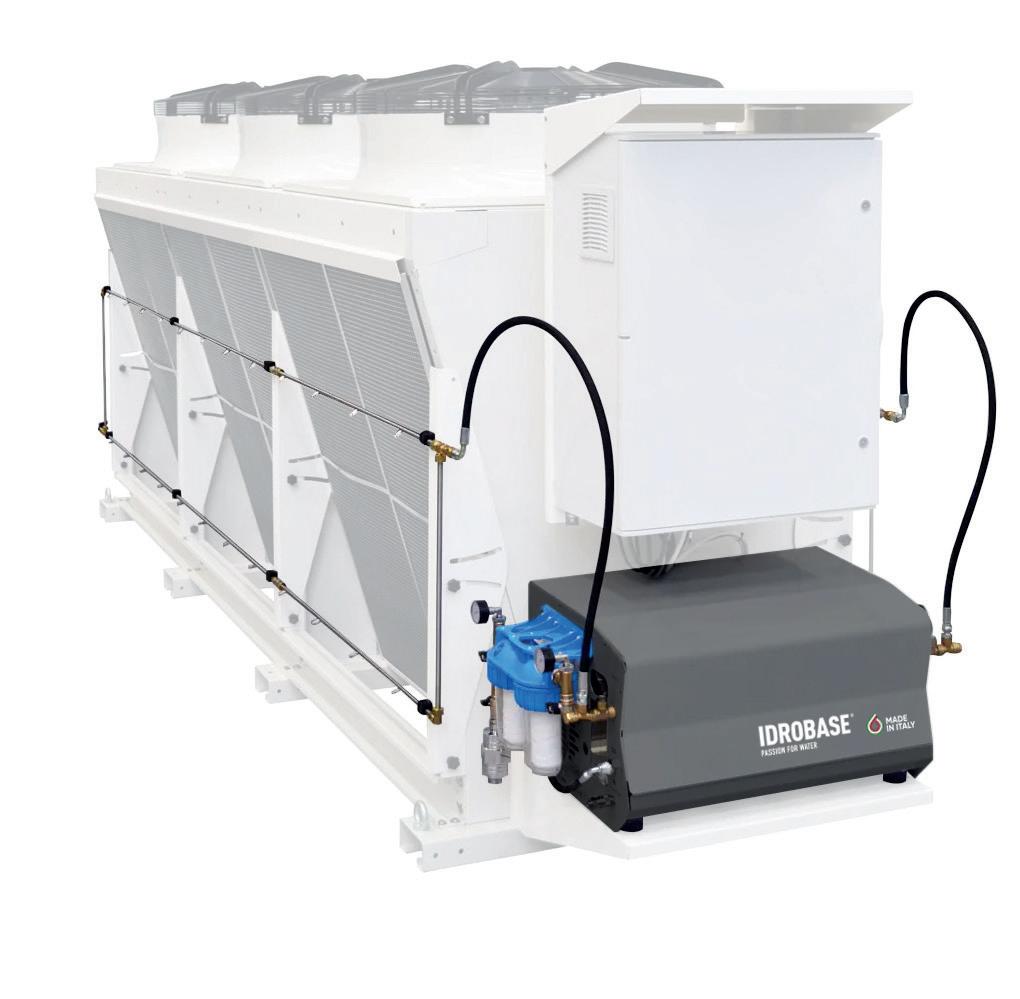

Configuration example

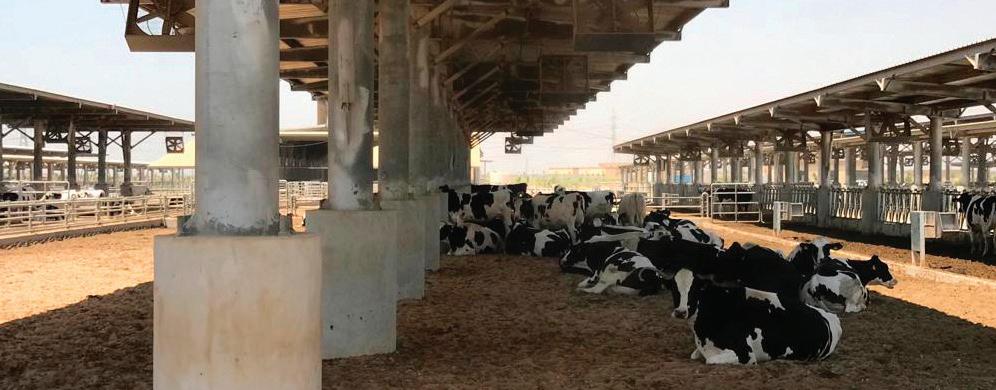

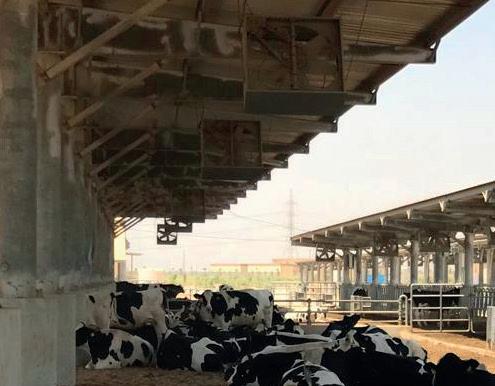

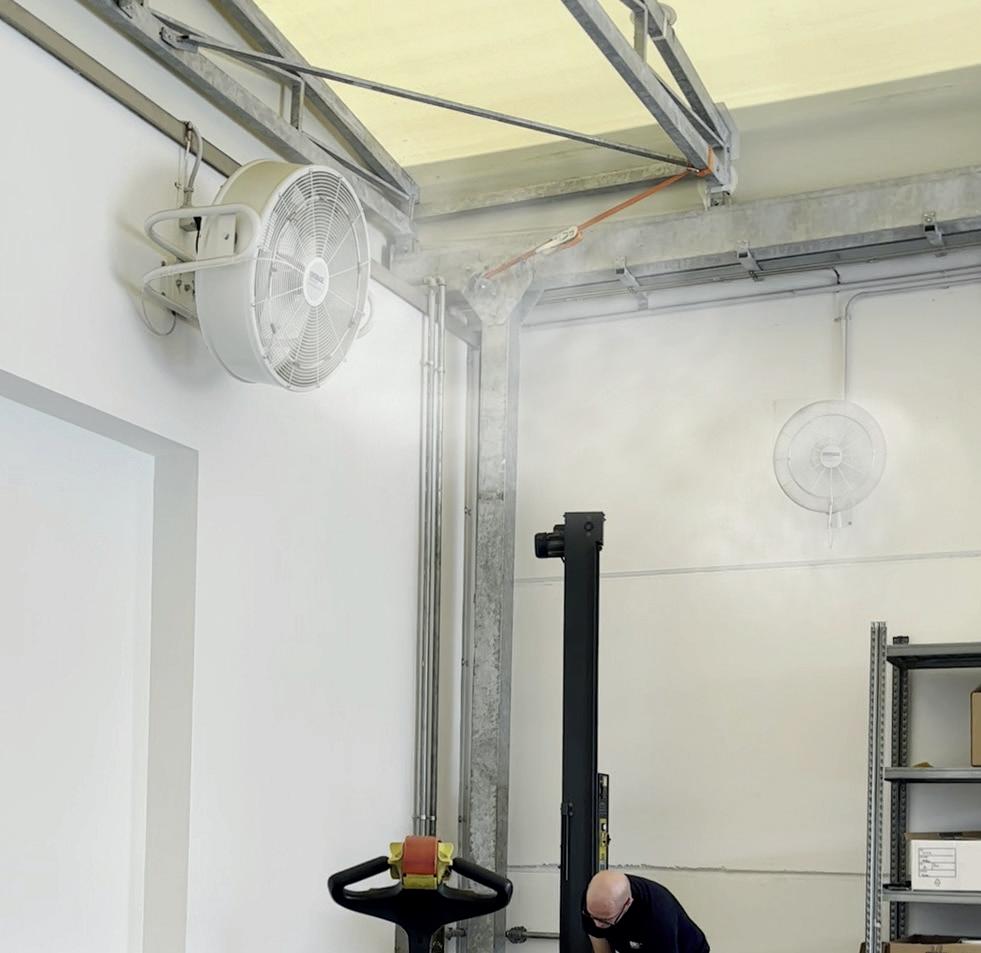

Stables/Sheds with 18 fans.
FOG 70 EXTRA misting system pump, 3x400 W-50Hz, 70bar, professional pump, crankshaft, complete with timer, humidistat, thermostat and weekly programmer
51”circulator air, 230V50/60Hz, 1,1kW, 41306 M3/h
Dimension: 1380x1380x330mm Weight: 52Kg

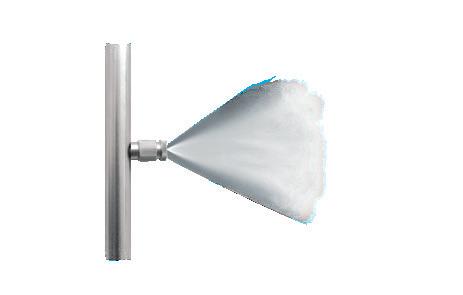

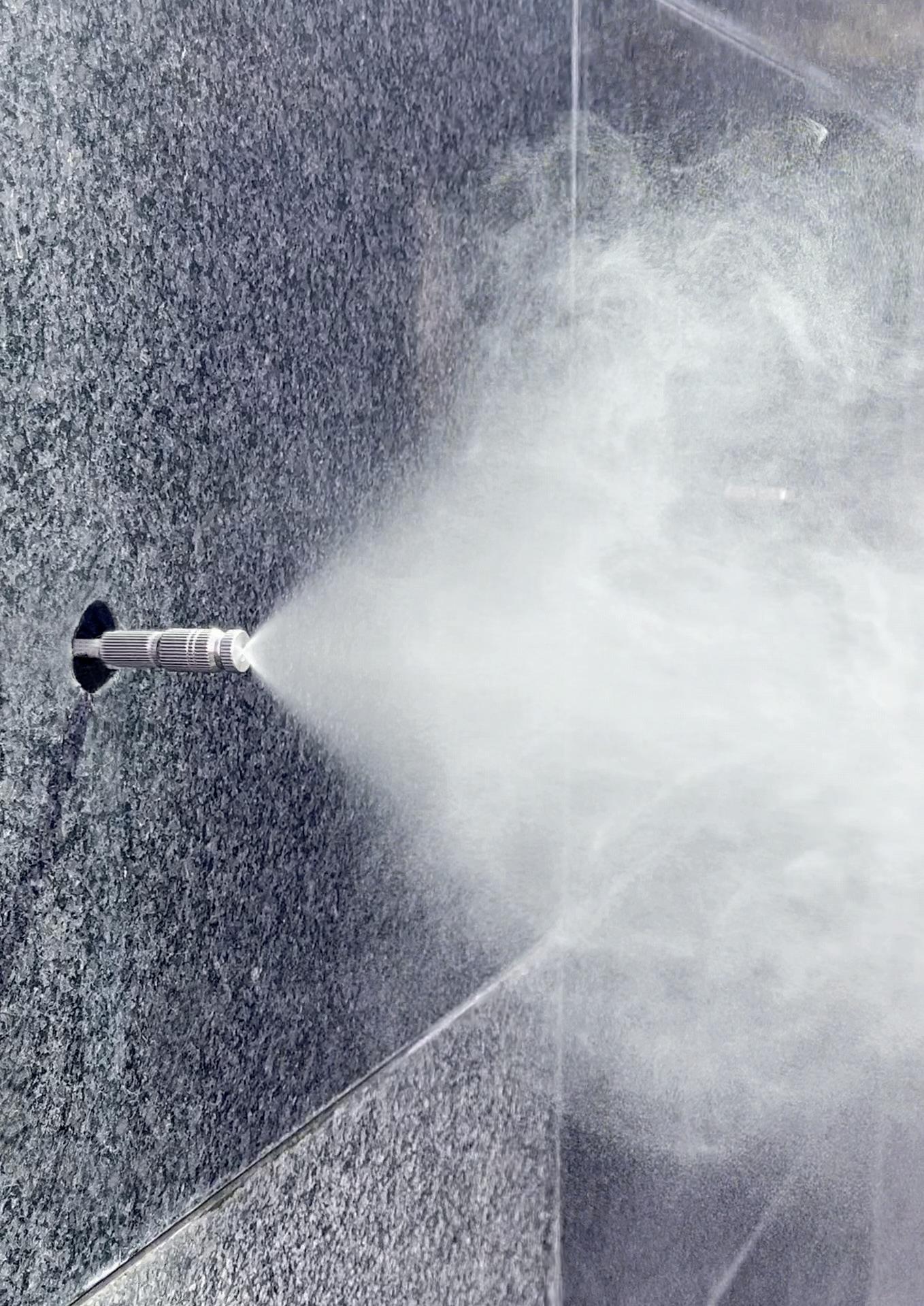

AISI 316 stainless steel ring, complete with anti-drip nozzles, AP filter and slip-lock connector for d. 9,6mm polyamide pipe
10” water inlet kit complete with pressure stabiliser, support bracket, 5 and 1mcr stringwound cartridges, connection hose, tightening spanner and spare cartridges (5+5 pcs)

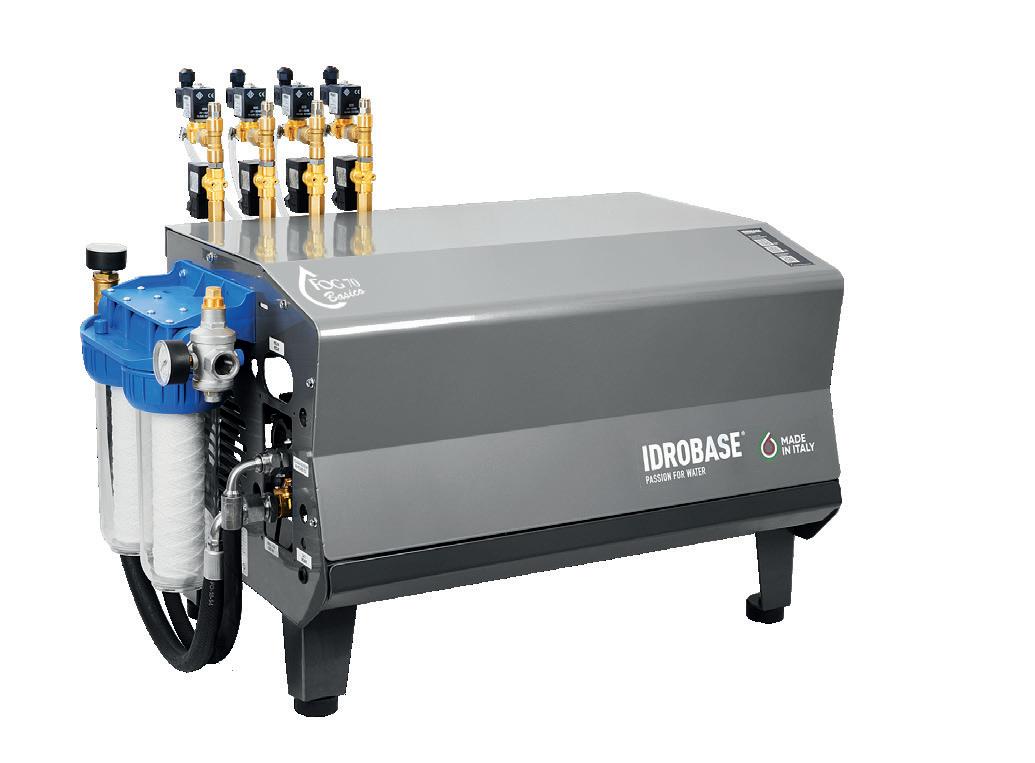

H.p. outlet kit for 4 lines, ø9,6mm complete with h.p. filter, shut-off valves, polyamide ø9,6mm tube and connection to fog modules

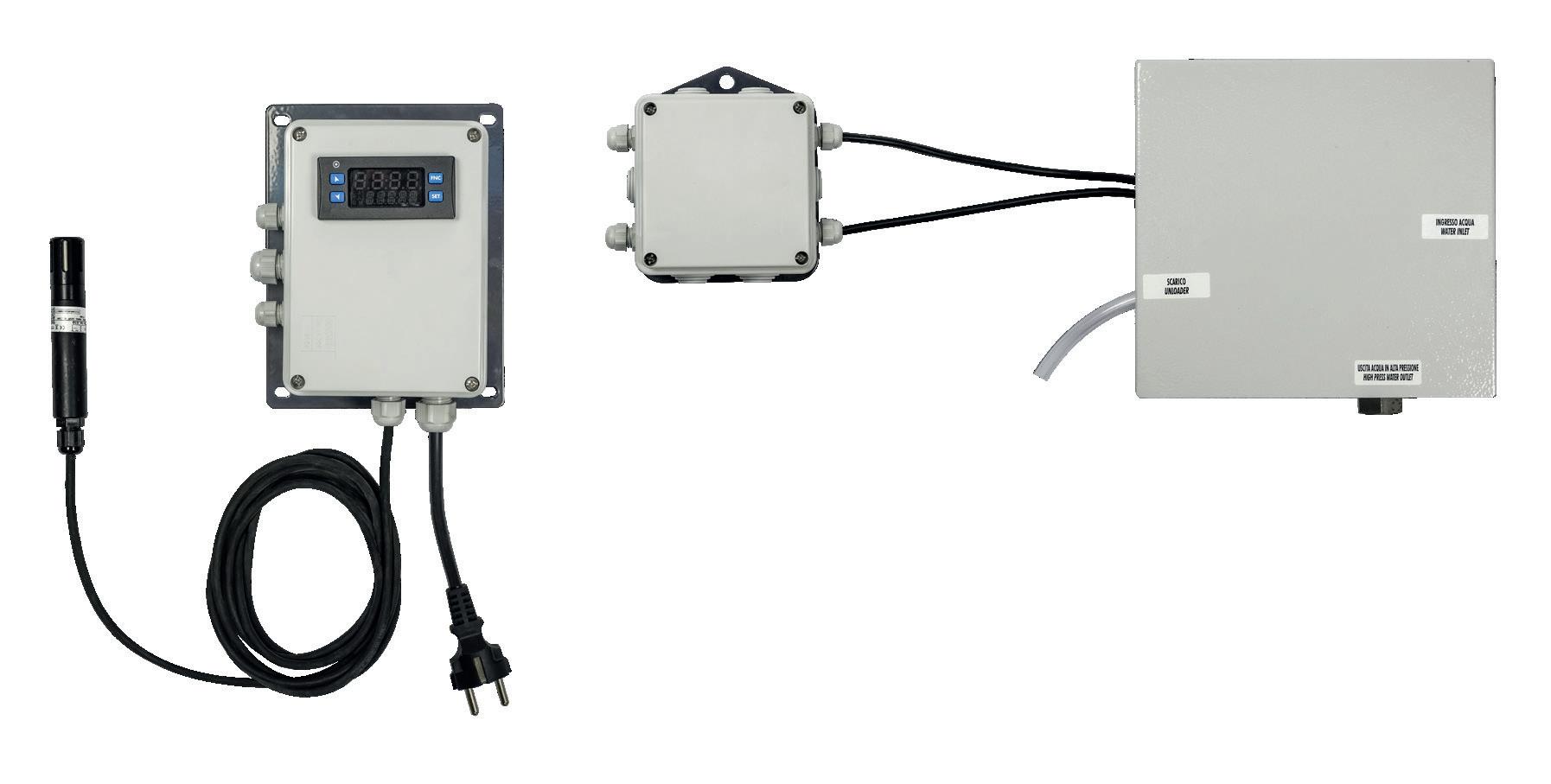

Temperature probe, (for standard thermostat), with 20m cable

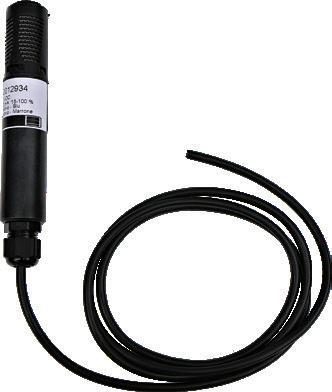

Humidity probe 4:20mA, (for standard humidstat), with 20m cable
H.p. polyamide pipe, ø9,6mm, rolls of 100m, black (max pressure 100bar at 23°C)

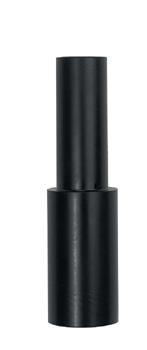

Pipe quick coupling, “Tee”, in nickel-plated brass, ø9,6mm
Tube cutter for polyamide pipe ø2-12mm

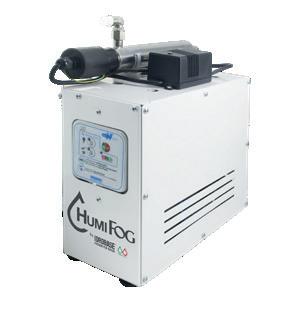

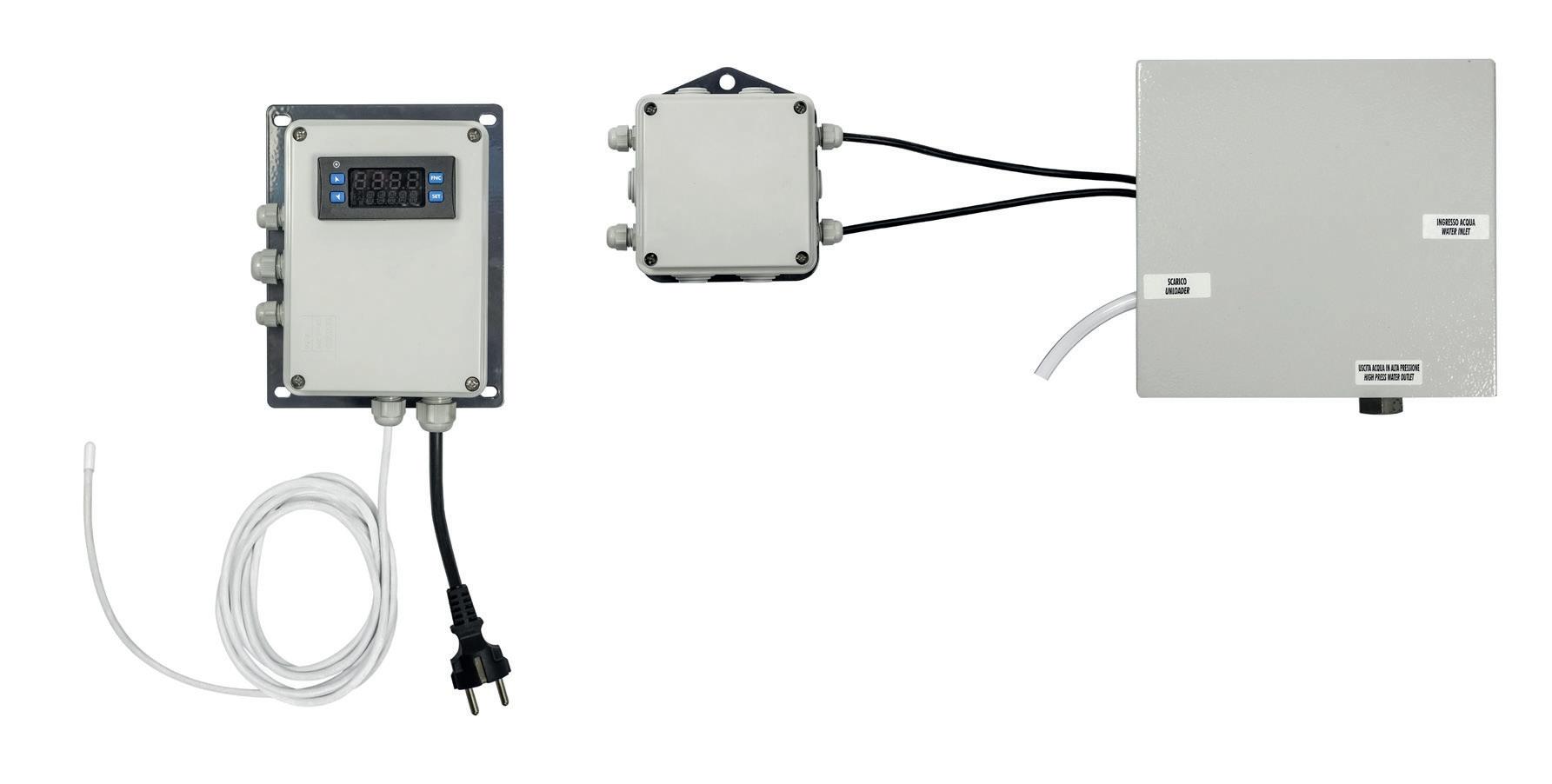

Fog module 60bar 230V-50Hz

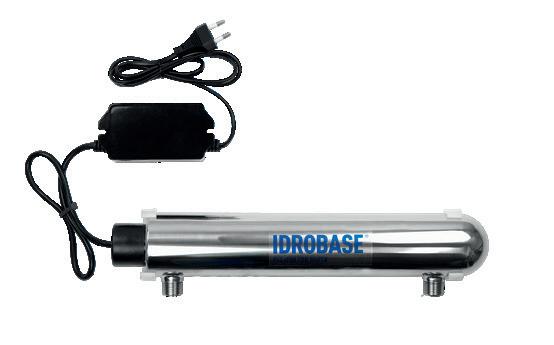

UV water sterilizer lamp (included)

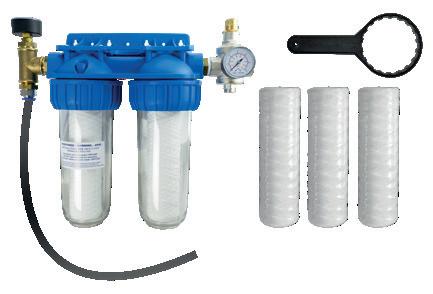

Water inlet kit complete with pressure stabilizer (included)

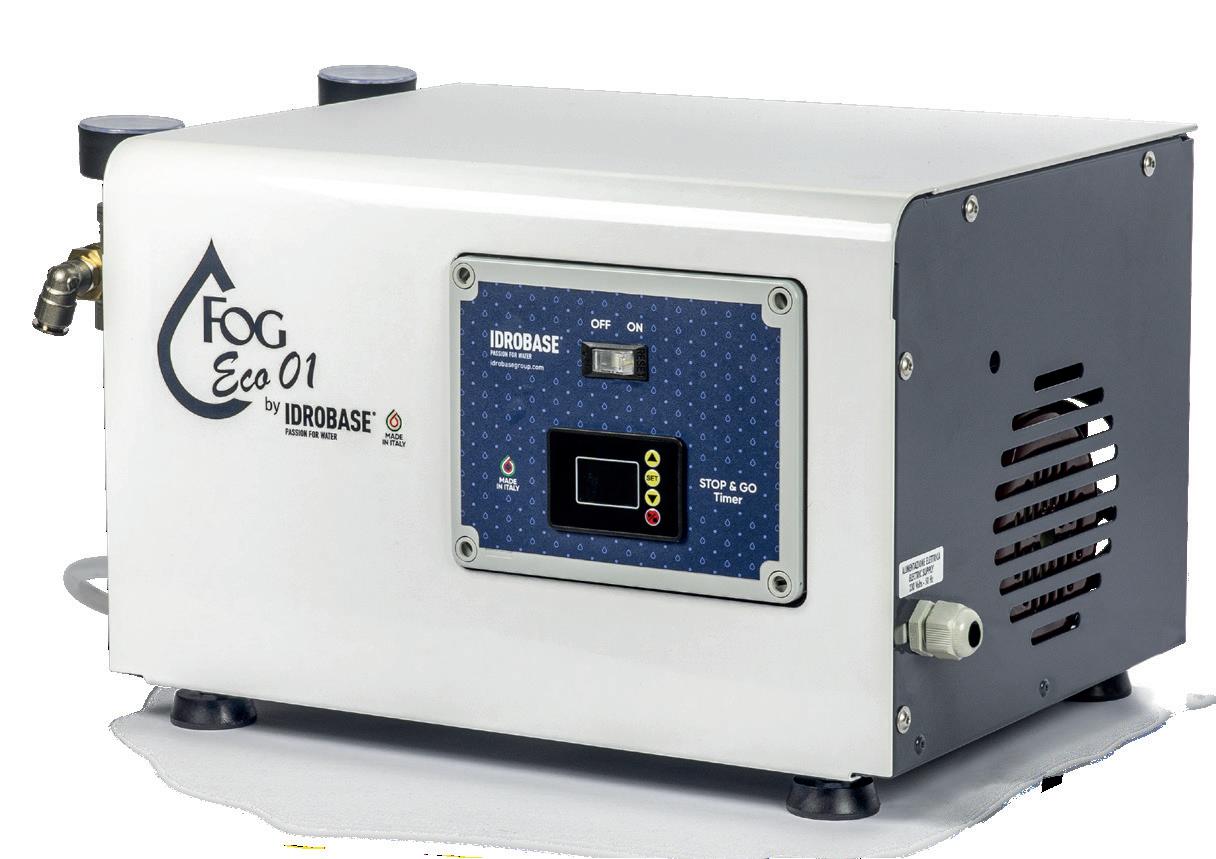

Technical features
• Compact and versatile
• Integrated analogic timer
• For small/medium areas

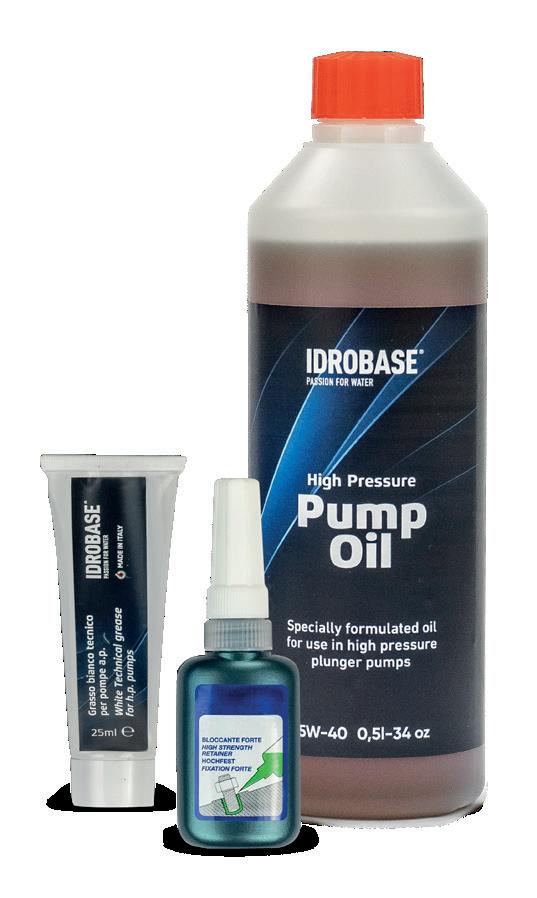

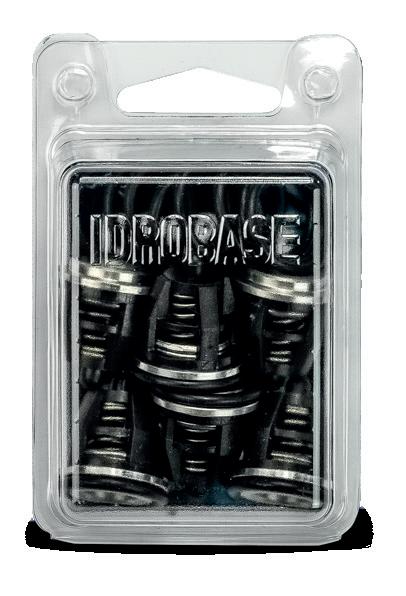

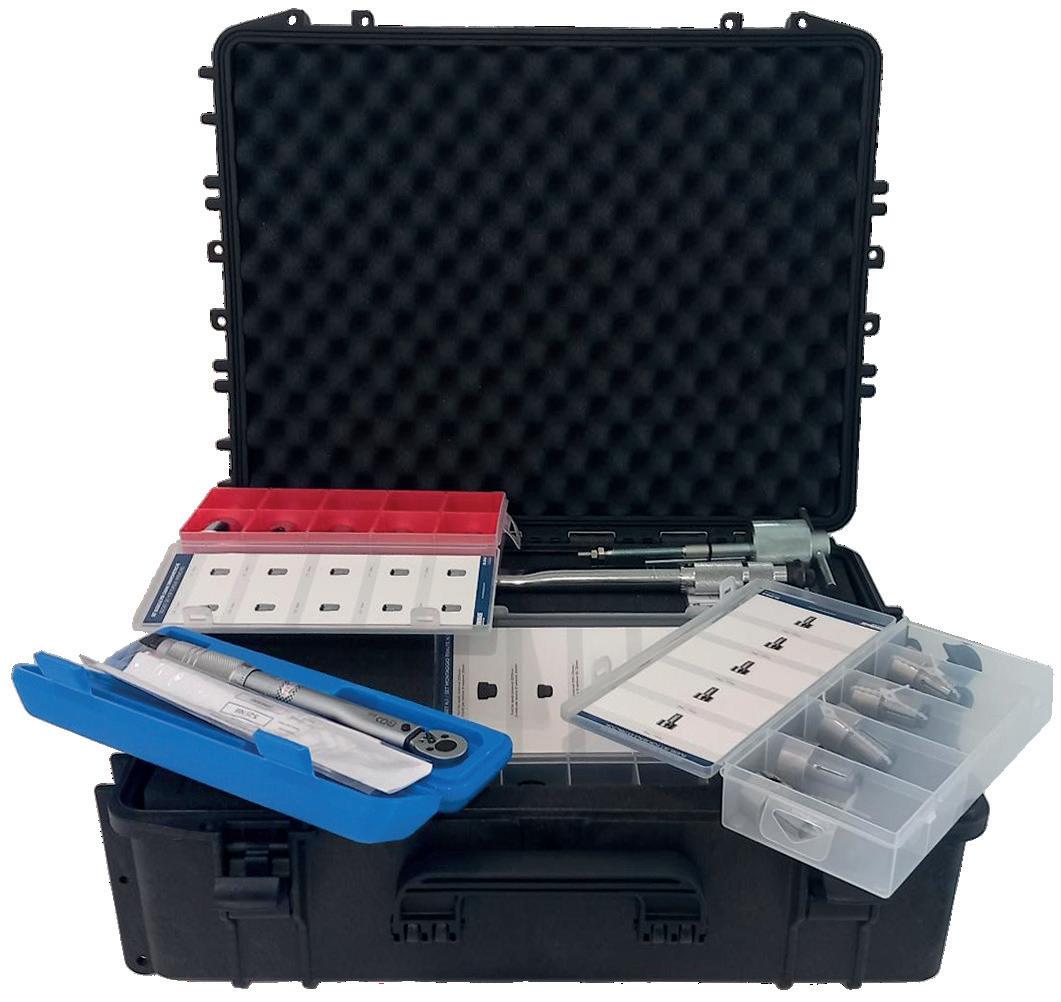

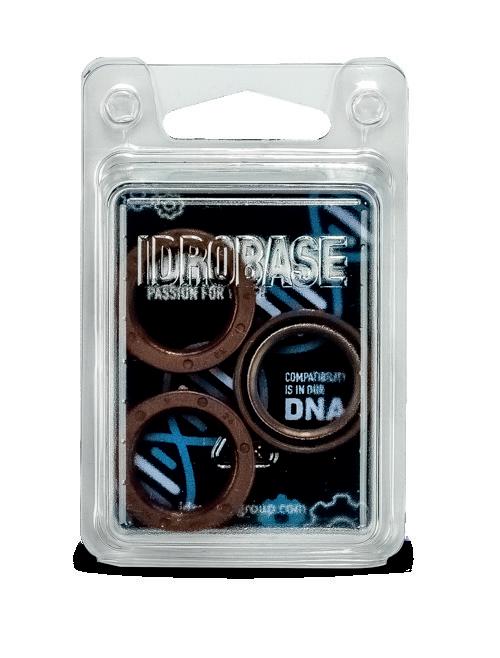

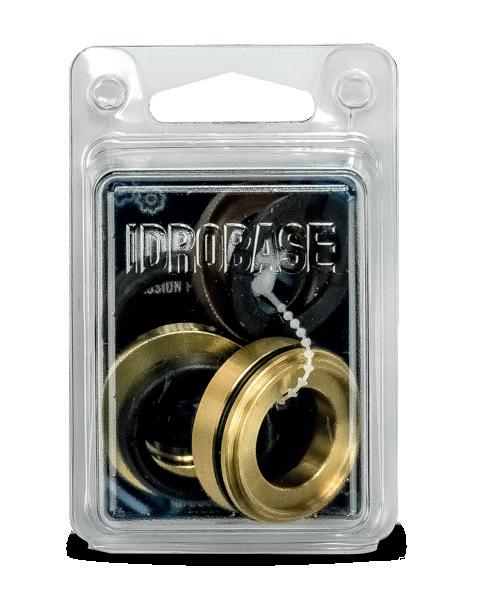

Pump maintenance set 500hours INCLUDED
ZX.5095-D
ZX.5090-D
*The max number of nozzles has been calculated by using a nozzle with flow rate factor 15 (0.047l/min) at 60bar **230V/60Hz and 110V/60Hz versions available upon request
Technical features
Frame made of painted steel
• Axial motor pump with two ceramic pistons 0.5 and 1l/min complete with by-pass valve
Electric control panel - with pre-settings ON-OFF 0-60”
• Solenoid valve high pressure for pressure discharge
• Pressure switch- low pressure no water supply
• Slip-lock inlet ø9.6mm
Outlet, Slip-Lock ø6.35mm
• Dimensions LxDxH: 450x300x280mm
Nebulizes sterilized water
Unload solenoid valve
UV water sterilizer lamp (included)
Water supply kit
Technical features
Nebulizes sterilized water
Smartphone controlled Domestic use

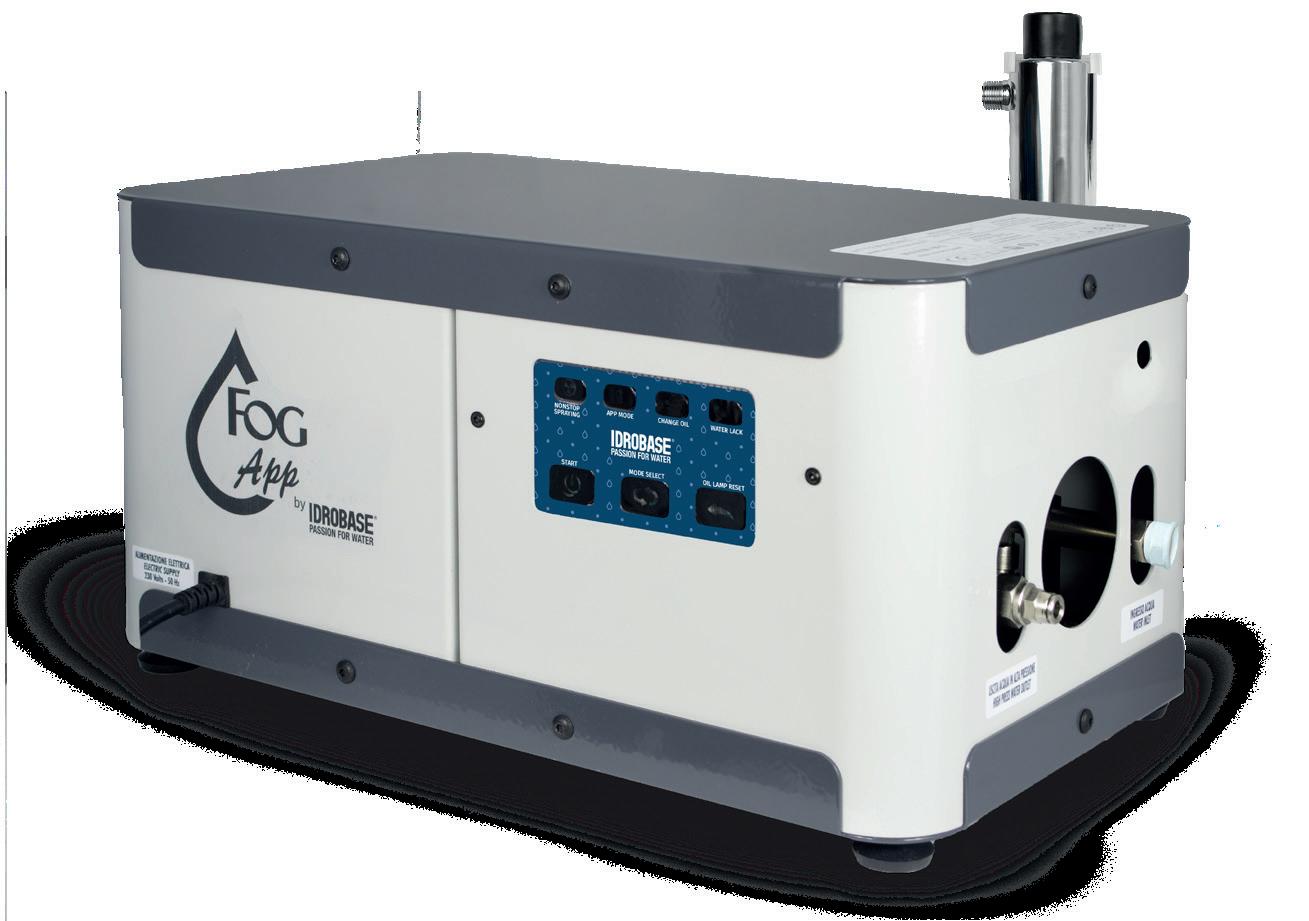

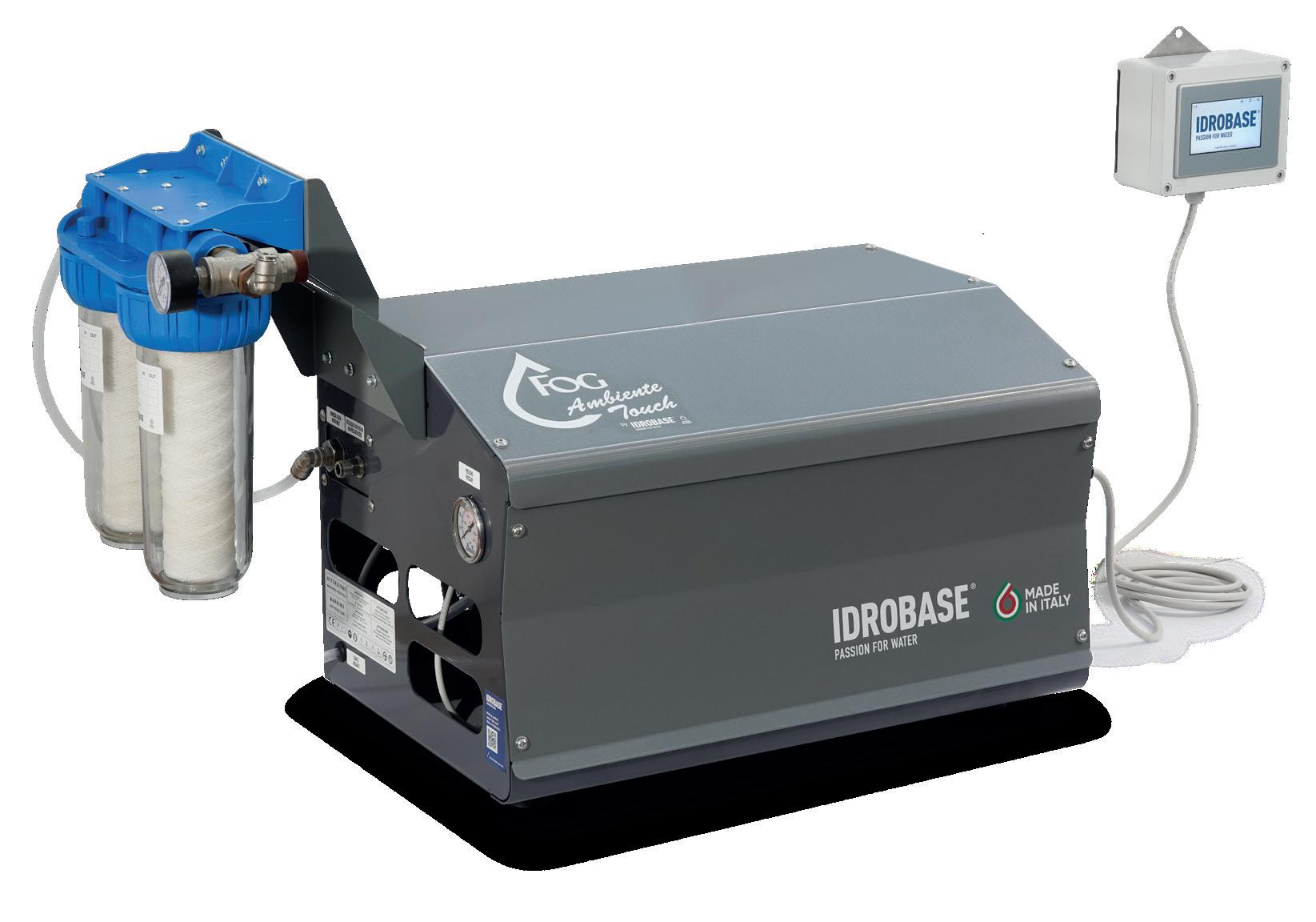

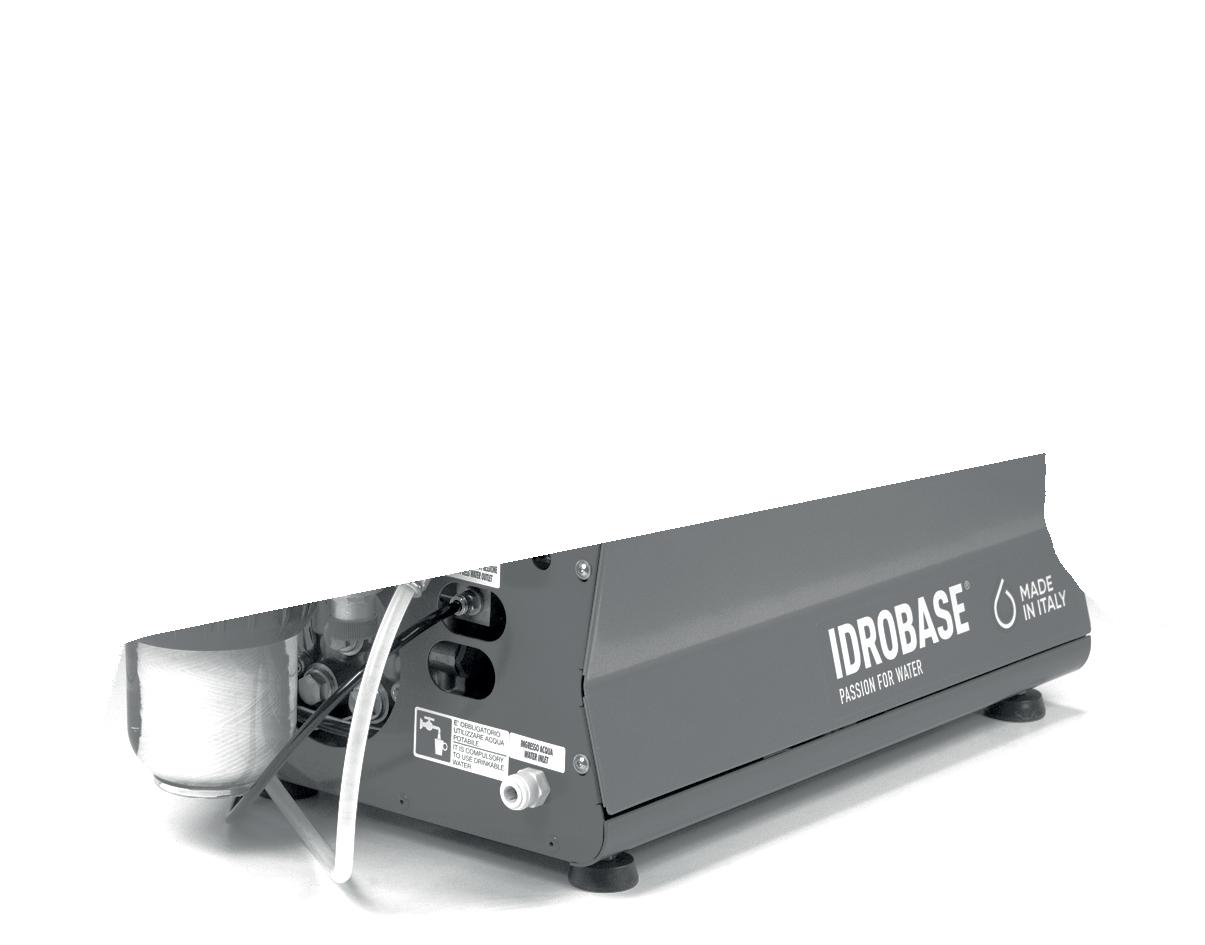

Fog module 60bar with 30 and 40 nozzles 230V-50/60Hz

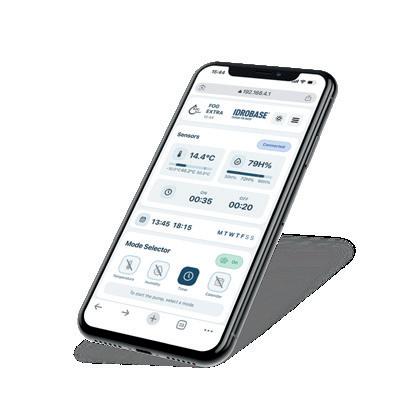

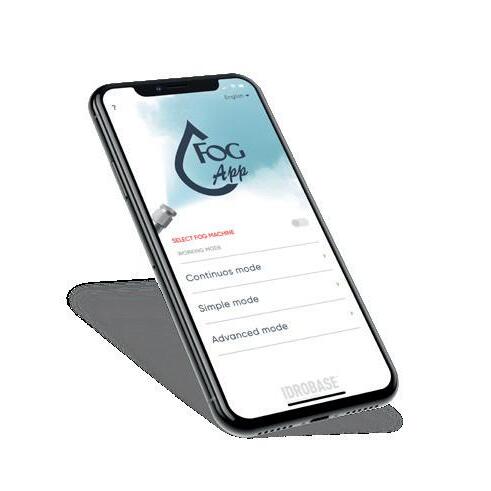

Fog App: how to use the fog module with your smartphone
• Can be activated via smartphone
• Silent
• Compact
• Energy-efficient
Fog App: what does this fog module do?
Pump maintenance set 500hours INCLUDED
ZX.FA2.0
Axial pump with 3 ceramic pistons, head in nickel-plated brass, integrated bypass valve, electric motor 1300Rpm
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 60bar
Technical features
• Frame made of galvanised painted plate
• Electric pump 3 pistons, axial, with brass head
Thermal protection against current surge
• Unloader valve
• L.p. pressure switch due to lack of water
• Solenoid valve l.p. water inlet
Solenoid valve h.p. for pressure discharge
• Slip-lock inlet ø9,6mm
• Outlet, Slip-Lock ø6,35mm
• Instrument panel with 3 touch buttons for:
- machine ON/OFF
- Manual mode selection or Bluetooth activation for smartphone control
- Alarms reset for Maintenance Possibility to manage 3 different modes via the app:
- Nonstop: the Fog module works in continuous mode
- Simple mode: selection of days of the week, selection of max 4 time slots, work/pause time selection with min 3s work time and min 15s pause time
- Advanced mode: selection of the days of the week, selection of max 20 time slots, selection of work/pause times customised for each time slot with min 3s work time and min 15s pause time
UV water sterilizer lamp (included)
Water inlet kit complete with pressure stabilizer (included)

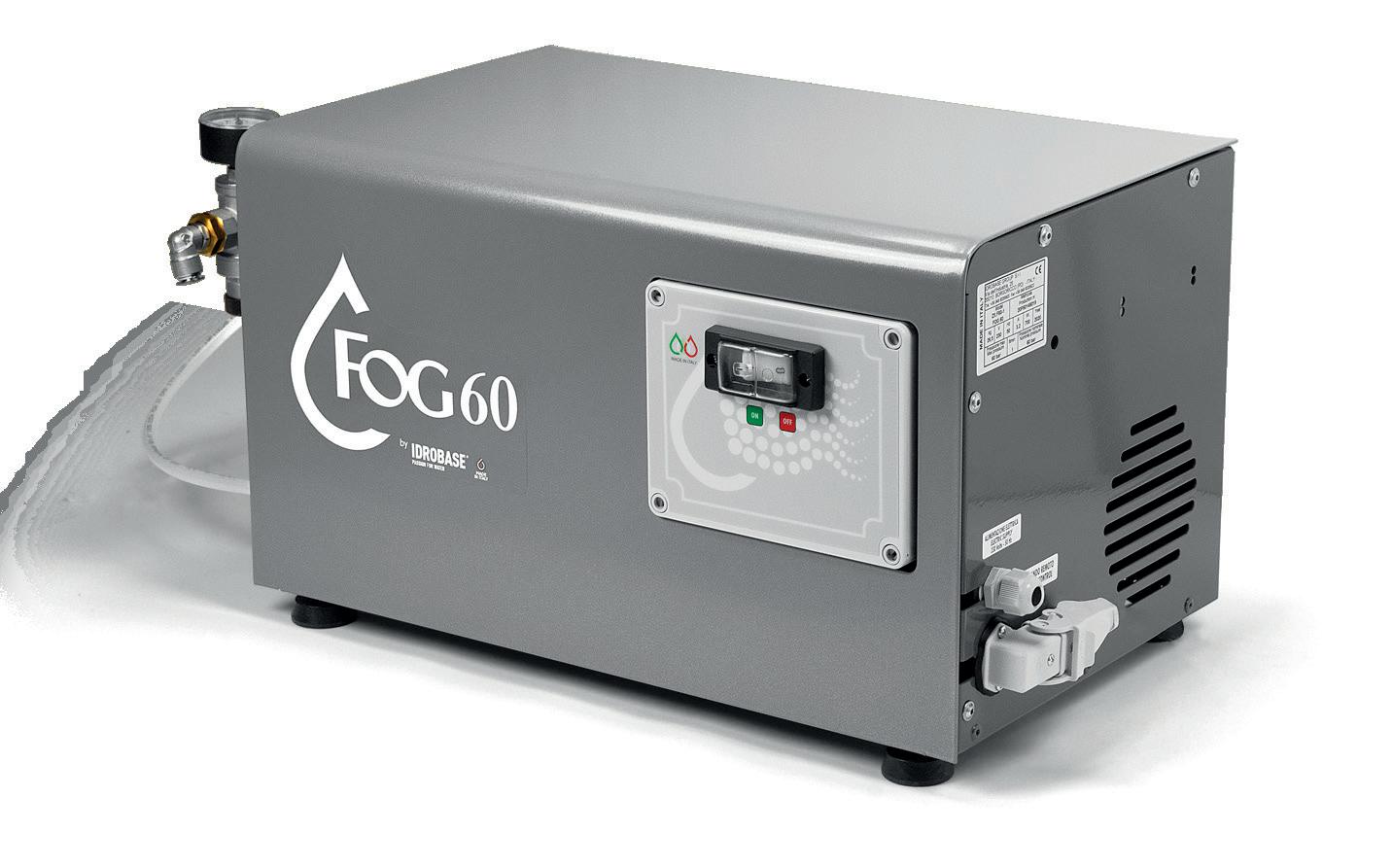

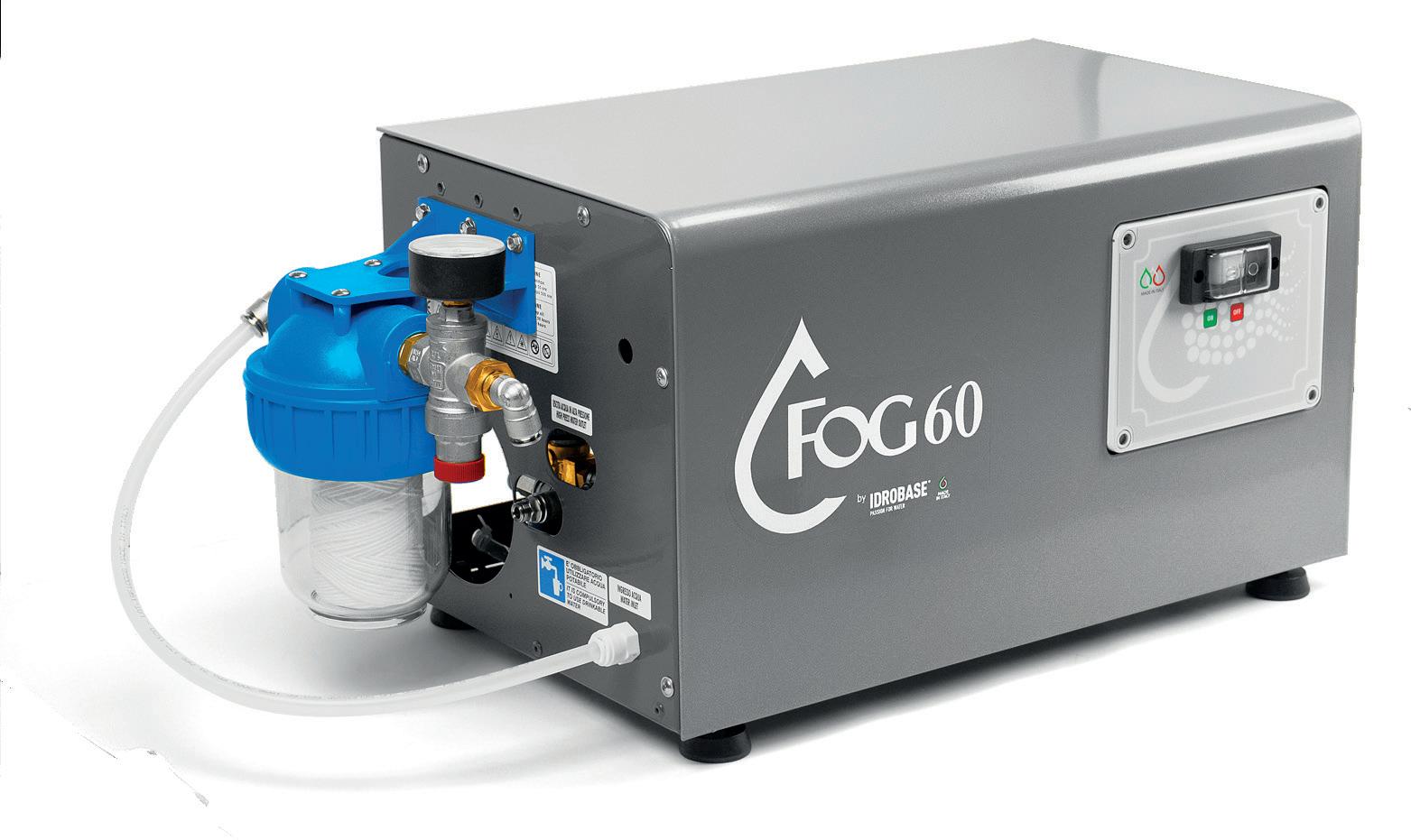

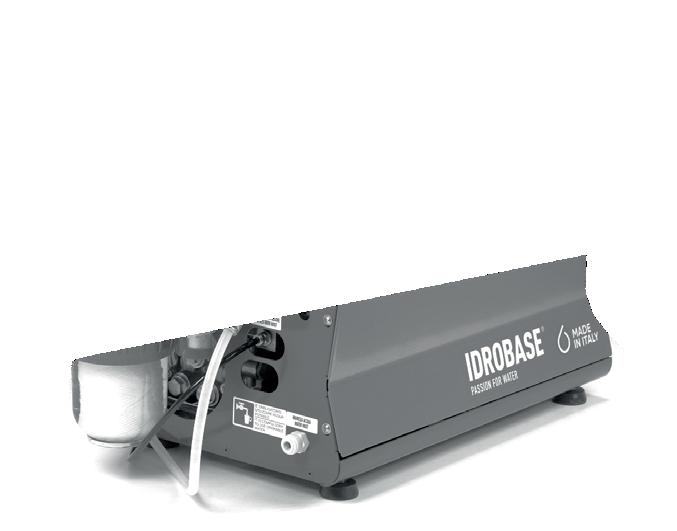

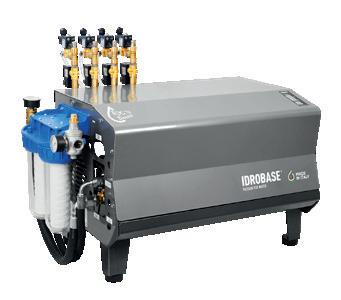

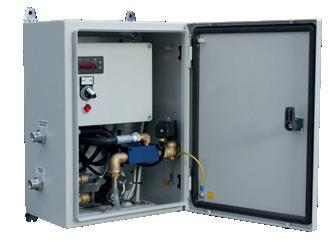

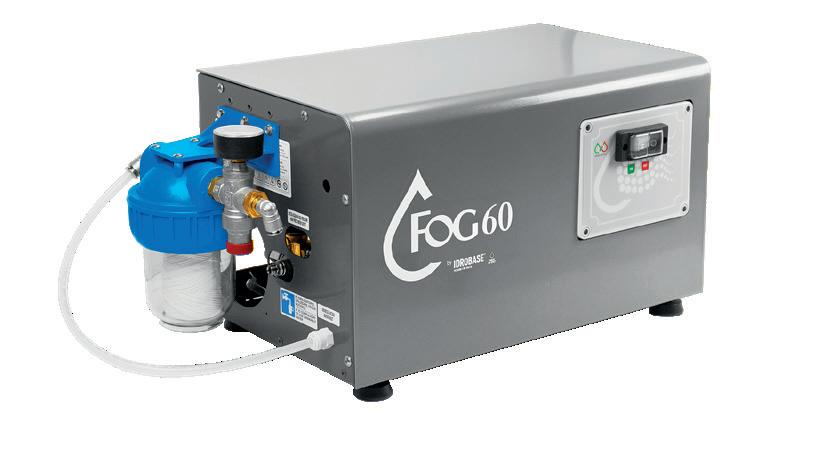

Fog module 60-70bar from 10 to 96 nozzles 230V-50Hz
• Visible pump for an easy Maintenance
• Pre-set for electronic board
• Essential design

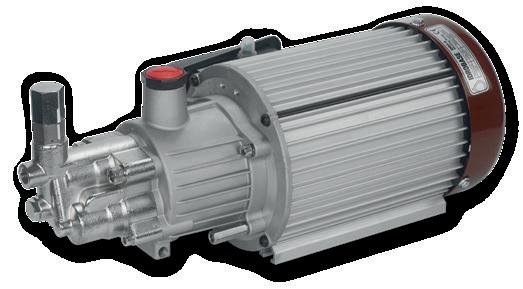

Three-piston axial pump with ceramic pistons, nickel-plated brass head, and integrated by-pass valve. (for 2,2, 3,6 and 4,8l/min flow rate versions)
Old pump
IDRO9 pump
Old pump VS new IDRO9 pump
Double pump life
Axial pump with 2 pistons
ZX.F60C05
ZX.F60C1
Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 60bar
** 230V/60Hz and 110V/60Hz versions available upon request
Axial pump with 3 pistons IDRO9 pump
ZX.F60C2.2
ZX.F60C3.6
ZX.F60C4.8
Axial motor pump with three ceramic pistons, nickel-plated brass head, integrated by-pass valve
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar
INCLUDED

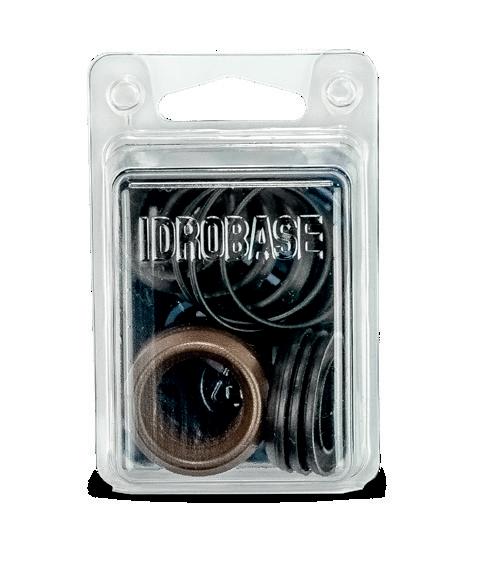

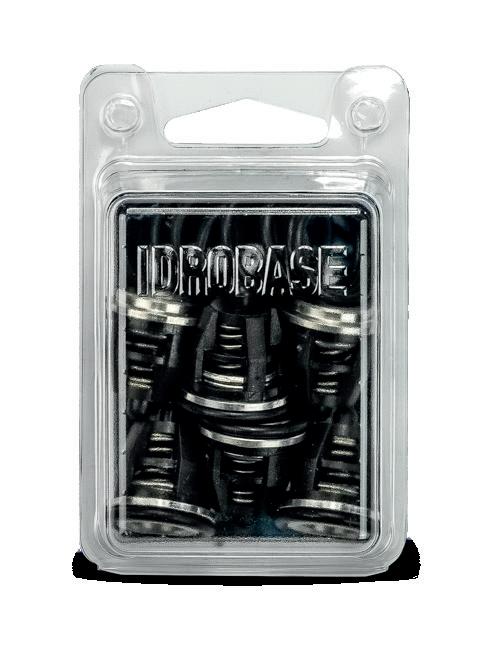

Pump maintenance set 750hours
Technical features

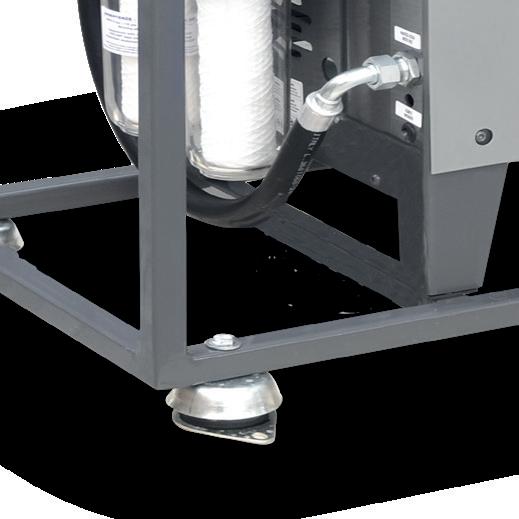

• Frame made up of 4 support feet
• L.p. solenoid valve 230V-50Hz, inlet water
Electric box complete with lighted ON/OFF thermal switch and 3m electric power cable with Schuko plug, pre-set for housing a ZX.0576-60 electronic board (optional)
• L.p. Slip-Lock inlet ø9,6mm
• Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2,2l/min)
Outlet Slip-Lock ø9,6mm (for versions 3,6 and 4,8l/min)
Dimensions WxLxH: 500x200x300mm
UV water sterilizer lamp (included)
Water inlet kit complete with pressure stabilizer (included)
• Simple and compact
• Pre-set for remote control connection
• Discharge solenoid and pressure switch lack of water
(for 2,2, 3,6 and 4,8l/min flow rate versions)
Old pump VS new
Three-piston axial pump with ceramic pistons, nickel-plated brass head, and integrated by-pass valve.
IDRO9 pump Old pump
Double pump life
Axial pump with 2 pistons
ZX.F60-05
ZX.F60-1
Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar
** 230V/60Hz and 110V/60Hz versions available upon request
Axial pump with 3 pistons
IDRO9 pump
ZX.F60-2.2
ZX.F60-3.6
ZX.F60-4.8
Axial motor pump with three ceramic pistons, nickel-plated brass head, integrated by-pass valve
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar

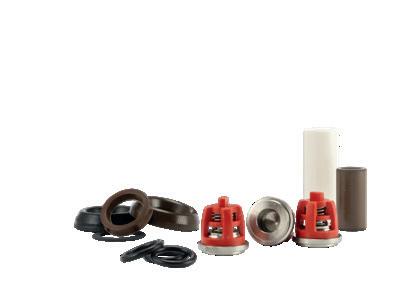

Pump maintenance set 750hours INCLUDED
Technical features
• Frame made of painted steel
• L.p. solenoid valve 230V-50Hz, inlet water
H.p. solenoid valve 230V-50Hz, to discharge the HP line (activates only if connected to a remote control)
L.p. pressure switch due to lack of water
Electrical panel complete with: ON/OFF thermal cutout, electronic board for management of anti-drip system
Slip-lock inlet ø9,6mm
Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2,2l/min)
• Outlet Slip-Lock ø9,6mm (for versions 3,6 and 4,8l/min)
(included)
Water inlet kit complete with pressure stabilizer (included)
• Simple and compact

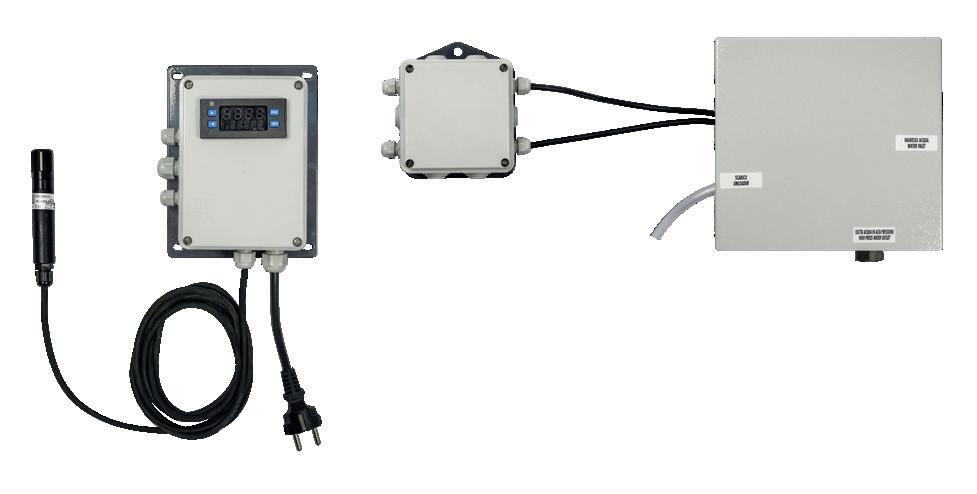

• Electronic control panel with built-in thermostat and humidstat
• Pre-setting for humidity and temperature probes
• System can be activated remotely
Three-piston axial pump with ceramic pistons, nickel-plated brass head, and integrated by-pass valve. (for 2,2, 3,6 and 4,8l/min flow rate versions)
IDRO9 pump Old pump
Old pump VS new IDRO9 pump
UV water sterilizer lamp
Use via smartphone
Compared to the previous model
Double pump life -50% Rpm
Axial pump with 2 pistons
ZX.FX-05
ZX.FX-1
Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar
** 230V/60Hz and 110V/60Hz versions available upon request
Axial pump with 3 pistons
IDRO9 pump
ZX.FX-2.2
ZX.FX-3.6
ZX.FX-4.8
2.0-4.8
Axial motor pump with three ceramic pistons, nickel-plated brass head, integrated by-pass valve
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar
INCLUDED
Pump maintenance set 750hours

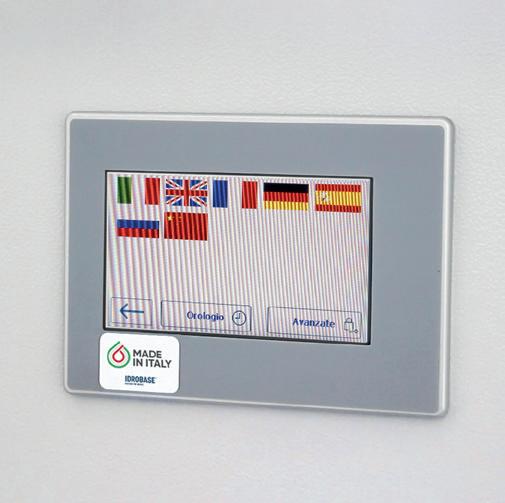

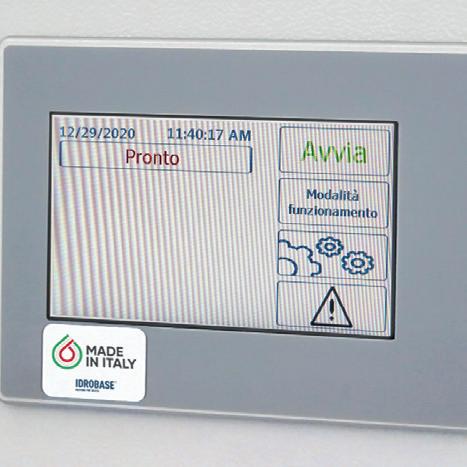

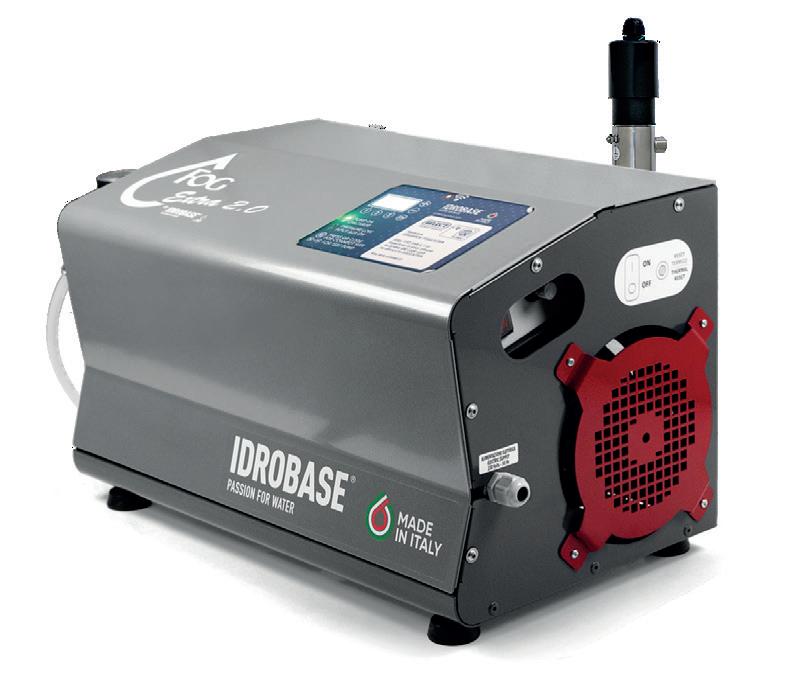

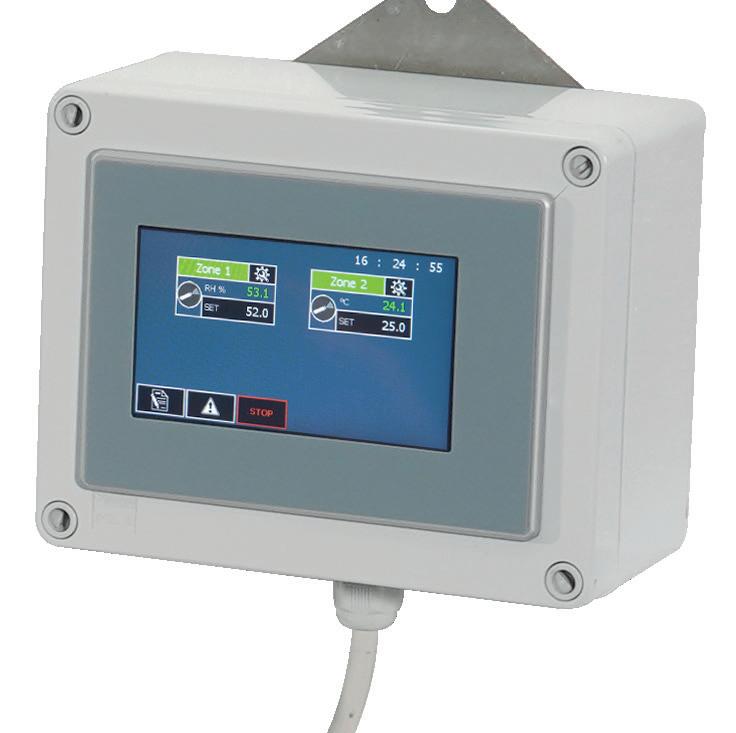

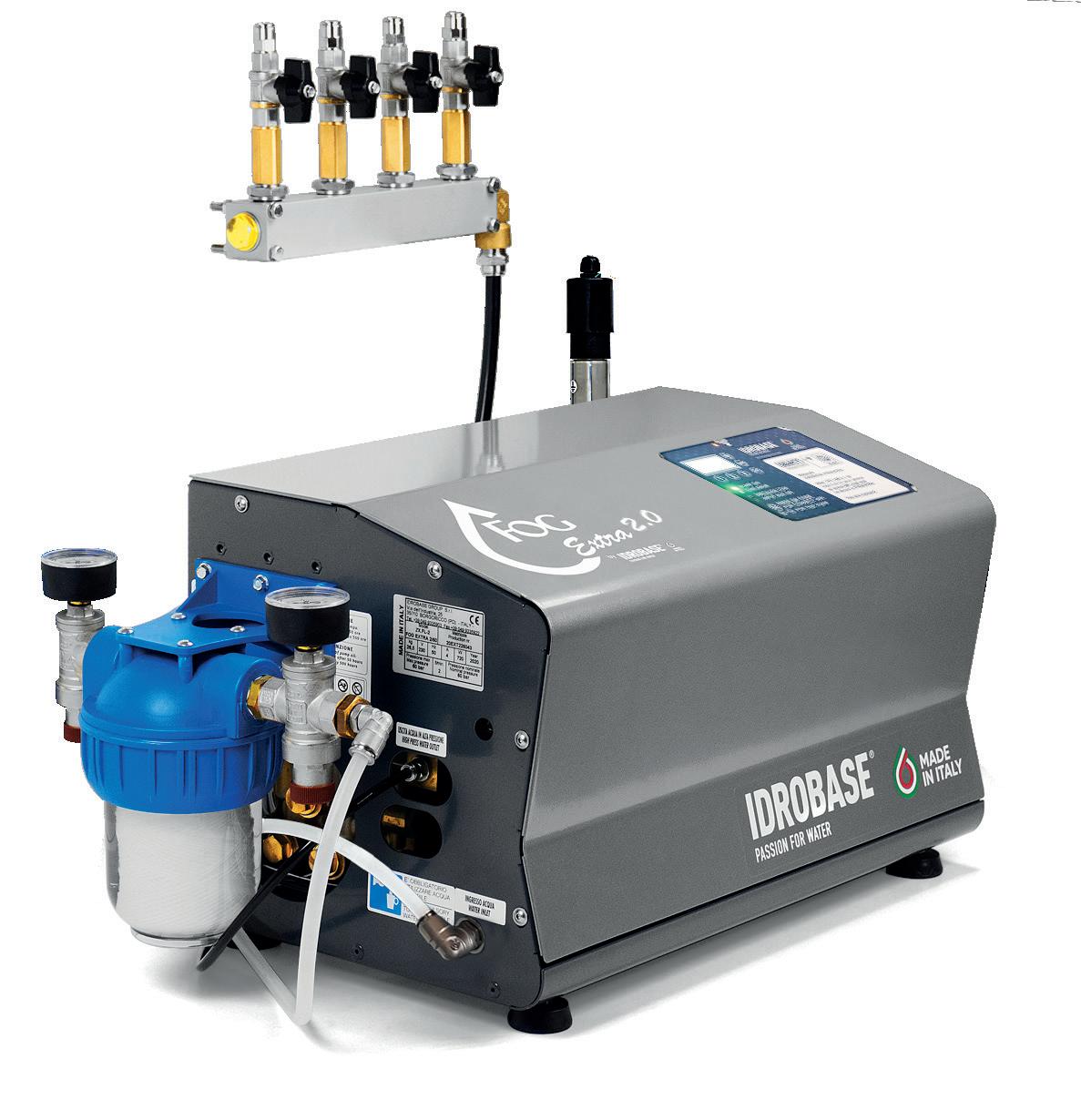

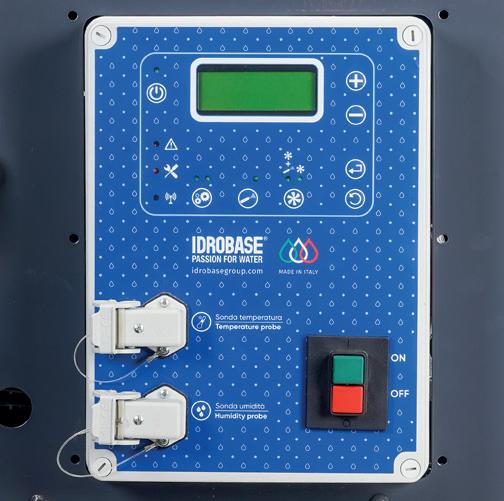

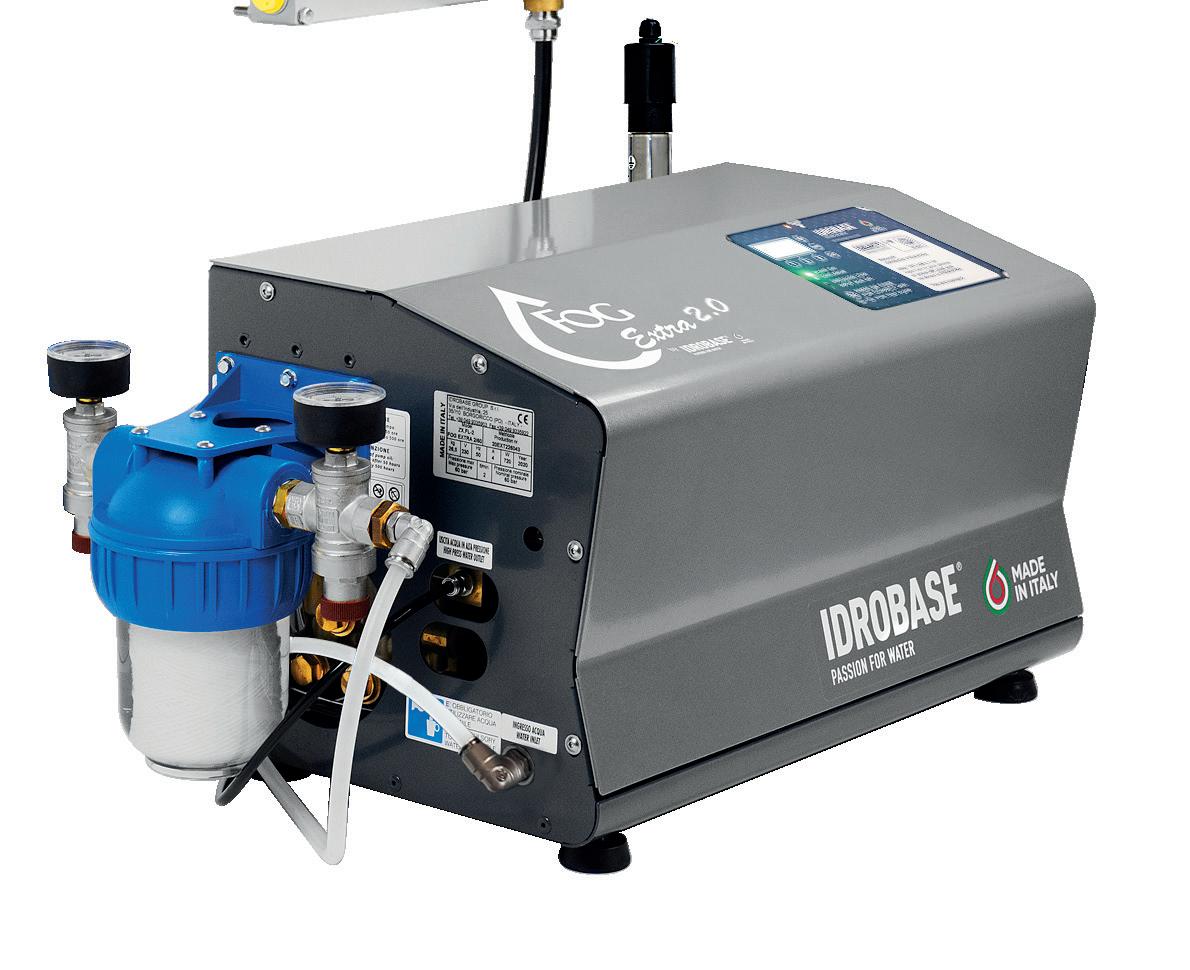

Control panel Fog Extra 2.0
• Graphic display
• 5 operating modes
Temperature setting
• Humidity setting
• On/Off timer
Hourly/weekly calendars
• App access via QR Code
Third language setting
Technical features
• Frame made of painted steel
• Built-in unloader valve
• L.p. solenoid valve 230V-50Hz, inlet water
H.p. solenoid valve 230V-50Hz, to discharge line pressure
• Electrical panel complete with:ON/OFF thermal cutout, electronic board for management of anti-drip and timer system
• Slip-lock inlet ø9,6mm Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2,2l/min), ø9,6mm (for versions 3,6 and 4,8l/min)
Maintenance check
• Integrated Wi-Fi antenna
• Battery-powered clocks
Aux input
• Programmable drain time
• Programmable water shortage time
Possible expansion via ModBUS
• H.p. switch for no water supply and pipe breaks
• Dimensions WxLxH: 600x300x300mm

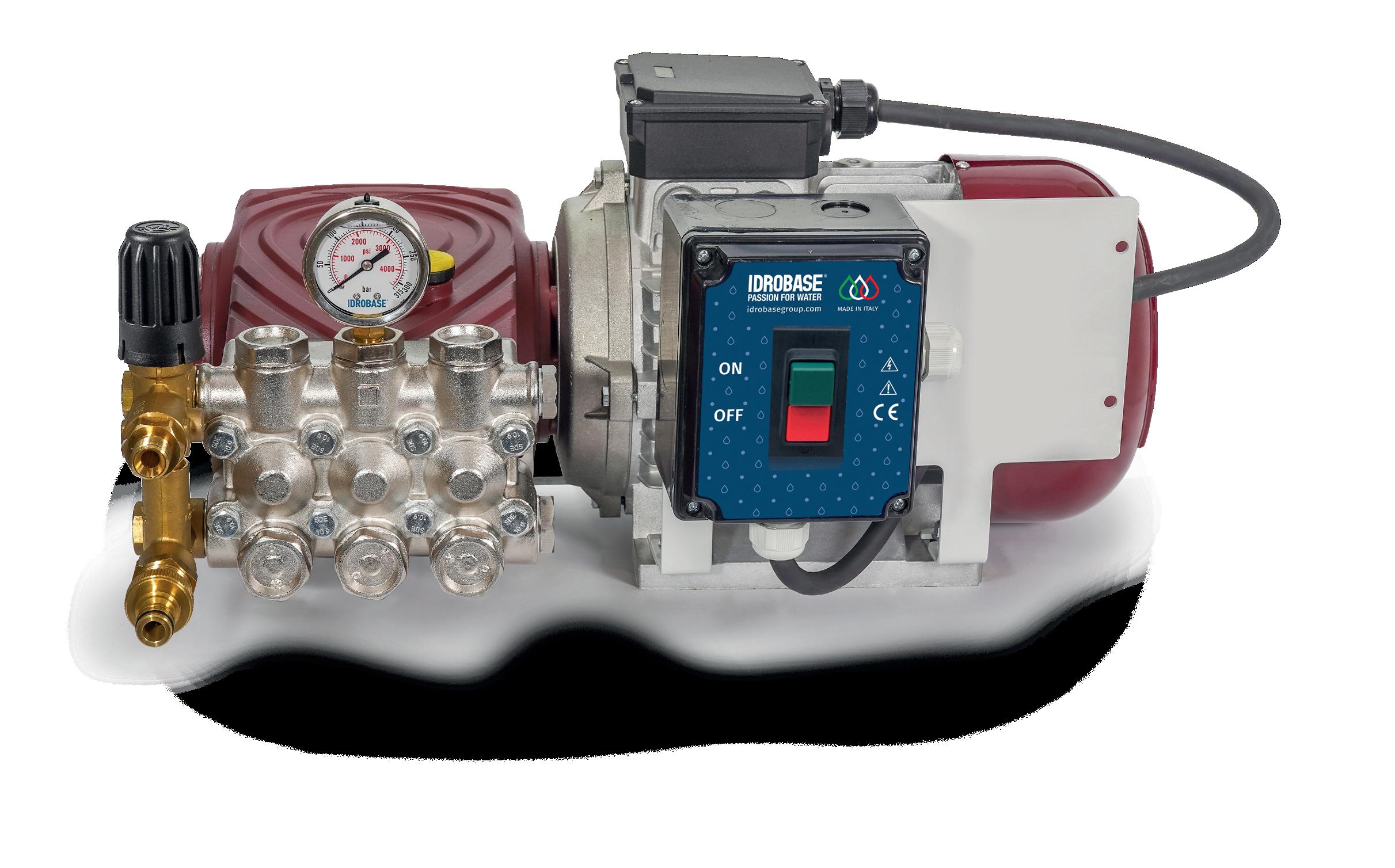

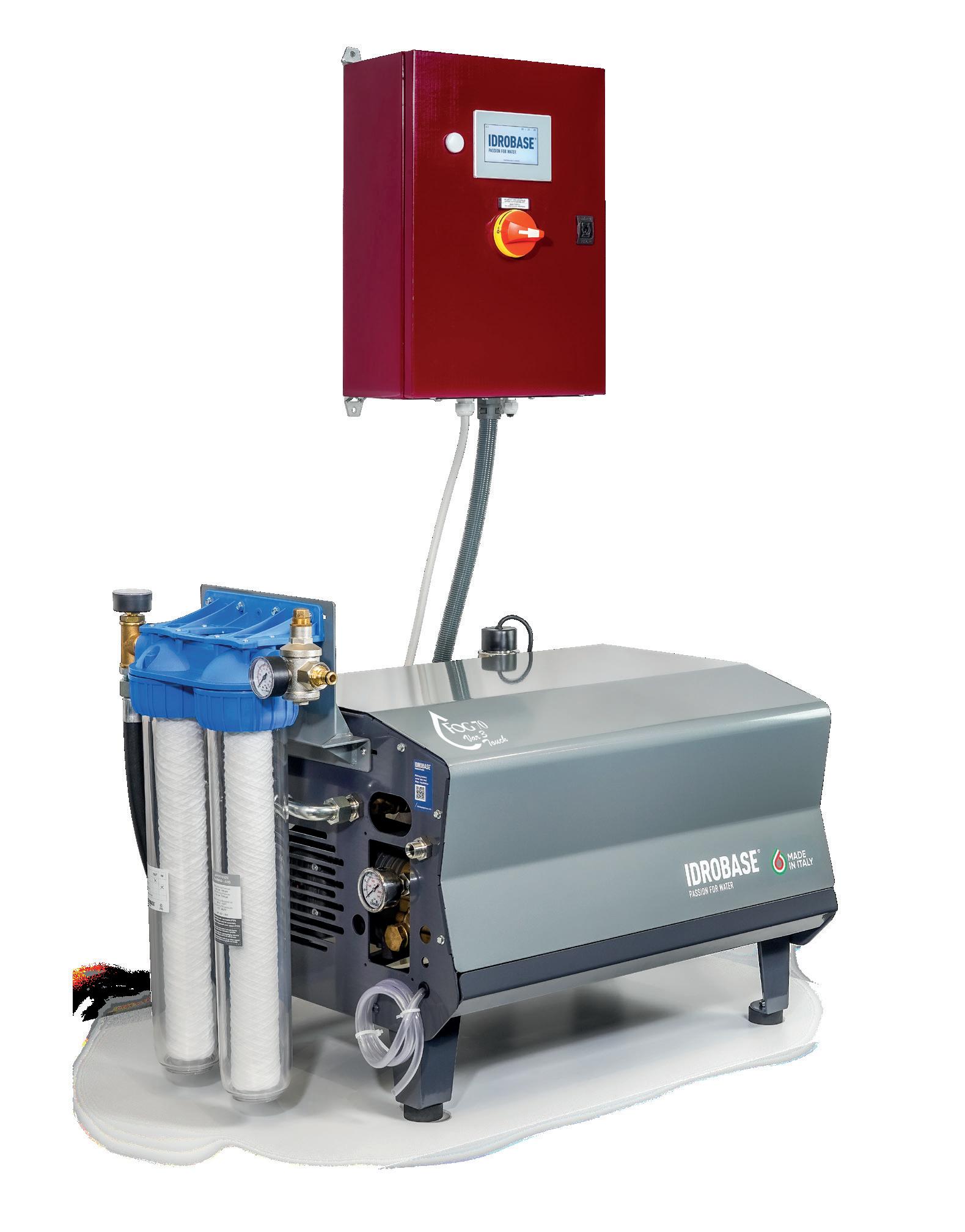

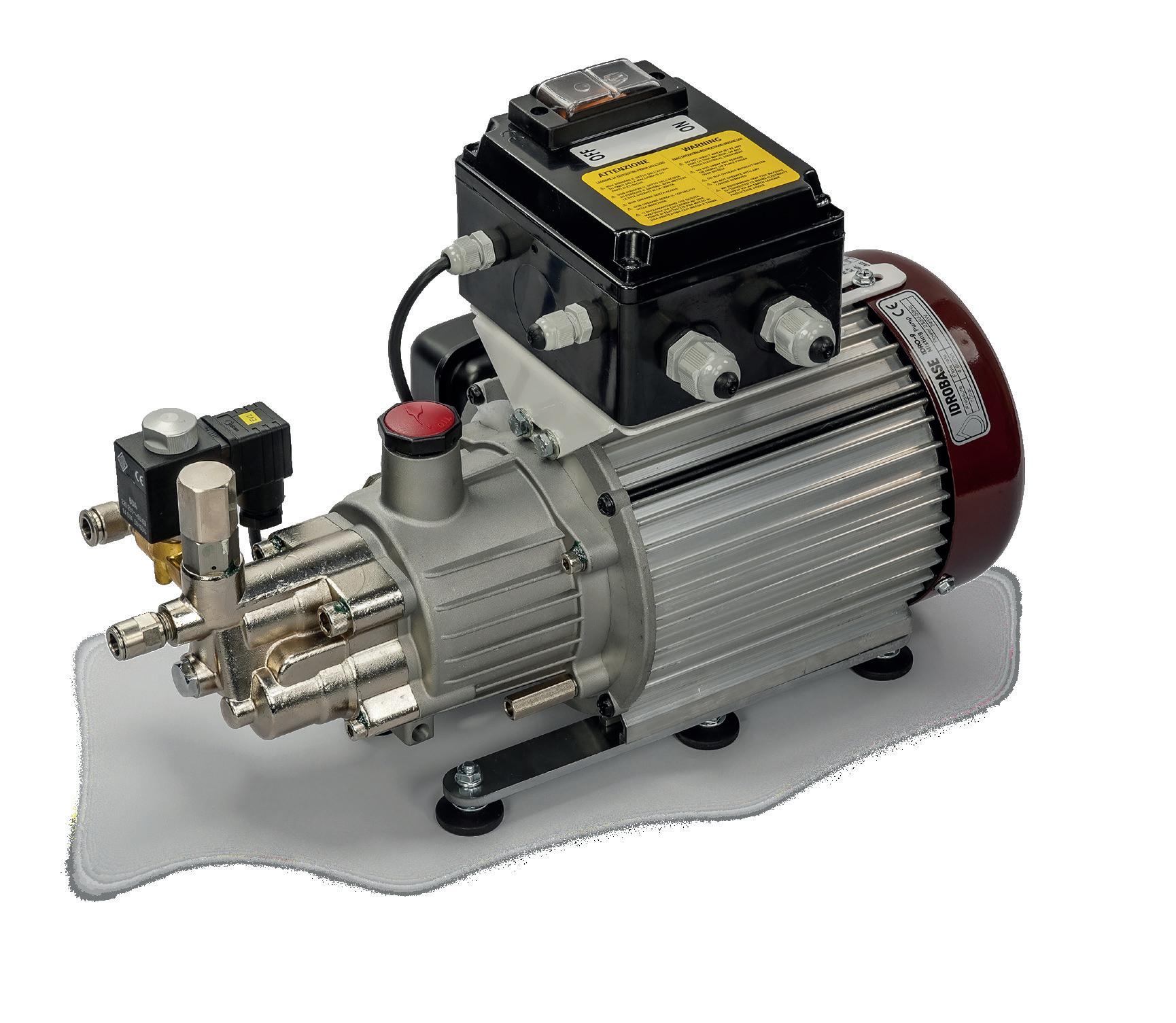

Professional pump unit
Fog module 70bar from 87 to 280 nozzles 3x400V-50Hz
• Complete with electric motor

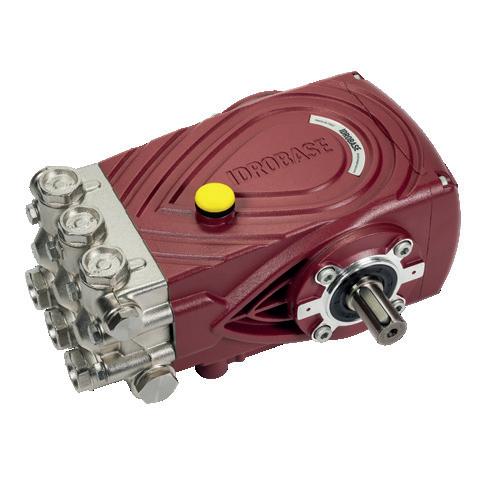

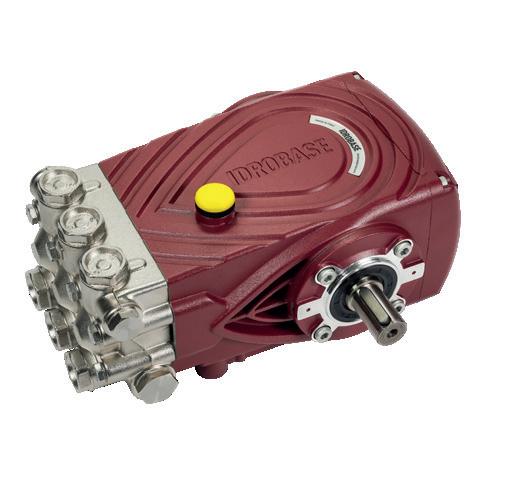

• Crankshaft pump with three ceramic plungers
• Stainless steel pressure gauge

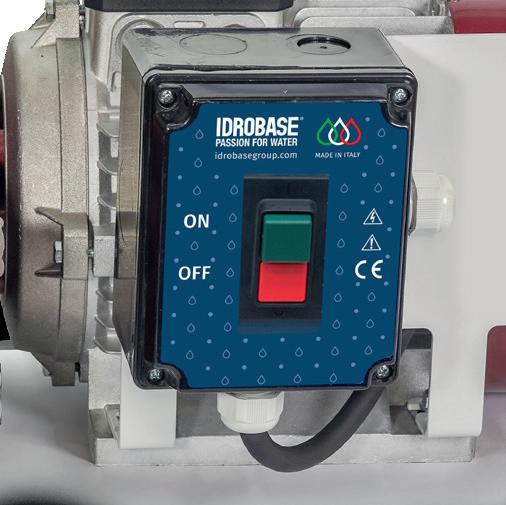

• Electric control panel with thermal switch
• Three-meter power cable
Technical features

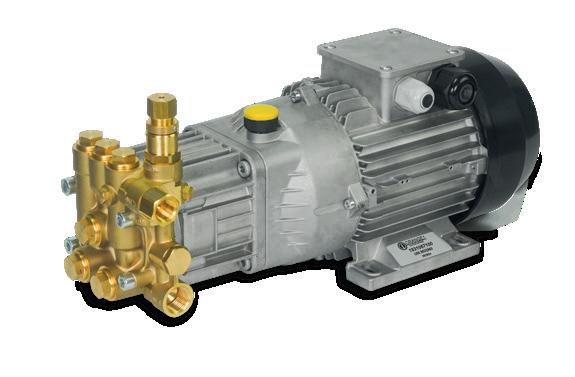

Pump unit
1x230V-50Hz
ZX.MPF70M09DP
ZX.MPF70M11DP
3 ball-bearing motor-pump unit pre-assembled and tested
* The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar
Pump unit
3x400V-50Hz
ZX.MPF70T11DP
ZX.MPF70T15DP
ZX.MPF70T21DP
3 ball-bearing motor-pump unit pre-assembled and tested
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
* The calculation uses nozzles with a flow rate factor of 020
Pump maintenance set 750hours INCLUDED
Technical features A
• Electric motor 230V-50Hz 1450Rpm
• Crankshaft pump with three ceramic plungers
Stainless steel pressure gauge
• Electric control panel with thermal switch
• 3 meter power cable
• Outlet 3/8 M
Technical features B
• Electric motor 3x400V-50Hz 1450Rpm
• Crankshaft pump with three ceramic plungers
Stainless steel pressure gauge
• Electric control panel with thermal switch
• 3 meter power cable
• Outlet 3/8 M
UV water sterilizer lamp (included)
Water inlet kit complete with pressure stabilizer (included)
• Essential
• Visible pump for an easy Maintenance
• Electromechanical management of safety devices
• Possibility of connecting remote control devices

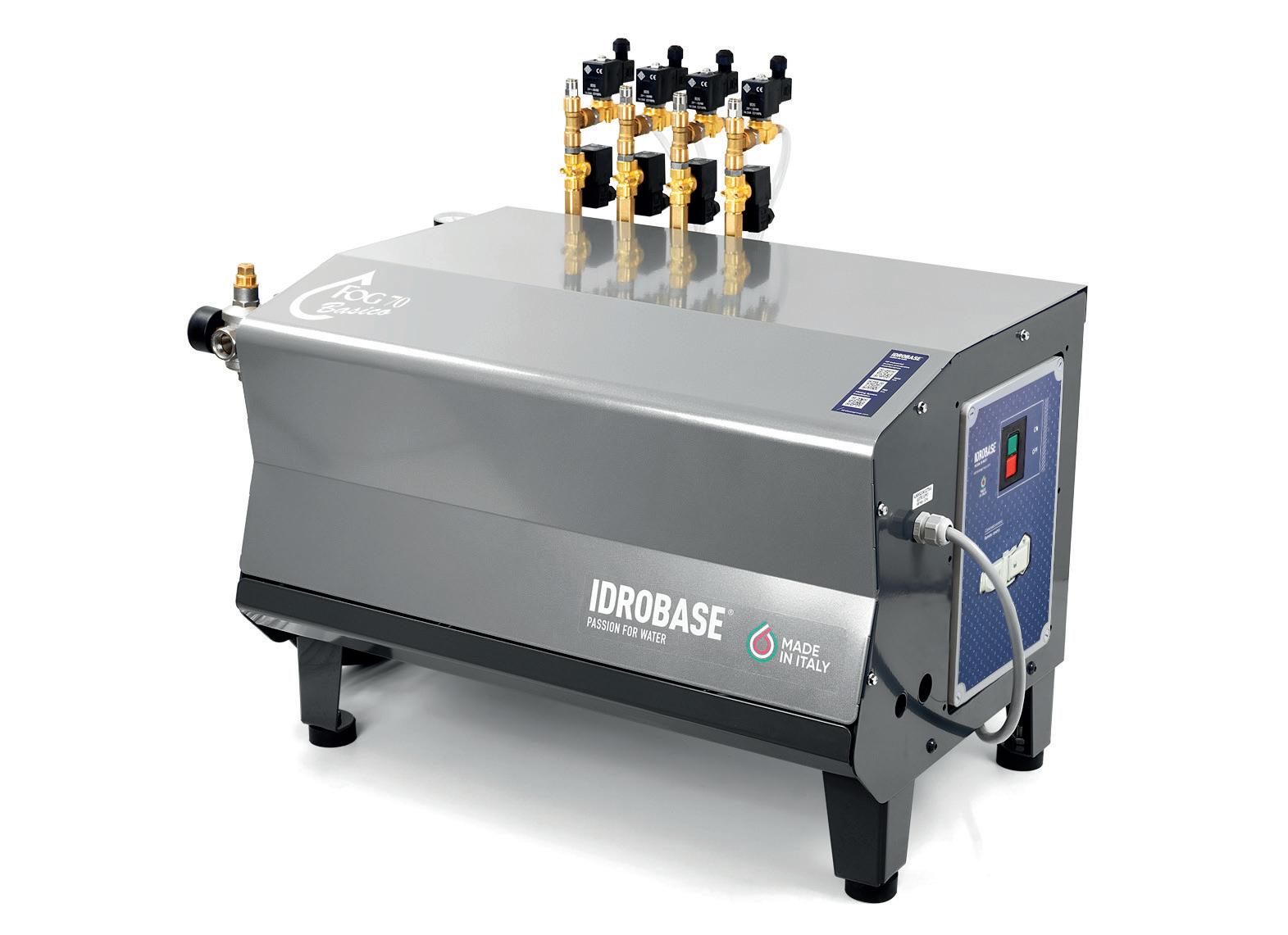

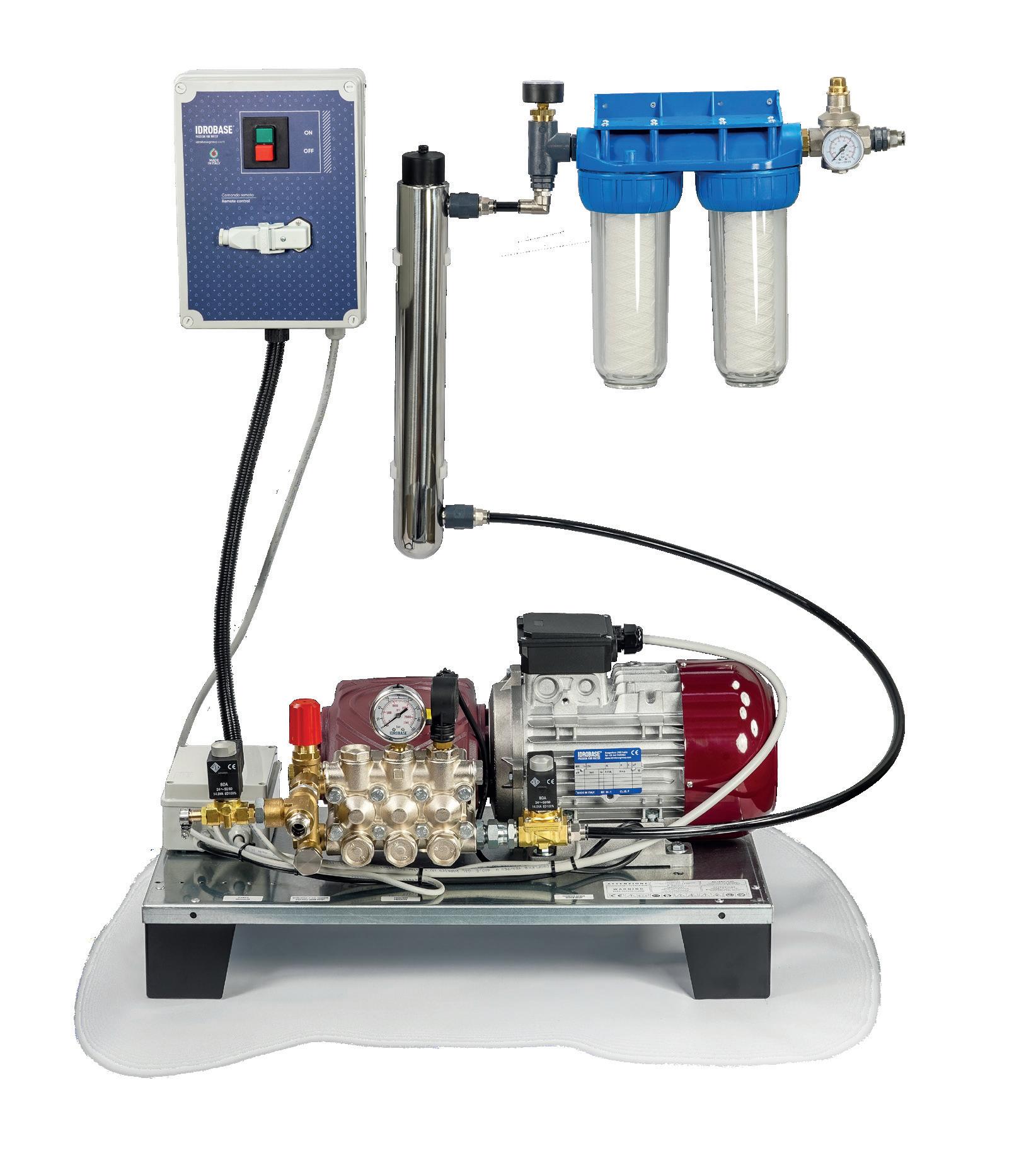

Fog module
70bar
professional from 13 to 560 nozzles 3x400V-50Hz
Nebulizes sterilized water

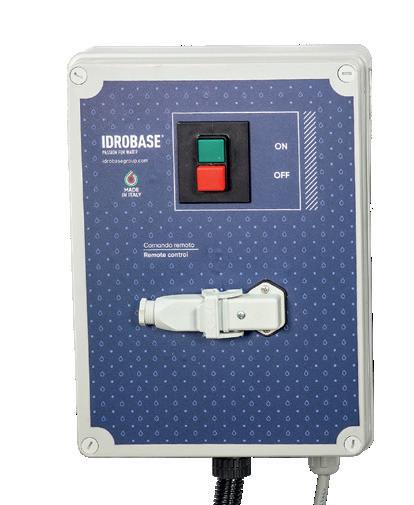

Control panel with remote outlet for connection of external devices such as humidistat, thermostat, etc.

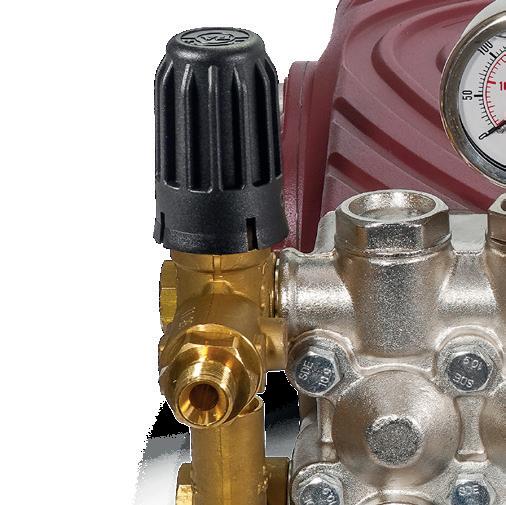

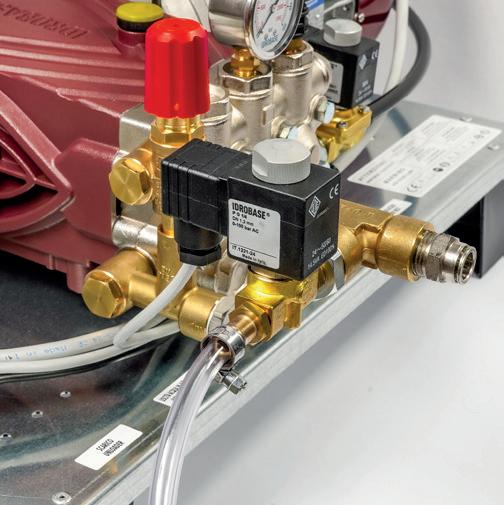

Detail of discharge solenoid valve and bypass valve

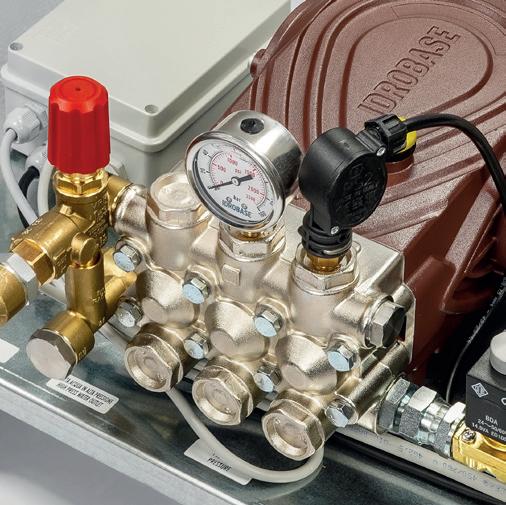

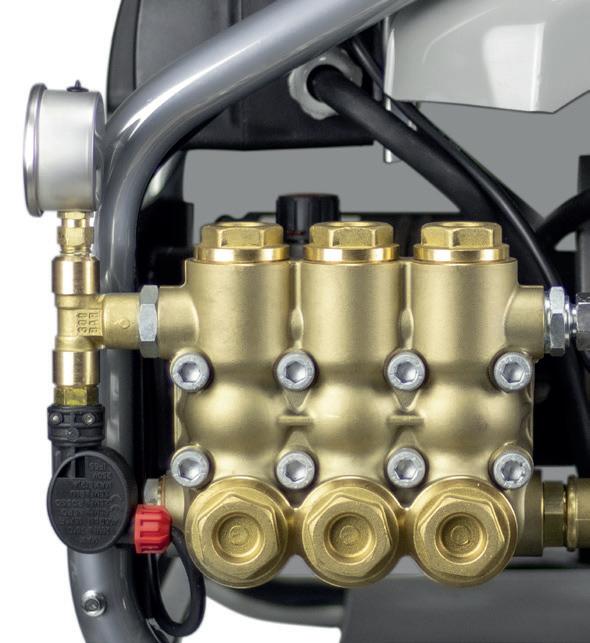

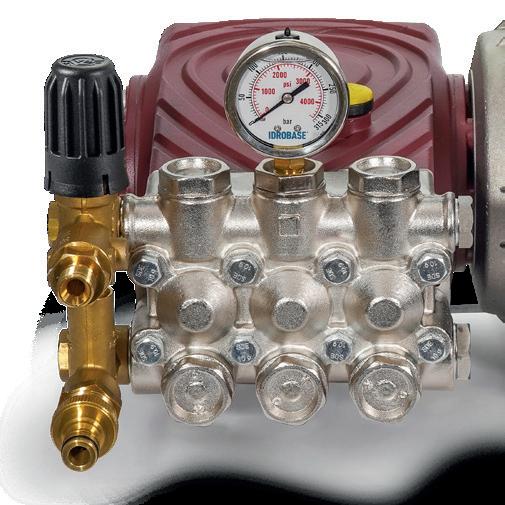

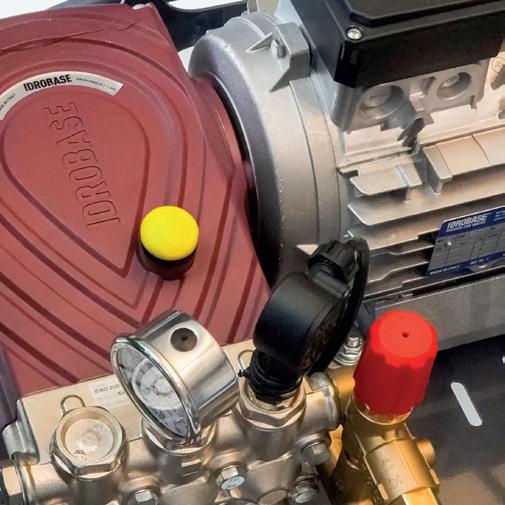

Detail of head section and pressure gauge
Technical features
ZX.F70AP09DP
ZX.F70AP11DP
ZX.F70AP15DP
ZX.F70AP21DP
ZX.F70AP33
ZX.F70AP42
FOG 70 APERTO-9
FOG 70 APERTO-11
FOG 70 APERTO-15
FOG 70 APERTO-21
FOG 70 APERTO-33 70bar 33l/min
FOG 70 APERTO-42 70bar 42l/min
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
Pump maintenance set 750hours INCLUDED
Technical features
• Base made of galvanized steel complete with support feet
• Professional pump, crankshaft, with brass head with 3 ceramic plungers
• Electric motor 1450g/min, 3x400V-50Hz, S1
• Unloader valve, in brass
• Pressure gauge with glycerine
L.p. solenoid valve 24V-50Hz, inlet water
• H.p. solenoid valve 24V-50Hz for line pressure discharge
• H.p. switch for no water supply and pipe breaks
6,3kW 58Kg
• Electric board complete with: ON/OFF thermal cutout switch, remote control switch, fuses, electrical transformer 380/220/24V. Ready to be connected to an external device (thermostat, humidistat and other)
• 3/4” M inlet Outlet, 1/2” M
• Dimensions WxLxH: 380x650x350mm
Hotel - United Arab Emirates

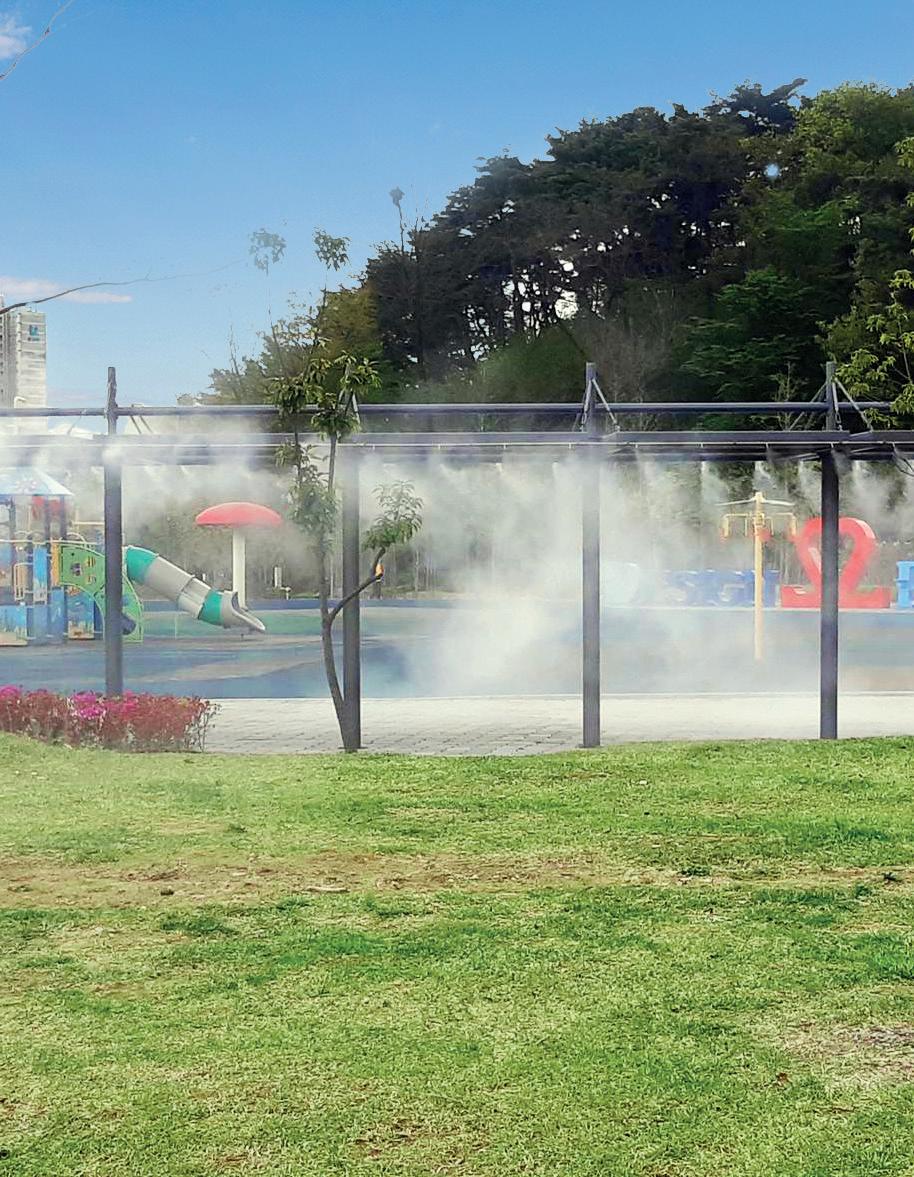

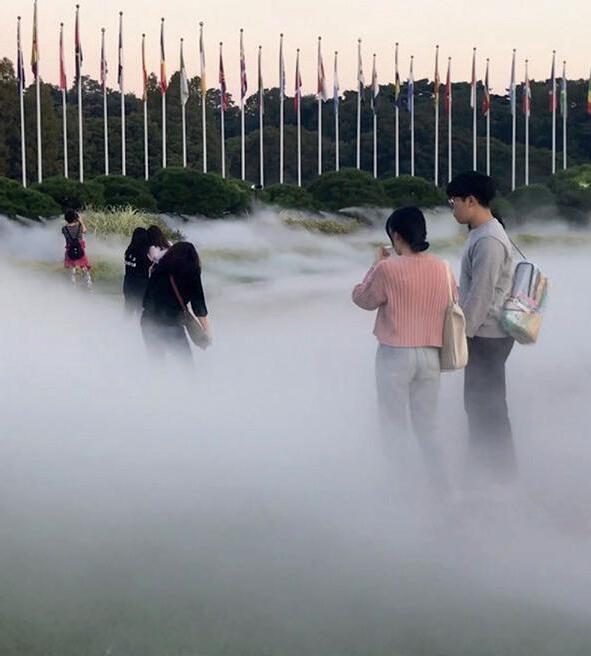

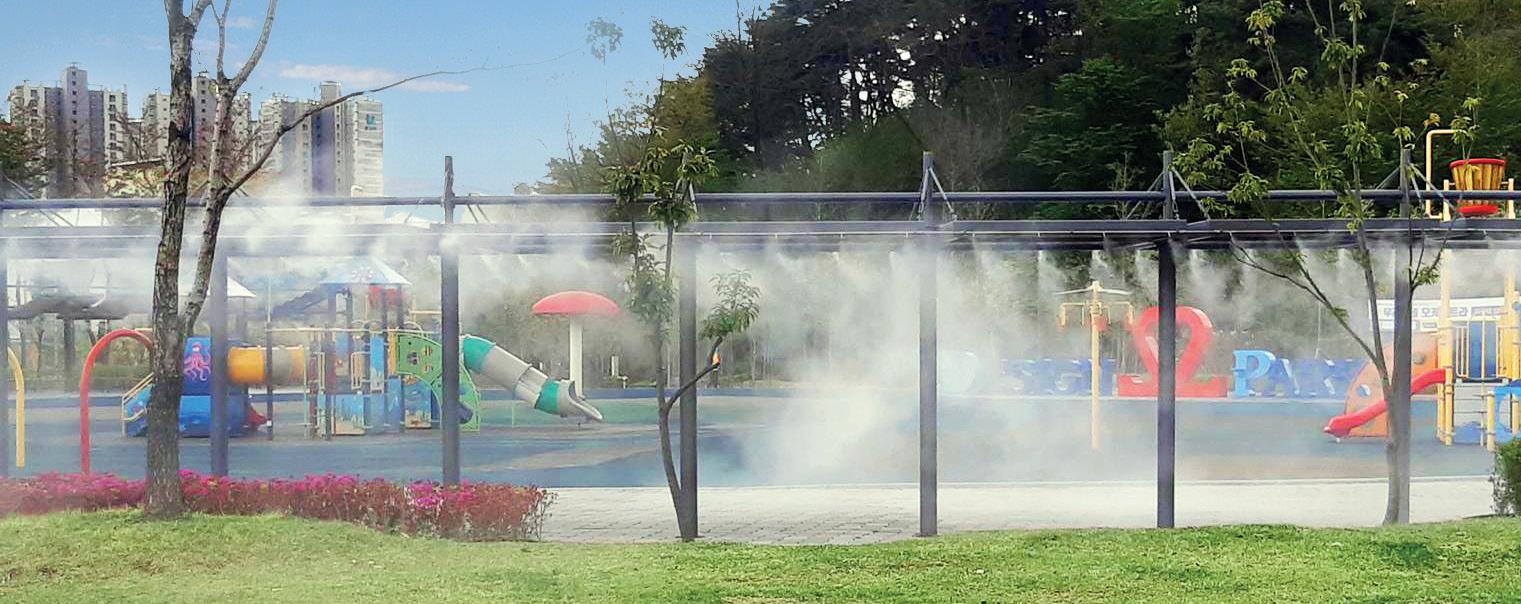

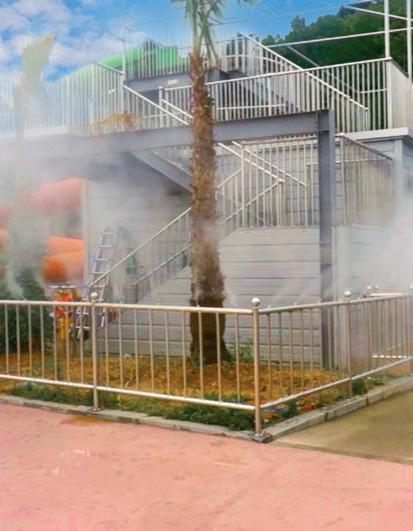

Playground - South Korea
professional from 13 to 560 nozzles 3x400V-50Hz
UV water sterilizer lamp (included)
Water inlet kit complete with pressure stabilizer (included)
The 100% stainless steel version is also available

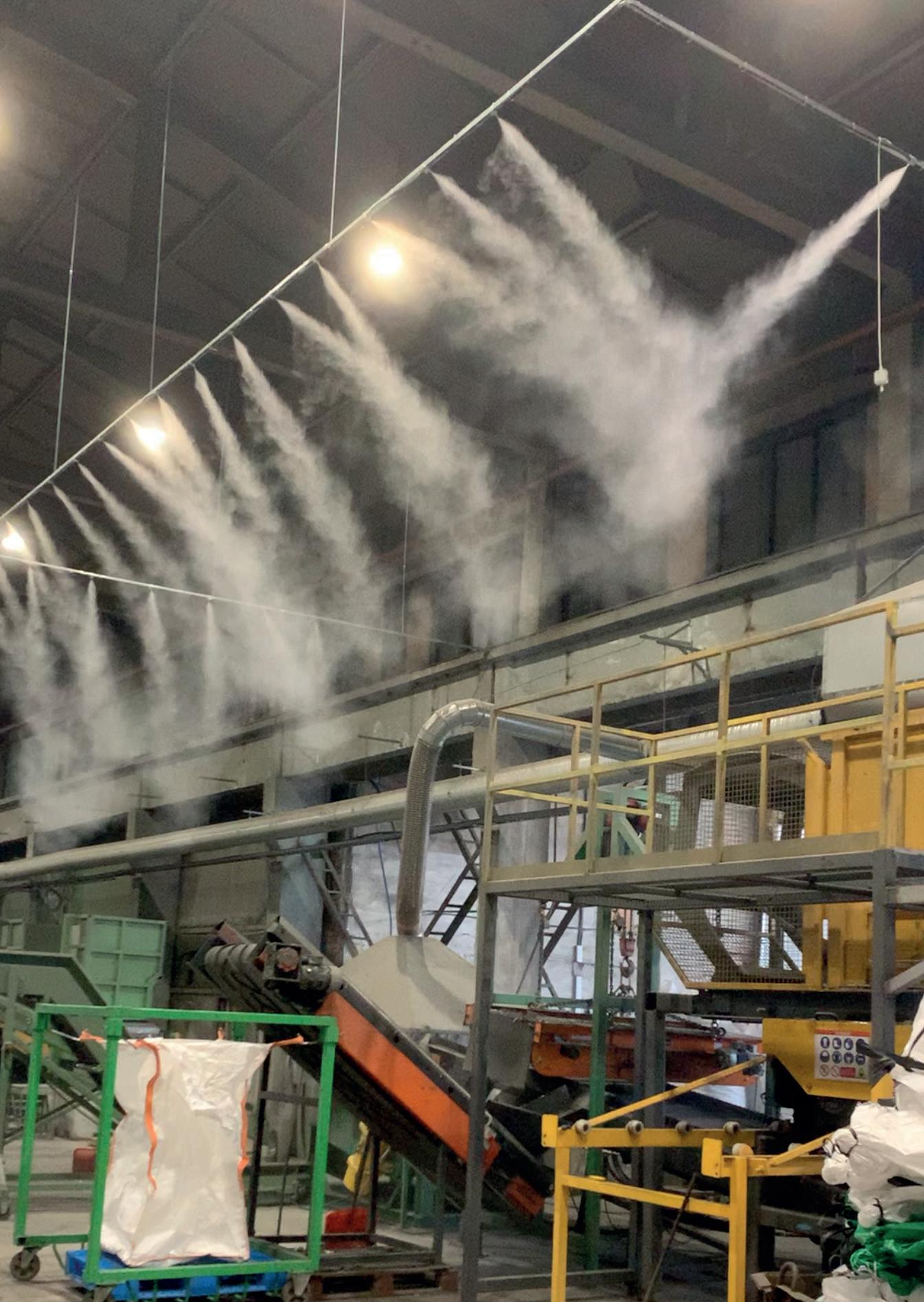

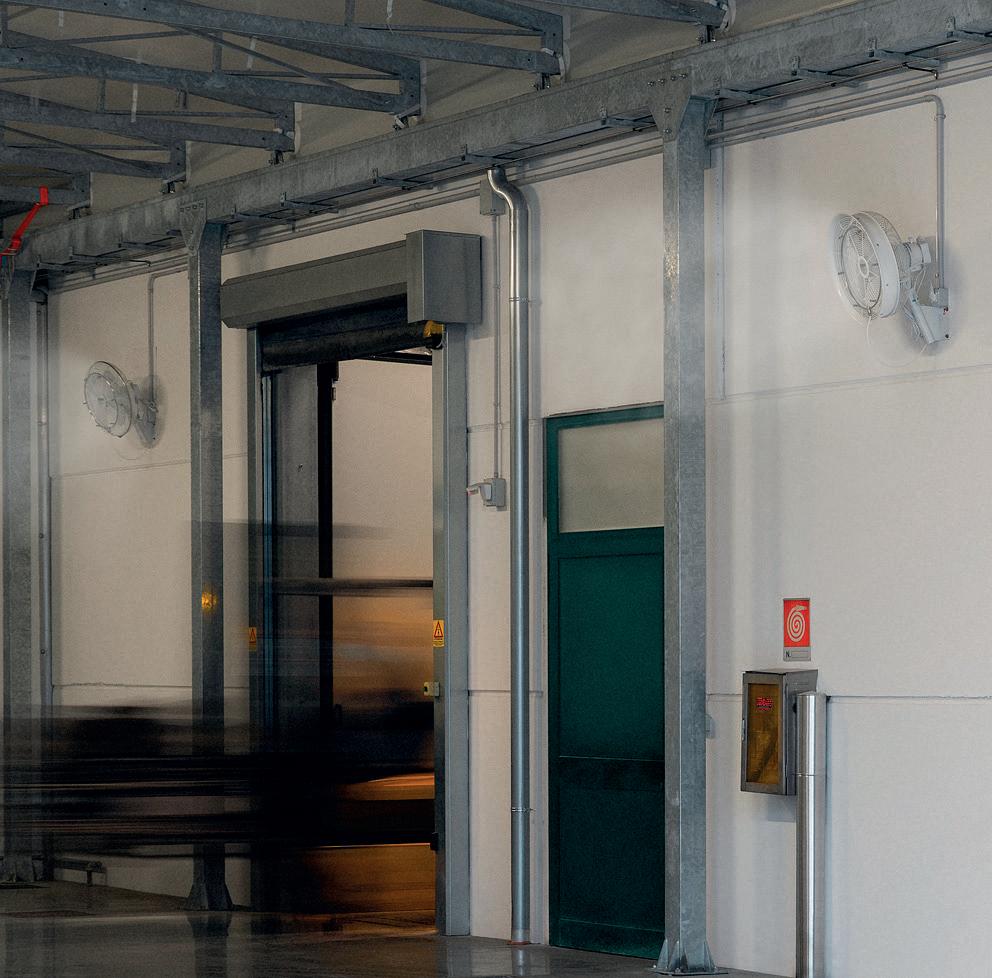

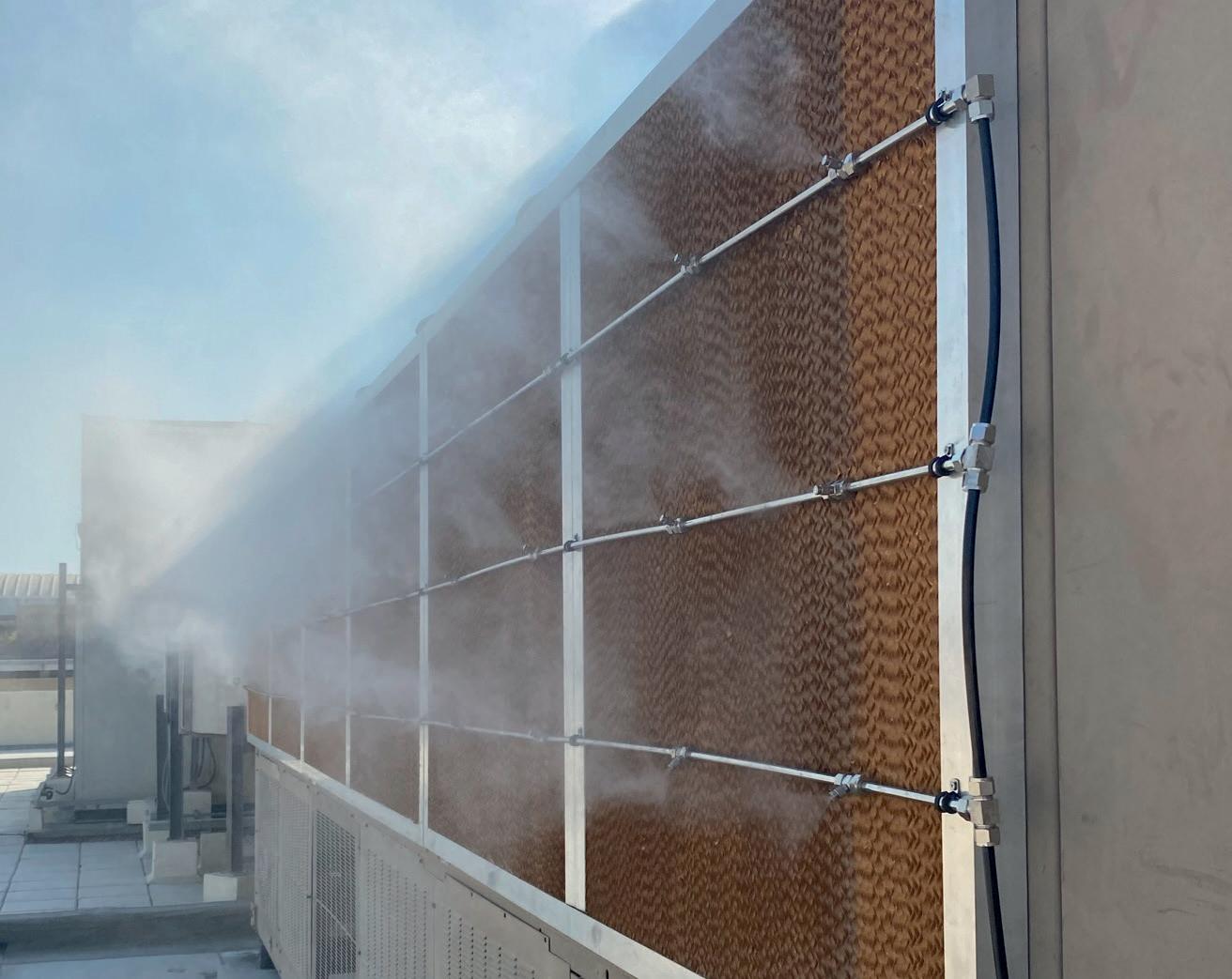

Misting system installation
• Sturdy structure made of painted steel
• Compact
• Possibility of installing accessories directly on the module
• Possibility of connecting remote control devices

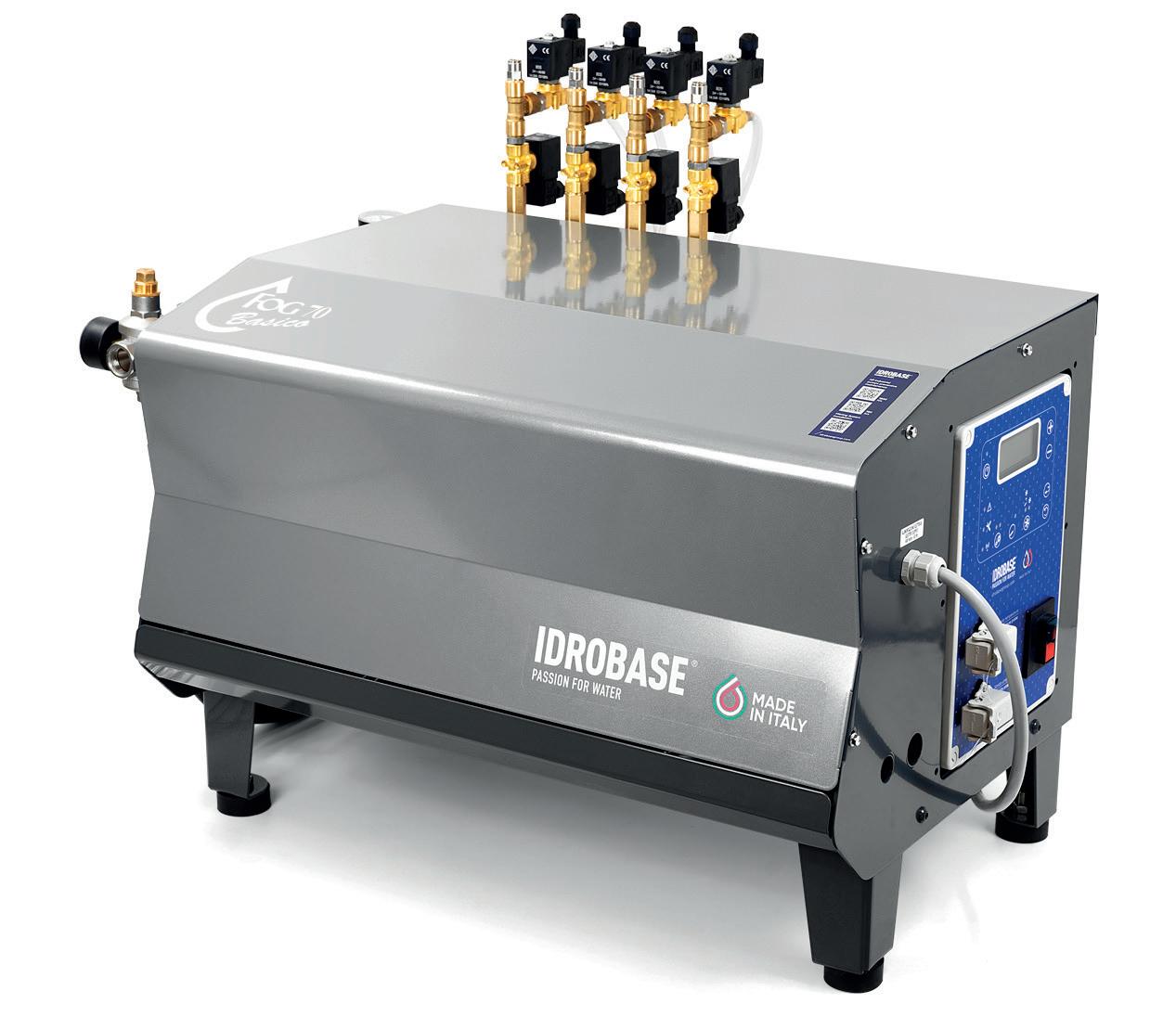

Idrobase Dolly Pumps
Serie PRO
Technical features
ZX.F70B09DP
ZX.F70B11DP
ZX.F70B15DP
ZX.F70B21DP
ZX.F70B33
ZX.F70B42
FOG
Pump maintenance set 750hours INCLUDED Code Model
FOG 70 BASICO-42 70bar 42l/min
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
Technical features
Frame made of painted steel
Professional pump, crankshaft, with brass head with 3 ceramic plungers
Electric motor 1450g/min, 3x400V-50Hz, S1
• Unloader valve, in brass
• Pressure gauge with glycerine in AISI 304 stainless steel
• Solenoid valve l.p. water inlet 24V-50Hz
H.p. solenoid valve 24V-50Hz for line pressure discharge
H.p. switch for no water supply and pipe breaks
•
Electric board complete with: ON/OFF thermal cutout switch, remote control switch, fuses, electrical transformer 380/220/24V. Ready to be connected to an external device (thermostat, humidistat and other) 3/4” M inlet Outlet, 1/2” M

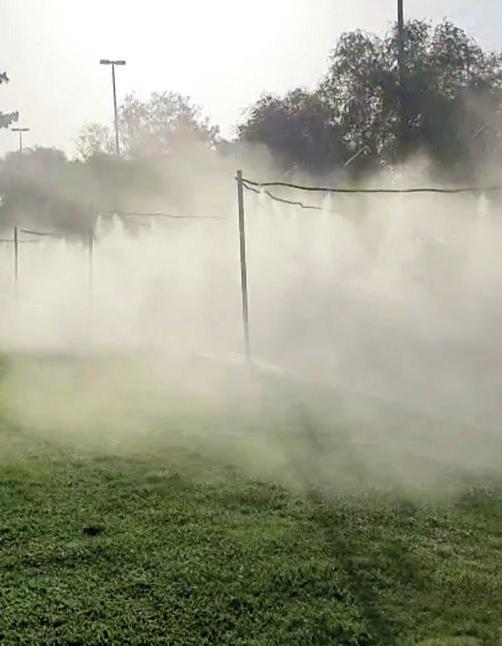

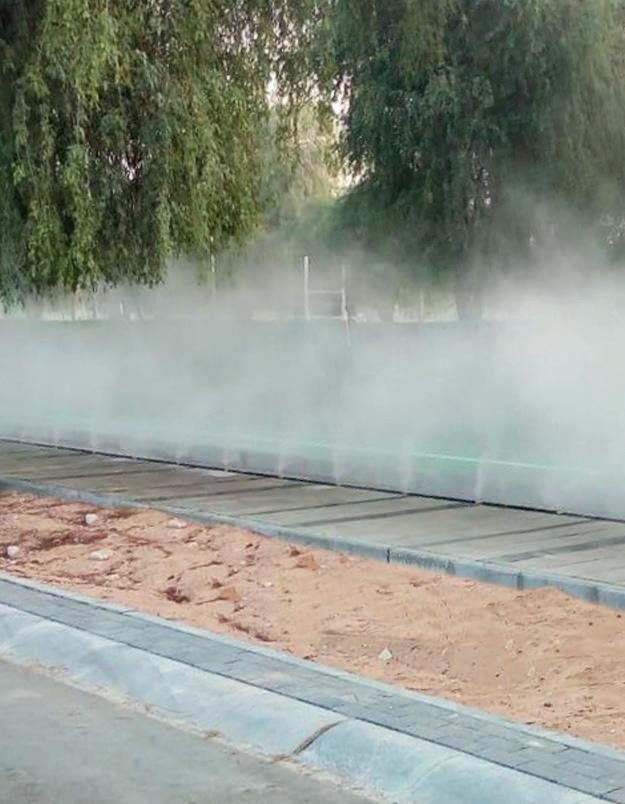

Public park - United Arab Emirates
Private road - United Arab Emirates
UV water sterilizer lamp (included)
Water inlet kit complete with pressure stabilizer (included)
• Highly compact
Misting system at Marco Polo Venice airport

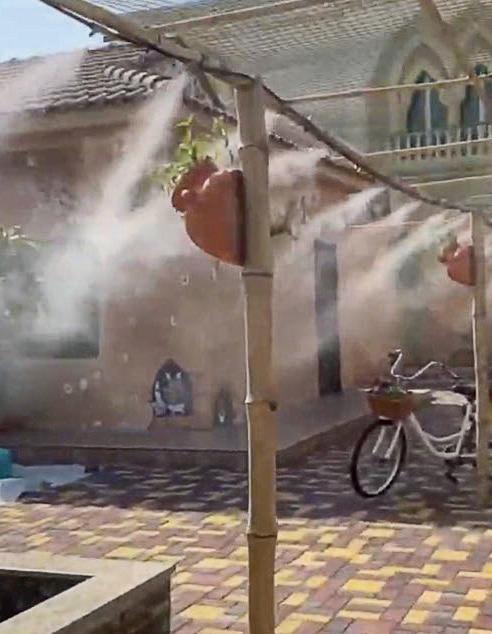

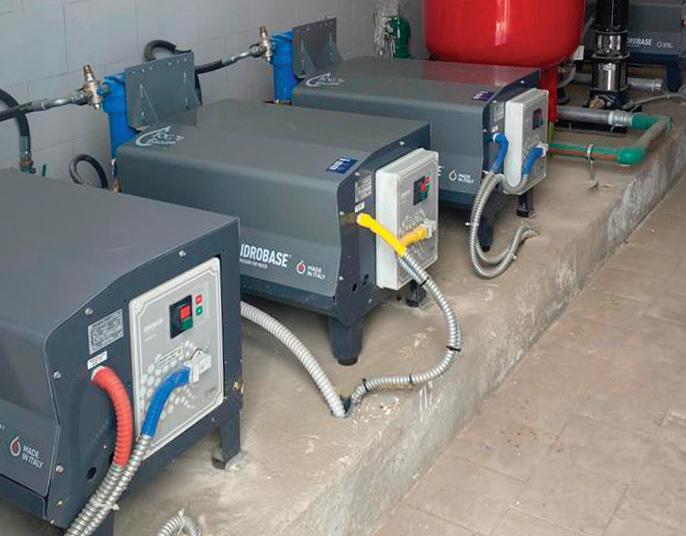

Misting system installation
• Possibility of installing accessories directly on the module
• Electronic control panel with built-in thermostat and humidstat
• Pre-setting for humidity and temperature probes connection

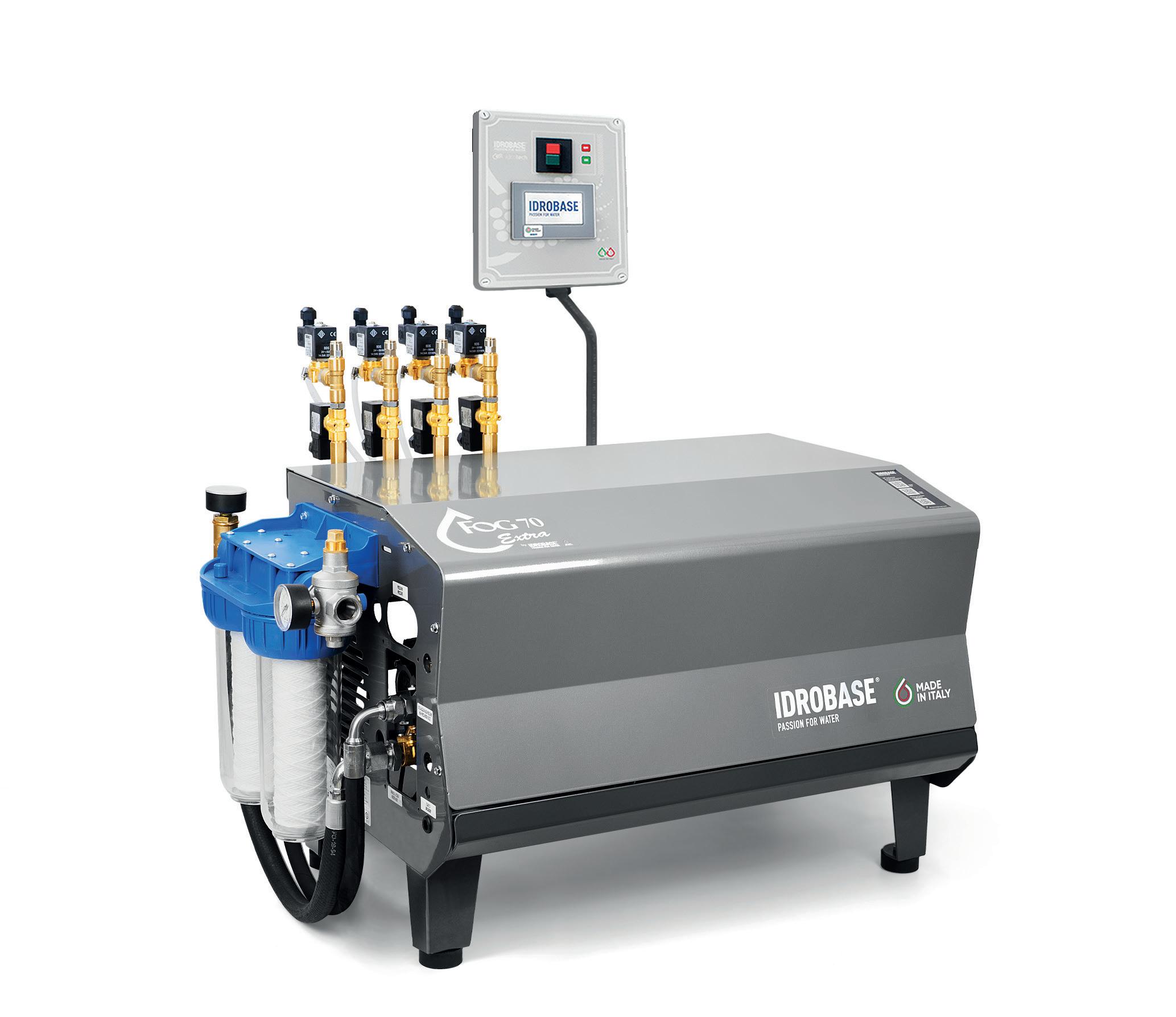

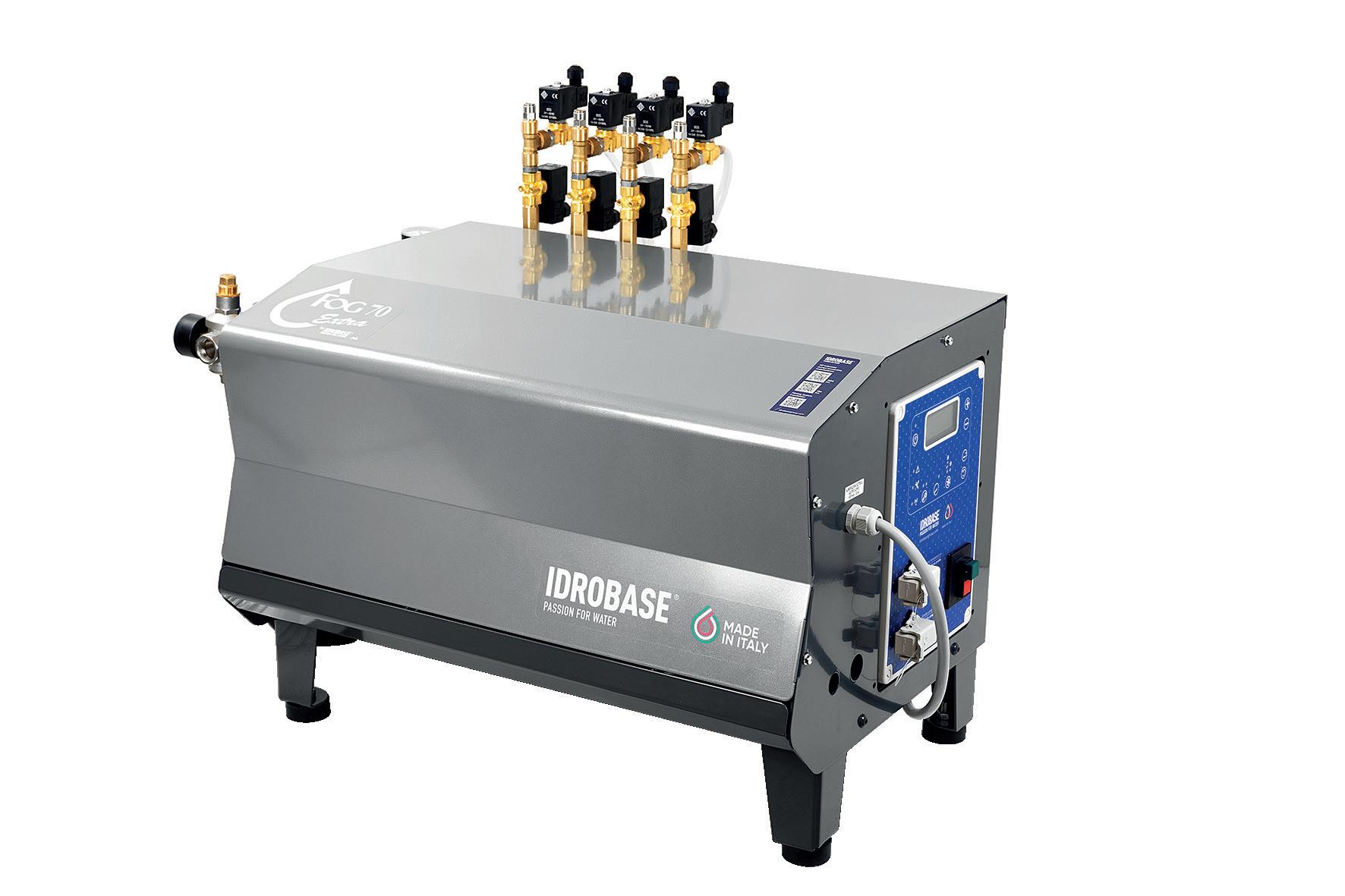

Idrobase Dolly Pumps
Serie PRO
Professional pump with brass head, 1450Rpm, crankshaft, 3 ceramic plungers and brass heads
Control panel with thermostat, humidistat, and weekly programmer. With presetting for ZX.SU20 humidity sensor connections and ZX.ST20 temperature sensors
Technical features
ZX.F70X-09DP
ZX.F70X-11DP
ZX.F70X-15DP
ZX.F70X-21DP
ZX.F70X-33
ZX.F70X-42
Pump maintenance set 750hours INCLUDED Code
FOG 70 EXTRA-9 70bar
FOG
FOG 70 EXTRA-21 70bar 21l/min
FOG 70 EXTRA-33 70bar 33l/min 440 6,3kW 58Kg
FOG 70 EXTRA-42 70bar 42l/min
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
Technical features
Frame made of painted steel

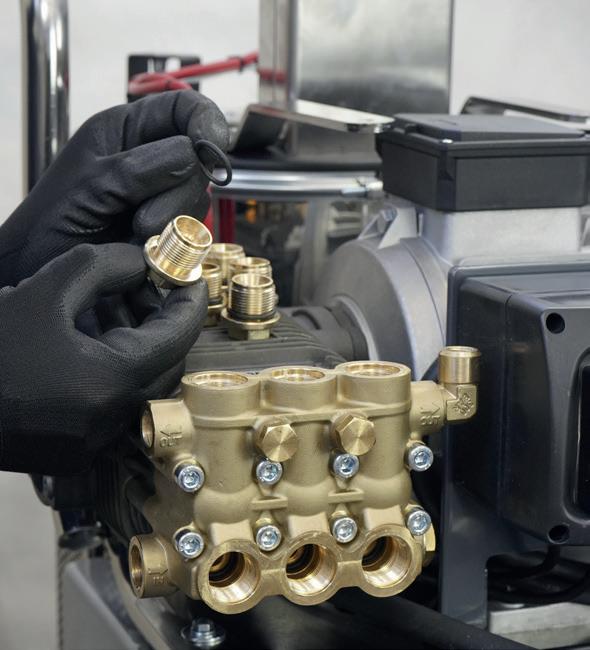

Professional pump, crankshaft, with brass head with 3 ceramic plungers
• Electric motor 1450Rpm, 3x400V-50Hz, S1
• Unloader valve, in brass
Pressure gauge with glycerine in AISI 304 stainless steel
Solenoid valve l.p. water inlet 230V-50Hz
H.p. solenoid valve 230V-50Hz to discharge line pressure
H.p. switch for no water supply and pipe breaks
• Thermostat and humidistat as standard supplies
General thermal switch 3/4” M inlet
• Outlet, 1/2” M
• Control panel with: cyclical ON/OFF timer supplied as standard, weekly programmer with standard time slots, hour counter and Maintenance schedule. Pre-setting for connection of 230V ventilation systems. Possibility of remote management
• Dimensions WxLxH: 780x450x500mm

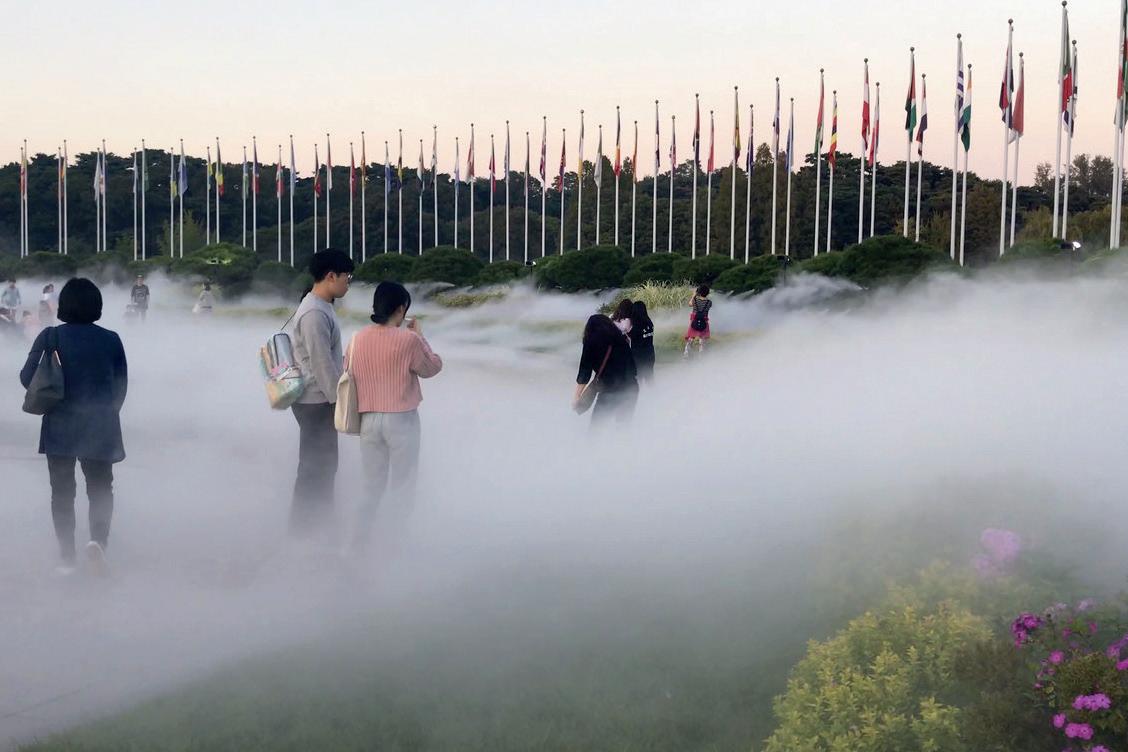

Amusement park - South Korea
Venice airport - Italy
from 13 to 560

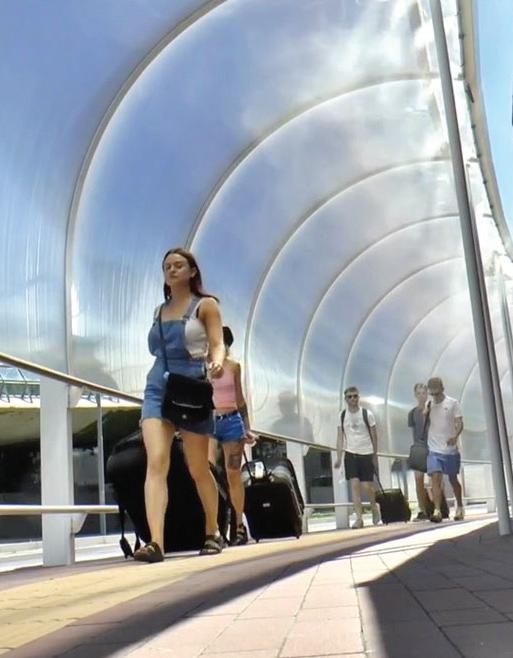

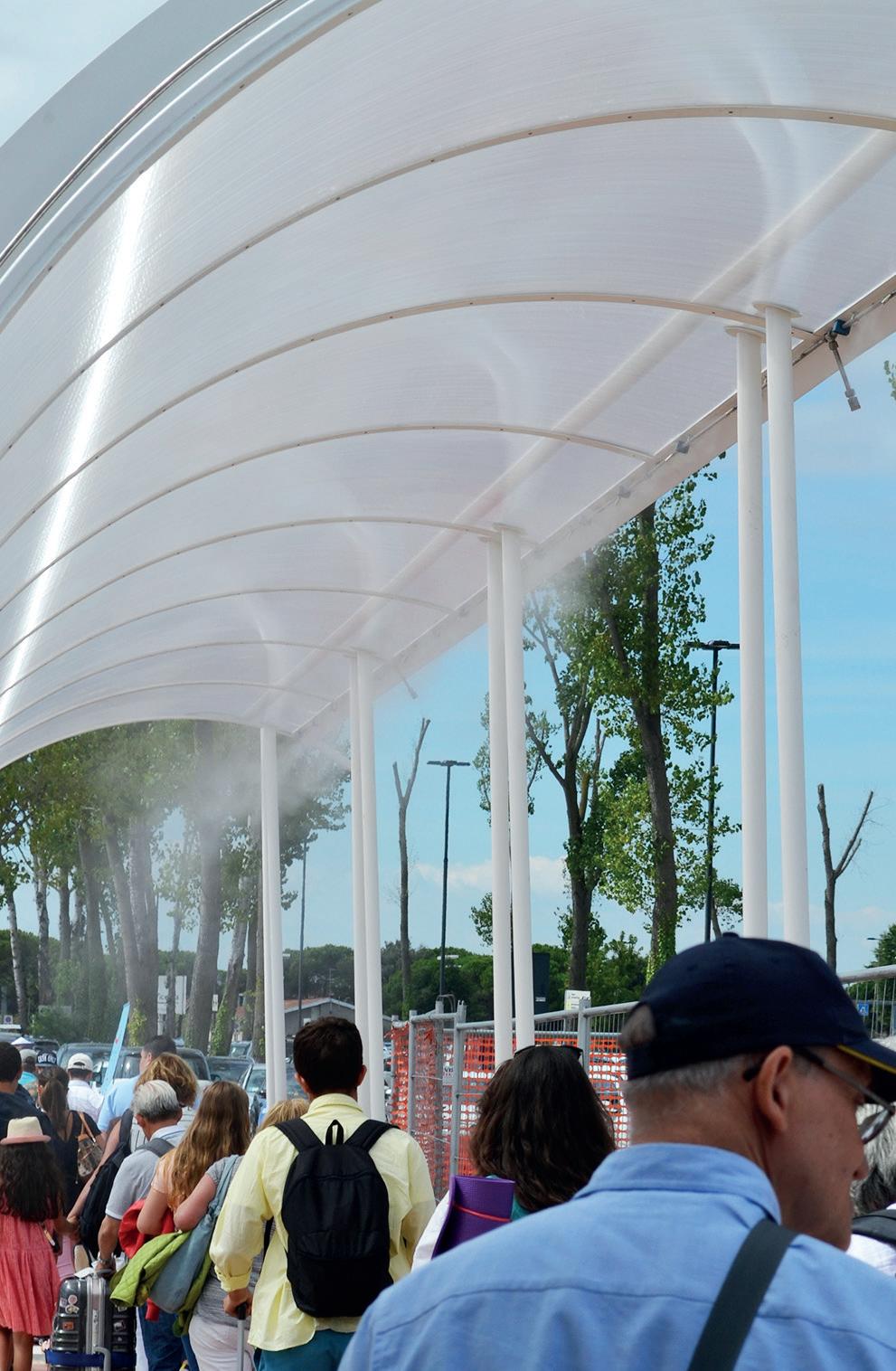

Misting system at Marco Polo Venice airport
Misting system installation
UV water sterilizer lamp (included)
Water inlet kit complete with pressure stabilizer (included)

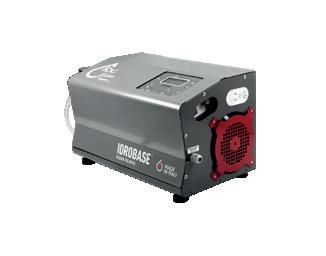

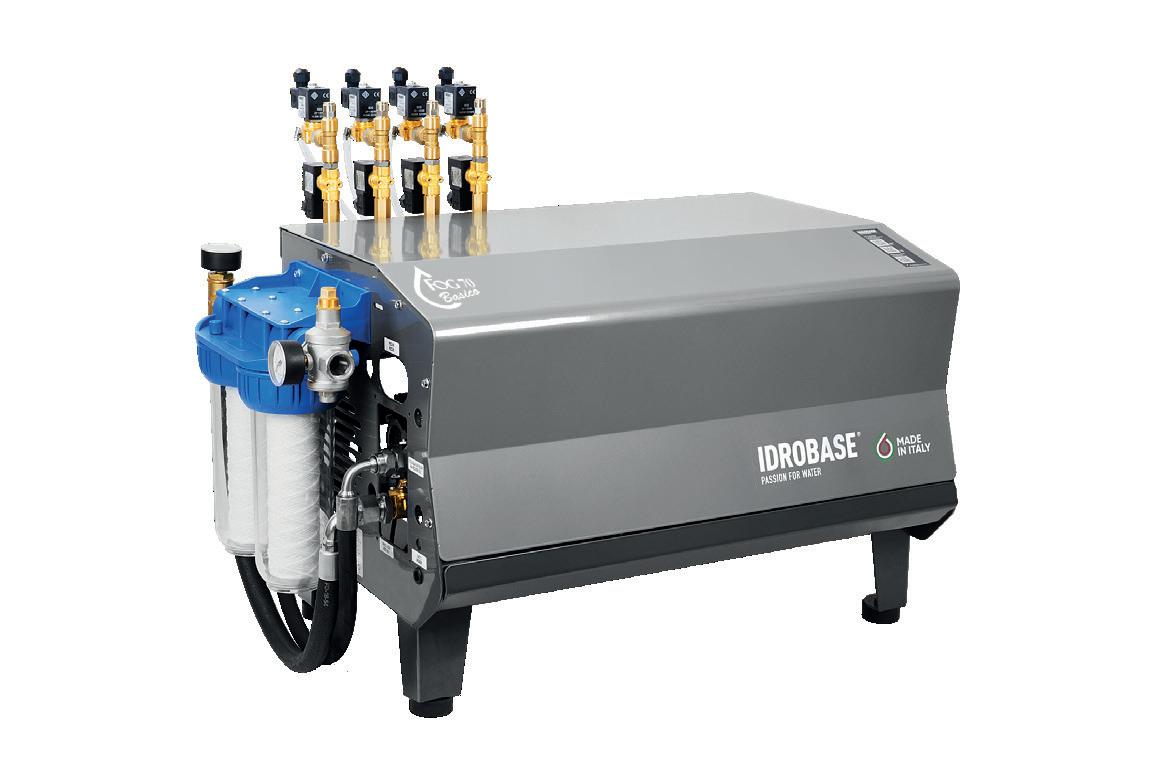

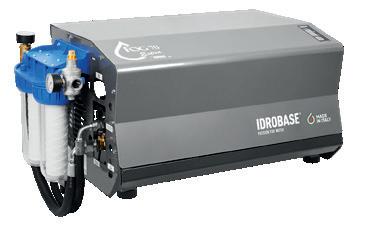

• Ultra compact
• Possibility of mounting accessories directly on the machine
• Multi-function control panel with:
• language, date and time setting,
• quick connection to remote control (clean signal)
• touch panel connector with 0.5 meters sheath (ZX.2753)

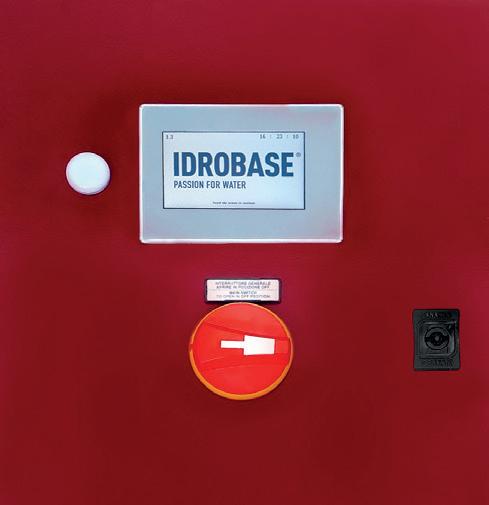

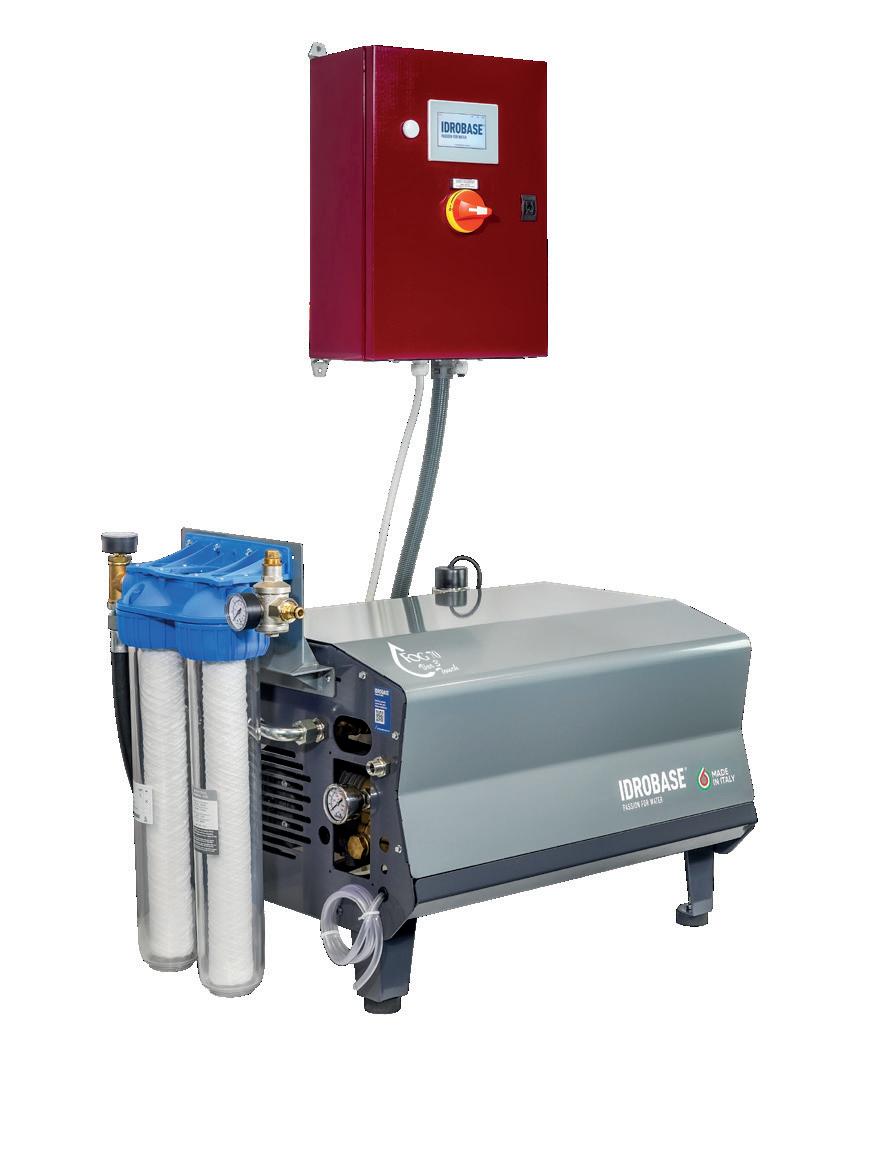

Control panel with PLC and touchscreen to manage the module, available in 7 languages (OPTIONAL: ZX.2753-5)
Multifunctional control panel with:
• continuous mode/work pause; adjustable setting of pause and work cycles;
• adjustable setting of pause and work cycles;
• unload solenoid valve;
• pipe-breaks / no water supply delay setting;
• work timer counts;
• expiring Maintenance notice; expired Maintenance notice;
• pipe-breaks / no water supply alarm.
Technical features
ZX.F70T11DP
ZX.F70T15DP
ZX.F70T21DP
ZX.F70T33
ZX.F70T42
FOG
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
maintenance set 750hours
Technical features
Frame made of painted steel
Professional pump, crankshaft, with brass head with 3 ceramic plungers
• Electric motor 1450Rpm, 3x400V-50Hz, S1
• Unloader valve, in brass
Pressure gauge with glycerine in AISI 304 stainless steel
Solenoid valve l.p. water inlet 24V-50Hz
H.p. solenoid valve 24V-50Hz to discharge line pressure
H.p. switch for no water supply and pipe breaks
• General thermal switch
3/4” M inlet Outlet, 1/2” M
• Control panel with: thermal switch, PLC and touchscreen to manage the module
•

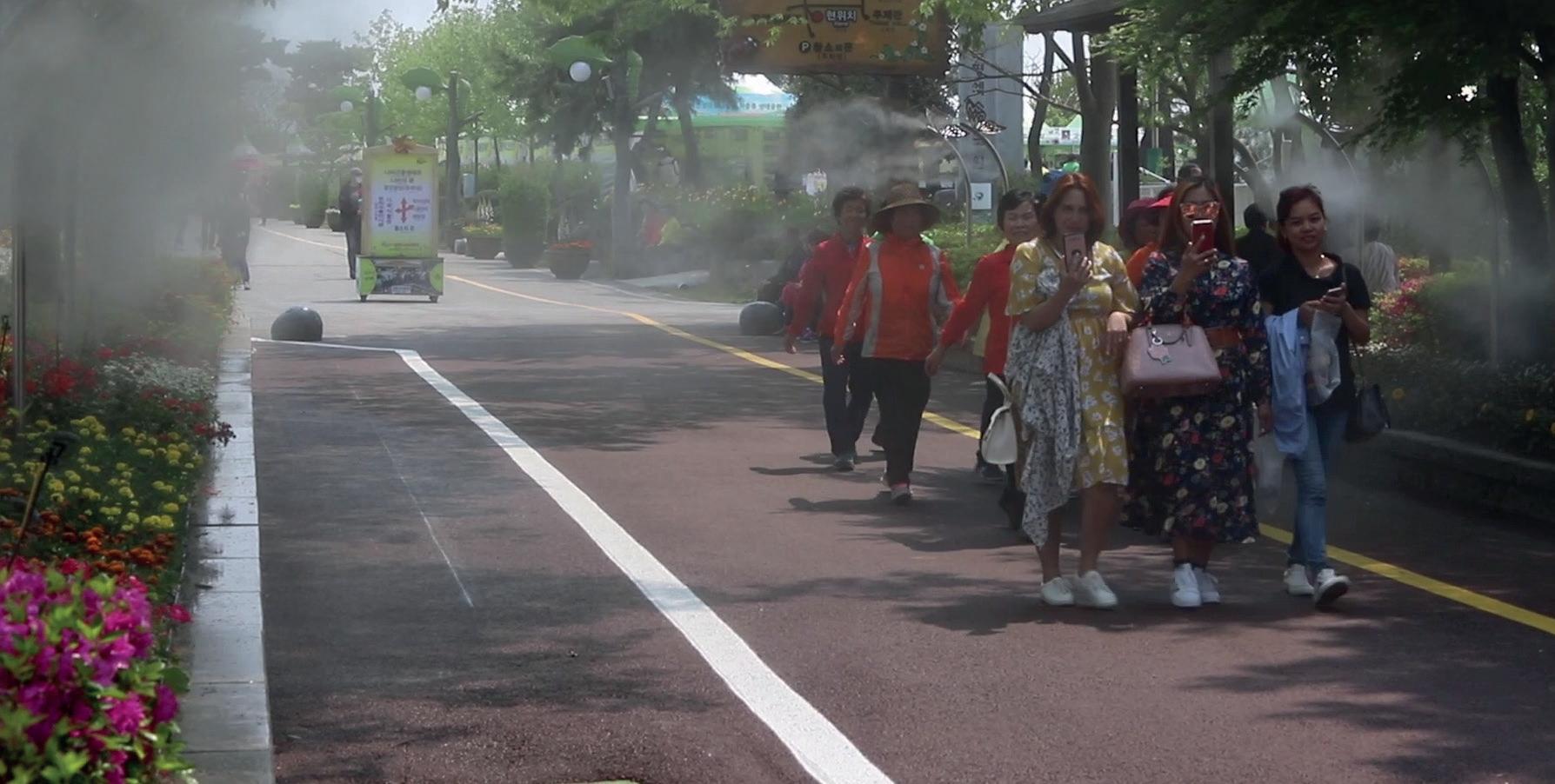

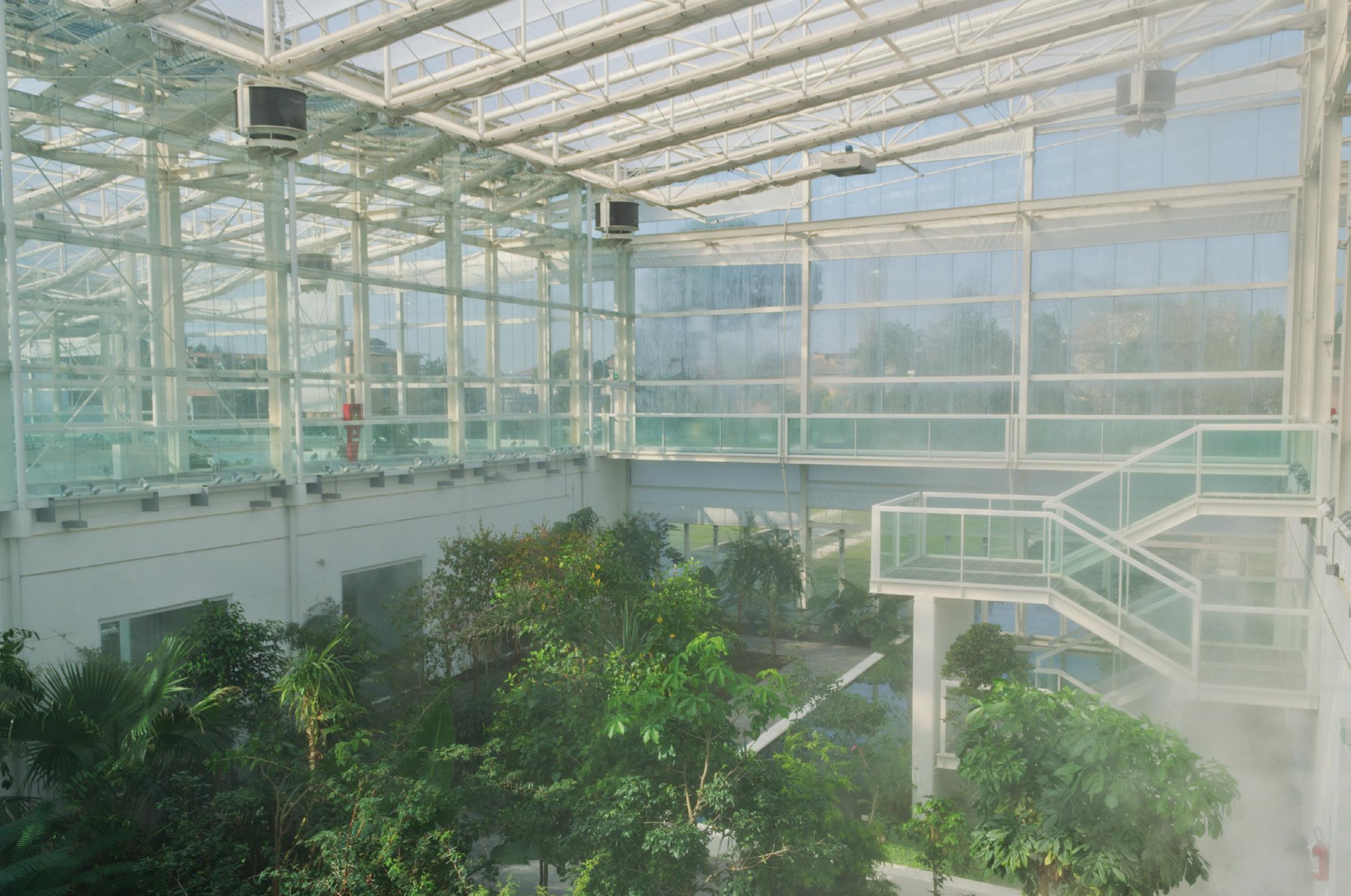

Green area - South Korea
UV water sterilizer lamp (included)
Water inlet kit complete with pressure stabilizer (included)
We show you the Zaryadye Park of Moscow

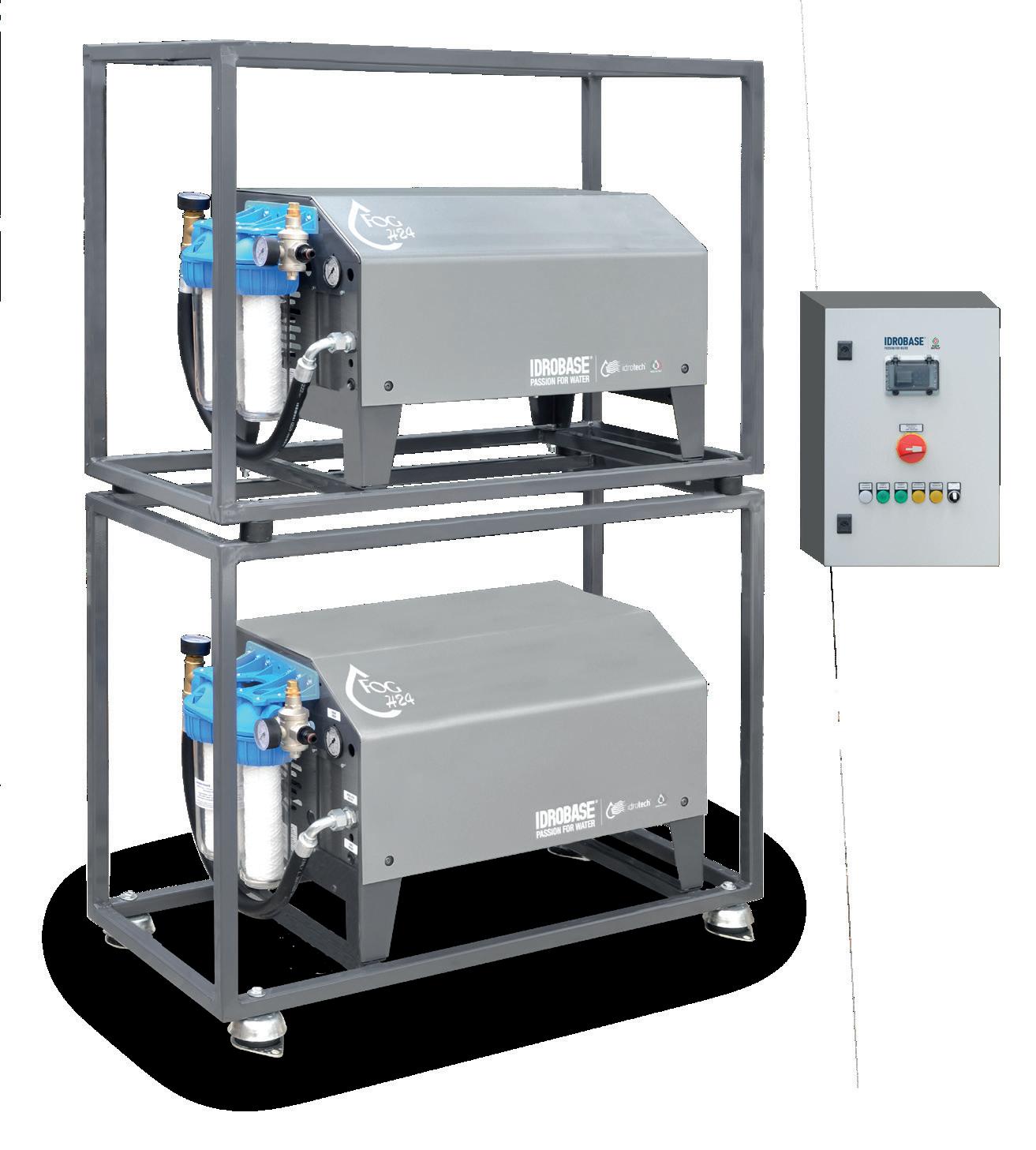

• Self-supporting structure made of painted steel
• Double pump system for continuous work (H24)
• Control panel with PLC for alternate management of the pumps

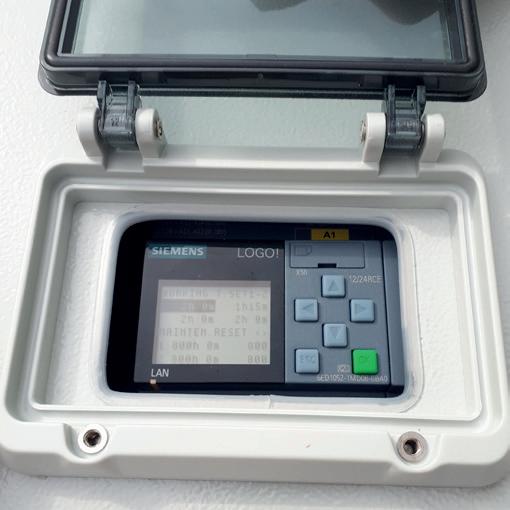

PLC (programmable logic controller) detail
Detail of anti-vibration supports for floor fixing
Idrobase Dolly Pumps
Serie PRO
Nebulizes sterilized water
Technical features
ZX.F70H2409DP
ZX.F70H2411DP
ZX.F70H2415DP
* The max number of nozzles has been calculated by using a nozzle IT.204C with flow rate 020 (0,075l/min) at 70bar
** Other flow rates are available upon request
INCLUDED
Pump maintenance set 750hours

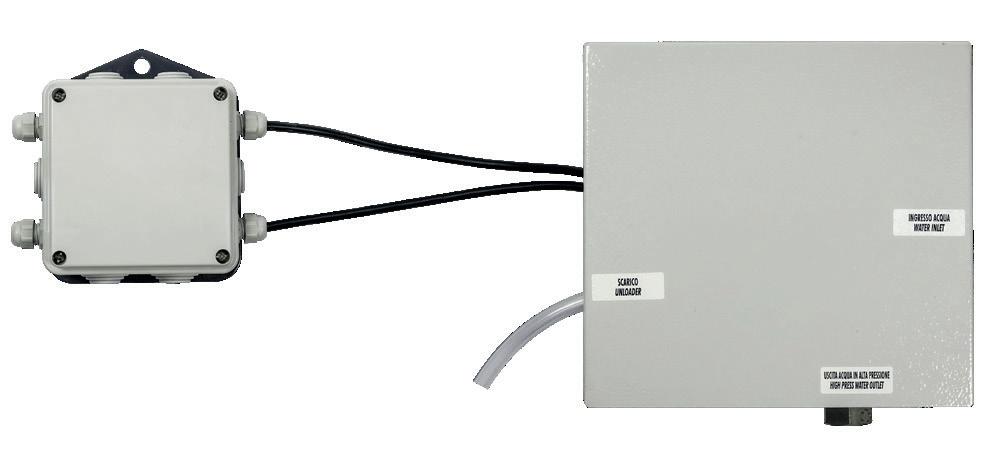

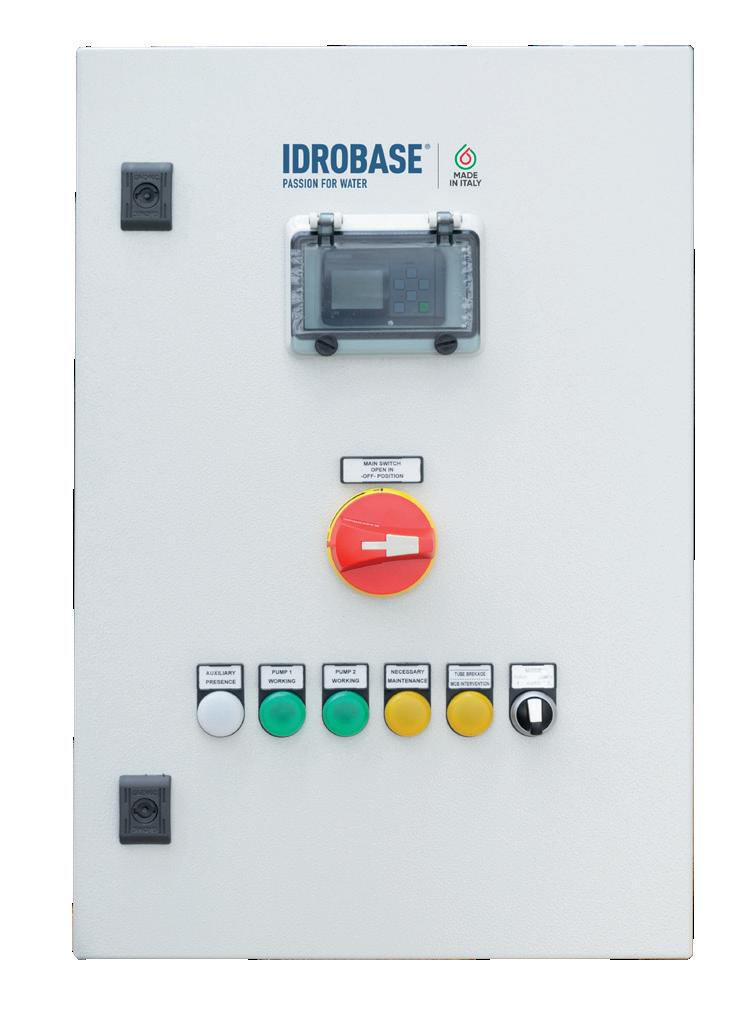

Control panel
Electrical panel with: main ON/OFF switch, remote control switch, fuses. Pump selector for manual/automatic operation.
Pre-set to be connected to external devices (e.g.: thermostat, humidistat, etc.).
PLC (programmable logic controller)
ON/OFF general
System operation indicator lights
Manual/automatic operation selector
Technical features
Frame made of painted steel
Industrial pump with brass head with 3 ceramic plungers
• Electric motor 1450Rpm, 3x400V-50Hz, S1
• Unloader valve, in brass
Pressure gauge with glycerine in AISI 304 stainless steel
L.p. solenoid valve inlet water 24V-50/60Hz, brass body
• H.p. solenoid valve 24V-50/60Hz for line
pressure discharge, brass body
L.p. pressure switch lack of water
Dimensions WxLxH: 1100x500x1580mm
IT.0581
Water supply kit
ZX.0905-10
Water supply kit, 10m with screw quick couplings
Nebulizes
ZX.0573F60R38
5” water inlet kit complete with pressure stabilizer
ZX.0302-RCSL
10” water inlet kit complete with pressure stabilizer
ZX.0303-RC
20” water inlet kit complete with pressure stabilizer
ZX.1260-38
Manifold 4 outlet kit complete with ball valves
ZX.SU20
Humidity probe Fog Extra 20m cable
ZX.ST20
ZX.0109-AG
Temperature probe Fog Extra 20m cable Anti-ice kit for FOG 70
70 Var 3 Touch from 15 to 21 l/min Fog 70 Basico/Aperto from 1 to 26 l/min
70 Touch from 1 to 26 l/min Fog 70 Var 3 Touch from 30 to 42 l/min Fog 70 Basico/Aperto from 33 to 42 l/min
70 Extra from 1 to 26 l/min
70 Extra from 33 to 42 l/min
70 Touch from 33 to 42 l/min
from 2 to 4 l/min
Set B - pump maintenance 750 hours consisting of:
750hrs - h.p. industrial pumps maintenance
Set D - pump maintenance 1500 hours consisting of:
1500hrs - h.p. industrial pumps maintenance
0,5L
10ml Threadlocker medium
25ml Technical grease
10ml Threadlocker medium
25ml Technical grease

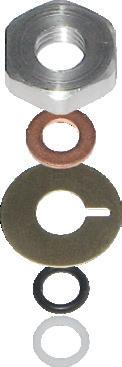

Kit Dolly valves + O-rings

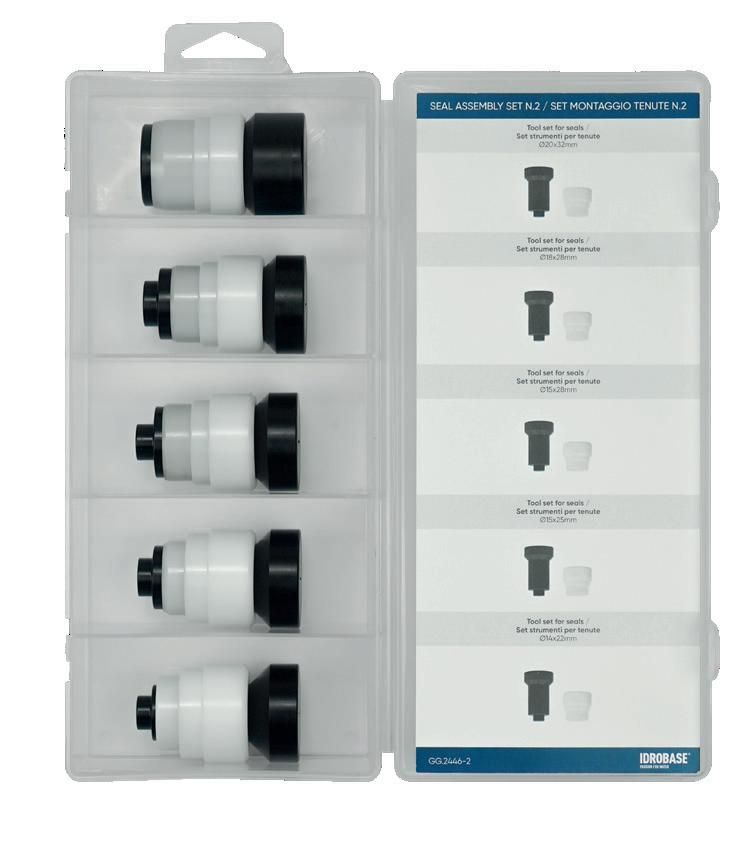

Kit Dolly seal packing ø20
Mineral oil for h.p. pumps
Complete seal packing kit Valves + O-Rings kit
Plunger oil seals kit
Ceramic plungers set
Plungers fastening kit
0,5L Mineral oil for h.p. pumps

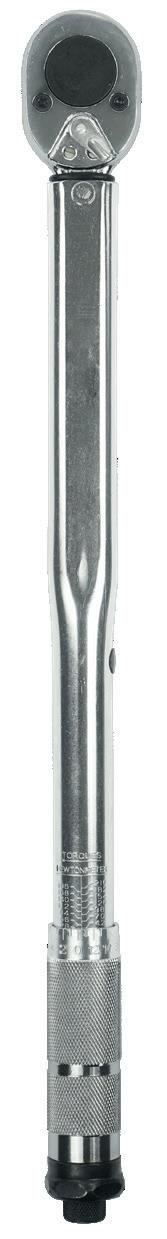

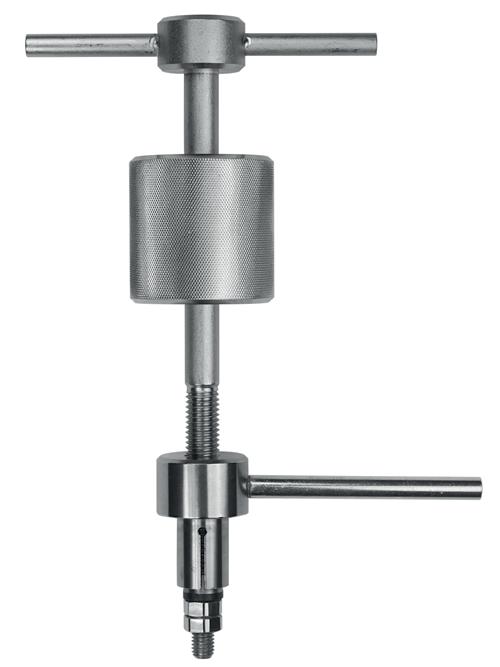

PUMP AND MACHINE MAINTENANCE
A Set A
Pump manintenance at:
500 hours, 1.500 hours, 2.500 hours, ecc
B Set B
Pump manintenance at: 750 hours, 2.250 hours, 3.750 hours, ecc
C Set C
Pump manintenance at: 1.000 hours, 2.000 hours, 3.000 hours, ecc
D Set D
Pump manintenance at: 1.500 hours, 3.000 hours, 4.500 hours, ecc
E Set E
Machine manintenance at:
750 hours, 1.500 hours, 2.250 hours, 3.750 ore, ecc
F Set F
Machine manintenance at: 3.000 hours, 6.000 hours, 9.000 hours, ecc
MAINTENANCE
FOG ECO
FOG APP
FOG 60 CABRIO
ZX.5095-D FOG ECO 0.5 DIGITALE
ZX.5090-D FOG ECO 1 DIGITALE
ZX.FA2.0 FOG APP 2.0
ZX.F60C05 FOG 60 CABRIO-05
ZX.F60C1 FOG 60 CABRIO-1
ZX.F60C2.2 FOG 60 CABRIO-2.2
ZX.F60C3.6 FOG 60 CABRIO-3.6
ZX.F60C4.8 FOG 60 CABRIO-4.8
ZX.F60-05 FOG 60-05
ZX.F60-1 FOG 60-1
ZX.F602.2 FOG 60-2.2
ZX.F603.6 FOG 60-3.6
ZX.F604.8 FOG 60-4.8
ZX. 50IBG19 ZX. 50IBG21 ZX.75DP01 ZX.75DP02 ZX.75IBG02 ZX.75IBG03 ZX.75IBG05 ZX.75IBG06 ZX.75IBG07 ZX.75IBG24 ZX. 100IBG19 ZX. 100IBG21 ZX. 100IBG22
