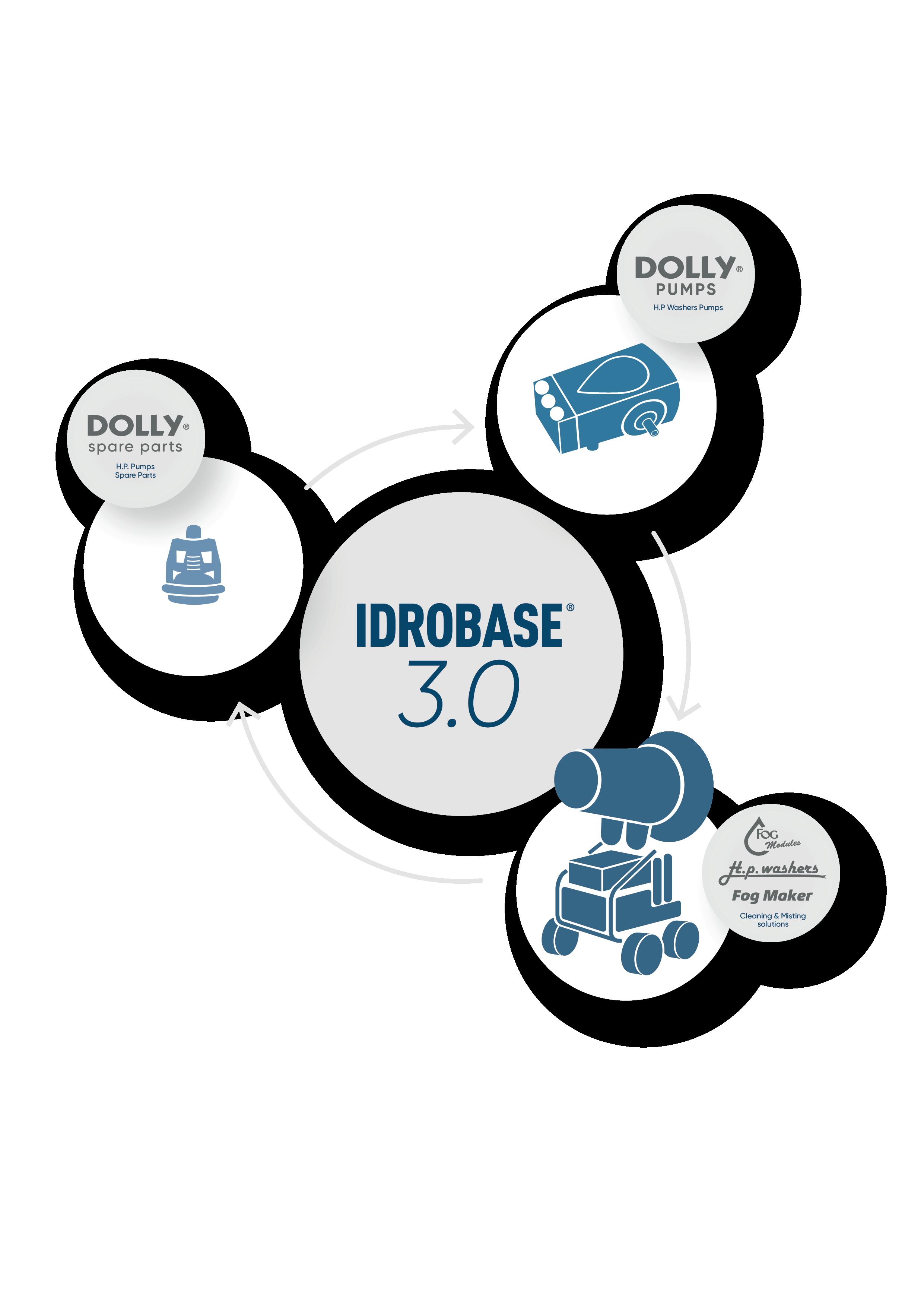

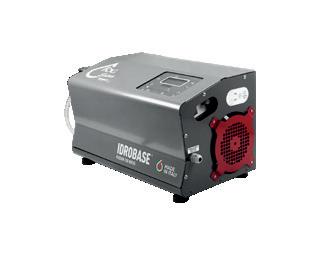

IDROBASE 3.0 is a comprehensive solution that brings together: • the reliability of Dolly Spare Parts® • the patented and guaranteed quality of Dolly Pumps® • the high performance of h.p. washers, fog makers and misting systems.

You can now move from simply repairing your pump, thanks to the world’s N.1 Dolly Spare Parts catalogue, to replacing it with a Dolly Pump featuring Idrobase-branded internal components, and all the way to selecting a complete Made in Italy solution for the cleaning and misting sectors.

Three elements within one integrated system, connected and aligned by a coherent industrial vision focused on performance and long-term durability.

2

A day in Idrobase Group

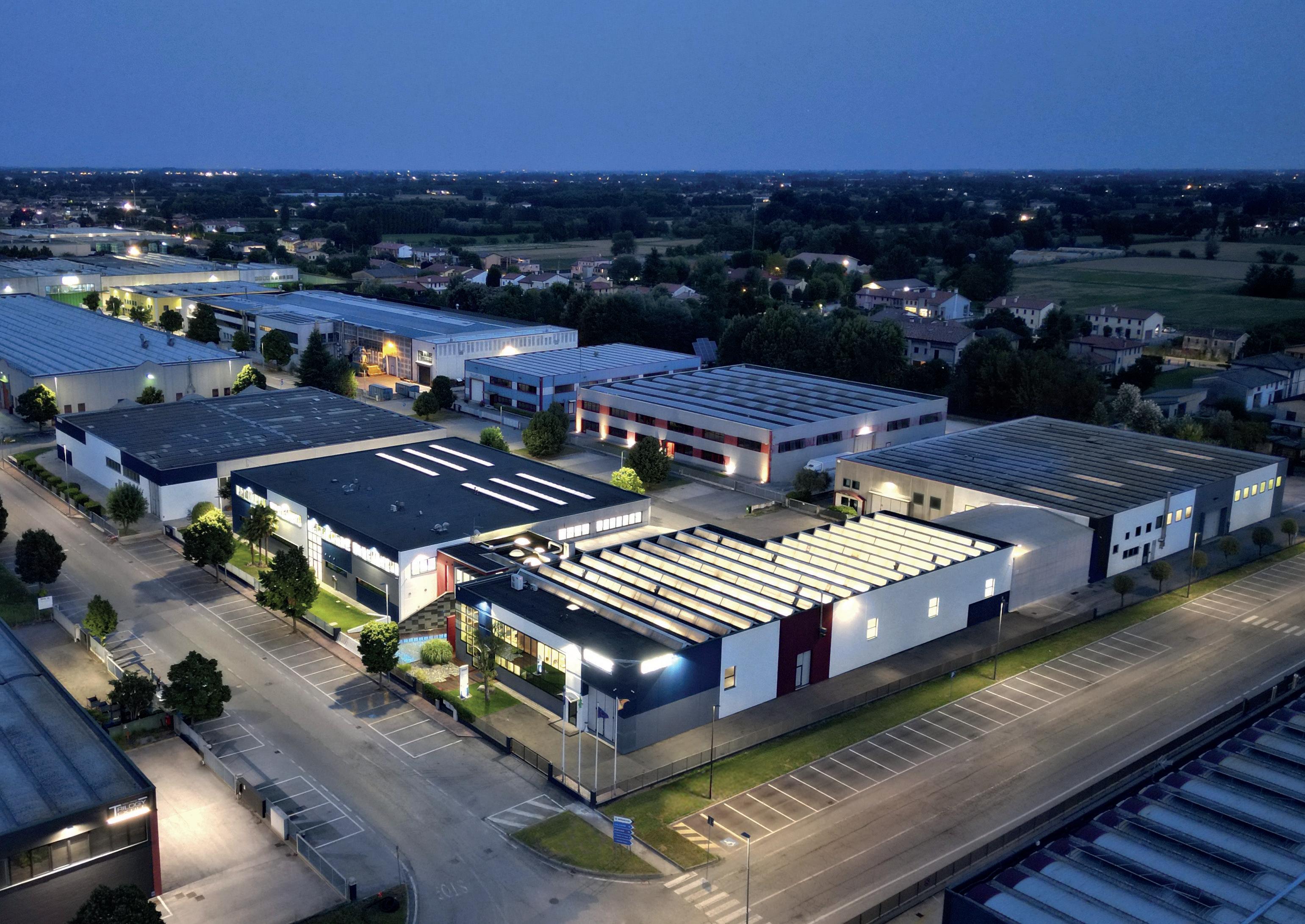

Borgoricco, Padova, Italy SINCE 1986

HEADQUARTERS OFSOLUTIONS 3

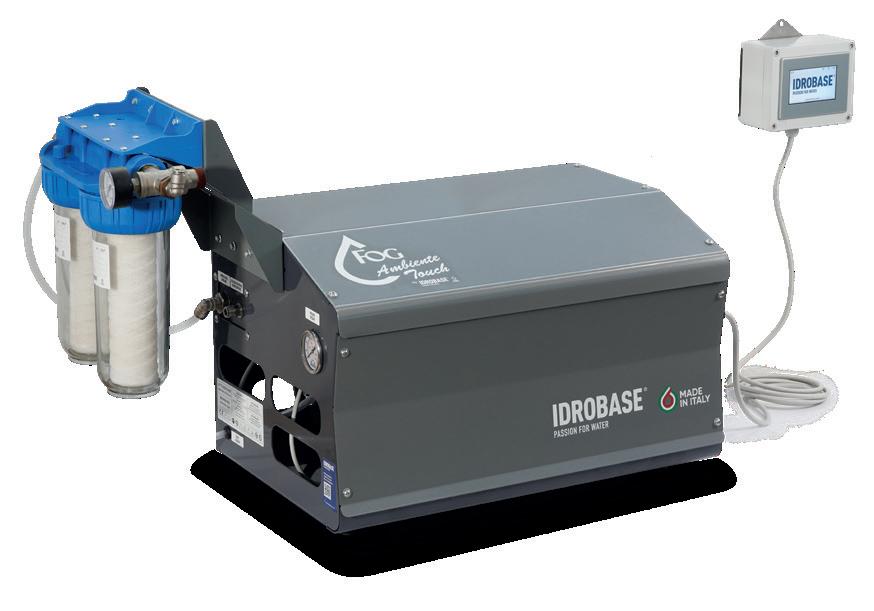

A WORLD OF INNOVATIONS

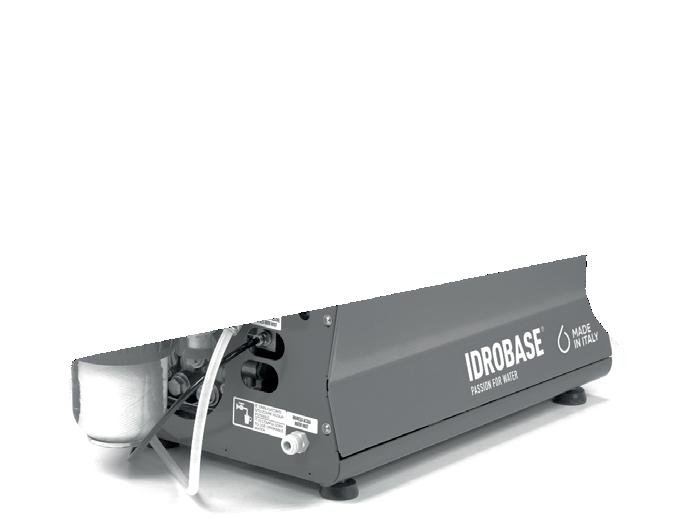

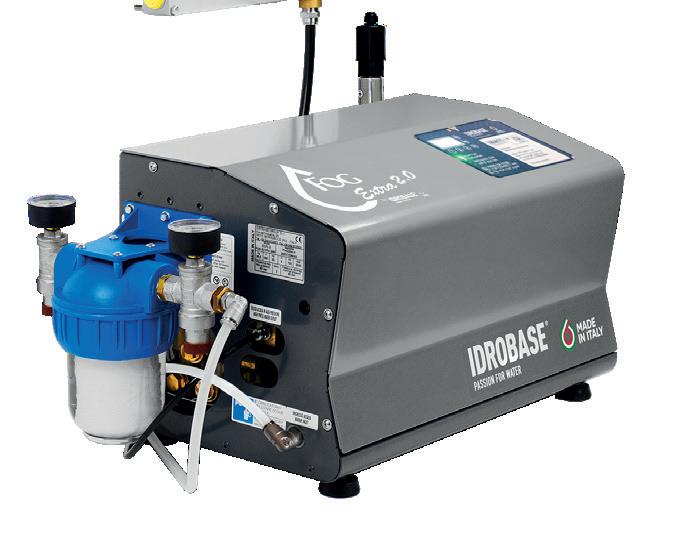

Extra 2.0 Compared to previous model

Use via smartphone

Compared to previous model

costs: -30% Transport telescopic column

-3

hours

Ready to use: - 3 hours for assembly

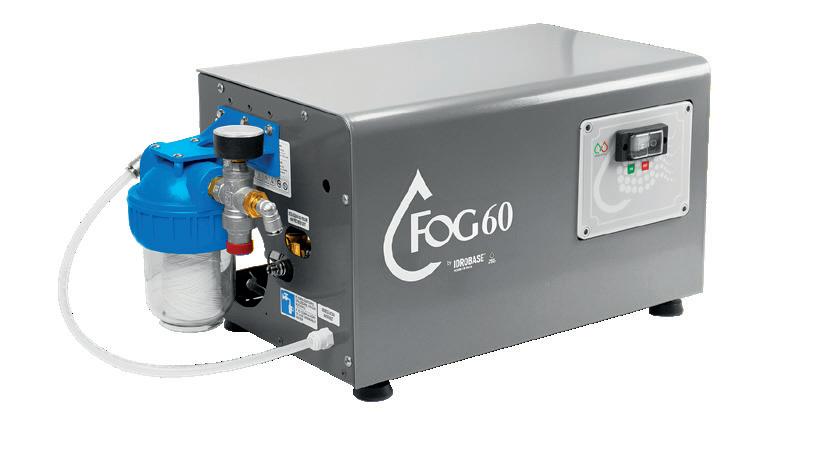

*Included in: FOG 60 CABRIO / FOG 60 / FOG EXTRA

From 2,2 to 4,8 l/min moduls with IDRO9 pump Compared to previous model

-50% Rpm

4

Double pump life

Remotely controllable and manageable Up to 16 independent zones

Copyright© Idrobase Group. All rights reserved.

Compared to the Fog Maker Elefantino

-15%

Extra discount on purchase price

+33% Fan jet

Compared to the Fog Maker Gufo Patented solution

-15%

Extra discount on purchase price

-45% Trasport costs

Compared to the Fog Maker Airone

Copyright© Idrobase Group. All rights reserved.

Compared to previous model

-85%

Rotating range (automatic)

From 0,4 to 13 l/min flow rate

-115%

Covered area

Internet interface

5

12 BUSINESS DIVISIONS IDRO INNOVA

IDROTECH

Cleaning & Misting tailor-made systems

Fog Makers Cannons

IDROTECH

IDROTECH

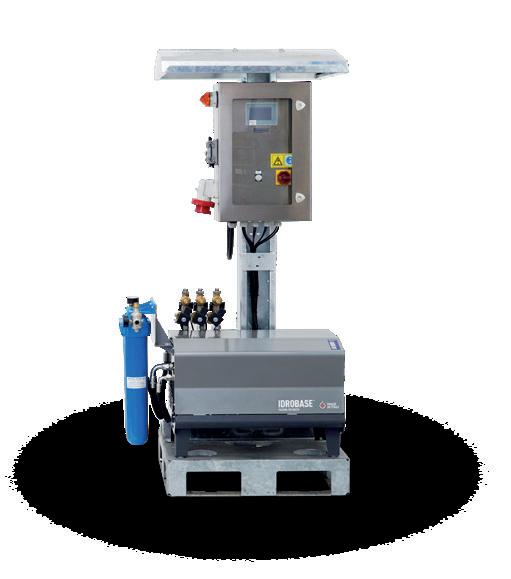

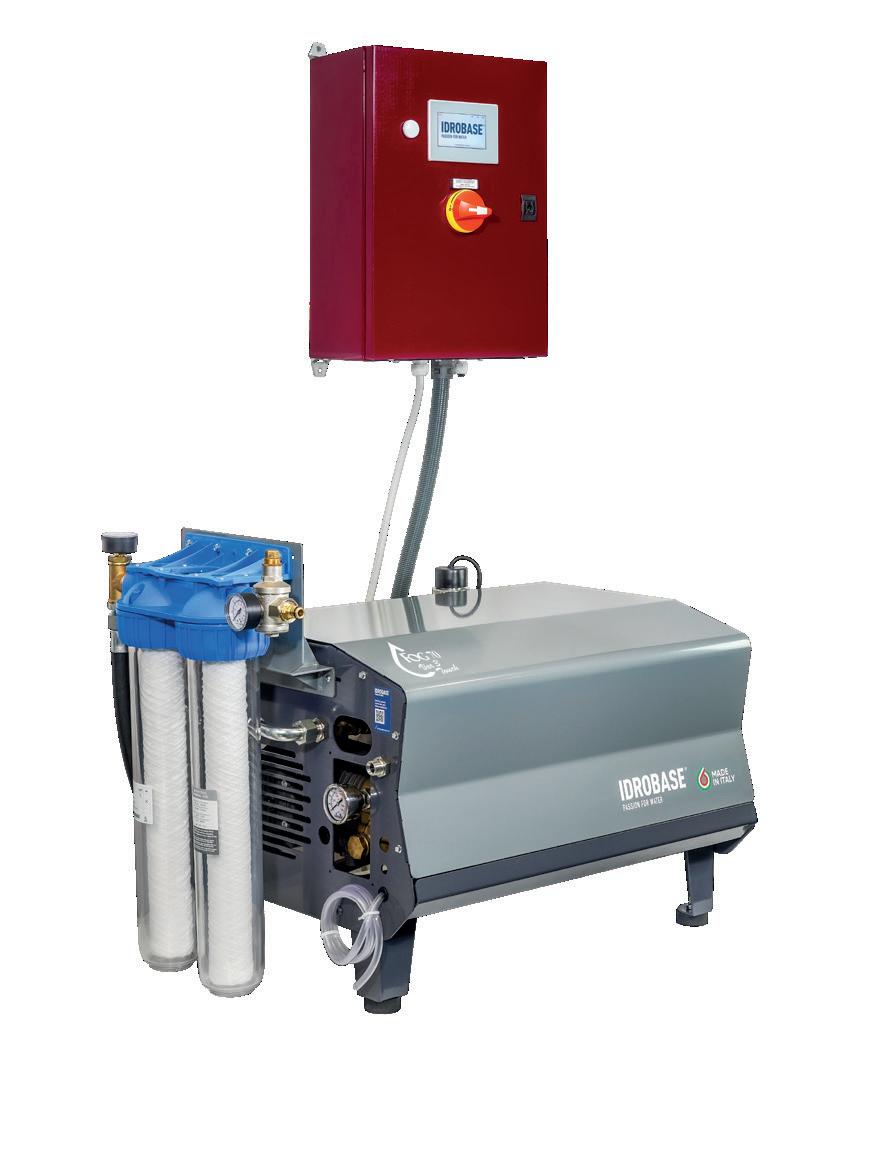

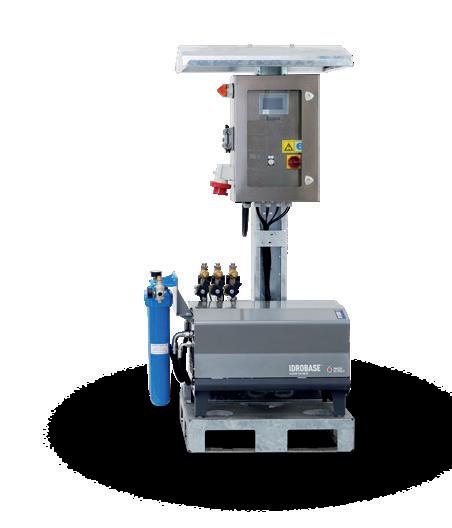

Industrial Misting

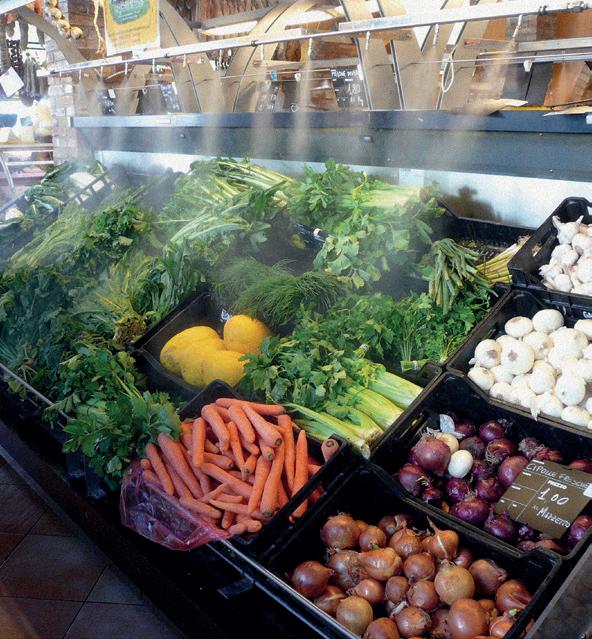

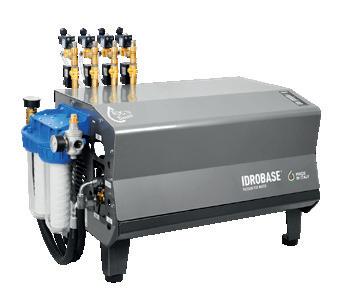

Residential & Commercial Misting

IDROTECH

IDROSAN

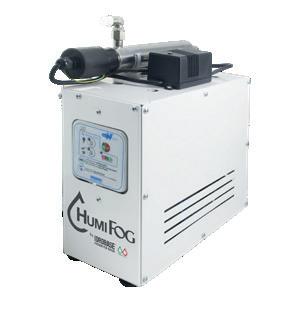

Humi Food

BKM®, Disinfection & Sanitization

ENJOY YOUR LIFE NIGHT AND DAY

CLUB DEL MISTING

Outdoor Furniture

Misting Accessories

WE ARE IN THE DIVISION

CLUB DEI RIPARATORI

Dolly Spare Parts for pumps

CLUB DEI RIPARATORI

Autobella® & Car Wash Accessories

CLUB DEI RIPARATORI

HP Washers Accessories & Spare Components

IDROBASE

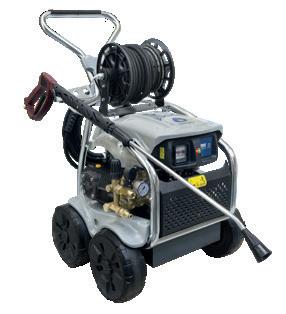

Cleaning Machines

IDROTECH

®

Fog Makers Cannons

FOG MAKER’S TEAM OUR COMMERCIALS ALICE DE BIASE

TOMMASO GAZZIGNATO

Commercial Back Office

Allforclean manager

alice.d@idrobasegroup.com

tommaso.g@idrobasegroup.com

+39 049 9336763

+39 049 9336756

+39 351 6911030

+39 349 0080257 tommy_italy

ITA/ENG/ESP/FRA ITA/ENG

SILVIA VANZO Cleaning Commercial silvia.v@idrobasegroup.com +39 049 9336726 +39 351 5970267 Silvia_CdR ITA/ENG/ESP/DEU

OUR TECHNICIANS DANIEL GASPARINI

8

LUCA SARTOR

Quality & Technical department

Technical Department manager

daniel.g@idrobasegroup.com

luca.s@idrobasegroup.com

+39 049 9336768

+39 049 9336755

+39 329 1297086

+39 348 7004172

ITA/ENG

ITA/ENG

Copyright© Idrobase Group. All rights reserved.

Made in Italy

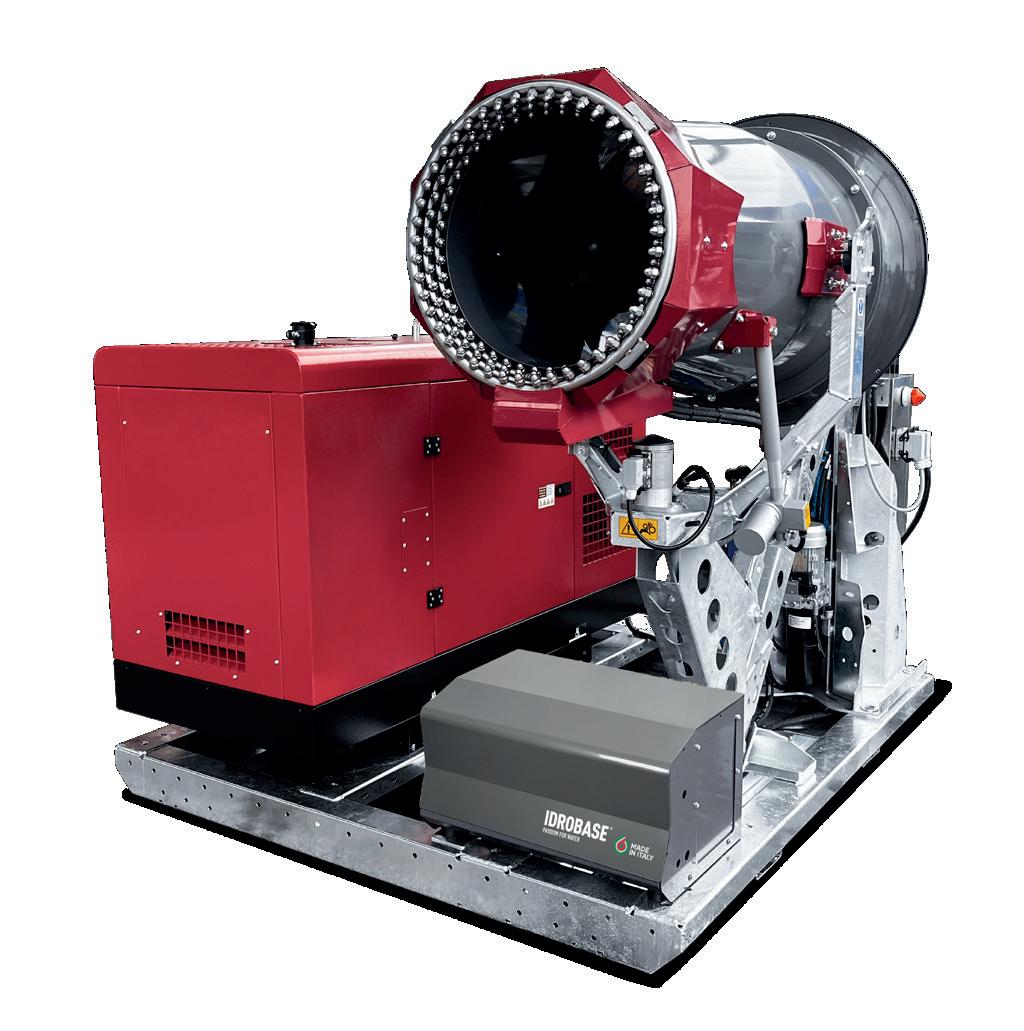

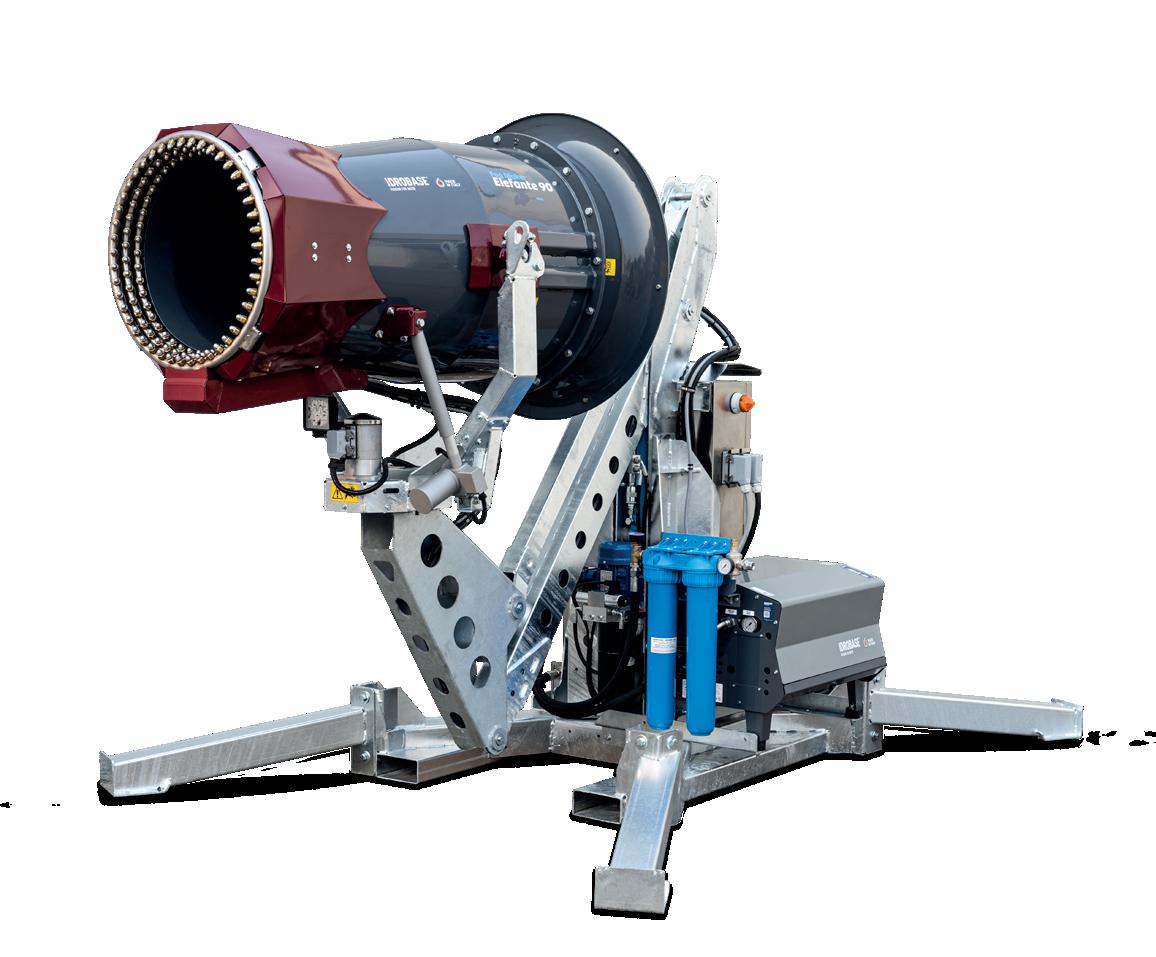

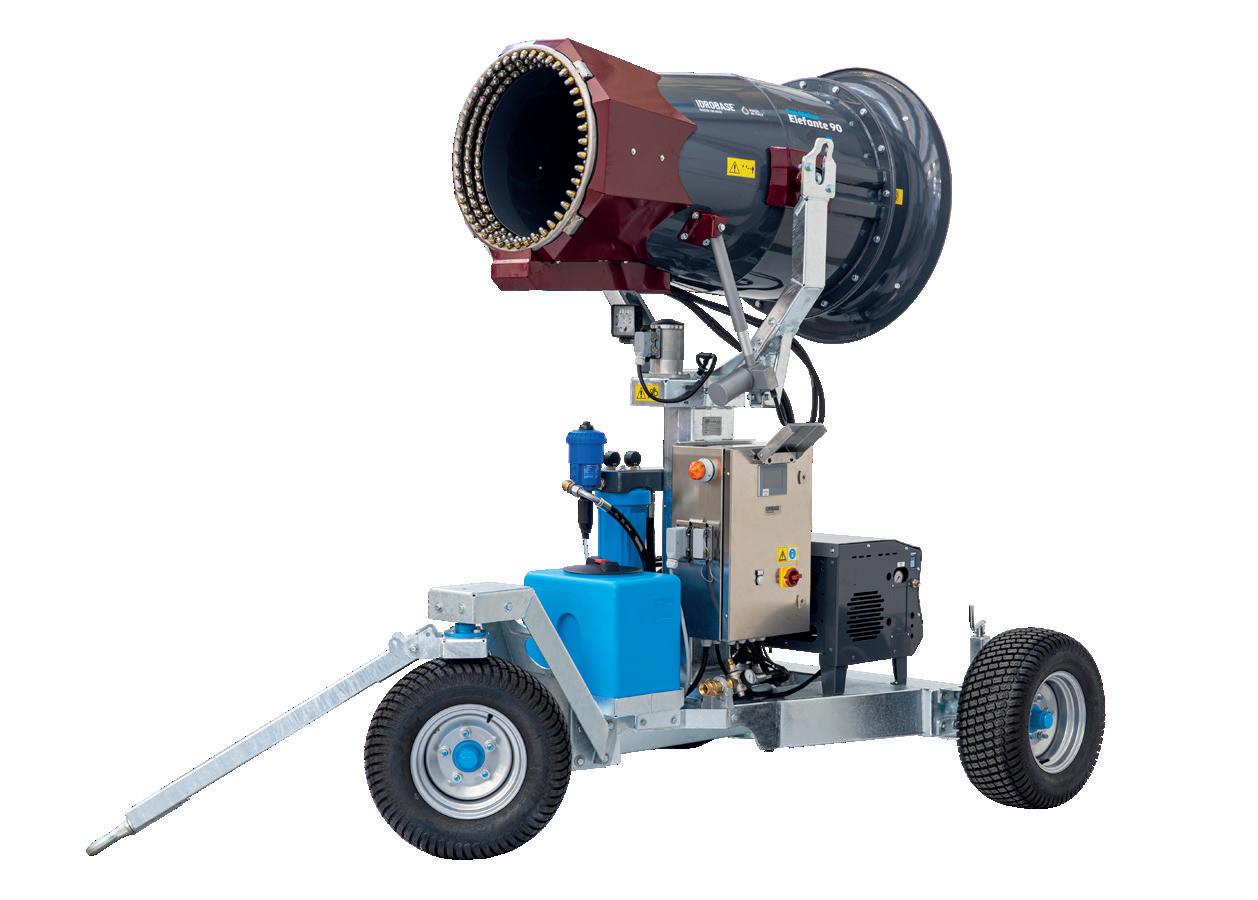

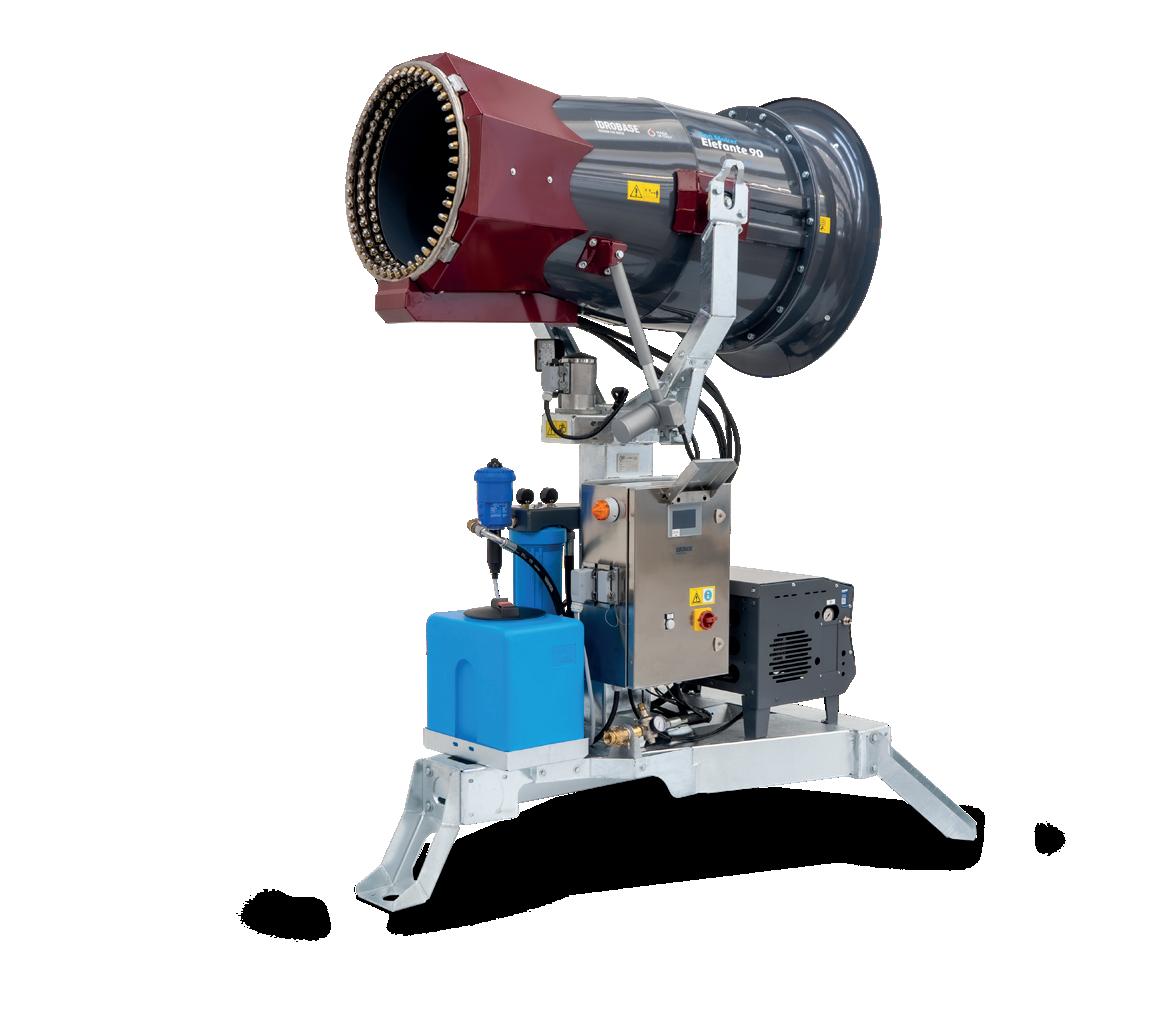

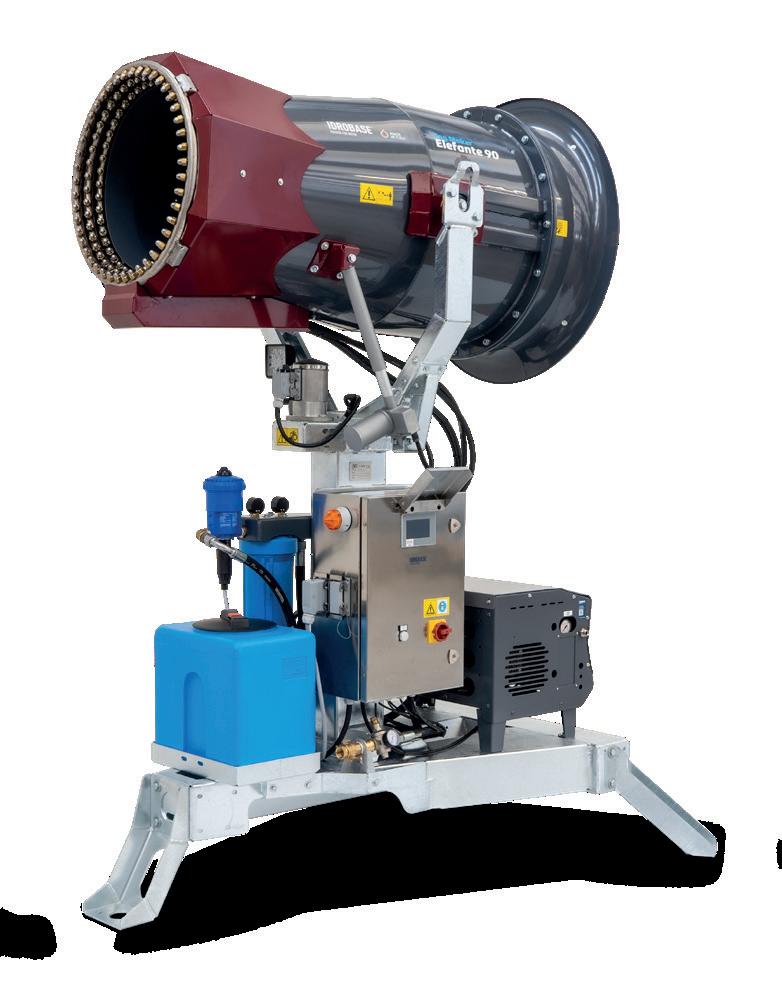

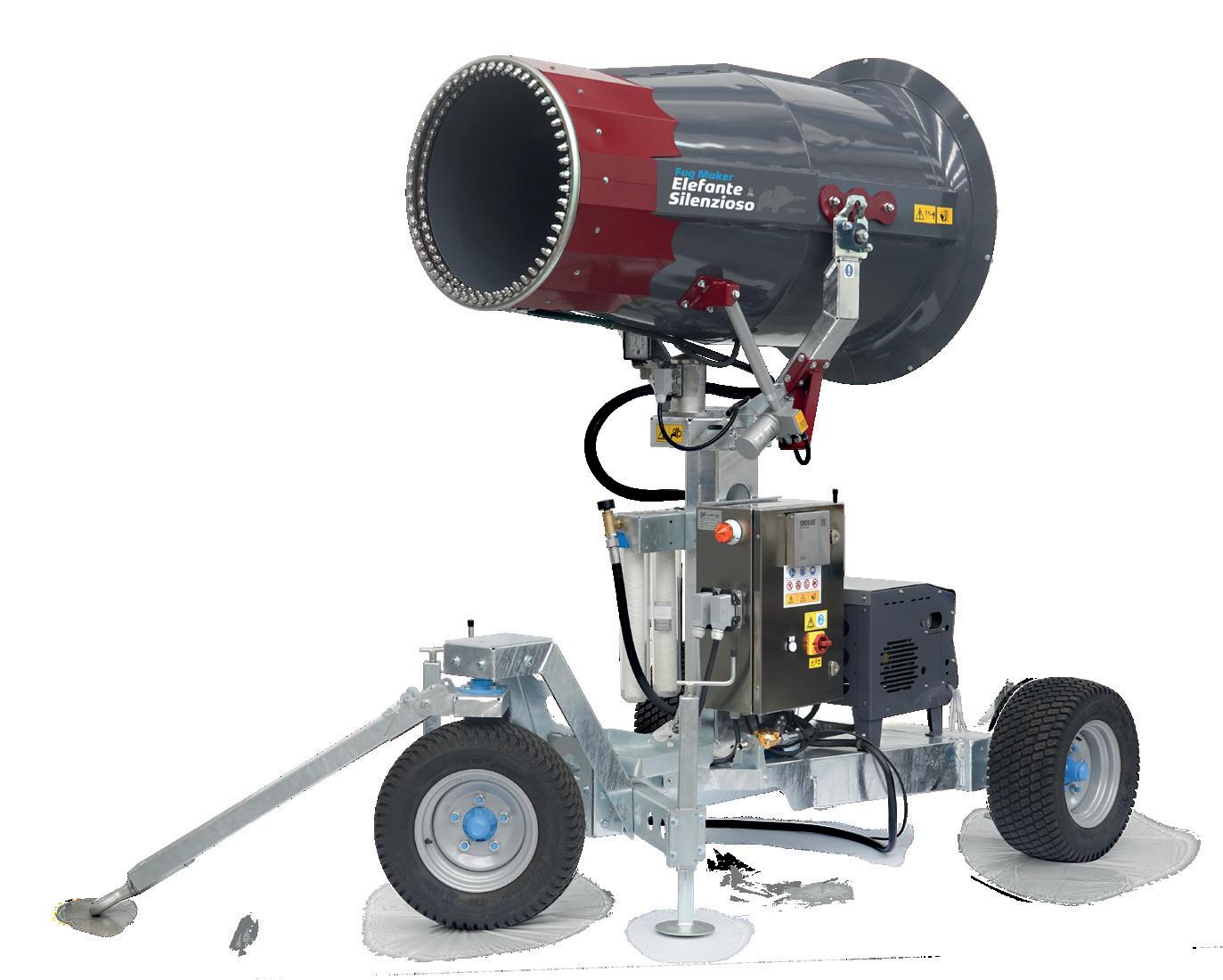

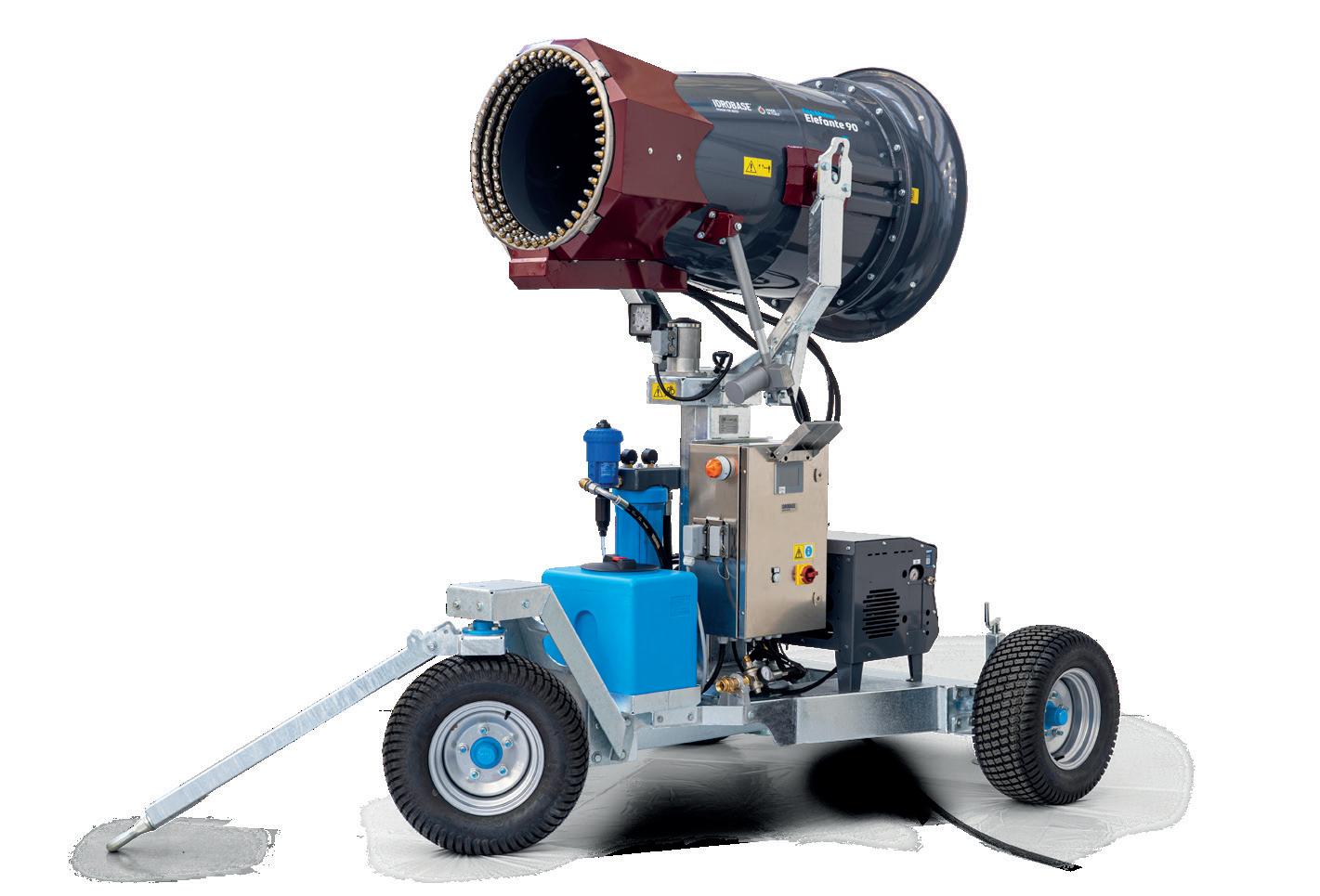

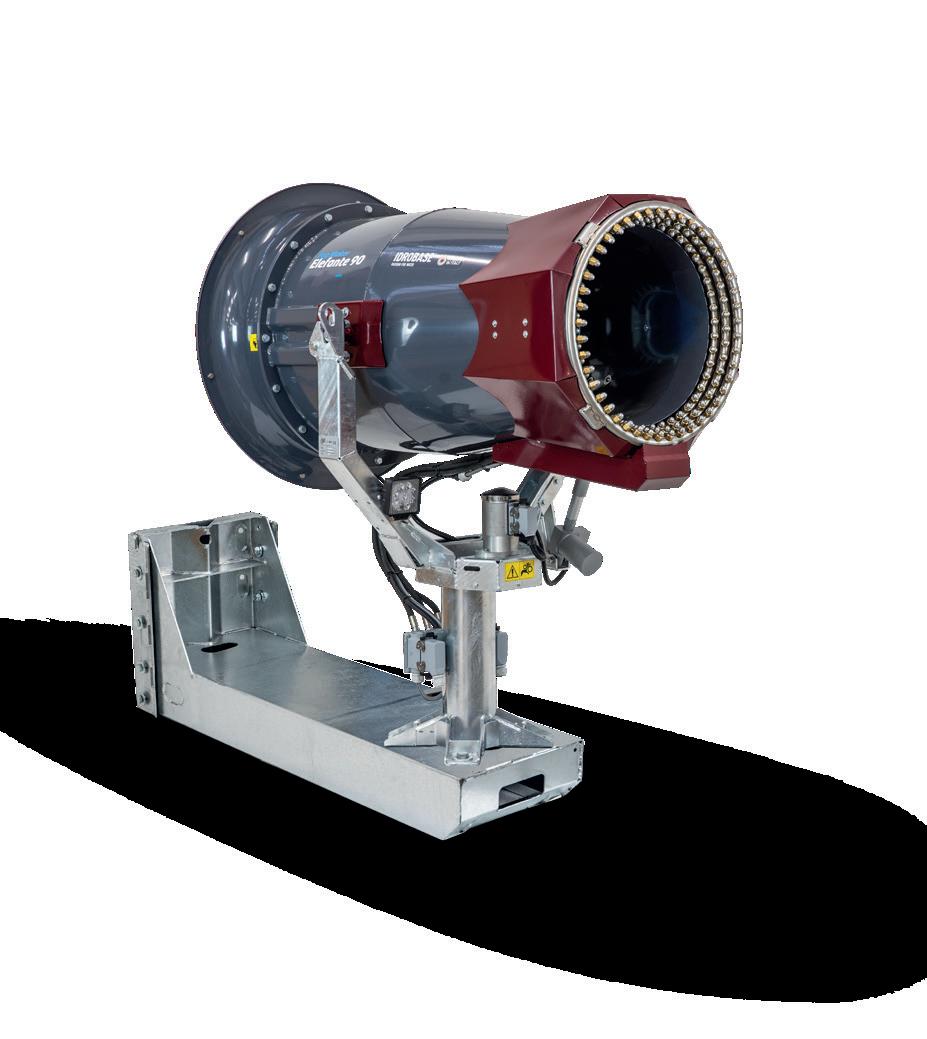

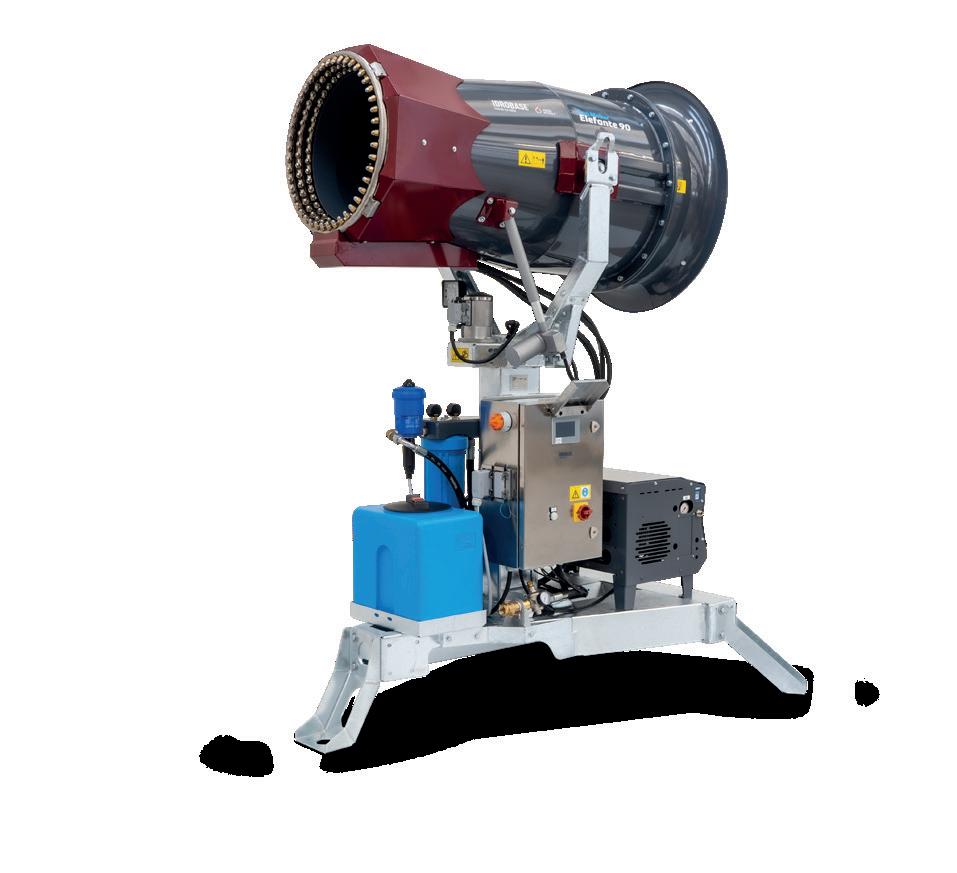

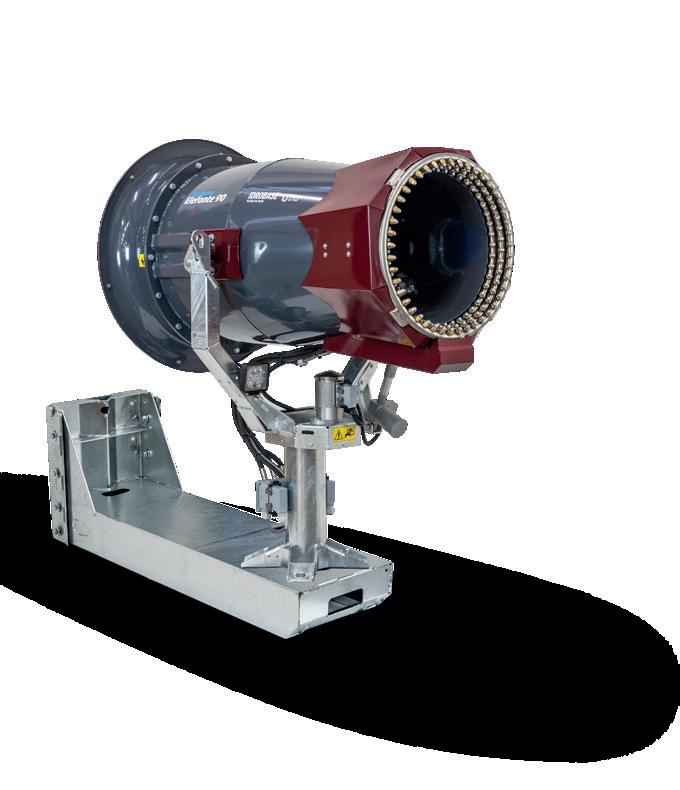

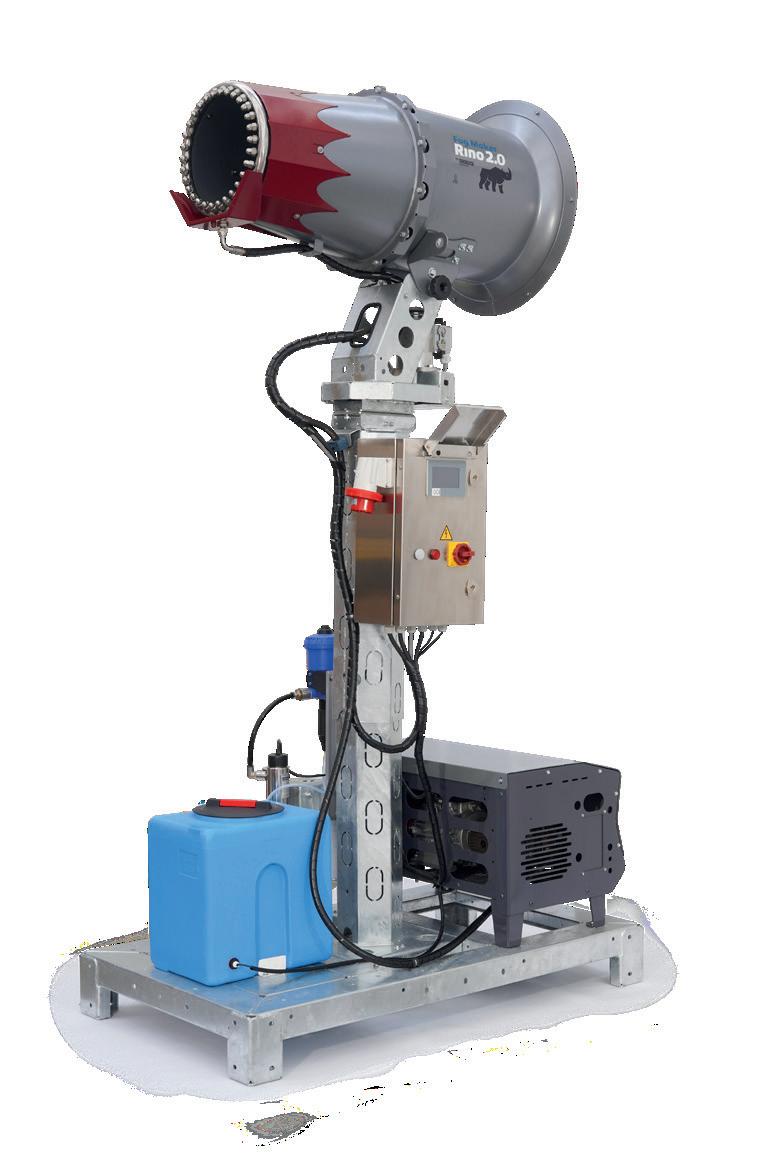

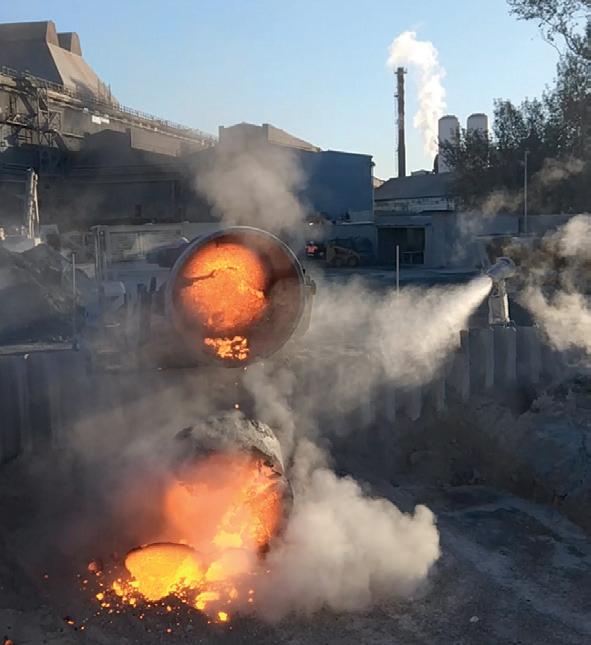

Fog Maker Elefante 90 Dust suppression

Copyright© Idrobase Group. All rights reserved.

9

FOG MAKER: ALL SOLUTIONS page 10

page 36

10

page 14

page 18

page 44

Copyright© Idrobase Group. All rights reserved.

page 22

page 26

page 48

Copyright© Idrobase Group. All rights reserved.

11

IDROTECH

an Dis in fett

Fog Maker Lince is ideal for: • odour and pollution (PM2.5 and PM10) suppression of small to medium areas

On the purchase of 3 pcs

te

-15%

Lince is available in 3 models: • Lince 1 and Lince 4 • Lince Disinfettante Capacity of 1 and 4l/min.

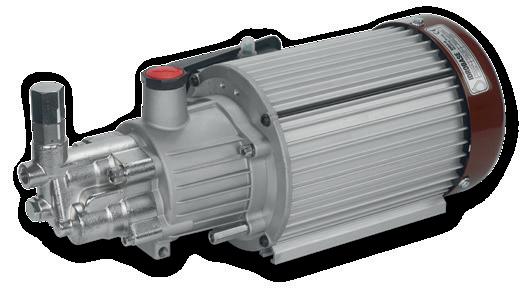

Old pump VS new pump Old pump

New pump

Delta

Rpm

1450

710

-51%

Power

720W

370W

-48%

Noise

-15%

Price

Same price

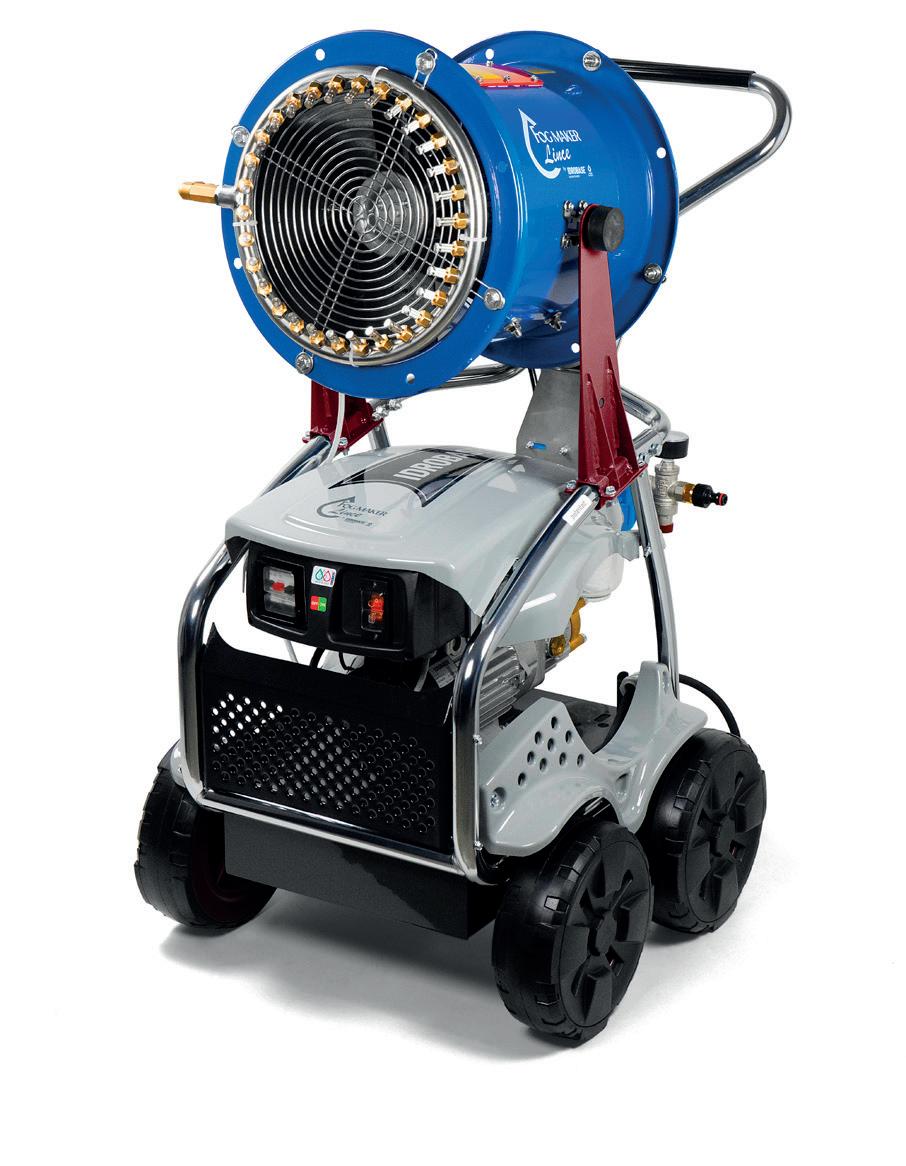

LINCE 1 New pump

Old pump

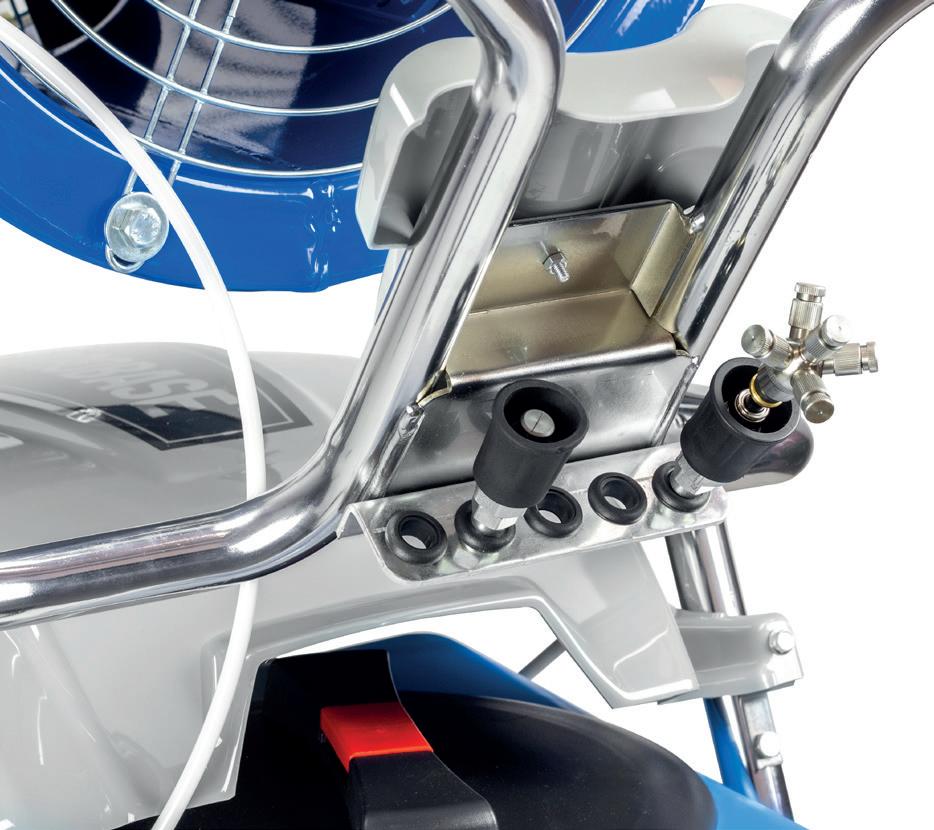

Lince disinfectant lance kit code ZX.8201-KD (incluso)

LINCE 4

12

LINCE DISINFETTANTE

Copyright© Idrobase Group. All rights reserved.

Fog maker

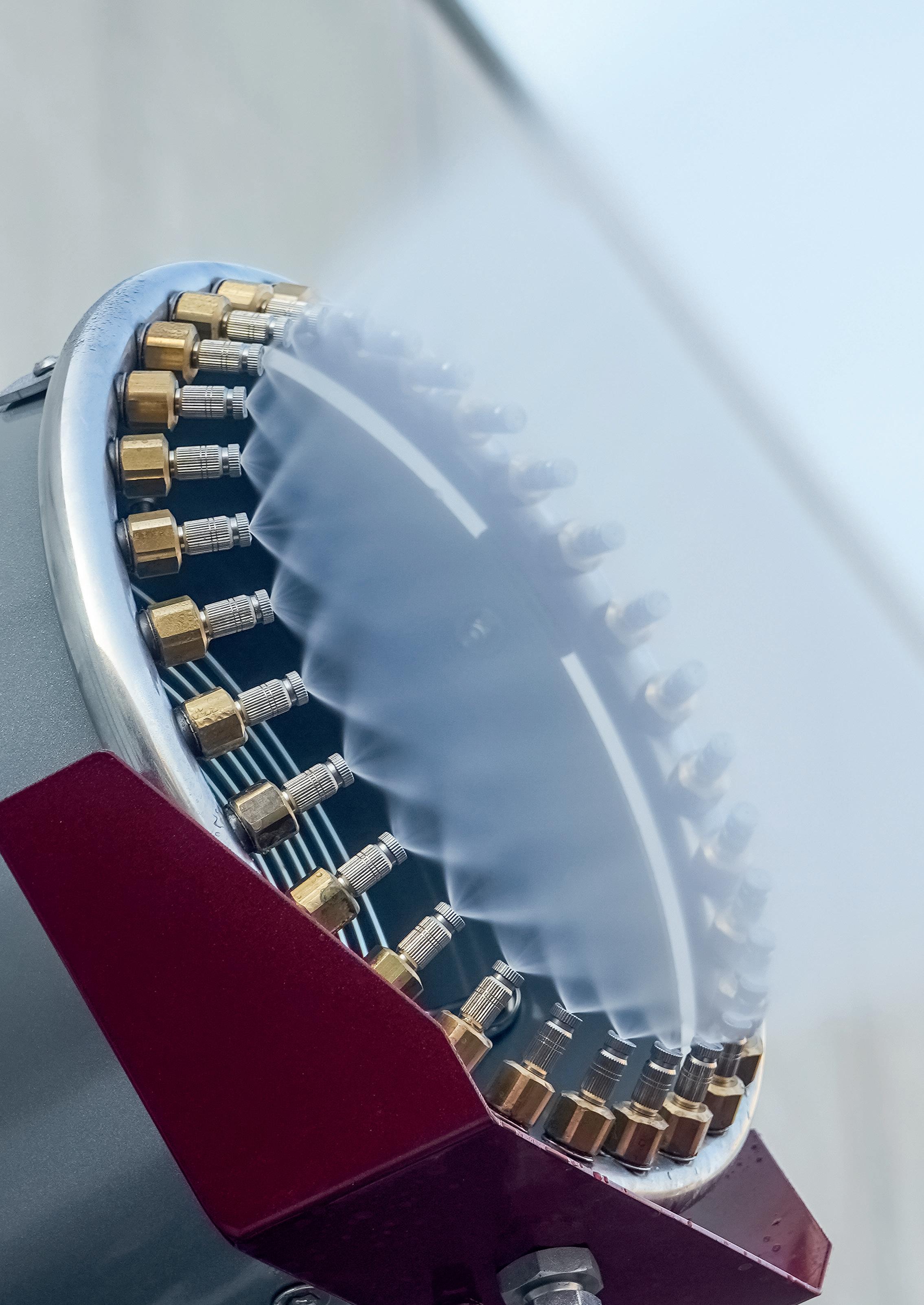

Lince 1: 1 ring AISI 304 stainless steel with 13 nozzles

Lince 4: 1 ring AISI 304 stainless steel with 30 nozzles

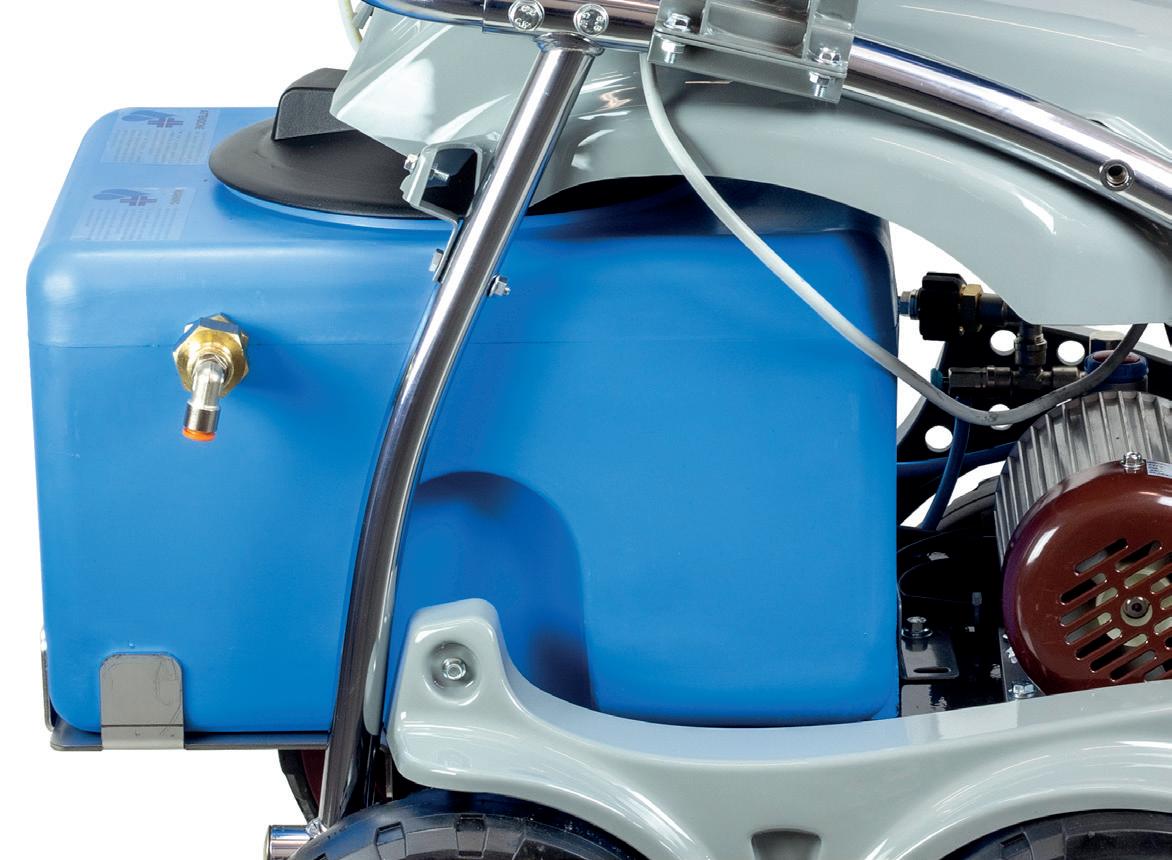

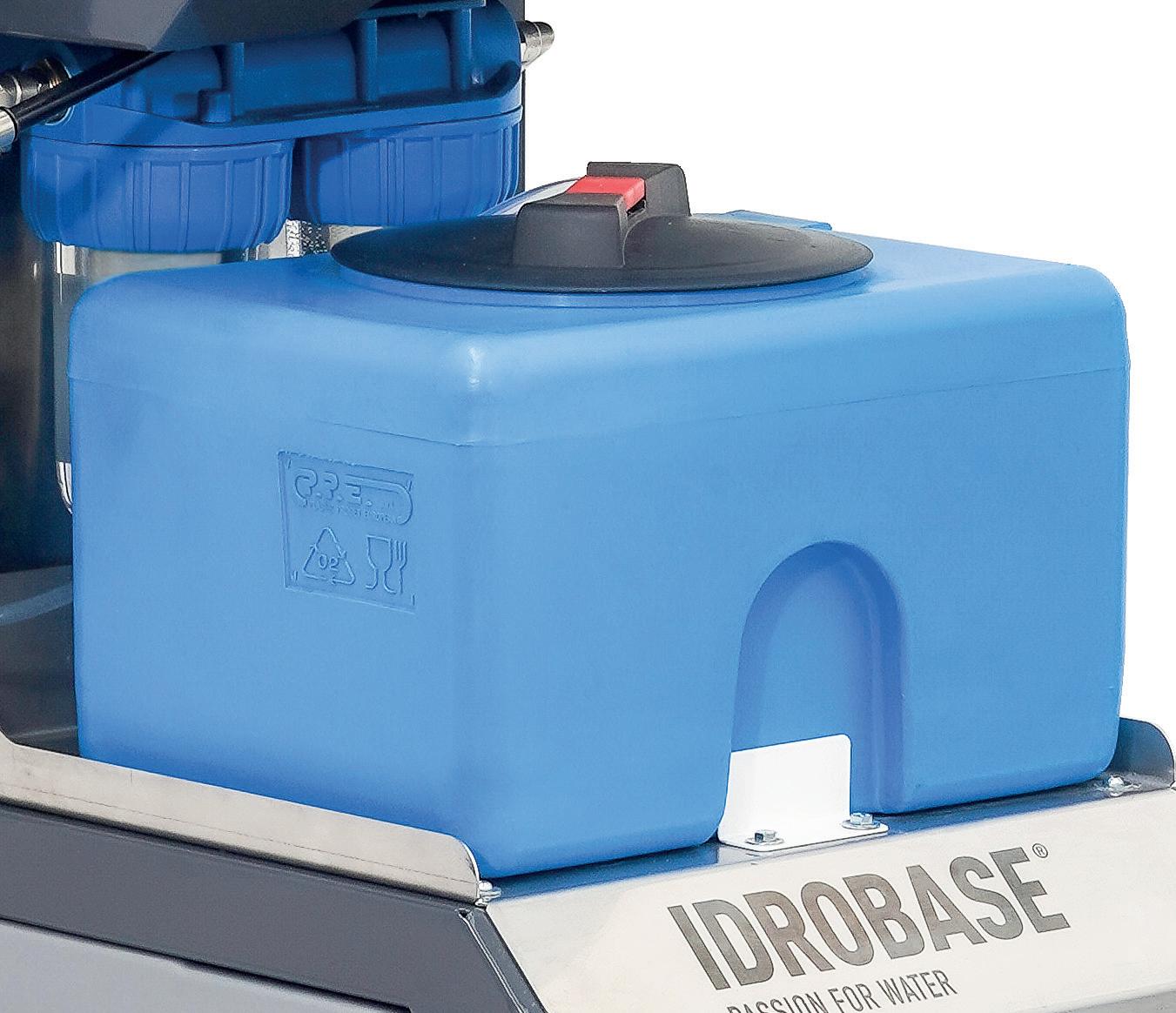

30L tank

Chrome-plated steel frame with a transparent finish

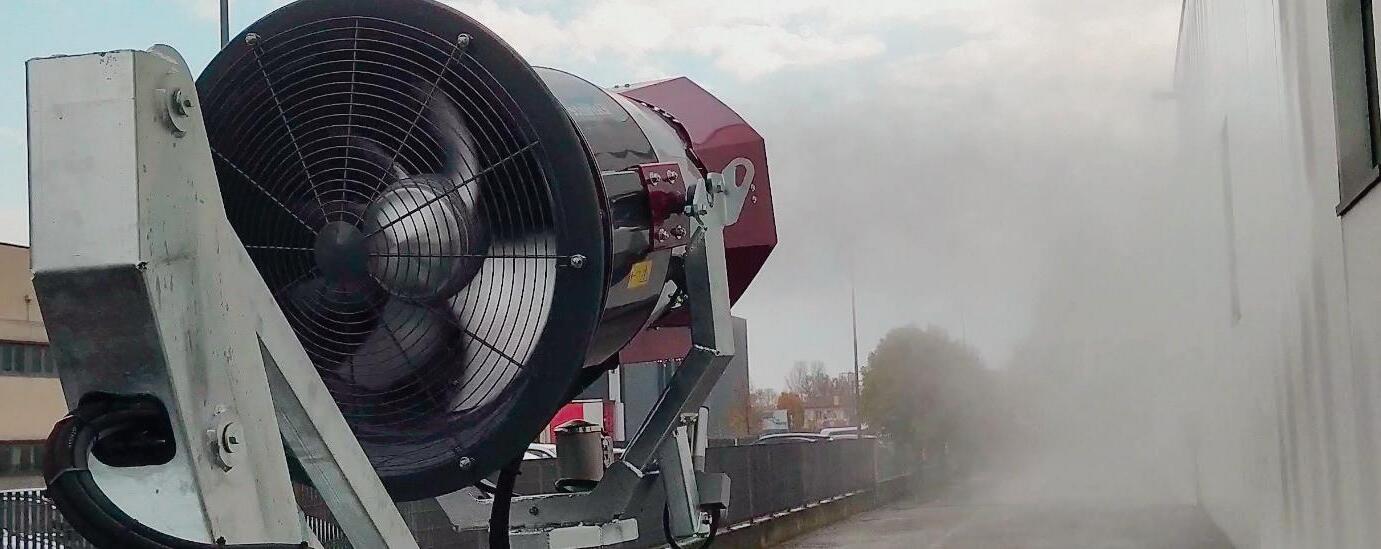

Fog Maker Lince application Copyright© Idrobase Group. All rights reserved.

13

IDROTECH

Dis in fett

Pressure 60bar Fan jet 7m 13/30 nozzles

a n te

Lince Fog maker ideal for suppression of fine dust

-15% On the purchase of 3 pcs

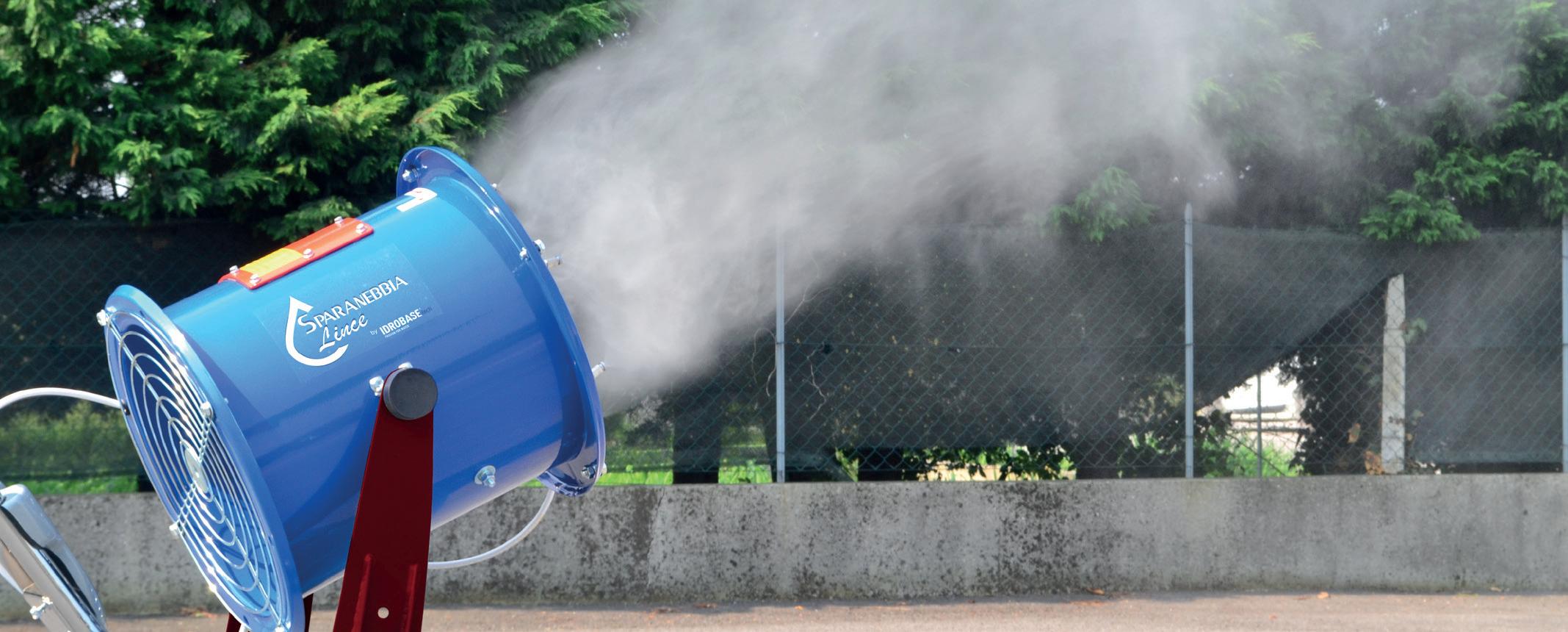

Lince for disinfection outdoor

Lince for disinfection indoor

LINCE 1/DISINFETTANTE

LINCE 4

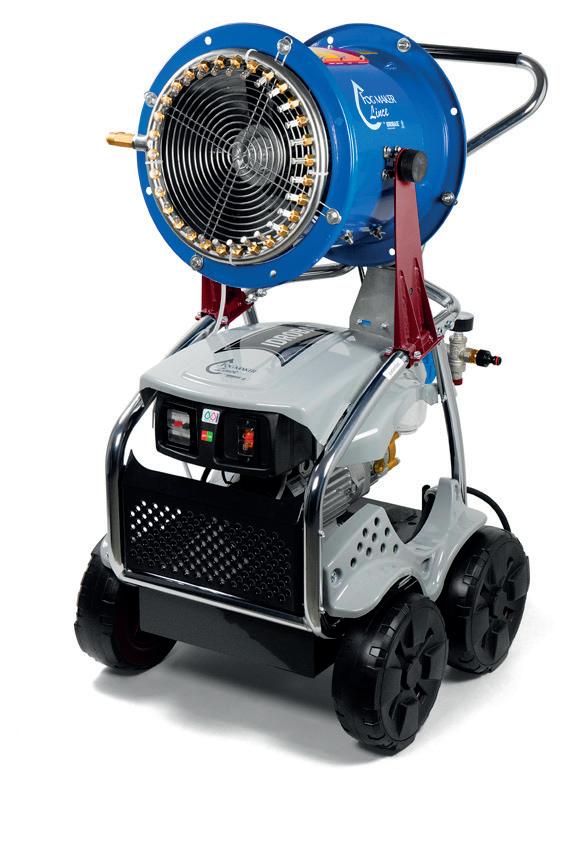

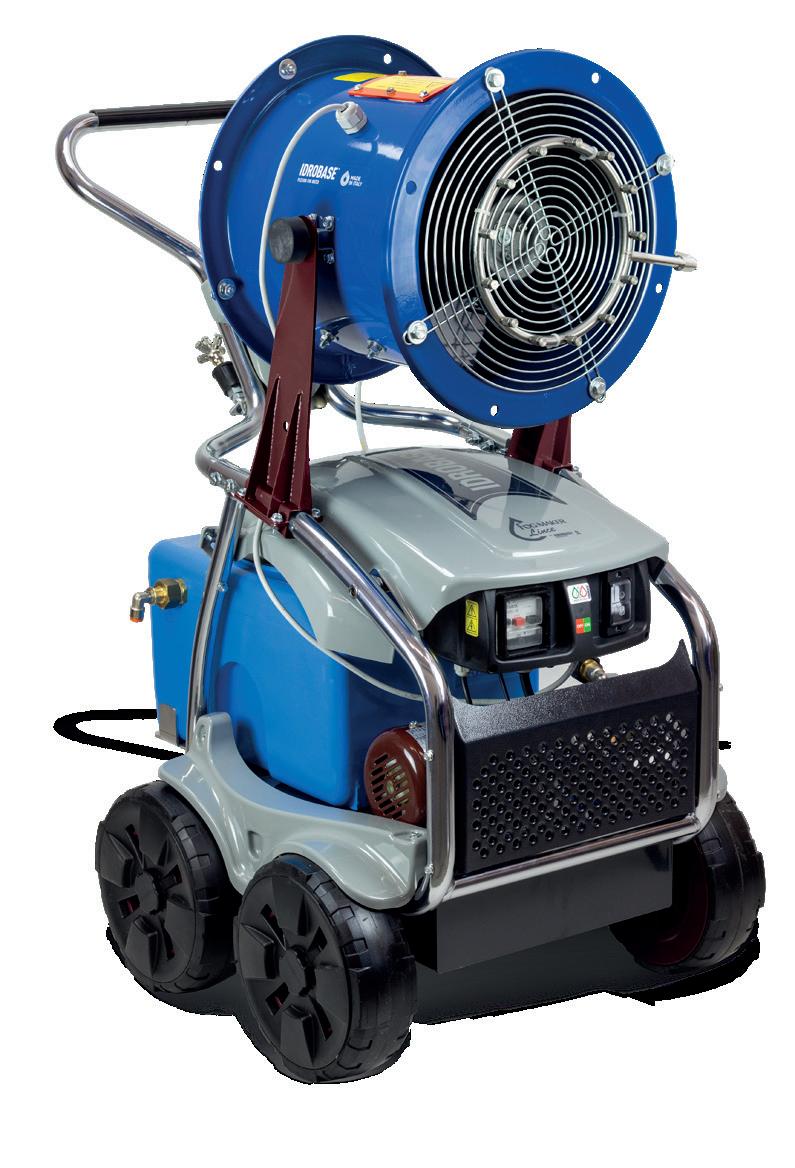

Fog Maker Lince Mobile high pressure fog maker complete with fan and ring of nozzles, 60bar 1 and 4l/min pump module, 30L tank (Lince 1), ON-OFF electric panel.

Fan jet: 7m.

• Practical and handy, with 30 minutes autonomy (Lince 1) • Ideal for sanitization of small to medium areas (Lince Disinfettante)

Technical features

14

Copyright© Idrobase Group. All rights reserved.

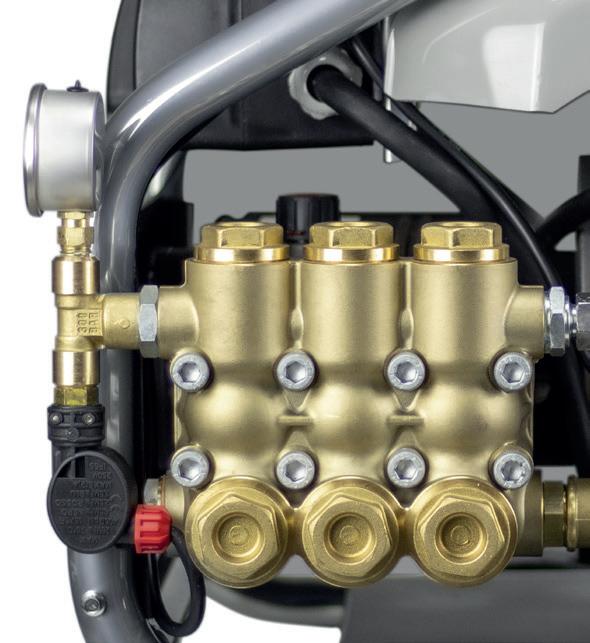

Fog maker Technical features Axial pump with 2 pistons Code

Model

Pressure

Flow rate

N. nozzles

Drop size

Power (1x230V-50Hz)

Peso

ZX.8201

LINCE 1

60bar

1l/min

13

12mcr

0,75kW

60kg

Code

Model

Pressure

Flow rate

N. nozzles

Drop size

Power (1x230V-50Hz)

Weight

ZX.8201-L

LINCE DISINFETTANTE

60bar

1l/min

13

12mcr

0,75kW

60kg

Axial pump with 3 pistons Code

Model

Pressure

Flow rate

N. nozzles

Drop size

Power (1x230V-50Hz)

Peso

ZX.8204.8

LINCE 4

70bar

4,8l/min

30

12mcr

0,75kW

70kg

Old pump VS new pump Old pump

New pump

Delta

Rpm

1450

710

-51%

Power

720W

370W

-48%

Noise

-15%

Price

Same price

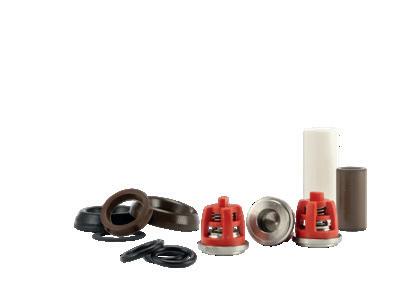

INCLUDED Pump maintenance set 500 hours

WARNING • All the technical and safety information of the product can be consulted in the technical documentation of Idrobase Group S.r.l.

• For all specific precautions and methods of use of the disinfectant/sanitizing, always consult the technical and safety data sheet of the employed product.

• The use of the Lince Disinfettante with any disinfectant/sanitizing solution requires the user to rinse it after use, following the operations indicated in the instruction manual.

Technical features

Lince 1

Lince 4

• Frame in painted steel sheet

• No. of nozzles: 1 ring AISI 304 stainless steel with 13 nozzles

• No. of nozzles: 1 ring AISI 304 stainless steel with 30 nozzles

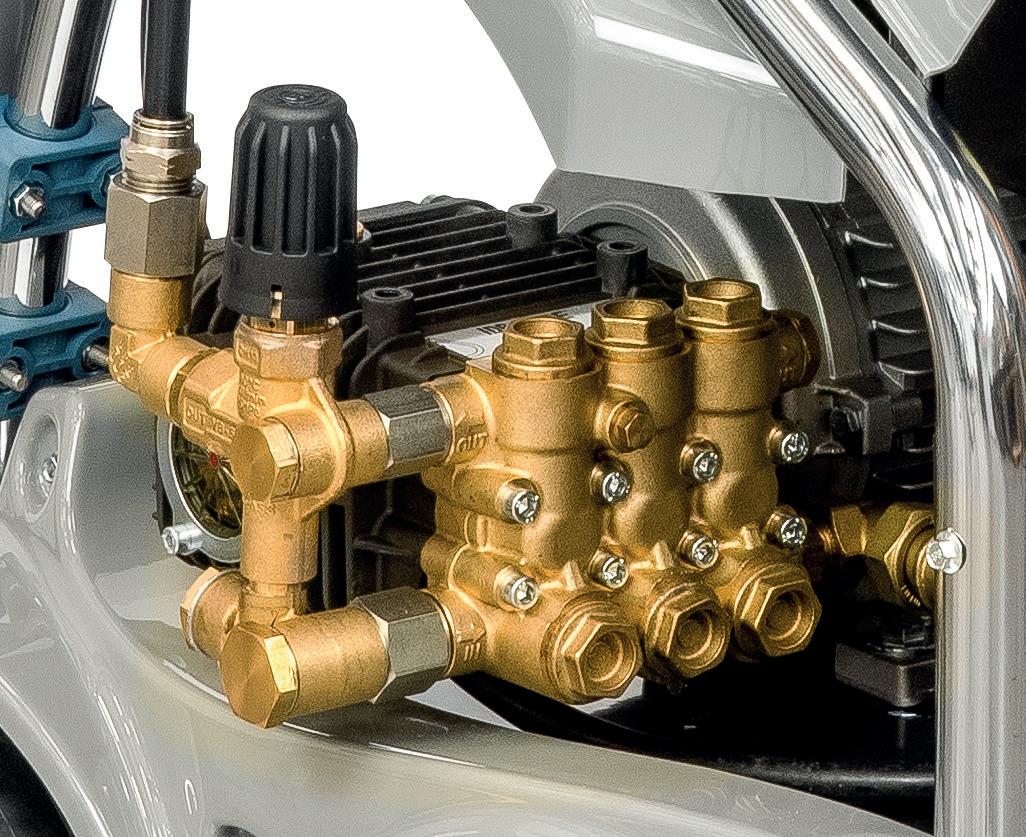

• Professional motorpump 1450Rpm, 200W, axial movement, 2 ceramic pistons

• Professional motorpump 1450Rpm, 950W, axial movement, 3 ceramic pistons in ceramic steel

• Tank: 30L

• Solenoid valve inlet water 230V

• Air flow rate: 3510m3/h • Coverage: 10m2 • Power absorption: 0.55Kw 2800Rpm • Fan jet: 7m 21°C (without wind) • Elevation: 0°+30° manual • Fan diameter: 410mm

• 5” water inlet kit with pressure stabilizer

• Noise: <80LwA • Protection rating: IP54 • Dimensions WxLxH: 800x650x1200mm Copyright© Idrobase Group. All rights reserved.

15

IDROTECH

Extra discount on purchase price

-15%

Fan jet

+33% Compared to the Fog Maker Elefantino

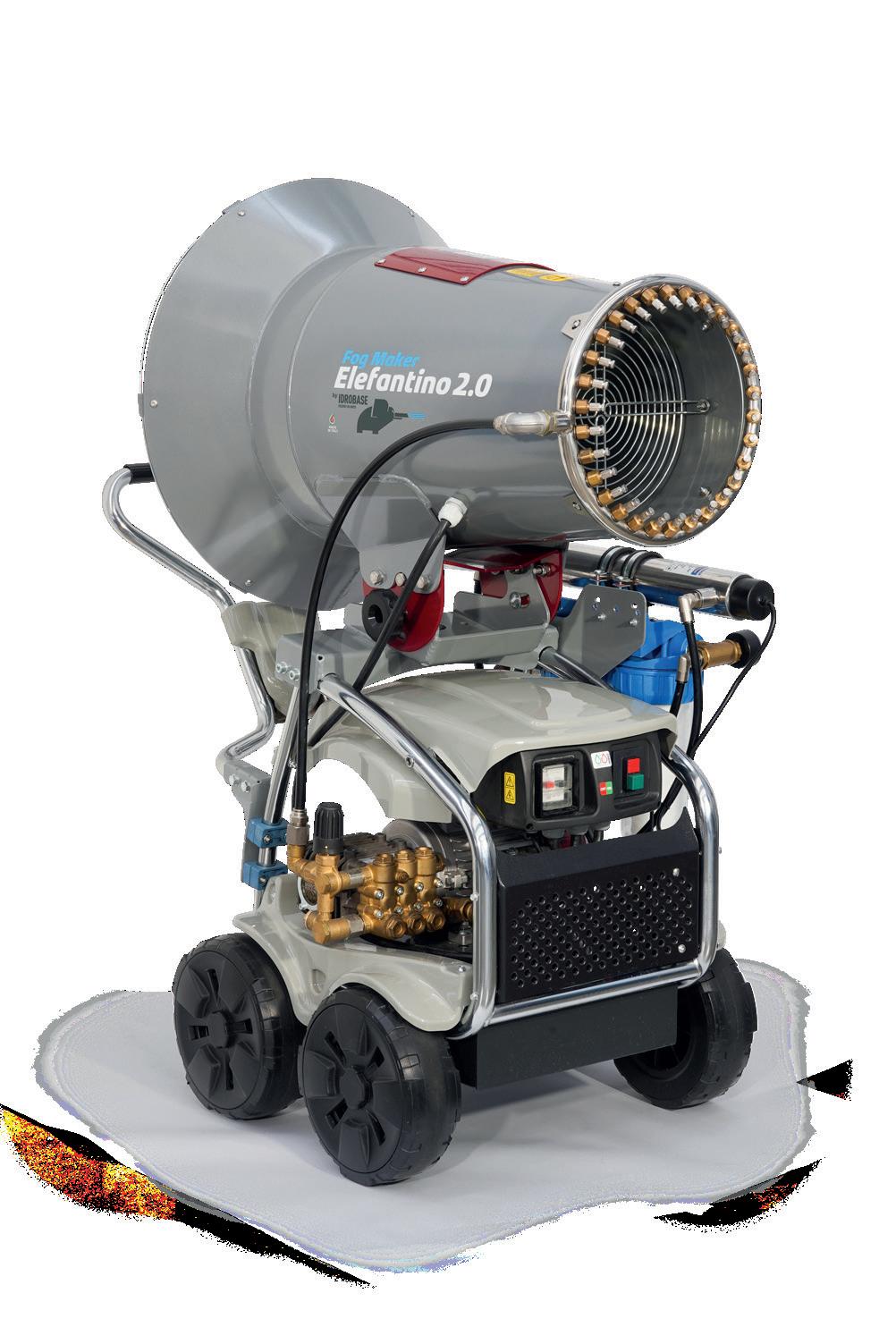

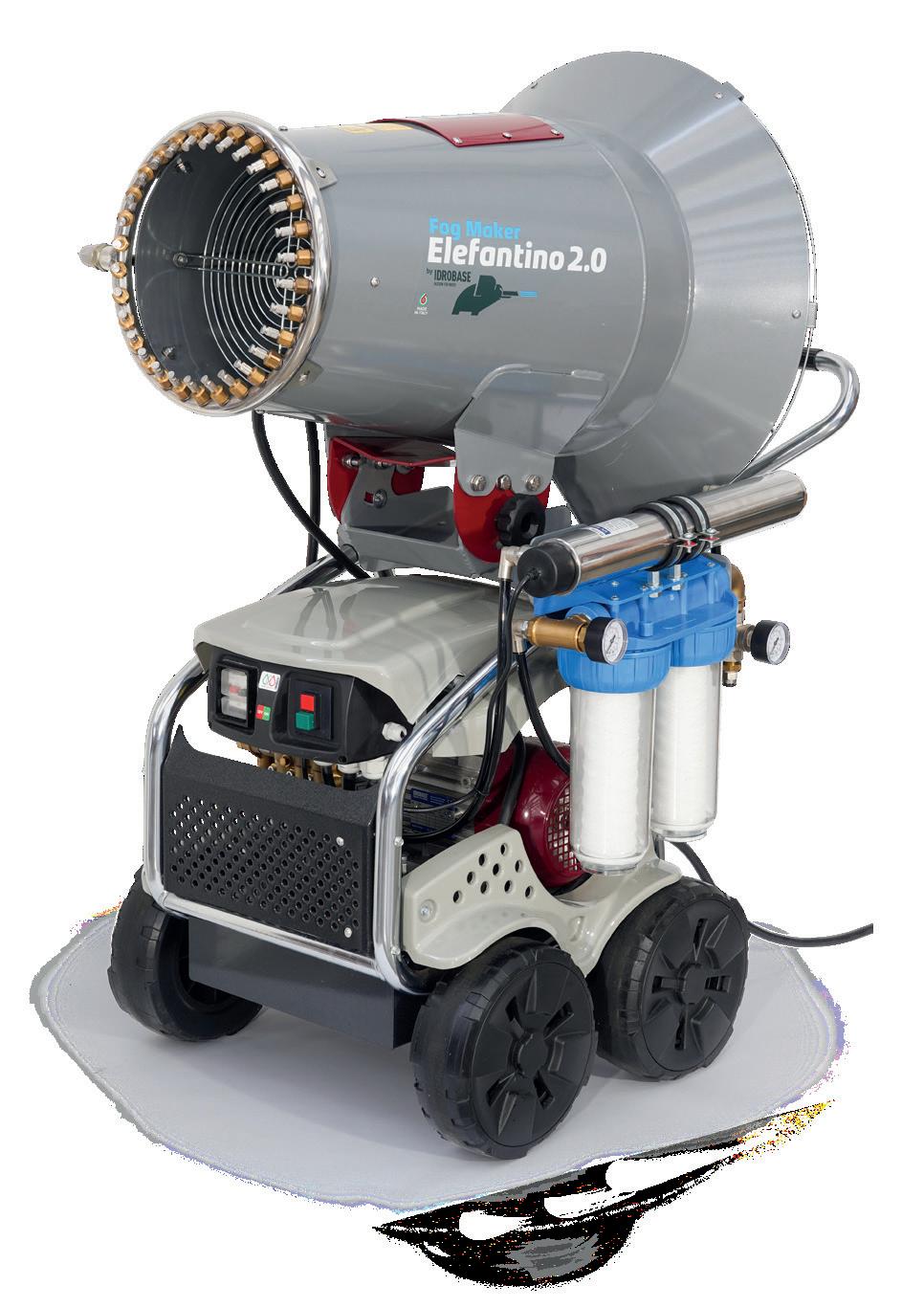

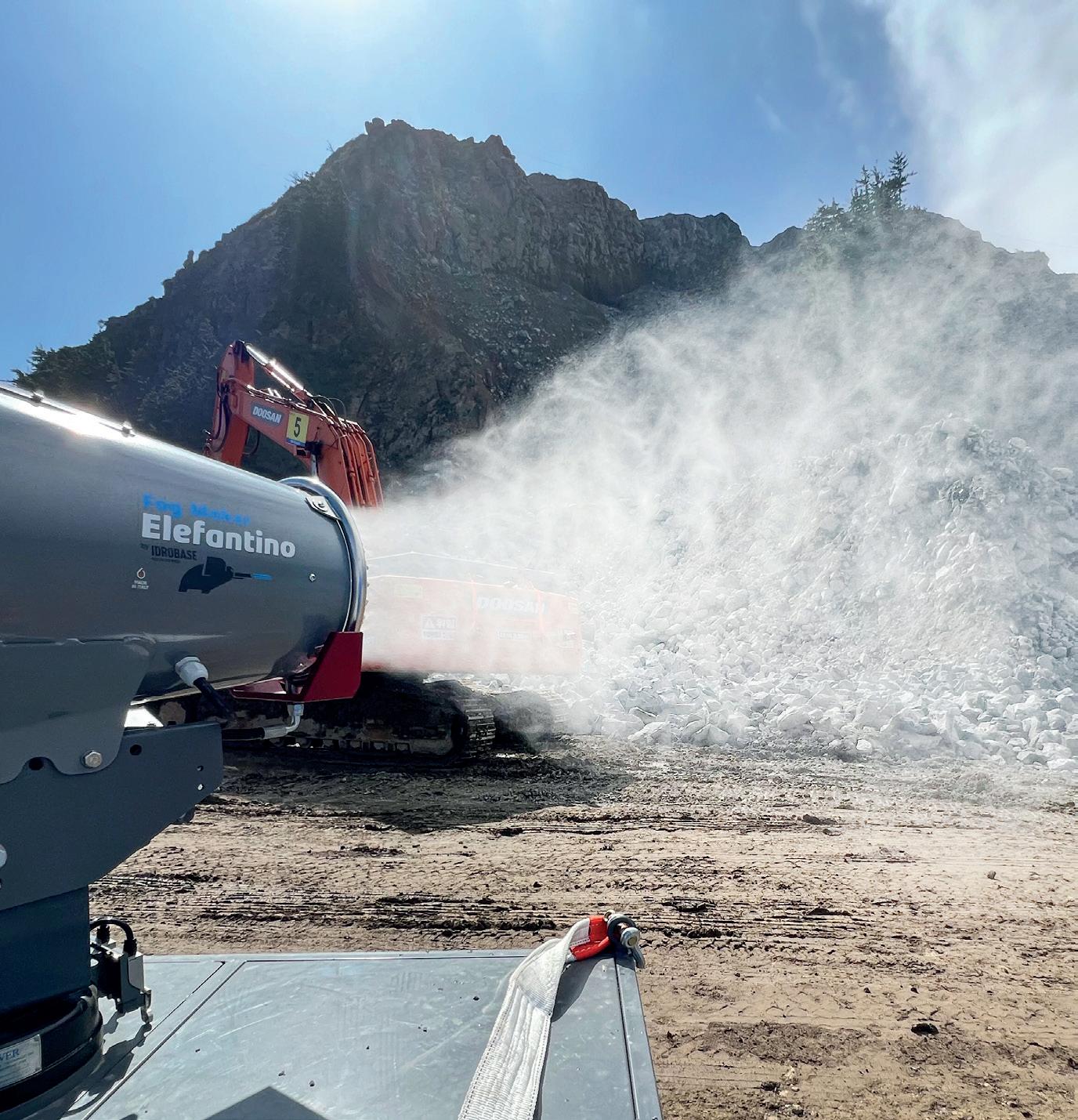

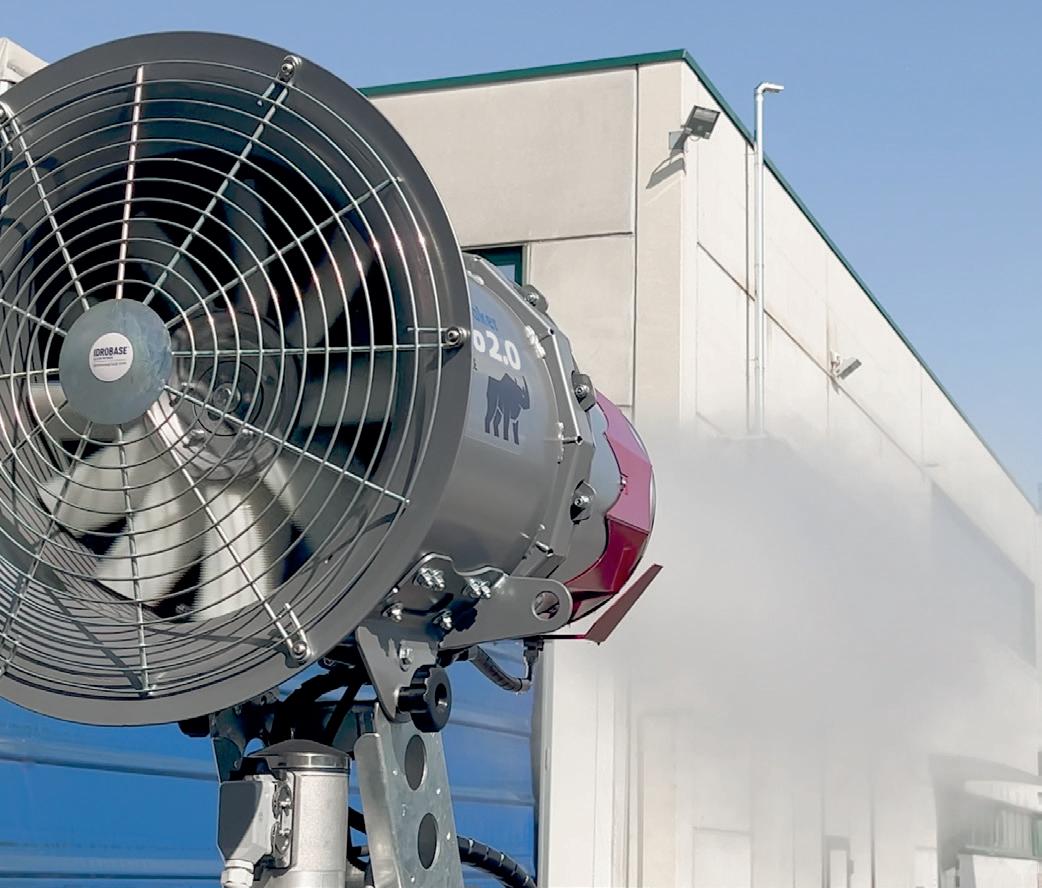

Fog Maker Elefantino 2.0 is versatile: • PM2.5 and PM10 abatment • odor neutralization • disinfection • dust suppression

Capacity of 11, 15 e 21l/min.

Elefantino 2.0

Delta

Fan jet

21m

28m

+33%

Pressure

70bar

80bar

+14%

Mobility

2 wheels

4 wheels

Frame

Iron

Chrome-plated steel and trasparent painted

Price

-15%

28 m

7m

Elefantino

30 cm

Elefantino VS Elefantino 2.0 comparison

Fan jet 28m

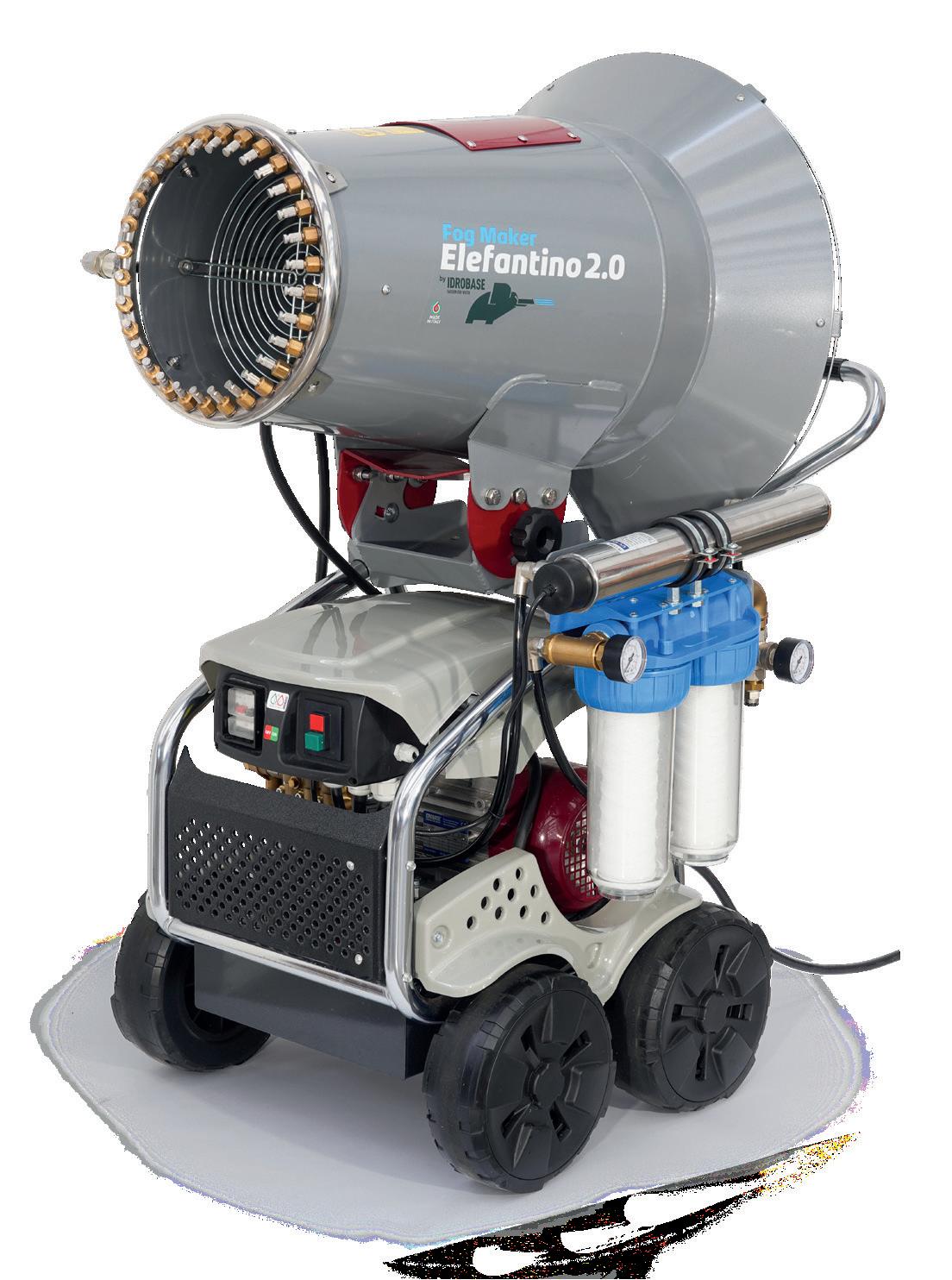

ELEFANTINO 2.0

16

Copyright© Idrobase Group. All rights reserved.

Fog maker

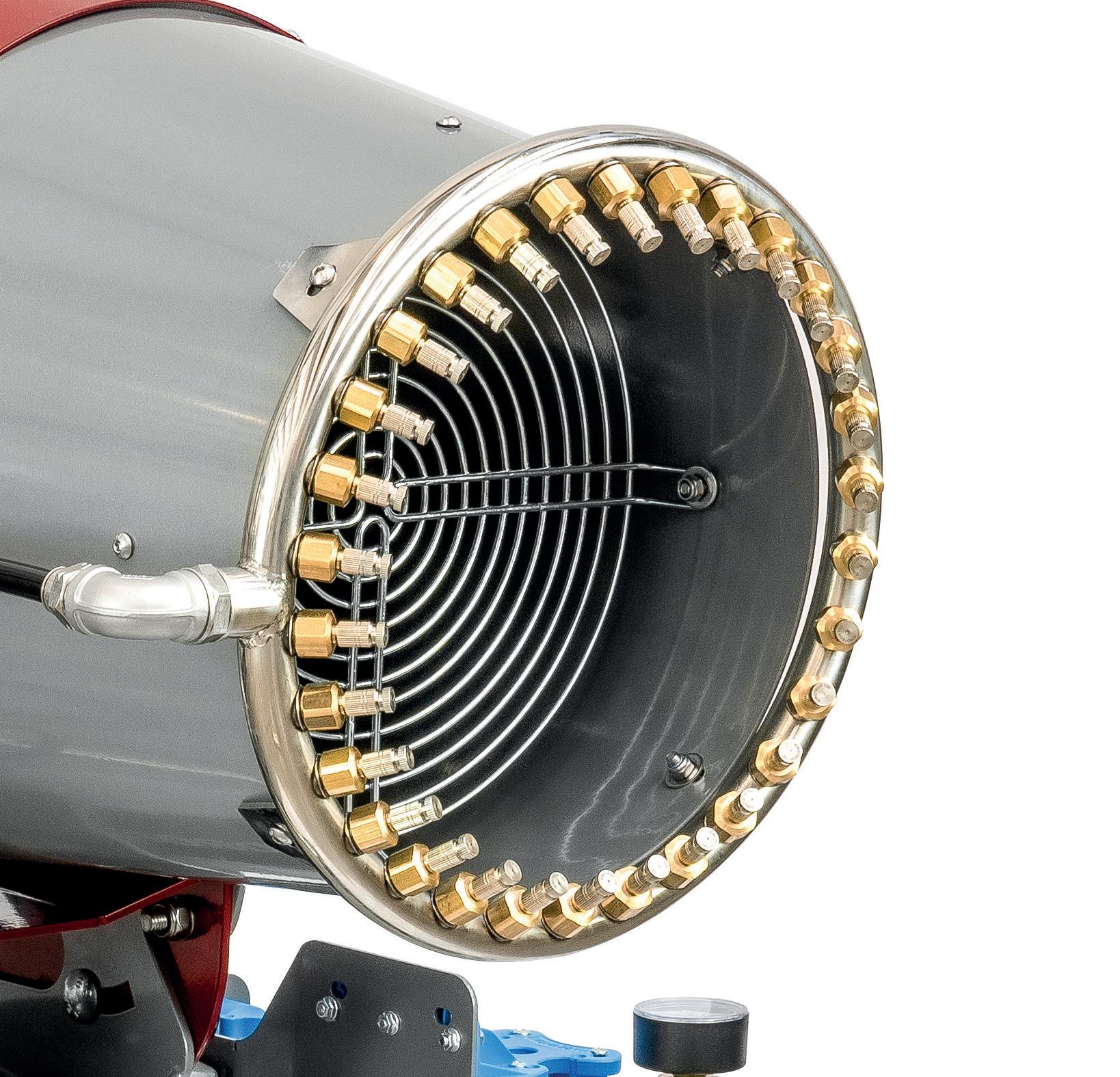

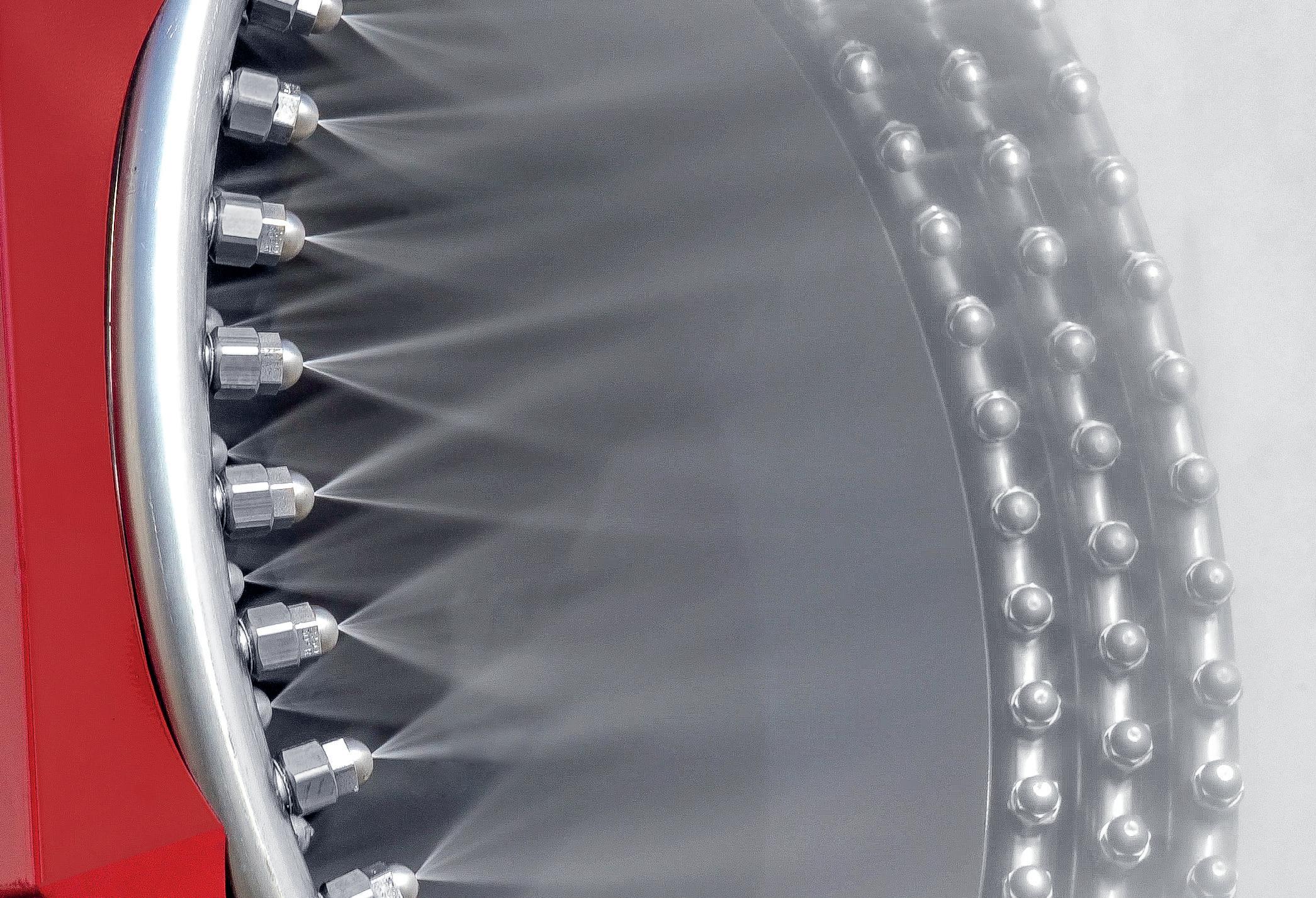

Ring AISI 304 stainless steel with 30 nozzles

Professional pump 1450Rpm

Frame: chrome-plated steel and transparent painted

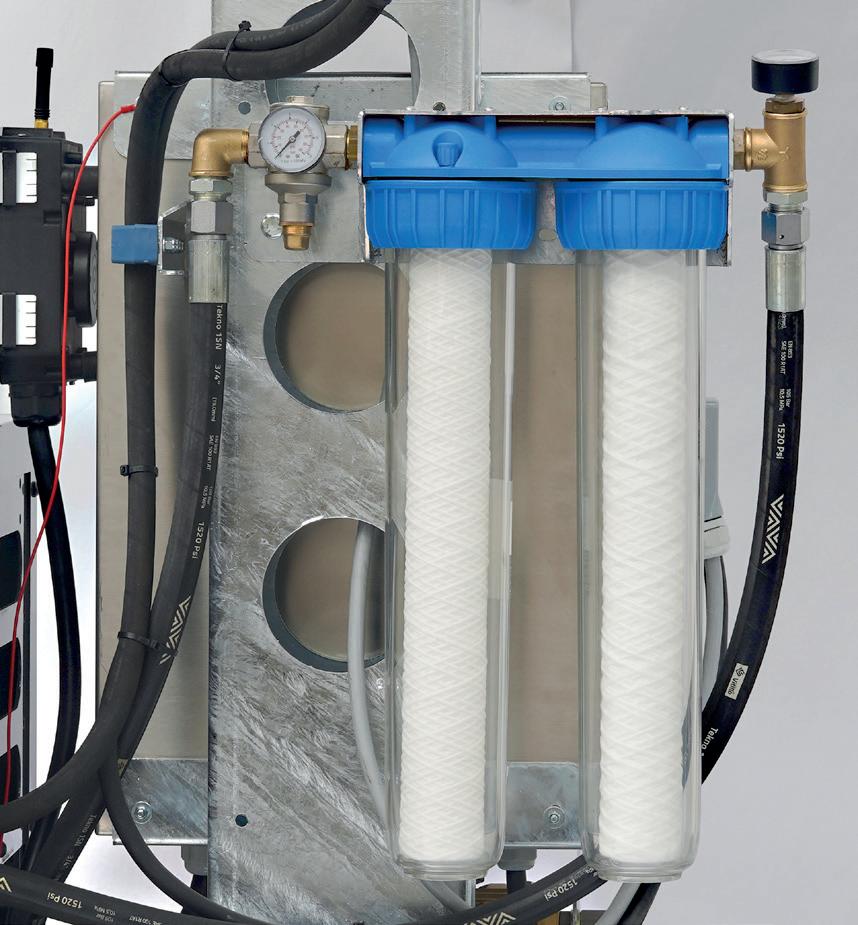

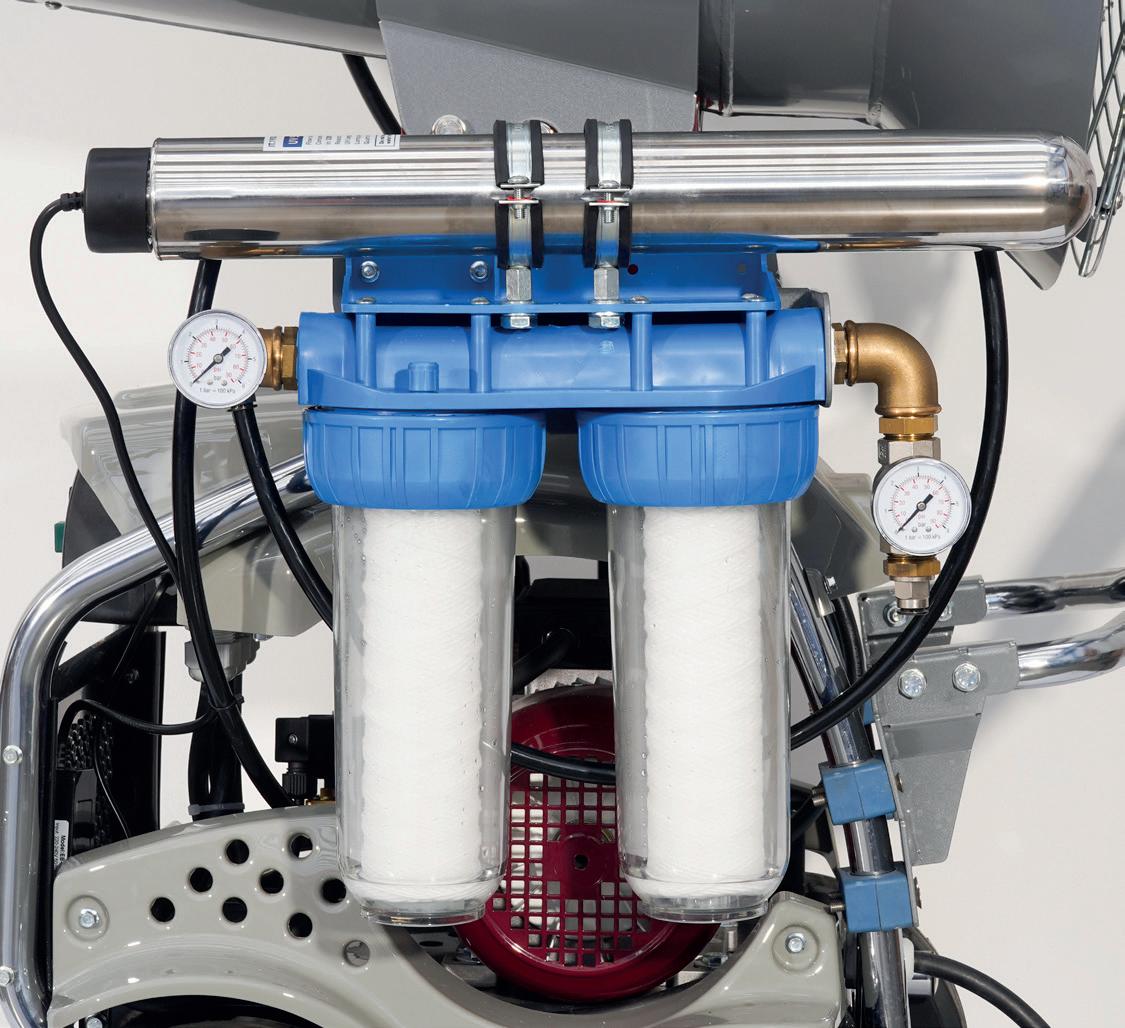

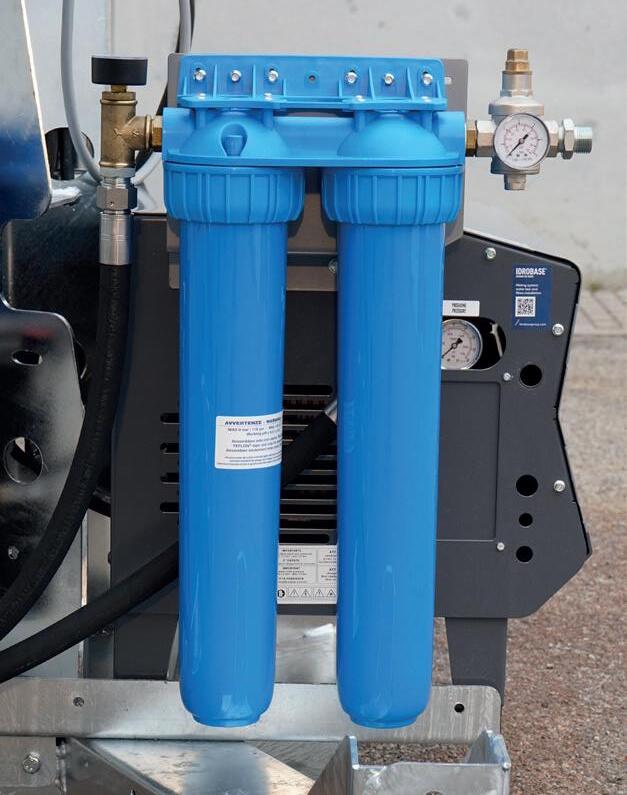

Water inlet kit

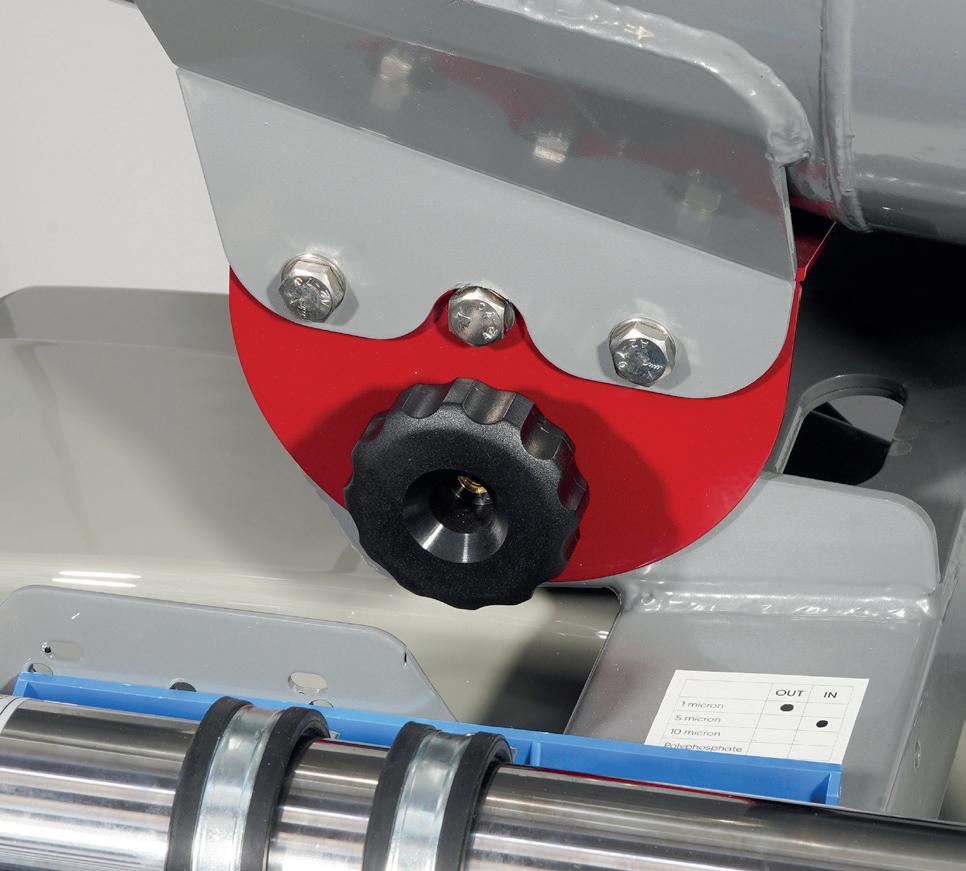

Elevation system

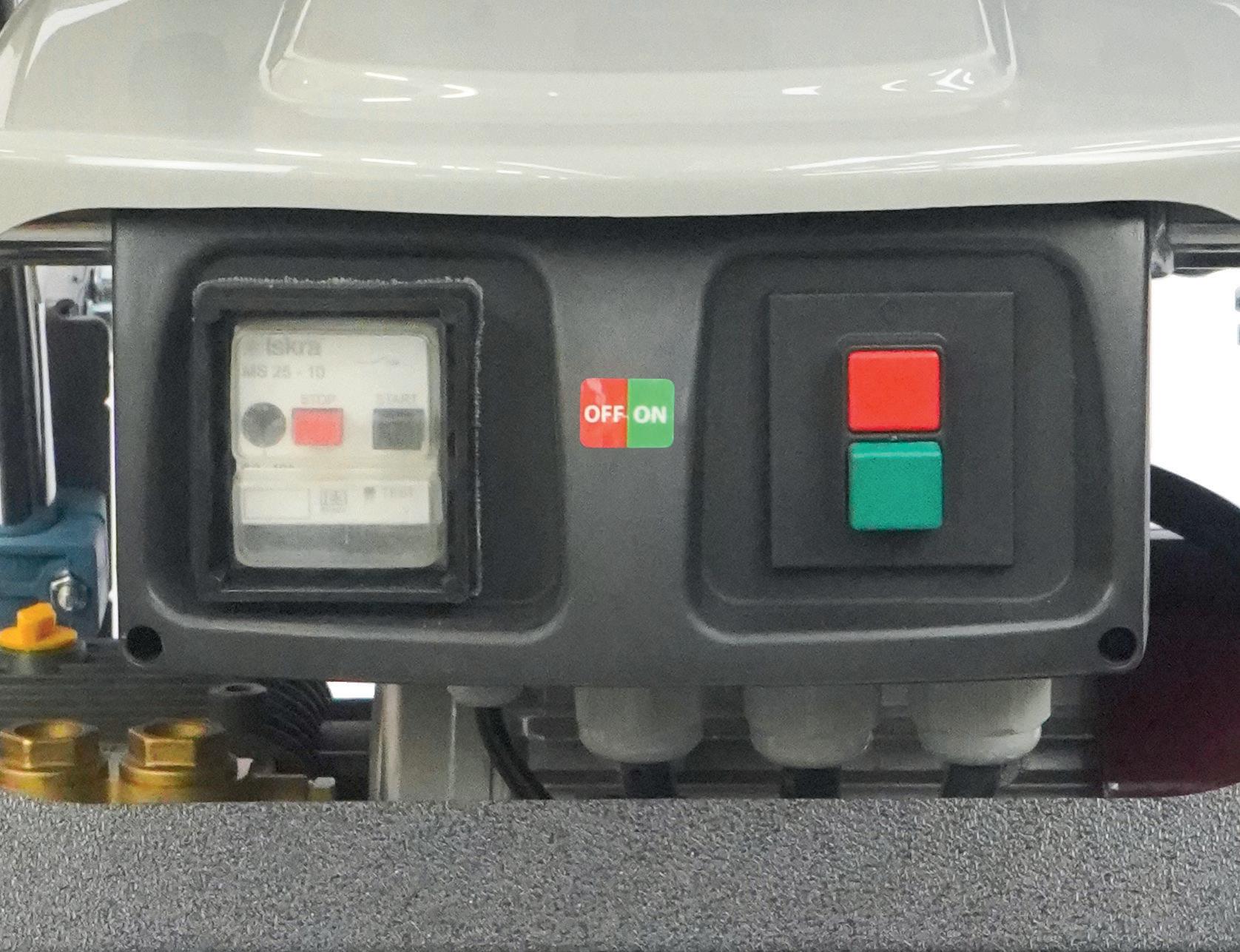

Control panel

Copyright© Idrobase Group. All rights reserved.

17

COMING SOON

IDROTECH

Pressure 80bar Fan jet 28m 30 nozzles

0° +30°

-15% Extra discount on purchase price

+33% Fan jet

Compared to the Fog Maker Elefantino

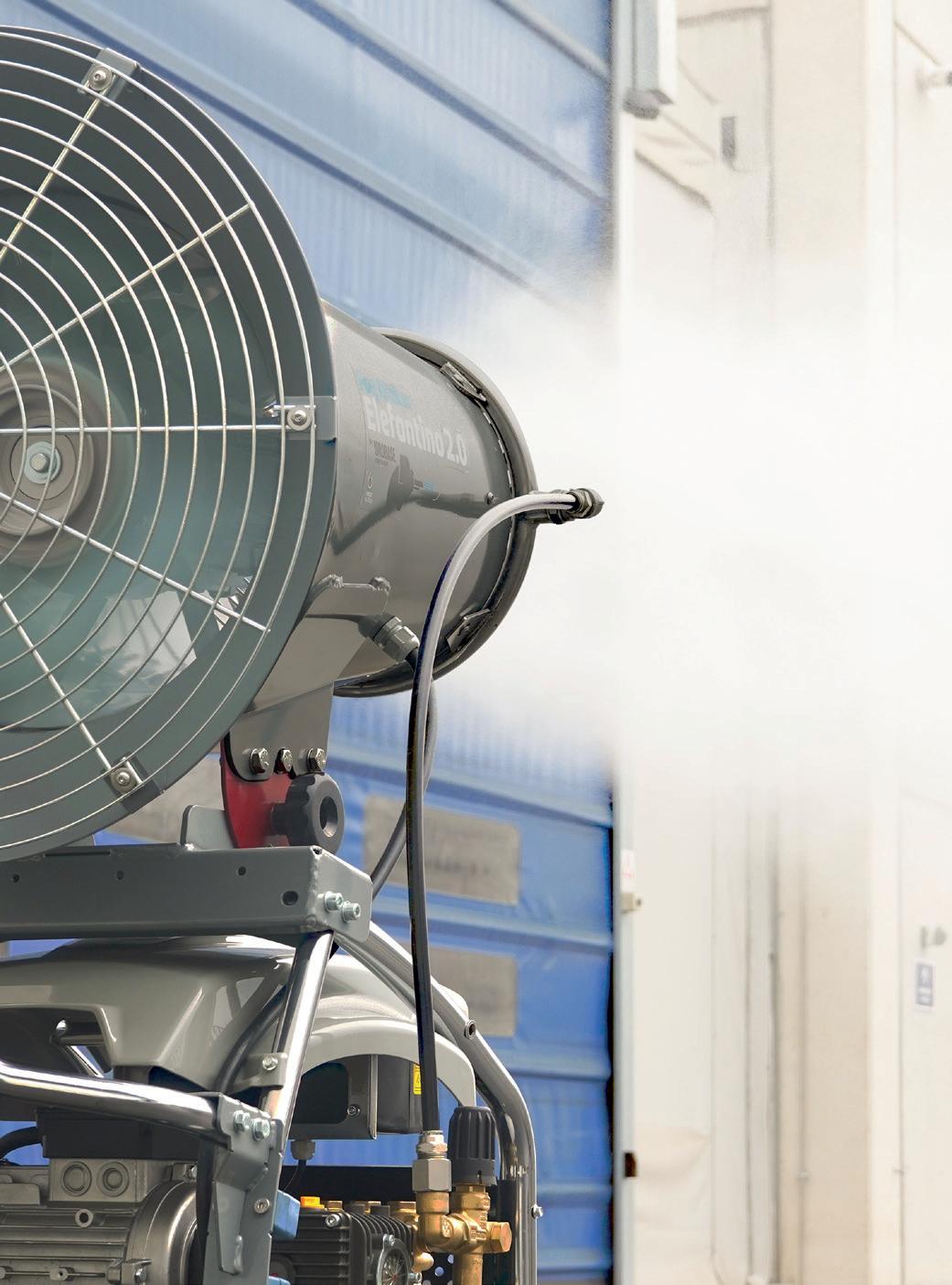

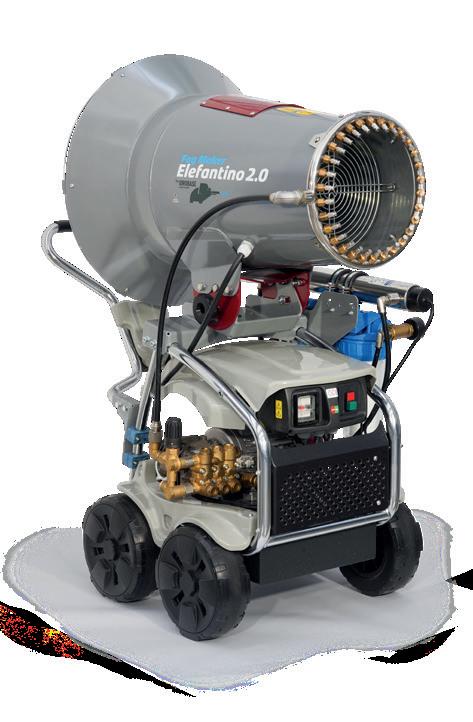

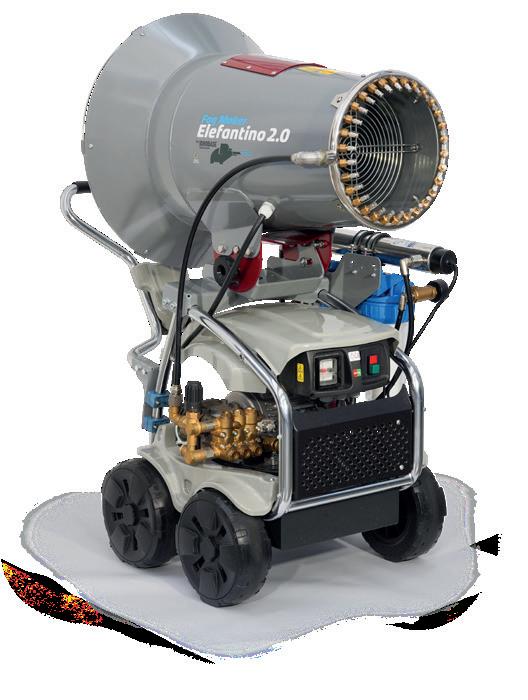

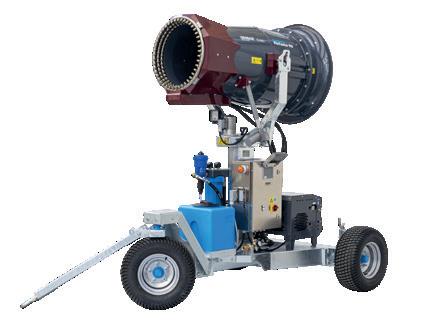

Fog Maker Elefantino 2.0 Trolley-mounted high pressure fog maker with 30 misting nozzles, ON-OFF control panel for pump and fan controls. Fan range: 28 metres.

Ideal for suppression of fine dust (PM10), in small to medium sized areas such as in renovation of buildings and when handling dusty materials.

Technical features

21l/min

18

90

Copyright© Idrobase Group. All rights reserved.

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V-50Hz)

Weight

ZX.8407DP

ELEFANTINO 2.0 - 11L

70bar

11l/min

20mcr

3,7kW

120Kg

ZX.8408DP

ELEFANTINO 2.0 - 15L

80bar

15l/min

24mcr

4,4kW

120Kg

ZX.8409DP

ELEFANTINO 2.0 - 21L

70bar

21l/min

24mcr

5,2kW

120Kg

INCLUDED Pump maintenance set 750 hours

Elefantino VS Elefantino 2.0 comparison Elefantino

Elefantino 2.0

Delta

Fan jet

21m

28m

+33%

Pressure

70bar

80bar

+14%

Mobility

2 wheels

4 wheels

Frame

Iron

Chrome-plated steel and trasparent painted

Price

-15%

Technical features general • Frame made of S235JR chrome-plated steel and transparent painted • Solid wheels • Power absorption: 3kW 2800Rpm • Coverage: 150m2 • Fan jet: 28m with 21°C (without wind) • Elevation: 0°+30° manual • Fan diameter: 397mm

Copyright© Idrobase Group. All rights reserved.

• Noise: <90LwA • No. of nozzles: 1 ring AISI 304 stainless steel with 30 nozzles • Water inlet kit complete with pressure stabiliser

• Electric motor 1450Rpm, 1.5kW for 11l/min, 2.2kW for 15l/min, 3kW for 21l/min • Integrated by-pass valve • Protection rating: IP54

• Pressure: 80bar for 15l/min version, 70bar for 11 and 21l/min version • Pump module 1450Rpm, rod movement, brass head, 3 ceramic pistons 19

IDROTECH

Covered area

+115%

Rotating range (automatic)

+85% Compared to the Fog Maker Airone

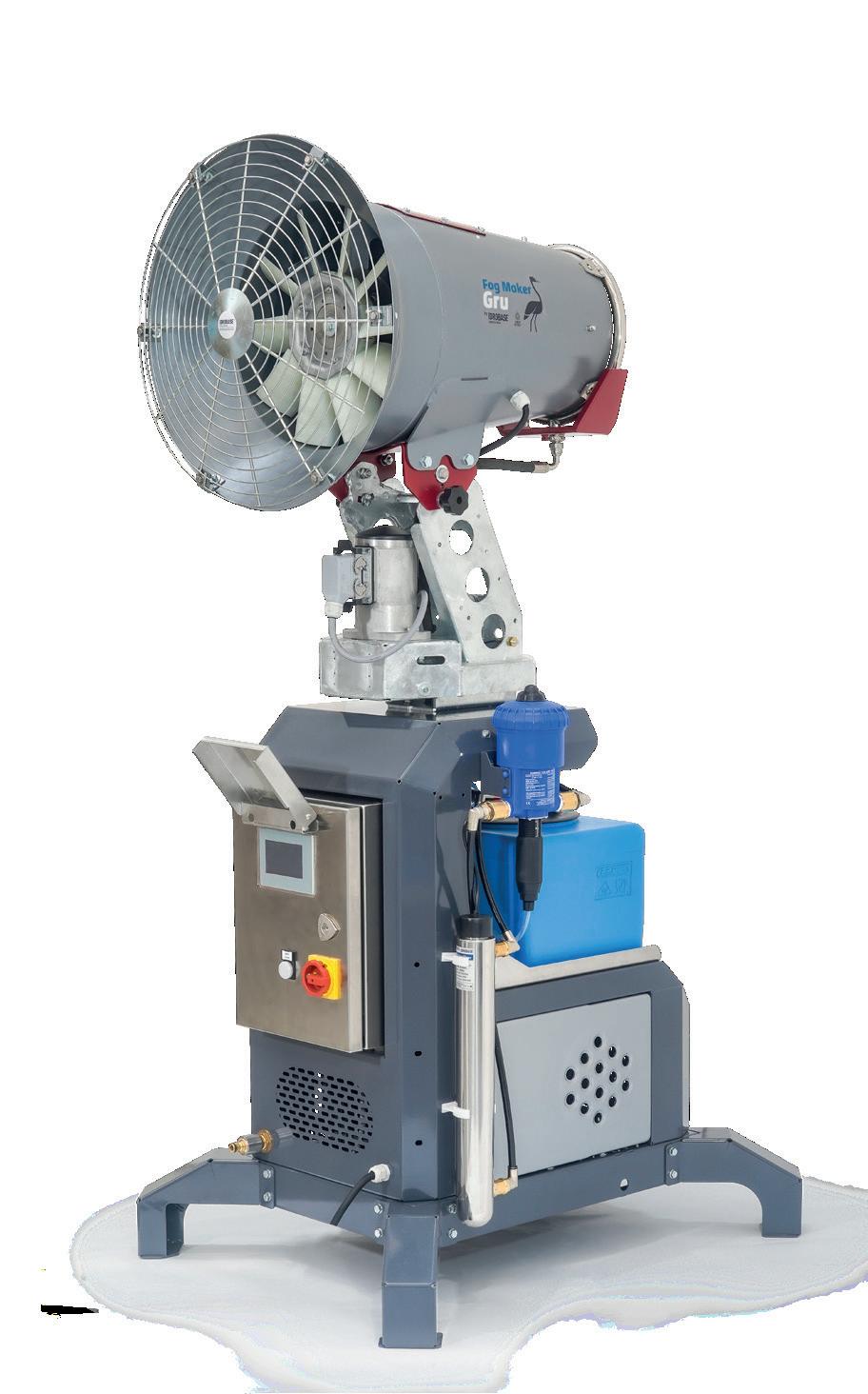

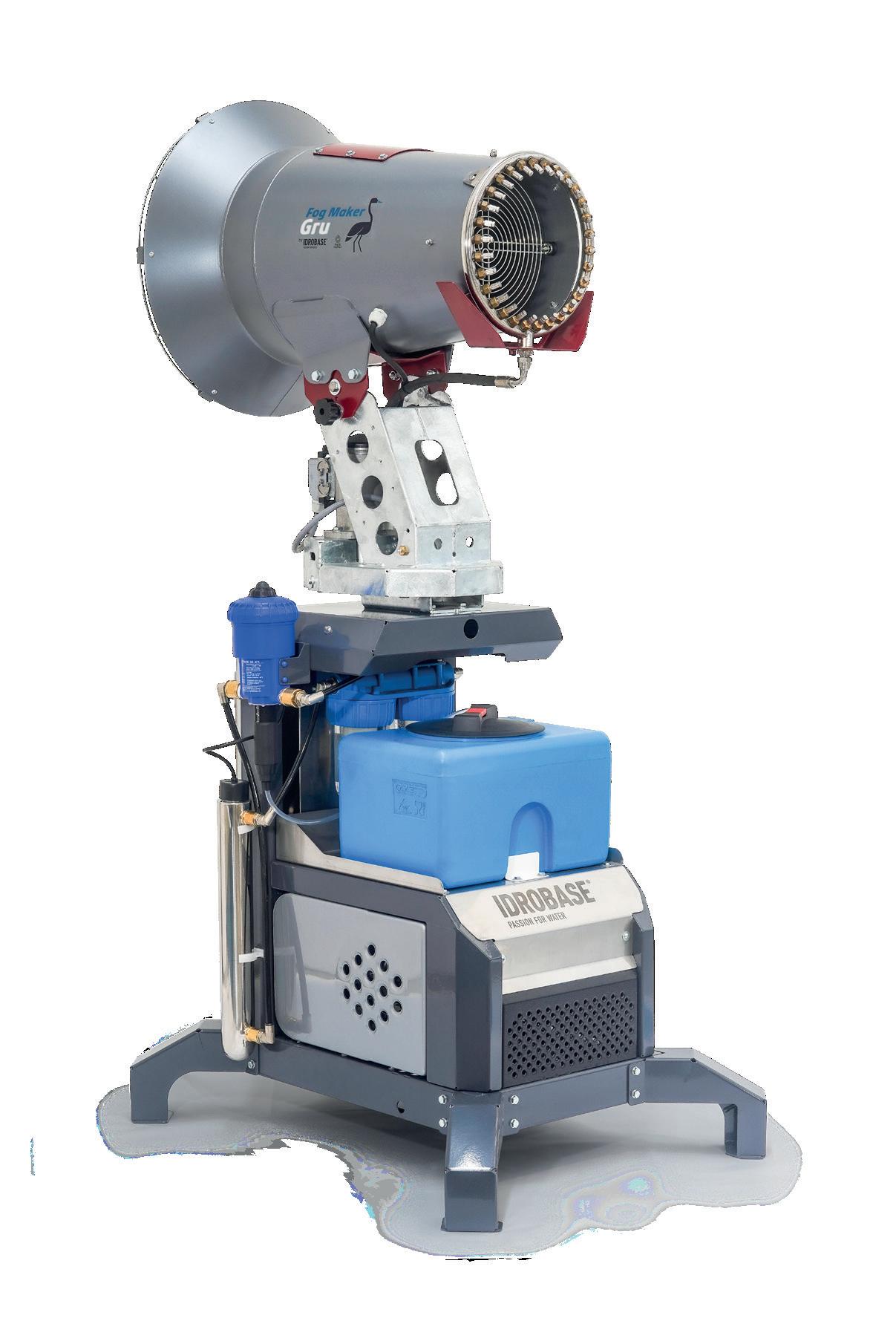

Fog Maker Gru is versatile: • PM2.5 and PM10 abatment • odor neutralization

Capacity of 11, 15 e 21l/min.

Technical features

Old version VS New version comparison Old version

New version

Delta

Fan jet

25m

30m

+20%

Rotating range

160°

330°

+85%

Rotation

Manual

Automatic

Covered area

700m

1.500m2

2

70

30

+115%

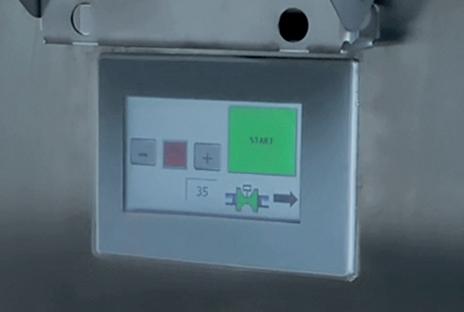

Programmable touch screen display*

21l/min

IP 54

*Pause/work time slots

45° 330°

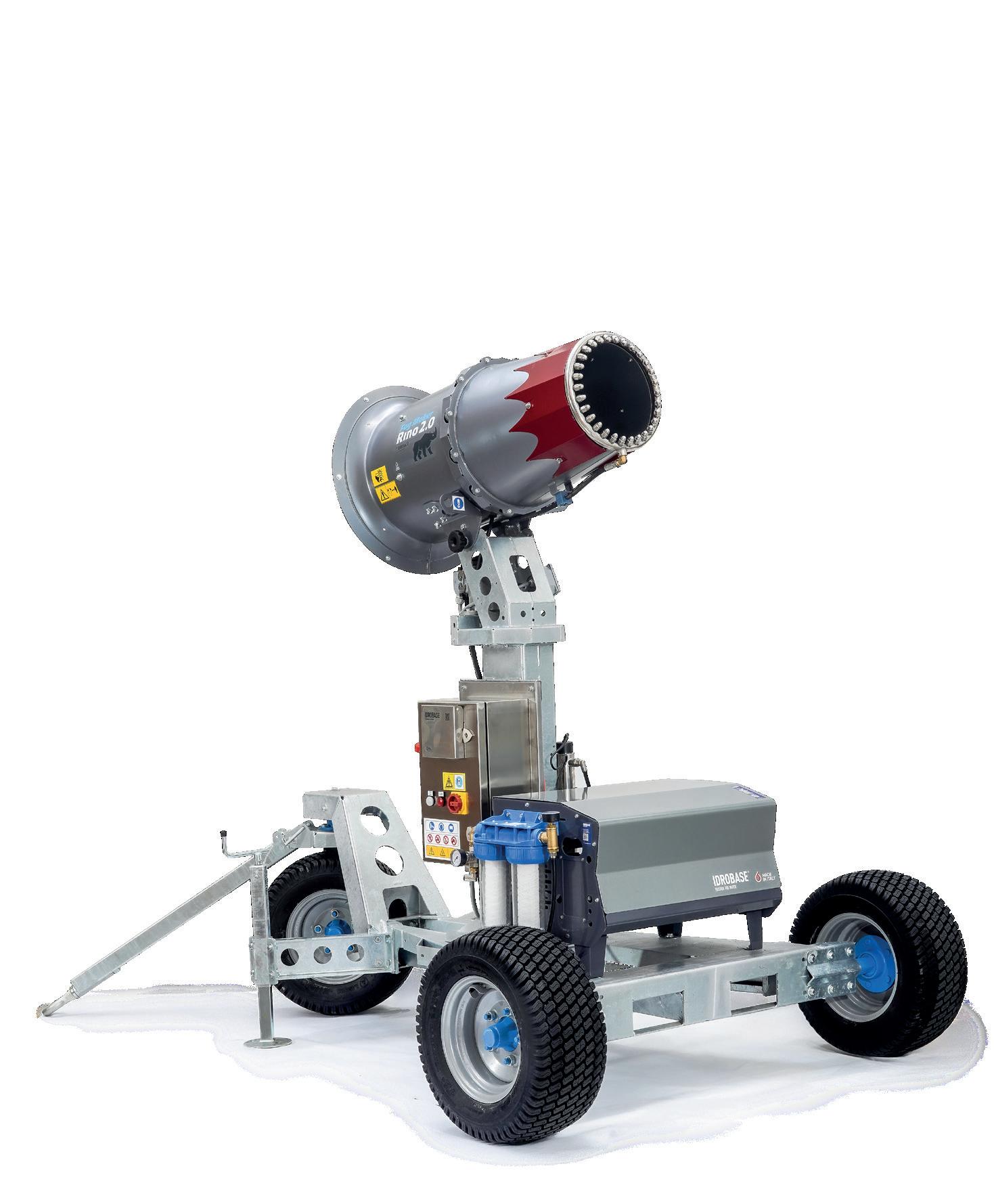

GRU

20

Copyright© Idrobase Group. All rights reserved.

Fog maker

45°

Manual elevation -20° +25°

330°

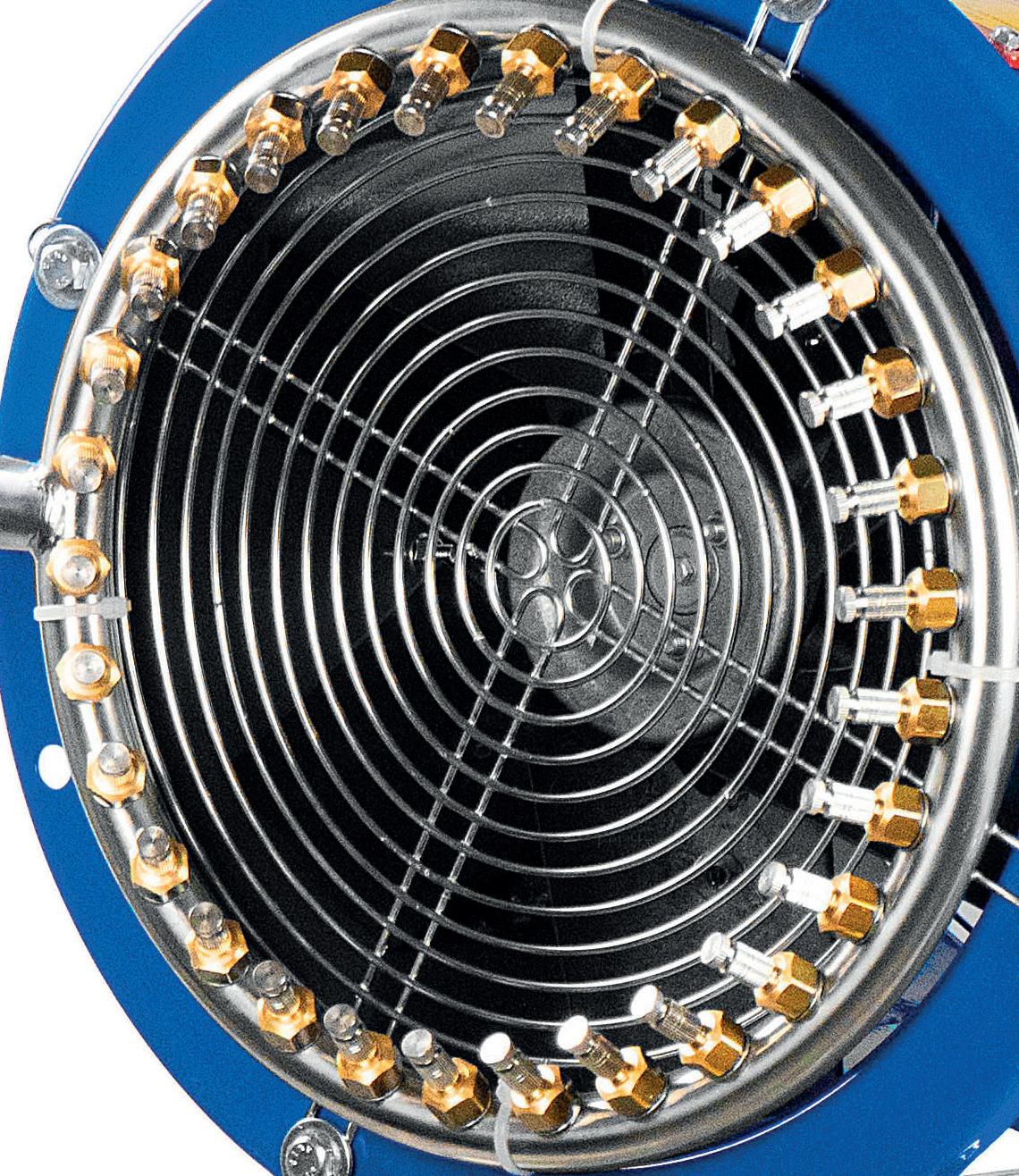

Ring AISI 304 stainless steel with 30 nozzles

Automatic rotating range 330°

330°

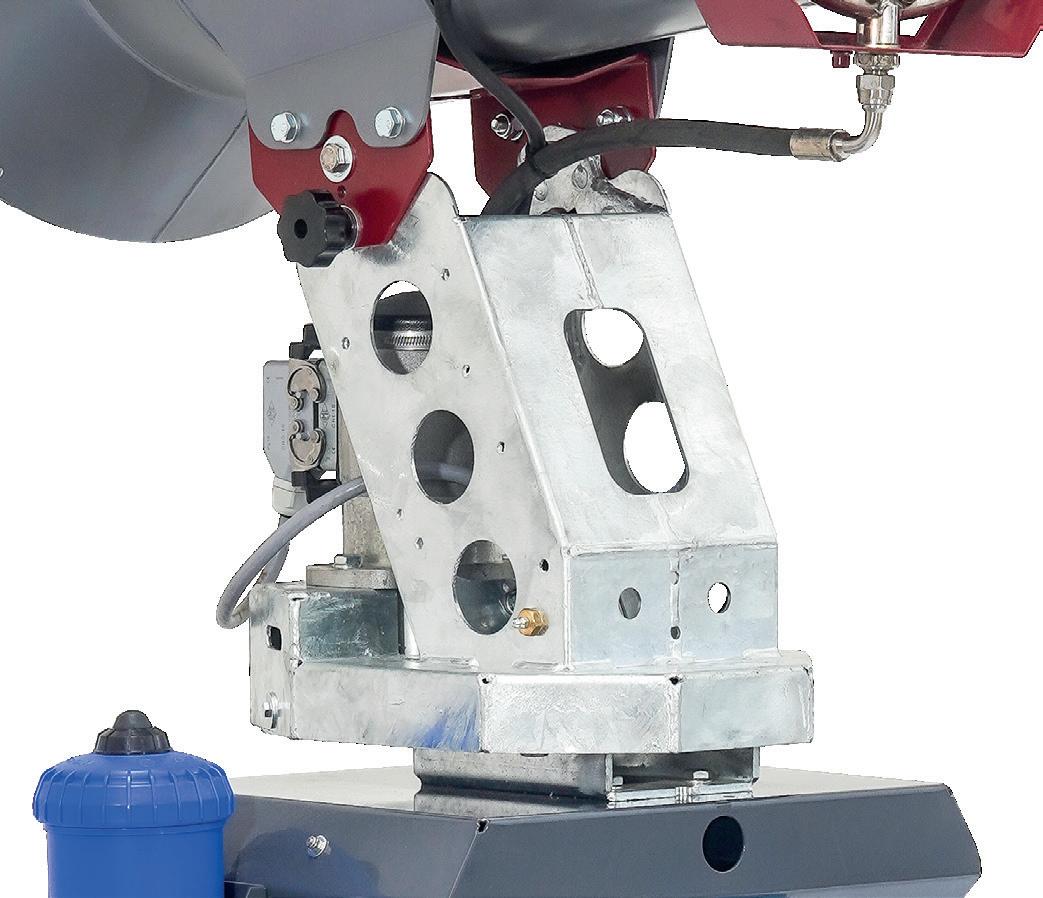

Rotating system detail (330°)

Dosing kit optional

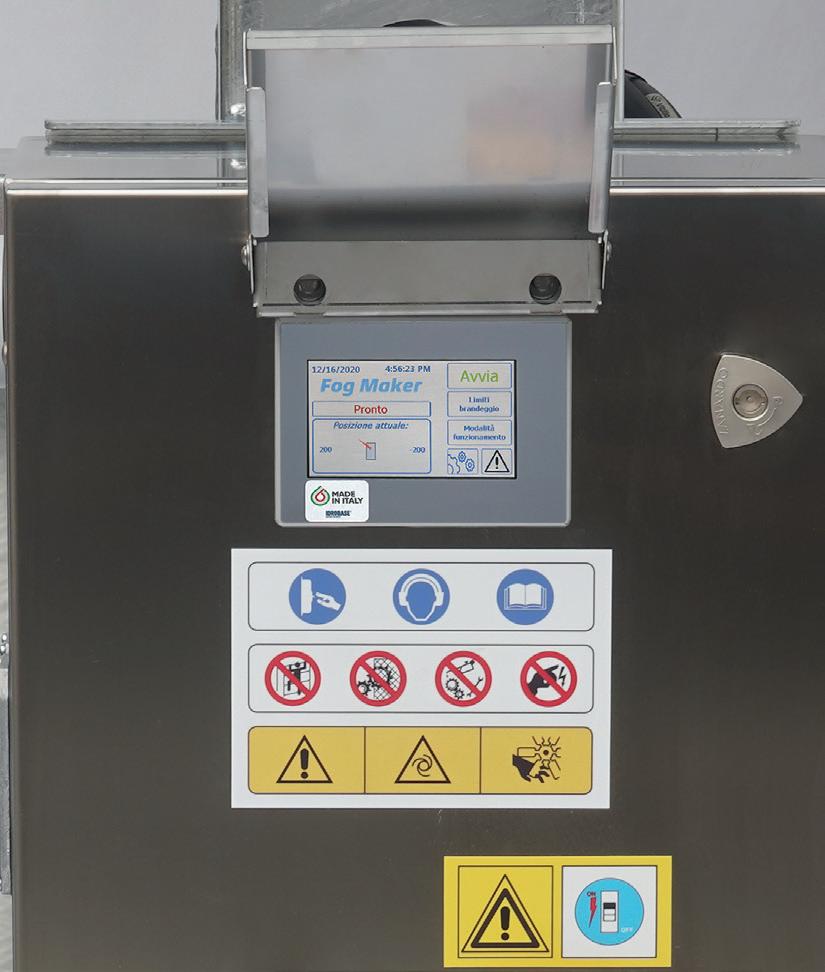

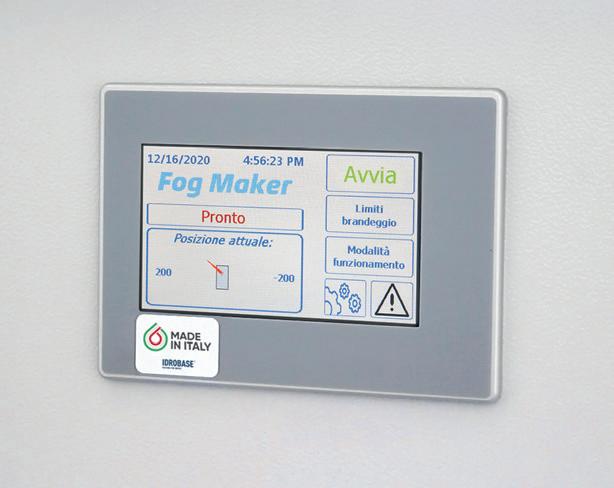

4,3” touch screen with multi language software

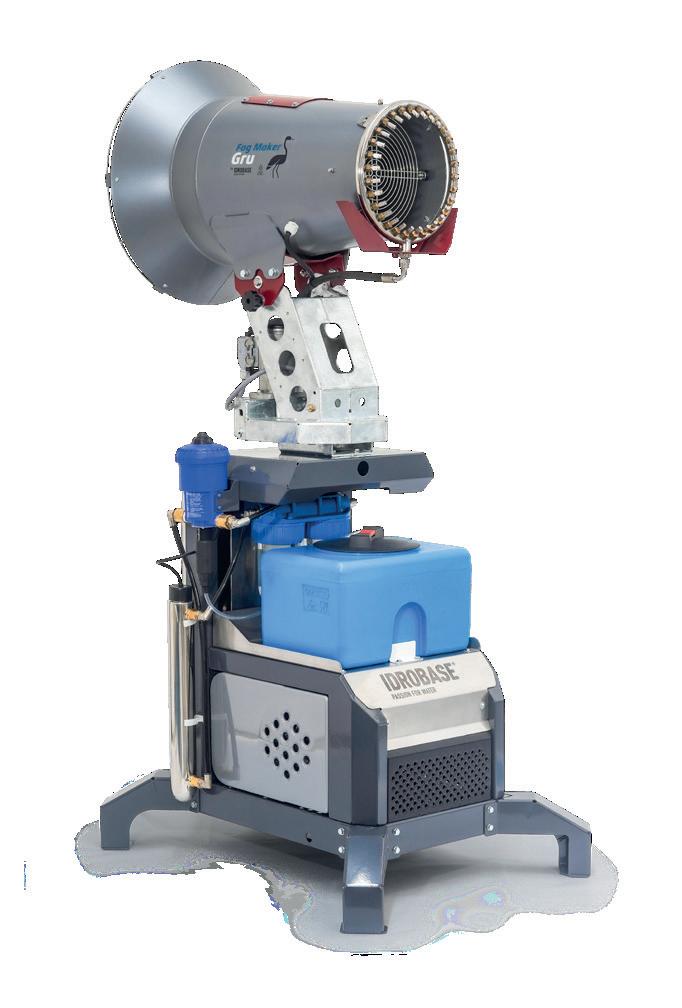

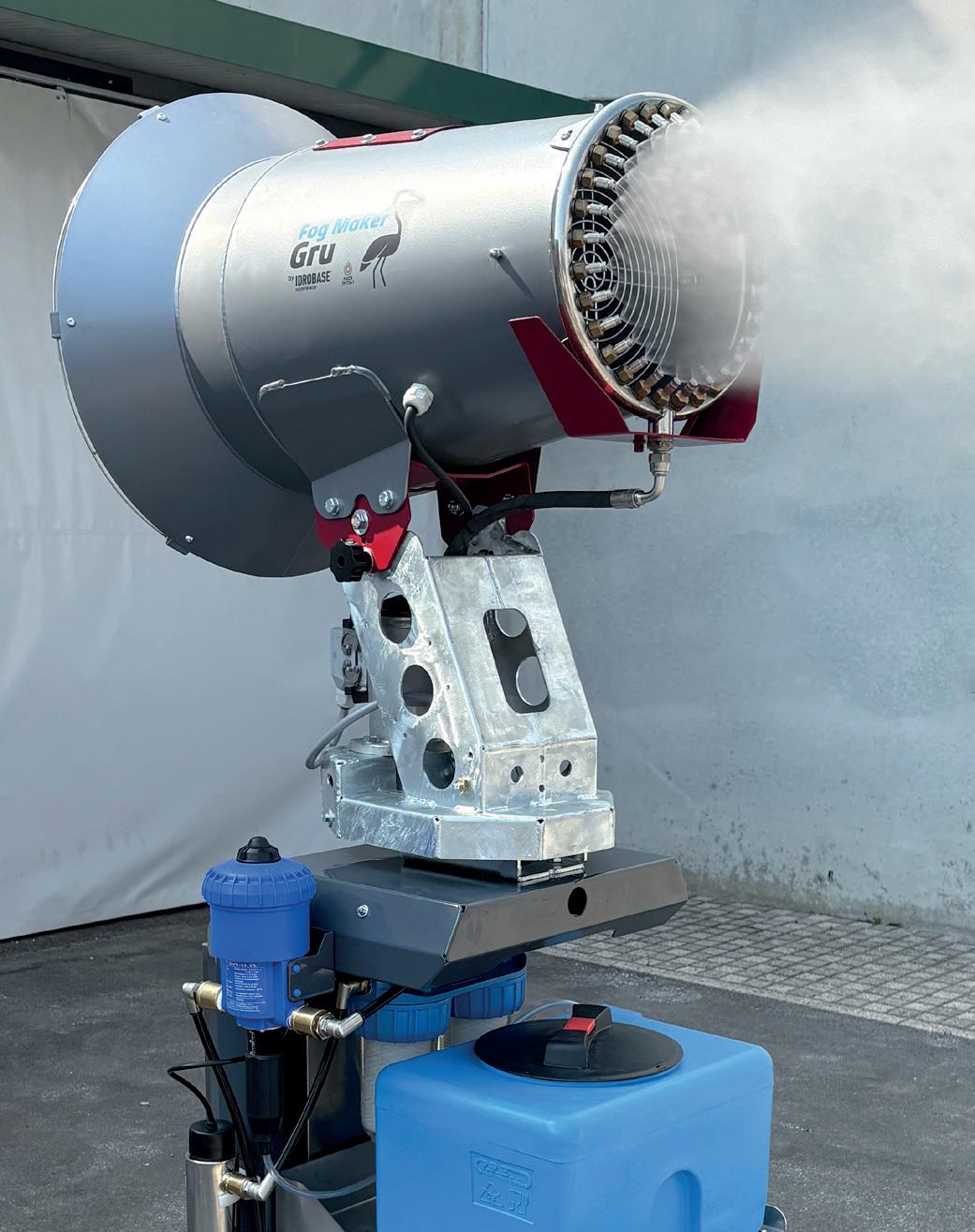

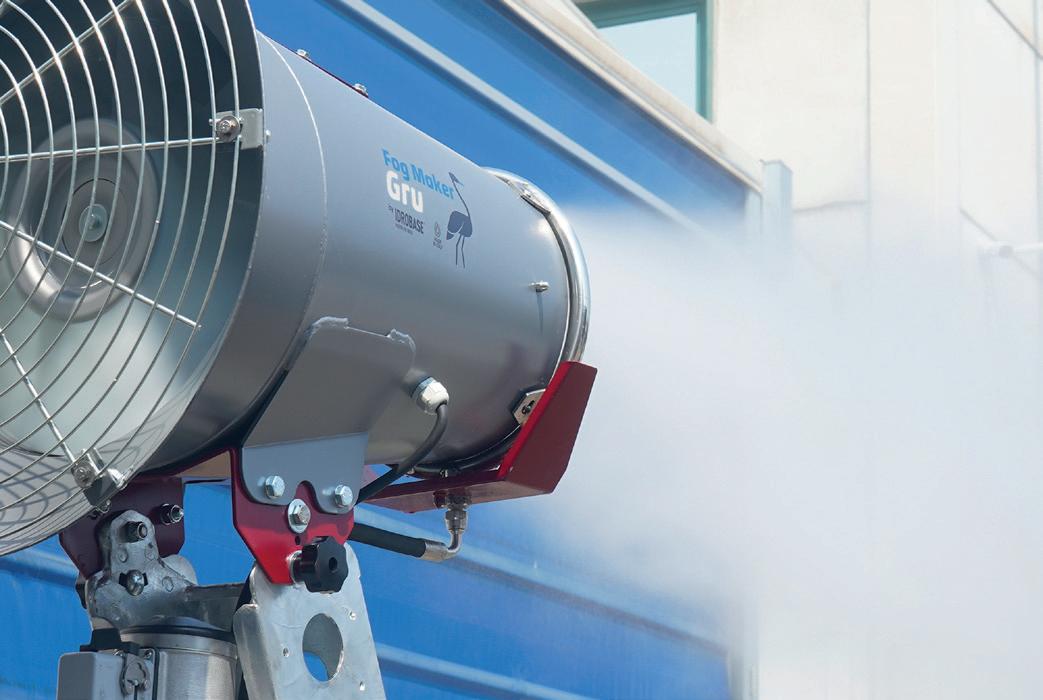

Fog Maker Gru application

Copyright© Idrobase Group. All rights reserved.

21

IDROTECH

Pressure 70bar Fan jet 30m 30 nozzles

330°

45°

+85% Rotating range (automatic)

+115% Covered area Compared to the Fog Maker Airone

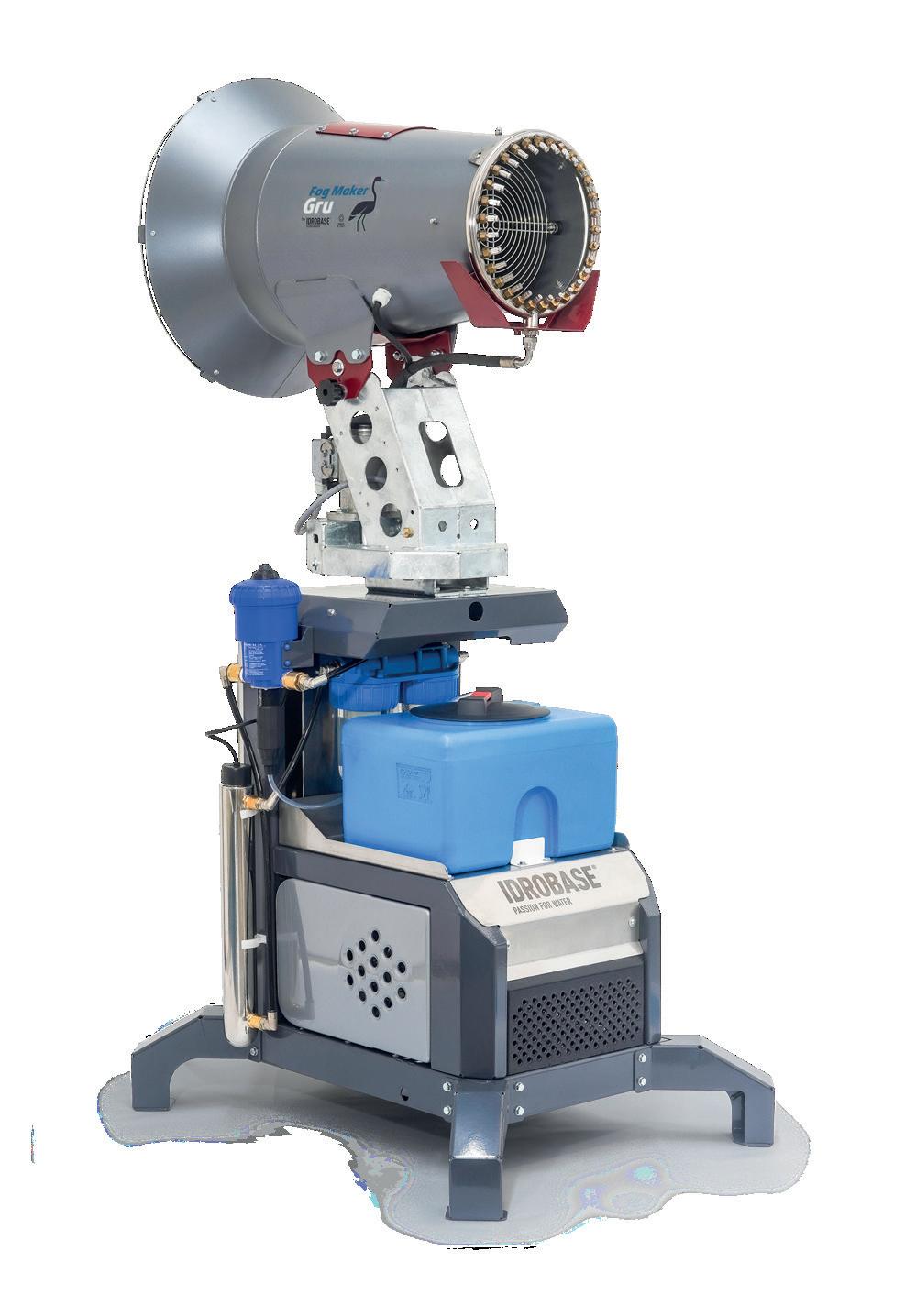

Fog Maker Gru • Ideal for odour and dust suppression (PM2.5 and PM10) of medium areas • Practical and handy with heavy-duty structure • Industrial performance with excellent value for money

45°

300°

Technical features

70

21l/min

22

330°

30

45°

Copyright© Idrobase Group. All rights reserved.

Technical features Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Weight

Code version with dispenser

ZX.8612DP

GRU - 11L

70bar

11l/min

18mcr

4,9kW

170Kg

ZX.8612DP-DOS

ZX.8613DP

GRU - 15L

70bar

15l/min

24mcr

5,6kW

170Kg

ZX.8613DP-DOS

ZX.8614DP

GRU - 21L

70bar

21l/min

24mcr

6,4kW

170Kg

ZX.8614DP-DOS

INCLUDED Pump maintenance set 750 hours

Old version VS new version comparison Old version

New version

Delta

Fan jet

25m

30m

+20%

Rotating range

160°

330°

+85%

Rotation

Manual

Automatic

Covered area

700m2

1.500m2

+115%

Programmable touch screen display*

*Pause/work time slots

Technical features general

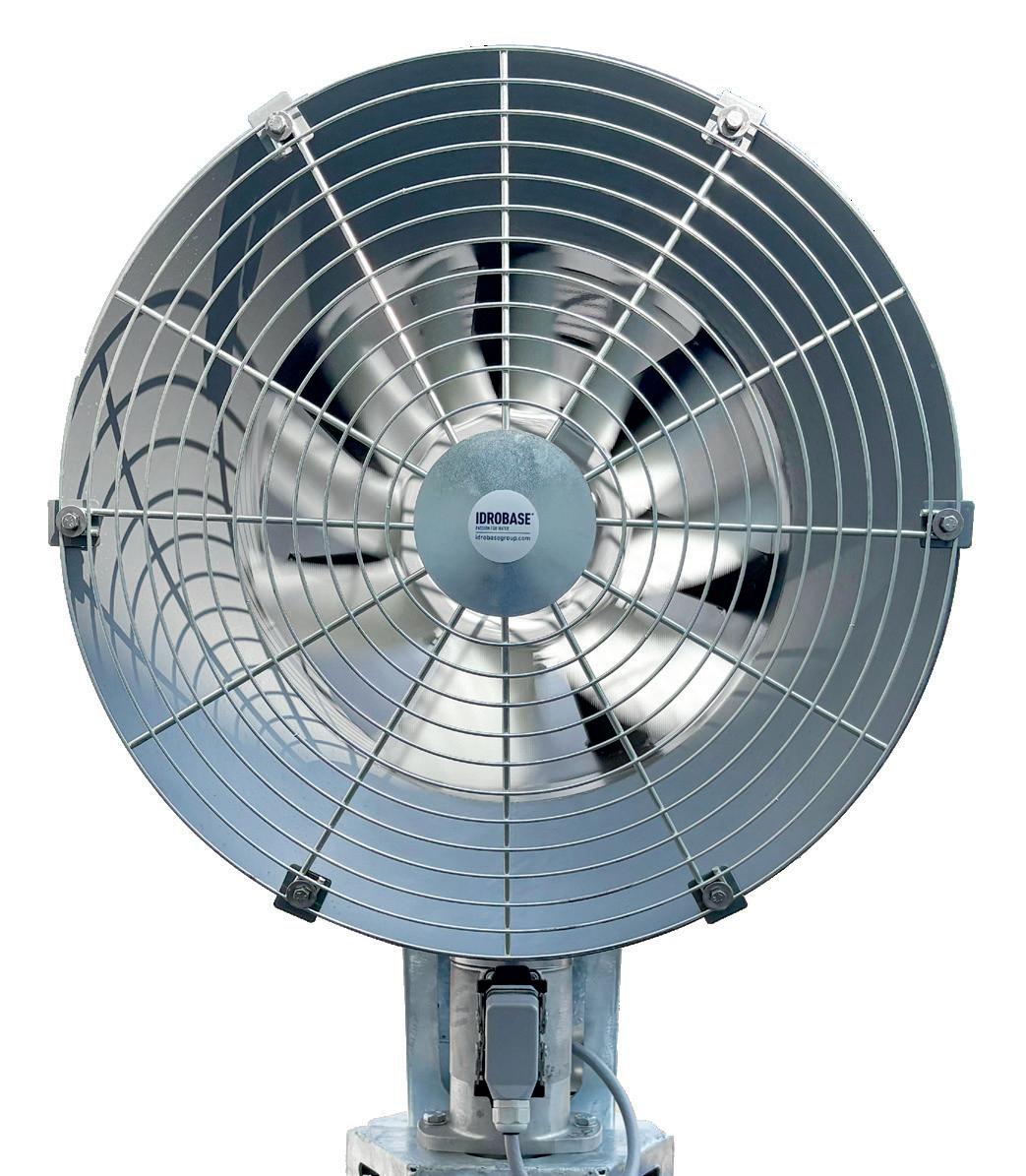

Fan technical specifications

Pump module technical specifications

• Galvanized steel frame

• No. of nozzles 1 ring AISI 304 stainless with 30 Smart nozzles

• Pressure: 70bar for 11, 15 e 21l/min version.

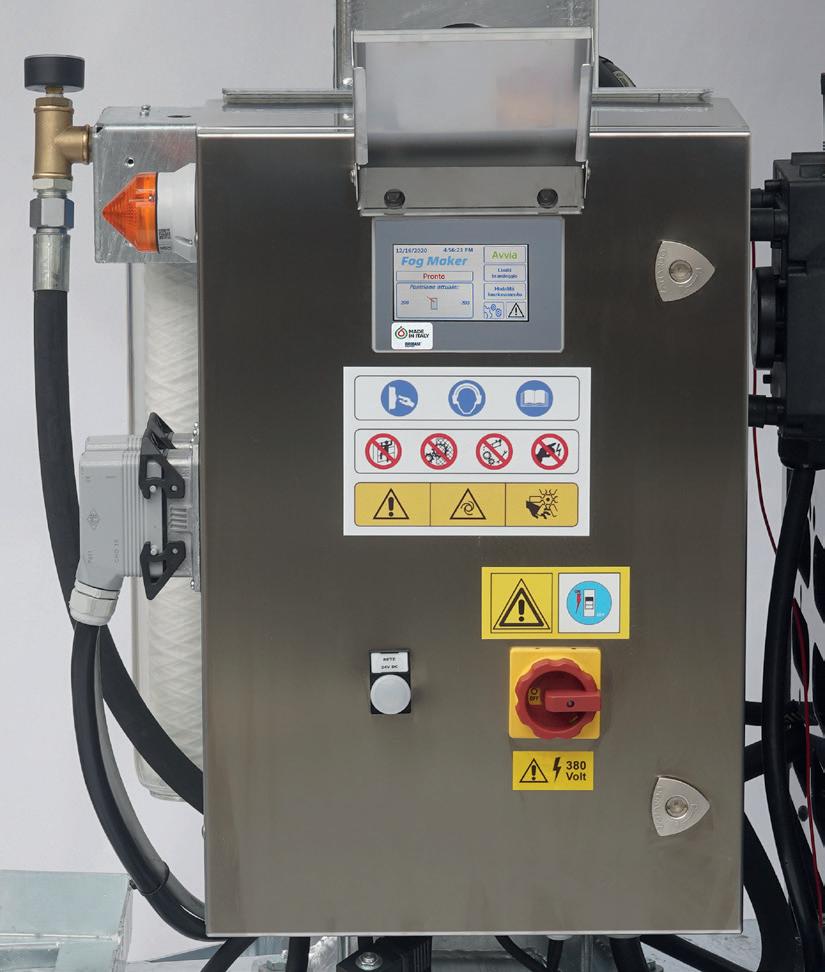

• Electric control panel complete with 7” touch screen and PLC for managing the fan pump, rotating range and work cycles.

• Protection rating IP54 • Tank: 30L • Dimensions WxLxH: 1200x800x1700mm

• Coverage 1.500m2 • Power supply: 3kW–2800g/min • Fan jet: 30m a 21°C (without wind) • Power supply: 3x400V–50Hz • Rotating: 330° automatic

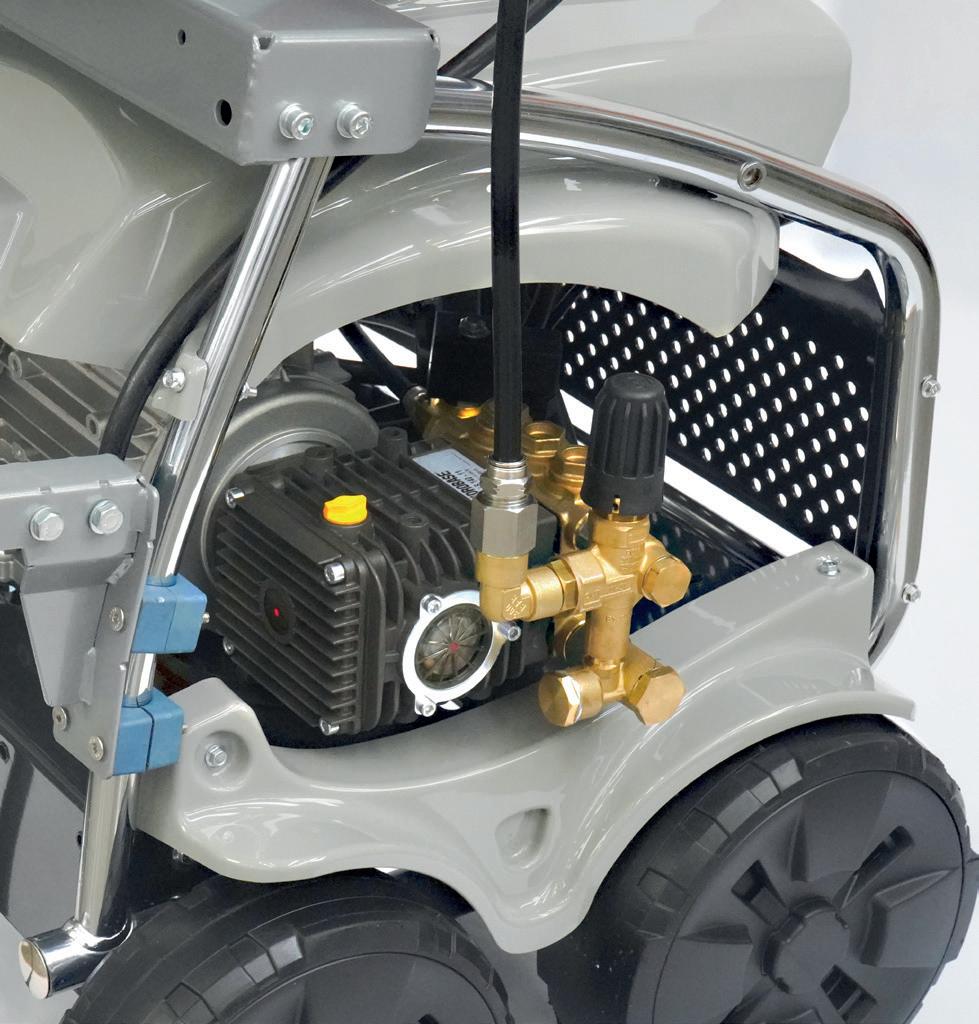

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor 1450g/min 1,9kW for 11l/min, 2,6kW for 15l/min and 3,4kW for 21l/min • Integrated di by-pass valve

• Elevation: -20° + 25° manual • Fan diameter: 397mm • Noise: <87LwA Copyright© Idrobase Group. All rights reserved.

23

IDROTECH

Trasport costs

Extra discount on purchase price

-45%

-15% Compared to the Fog Maker Gufo

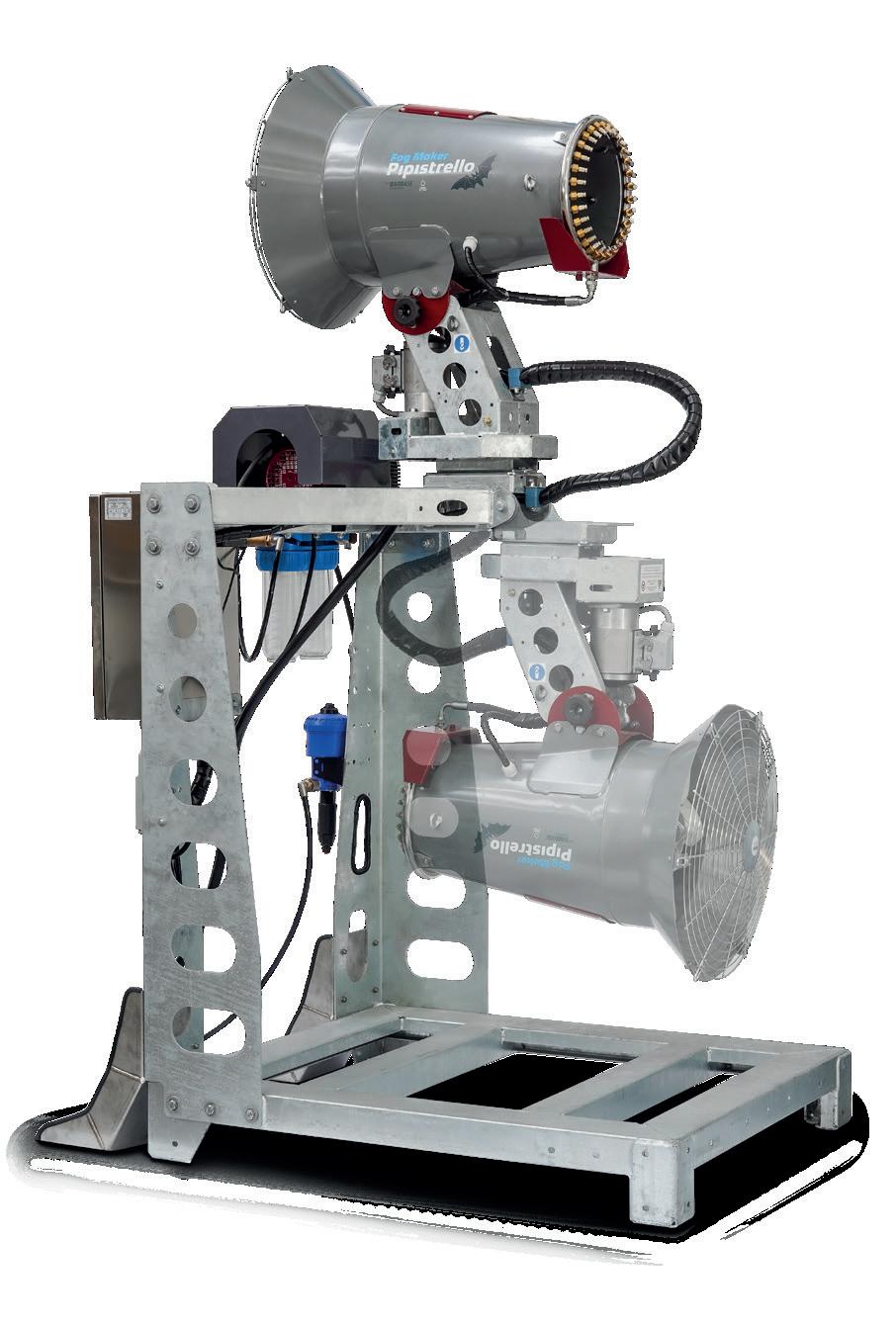

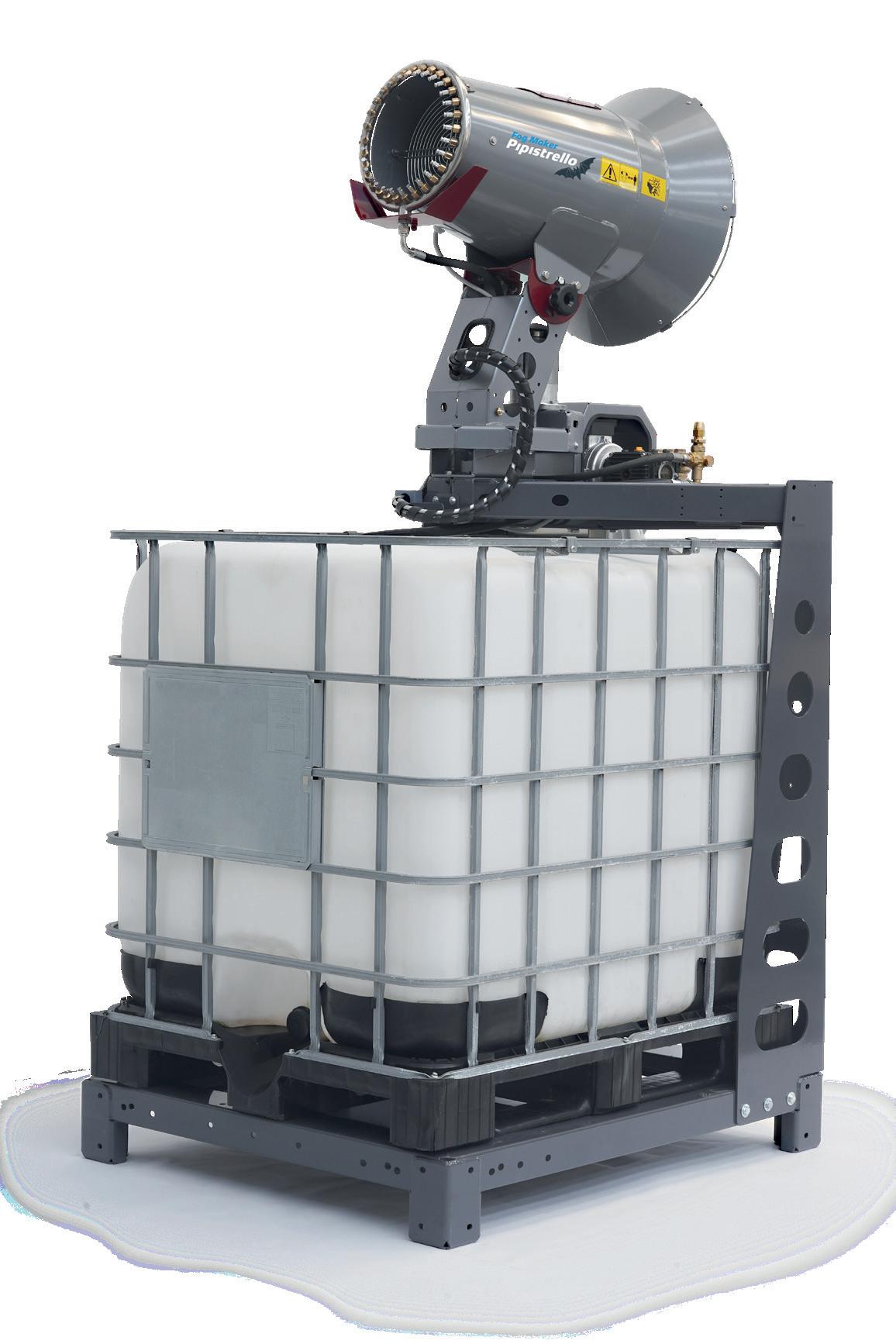

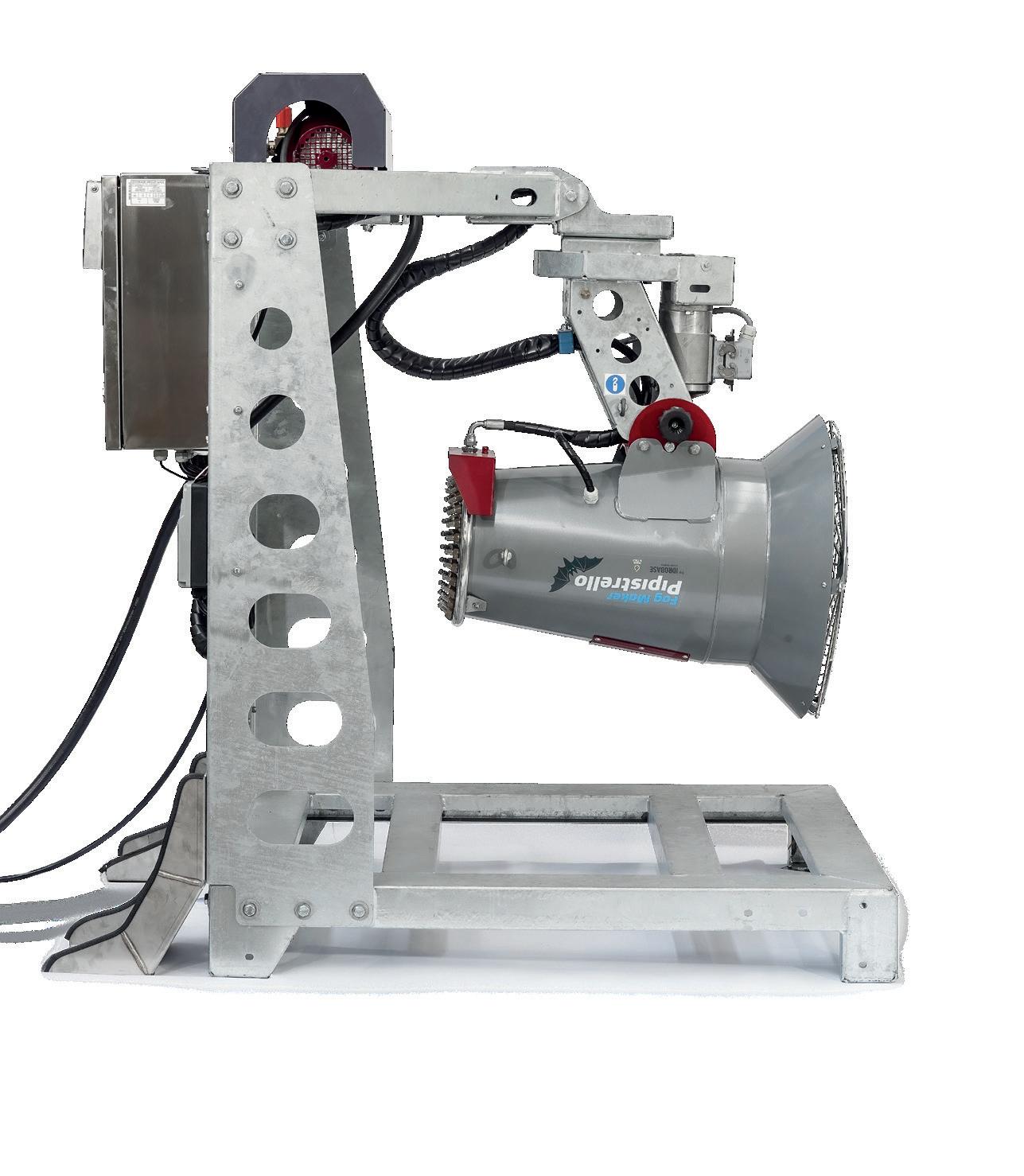

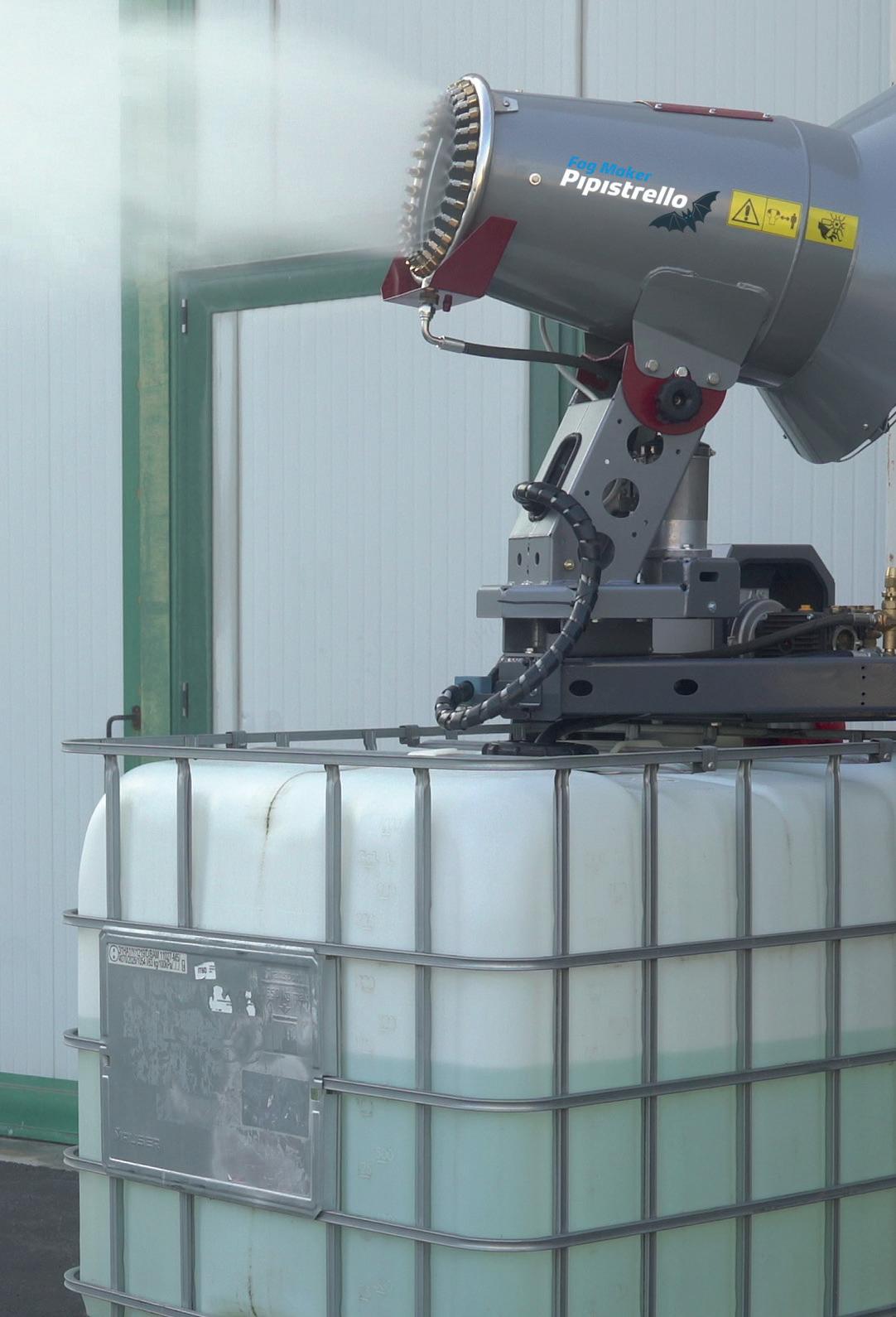

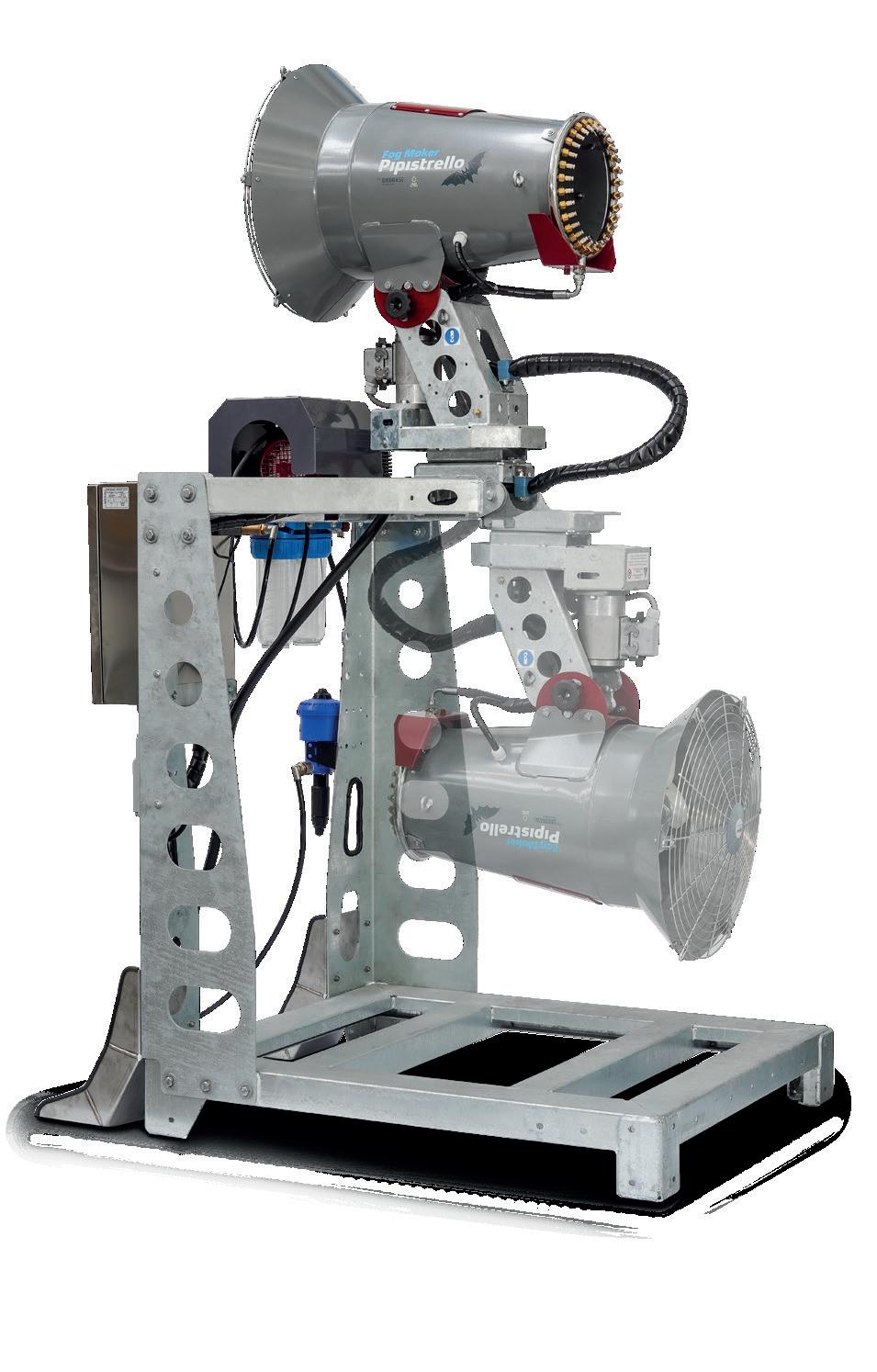

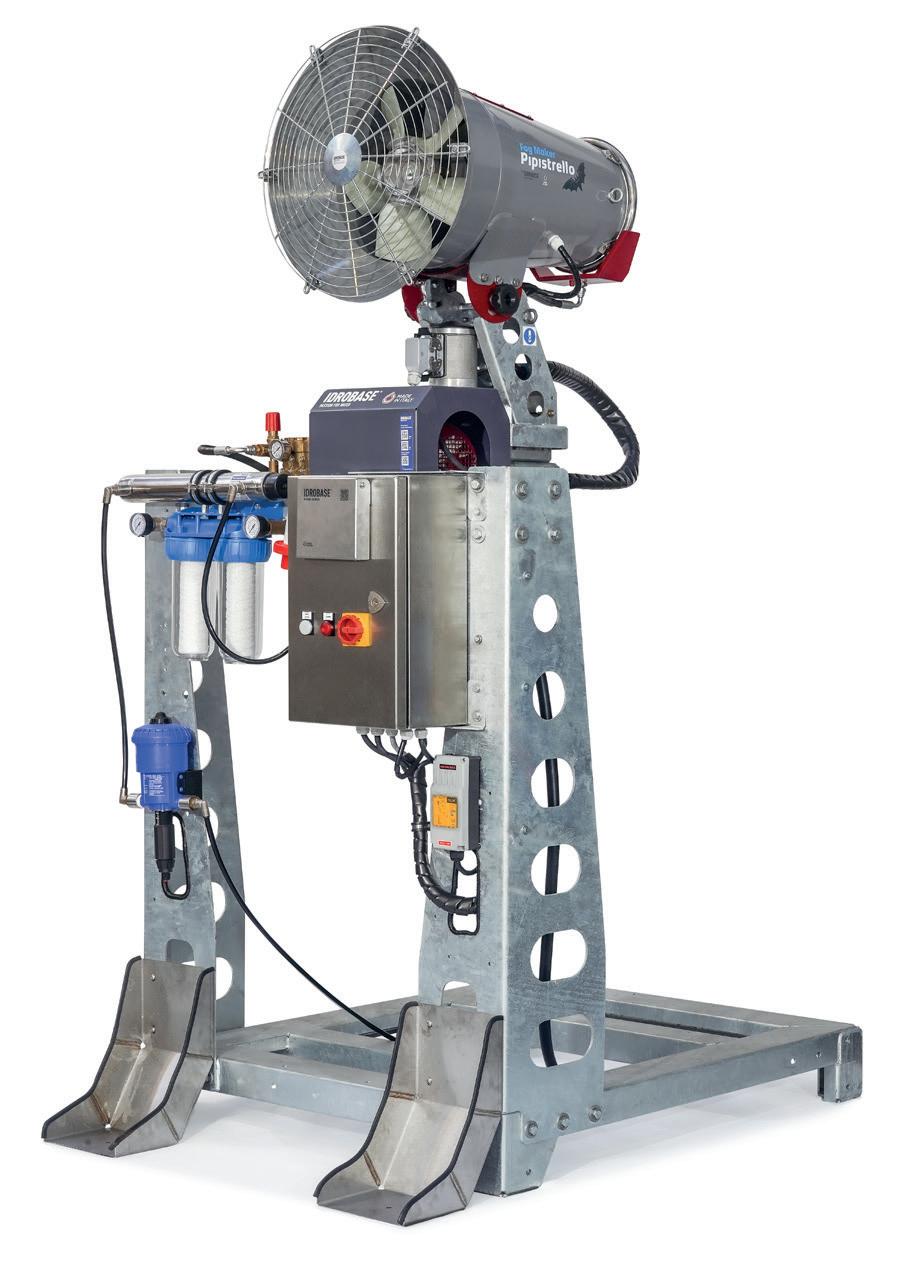

Fog Maker Pipistrello is versatile: • odor neutralization • dust suppression (PM2.5 e PM10) • cooling

Pipistrello is available in 2 models: • Pipistrello • Pipistrello DOS Capacity of 11 and 15l/min.

Technical features

Gufo VS Pipistrello comparison Gufo Transport Assembly Price

Pipistrello

Delta

70

-45% 3 hrs

Ready to use -15% compared Fog Maker Gufo

IP 54

Patented solution

24

Copyright© Idrobase Group. All rights reserved.

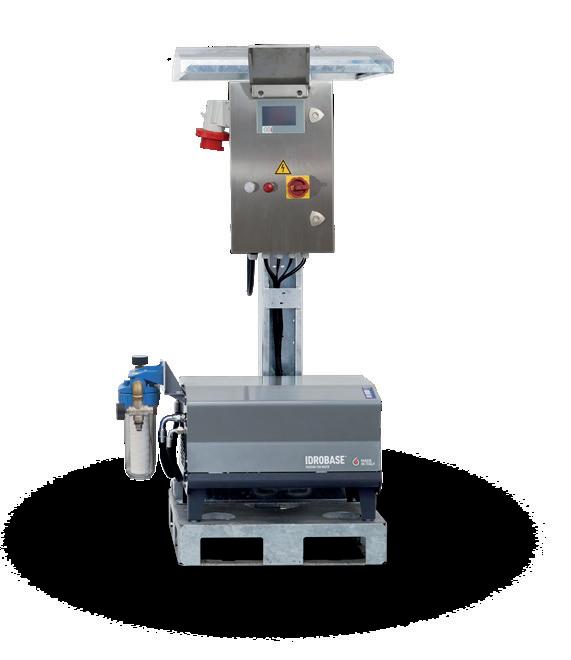

Fog maker

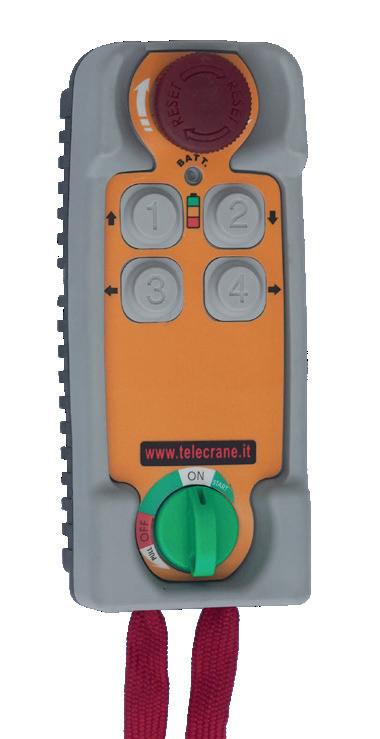

Remote control

Optimised for transport

Electrical control panel Copyright© Idrobase Group. All rights reserved.

25

IDROTECH

Pressure 70bar Fan jet 32,5m 30 nozzles

-15% Trasport costs

-45% Extra discount on purchase price Compared to the Fog Maker Gufo

Fog Maker Pipistrello Fog Maker Pipistrello is ideal for PM2.5 dust suppression, odour neutralisation, cooling and disinfection.

Thanks to its innovative closure system, Fog Maker Pipistrello is optimised for transport: -45% costs.

Technical features

70

32,5

330°

IP 54

26

Copyright© Idrobase Group. All rights reserved.

Fog maker Technical features Code

Model

Pressure

Flow rate

Drop size

Total Power (3x400V-50Hz)

Weight

Code version with dispenser

ZX.8811DP

PIPISTRELLO - 11L

70bar

11l/min

18mcr

4,5kW

280Kg

ZX.8811DP-DOS

ZX.8812DP

PIPISTRELLO - 15L

70bar

15l/min

24mcr

5,2kW

280Kg

ZX.8812DP-DOS

INCLUDED Pump maintenance set 750 hours

Gufo VS Pipistrello comparison Gufo Transport Assembly

Pipistrello

Delta

-45% 3 hrs

Price

Ready to use -15% compared Fog Maker Gufo

Technical features

Fan technical specifications

• Frame hot-dip galvanised S235JR steel, sensitive components have epoxy powder coating.

• No. of nozzles: 1 ring AISI 304 stainless with 30 nozzles

• Electric control panel complete with 4.3” touch screen and PLC for managing the fan pump, rotating range, work cycles and preventive maintenance program

• Power absorption: 3kW–2800g/min • Power supply: 3x400V–50Hz

• Electric motor 1450Rpm 1,5kW for 11l/min, 2,2kW for 15l/min

• Protection rating IP54

• Rotating: 330° automatic

• Integrated di by-pass valve

• Dimensions WxLxH: 1600x1500x2400mm

• Elevation: -20° + 30° manual

• Tank: 1000L polyethylene (optional)

• Fan diameter: 397mm

• Unload solenoid valve • Low pressure water switch

• Coverage: 1.500m2 • Fan jet: 32,5m with 21°C (without wind)

Pump module technical specifications • Pressure: 70bar for 11 e 15l/min version • Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Noise: <87Lwa

Copyright© Idrobase Group. All rights reserved.

27

IDROTECH

Ready to use: 3 hours less assembly time compared to the previous model.

Transport costs: -3 telescopic -30% hours column

Rino VS Rino 2.0 comparison

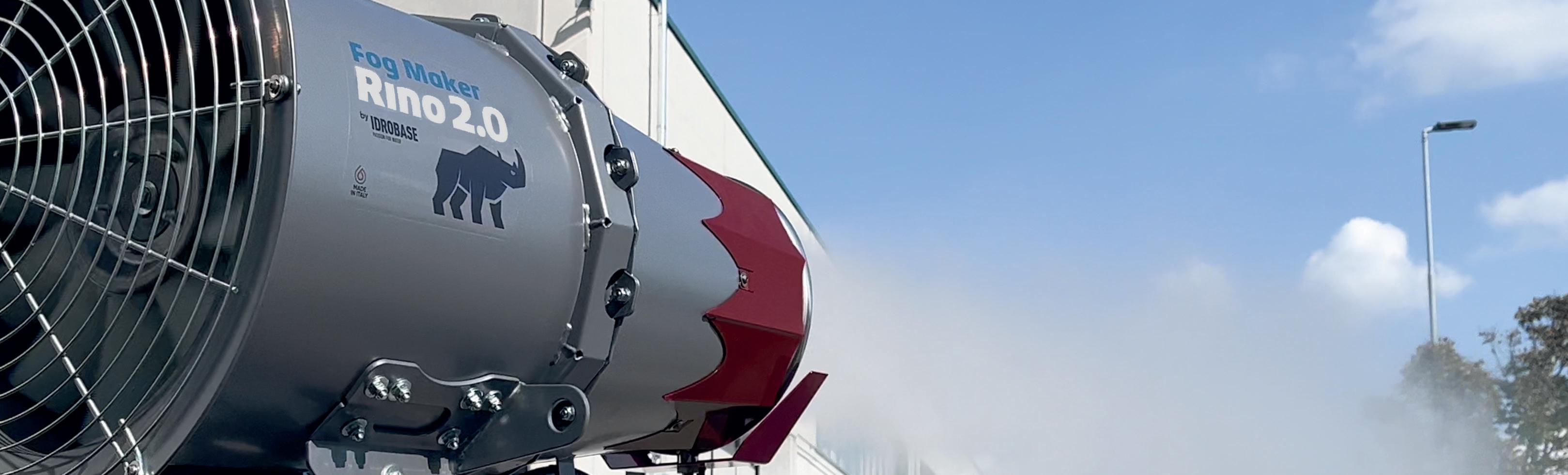

Fog Maker Rino is versatile: • PM2.5 and PM10 abatment • odor neutralization • disinfection • dust suppression

Rino

Rino 2.0

Delta

Rotation

Pulse

Slew bearing

+50% affidability

Pressure

70bar

80bar

+14%

Transport

2 boxes

1 box

-30% costs

Assembly

3 ore

Ready to use

Price

28

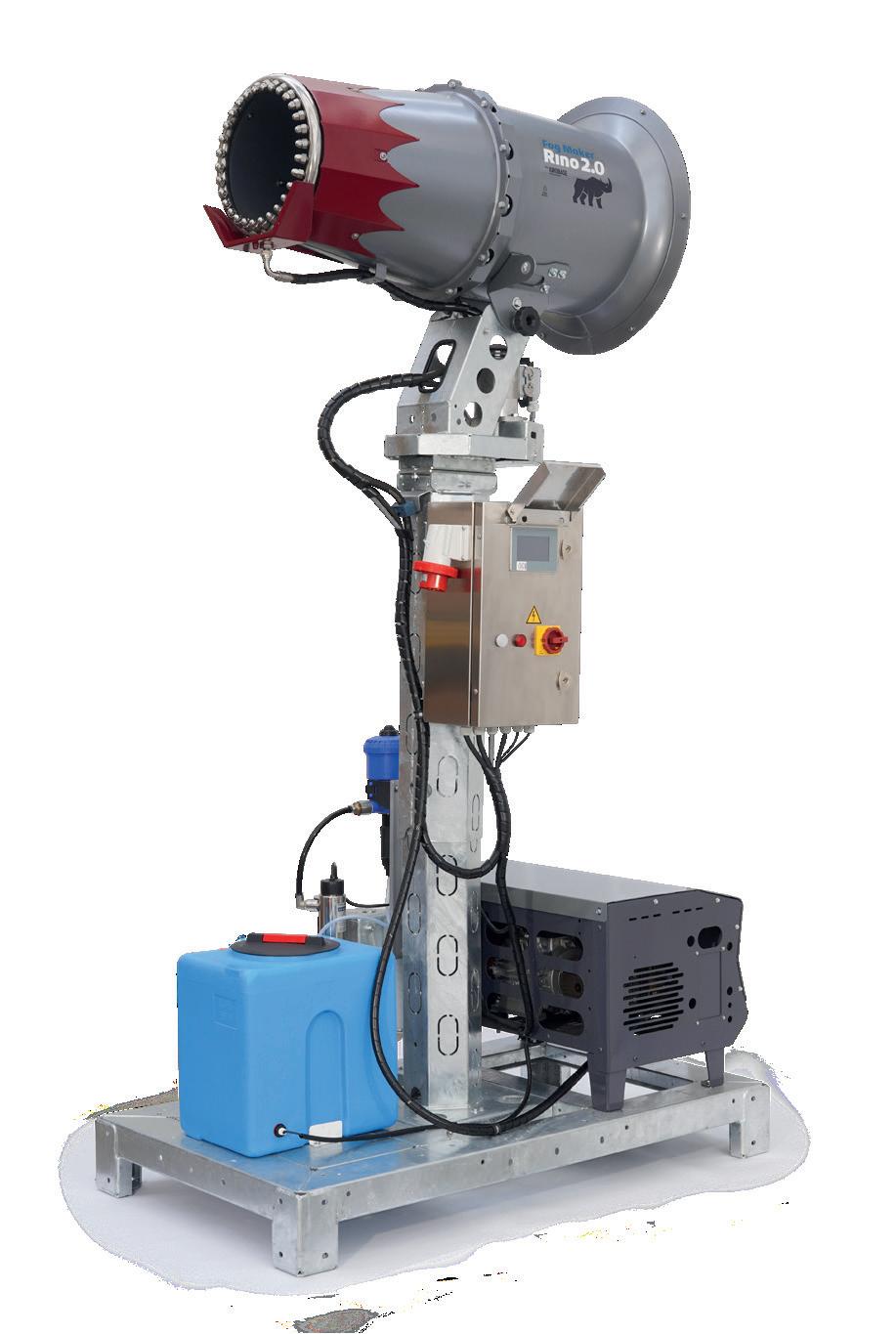

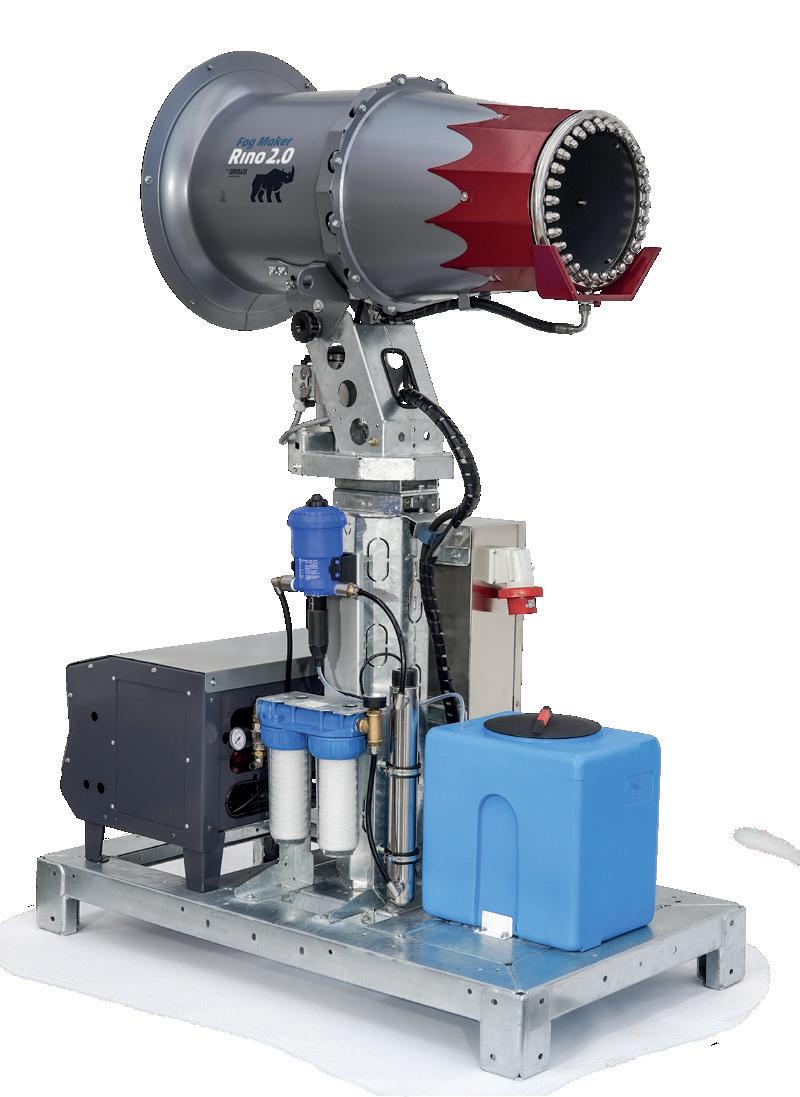

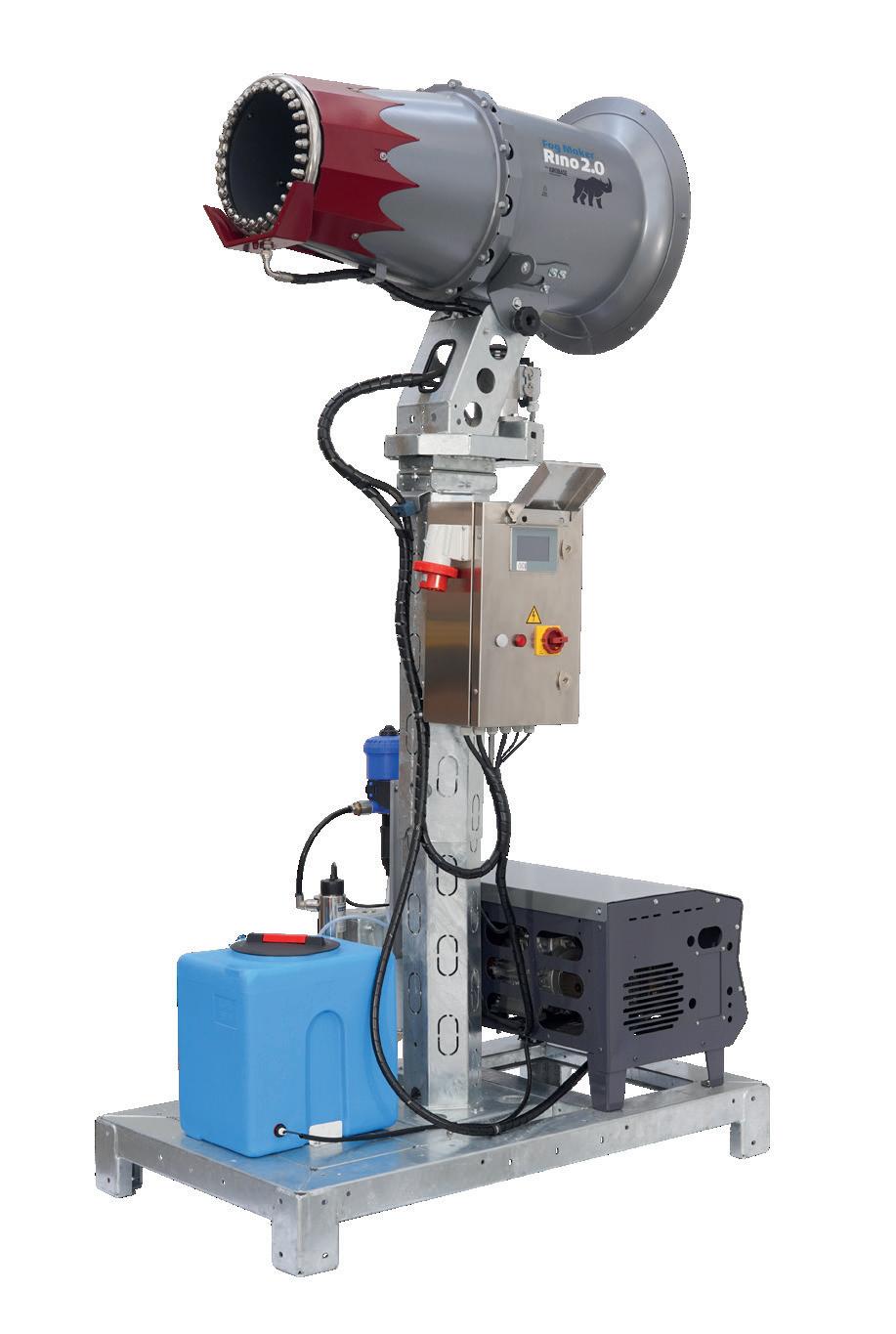

RINO 2.0

RINO 2.0 ON SHELF

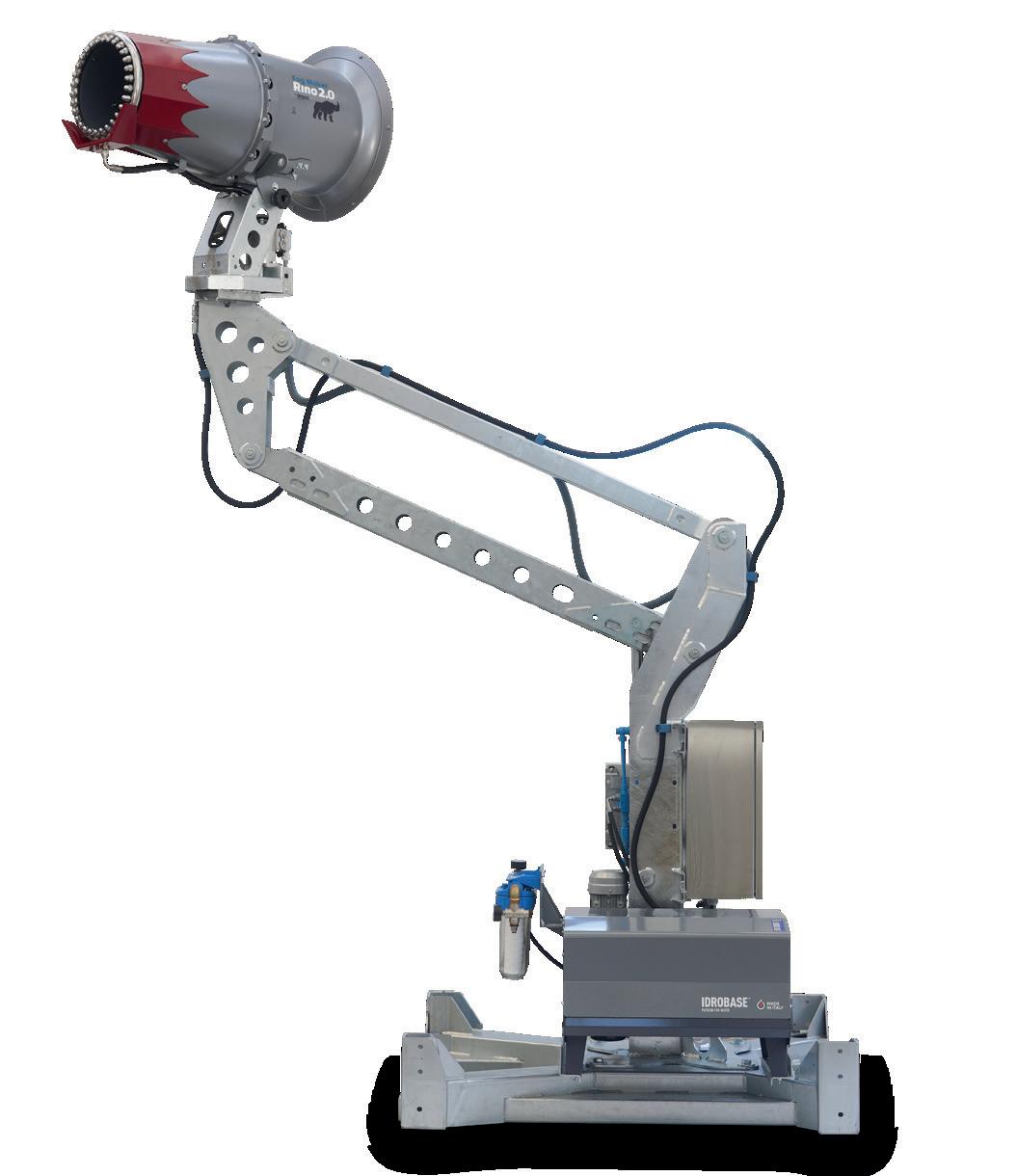

RINO 2.0 ON HYDRAULIC ARM

RINO 2.0 MOBILE

-5% compared to Fog Maker Rino

Copyright© Idrobase Group. All rights reserved.

Fog maker

New program Optimised for transport with column that raises and lowers 60 cm

60cm

Height (in use): 270cm Height (during the transport): 210cm

Copyright© Idrobase Group. All rights reserved.

Fog Maker Rino 2.0 is designed to be shipped assembled, avoiding assembly operations on site: transport costs -30%

29

IDROTECH

Pressure 80bar Fan jet 33m 30 nozzles

-30% Transport costs: telescopic column

-3

hours Ready to use: 3 hours less assembly time compared to the previous model.

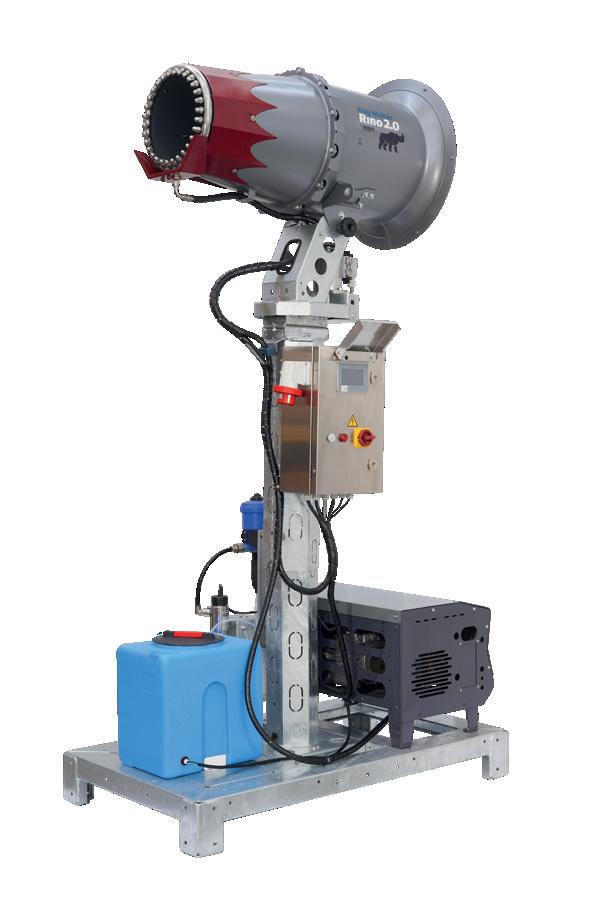

RINO 2.0 ON BASE

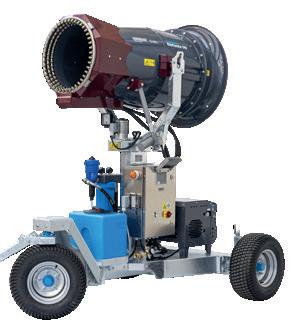

RINO 2.0 MOBILE

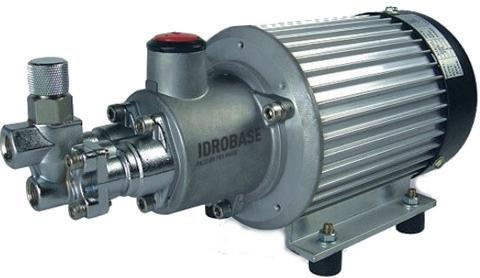

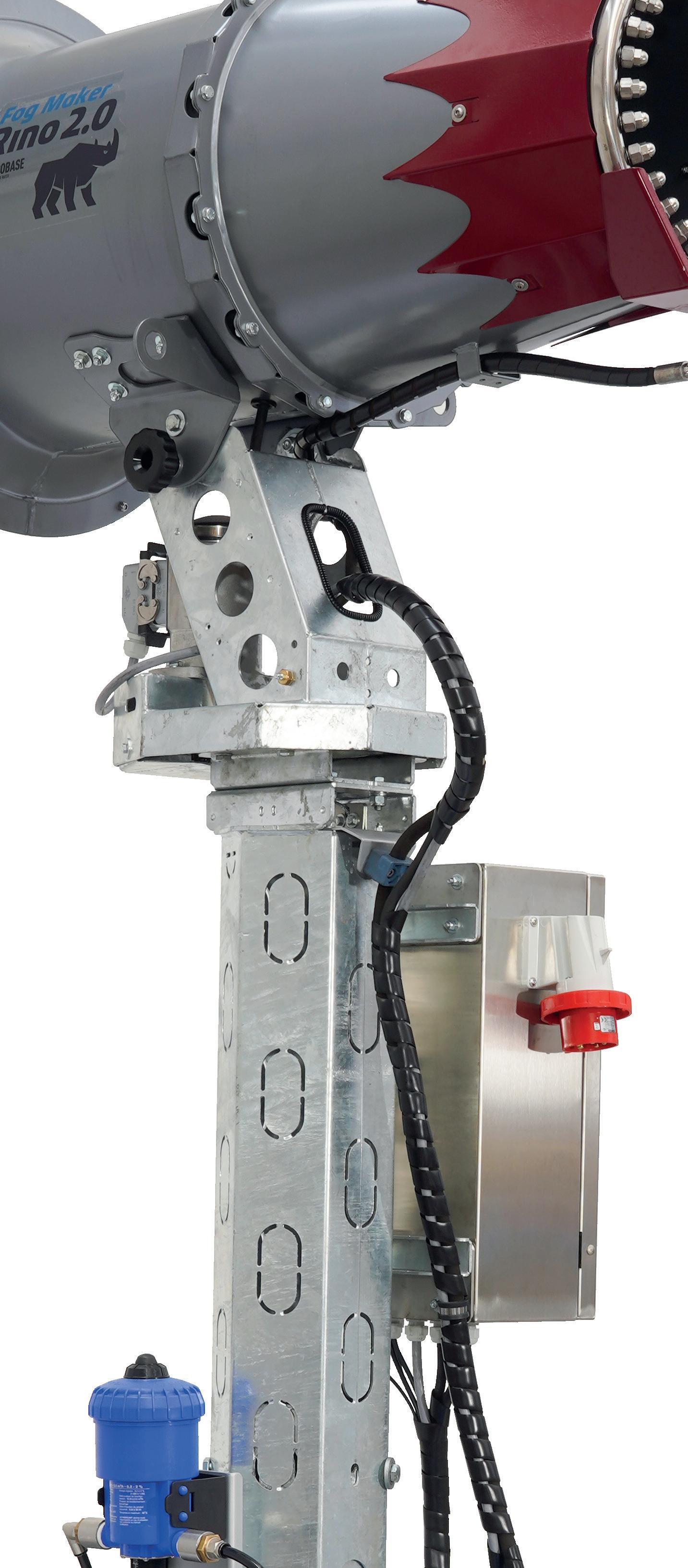

Fog Maker Rino 2.0 • Magnetic gear motor, it does not require maintenance • Simple and user-friendly touchscreen • Ventilation unit independent from pump unit • Possibility of remote management

Technical features

30

Copyright© Idrobase Group. All rights reserved.

Fog maker Technical features Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Code version with dispenser

ZX.8341-B

RINO 2.0 ON BASE - 9L

80bar

9l/min

12mcr

3,7kW

ZX.8341-B-DOS

ZX.8347-B

RINO 2.0 ON BASE - 11L

80bar

11l/min

18mcr

4,5kW

ZX.8347-B-DOS

ZX.8348-B

RINO 2.0 ON BASE - 15L

80bar

15l/min

24mcr

5,2kW

ZX.8349-B

RINO 2.0 ON BASE - 21L

80bar

21l/min

24mcr

6kW

ZX.8341-C

RINO 2.0 MOBILE - 9L

80bar

9l/min

12mcr

3,7kW

ZX.8341-C-DOS

ZX.8347-C

RINO 2.0 MOBILE - 11L

80bar

11l/min

18mcr

4,5kW

ZX.8347-C-DOS

ZX.8348-C

RINO 2.0 MOBILE - 15L

80bar

15l/min

24mcr

5,2kW

ZX.8349-C

RINO 2.0 MOBILE - 21L

80bar

21l/min

24mcr

6kW

INCLUDED Pump maintenance set 750 hours

Rino VS Rino 2.0 comparison Rino

Rino 2.0

Delta

Rotation

Pulse

Slew bearing

+50% affidability

Pressure

70bar

80bar

+14%

Transport

2 boxes

1 box

-30% costs

Assembly

3 ore

Ready to use

Price

-5% compared to Fog Maker Rino

Technical features

Fan technical specifications

Pump module technical specifications

• Fan head frame powder-coated

• No. of nozzles : 1 ring AISI 304 stainless steel with 30 nozzles

• Pressure: 80bar for all versions • Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor 1450Rpm 1.5kW for 11l/ min, 2.2kW for 15l/min, 3kW for 21l/min

• Machine body frame hot-dip galvanized • Electrical panel complete with 4.3” touch screen for managing pump, fan, rotating range, work cycles and preventive maintenance program • Protection rating: IP55 • Dimensioni WxLxH 1500x800x2100-2700mm (on base)

• Coverage: 1.900m2 • Air flow rate: 9.200mc/h • Power absorption: 3kW–2800Rpm • Fan jet: 33m with 21°C without wind • Power supply: 3x400V–50Hz

• Integrated by-pass valve • Low pressure water switch

• Rotating range: 330° automatic • Elevation: -25°+35° manual • Fan diameter: 450mm • Noise: <89Lwa

Copyright© Idrobase Group. All rights reserved.

31

IDROTECH

Pressure 80bar Fan jet 33m 30 nozzles from 2,2m to 4,2m

-30% Transport costs: telescopic column

-3

hours Ready to use: 3 hours less assembly time compared to the previous model.

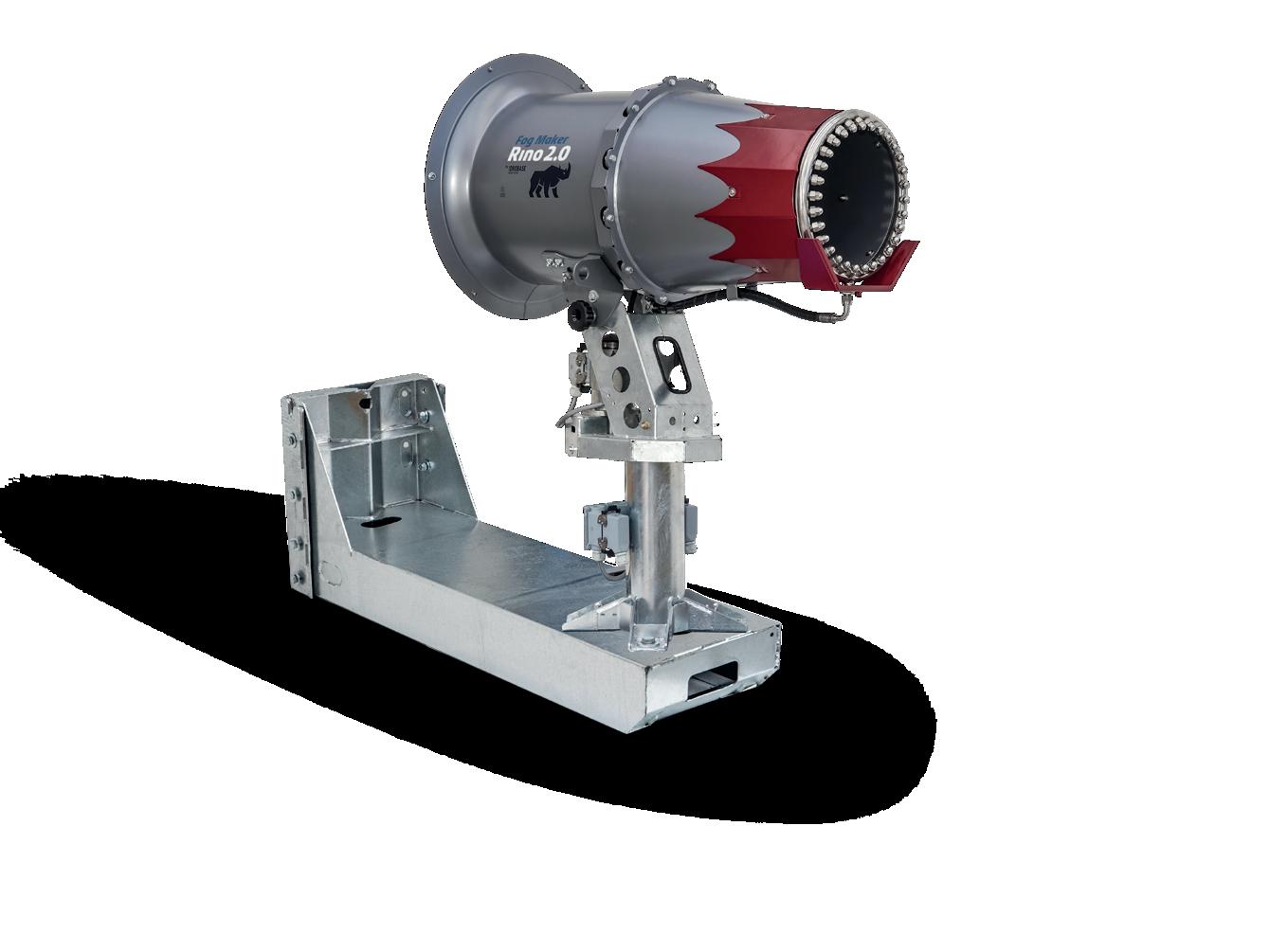

RINO 2.0 ON SHELF

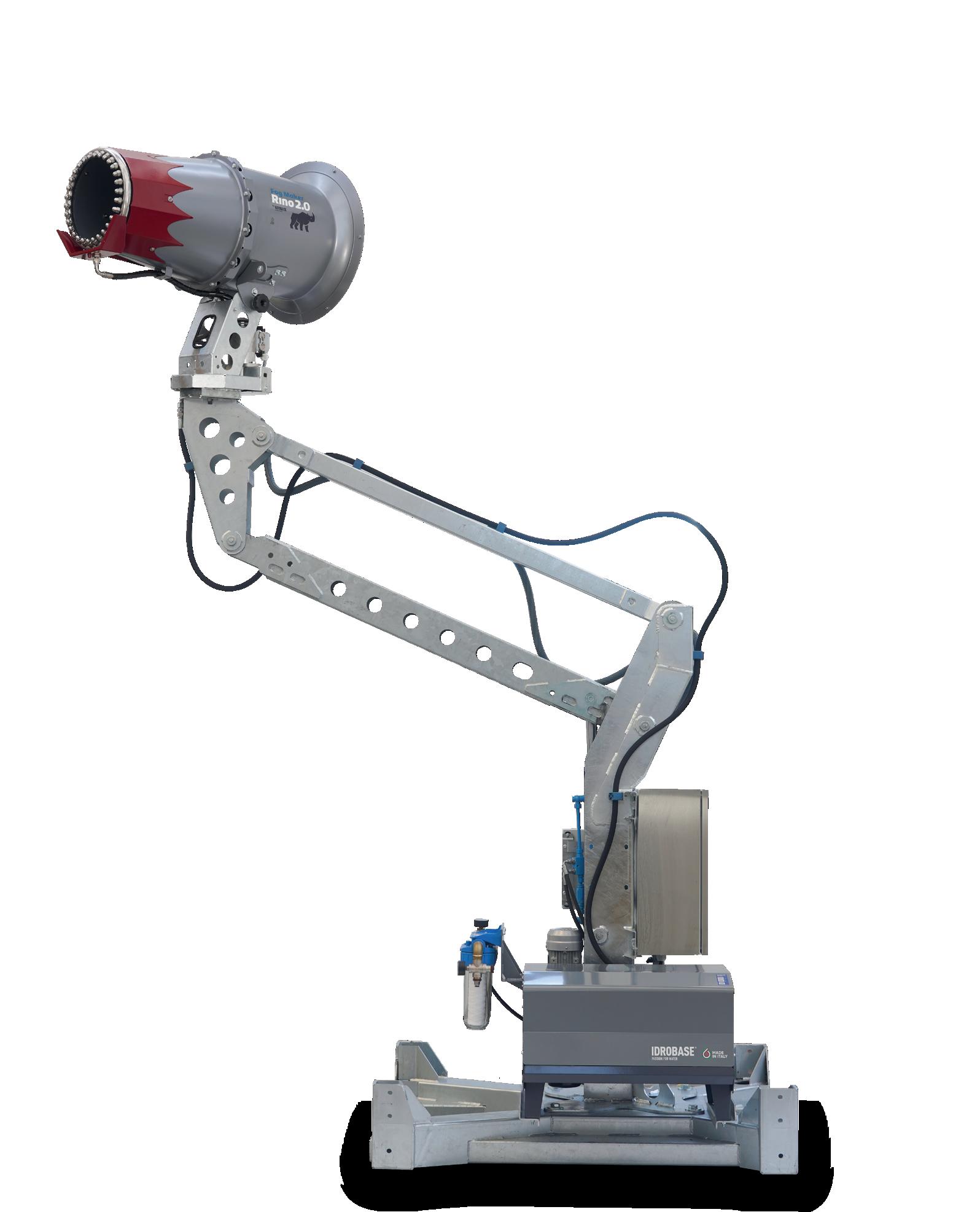

RINO 2.0 ON HYDRAULIC ARM

Fog Maker Rino 2.0 • Magnetic gear motor, it does not require maintenance • Simple and user-friendly touchscreen • Ventilation unit independent from pump unit • Possibility of remote management Technical features

32

Copyright© Idrobase Group. All rights reserved.

Fog maker Technical features Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Code version with dispenser

ZX.8341-H

RINO 2.0 ON HYDRAULIC ARM - 9L

80bar

9l/min

12mcr

3,7kW

ZX.8341-H-DOS

ZX.8347-H

RINO 2.0 ON HYDRAULIC ARM - 11L

80bar

11l/min

18mcr

4,5kW

ZX.8347-H-DOS

ZX.8348-H

RINO 2.0 ON HYDRAULIC ARM - 15L

80bar

15l/min

24mcr

5,2kW

ZX.8349-H

RINO 2.0 ON HYDRAULIC ARM - 21L

80bar

21l/min

24mcr

6kW

ZX.8341-M

RINO 2.0 ON SHELF - 9L

80bar

9l/min

12mcr

3,7kW

ZX.8341-M-DOS

ZX.8347-M

RINO 2.0 ON SHELF - 11L

80bar

11l/min

18mcr

4,5kW

ZX.8347-M-DOS

ZX.8348-M

RINO 2.0 ON SHELF - 15L

80bar

15l/min

24mcr

5,2kW

ZX.8349-M

RINO 2.0 ON SHELF - 21L

80bar

21l/min

24mcr

6kW

INCLUDED Pump maintenance set 750 hours

Rino VS Rino 2.0 comparison Rino

Rino 2.0

Delta

Rotation

Pulse

Slew bearing

+50% affidability

Pressure

70bar

80bar

+14%

Transport

2 boxes

1 box

-30% costs

Assembly

3 ore

Ready to use

Price

-5% compared to Fog Maker Rino

Technical features

Fan technical specifications

Pump module technical specifications

• Fan head frame powder-coated

• No. of nozzles : 1 ring AISI 304 stainless steel with 30 nozzles

• Pressure: 80bar for all versions • Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor 1450Rpm 1.5kW for 11l/ min, 2.2kW for 15l/min, 3kW for 21l/min

• Machine body frame hot-dip galvanized • Electrical panel complete with 4.3” touch screen for managing pump, fan, rotating range, work cycles and preventive maintenance program • Protection rating: IP55 • Dimensioni WxLxH 1500x1200x2200-4200mm (on hydraulic arm)

• Coverage: 1.900m2 • Air flow rate: 9.200mc/h • Power absorption: 3kW–2800Rpm • Fan jet: 33m with 21°C without wind • Power supply: 3x400V–50Hz

• Integrated by-pass valve • Low pressure water switch

• Rotating range: 330° automatic • Elevation: -25°+35° manual • Fan diameter: 450mm • Noise: <89Lwa

Copyright© Idrobase Group. All rights reserved.

33

IDROTECH

Compared to the price of the ‘24’ model

Elefante 90 is versatile: • PM2.5 and PM10 abatment • odor neutralization • environment cooling • disinfection • dust suppression

34

-15%

It anticipates the many needs of the customer, and is available in 4 models: • on hydraulic arm • on shelf • on base • mobile Capacity of 33l/min, 42l/min or 50l/min.

ON HYDRAULIC ARM

ON SHELF

ON BASE

MOBILE

Copyright© Idrobase Group. All rights reserved.

Fog maker

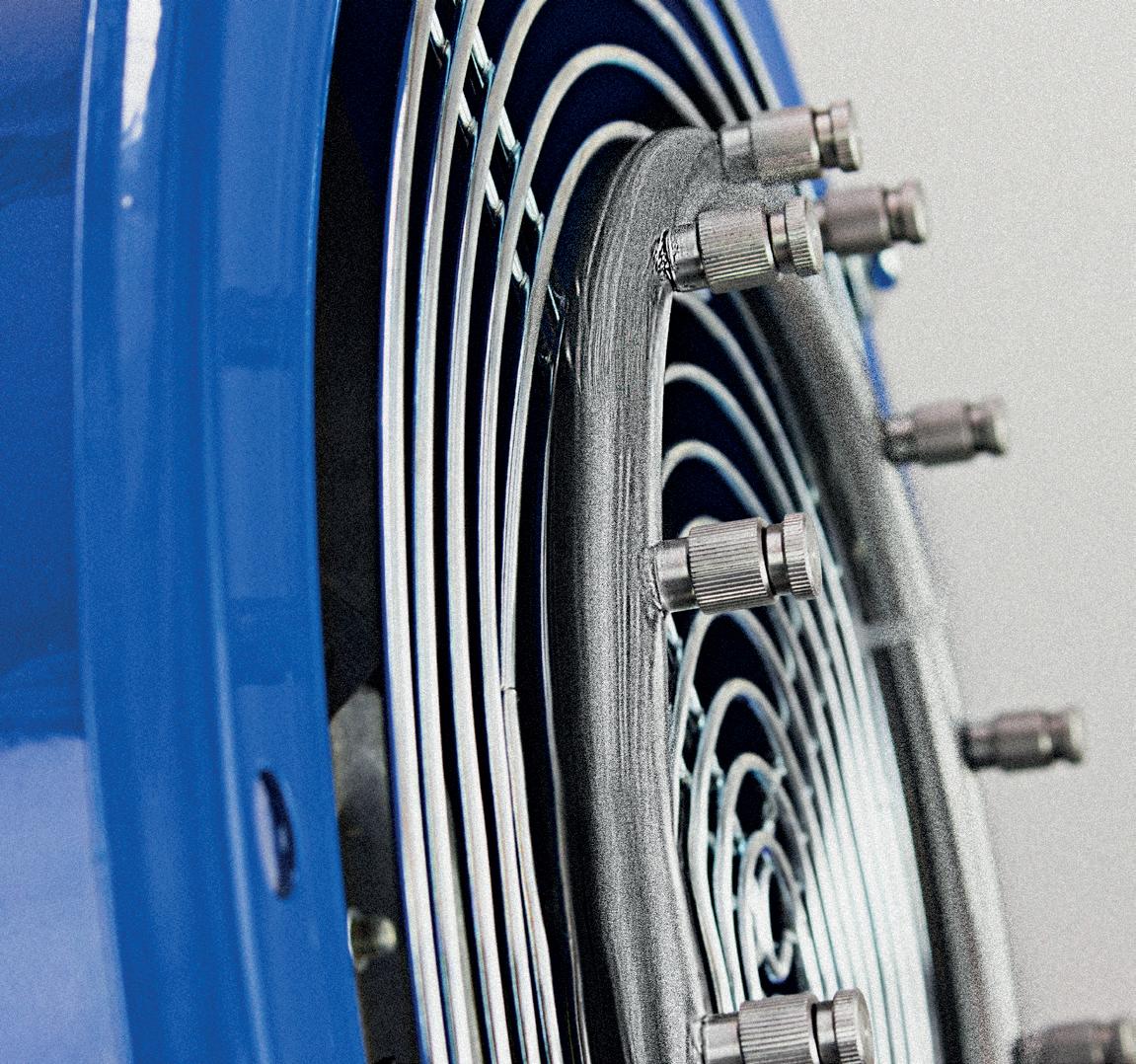

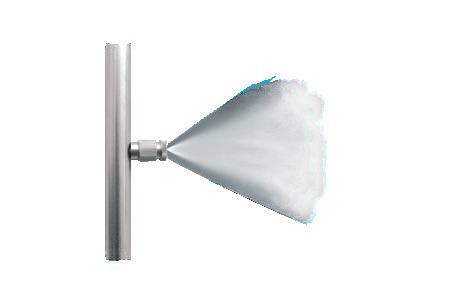

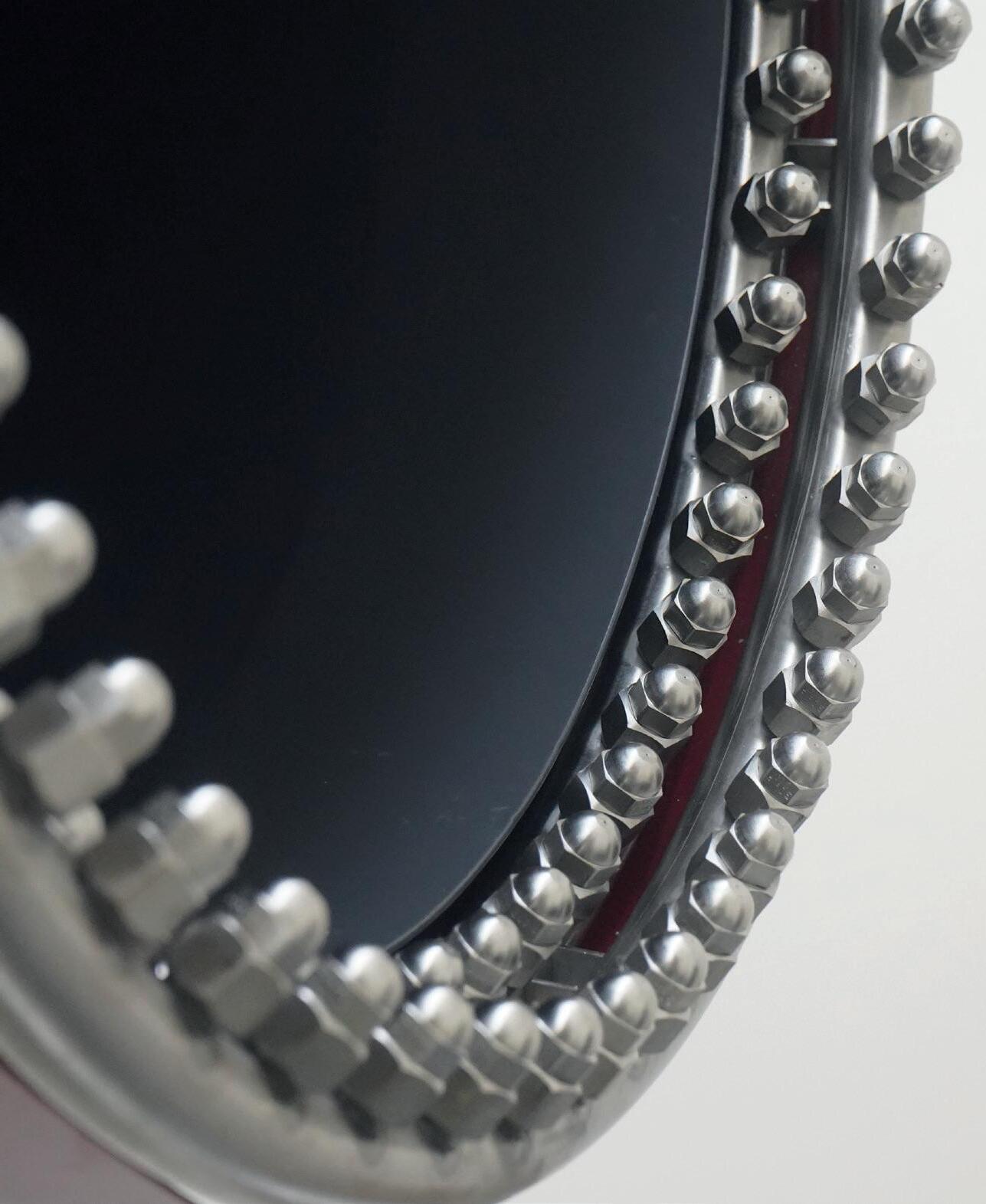

Ring AISI 304 stainless steel 135 nozzles to obtain droplets with diameters from 18 to 20 microns

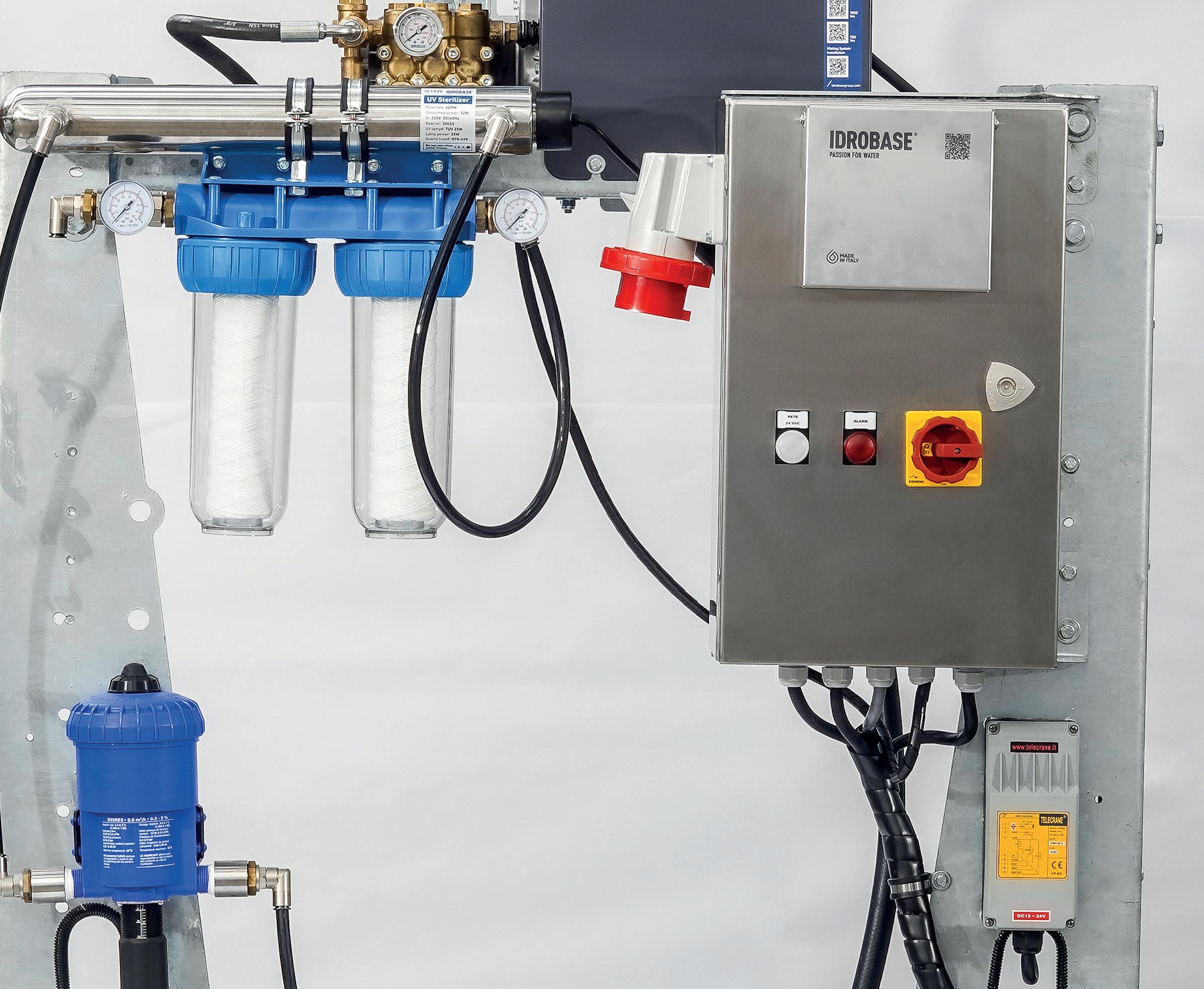

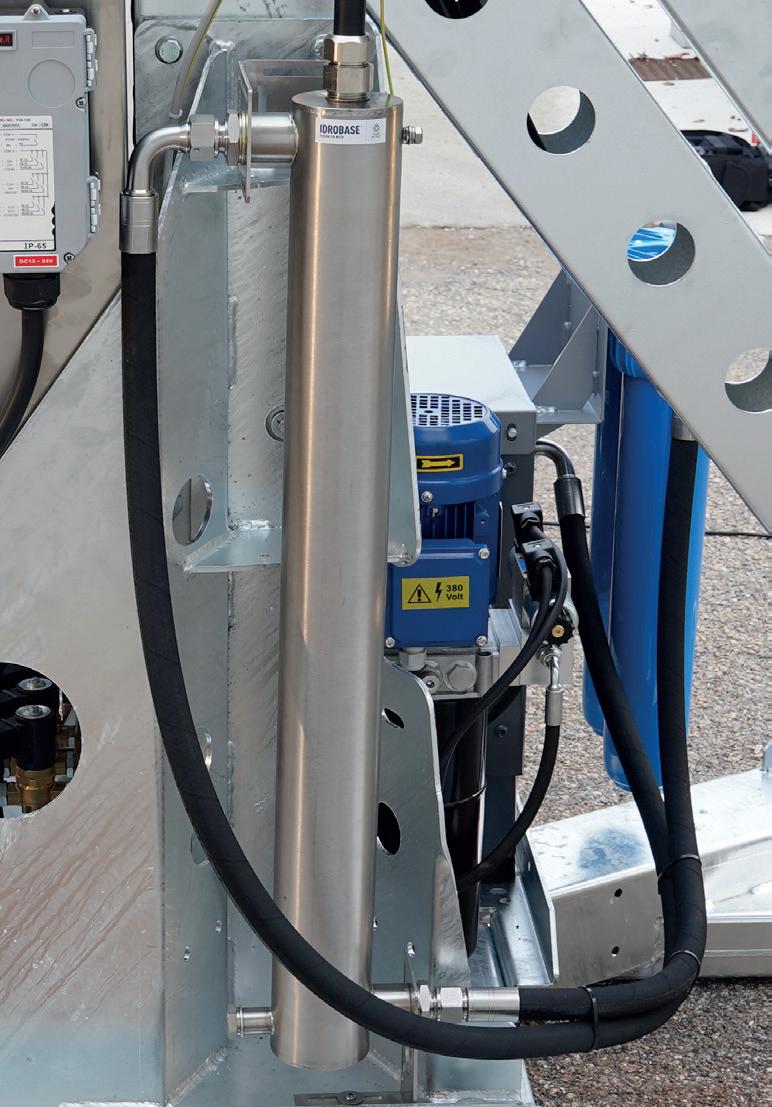

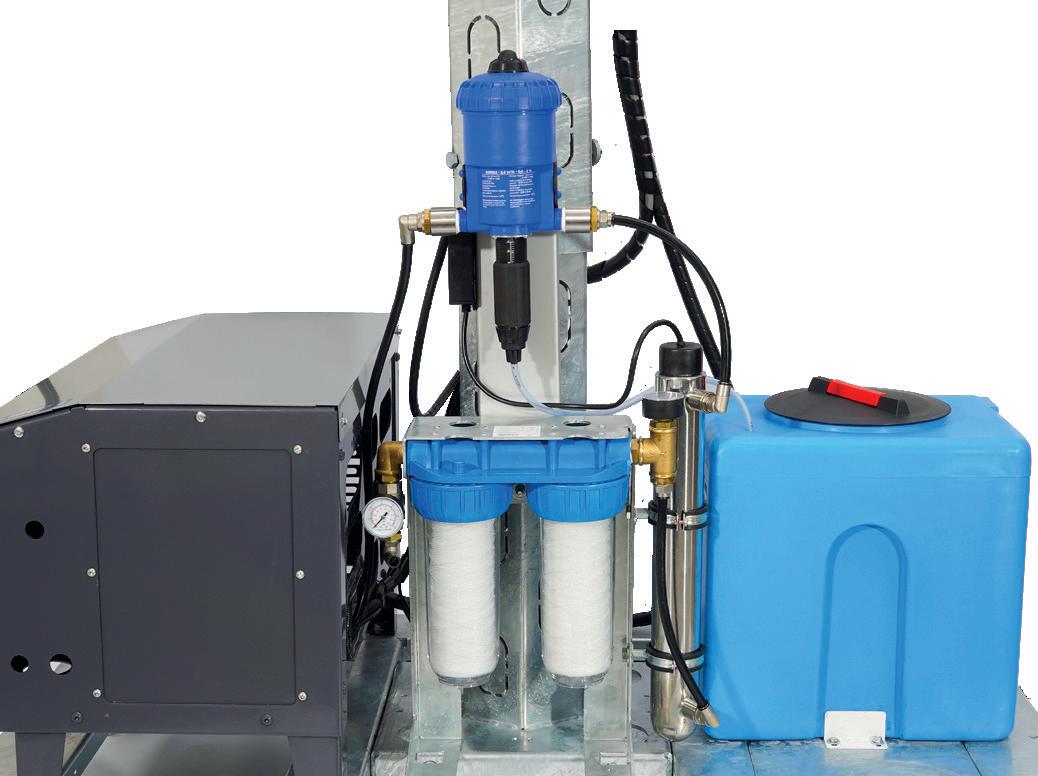

Water sterilizer to eliminate viruses and bacteria (optional)

Touch screen 4,3”

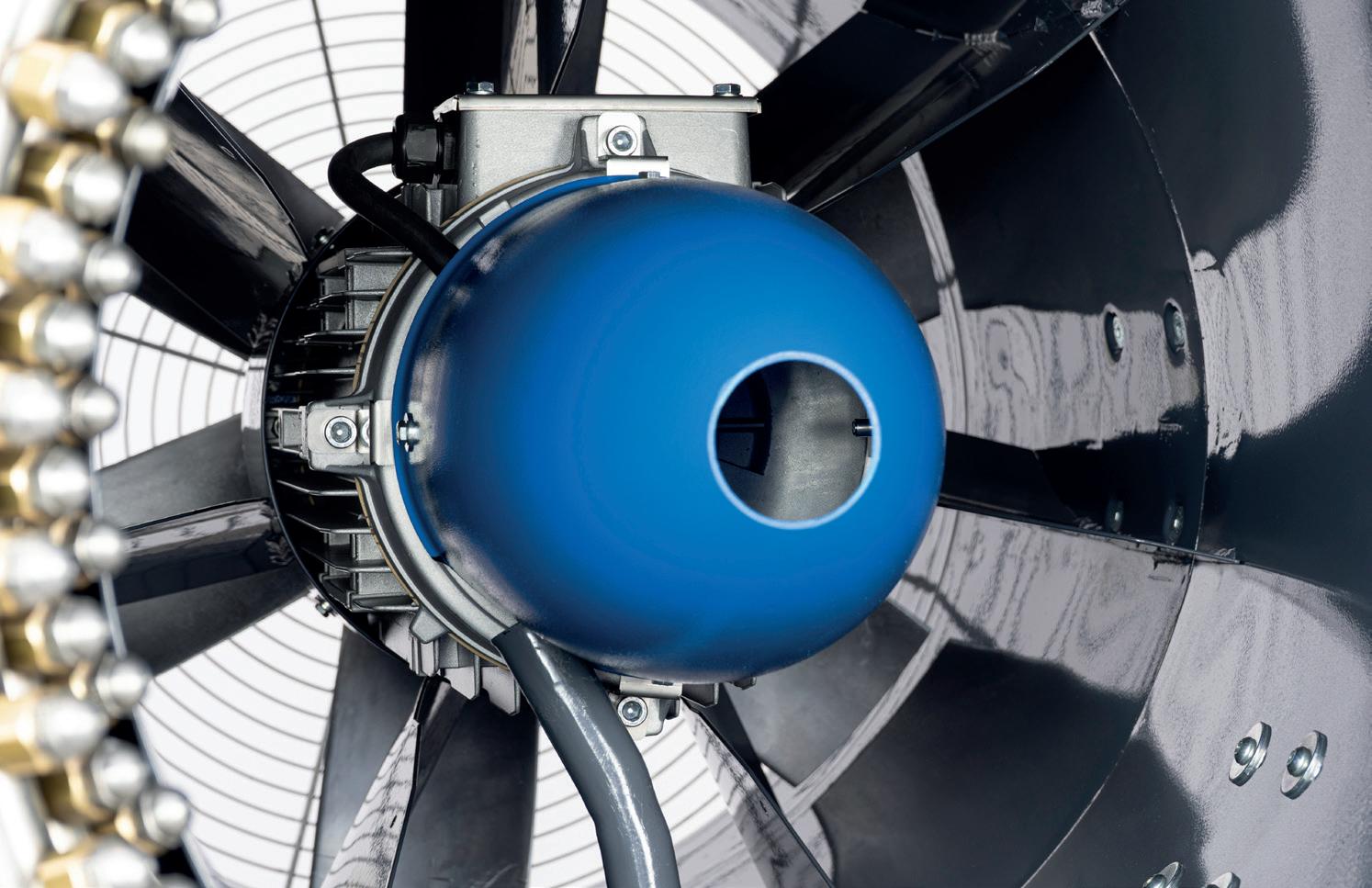

Fan motor and propeller configuration to operate at 90 meters

Water inlet kit Copyright© Idrobase Group. All rights reserved.

35

IDROTECH

Pressure 80bar Fan jet 90m 135 nozzles

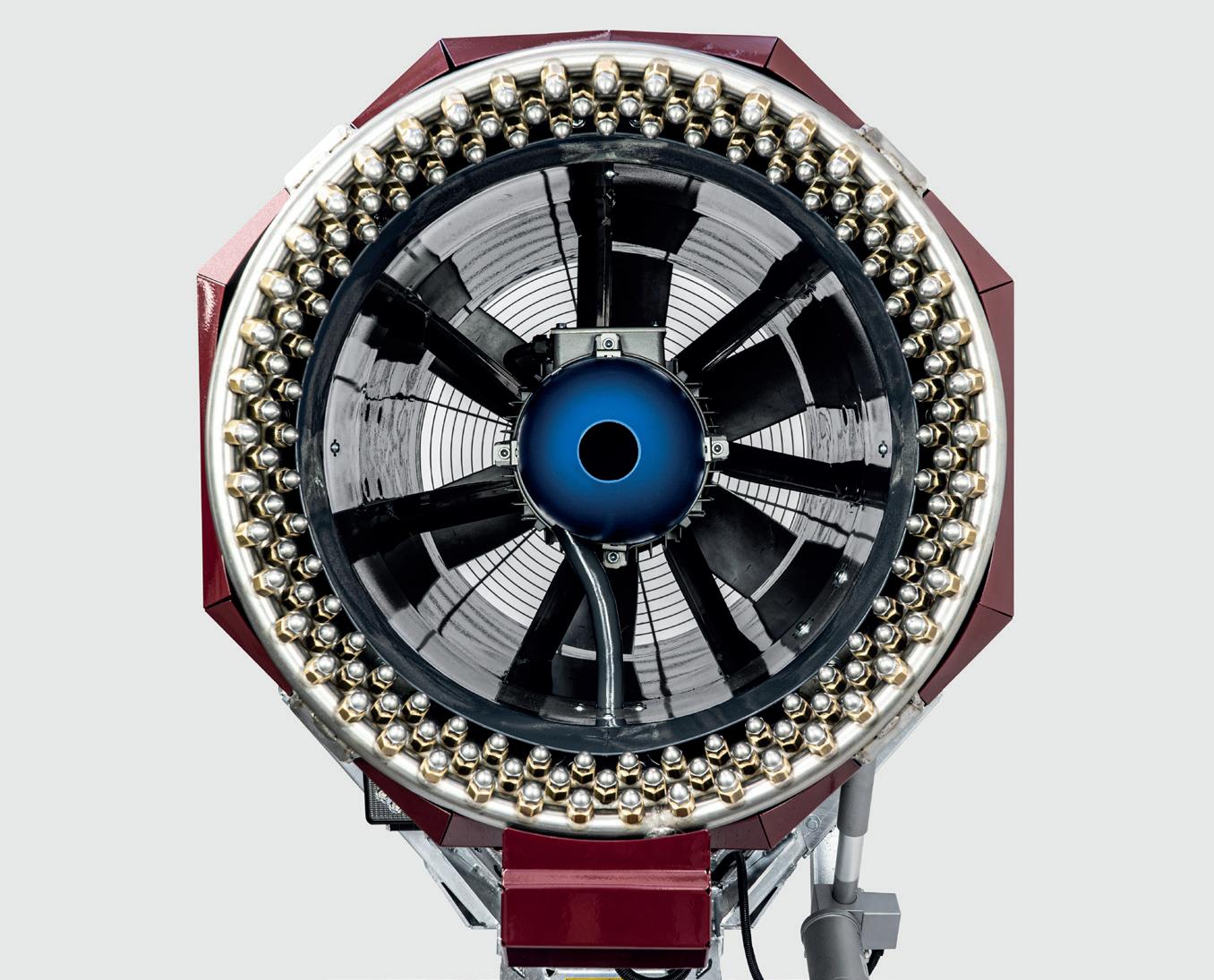

Fog maker Elefante 90

-15%

from 2,2m to 4,8m

Compared to the price of the ‘24’ model

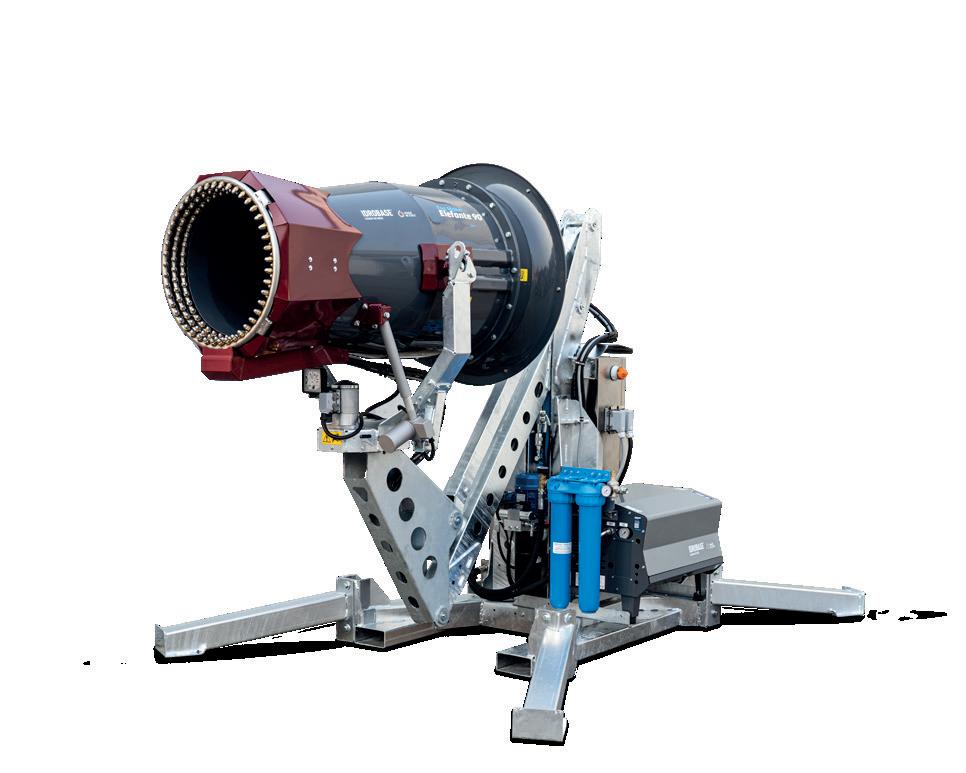

ELEFANTE 90 ON HYDRAULIC ARM

ELEFANTE 90 ON SHELF

Fog Maker Elefante 90 • Hydraulic arm: up to 4.8m high • Can be positioned at any height (Elephant 90 on shelf) • Easy and intuitive touch screen • Available version with mechanical proportional dispenser 0.2-2% • Also suitable for indoor areas

Technical features

36

Copyright© Idrobase Group. All rights reserved.

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V 50Hz)

Weight

Code version with dispenser

ZX.8593

ELEFANTE 90 ON HYDRAULIC ARM - 33L

80bar

33l/min

18mcr

25kW

932Kg

ZX.8593-DOS

ZX.8591

ELEFANTE 90 ON HYDRAULIC ARM - 42L

80bar

42l/min

20mcr

27kW

932Kg

ZX.8591-DOS

ZX.8587

ELEFANTE 90 ON HYDRAULIC ARM - 50L

75bar

50l/min

20mcr

28kW

932Kg

ZX.8587-DOS

ZX.8595

ELEFANTE 90 ON SHELF - 33L

80bar

33l/min

18mcr

25kW

540Kg

ZX.8595-DOS

ZX.8594

ELEFANTE 90 ON SHELF - 42L

80bar

42l/min

20mcr

27kW

540Kg

ZX.8594-DOS

ZX.8588

ELEFANTE 90 ON SHELF - 50L

75bar

50l/min

20mcr

28kW

540Kg

ZX.8588-DOS

INCLUDED Pump maintenance set 750 hours

Technical features

Fan technical specifications

Pump module technical specifications

• Frame: hot-dip galvanized steel. Sensitive components with epoxy powder coating

• Nozzles: 135 in 3 rings (45 each) • Air flow rate: 33,500m3/h

• Maximum working pressure: 80bar

• Electrical panel: complete with PLC with cyclic timer, weekly programmer, swing pulse counter, fan start and flashing light with buzzer • Protection rating: IP54

• Covered area: 24,000m2 (with 340° max. rotating range) • Fan power absorption: 18.5kW

• Remote control: range up to 90m free field (optional) • Dimension WxLxH: 3000x3550x2200-4800mm (on hydraulic arm)

Copyright© Idrobase Group. All rights reserved.

• Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency) • Power supply: 3x400V-50Hz • Rotating range: 340° Automatic • Elevation: -15° + 45° Automatic • Fan diameter: 710mm • Noise: <115LwA

• Professional pump: 1450Rpm, connecting rod movement, brass head, 3 ceramic pistons • Electric motor: 1450Rpm 6,3kW • Integrated by-pass valve • High pressure switch • Shut-off solenoid valves • Sterilizing lamp • Maintenance kits available • Models available with mechanical proportional dispenser 0.2 2% (see specific code) • Filtering: 50µm • Water inlet pressure regulator • High pressure filtering at 10µm 37

IDROTECH

Pressure 80bar Fan jet 90m 135 nozzles

Fog maker Elefante 90

-15% Compared to the price of the ‘24’ model

ELEFANTE 90 ON BASE

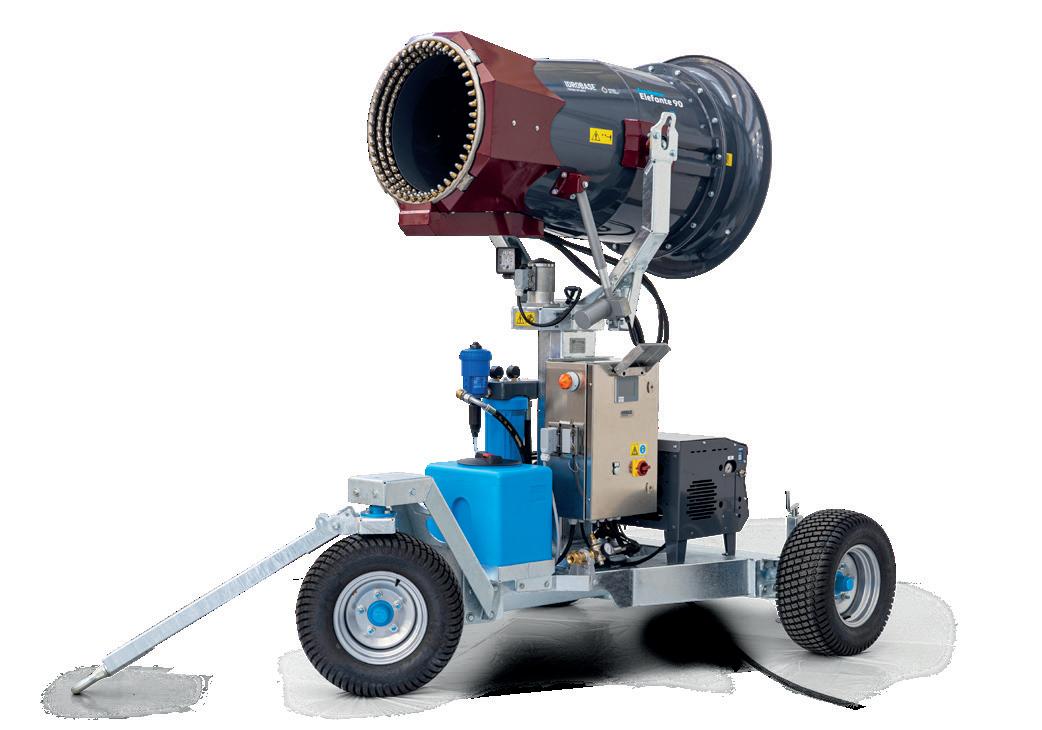

ELEFANTE 90 MOBILE

Fog Maker Elefante 90 • • • • •

Solid frame and pneumatic wheels for easy movement on any surface (Elefante 90 mobile) Extremely compact and space-saving (Elefante 90 on base) Easy and intuitive touch screen Available version with mechanical proportional dispenser 0.2-2% Also suitable for indoor areas

Technical features

38

Copyright© Idrobase Group. All rights reserved.

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V50Hz)

Weight

Code version with dispenser

ZX.8597

ELEFANTE 90 ON BASE - 33L

80bar

33l/min

18mcr

25kW

540Kg

ZX.8597-DOS

ZX.8596

ELEFANTE 90 ON BASE - 42L

80bar

42l/min

20mcr

27kW

540Kg

ZX.8596-DOS

ZX.8589

ELEFANTE 90 ON BASE - 50L

75bar

50l/min

20mcr

28kW

540Kg

ZX.8589-DOS

ZX.8599

ELEFANTE 90 MOBILE - 33L

80bar

33l/min

18mcr

25kW

660Kg

ZX.8599-DOS

ZX.8598

ELEFANTE 90 MOBILE - 42L

80bar

42l/min

20mcr

27kW

660Kg

ZX.8598-DOS

ZX.8586

ELEFANTE 90 MOBILE - 50L

75bar

50l/min

20mcr

28kW

660Kg

ZX.8586-DOS

INCLUDED Pump maintenance set 750 hours

Technical features

Fan technical specifications

Pump technical features

• Hot galvanised steel frame. Sensitive components with epoxy powder coating

• Nozzles: 135 in 3 rings (45 each)

• Maximum working pressure: 80bar

• Coverage: 24,000m2

• Electrical panel: complete with PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start and flashing lights

• Air flow rate: 33,500m3/h

• Professional pump: 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Fan power absorption: 18.5kW

• Electric motor: 1450Rpm 6,3kW

• Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency)

• Integrated by-pass valve

• Power supply: 3x400V-50Hz

• Sterilising lamp

• Rotating range: 340° Automatic

• Preventive maintenance kits available

• Elevation: -15° + 45° Automatic

• Models available with mechanical proportional dispenser 0.22% (see specific code)

• Protection rating: IP54 • Remote control: with range up to 90m in free field (optional) • Dimension WxLxH: 2000x1550x2530mm (On Base) 1850x2450x2550mm (Mobile)

• Fan diameter: 710mm • Noise: <115LwA

• High pressure switch • Shut-off solenoid valves

• Filtering: 50µm • Water inlet pressure regulator • High pressure filtration at 10µm Copyright© Idrobase Group. All rights reserved.

39

IDROTECH

-20% noise compared to Elefante 90

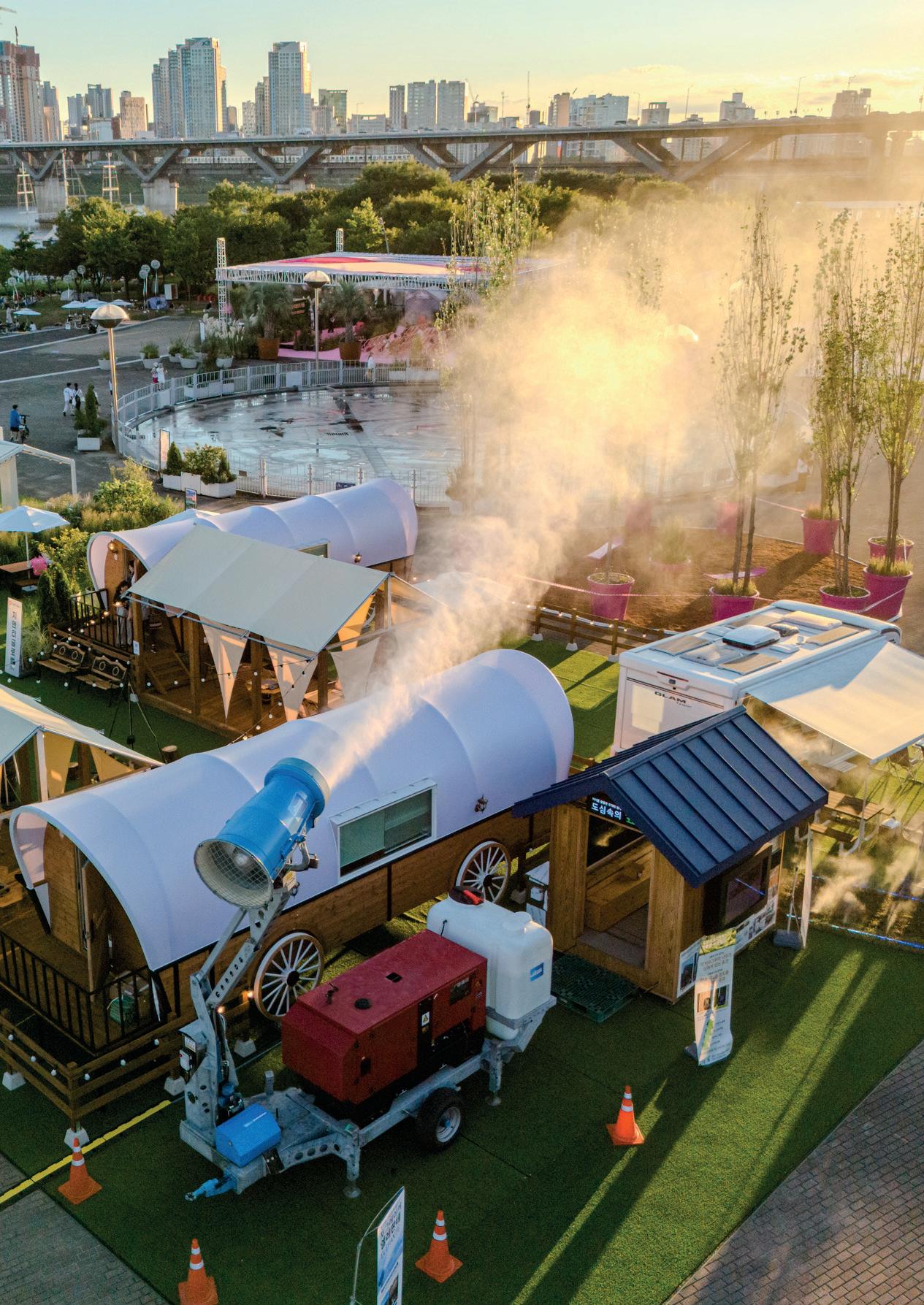

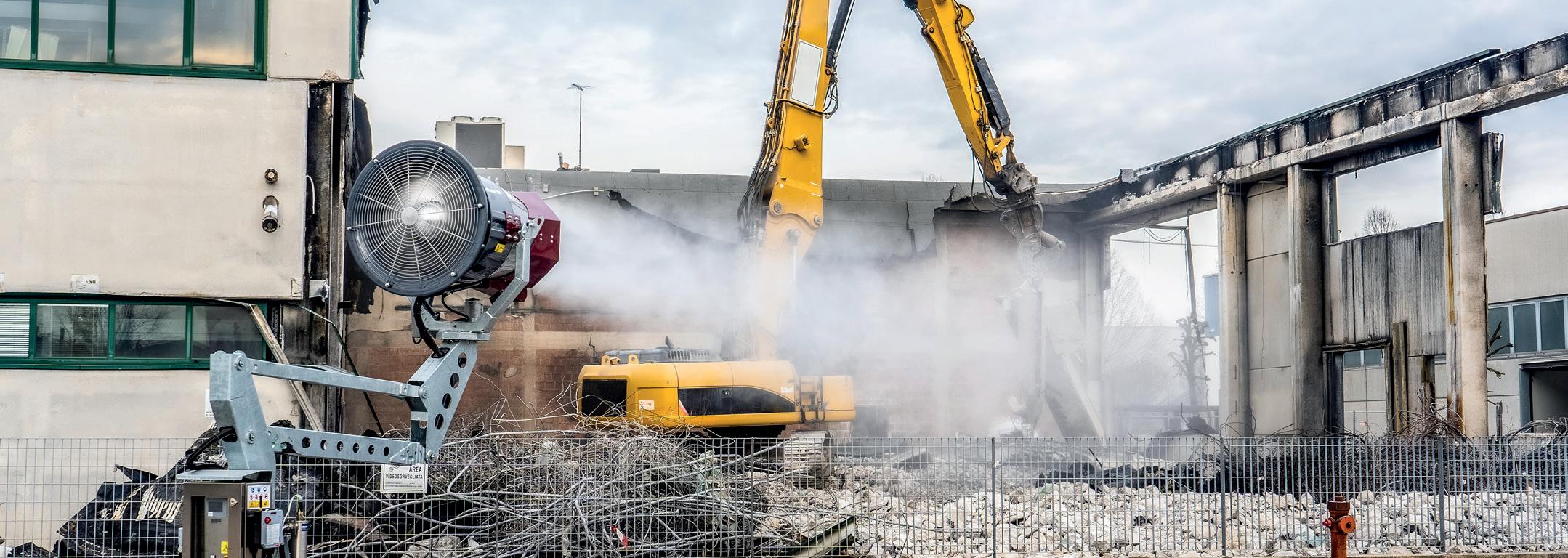

Elefante Silenzioso is versatile: • PM2.5 and PM10 abatment • odor neutralization • environment cooling • disinfection • dust suppression

It anticipates the many needs of the customer, and is available in 2 models: • on base • mobile Flow rate: 33l/min, 42l/min or 50l/min.

Elefante 90 VS Elefante Silenzioso comparison Elefante 90

Elefante Silenzioso

Delta

Noise

115dB

94dB

-20%

Rpm

2800Rpm

1500Rpm

-46%

Ring

x3 indipendent

x2 in series

ON BASE

40

MOBILE

Copyright© Idrobase Group. All rights reserved.

Fog maker

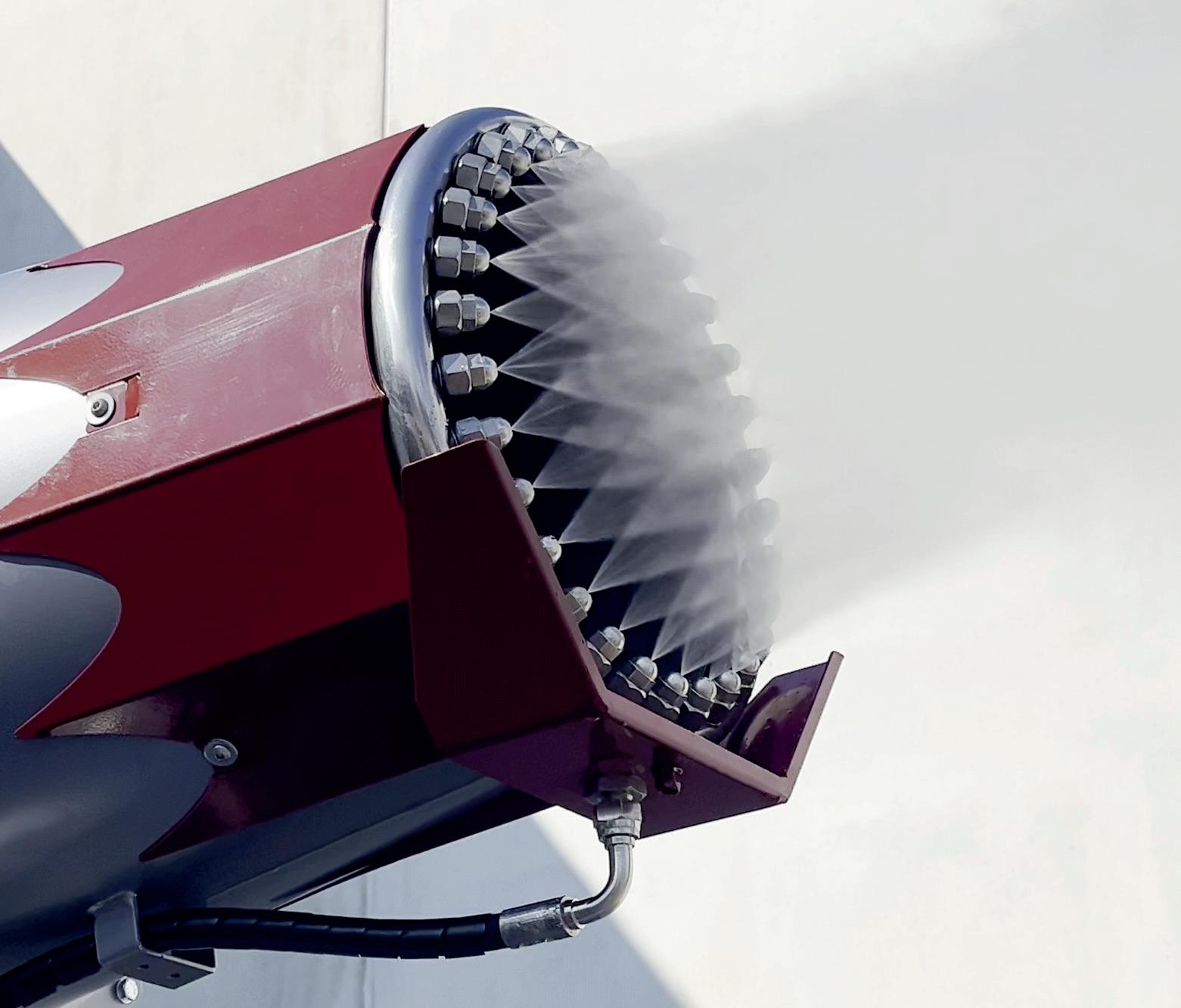

Crown 110 nozzles to obtain droplets with a diameter of 18 to 20 microns

Touch screen 4.3”

Water inlet kit

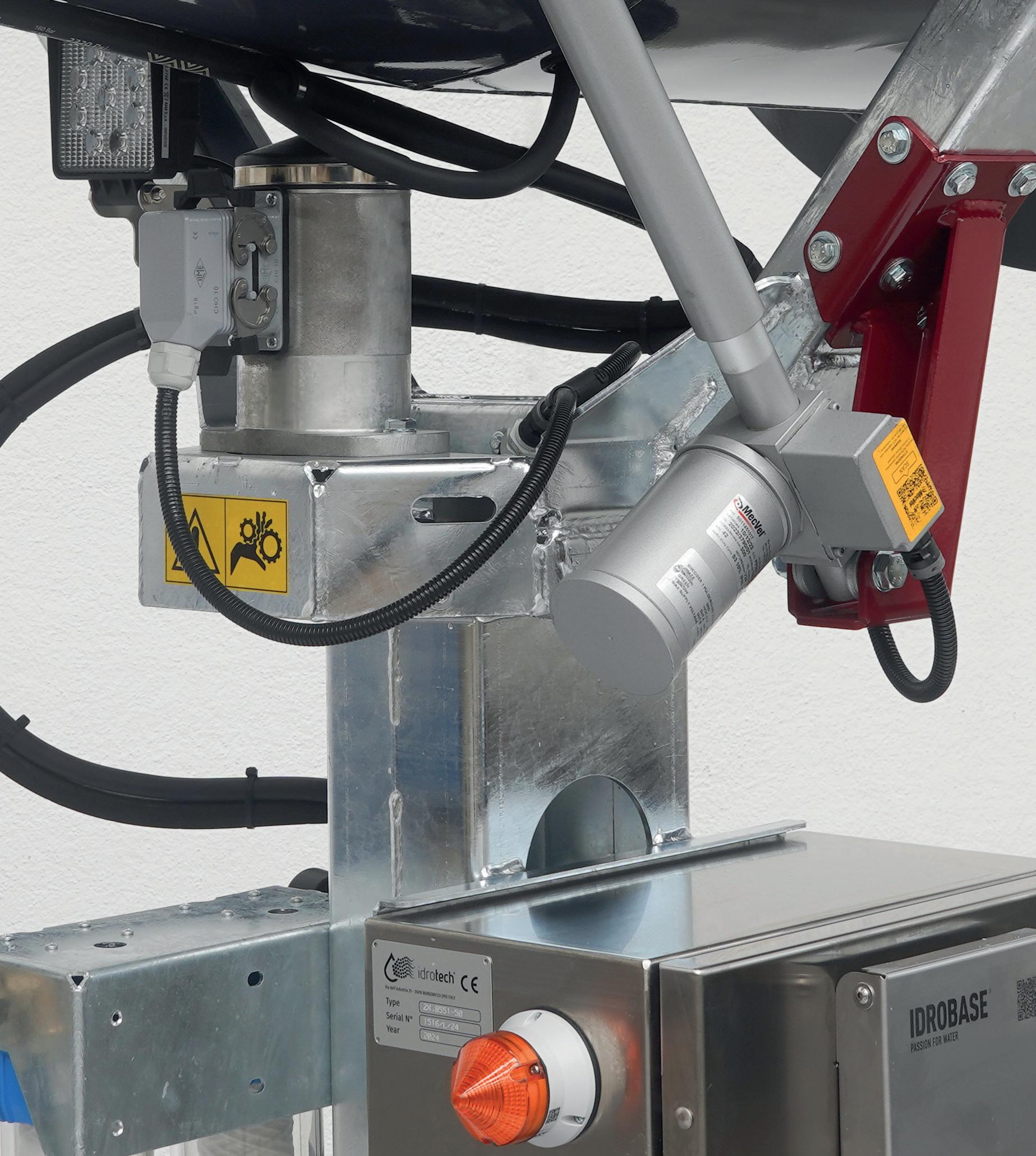

Elevation and rotating system Copyright© Idrobase Group. All rights reserved.

41

IDROTECH

Pressure 120bar Fan jet 90m 110 nozzles

-20% noise compared to Elefante 90

ON BASE

MOBILE

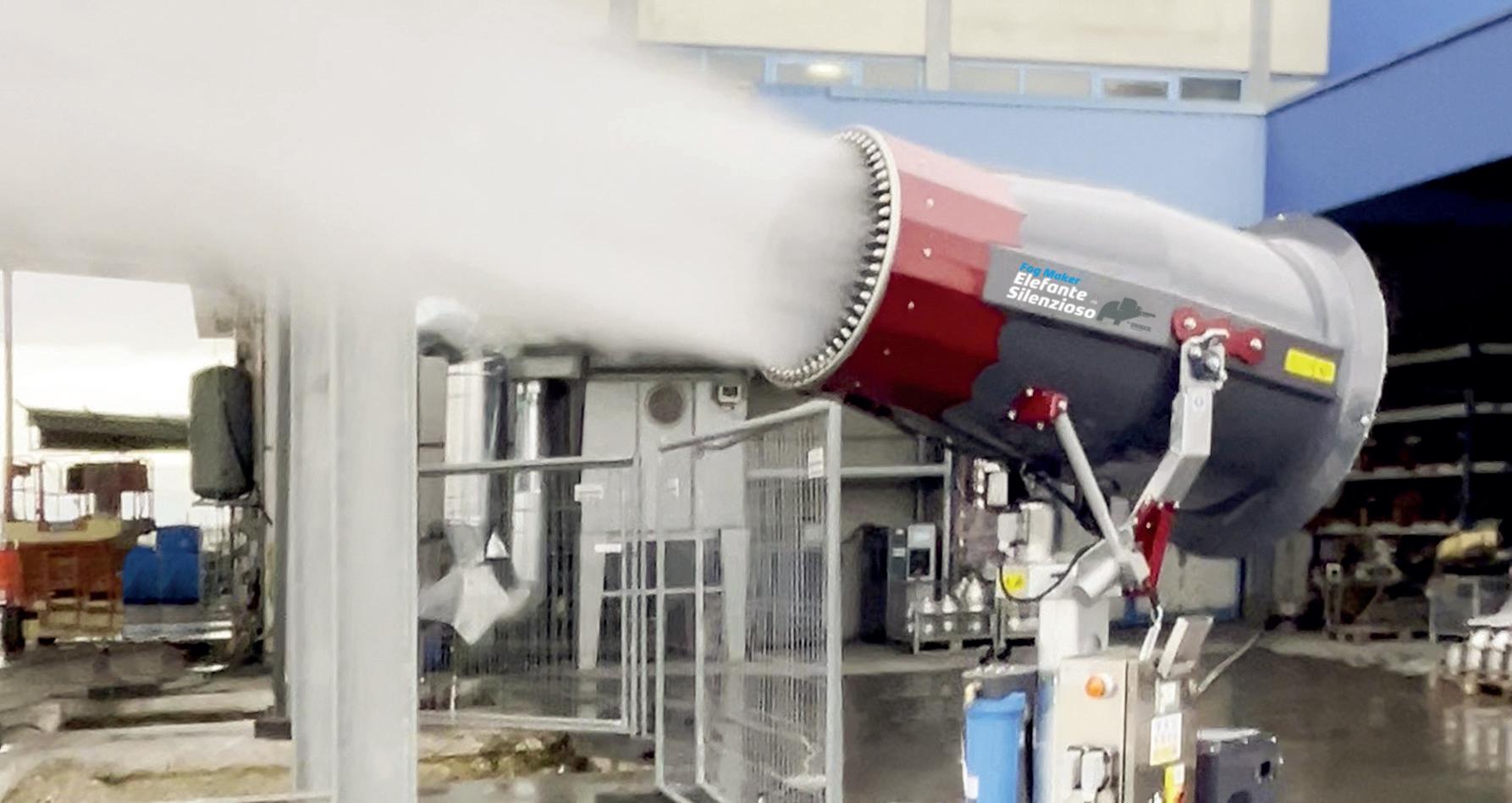

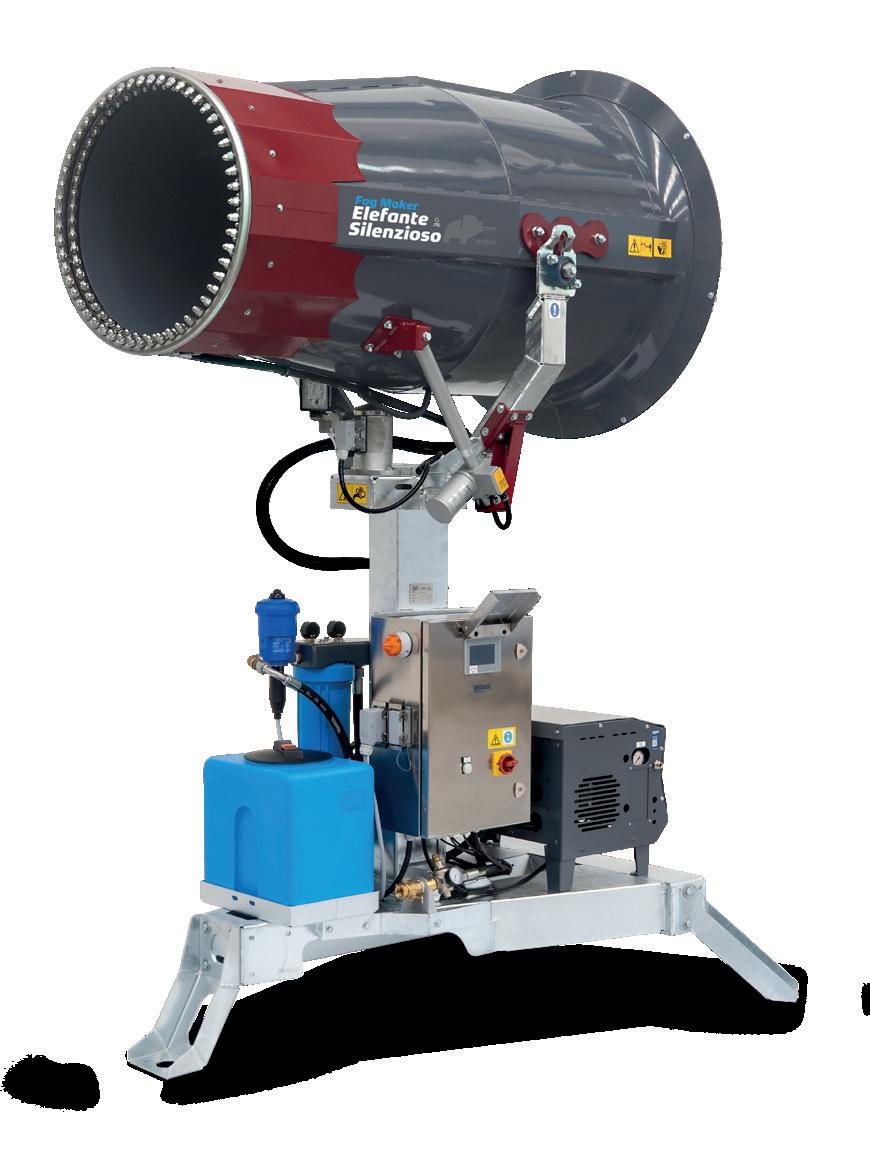

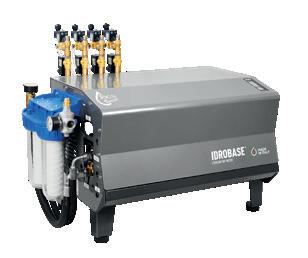

Fog Maker Elefante Silenzioso • Solid frame and pneumatic wheels for easy movement on any surface (Elefante Silenzioso mobile) • Extremely compact and space-saving (Elefante Silenzioso on base) • Easy and intuitive touch screen • Available version with mechanical proportional dispenser 0.2-2% • Also suitable for indoor areas Technical features

120

42

Copyright© Idrobase Group. All rights reserved.

Fog maker Technical features Code

Model

Pressure

Flow Rate

Drop size

Power (3x400V-50Hz)

Weight

ZX.8550

ELEFANTE SILENZIOSO ON BASE - 50L

65bar

50l/min

20mcr

25kW

540Kg

ZX.8551

ELEFANTE SILENZIOSO MOBILE - 50L

65bar

50l/min

20mcr

25kW

660Kg

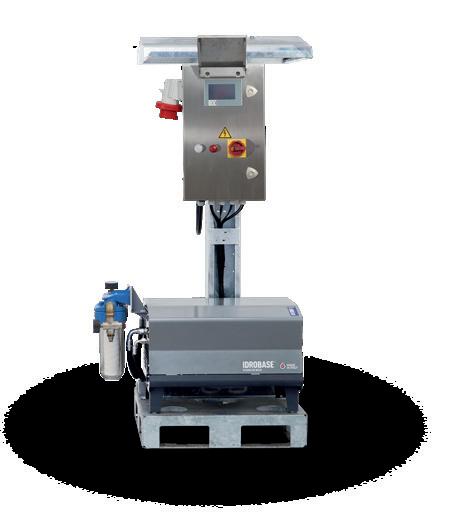

INCLUDED Pump maintenance set 750 hours

Elefante 90 VS Elefante Silenzioso comparison Elefante 90

Elefante Silenzioso

Delta

Noise

115dB

94dB

-20%

Rpm

2800Rpm

1500Rpm

-46%

Ring

x3 indipendent

x2 in series

Technical features

Fan technical specifications

Pump technical features

• Frame in hot galvanised S235JR steel, sensitive components have epoxy powder coating.

• Electrical panel complete with PLC with cyclic timer, weekly programmer, tilt pulse counter, fan start and flashing lights • Protection rating: IP54 • Remote control with range up to 50m in free field (optional) • Dimension WxLxH: 2000x1550x2530mm (on base) 2400x1720x2500mm (mobile)

• Nozzles: 110 in 2 rings • Coverage: 24,000m2 • Air flow rate: 39,500m3/h • Fan power absorption: 18.5kW • Fan jet: 90m (laboratory measurements under static environmental conditions of maximum efficiency) • Power supply: 3x400V-50Hz • Rotating range: 340° Automatic • Elevation: -15° + 45° Automatic • Fan diameter: 820mm • Noise: <94LwA

• Maximum working pressure: 120bar • Professional pump: 1450Rpm, rod movement, brass head, 3 ceramic pistons • Electric motor: 1450Rpm 6,3kW • Integrated by-pass valve • High pressure switch • Preventive maintenance kits available • Models available with mechanical proportional dispenser 0.22% (see specific code) • Filtering: 50µm • Water inlet pressure regulator

Copyright© Idrobase Group. All rights reserved.

43

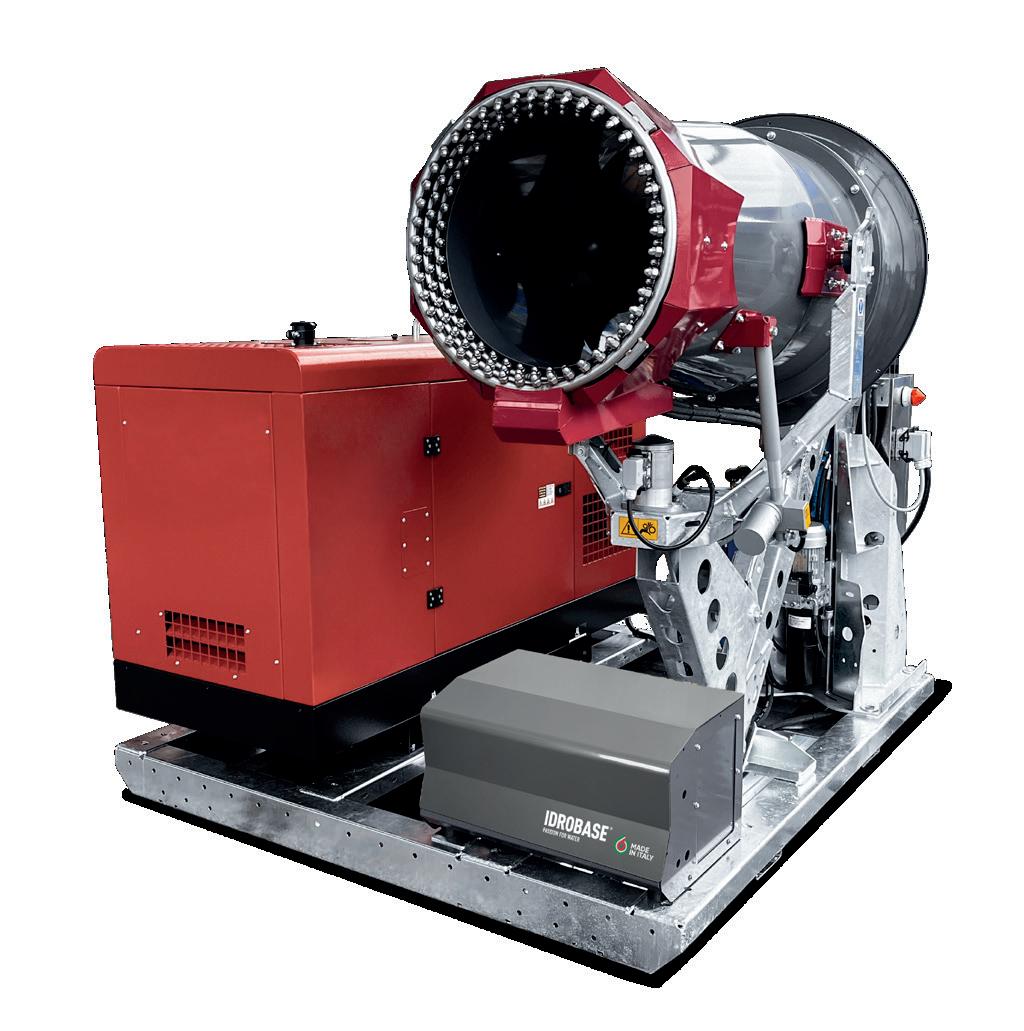

FOG MAKER ELEFANTE A.P.

IDROTECH

Pressure 60bar Fan jet 75m 156 nozzles Elefante 60 Autonomous

ON BASE

MOBILE

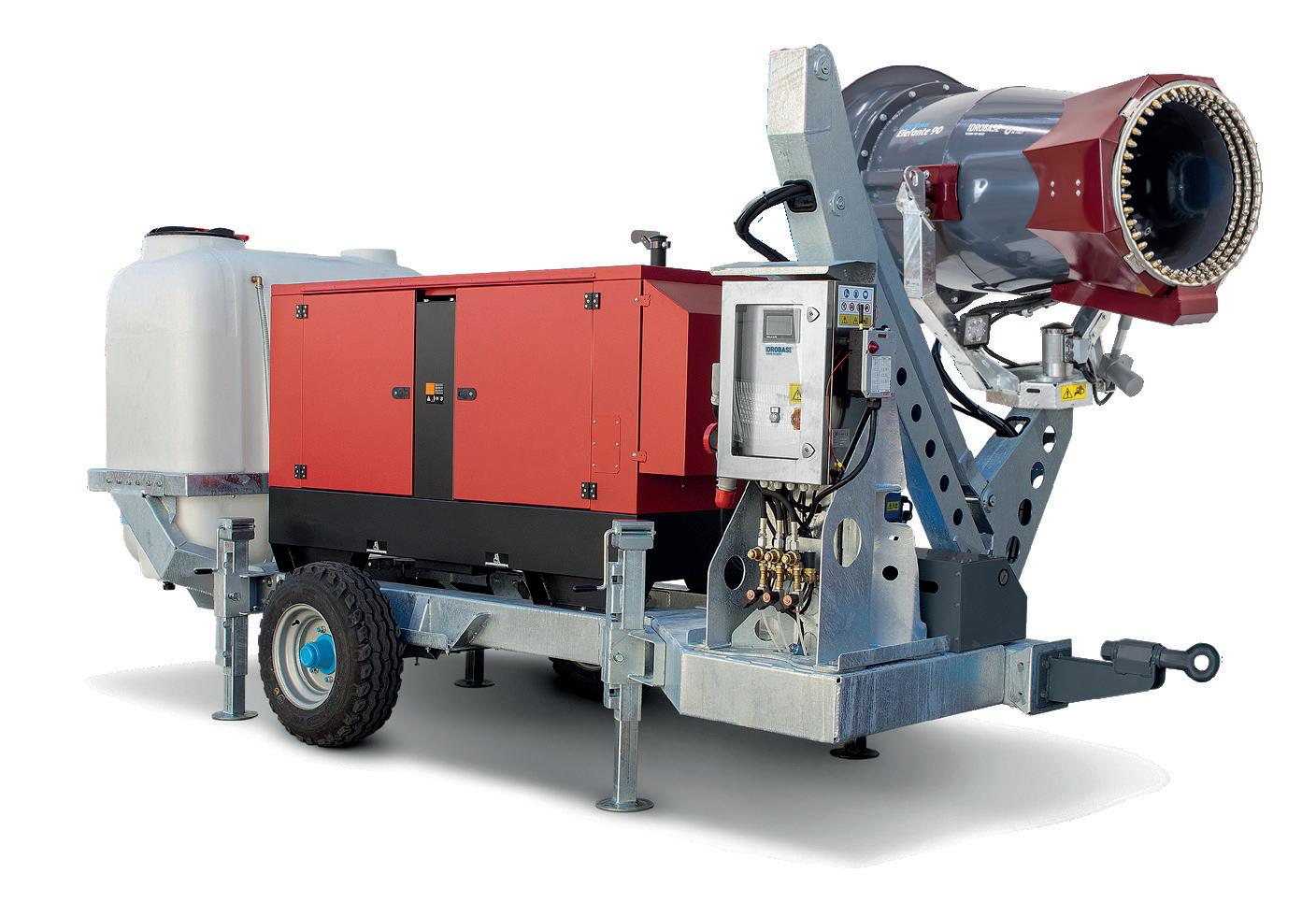

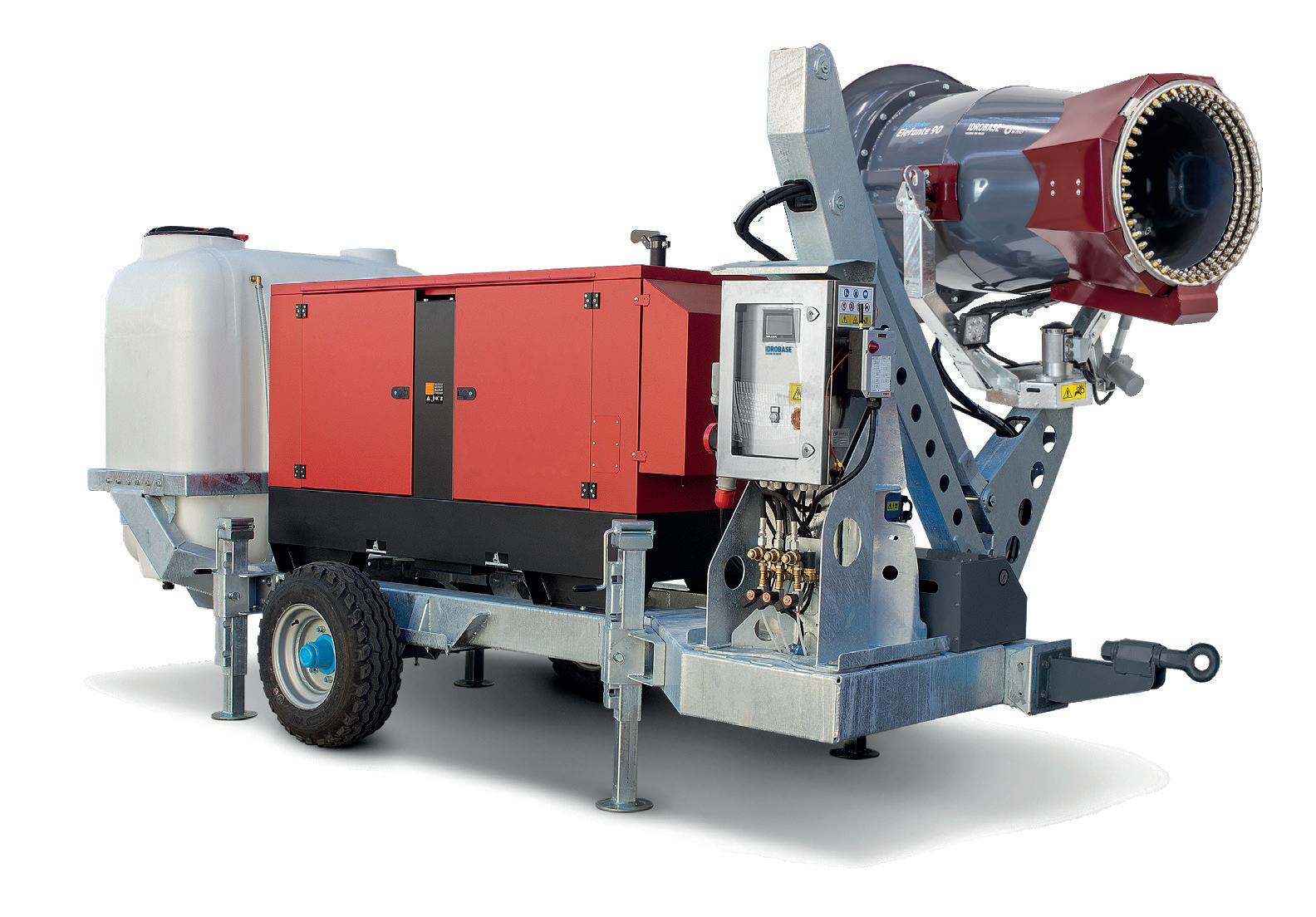

Fog Maker Elefante Autonomo • Misting ring equipped with heating to operate at low temperature • Simple and user-friendly touchscreen • Ventilation unit independent from pump unit • Trolley with pneumatic wheels for easy handling on uneven ground

Technical features

33

42

44

Copyright© Idrobase Group. All rights reserved.

Fog maker Technical features Code

Model

Pressure

Flow rate

Drop size

Power (3x400V-50Hz)

Weight

ZX.8519-AP

ELEFANTE AUTONOMO ON BASE - 42L

60bar

42l/min

18mcr

22,3kW

1100Kg

ZX.8510

ELEFANTE AUTONOMO MOBILE - 33L

60bar

33l/min

17mcr

20kW

2300Kg

INCLUDED Pump maintenance set 750 hours

Technical features

Fan technical specifications

• Galvanized steel frame

• Nozzles: 156 in 3 rings (52 each)

Pump module technical specifications

• Electrical panel complete with PLC cyclical timer, weekly programmer, tilt pulse counter, fan start and flashing light

• Electric heater: 1kW for preheating rings

• Pressure: 60bar

• Coverage: 10,700m2

• Professional pump 1450Rpm, rod movement, brass head, 3 ceramic pistons

• Tank 1000L (mobile version) • Generator: 18kW • Protection rating: IP55

• Air flow rate: 28,500m3/h • Power absorption: 15kW • Fan jet: 75m with 21°C (without wind) • Power supply: 3x400V–50Hz • Rotating range: 340° Automatic • Elevation: -20°+45° Automatic

• Electric motor 1450 Rpm 4kW for 33l/min, 6,3kW for 42l/min • Integrated by-pass valve • High pressure switch • Unload solenoid valve

• Fan diameter: 600mm • Noise: <93LwA Copyright© Idrobase Group. All rights reserved.

45

EXAMPLE

Compared to the list price of the single components

IDROTECH

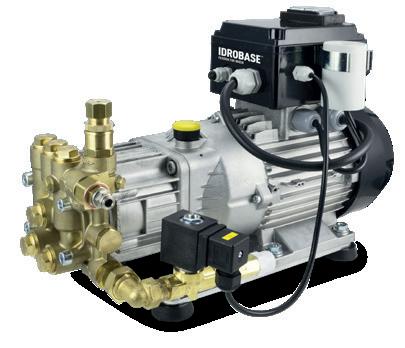

DOLLY PUMPS (11-15L) PUMP MAINTENANCE

-5%

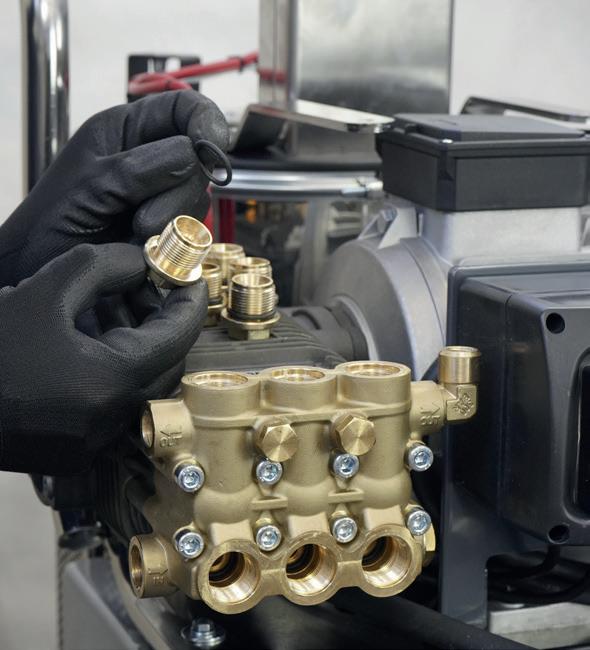

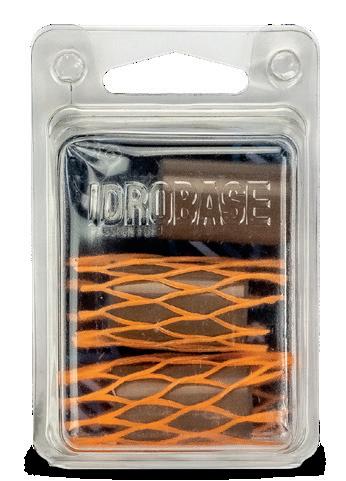

Set B - pump maintenance 750 hours consisting of: 750hrs - HP industrial pumps maintenance

Seal packing

Valves + O-Rings kit

0,5L Mineral oil for h.p. pumps 10ml Threadlocker medium 25ml Technical grease

Set C - pump maintenance 1000 hours consisting of: 1500hrs - HP industrial pumps maintenance

Complete seal packing kit

Valves + O-Rings kit

Plunger oil seals kit

Ceramic plungers set

Plungers fastening kit

0,5L Mineral oil for h.p. pumps 10ml Threadlocker medium

x3

46

25ml Technical grease

Copyright© Idrobase Group. All rights reserved.

MAINTENANCE SET

Compared to the list price of the single components

PUMP MAINTENANCE

•

ELEFANTE 90 ELEFANTE AUTONOMO

4.500 hours

•

•

•

•

•

•

•

•

•

•

• C

D

ZX.8593 ZX.8593-DOS

ELEFANTE 90 ON HYDRAULIC ARM

ZX.8591 ZX.8591-DOS

ELEFANTE 90 ON HYDRAULIC ARM

ZX.8595 ZX.8595-DOS

ELEFANTE 90 ON SHELF

ZX.8594 ZX.8594-DOS

ELEFANTE 90 ON SHELF

ZX.8597 ZX.8597-DOS

ELEFANTE 90 ON BASE

ZX.8596 ZX.8596-DOS

ELEFANTE 90 ON BASE

ZX.8599 ZX.8599-DOS

ELEFANTE 90 MOBILE

ZX.8598 ZX.8598-DOS

ELEFANTE 90 MOBILE

•

•

ZX.8519-AP

ELEFANTE AUTONOMO ON BASE

•

•

ZX.8510

ELEFANTE AUTONOMO MOBILE

ZX.8201

LINCE 1

ZX.8201-L

LINCE DISINFETTANTE

ZX.8204.8

LINCE 4

ZX.75IP11

Model

•

• •

•

•

• •

•

•

• •

•

•

•

• •

ZX.150IP11

ZX.50IBG19

B

ZX.150IBG07

A

Code

Copyright© Idrobase Group. All rights reserved.

→∞

•

• •

4.000 hours

•

• •

PUMP MAINTENANCE

LINCE

•

3.750 hours

ZX.150IBG06

Set F Machine manintenance at: 3.000 hours, 6.000 hours, 9.000 hours, ecc

3.500 hours

ZX.150DP02

F

3.000 hours

ZX.150DP01

E

Set E Machine manintenance at: 750 hours, 1.500 hours, 2.250 hours, 3.750 ore, ecc

•

2.500 hours

ZX.100IBG20

D

Set D Pump manintenance at: 1.500 hours, 3.000 hours, 4.500 hours, ecc

2.250 hours

ZX.100IBG19

Set C Pump manintenance at: 1.000 hours, 2.000 hours, 3.000 hours, ecc

2.000 hours

ZX.75IBG07

C

•

1.500 hours

ZX.75IBG06

B

Set B Pump manintenance at: 750 hours, 2.250 hours, 3.750 hours, ecc

1.000 hours

ZX.75DP02

Set A Pump manintenance at: 500 hours, 1.500 hours, 2.500 hours, ecc

750 hours

ZX.75DP01

A

500 hours

ZX.50IBG20

PUMP AND MACHINE MAINTENANCE

-5%

• •

•

• 47

Compared to the list price of the single components

RINO 2.0 GRU ELEFANTE PIPISTRELLO SILENZIOSO

48

• • •

ZX.8347-B RINO 2.0 ON BASE - 11L ZX.8347-B-DOS

•

•

ZX.8349-B

RINO 2.0 ON BASE - 21L

• •

• •

ZX.8341-C RINO 2.0 MOBILE - 9L ZX.8341-C-DOS

•

•

ZX.8347-C RINO 2.0 MOBILE - 11L ZX.8347-C-DOS

•

•

ZX.8348-C

RINO 2.0 MOBILE - 15L

ZX.8349-C

RINO 2.0 MOBILE - 21L

• •

• •

ZX.8341-H RINO 2.0 ON ZX.8341-H-DOS HYDRAULIC ARM - 9L

•

•

ZX.8347-H RINO 2.0 ON ZX.8347-H-DOS HYDRAULIC ARM - 11L

•

•

ZX.8348-H

RINO 2.0 ON HYDRAULIC ARM - 15L

ZX.8349-H

RINO 2.0 ON HYDRAULIC ARM - 21L

• •

• •

ZX.8341-M RINO 2.0 ON SHELF - 9L ZX.8341-M-DOS

•

•

ZX.8347-M RINO 2.0 ON SHELF - 11L ZX.8347-M-DOS

•

•

ZX.8348-M

RINO 2.0 ON SHELF - 15L

ZX.8349-M

RINO 2.0 ON SHELF - 21L

ZX.8612DP

GRU - 11L

ZX.8613DP

GRU - 15L

ZX.8614DP

GRU - 21L

ZX.8811DP

PIPISTRELLO - 11L

ZX.8812DP

PIPISTRELLO - 15L

ZX.8550

ELEFANTE SILENZIOSO ON BASE - 50L

ZX.8551

ELEFANTE SILENZIOSO MOBILE - 50L

ZX.150IP11

• •

•

RINO 2.0 ON BASE - 15L

ZX.150IBG07

•

ZX.8341-B RINO 2.0 ON BASE - 9L ZX.8341-B-DOS

ZX.8348-B

ZX.150DP02

ZX.150DP01

D ZX.100IBG20

ELEFANTINO 2.0 - 21L

•

ZX.100IBG19

ZX.8409DP

ZX.75IP11

ELEFANTINO 2.0 - 15L

C ZX.75IBG07

ZX.8408DP

ZX.75IBG06

ELEFANTINO 2.0 - 11L

ZX.75DP02

ZX.8407DP

ZX.75DP01

Model

ZX.50IBG19

Code

B ZX.50IBG20

A

PUMP MAINTENANCE

ELEFANTINO 2.0

IDROTECH

PUMP MAINTENANCE

-5%

ZX.150IBG06

MAINTENANCE SET

• •

• •

•

• • •

• •

•

• •

• • •

• •

Copyright© Idrobase Group. All rights reserved.

DOLLY SPARE PARTS FOR PUMPS SPECIAL TOOLS

Code

Description

ZX.2348

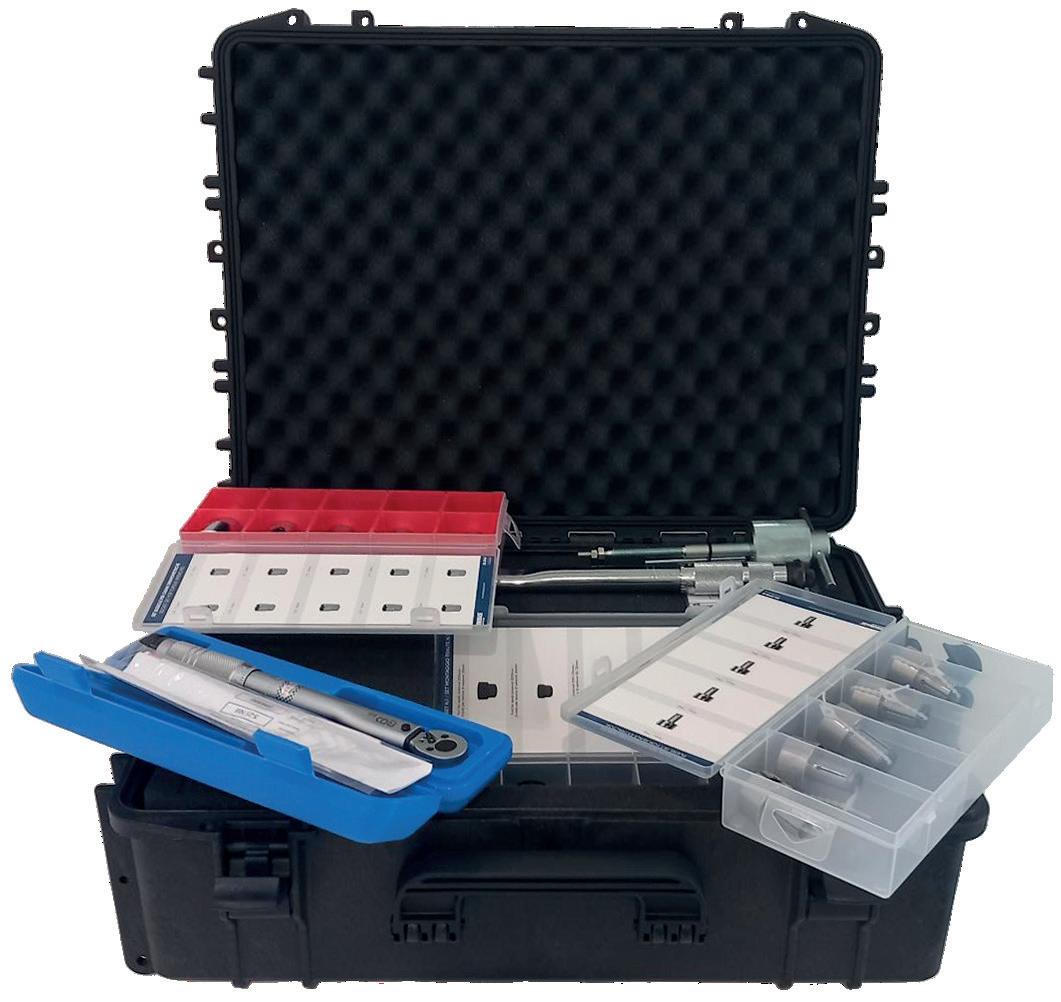

Complete set of special tools for h.p. pump maintenance

External

Ø35mm

Ø30mm

Ø30/35mm

Ø25mm

Ø25mm

Set

Code

Description

ZX.2446

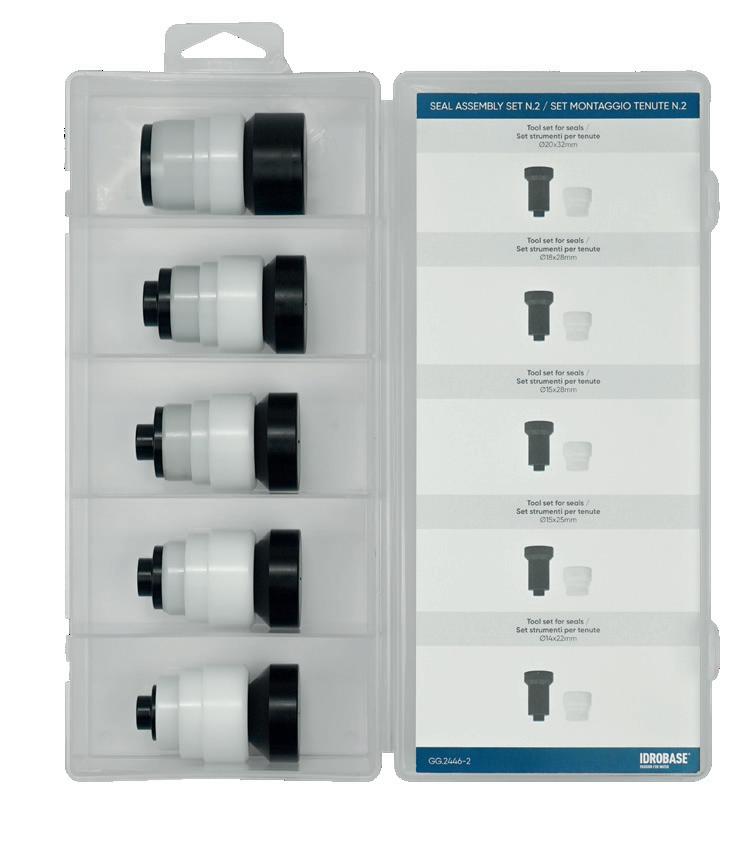

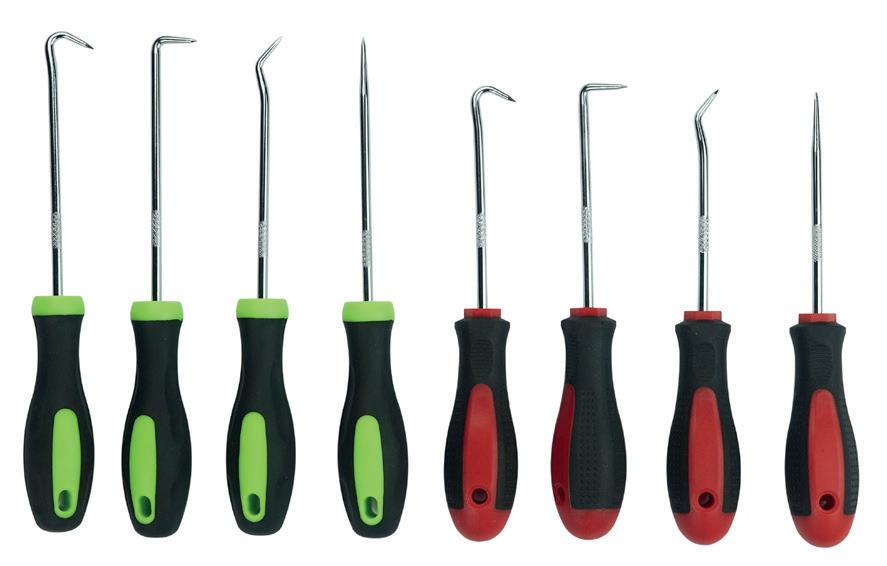

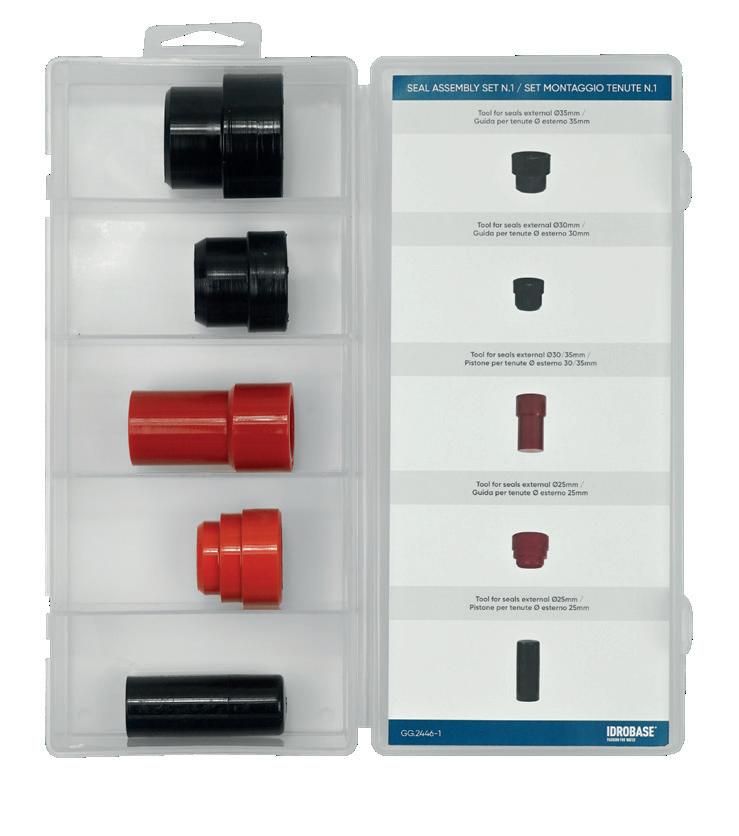

Seal assembly set

Copyright© Idrobase Group. All rights reserved.

Ø20x32mm

Ø18x28mm

Ø15x25mm

Ø14x22mm

Ø15x28mm

49

DOLLY SPARE PARTS FOR PUMPS

IDROTECH

SPECIAL TOOLS

Code

Description

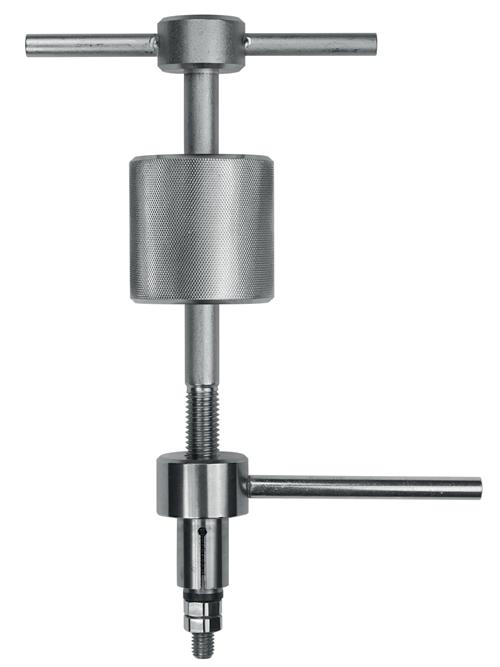

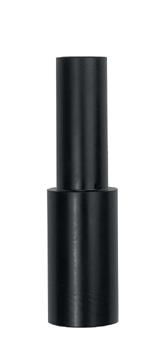

ZX.1972-5

Extractor with pliers

∅14

∅15

∅20

∅22

Video special tools

∅18

∅18,0/21,5mm

∅25,0/29,5mm Code

Description

ZX.2447

Oil seal maintenance kit

1/2” - 30/210 Nm Code

Description

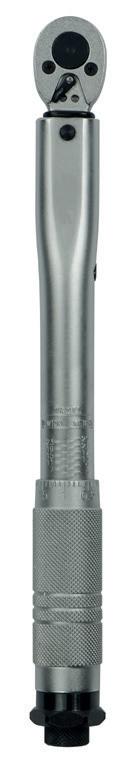

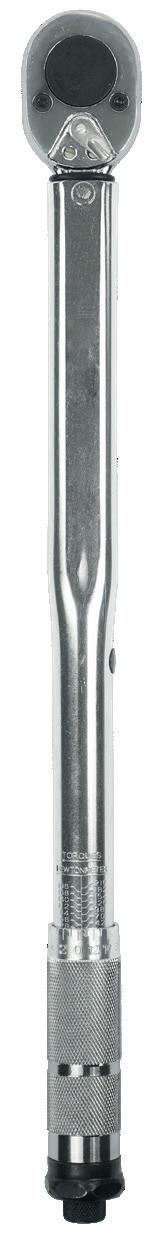

CDR.CD12 Torque wrench

50

3/8” - 5/25 Nm Code

Description

CDR.CD38 Torque wrench

3/8” - 5/6mm

1/2” - 21mm

3/8” - 13mm

1/2” - 22mm

3/8” - 15mm

1/2” - 24mm

3/8” - 17mm

1/2” - 27mm

3/8” - 19mm

1/2” - 30mm

Code

Description

ZX.2442

Sockets for torque wrenche

Copyright© Idrobase Group. All rights reserved.

/ NOTES

Copyright© Idrobase Group. All rights reserved.

51

ENGLISH Copyrights© to this catalogue belong to IDROBASE GROUP® Srl. Reading, reference and dissemination in paper or electronic formats for personal use are permitted. Use for commercial purposes is not permitted, nor is any type of alteration except with the written consent of IDROBASE GROUP® Srl. This catalogue cancels and supersedes the earlier version.

This catalogue provides general information on the products supplied by IDROBASE GROUP® Srl. It is intended for retailers, system engineers, designers and more generally, all those who are already adequately familiar with said products, the materials from which they are made, their characteristics, efficiency and operation; it is therefore not intended for consumers who, in order to handle, install or perform any operation with the goods described here, must necessarily contact qualified and skilled personnel.

Also, with regard to skilled personnel, this catalogue should be considered a mere commercial tool, not containing the necessary technical specifications - which may be obtained free of charge from Idrobase, and as such, not suitable for use as a single go-to reference tool for the design, construction or installation of any kind of system.

The illustrations, technical characteristics, functions and other information given here about individual products, systems, installations and the like are based on the current state of the art: however, only the most immediately applicable information can be reproduced here, without any consideration for the global data necessary to design, implement and install any system, which must therefore be carefully assessed by designers, system engineers and installers.

Therefore, for specific indications on all products in the catalogue, please contact our main office, where competent staff are always on hand to answer any additional queries.

All the illustrations reproduced here may be slightly different from actual products and therefore, they should simply be intended as closely representing real items.

We reserve the right to introduce changes in all the products. For this reason, too, it is advisable to directly contact our main office.

In case of doubts regarding interpretation, the original Italian text will prevail.

When a new reprint is published, the present edition will no longer be valid.

A day in Idrobase Group

Idrobase Group Srl Via dell’Industria, N. 25 35010 Borgoricco (PD) Italia T: +39 049 9335903 r.a.

Recognition of maximum commercial reliability

Rev.00_2026-03

www.idrobasegroup.com info@idrobasegroup.com
