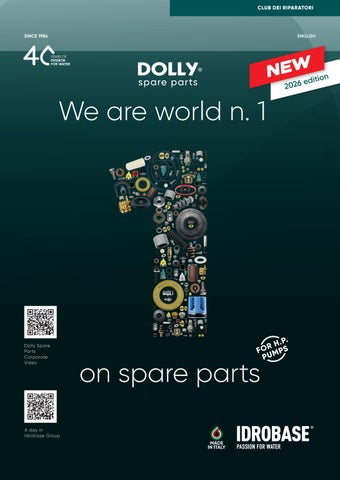

editio 6 2 0 2

We are world n. 1

Dolly Spare Parts Corporate Video

A day in Idrobase Group

on spare parts

IDROBASE 3.0: THE ECOSYSTEM THAT ENHANCES EVERY ELEMENT.

IDROBASE 3.0 is a comprehensive solution that brings together: • the reliability of Dolly Spare Parts® • the patented and guaranteed quality of Dolly Pumps® • the high performance of h.p. washers, fog makers and misting systems. You can now move from simply repairing your pump, thanks to the world’s N.1 Dolly Spare Parts catalogue, to replacing it with a Dolly Pump featuring Idrobase-branded internal components, up to selecting a complete Made in Italy solution for the cleaning and misting sectors. Three elements within one integrated system, connected and aligned by a coherent industrial vision focused on performance and long-term durability. 2

A day in Idrobase Group

Borgoricco, Padova, Italy SINCE 1986

CLUB DEI RIPARATORI

Patented solution

DOLLY PUMPS ®, WHERE PERFORMANCE CONTINUITY BEGINS. For years, the market has relied on Dolly Spare Parts® for repairs. Today, the market turns to Dolly Pumps® for complete replacements. From maintenance to replacement. From expertise to continuity. From spare parts to the very heart of high-pressure washers. One direction. One vision. One system. Dolly Pumps® is born from the legacy of Dolly Spare Parts®, bringing the vision full circle.

Dolly Pumps: discover the full range

Just as a pearl gives value to the oyster, the new Dolly Pumps® by Idrobase stand apart for what lies within: Dolly Spare Parts®, the N.1 brand in high-pressure pump spare parts for over 25 years now directly integrated into our pump.

Dolly Pumps: discover the PRO Series brochure

Dolly Spare Parts® pump components with made-in-Italy quality ensure the new Dolly Pumps® deliver high performance and up to twice the average market lifespan.

PRO SERIES H.P. PUMPS Code

Model

Pressure Flow rate Rpm

Power

Weight

IDRO.150-15

IDRO7

150bar

15l/min

1450

4,0kW

13,5kg

IDRO.150-21

IDRO8

150bar

21l/min

1450

5,5kW

13,5kg

IDRO.160-18

IDRO16

160bar

18l/min

1450

5,5kW

13,5kg

IDRO.170-13

IDRO15

170bar

13l/min

1450

4,0kW

13,5kg

IDRO.200-15

IDRO10

200bar

15l/min

1450

5,5kW

13,5kg

IDRO.200-21

IDRO11

200bar

21l/min

1450

8,0kW

13,5kg

Right-hand shaft ø24mm

Years of warranty

Patented solution

OUR SALES TEAM PAMELA CALLEGARO

MARCO FERRARESE

Sales manager

Strategic market development & Idrobase Ningbo sales manager

pamela.c@idrobasegroup.com +39 049 9336724

marco.f@idrobasegroup.com

+39 346 2894708

+39 349 7784775

Idrobase_CDR

marcof-ibg

ITA/ENG/FRA

ITA/ENG/RUS

area of expertise

FEDERICA MAZZONETTO

SILVIA VANZO

Sales department

federica.m@idrobasegroup.com

silvia.v@idrobasegroup.com

+39 049 9336787

+39 049 9336726

+39 351 9491766

+39 351 5970267 Silvia_CdR

ITA/ENG/FRA ITA/ENG/ESP/DEU area of expertise

area of expertise

TOMMASO GAZZIGNATO Idrobase Ningbo manager tommaso.g@idrobasegroup.com +39 049 9336756 +39 349 0080257 tommy_italy ITA/ENG area of expertise

OUR TECHNICAL TEAM BRUNO BAESSO

DANIEL GASPARINI

Product Research & Purchasing

Quality & Technical Department daniel.g@idrobasegroup.com

bruno.b@idrobasegroup.com

+39 049 9336768

+39 049 9336736

+39 329 1297086

+39 347 9277664 ITA/ENG ITA/ENG

LUCA SARTOR

MAURO ARICI

Technical Department Manager

Product Development & Idrobase Ningbo Technical Manager

luca.s@idrobasegroup.com +39 049 9336755

mauro.a@allforclean.com

+39 348 7004172

+86 574 87910891 +86 139 67863486

ITA/ENG

maoleo80 ITA/ENG/CHN

AREA OF EXPERTISE

FEDERICA MAZZONETTO (Italy, Romania) MARCO FERRARESE (USA, Canada, Russia, Ukraine, India, Kazakhstan, Uzbekistan) PAMELA CALLEGARO (Europe, North Africa, Saharan Africa, South Africa, Japan, Australia) SILVIA VANZO (Central and South America, Germany, Austria, Czech Republic, Slovenia, Croatia, Bosnia, Serbia, Poland, Hungary, Estonia, Vietnam, Thailand, Taiwan) TOMMASO GAZZIGNATO (Saudi Arabia, Egypt, China, United Arab Emirates, Oman, Qatar)

INDEX

Idrobase 3.0

Dolly Pumps

Our sales/technical team

General maintenance set

Special tools

Annovi Reverberi

Cat

Comet

Danau

Faip

Hawk

Hotsy

Idromeccanica Bertolini

Idrobase

Interpump / Generalpump

Kärcher

102

Kränzle

114

Lavor/Fasa

115

Lutian

117

Mazzoni

118

Speck

119

Udor

120

Set oil seals

125

Code correspondance table

126

Semi-professional Dolly

135

Semi-professional Dolly code correspondance table

142

Made in Italy

CLUB DEI RIPARATORI

DOLLY SPARE PARTS ®, FROM THE “FIX EVERYTHING CLUB” Dolly Spare Parts® are products by Club dei Riparatori®, an IDROBASE® GROUP brand. The “Dolly range” from Club dei Riparatori is an extensive line of spare parts fitting over 1,500 pump models for high-pressure washers, ensuring the same interchangeability as the parts from 18 leading pump manufacturers. Choose a single supplier to source all the spare parts you need to repair any high-pressure washer pump. These savings result from the unique organizational structure of Club dei Riparatori. By focusing on direct efficiency rather than sales agents, we ensure real-time responses and dispatch customer orders within 3 days, thanks to our large inventory and automated management through high-tech vertical warehouses.

Dolly Spare Parts for Pressure Washer Pumps: what are the plus?

The complete range of spare parts for over 1,500 pump models from 18 manufacturers

How to replace valves and O-rings of a professional hp washer

Our vertical warehouses with thousands of components and spare parts

Dolly Spare Parts: from the Fix Everything Club

CLUB DEI RIPARATORI

EVERYTHING YOU NEED FOR THE MAINTENANCE OF ANY PUMP In the following table you will find sets developed by our technicians containing all the essential parts for the maintenance of any kind of pump, with a 5% saving compared to buying components individually. General maintenance set includes: • 1 valves kit • 1 O-rings set for brass caps • 3 complete seals packings • 1 plunger oil seals kit

• mineral oil for h.p. pumps • 10ml threadlocker medium • 25ml technical grease

HP pumps general maintenance

DOLLY SPARE PARTS FOR PUMPS GENERAL MAINTENANCE SET Model

Maintenance set

Fitting ANNOVI REVERBERI pumps

Model

Maintenance set

Model

Maintenance set

RG 15.15 N

ZX.SRA14

RR 15.20 C + FLANGE

ZX.SRA12 *

RG 15.20H N

ZX.SRA14

RR 15.20 C + FLANGE

ZX.SRA13 **

CWX 15.15 N 950

ZX.SRA08

RG 15.25H N

ZX.SRA14

RR 15.20 N

ZX.SRA12 *

CWX 15.17 N 1450

ZX.SRA08

RG 18.17 N

ZX.SRA14

RR 15.20 N

ZX.SRA13 **

CWX 15.17 N 1750

ZX.SRA08

RG 18.20H N

ZX.SRA14

RR 15.25 H N

ZX.SRA12 *

HPE 10.10 1450

ZX.SRA01

RG 21.15 N

ZX.SRA14

RR 15.25 H N

ZX.SRA13 **

HPE 10.10 2800

ZX.SRA05

RG 21.20H N

ZX.SRA14

RR 18.12 N

ZX.SRA12 *

HPE 10.12 A 1450

ZX.SRA01

RG 21.25H N

ZX.SRA14

RR 18.13 N

ZX.SRA13 **

HPE 10.12 A 2800

ZX.SRA05

RGA 4 G22 N

ZX.SRA14

RR 18.16 C + FLANGE

ZX.SRA12 *

HPE 11.09 1450

ZX.SRA01

RGA 4 G30 H N

ZX.SRA14

RR 18.16 C + FLANGE

ZX.SRA13 **

HPE 11.09 2800

ZX.SRA05

RGA 5.5 G22 N

ZX.SRA14

RR 18.16 N

ZX.SRA12 *

HPE 11.11 1450

ZX.SRA01

RGA 5.5 G30 H N

ZX.SRA14

RR 18.16 N

ZX.SRA13 **

HPE 11.11 2800

ZX.SRA05

RK 11.14 N

ZX.SRA03

RRA 3.5G25 N

ZX.SRA12 *

HPE 11.14 2800

ZX.SRA05

RK 11.20 H C

ZX.SRA03

RRA 3.5G25 N

ZX.SRA13 **

HPE 13.09 2800

ZX.SRA05

RK 11.20 H N

ZX.SRA03

RRA 3G30 E + FLANGE

ZX.SRA12 *

HPE 13.10 1450

ZX.SRA01

RK 11.25 H N

ZX.SRA03

RRA 3G30 E + FLANGE

ZX.SRA13 **

HPE 13.12 2800

ZX.SRA05

RK 13.12 C

ZX.SRA03

RRA 4G30 E + FLANGE

ZX.SRA12 *

HPE 2 G15 1750

ZX.SRA05

RK 13.12 N

ZX.SRA03

RRA 4G30 E + FLANGE

ZX.SRA13 **

HPE 2 G18 1750

ZX.SRA05

RK 13.17 C

ZX.SRA03

RRA 4G30 N

ZX.SRA12 *

HPE 3 G13 1750

ZX.SRA01

RK 13.17 N

ZX.SRA03

RRA 4G30 N

ZX.SRA13 **

HPE 3.5 G10 1750

ZX.SRA01

RK 13.20 H C

ZX.SRA03

RRA 4G36 H N

ZX.SRA12 *

HPE 8.12 A 1450

ZX.SRA05

RK 13.20 H N

ZX.SRA03

RRA 4G36 H N

ZX.SRA13 **

HPE 8.12 A 2800

ZX.SRA05

RK 14.16 C

ZX.SRA03

RRA 5.5G26 E + FLANGE

ZX.SRA12 *

HPE 8.14 1450

ZX.SRA05

RK 14.16 N

ZX.SRA03

RRA 5.5G26 E + FLANGE

ZX.SRA13 **

HPE 8.14 2800

ZX.SRA05

RK 15.15 C

ZX.SRA03

RRA 5.5G30 N

ZX.SRA12 *

HPE 9.11 1450

ZX.SRA01

RK 15.15 N

ZX.SRA03

RRA 5.5G30 N

ZX.SRA13 **

HPE 9.14 1450

ZX.SRA01

RK 15.20 H C

ZX.SRA03

RW 15.15 N

ZX.SRA09

RC 10.12 N

ZX.SRA11

RK 15.20 H N

ZX.SRA03

RW 15.20 H N

ZX.SRA09

RC 10.15 N

ZX.SRA11

RK 15.25 H N

ZX.SRA03

RW 18.17 N

ZX.SRA09

RC 11.11 C + F6

ZX.SRA11

RK 15.28 H N

ZX.SRA03

RW 18.20 H N

ZX.SRA09

RC 11.17 N

ZX.SRA11

RKA 3.5 G22 N

ZX.SRA03

RW 21.15 H N

ZX.SRA09

RC 12.10 C + F44

ZX.SRA11

RKA 3.5 G25 E

ZX.SRA03

RW 21.20 H N

ZX.SRA09

RC 12.17 N

ZX.SRA11

RKA 3.5 G25 N

ZX.SRA03

XM 11.17 N

ZX.SRA07

RC 13.17 C + F44

ZX.SRA11

RKA 3.5 G30 H E

ZX.SRA03

XMA 3 G25 N

ZX.SRA07

RC 13.17 N

ZX.SRA11

RKA 3.5 G30 H N

ZX.SRA03

XMA 3.5 G22 N

ZX.SRA07

RC 14.16 C + F44

ZX.SRA11

RKA 3.5 G40 H N

ZX.SRA03

XMA 3.5 G25 N

ZX.SRA07

RC 14.16 N

ZX.SRA11

RKA 4 G20 E

ZX.SRA03

XMS 11.17 N

ZX.SRA07

RC 14.20 N

ZX.SRA11

RKA 4 G20 J+F22

ZX.SRA03

XMS 13.17 N

ZX.SRA07

RC 8.15 C + F6

ZX.SRA11

RKA 4 G20 N

ZX.SRA03

XMS 15.15 N

ZX.SRA07

RC 8.15 N

ZX.SRA11

RKA 4 G30 A N

ZX.SRA03

XMS 15.20 N

ZX.SRA07

RC 9.14 C + F6

ZX.SRA11

RKA 4 G30 H E

ZX.SRA03

XMS 17.16 N

ZX.SRA07

RC 9.15 N

ZX.SRA11

RKA 4 G30 H J+F22

ZX.SRA03

XMT 11.11 N

ZX.SRA07

RCA 2.5G25 N

ZX.SRA11

RKA 4 G30 H N

ZX.SRA03

XMTA 3.5 G22 N

ZX.SRA07

RCA 2G22 E + F8

ZX.SRA11

RKA 4 G30 N

ZX.SRA03

XMV 3 G25 N

ZX.SRA07

RCA 3.5G16 E + F8

ZX.SRA11

RKA 4 G36 H N

ZX.SRA03

XMV 3 G30 N

ZX.SRA07

RCA 3.5G25 N

ZX.SRA11

RKA 4 G40 H N

ZX.SRA03

XMV 3.5 G22 N

ZX.SRA07

RCA 3G18 E + F8

ZX.SRA11

RKA 4.5 G17 N

ZX.SRA03

XMV 3.5 G25 N

ZX.SRA07

RCA 3G25 N

ZX.SRA11

RKA 4.5 G25 H N

ZX.SRA03

XMV 4 G20 N

ZX.SRA07

RCS 11.17 N

ZX.SRA10

RKA 4.5 G30 H N

ZX.SRA03

XMV 4 G22 N

ZX.SRA07

RCS 13.17 N

ZX.SRA10

RKA 4.5 G40 H N

ZX.SRA03

XMV 4 G25 N

ZX.SRA07

RCS 15.15 N

ZX.SRA10

RR 13.20 C + FLANGE

ZX.SRA12 *

XMV 4 G30 N

ZX.SRA07

RCS 8.17 N

ZX.SRA10

RR 13.20 C + FLANGE

ZX.SRA13 **

XT 10.10 N

ZX.SRA02

RCV 2.5G25 D + F7

ZX.SRA10

RR 13.20 N

ZX.SRA12 *

XT 10.12 A N

ZX.SRA02

RCV 2G25 E + F8

ZX.SRA10

RR 13.20 N

ZX.SRA13 **

XT 10.15 N

ZX.SRA02

RCV 3.5G25 D + F7

ZX.SRA10

RR 15.15 C + FLANGE

ZX.SRA12 *

XT 11.07 N

ZX.SRA02

RCV 3G25 D + F7

ZX.SRA10

RR 15.15 C + FLANGE

ZX.SRA13 **

XT 11.09 N

ZX.SRA02

RCV 3G25 E + F8

ZX.SRA10

RR 15.15 N

ZX.SRA12 *

XT 11.11 N

ZX.SRA02

RG 13.17 N

ZX.SRA14

RR 15.15 N

ZX.SRA13 **

XT 11.14 N

ZX.SRA02

DOLLY SPARE PARTS FOR PUMPS

CLUB DEI RIPARATORI

GENERAL MAINTENANCE SET

Model

Maintenance set

Model

Maintenance set

Model

Maintenance set

XT 11.15 N

ZX.SRA02

XWA 7 G40 N

ZX.SRA08

LWD 2015 E

ZX.SRCM01

XT 13.09 N

ZX.SRA02

XWA 8 G19 N

ZX.SRA08

LWD 2015 G

ZX.SRCM01

XT 13.12 A N

ZX.SRA02

XWA 8 G29 N

ZX.SRA08

LWD 2015 S

ZX.SRCM01

XT 13.12 N

ZX.SRA02

XWA 8 G35 N

ZX.SRA08

LWD 2020 E

ZX.SRCM01

XT 13.15 N

ZX.SRA02

XWA 9 G16 N

ZX.SRA08

LWD 2020 G

ZX.SRCM01

XT 8.10 N

ZX.SRA06

XWA 9 G24 N

ZX.SRA08

LWD 2020 S

ZX.SRCM01

XT 8.12 A N

ZX.SRA06

XWA 9 G30 N

ZX.SRA08

LWD 2520 G

ZX.SRCM01

XT 8.12 N

ZX.SRA06

LWD 2525 G

ZX.SRCM01

XT 8.14 N

ZX.SRA06

LWD 3010 E

ZX.SRCM01

XT 8.15 N

ZX.SRA06

AXD 2010 E

ZX.SRCM04

LWD 3010 G

ZX.SRCM01

XT 9.11 N

ZX.SRA06

AXD 2020 E

ZX.SRCM04

LWD 3010 S

ZX.SRCM01

XT 9.14 N

ZX.SRA02

AXD 2516 G

ZX.SRCM04

LWD 3015 E

ZX.SRCM01

XT 9.15 N

ZX.SRA02

AXD 2518 G

ZX.SRCM04

LWD 3015 G

ZX.SRCM01

XTA 2 G15 N

ZX.SRA06

AXD 2520 E

ZX.SRCM04

LWD 3015 S

ZX.SRCM01

XTA 2 G20 N

ZX.SRA06

AXD 2520 G

ZX.SRCM04

LWD 3020 E

ZX.SRCM01

XTA 2 G22 N

ZX.SRA06

AXD 2527 G

ZX.SRCM04

LWD 3020 G

ZX.SRCM01

XTA 3 G16 N

ZX.SRA02

AXD 3020 E

ZX.SRCM04

LWD 3020 S

ZX.SRCM01

XTA 3 G19 N

ZX.SRA02

AXD 3020 G

ZX.SRCM04

LWD 3025 G

ZX.SRCM01

XTA 3 G22 N

ZX.SRA02

AXD 3020 G

ZX.SRCM04

LWD 3025 S

ZX.SRCM01

XTA 3.5 G13 N

ZX.SRA02

AXD 3025 G

ZX.SRCM04

LWD 3515 G

ZX.SRCM01

XTA 3.5 G17 N

ZX.SRA02

AXD 3025 G

ZX.SRCM04

LWD 3522 G

ZX.SRCM01

XTA 3.5 G20 N

ZX.SRA02

AXD 3522 G

ZX.SRCM04

LWD 3522 S

ZX.SRCM01

XTA 4 G10 N

ZX.SRA02

AXD 3522 G

ZX.SRCM04

LWD 4020 G

ZX.SRCM01

XTA 4 G15 N

ZX.SRA02

AXD 3525 G

ZX.SRCM04

LWD 4020 S

ZX.SRCM01

XTS 10.10 N

ZX.SRA06

AXS 0415 E

ZX.SRCM04

LWD-K 2010 E

ZX.SRCM01

XTS 10.12 A N

ZX.SRA06

AXS 0615 E

ZX.SRCM04

LWD-K 2010 G

ZX.SRCM01

XTS 10.15 N

ZX.SRA06

AXS 0915 E

ZX.SRCM04

LWD-K 2015 E

ZX.SRCM01

XTS 11.09 N

ZX.SRA06

AXS 1010 E

ZX.SRCM04

LWD-K 2015 G

ZX.SRCM01

XTS 11.11 N

ZX.SRA06

AXS 1310 E

ZX.SRCM04

LWD-K 2020 E

ZX.SRCM01

XTS 11.14 N

ZX.SRA06

AXS 1315 E

ZX.SRCM04

LWD-K 2020 G

ZX.SRCM01

XTS 11.15 N

ZX.SRA06

AXS 2015 E

ZX.SRCM04

LWD-K 2520 G

ZX.SRCM01

XTS 13.09 N

ZX.SRA06

FW2 3530S

ZX.SRCM03

LWD-K 3010 E

ZX.SRCM01

XTS 13.12 A N

ZX.SRA06

FW2 4022S

ZX.SRCM03

LWD-K 3010 G

ZX.SRCM01

XTS 13.12 N

ZX.SRA06

FW2 4030S

ZX.SRCM03

LWD-K 3015 E

ZX.SRCM01

XTS 13.15 N

ZX.SRA06

FW2 4530S

ZX.SRCM03

LWD-K 3015 G

ZX.SRCM01

XTS 8.10 N

ZX.SRA06

FWS2 3030E

ZX.SRCM03

LWD-K 3020 E

ZX.SRCM01

XTS 8.12 A N

ZX.SRA06

FWS2 3522E

ZX.SRCM03

LWD-K 3020 G

ZX.SRCM01

XTS 8.12 N

ZX.SRA06

FWS2 3530E

ZX.SRCM03

LWD-K 3025 G

ZX.SRCM01

XTS 8.14 N

ZX.SRA06

FWS2 3530G

ZX.SRCM03

LWD-K 3522 G

ZX.SRCM01

XTS 8.15 N

ZX.SRA06

FWS2 4030E

ZX.SRCM03

LWD-K 4020 G

ZX.SRCM01

XW 15.15 N

ZX.SRA08

FWS2 4030G

ZX.SRCM03

LW-K 2020 E

ZX.SRCM02

XW 15.20 N

ZX.SRA08

FWS2 4530E

ZX.SRCM03

LW-K 3016 E

ZX.SRCM02

XW 15.30 N

ZX.SRA08

LW 2015 E

ZX.SRCM01

LW-K 3016 S

ZX.SRCM02

XW 21.20 N

ZX.SRA08

LW 2015 S

ZX.SRCM01

LW-K 3020 S

ZX.SRCM02

XW 21.25 N

ZX.SRA08

LW 2020 E

ZX.SRCM01

LW-K 3025 S

ZX.SRCM02

XW 21.28 N

ZX.SRA08

LW 2020 S

ZX.SRCM01

LW-K 3517 S

ZX.SRCM02

XW 26.12 N

ZX.SRA08

LW 2520 S

ZX.SRCM02

LW-K 3525 S

ZX.SRCM02

XW 26.12 N

ZX.SRA08

LW 3016 E

ZX.SRCM02

LWR 2015 E

ZX.SRCM01

XW 26.20 N

ZX.SRA08

LW 3016 S

ZX.SRCM02

LWR 2015 S

ZX.SRCM01

XW 26.23 N

ZX.SRA08

LW 3020 S

ZX.SRCM02

LWR 2020 E

ZX.SRCM01

XWA 4 G20 N

ZX.SRA08

LW 3025 S

ZX.SRCM02

LWR 2020 S

ZX.SRCM01

XWA 4 G30 N

ZX.SRA08

LW 3513 E

ZX.SRCM02

LWR 3016 E

ZX.SRCM01

XWA 5.5 G22 N

ZX.SRA08

LW 3513 S

ZX.SRCM02

LWR 3016 S

ZX.SRCM01

XWA 5.5 G30 N

ZX.SRA08

LW 3517 S

ZX.SRCM02

LWR 3020 E

ZX.SRCM01

XWA 5.5 G40 N

ZX.SRA08

LW 3525 S

ZX.SRCM02

LWR 3020 S

ZX.SRCM01

XWA 7 G22 N

ZX.SRA08

LWD 2010 E

ZX.SRCM01

LWR 3025 S

ZX.SRCM01

XWA 7 G32 N

ZX.SRA08

LWD 2010 G

ZX.SRCM01

LWR 3513 E

ZX.SRCM01

XWA 7 G35 N

ZX.SRA08

LWD 2010 S

ZX.SRCM01

LWR 3513 S

ZX.SRCM01

Fitting COMET pumps

DOLLY SPARE PARTS FOR PUMPS GENERAL MAINTENANCE SET Model

Maintenance set

Model

Maintenance set

Model

Maintenance set

LWR 3517 E

ZX.SRCM01

RW 4035 S

ZX.SRCM07

TS921

ZX.SRIP03

LWR 3517 S

ZX.SRCM01

TW 4545 S

ZX.SRCM05

LWR 3525 S

ZX.SRCM01

TW 5050 S

ZX.SRCM05

LWR 4022 S

ZX.SRCM01

TW 5550 S

ZX.SRCM05

NHDP1015

ZX.SRH07

LWR-K 2020 S

ZX.SRCM01

TW 7036 S

ZX.SRCM06

NHDP1115

ZX.SRH07

LWR-K 3016 E

ZX.SRCM01

TW 8030 S

ZX.SRCM06

NHDP1215

ZX.SRH07

LWR-K 3016 S

ZX.SRCM01

TW 8036 S

ZX.SRCM06

NHDP1315

ZX.SRH07

LWR-K 3020 S

ZX.SRCM01

TWN 6036 S

ZX.SRCM06

NHDP1415

ZX.SRH07

LWR-K 3025 S

ZX.SRCM01

TWS 5050 S

ZX.SRCM05

NHDP1515

ZX.SRH07

LWR-K 3517 S

ZX.SRCM01

TWS 5550 S

ZX.SRCM05

NHDP8515

ZX.SRH07

LWR-K 3525 S

ZX.SRCM01

TWS 7040 S

ZX.SRCM05

NMT 1220

ZX.SRH04

LWR-K 4022 S

ZX.SRCM01

TWS 8035 S

ZX.SRCM06

NMT 1220CWR/L

ZX.SRH05

LWS 2010 E

ZX.SRCM01

TWS 9030 S

ZX.SRCM06

NMT 1220HTR/L

ZX.SRH08

LWS 2010 S

ZX.SRCM01

ZWD 2530 G

ZX.SRCM08

NMT 1220S

ZX.SRH04

LWS 2015 E

ZX.SRCM01

ZWD 3030 G

ZX.SRCM08

NMT 1220SCWR/L

ZX.SRH05

LWS 2015 S

ZX.SRCM02

ZWD 3040 G

ZX.SRCM08

NMT 1220SHTR/L

ZX.SRH08

LWS 2020 E

ZX.SRCM01

ZWD 3522 G

ZX.SRCM08

NMT 1520

ZX.SRH04

LWS 2020 S

ZX.SRCM01

ZWD 3525 G

ZX.SRCM08

NMT 1520CWR/L

ZX.SRH05

LWS 3010 E

ZX.SRCM01

ZWD 3530 G

ZX.SRCM08

NMT 1520HTR/L

ZX.SRH08

LWS 3010 S

ZX.SRCM02

ZWD 3540 G

ZX.SRCM08

NMT 1520S

ZX.SRH04

LWS 3015 S

ZX.SRCM01

ZWD 4020 G

ZX.SRCM08

NMT 1520SCWR/L

ZX.SRH05

LWS 3020 E

ZX.SRCM01

ZWD 4030 G

ZX.SRCM08

NMT 1520SHTR/L

ZX.SRH08

LWS 3020 S

ZX.SRCM01

ZWD 4040 G

ZX.SRCM08

NMT 1820

ZX.SRH04

LWS 3025 S

ZX.SRCM02

ZWD 4040 S

ZX.SRCM08

NMT 1820CWR/L

ZX.SRH05

LWS 3508 S

ZX.SRCM01

ZWD-K 3030 G

ZX.SRCM08

NMT 1820HTR/L

ZX.SRH08

LWS 3513 S

ZX.SRCM01

ZWD-K 3530 G

ZX.SRCM08

NMT 2120

ZX.SRH04

LWS 3517 S

ZX.SRCM02

ZWD-K 4030 G

ZX.SRCM08

NMT 2120CWR/L

ZX.SRH05

LWS 3525 S

ZX.SRCM01

NMT 2120HTR/L

ZX.SRH08

LWS 4007 S

ZX.SRCM02

LWS 4015 S

ZX.SRCM01

EZ4030G34

ZX.SRIP06

LWS 4020 S

ZX.SRCM01

EZ4035G34

ZX.SRIP06

FS2 150-15

ZX.SRIBG03

LWS-K 3015 S

ZX.SRCM02

EZ4040G

ZX.SRIP06

FS2 150-21

ZX.SRIBG05

LWS-K 3019 S

ZX.SRCM02

T1011

ZX.SRIP02

FS2 200-15

ZX.SRIBG03

LWS-K 3025 S

ZX.SRCM02

T1311

ZX.SRIP02

FS2 200-18

ZX.SRIBG04

LWS-K 3517 S

ZX.SRCM02

T1321

ZX.SRIP03

FS2 200-21

ZX.SRIBG05

LWS-K 3525 S

ZX.SRCM02

T1511

ZX.SRIP02

INDUSTRIALE 150-15

ZX.SRIBG08

LWS-K 4020 S

ZX.SRCM02

T1621

ZX.SRIP03

INDUSTRIALE 150-21

ZX.SRIBG13

MTP AX 1/70

ZX.SRCM04

T1631

ZX.SRIP03

INDUSTRIALE 200-15

ZX.SRIBG08

MTP AX 2/100

ZX.SRCM04

T2011

ZX.SRIP02

INDUSTRIALE 200-21

ZX.SRIBG13

MTP AX 2/70

ZX.SRCM04

T2031

ZX.SRIP02

LS 100-2 1450

ZX.SRIBG01

MTP AX 4/100

ZX.SRCM04

T9121

ZX.SRIP02

LS 100-8 2800

ZX.SRIBG10

MTP AX 4/70

ZX.SRCM04

T9131

ZX.SRIP02

LS 117-13 1450

ZX.SRIBG02

MTP AX 6/70

ZX.SRCM04

T9161

ZX.SRIP02

LS 140-11 1450

ZX.SRIBG02

MTP AXR 11/120

ZX.SRCM04

T921

ZX.SRIP03

LS 140-12 1750

ZX.SRIBG02

MTP AXR 11/120 TS

ZX.SRCM04

T9211

ZX.SRIP02

LS 140-8 1450

ZX.SRIBG10

MTP AXR 11/140

ZX.SRCM04

TS1011

ZX.SRIP02

LS 140-8 1750

ZX.SRIBG10

MTP AXR 11/140 TS

ZX.SRCM04

TS1021

ZX.SRIP02

LS 170-11 1450

ZX.SRIBG02

MTP AXR 11/170

ZX.SRCM04

TS1311

ZX.SRIP02

PRO 150-15

ZX.SRDP02

MTP AXR 11/170 TS

ZX.SRCM04

TS1321

ZX.SRIP03

PRO 150-21

ZX.SRDP02

MTP AXR 8/120

ZX.SRCM04

TS1331

ZX.SRIP02

PRO 170-15

ZX.SRDP02

MTP AXR 8/120 TS

ZX.SRCM04

TS1351

ZX.SRIP02

PRO 200-15

ZX.SRDP02

MTP AXR 9/140

ZX.SRCM04

TS1511

ZX.SRIP02

PRO 200-21

ZX.SRDP02

MTP AXR 9/140 TS

ZX.SRCM04

TS1521

ZX.SRIP02

TS 170-42

ZX.SRIBG07

RW 3035 S

ZX.SRCM07

TS1621

ZX.SRIP03

TS 200-33

ZX.SRIBG06

RW 3530 S

ZX.SRCM07

TS1711

ZX.SRIP02

TS 250-26

ZX.SRIBG06

RW 3535 S

ZX.SRCM07

TS2011

ZX.SRIP02

TS 345-18

ZX.SRIBG12

RW 4022 S

ZX.SRCM07

TS2021

ZX.SRIP02

RW 4030 S

ZX.SRCM07

TS821

ZX.SRIP02

Fitting GENERALPUMP pumps

Fitting HAWK pumps

IDROBASE pumps

DOLLY SPARE PARTS FOR PUMPS GENERAL MAINTENANCE SET Model

Maintenance set

CLUB DEI RIPARATORI

Fitting INTERPUMP pumps

Model

Maintenance set

WW176

ZX.SRIP04

WW186

ZX.SRIP04

W951

ZX.SRIP04

WW189

ZX.SRIP04

E2B1618

ZX.SRIP07

WW206

ZX.SRIP04

E2B1711

ZX.SRIP07

WW209

ZX.SRIP04

E2B1712

ZX.SRIP07

WW960

ZX.SRIP04

E2B1713

ZX.SRIP07

WW961

ZX.SRIP04

E2B2014

ZX.SRIP07

WW962

ZX.SRIP04

E2B2042

ZX.SRIP07

WW963

ZX.SRIP06

E2C1713

ZX.SRIP07

WW964

ZX.SRIP06

E2C1714

ZX.SRIP07

WW965

ZX.SRIP06

E2C1715

ZX.SRIP07

E2C2016

ZX.SRIP07

W101

ZX.SRIP02

MC 13/20 I

ZX.SRUD02

W112

ZX.SRIP05

MC 13/20 S

ZX.SRUD02

W124

ZX.SRIP05

MC 15/15 S

ZX.SRUD02

W130

ZX.SRIP04

MC 15/20 I

ZX.SRUD02

W131

ZX.SRIP02

MC 15/20 S

ZX.SRUD02

W132

ZX.SRIP03

MD 4.0/20 S

ZX.SRUD02

W140

ZX.SRIP05

MD 4.0/20 U

ZX.SRUD02

W150

ZX.SRIP04

MD 4.0/30 S

ZX.SRUD02

W151

ZX.SRIP02

MD 4.0/30 U

ZX.SRUD02

W154

ZX.SRIP05

MD 5.0/30 S

ZX.SRUD02

W162

ZX.SRIP03

MD 5.0/30 U

ZX.SRUD02

W163

ZX.SRIP03

ME 15/20 S

ZX.SRUD02

W170

ZX.SRIP04

ML 3.5/30 W

ZX.SRUD02

W201

ZX.SRIP02

ML 4.0/30 W

ZX.SRUD02

W203

ZX.SRIP02

ML 5.0/30 W

ZX.SRUD02

W912

ZX.SRIP02

W913

ZX.SRIP02

W916

ZX.SRIP02

W92

ZX.SRIP03

W921

ZX.SRIP02

W950

ZX.SRIP04

W952

ZX.SRIP04

W953

ZX.SRIP04

W954

ZX.SRIP05

W955

ZX.SRIP05

W956

ZX.SRIP05

W958

ZX.SRIP05

W959

ZX.SRIP05

W97

ZX.SRIP05

WS101

ZX.SRIP02

WS102

ZX.SRIP02

WS131

ZX.SRIP02

WS132

ZX.SRIP03

WS133

ZX.SRIP02

WS135

ZX.SRIP02

WS151

ZX.SRIP02

WS152

ZX.SRIP02

WS162

ZX.SRIP03

WS171

ZX.SRIP02

WS201

ZX.SRIP02

WS202

ZX.SRIP02

WS82

ZX.SRIP02

WS92

ZX.SRIP03

WW136

ZX.SRIP04

WW156

ZX.SRIP04

Fitting UDOR pumps

MAINTENANCE SET FOR PUMPS FOR AUTOMATIC CAR WASH AND SELF-SERVICE SYSTEMS

PUMP MAINTENANCE SET General maintenance set includes: • 1 valves kit • 1 O-rings set for brass caps • 3 complete seals packings • 1 plunger oil seals kit • mineral oil for h.p. pumps • 10ml threadlocker medium • 25ml technical grease

Fitting system

Fitting pump

Pump series

Pump model

Maintenance set code

AQUARAMA

ANNOVI REVERBERI

228

RCWS 11.10

ZX.SRA15

AQUARAMA

ANNOVI REVERBERI

228

RCWS 15.15

ZX.SRA15

AQUARAMA

ANNOVI REVERBERI

228

RCWS 15.20

ZX.SRA15

RYKO ITALIA

ANNOVI REVERBERI

228

RK 18.20 H N

ZX.SRA16

ISTOBAL

ANNOVI REVERBERI

298

RW 21.15 H N

ZX.SRA17

AQUARAMA ISTOBAL RYKO ITALIA

ANNOVI REVERBERI

194

XWL 42.07 N

ZX.SRA18

AUTOEQUIP WASHTECH

CAT

340

ZX.SRCT1

AUTOEQUIP CECCATO WASHTECH

CAT

350

ZX.SRCT1

WASHTECH

CAT

3CP1120

ZX.SRCT2

MIX WASHTECH

CAT

3CP1140

ZX.SRCT2

WASHTECH

CAT

5CP2120W

ZX.SRCT3

WASHTECH

CAT

5CP2140WCS

ZX.SRCT3

CECCATO MIX RYKO ITALIA WASHTECH

CAT

5CP2150W

ZX.SRCT3

MIX

HAWK

XLT

XLT 4017IR DX

ZX.SRH09

CECCATO

INTERPUMP

59 - CW

C3W2015

ZX.SRIP11

AUTOEQUIP

INTERPUMP

63 - HTS

HTS 6313

ZX.SRIP12

MIX

INTERPUMP

W130

ZX.SRIP04

CECCATO

INTERPUMP

W140

ZX.SRIP05

MIX

INTERPUMP

W154

ZX.SRIP05

AUTOEQUIP CECCATO RYKO ITALIA

INTERPUMP

W1550

ZX.SRIP11

AUTOEQUIP

INTERPUMP

ZX.SRIP12

AUTOEQUIP

INTERPUMP

W827

ZX.SRIP13

AUTOEQUIP

INTERPUMP

W99

ZX.SRIP14

AUTOEQUIP

INTERPUMP

WS137

ZX.SRIP14

ISTOBAL

INTERPUMP

WS82

ZX.SRIP02

CECCATO

UDOR

GC 30/20 S

ZX.SRUD03

DOLLY SPARE PARTS FOR PUMPS

CLUB DEI RIPARATORI

PUMP MAINTENANCE SET

Dolly spare parts fitting

Series

Model

Annovi Reverberi

126 (plungers ø18)

HPE 9.11 1450

750hrs

1500hrs

Includes: • 1 valves kit • 1 O-rings set for brass caps • 1 seal packing kit • mineral oil for h.p. pumps • 10ml threadlocker medium • 25ml technical grease

Includes: • 1 valves kit • 1 O-rings set for brass caps • 3 seal packing kit • 1 fastening plunger • 1 plungers kit • 1 plunger oil seals kit • mineral oil for h.p. pumps • 10ml threadlocker medium • 25ml technical grease

ZX.75A01

ZX.150A01

ZX.75A02

ZX.150A02

ZX.75A03

ZX.150A03

ZX.75CM01

ZX.150CM01

ZX.75CM02

ZX.150CM02

ZX.75CM03

ZX.150CM03

ZX.75H04

ZX.150H04

HPE 9.14 1450 HPE 10.10 1450 HPE 11.09 1450 HPE 11.11 1450 HPE 13.10 1450 Annovi Reverberi

132 (plungers ø18)

XT 9.14 N XT 10.15 N XT 11.11 N XT 11.14 N XT 13.09 N

Annovi Reverberi

228 (plungers ø18)

RK 14.16 N RK 15.15 N RK 15.20 H N

Comet

LW (plungers ø15)

LW 2015 S LW 2020 S LWS 2020 S LWS 3015 S LWS 3020 S

Comet

LW (plungers ø18)

LW 2520 S LW 3016 S LW 3020 S LW 3025 S

Comet

FW2

FW2 4022 S FW2 4030 S FW2 4030 E

Hawk

NMT (plungers ø20)

NMT 1220 NMT 1520 NMT 1820 NMT 2120 NMT 1220S NMT 1520S

DOLLY SPARE PARTS FOR PUMPS PUMP MAINTENANCE SET

Dolly spare parts fitting Hawk

750hrs

1500hrs

Includes: • 1 valves kit • 1 O-rings set for brass caps • 1 seals packing kit • mineral oil for h.p. pumps • 10ml threadlocker medium • 25ml technical grease

ZX.75H05

ZX.150H05

PRO 150-15

ZX.75DP02

ZX.150DP02

PRO 150-21

ZX.75DP02

ZX.150DP02

PRO 170-15

ZX.75DP02

ZX.150DP02

PRO 200-15

ZX.75DP02

ZX.150DP02

PRO 200-21

ZX.75DP02

ZX.150DP02

15l/min

ZX.75IBG08

ZX.150IBG08

21l/min

ZX.75IBG13

ZX.150IBG13

2l/min

ZX.75IBG01

ZX.150IBG01

4-6-8l/min

ZX.75IBG10

ZX.150IBG10

11-13l/min

ZX.75IBG02

ZX.150IBG02

15l/min

ZX.75IBG03

ZX.150IBG03

18l/min

ZX.75IBG04

ZX.150IBG04

21l/min

ZX.75IBG05

ZX.150IBG05

26-33l/min

ZX.75IBG06

ZX.150IBG06

42l/min

ZX.75IBG07

ZX.150IBG07

WW 136

ZX.75IP04

ZX.150IP04

ZX.75IP05

ZX.150IP05

ZX.75IP02

ZX.150IP02

ZX.75IP07

ZX.150IP07

ZX.75UD02

ZX.150UD02

Series

Model

NMT CAR WASH (plungers ø20)

NMT 1220CWR/L NMT 1520CWR/L NMT 1820CWR/L

Idrobase

Idrobase Idrobase

Idrobase

Idrobase Interpump

Dolly Pumps

Industriale LS

FS2

TS 44 (plungers ø15)

WW 156 WW 186 WW961 Interpump

44 (plungers ø18)

W 140 W 154 W 954 W 956

Interpump

47 (plungers ø20)

WS 102 WS 131 WS 151 WS 201

Interpump

58 (plungers ø18)

E2B1711 E2B1713 E2B2014

Udor

MC (plungers ø18)

MC 13/20 S MC 15/20 S

DOLLY SPARE PARTS FOR PUMPS

CLUB DEI RIPARATORI

SPECIAL TOOLS

Code

Description

ZX.2348

Complete set of special tools for h.p. pump maintenance

External

Ø35mm

Ø30mm

Ø30/35mm

Ø25mm

Set

Code

Description

ZX.2446

Seal assembly set

Ø20x32mm

Ø18x28mm

Ø15x25mm

Ø14x22mm

Ø15x28mm

DOLLY SPARE PARTS FOR PUMPS SPECIAL TOOLS

Code

Description

ZX.1972-5

Extractor with pliers

∅14

∅15

∅20

∅22

Video special tools

∅18

∅18,0/21,5mm

∅25,0/29,5mm Code

Description

ZX.2447

Oil seal maintenance kit

1/2” - 30/210 Nm Code

Description

CDR.CD12 Torque wrench

3/8” - 5/25 Nm Code

Description

CDR.CD38 Torque wrench

3/8” - 5/6mm

1/2” - 21mm

3/8” - 13mm

1/2” - 22mm

3/8” - 15mm

1/2” - 24mm

3/8” - 17mm

1/2” - 27mm

3/8” - 19mm

1/2” - 30mm

Code

Description

ZX.2442

Socket set for torque wrenches

DOLLY SPARE PARTS FOR PUMPS FITTING ANNOVI REVERBERI: SEARCH

CLUB DEI RIPARATORI

Use the table below to identify, according to the pump you have to service, the series and page where you can find all the spare parts necessary to service your pump.

Fitting pumps

Series

Page

Fitting pumps

Series

Page

Fitting pumps

Series

Page

Fitting pumps

Series

Page

CWX 15.15 N 950

194

RC 9.14 C + F6

320

RK 21.10 C

228

CWX 15.17 N 1750

194

RC 9.15 N

320

RK 21.10 N

228

RKV 4.5 G40H D+F41

228

RKV 5.5 G13 E+F32

228

CWX 15.17 N 1450

194

RC-M 01.10 N

320

RK 21.15 H C

GRKV 4 G30 +F35

228

RC-M 02.10 N

320

RK 21.15 H N

228

RKV 5.5 G40H D+F41

228

RR 13.20 C + FLANGE

322

GRKV 4 G30A +F35

228

RC-M 03.10 N

320

GRKV 4 G35H +F35

228

RC-M 04.10 N

320

RK 21.20 H N

228

RR 13.20 N

322

RKA 3.5 G22 N

228

RR 15.15 C + FLANGE

322

HPE 8.12 A 1450

126

RC-M 05.10 N

320

HPE 8.12 A 2800

126

RC-M 06.10 N

320

RKA 3.5 G25 E

228

RR 15.15 N

322

RKA 3.5 G25 N

228

RR 15.20 C + FLANGE

322

HPE 8.14 1450

126

RCA 2.5G25 N

HPE 8.14 2800

126

RCA 2G22 E + F8

320

RKA 3.5 G30 H E

228

RR 15.20 N

322

320

RKA 3.5 G30 H N

228

RR 15.25 H N

322

HPE 9.11 1450

126

HPE 9.14 1450

126

RCA 3.5G16 E + F8

320

RKA 3.5 G40 H N

228

RR 18.12 N

322

RCA 3.5G25 N

320

RKA 4 G20 E

228

RR 18.16 C + FLANGE

322

HPE 10.10 1450

126

HPE 10.10 2800

126

RCA 3G18 E + F8

320

RKA 4 G20 J+F22

228

RR 18.16 N

322

RCA 3G25 N

320

RKA 4 G20 N

228

RRA 3.5 G25 N

322

HPE 10.12 A 1450 HPE 10.12 A 2800

126

RCA-M 0.5G15 E + F8

320

RKA 4 G30 A N

228

RRA 3G30 E + FLANGE

322

126

RCA-M 1G15 E + F8

320

RKA 4 G30 H E

228

RRA 4G30 E +FLANGE

322

HPE 11.09 1450

126

RCA-M 2G15 E + F8

320

RKA 4 G30 H J+F22

228

RRA 4G30 N

322

HPE 11.09 2800

126

RCS 11.17 N

320

RKA G G30 H N

228

RRA 4G36 H N

322

HPE 11.11 1450

126

RCS 13.17 N

320

RKA 4 G30 N

228

RRA 5.5G26 E +FLANGE

322

HPE 11.11 2800

126

RCS 15.15 N

320

RKA 4 G36 H N

228

RRA 5.5G30 N

322

HPE 11.14 2800

126

RCS 8.17 N

320

RKA 4 G40 H N

228

RRV 3.5G20 E + FLANGE

322

HPE 13.09 2800

126

RCV 2.5G25 D + F7

320

RKA 4.5 G17 N

228

RRV 3.5G25 D + FLANGE

322

HPE 13.10 1450

126

RCV 2G25 E + F8

320

RKA 4.5 G25 H N

228

RRV 3.5G36 D + FLANGE

322

HPE 13.12 2800

126

RCV 3.5G25 D + F7

320

RKA 4.5 G30 H N

228

RRV 3G25 E + FLANGE

322

HPE 2 G15 1750

126

RCV 3G25 D + F7

320

RKA 4.5 G40 H N

228

RRV 3G27 D + FLANGE

322

HPE 2 G18 1750

126

RCV 3G25 E + F8

320

RKA 5.5 G13 E

228

RRV 3G30 D +LANGE

322

HPE 3 G13 1750

126

RK 11.14 N

228

RKA 5.5 G13 N

228

RRV 3G36 D + FLANGE

322

HPE 3.5 G10 1750

126

RK 11.20 H C

228

RKA 5.5 G20 H N

228

RRV 4G36 D + FLANGE

322

HPE 2G18 EM

RK 11.20 H N

228

RKA 5.5 G26 H N

228

RRV 4G40 H D + FLANGE

322

HPE 8.14 ET

RK 11.25 H N

228

RKA 5.5 G30 H N

228

RW 15.15 N

298

HPE 9.14 ET

RK 13.12 C

228

RKA 6.5 G13 E

228

RW 15.20H N

298

HPE-M 02.08 EM

RK 13.12 N

228

RKA 6.5 G13 N

228

RW 18.17 N

298

HPE-M 04.08 EM

RK 13.17 C

228

RKA 6.5 G20 H E

228

RW 18.20H N

298

HPE-M 06.08 EM

RK 13.17 N

228

RKA 6.5 G20 H N

228

RW 21.15H N

298

HPE-M 08.08 EM

RK 13.20 H C

228

RKA 7 G13 E

228

RW 21.20H N

298

HPE-M 11.07 EM

RK 13.20 H N

228

RKA 7 G13 N

228

SXM 11.20 C

178

HPE-M 13.06 EM

RK 14.16 C

228

RKA 7 G20 H E

228

SXM 11.20 N

178

RC 10.12 N

320

RK 14.16 N

228

RKA 7 G20 H N

228

SXM 13.20 C

178

RC 10.15 N

320

RK 15.15 C

228

RKV 3.5 G25 D+F41

228

SXM 13.20 N

178

RC 11.11 C + F6

320

RK 15.15 N

228

RKV 3.5 G25 E+F32

228

SXM 15.20 C

178

RC 11.17 N

320

RK 15.20 H C

228

RKV 3.5 G30H D+F41

228

SXM 15.20 N

178

RC 12.10 C + F44

320

RK 15.20 H N

228

RKV 3.5 G35H D+F41

228

SXMA 3 G30 N

178

RC 12.17 N

320

RK 15.25 H N

228

RKV 3.5 G40H D+F41

228

SXMA 3.5 G30 N

178

RC 13.17 C + F44

320

RK 15.28 H N

228

RKV 4 G20 E+F32

228

SXMA 4 G30 J+F22

178

RC 13.17 N

320

RK 18.12 C

228

RKV 4 G30 D+F41

228

SXMA 4 G30 N

178

RC 14.16 C + F44

320

RK 18.12 N

228

RKV 4 G30A D+F41

228

SXMS 11.20 C

178

RC 14.16 N

320

RK 18.16 H C

228

RKV 4 G32 D+F41

228

SXMS 11.20 N

178

RC 14.20 N

320

RK 18.16 H N

228

RKV 4 G35H D+F41

228

SXMS 13.20 C

178

RC 8.15 C + F6

320

RK 18.20 H N

228

RKV 4 G40H D+F41

228

SXMS 13.20 N

178

RC 8.15 N

320

RK 18.28 H N

228

RKV 4.5 G17 E+F32

228

SXMS 15.20 C

178

DOLLY SPARE PARTS FOR PUMPS FITTING ANNOVI REVERBERI: SEARCH Use the table below to identify, according to the pump you have to service, the series and page where you can find all the spare parts necessary to service your pump.

Fitting pumps

Series

Page

Fitting pumps

Series

Page

Fitting pumps

Series

Page

Fitting pumps

Series

Page

SXMS 15.20 N

178

XMV 3 G30 D+F40

178

XTA 3 G16 E

132

XTV 2 G20 E

132

SXMS 17.20 N

178

XMV 3 G30 N

178

XTA 3 G16 N

132

XTV 2 G20 N

132

SXMV 3 G35 D+F40

178

XMV 3.5 G22 D+F25

178

XTA 3 G19 E

132

XTV 2 G22 D

132

SXMV 3 G35 N

178

XMV 3.5 G22 D+F40

178

XTA 3 G19 N

132

XTV 2 G22 E

132

SXMV 3.5 G35 D+F40

178

XMV 3.5 G22 N

178

XTA 3 G22 N

132

XTV 2 G22 N

132

SXMV 3.5 G35 N

178

XMV 3.5 G25 D+F25

178

XTA 3.5 G13 E

132

XTV 3 G10 D

132

SXMV 4 G35 D+F40

178

XMV 3.5 G25 D+F40

178

XTA 3.5 G13 N

132

XTV 3 G10 E

132

SXMV 4 G35 N

178

XMV 3.5 G25 N

178

XTA 3.5 G17 E

132

XTV 3 G10 N

132

XM 11.17 C

178

XMV 3.5 G30 D+F40

178

XTA 3.5 G17 N

132

XTV 3 G16 D

132

XM 11.17 N

178

XMV 4 G20 D+F40

178

XTA 3.5 G20 N

132

XTV 3 G16 E

132

XM 13.17 C

178

XMV 4 G20 N

178

XTA 4 G10 N

132

XTV 3 G16 N

132

XM 13.17 N

178

XMV 4 G22 D+F40

178

XTA 4 G15 E

132

XTV 3 G18 N

132

XM 15.15 C

178

XMV 4 G22 N

178

XTA 4 G15 N

132

XTV 3 G20 D

132

XM 15.15 N

178

XMV 4 G25 D+F40

178

XTS 8.10 C

132

XTV 3 G20 E

132

XMA 2 G10 E

178

XMV 4 G25 N

178

XTS 8.10 D

132

XTV 3 G20 N

132

XMA 2 G15 E

178

XMV 4 G30 D+F40

178

XTS 8.10 N

132

XTV 3 G22 D

132

XMA 2 G22 E

178

XMV 4 G30 N

178

XTS 8.12 A C

132

XTV 3 G22 N

132

XMA 2.5 G18 E

178

XT 8.10 C

132

XTS 8.12 A D

132

XW 15.15 N

194

XMA 3 G18 E

178

XT 8.10 N

132

XTS 8.12 A N

132

XW 15.20 N

194

XMA 3 G25 E

178

XT 8.12 A C

132

XTS 8.12 N

132

XW 15.30 N

194

XMA 3 G25 J+F22

178

XT 8.12 A N

132

XTS 8.14 C

132

XW 21.20 N

194

XMA 3 G25 N

178

XT 8.12 N

132

XTS 8.14 D

132

XW 21.25 N

194

XMA 3.5 G22 E

178

XT 8.14 C

132

XTS 8.14 N

132

XW 21.28 N

194

XMA 3.5 G22 J+F22

178

XT 8.14 N

132

XTS 8.15 N

132

XW 26.12 N

194

XMA 3.5 G22 N

178

XT 8.15 N

132

XTS 10.10 N

132

XW 26.15 N

194

XMA 3.5 G25 E

178

XT 9.11 C

132

XTS 10.12 A N

132

XW 26.20 N

194

XMA 3.5 G25 J+F22

178

XT 9.11 N

132

XTS 10.15 N

132

XW 26.23 N

194

XMA 3.5 G25 N

178

XT 9.14 C

132

XTS 11.09 C

132

XW 30.10 N

194

XMA 4 G20 E

178

XT 9.14 N

132

XTS 11.09 N

132

XW 30.15 N

194

XMA 4 G20 J+F22

178

XT 9.15 N

132

XTS 11.11 C

132

XW 30.20 N

194

XMA 4 G20 N

178

XT 10.10 N

132

XTS 11.11 D

132

XW 30.25 N

194

XMS 11.17 C

178

XT 10.12 A N

132

XTS 11.11 N

132

XWA 4 G20 N

194

XMS 11.17 N

178

XT 10.15 N

132

XTS 11.14 C

132

XWA 4 G30 N

194

XMS 13.17 C

178

XT 11.07 N

132

XTS 11.14 D

132

XWA 5.5 G22 N

194

XMS 13.17 N

178

XT 11.09 C

132

XTS 11.14 N

132

XWA 5.5 G30 N

194

XMS 15.15 C

178

XT 11.09 N

132

XTS 11.15 N

132

XWA 5.5 G40 N

194

XMS 15.15 N

178

XT 11.11 C

132

XTS 13.09 C

132

XWA 7 G22 N

194

XMS 15.20 N

178

XT 11.11 N

132

XTS 13.09 D

132

XWA 7 G32 N

194

XMS 17.16 N

178

XT 11.14 N

132

XTS 13.09 N

132

XWA 7 G35 N

194

XMT 11.11 N

178

XT 11.15 N

132

XTS 13.12 A N

132

XWA 7 G40 N

194

XMTA 3.5 G22 N

178

XT 13.09 C

132

XTS 13.12 C

132

XWA 8 G19 N

194

XMV 2 G10 E+F32

178

XT 13.09 N

132

XTS 13.12 D

132

XWA 8 G29 N

194

XMV 2 G15 E+F32

178

XT 13.12 A N

132

XTS 13.12 N

132

XWA 8 G35 N

194

XMV 2 G22 E+F32

178

XT 13.12 N

132

XTS 13.15 N

132

XWA 9 G16 N

194

XMV 2.5 G18 E+F32

178

XT 13.15 N

132

XTV 2 G15 D

132

XWA 9 G24 N

194

XMV 3 G18 E+F32

178

XTA 2 G15 E

132

XTV 2 G15 E

132

XWA 9 G30 N

194

XMV 3 G25 D+F25

178

XTA 2 G15 N

132

XTV 2 G15 N

132

XMV 3 G25 D+F40

178

XTA 2 G20 E

132

XTV 2 G18 D

132

XMV 3 G25 N

178

XTA 2 G20 N

132

XTV 2 G18 N

132

XMV 3 G30 D+F25

178

XTA 2 G22 N

132

XTV 2 G20 D

132

DOLLY SPARE PARTS FOR MOTOR PUMPS ZX.0861

ZX.1534

ZX.0051

ZX.0851

Kit Dolly A1864, valves + O-rings

Kit Dolly A1866, seal packing ø15

Set Dolly A1866-60HP, h.p. seals ø15x28

Set Dolly A1866-60LP, l.p. seals ø15x22

quantity 3x6

quantity 6x3

quantity 1x60

ZX.1533

ZX.0247

ZX.0255

ZX.0862

Kit Dolly A1874, seal packing ø18

Set Dolly A1874-60HP, h.p. seals ø18x28

Set Dolly A1874-60LP, l.p. seals ø18x25

Kit Dolly A2040, O-rings

quantity 4x3

quantity 1x60

quantity 1

ZX.0098

ZX.0117 8mm

8mm

30mm

15mm

Kit Dolly A1865, oil seals

Kit Dolly A2628, ceramic plungers ø15x30

Kit Dolly A2629, ceramic plungers ø18x30

quantity 2x1 + 1x3

quantity 1x3

HPE 9.11 1450 * HPE 9.14 1450 * HPE 10.10 1450 * HPE 10.10 2800 * HPE 10.12 A 1450 * HPE 10.12 A 2800 * HPE 11.09 1450 * HPE 11.09 2800 *

• • • • • • • •

HPE 11.14 2800 * HPE 13.09 2800 *

• • • •

HPE 13.10 1450 * HPE 13.12 2800 * HPE 2 G15 1750 * HPE 2 G18 1750 *

• •

HPE 3 G13 1750 * HPE 3.5 G10 1750 *

Kit Dolly A1874 ZX.1533

• • • • • • • • • •

HPE 11.11 2800 *

Kit Dolly A1866 ZX.1534

HPE 11.11 1450 *

• • • • • • • • • •

Kit Dolly A1865 ZX.0099

HPE 8.14 2800 *

• • • •

Fitting motor pumps

Oil seals

Kit Dolly A2040 ZX.0862

HPE 8.14 1450 *

• • • • • • • • • • • •

Seal packing + O-rings

Valves

Kit Dolly A1864 ZX.0861

HPE 8.12 A 2800 *

• • • • • • • • • • • •

Kit Dolly A2629 ZX.0117

• • • •

Kit Dolly A2628 ZX.0098

Kit Dolly A1866 ZX.1534

• • • • • • • • • • • •

Plungers

Kit Dolly A1865 ZX.0099

Kit Dolly A1864 ZX.0861

HPE 8.12 A 1450 *

Oil seals

Kit Dolly A2040 ZX.0862

Fitting motor pumps

Kit Dolly A1874 ZX.1533

Seal packing + O-rings

Valves

18mm

• • • • • • • • • •

Plungers

Kit Dolly A2629 ZX.0117

ZX.0099

Kit Dolly A2628 ZX.0098

CLUB DEI RIPARATORI

FITTING ANNOVI REVERBERI SERIES 126 (HPE)

• • • • • • • • • •

• •

DOLLY SPARE PARTS FOR MOTOR PUMPS FITTING ANNOVI REVERBERI SERIES HPE-M ZX.0861

ZX.2625

ZX.2625-60HP

ZX.2625-60LP

Kit Dolly A1864, valves + O-rings

Kit Dolly A2709, seal packing ø15

Set Dolly A2709-60HP, h.p. seals ø15x28

Set Dolly A2709-60LP, l.p. seals ø15x22

quantity 3x6

quantity 4x3

quantity 1x60

ZX.1534

ZX.0051

ZX.0851

Kit Dolly A1866, seal packing ø15

Set Dolly A1866-60HP, h.p. seals ø15x28

Set Dolly A1866-60LP, l.p. seals ø15x22

quantity 6x3

quantity 1x60

ZX.2674

ZX.2674-60HP

ZX.2674-60LP

ZX.0862

Kit Dolly A42479, seal packing ø18

Set Dolly A42479-60HP, h.p. seals ø18x28

Set Dolly A42479-60LP, l.p. seals ø18x25

Kit Dolly A2040, O-rings

quantity 4x3

quantity 1x60

quantity 1

ZX.0099

ZX.0111

ZX.0098

ZX.0117 8mm

8mm

30mm

18mm

15mm

Kit Dolly A1865, oil seals

Kit Dolly A1872, oil seals

Kit Dolly A2628, ceramic plungers ø15x30

Kit Dolly A2629, ceramic plungers ø18x30

quantity 2x1 + 1x3

quantity 3x1 + 1x3

quantity 1x3

• • • • • • • • •

• • • •

•

• •

• • • •

Kit Dolly A2629 ZX.0117

• • • • • • •

Kit Dolly A2628 ZX.0098

• • • • • • • • •

Plungers Kit Dolly A1872 ZX.0111

Kit Dolly A42479 ZX.2674

Kit Dolly A1866 ZX.1534

• •

Oil seals Kit Dolly A1865 ZX.0099

HPE 8.14 ET

O-ring kit Kit Dolly A2040 ZX.0862

HPE 2G18 EM

Seal packing Kit Dolly A2709 ZX.2625

Fitting motor pumps

Kit Dolly A1864 ZX.0861

Valves

•

• • 25

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Annovi Reverberi - Series XT - Model 8.15N

FITTING ANNOVI REVERBERI SERIES 132 (XT) ZX.1534

ZX.0051

ZX.0851

Kit Dolly A1864, valves + O-rings

Kit Dolly A1866, seal packing ø15

Set Dolly A1866-60HP, h.p. seals ø15x28

Set Dolly A1866-60LP, l.p. seals ø15x22

quantity 3x6

quantity 6x3

quantity 1x60

CLUB DEI RIPARATORI

ZX.0861

ZX.0493

ZX.0854

ZX.0855

Kit Dolly A2520, seal packing ø15

Set Dolly A2520-60HP, h.p. seals ø15x28

Set Dolly A2520-60LP, l.p. seals ø15x22

quantity 6x3

quantity 1x60

ZX.1533

ZX.0247

ZX.0255

Kit Dolly A1874, seal packing ø18

Set Dolly A1874-60HP, h.p. seals ø18x28

Set Dolly A1874-60LP, l.p. seals ø18x25

quantity 4x3

quantity 1x60

ZX.0878

ZX.0111

ZX.0098

ZX.0117

8mm

30mm

15mm

18mm

Kit Dolly A1860, oil seals

Kit Dolly A1872, oil seals

Kit Dolly A2628, ceramic plungers ø15x30

Kit Dolly A2629, ceramic plungers ø18x30

quantity 3x1 + 1x3

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Annovi Reverberi - Series XT - Model 8.15N

FITTING ANNOVI REVERBERI SERIES 132 (XT)

XT 8.12 A C XT 8.12 A N * XT 8.12 N * XT 8.14 C XT 8.14 N * XT 8.15 N * XT 9.11 C XT 9.11 N * XT 9.14 C XT 9.14 N * XT 9.15 N * XT 10.10 N * XT 10.12 A N * XT 10.15 N * XT 11.07 N * XT 11.09 C XT 11.09 N * XT 11.11 C XT 11.11 N * XT 11.14 N * XT 11.15 N * XT 13.09 C XT 13.09 N * XT 13.12 A N * XT 13.12 N * XT 13.15 N * XTA 2 G15 E XTA 2 G15 N XTA 2 G20 E XTA 2 G20 N XTA 2 G22 N XTA 3 G16 E XTA 3 G16 N * XTA 3 G19 E XTA 3 G19 N * XTA 3 G22 N * XTA 3.5 G13 E XTA 3.5 G13 N * XTA 3.5 G17 E XTA 3.5 G17 N * XTA 3.5 G20 N * XTA 4 G10 N * XTA 4 G15 E XTA 4 G15 N * XTS 8.10 C XTS 8.10 D XTS 8.10 N * XTS 8.12 A C

•

• • • • •

• • • •

• • • • • • • • • • • • • • • • • • • • • •

• •

•

• •

• • • • • • • • • • • • •

• • • •

• •

• • • • • • • •

•

• • •

• • • • • • • • • • • • • • • • •

• • • • •

• • • • • • • • •

• • • •

XTS 8.12 A D XTS 8.12 A N * XTS 8.12 N * XTS 8.14 C XTS 8.14 D XTS 8.14 N * XTS 8.15 N * XTS 10.10 N *

•

XTS 10.12 A N * XTS 10.15 N *

• • • • • • • • • • • • • • • • • •

XTS 11.09 C XTS 11.09 N * XTS 11.11 C XTS 11.11 D XTS 11.11 N * XTS 11.14 C XTS 11.14 D XTS 11.14 N * XTS 11.15 N * XTS 13.09 C XTS 13.09 D XTS 13.09 N * XTS 13.12 A N * XTS 13.12 C XTS 13.12 D XTS 13.12 N * XTS 13.15 N * XTV 2 G15 D XTV 2 G15 E XTV 2 G15 N XTV 2 G18 D XTV 2 G18 N XTV 2 G20 D

• • • • • • • • • • • • •

XTV 2 G20 E XTV 2 G20 N XTV 2 G22 D XTV 2 G22 E XTV 2 G22 N XTV 3 G10 D XTV 3 G10 E XTV 3 G10 N XTV 3 G16 D XTV 3 G16 E XTV 3 G16 N XTV 3 G18 N XTV 3 G20 D XTV 3 G20 E XTV 3 G20 N XTV 3 G22 D XTV 3 G22 N

• • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • •

Kit Dolly A2629 ZX.0117

Plungers Kit Dolly A2628 ZX.0098

• • • • • • • • • • • • • • • • • • • • • • • • • • •

Kit Dolly A1872 ZX.0111

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Oil seals Kit Dolly A1860 ZX.0878

Fitting pumps

Seal packing Kit Dolly A1874 ZX.1533

Valves

Kit Dolly A2520 ZX.0493

Kit Dolly A2629 ZX.0117

Kit Dolly A2628 ZX.0098

Kit Dolly A1872 ZX.0111

Kit Dolly A1860 ZX.0878

Kit Dolly A1874 ZX.1533

• • • • • • • •

Kit Dolly A2520 ZX.0493

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Plungers

Kit Dolly A1866 ZX.1534

XT 8.10 N *

Oil seals

Kit Dolly A1864 ZX.0861

XT 8.10 C

Kit Dolly A1866 ZX.1534

Fitting pumps

Seal packing

Kit Dolly A1864 ZX.0861

Valves

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Annovi Reverberi - Series XM - Model 15.15 N

FITTING ANNOVI REVERBERI SERIES 178 (XM) ZX.0879

ZX.0647

Kit Dolly A1864, valves + O-rings

Kit Dolly A2125, valves + O-rings

Kit Dolly A2741, seal packing ø15

quantity 3x6

quantity 3x3

ZX.0857

ZX.0856

ZX.0643

Set Dolly A2741-60HP, h.p. seals ø15x28

Set Dolly A2741-60LP, l.p. seals ø15x22

Kit Dolly A2747, seal packing ø18

quantity 1x60

quantity 3x3

CLUB DEI RIPARATORI

ZX.0861

ZX.0858

ZX.0859

ZX.0880

ZX.0881

Set Dolly A2747-60HP, h.p. seals ø18x28

Set Dolly A2747-60LP, l.p. seals ø18x25

Kit Dolly A2740, head rings ø15

Kit Dolly A2745, head rings ø18

quantity 1x60

quantity 1x3

ZX.0882

ZX.0883

ZX.0884

ZX.0885 8mm

8mm

35mm

15mm

18mm

Kit Dolly A2786, oil seals

Kit Dolly A2787, oil seals

Kit Dolly A2739, ceramic plungers ø15x35

Kit Dolly A2746, ceramic plungers ø18x35

quantity 3x1 + 1x3

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Annovi Reverberi - Series XM - Model 15.15 N

FITTING ANNOVI REVERBERI SERIES 178 (XM)

SXM 15.20 C SXM 15.20 N SXMA 3 G30 N SXMA 3.5 G30 N SXMA 4 G30 J+F22 SXMA 4 G30 N SXMS 11.20 C SXMS 11.20 N SXMS 13.20 C SXMS 13.20 N SXMS 15.20 C SXMS 15.20 N SXMS 17.20 N SXMV 3 G35 D+F40 SXMV 3 G35 N SXMV 3.5 G35 D+F40 SXMV 3.5 G35 N SXMV 4 G35 D+F40 SXMV 4 G35 N XM 11.17 C XM 11.17 N * XM 13.17 C XM 13.17 N XM 15.15 C XM 15.15 N XMA 2 G10 E XMA 2 G15 E XMA 2 G22 E XMA 2.5 G18 E XMA 3 G18 E XMA 3 G25 E XMA 3 G25 J+F22 XMA 3 G25 N * XMA 3.5 G22 E XMA 3.5 G22 J+F22 XMA 3.5 G22 N * XMA 3.5 G25 E XMA 3.5 G25 J+F22 XMA 3.5 G25 N * XMA 4 G20 E XMA 4 G20 J+F22 XMA 4 G20 N XMS 11.17 C XMS 11.17 N * XMS 13.17 C XMS 13.17 N *

• • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • •

• • • • • • • • • • • • • •

• • • •

• •

• • • •

• • •

• • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • •

• • • •

• • • • • •

• • • • • • • • • • • • •

• • • •

• • •

• •

• • •

• • • •

• •

• • • • • • • • •

• • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • •

• • • • • • • • • • • • • •

• • • •

XMS 15.15 C XMS 15.15 N *

• • • •

XMS 15.20 N * XMS 17.16 N XMT 11.11 N * XMTA 3.5 G22 N * XMV 2 G10 E+F32 XMV 2 G15 E+F32

• •

XMV 2 G22 E+F32 XMV 2.5 G18 E+F32 XMV 3 G18 E+F32 XMV 3 G25 D+F25 XMV 3 G25 D+F40 XMV 3 G25 N * XMV 3 G30 D+F25 XMV 3 G30 D+F40 XMV 3 G30 N * XMV 3.5 G22 D+F25 XMV 3.5 G22 D+F40 XMV 3.5 G22 N * XMV 3.5 G25 D+F25 XMV 3.5 G25 D+F40 XMV 3.5 G25 N * XMV 3.5 G30 D+F40 XMV 4 G20 D+F40

• • • •

XMV 4 G20 N * XMV 4 G22 D+F40 XMV 4 G22 N * XMV 4 G25 D+F40 XMV 4 G25 N * XMV 4 G30 D+F40 XMV 4 G30 N * XMV 4 G32 D+F25 XMV 4 G32 D+F40 XMV 4 G32 E+F33

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • •

• • • • • • • •

Plungers

•

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • •

Kit Dolly A2746 ZX.0885

Kit Dolly A2786 ZX.0882

Oil seals Kit Dolly A2745 ZX.0881

Kit Dolly A2740 ZX.0880

Kit Dolly A2747 ZX.0643

Seal packing

Kit Dolly A2741 ZX.0647

Kit Dolly A2125 ZX.0879

• •

Fitting pumps

Kit Dolly A1864 ZX.0861

•

Kit Dolly A2746 ZX.0885

Kit Dolly A2786 ZX.0882

Kit Dolly A2745 ZX.0881

Kit Dolly A2740 ZX.0880

Kit Dolly A2747 ZX.0643

Kit Dolly A2741 ZX.0647

• •

• • • •

• •

Valves

Kit Dolly A2739 ZX.0884

SXM 13.20 N

• •

Plungers

Kit Dolly A2787 ZX.0883

SXM 13.20 C

• • • • • • • • • • • • • • • • • • • • • •

Oil seals

Kit Dolly A2739 ZX.0884

•

SXM 11.20 N

Seal packing

Kit Dolly A2787 ZX.0883

SXM 11.20 C

Kit Dolly A2125 ZX.0879

Fitting pumps

Kit Dolly A1864 ZX.0861

Valves

• • •

*Maintenance set available on page 13 29

DOLLY SPARE PARTS FOR PUMPS ZX.0893

ZX.0894

Kit Dolly A2780, valves + O-rings

Kit Dolly A2782, seal packing ø20

Set Dolly A2782-60HP, h.p. seals ø20x32

Set Dolly A2782-60LP, l.p. seals ø20x28

quantity 3x6

quantity 5x3

quantity 1x60

ZX.0853

ZX.1109

Kit Dolly A2783, seal packing ø22

Set Dolly A2783-60HP, h.p. seals ø22x32

Set Dolly A2783-60LP, l.p. seals ø22x30

quantity 5x3

quantity 1x60

CWX 15.17 N 1450 * Kit Dolly A2785, plunger guides ø22

quantity 2x3

CWX 15.17 N 1750 * XW 15.15 N * XW 15.20 N * XW 15.30 N * XW 21.20 N *

ZX.0874

XW 21.25 N *

ZX.2018

XW 21.28 N * XW 26.12 N * XW 26.15 N * XW 26.20 N * XW 26.23 N * XW 30.10 N XW 30.15 N

Kit Dolly A2781, oil seals

Kit Dolly A2873, oil seals

quantity 7x1 +1x3

quantity 1x3 + 4x1

XW 30.20 N XW 30.25 N XWA 4 G20 N * XWA 4 G30 N * XWA 5.5 G22 N * XWA 5.5 G30 N *

ZX.0876

ZX.0875 13mm

XWA 5.5 G40 N * XWA 7 G22 N *

13mm

XWA 7 G32 N * XWA 7 G35 N * 45mm

45mm

XWA 7 G40 N * XWA 8 G19 N *

22mm

20mm

XWA 8 G29 N * XWA 8 G35 N *

Kit Dolly A2650, ceramic plungers ø20x45

Kit Dolly A1891, ceramic plungers ø22x45

XWA 9 G16 N *

quantity 1x3

XWA 9 G30 N *

XWA 9 G24 N *

• • • • • • • • • • • • •

• • • • • • • • • • • •

• • • •

• • •

Kit Dolly A2784 ZX.0872

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • •

• • • • • • • • • • • •

Oil seals Kit Dolly A2781 ZX.0874

CWX 15.15 N 950 *

Kit Dolly A2783 ZX.0871

Fitting pumps

Kit Dolly A2784, plunger guides ø20

Plunger guides

Valves Seal packing

Kit Dolly A2785 ZX.0873

ZX.0873

Kit Dolly A2782 ZX.0870

ZX.0872

• • • •

• • • • • • • • • • • • • • • • •

• • •

Kit Dolly A2783 ZX.2018

ZX.0871

Plungers

• • • • • • • • • • • • •

• • • • • • • • • • • • • • •

• • • • • • • • • • • •

Kit Dolly A1891 ZX.0876

ZX.0870

Kit Dolly A2650 ZX.0875

ZX.0869

Kit Dolly A2780 ZX.0869

CLUB DEI RIPARATORI

FITTING ANNOVI REVERBERI SERIES 194 (XW)

• • • •

• • •

*Maintenance set available on page 13 30

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Annovi Reverberi - Series RK - Model 15.20 H N

FITTING ANNOVI REVERBERI SERIES 228 (RK) ZX.0685

ZX.0852

ZX.0097

ZX.0171

ZX.0250

Kit Dolly A1828, valves + O-rings

Kit Dolly A2864, valves + O-rings

Kit Dolly A1857, seal packing ø18

Set Dolly A1857-60HP, h.p. seals ø18x32

Set Dolly A1857-60LP, l.p. seals ø18x26

quantity 3x6

quantity 3x3

quantity 1x60

ZX.0494

ZX.0249

ZX.0611

Kit Dolly A1887, seal packing ø20

Set Dolly A1887-60HP, h.p. seals ø20x32

Set Dolly A1887-60LP, l.p. seals ø20x28

quantity 3x3

quantity 1x60

ZX.0863

ZX.0891

ZX.0892

Kit Dolly A1888, seal packing ø22

Set Dolly A1888-60HP, h.p. seals ø22x32

Set Dolly A1888-60LP, l.p. seals ø22x29

quantity 3x3

quantity 1x60

ZX.0864

ZX.0865

ZX.0866

ZX.0112

ZX.2624

ZX.0867

Kit Dolly A1829, head rings ø18

Kit Dolly A1815, head rings ø20

Kit Dolly A1816, head rings ø22

Kit Dolly A1855, oil seals

Kit Dolly A1855 NEW, oil seals

Kit Dolly A1856, oil seals

quantity 1x3

quantity 1x3 + 3x1

quantity 1x3 + 4x1

quantity 1x3 + 5x1

ZX.0492

ZX.0096 11mm

11mm

18mm

quantity 1x3

11mm

40mm

Kit Dolly A2757, ceramic plungers ø18x40

ZX.0868

Kit Dolly A2758, ceramic plungers ø20x40 quantity 1x3

20mm

40mm

Kit Dolly A2759, ceramic plungers ø22x40

22mm

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Annovi Reverberi - Series RK - Model 15.20 H N

FITTING ANNOVI REVERBERI SERIES 228 (RK)

• • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • •

• • • • • •

• • • • •

• • • • • • • • • • • • • • • • • •

• • • • •

• • • • • • • •

• • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • •

• • • • • • • •

• • • • • •

• • • •

• • • • •

• • • • • • • • • • • • •

• • • • •

• • • • • • •

• • • • • • • •

• • • • • • • • • • • • • • • • • •

• •

• • • • • •

• • • • • • •

•

• • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • •

• • • • •

Kit Dolly A2759 ZX.0868

Kit Dolly A2758 ZX.0492

Kit Dolly A2757 ZX.0096

Plungers

Kit Dolly A1856 ZX.0867

Kit Dolly A1855 ZX.0112

Kit Dolly A1816 ZX.0866

Oil seals Kit Dolly A1815 ZX.0865

Kit Dolly A1829 ZX.0864

• • • • • • • • • • • • • • • • • •

Kit Dolly A1888 ZX.0863

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Kit Dolly A1887 ZX.0494

Kit Dolly A1857 ZX.0097

RK 11.14 N * RK 11.20 H N * RK 11.20 H C * RK 11.25 H N * RK 13.12 N * RK 13.12 C * RK 13.17 C * RK 13.17 N * RK 13.20 H C * RK 13.20 H N * RK 14.16 C * RK 14.16 N * RK 15.15 C * RK 15.15 N * RK 15.20 H C * RK 15.20 H N * RK 15.25 H N * RK 15.28 H N * RK 18.12 C RK 18.12 N RK 18.16 H C RK 18.16 H N RK 18.20 H N RK 18.28 H N RK 21.10 C RK 21.10 N RK 21.15 H C RK 21.15 H N RK 21.20 H N RKA 3.5 G22 N * RKA 3.5 G25 E * RKA 3.5 G25 N * RKA 3.5 G30 H E * RKA 3.5 G30 H N * RKA 3.5 G40 H N * RKA 4 G20 E * RKA 4 G20 J+F22 * RKA 4 G20 N * RKA 4 G30 A N * RKA 4 G30 N * RKA 4 G30 H E * RKA 4 G30 H J+F22 * RKA 4 G30 H N * RKA 4 G36 H N * RKA 4 G40 H N * RKA 4.5 G17 N * RKA 4.5 G25 H N * RKA 4.5 G30 H N * RKA 4.5 G40 H N * RKA 5.5 G13 E RKA 5.5 G13 N RKA 5.5 G20 H N RKA 5.5 G26 H N RKA 5.5 G30 H N RKA 6.5 G13 E RKA 6.5 G13 N RKA 6.5 G20 H E RKA 6.5 G20 H N RKA 7 G13 E RKA 7 G13 N RKA 7 G20 H E RKA 7 G20 H N RKV 3.5 G25 D+F41 RKV 3.5 G25 E+F32 RKV 3.5 G30H D+F41 RKV 3.5 G35H D+F41 RKV 3.5 G40H D+F41 RKV 4 G20 E+F32 RKV 4 G30A D+F41 RKV 4 G30 D+F41 RKV 4 G32 D+F41 RKV 4 G35H D+F41 RKV 4 G40H D+F41 RKV 4.5 G17 E+F32 RKV 4.5 G40H D+F41 RKV 5.5 G13 E+F32 RKV 5.5 G40H D+F41 GRKV 4 G30A +F35 GRKV 4 G30 +F35 GRKV 4 G35H +F35

Seal packing + head rings Kit Dolly A2864 ZX.0852

Fitting pumps

Kit Dolly A1828 ZX.0685

CLUB DEI RIPARATORI

Valves

• • • • •

• • • • • • • •

*Maintenance set available on page 13 32

DOLLY SPARE PARTS FOR PUMPS FITTING ANNOVI REVERBERI SERIES 298 (RW) ZX.0886

Kit Dolly A42170 ZX.0889

Kit Dolly A2872 ZX.0890

Plungers

Kit Dolly A42172 ZX.0888

Oil seals

Kit Dolly A42171 ZX.0887

Plunger guides

Kit Dolly A42169 ZX.0886

Seal packing

RW 15.15 N *

•

RW 15.20H N *

•

RW 18.17 N *

•

RW 18.20H N *

•

RW 21.15H N *

•

RW 21.20H N *

•

Fitting pumps

Kit Dolly A42169, valves + O-rings

Valves

quantity 3x6

ZX.0887

ZX.0860

Kit Dolly A42171, seal packing ø18

Kit Dolly A42171-60HP, h.p. seals ø18x32

quantity 6x3

quantity 1x60

*Maintenance set available on page 13

ZX.0587

ZX.0888

Kit Dolly A42171-60LP, l.p. seals ø18x26

Kit Dolly A42172, plunger guides

quantity 1x60

quantity 2x3

ZX.0889

ZX.0890 6,5/10mm

48mm

18mm Kit Dolly A42170, oil seals

Kit Dolly A2872, ceramic plungers ø18x48

quantity 1x3 + 4x1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING ANNOVI REVERBERI SERIES 320 (RC) ZX.2406

•

RC 11.11 C + F6 *

•

RC 11.17 N *

•

RC 12.10 C + F44 *

•

RC 12.17 N *

•

RC 13.17 C + F44 *

•

RC 13.17 N *

•

RC 14.16 C + F44 *

•

Kit Dolly A42469, seal packing ø18

RC 14.16 N *

•

quantity 3x3

quantity 4x3

RC 14.20 N *

•

RC 8.15 C + F6 *

•

RC 8.15 N *

•

ZX.0881

ZX.2312

RC 9.14 C + F6 *

•

RC 9.15 N *

•

Kit Dolly A2191, head rings ø15

Kit Dolly A2745, head rings ø18

quantity 1x3

ZX.2305

ZX.2758

Kit Dolly A42468, oil seals

Kit Dolly A42474, oil seals

quantity 1 + 1x3

ZX.2304

ZX.2759 8mm

8mm

30mm

18mm

15mm

Kit Dolly A42475, ceramic plungers ø15x30

Kit Dolly A42467, ceramic plungers ø18x30

quantity 1x3

•

• •

•

• •

•

• •

•

• •

•

RC-M 01.10 N

•

RC-M 02.10 N

•

RC-M 03.10 N

•

RC-M 04.10 N

•

RC-M 05.10 N

•

RC-M 06.10 N

•

RCA 2.5G25 N *

•

RCA 2G22 E + F8 *

•

RCA 3.5G16 E + F8 *

•

RCA 3.5G25 N *

•

RCA 3G18 E + F8 *

•

RCA 3G25 N *

•

• •

Kit Dolly A42476, seal packing ø15

•

ZX.2407

•

Kit Dolly A42467 ZX.2759

•

Kit Dolly A42475 ZX.2304

•

Kit Dolly A42474 ZX.2758

Kit Dolly A42468 ZX.2305

•

Kit Dolly A2191 ZX.2312

•

Kit Dolly A42469 ZX.2407

•

Kit Dolly A42494 ZX.2406

•

Kit Dolly A2186 ZX.2320

Kit Dolly A2745 ZX.0881

quantity 3x6

ZX.2318

•

quantity 2x6

Plungers

RC 10.15 N *

•

Kit Dolly A42494, valves + O-rings

Oil seals

RC 10.12 N *

Fitting pumps

Kit Dolly A2186, valves + O-rings

Plunger seal packing

Seal packing

•

CLUB DEI RIPARATORI

Valves

Kit Dolly A42476 ZX.2318

ZX.2320

RCA-M 0.5G15 E + F8

•

RCA-M 1G15 E + F8

•

RCA-M 2G15 E + F8

•

RCS 11.17 N *

•

RCS 13.17 N *

•

RCS 15.15 N *

•

RCS 8.17 N *

•

RCV 2.5G25 D + F7 *

•

RCV 2G25 E + F8 *

•

RCV 3.5G25 D + F7 *

•

RCV 3G25 D + F7 *

•

RCV 3G25 E + F8 *

•

DOLLY SPARE PARTS FOR PUMPS FITTING ANNOVI REVERBERI SERIES 322 (RR) ZX.0685

ZX.2401

ZX.2403

ZX.0852

low pressure seal

Kit Dolly A42549, seal packing ø18

Kit Dolly A1828, valves + O-rings

Kit Dolly A2864, valves + O-rings

Kit Dolly A42556, seal packing ø15

quantity 3x6

quantity 4x3

quantity 5x3

ZX.2402

ZX.2312

ZX.0881

ZX.2404

For pumps manufactured from May 15th 2022

Kit Dolly A2191, head rings ø15

Kit Dolly A2745, head rings ø18

Kit Dolly A42547, oil seals

quantity 4x3

quantity 1x3

quantity 1 + 1x3

For pumps manufactured before May 15th 2022

low pressure seal

ZX.0884

ZX.0885 8mm

8mm

35mm

18mm

Kit Dolly A2739, ceramic plungers ø15x35

Kit Dolly A2746, ceramic plungers ø18x35

quantity 1 + 1x3

quantity 1x3

RR 13.20 N * RR 15.15 C + FLANGE * RR 15.15 N * RR 15.20 C + FLANGE * RR 15.20 N * RR 15.25 H N * RR 18.12 N * RR 18.16 C + FLANGE * RR 18.16 N * RRA 3.5 G25 N * RRA 3G30 E + FLANGE * RRA 4G30 E + FLANGE *

• • • • • • • • • • • •

• • • • • • • • • • • • •

• •

•

• •

•

• • •

Kit Dolly A2745 ZX.0881

ZX.2402 from May 15th 2022

Kit Dolly A47110

ZX.2401 before May 15th 2022

Kit Dolly A42549

Kit Dolly A2191 ZX.2312

Plunger seal packing

Seal packing

Kit Dolly A42556 ZX.2403

Fitting pumps

Kit Dolly A1828 ZX.0685

Valves

Kit Dolly A2864 ZX.0852

Kit Dolly A2746 ZX.0885

•

Plungers

Kit Dolly A2739 ZX.0884

•

Kit Dolly A42547 ZX.2404

Kit Dolly A2191 ZX.2312

ZX.2402 from May 15th 2022

Kit Dolly A47110

ZX.2401 before May 15th 2022

Kit Dolly A42556 ZX.2403

Kit Dolly A42549

•

Oil seals

Kit Dolly A42555 ZX.2405

•

Plunger seal packing

Seal packing

Kit Dolly A2745 ZX.0881

RR 13.20 C + FLANGE *

Kit Dolly A1828 ZX.0685

Fitting pumps

Kit Dolly A2864 ZX.0852

Valves

Oil seals

Plungers

Kit Dolly A2746 ZX.0885

Kit Dolly A42555, oil seals

Kit Dolly A42555 ZX.2405

15mm

Kit Dolly A2739 ZX.0884

ZX.2405

Kit Dolly A42547 ZX.2404

Kit Dolly A47110, seal packing ø18

•

RRA 4G30 N *

•

RRA 4G36 HN*

•

RRA 5.5G26 E + FLANGE *

•

RRA 5.5G30 N *

•

RRV 3.5G20 E + FLANGE

•

RRV 3.5G25 D + FLANGE

•

RRV 3.5G36 D + FLANGE

•

RRV 3G25 E + FLANGE

•

RRV 3G27 D + FLANGE

•

RRV 3G30 D + FLANGE

•

RRV 3G36 D + FLANGE

•

RRV 4G36 D + FLANGE

•

RRV 4G40 H D + FLANGE

•

• •

•

DOLLY SPARE PARTS FOR PUMPS FITTING ANNOVI REVERBERI SERIES 402 (RG-RGA)

Kit Dolly A2872 ZX.0890

Kit Dolly A46848, seal packing ø18

Kit Dolly A42171-60HP, h.p. seals ø18x32

quantity 5x3

quantity 1x60

Plungers

Kit Dolly A2873 ZX.2018

ZX.0860

Oil seals

Kit Dolly A42172 ZX.0888

ZX.2464

Plunger guides

Kit Dolly A46848 ZX.2464

quantity 3x6

Seal packing

RG 13.17 N *, RG 15.15 N *

•

RG 15.20H N *, RG 15.25H N *

•

RG 18.17 N *, RG 18.20H N *

•

RG 21.15 N *, RG 21.20H N *

•

RG 21.25H N *

•

RG 24.10N

•

RGA 4 G22 N *, RGA 4 G30 H N *, RGA 5.5 G22 N *, RGA 5.5 G30 H N *

•

Fitting pumps

Kit Dolly A42169, valves + O-rings

Valves

Kit Dolly A42169 ZX.0886

CLUB DEI RIPARATORI

ZX.0886

• •

•

*Maintenance set available on page 13

ZX.0587

ZX.0888

Kit Dolly A42171-60LP, l.p. seals ø18x26

Kit Dolly A42172, plunger guides

quantity 1x60

quantity 2x3

ZX.2018

ZX.0890 6,5/10mm

48mm

18mm

Kit Dolly A2873, oil seals

Kit Dolly A2872, ceramic plungers ø18x48

quantity 1x3 + 4x1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING CAT (FOR MEDIUM TEMPERATURES) ZX.2584

ZX.2440 Fitting pumps

4DNX25GSI

Set Dolly C20, valves with O-rings and seal packing ø14

Set Dolly C19, valves with O-rings

quantity 3x3 + 4x3

quantity 3x3

4DNX27GSI

FITTING CAT (FOR MEDIUM TEMPERATURES) ZX.1931

ZX.1932

ZX.1872

Kit Dolly C13, valves + O-rings

Kit Dolly C14, valves + O-rings

Kit Dolly C16, valves + O-rings

quantity 3x3

quantity 6x3

ZX.1871

ZX.1933

ZX.1934

Kit Dolly C17, seal packing ø14

Kit Dolly C7, seal packing ø16

Kit Dolly C5, seal packing ø18

quantity 5x3

ZX.1935

ZX.1936

ZX.1937

Kit Dolly C8, seal packing ø18

Kit Dolly C9, seal packing ø18

Kit Dolly C11, seal packing ø18

quantity 5x3

quantity 9x3

quantity 4x3

ZX.1938

ZX.1939

ZX.1940

Kit Dolly C4, seal packing ø20

Kit Dolly C6, seal packing ø20

Kit Dolly C10, seal packing ø20

quantity 5x3

quantity 6x3

quantity 4x3

DOLLY SPARE PARTS FOR PUMPS FITTING CAT (FOR MEDIUM TEMPERATURES)

quantity 2x3

ZX.1928

Kit Dolly C2, valves + O-rings quantity 8x3

ZX.1929

Kit Dolly C3, valves + O-rings quantity 3x3

ZX.1930

Kit Dolly C12, valves + O-rings quantity 7x3 - 6x3

30 31 34 35 53 56 57 58 59 60 230 240 270 310 310W 340 340W 350 350W 530 2SF10ES 2SF20ES 2SF22ELS 2SF22ES 2SF22SLS 2SF29ELS 2SF30ES 2SF30GS 2SF35ES 2SF35GS 2SFX20ES 2SFX22ES 2SFX22GS 2SFX25ES 2SFX25GZ 2SFX29ELS 2SFX30GS 2SFX30GZ 2SFZ35GS 3CP1120 3CP1130 3CP1140 4SF30GS1 4SF32ELS 4SF35GS1 4SF40ELS 4SF40GS1 4SF45ELS 4SF45GS1/GS118 4SF50ELS 4SF50GS1 5CP2120W 5CP2140WCS 5CP2150W 5CP6120 5CP6120G1 5DX30G1 5DX35G1 5DX40G1 5DX50G1 66DX30G1I 66DX35G1I 66DX40G1I

• • • •

• • • • • •

• • •

• • • • • • • • • • • • • • • • • • •

• • • • •

•

• • •

ZX.1940

ZX.1939

ZX.1938

ZX.1937

•

• •

• • • •

• • • • • • • • •

• • • •

•

• • • • •

ZX.1936

ZX.1934

ZX.1933

ZX.1871

ZX.1932

ZX.1931

Seal packing

ZX.1930

ZX.1929

ZX.1928

ZX.1927

ZX.1872

CLUB DEI RIPARATORI

Fitting pumps

Kit Dolly C1, valves + O-rings

Valves

ZX.1935

ZX.1927

• • •

• • • •

• • • • • •

•

• • •

• • • • • • • • •

• • • • •

DOLLY SPARE PARTS FOR PUMPS FITTING COMET SERIES AX, AXD, AXR AND AXS

AXD 2520 E * AXD 3020 E * AXD 2010 E *

ZX.1920

ZX.1924

AXD 3020 G * AXD 2520 G * AXD 3522 G * AXD 3025 G * AXD 3020 G * AXD 3025 G *

Set Dolly Com67, compl. seal packing Ø14

Set Dolly Com63, plunger oil seals Ø14x22

quantity 6x1

quantity 1x3

AXD 3522 G * AXD 2516 G * AXD 3525 G * AXD 2518 G * AXD 2527 G *

ZX.1922

ZX.1921

AXD 4030 G AXD 3030 G AXD 3530 G AXS 1010 E * AXS 0915 E * AXS 2015 E * AXS 1310 E *

Dolly Com64, shaft oil seal Ø40x55x7

Dolly Com65, shaft oil seal Ø30x42x7

quantity 1

AXS 1315 E * AXS 0415 E * AXS 0615 E *

Kit Dolly Com66 ZX.1923-3

Dolly Com65 ZX.1922

• • • • • • • • • • • • • • • • • • • • • •

ZX.1574

• • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • •

Head and by-pass

• • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • •

CDR.2029

• • • • • • • • • • • • • • •

Plungers

• • • • • • • • • • • • • • •

Kit Dolly Com68 ZX.1925-3

• • • • • • • • • • • • • • • • • • • • • • • • •

Shaft oil seal Dolly Com64 ZX.1921

AXD 2020 E *

Plunger oil seals

quantity 5x3

Kit Dolly Com63 ZX.1920

quantity 3x6

Compl. seal packing

Kit Dolly Com62, seal packing Ø14

Kit Dolly Com67 ZX.1924

Kit Dolly Com61, valves + O-rings

Seal packing

Fitting motor pumps

15,80mm

Kit Dolly Com62 ZX.1919

15,80 mm

Valves

ZX.1919

Kit Dolly Com61 ZX.1918

ZX.1918

• • • • • • • • • • • • • • • • • •

•

• •

14mm

Set Dolly Com66, oil seals Ø14 with spring support rings

Set Dolly Com68, oil seals Ø14 with spring support rings

quantity 3x3

MTP AX 4/70 * MTP AX 6/70 * MTP AX 2/100 * MTP AX 4/100 * MTP AXR 8/120 TS *

CDR.2029

ZX.1574

MTP AXR 9/140 TS * MTP AXR 11/120 TS * MTP AXR 11/140 TS * MTP AXR 11/170 TS *

MTP AXR 8/120 * MTP AXR 9/140 * MTP AXR 11/120 * Brass manifold set, fitting Comet AX series, with complete seal packings, valves, brass caps and built-in by-pass valve Copyright© Idrobase Group. All rights reserved.

Spare parts kit fitting unloader valve MTP AX

MTP AXR 11/140 * MTP AXR 11/170 *

• • • • • • • • • • • • • • • •

• • • • • • • • • •

• • • • • •

• • • • • • • • • •

Head and by-pass

• • • • • • • • • • • • • • • •

Set Dolly Com68 ZX.1925-3

• • • • • • • • • • • • • • • •

Set Dolly Com66 ZX.1923-3

MTP AX 2/70 *

Dolly Com65 ZX.1922

MTP AX 1/70 *

Dolly Com64 ZX.1921

83,5 mm

Kit Dolly Com63 ZX.1920

Fitting motor pumps

Kit Dolly Com67 ZX.1924

ZX.1925-3

Kit Dolly Com62 ZX.1919

ZX.1923-3

Kit Dolly Com61 ZX.1918

*Maintenance set available on page 14

• • • • • •

• • • • • • • • • • • • • • •

*Maintenance set available on page 14 39

DOLLY SPARE PARTS FOR PUMPS FITTING COMET SERIES ZWD, ZWD-K ZX.1114

ZX.0844

ZX.0845

Kit Dolly Com5, valves + O-rings

Kit Dolly Com41, seal packing ø15

Set Dolly Com8-60HP, h.p. seals ø15x28

Set Dolly Com8-60LP, l.p. seals ø15x22

quantity 3x6

quantity 5x3

quantity 1x60

CLUB DEI RIPARATORI

ZX.0029

quantity 1x3

ZX.0830

ZX.0444

ZX.0463-3

Plungers

ZX.0828

quantity 6x1

Oil seals

ZX.1115

Kit Dolly Com36, plunger oil seals ø15x24x5

Complete seal packing

ZX.1114

Kit Dolly Com42, complete seal packing ø15

Seal packing

ZX.0029

Fitting pumps

Valves

ZX.0444

ZX.1117

ZX.0830

ZX.0828

ZWD 2530 G *

•

• •

Dolly Com43, shaft oil seal ø40x62x7

ZWD 3030 G *

•

• •

quantity 1

ZWD 3040 G *

•

• •

ZWD 3522 G *

•

• •

ZWD 3525 G *

•

• •

ZWD 3530 G *

•

• •

ZWD 3540 G *

•

• •

ZWD 4020 G *

•

• •

ZWD 4030 G *

•

• •

ZWD 4040 G *

•

• •

ZWD 4040 S *

•

• • • • •

ZX.0463-3 9mm

30mm

15mm

ZX.1117

ZX.1115

ZWD-K 3030 G * Dolly Com38, shaft oil seal ø25x62x10/7

Kit Dolly Com14, fastening plunger kit

Set Dolly Com6, ceramic plungers ø15x30

•

• •

ZWD-K 3530 G *

•

• •

quantity 1

quantity 4x3

quantity 1x3

ZWD-K 4030 G *

•

• •

FITTING COMET RANGER ZX.0831

ZX.0469

*Maintenance set available on page 15

ZX.0832

ZX.0484-3 Fitting Comet h.p. washers pumps: • FD RANGER II • FD RANGER PLUS • KB • UNIDASH 83mm

15mm

Kit Dolly Com39, valves + O-rings

Kit Dolly Com7, seal packing ø15

Kit Dolly Com9, piston oil seals ø15x24

Set Dolly Com10, plungers ø15

quantity 3x6

quantity 3x3

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING COMET SERIES LW(-K), LWS(-K), LWR(-K), LWD(-K) ZX.0029

ZX.0470

ZX.0844

Kit Dolly Com5, valves + O-rings

Kit Dolly Com8, seal packing ø15

Set Dolly Com8-60HP, h.p. seals ø15x28

quantity 3x6

quantity 4x3

quantity 1x60

ZX.0845

ZX.0409

ZX.0846

Set Dolly Com8-60LP, l.p. seals ø15x22

Kit Dolly Com12, seal packing ø18

Kit Dolly Com12-60HP, h.p. seals ø18x28

quantity 1x60

quantity 4x3

quantity 1x60

ZX.0847

ZX.0742

ZX.0743

Set Dolly Com12-60LP, l.p. seals ø18x25

Kit Dolly Com15, complete seal packing ø15

Kit Dolly Com16, complete seal packing ø18

quantity 1x60

quantity 5x1

ZX.0828

ZX.0829

ZX.0830

Kit Dolly Com36, plunger oil seals ø15x24x5

Dolly Com37, shaft oil seal ø35x62x7

Dolly Com38, shaft oil seal ø25x62x10/7

quantity 1x3

quantity 1

ZX.0444

ZX.0463-3

ZX.0530-3 9mm

9mm

30mm

Kit Dolly Com14, plunger fastening kit,

15mm Set Dolly Com6, ceramic plungers ø15x30

18mm Set Dolly Com11, ceramic plungers ø18x30

quantity 4x3

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING COMET SERIES LW(-K), LWS(-K), LWR(-K), LWD(-K)

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

•

• • •

• • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

•

• • •

•

• • • • •

• • • • • •

• • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • •

•

• • •

LWD 3015 S * LWD 3015 E * LWD 3015 G * LWD 3020 S * LWD 3020 E * LWD 3020 G * LWD 3025 S * LWD 3025 G * LWD 3515 G * LWD 3522 S * LWD 3522 G * LWD 4020 S * LWD 4020 G * LW-K 2020 E * LW-K 3016 S * LW-K 3016 E * LW-K 3020 S * LW-K 3025 S * LW-K 3517 S * LW-K 3525 S * LWS-K 2010 E * LWS-K 2020 S * LWS-K 3015 S * LWS-K 3019 S * LWS-K 3025 S * LWS-K 3517 S * LWS-K 3525 S * LWS-K 4020 S * LWR-K 2020 S * LWR-K 3016 S * LWR-K 3016 E * LWR-K 3020 S * LWR-K 3025 S * LWR-K 3517 S * LWR-K 3525 S * LWR-K 4022 S * LWD-K 2010 E * LWD-K 2010 G * LWD-K 2015 E * LWD-K 2015 G * LWD-K 2020 E * LWD-K 2020 G * LWD-K 2520 G * LWD-K 3010 E * LWD-K 3010 G * LWD-K 3015 E * LWD-K 3015 G * LWD-K 3020 E * LWD-K 3020 G * LWD-K 3025 G * LWD-K 3522 G * LWD-K 4020 G *

• •

• • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • •

• •

• • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • •

•

• • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • •

• •

• • • • • • • • • • • • • • • • • • • • • • • •

ZX.0530-3

ZX.0463-3

ZX.0444

Plungers

ZX.0830

ZX.0829

Oil seals

ZX.0828

• • • • • • • • • • • • •

ZX.0743

ZX.0742

Fitting pumps

Seal Complete packing seal packing

ZX.0409

Valves

ZX.0530-3

ZX.0463-3

ZX.0444

ZX.0830

ZX.0829

ZX.0828

ZX.0743

• • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Plungers

ZX.0470

• •

• • • • • • • • •

ZX.0742

• • • •

ZX.0409

Oil seals

ZX.0029

LW 2015 S * LW 2015 E * LW 2020 S * LW 2020 E * LW 2520 S * LW 3016 S * LW 3016 E * LW 3020 S * LW 3025 S * LW 3513 S * LW 3513 E * LW 3517 S * LW 3525 S * LWS 2010 S * LWS 2010 E * LWS 2015 S * LWS 2015 E * LWS 2020 S * LWS 2020 E * LWS 3010 S * LWS 3010 E * LWS 3015 S * LWS 3020 S * LWS 3020 E * LWS 3025 S * LWS 3508 S * LWS 3513 S * LWS 3517 S * LWS 3525 S * LWS 4007 S * LWS 4015 S * LWS 4020 S * LWR 2015 S * LWR 2015 E * LWR 2020 S * LWR 2020 E * LWR 3016 S * LWR 3016 E * LWR 3020 S * LWR 3020 E * LWR 3025 S * LWR 3513 S * LWR 3513 E * LWR 3517 S * LWR 3517 E * LWR 3525 S * LWR 4022 S * LWD 2010 S * LWD 2010 E * LWD 2010 G * LWD 2015 S * LWD 2015 E * LWD 2015 G * LWD 2020 S * LWD 2020 E * LWD 2020 G * LWD 2520 G * LWD 2525 G * LWD 3010 S * LWD 3010 E * LWD 3010 G *

ZX.0470

Fitting pumps

Seal Complete packing sealpacking

ZX.0029

CLUB DEI RIPARATORI

Valves

• • • • • • • • • • • • •

*Maintenance set available on page 14

DOLLY SPARE PARTS FOR PUMPS FITTING COMET SERIES FW, FWS, FWD

Kit Dolly Com1, seal packing ø18

Set Dolly Com1-60HP, h.p. seals ø18x32

quantity 3x6

quantity 6x3

quantity 1x60

Kit Dolly Com2, seal packing ø20

Set Dolly Com2-60HP, h.p. seals ø20x32

FW 3525 E

quantity 6x3

quantity 1x60

FW 3530 E

FW 3530 S FW 4022 S FW 4022 E

ZX.0744

FW 4030 S

ZX.0745

FW 4030 E FW 5023 S FW 5023 E FW 5030 S FW 5522 S FW 5522 E FW 5526 S

Kit Dolly Com17, complete seal packing ø18

Kit Dolly Com18, complete seal packing ø20

quantity 8x1

FW 5530 S FWS 3522 E FWS 3530 S FWS 3530 E FWS 4022 E

ZX.0825

ZX.0826

FWS 4030 S

ZX.0827

FWS 4030 E FWS 4030 G FWS 4525 S FWS 4530 S FWS 4530 E FWS 5520 S

Kit Dolly Com33, plunger oil seals ø20x30x5

Dolly Com34, shaft oil seal ø25x52x7

Dolly Com35, shaft oil seal ø40x52x7

quantity 1x3

quantity 1

FWS 5525 S FWS 5530 E FWS 6020 S FWD 3522 E FWD 3522 G FWD 3530 E

ZX.0435

ZX.0693-3

FWD 3530 G

ZX.0694-3

FWD 4020 E 11mm

11mm

FWD 4020 G FWD 4030 E

44mm

FWD 4030 G FWD 4517 G FWD 4525 G

Kit Dolly Com13, fastening plunger kit,

18mm Set Dolly Com3, ceramic plungers ø18x44

20mm Set Dolly Com4, ceramic plungers ø20x44

quantity 5x3

quantity 1x3

FWD 4530 E FWD 4530 G FWD 5513 G

• • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • •

• • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • •

ZX.0745

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • •

ZX.0826

FW 3525 S

Oil seals

ZX.0825

FW 3016 S

ZX.0744

Fitting pumps

Seal Plunger packing sealpacking

ZX.0557

Valves

ZX.0558

ZX.0939

ZX.0029

ZX.0558

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • •

Plungers

• • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • •

ZX.0694-3

Kit Dolly Com5, valves + O-rings

ZX.0693-3

ZX.0934

ZX.0435

ZX.0557

ZX.0827

ZX.0029

• • • • • • •

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Comet - Series FW2 - Model 4030S

ZX.1560

Kit Dolly Com5, valves + O-rings

Kit Dolly Com47, valves + O-rings

Kit Dolly Com50, seal packing ø18

Set Dolly Com52, seal packing ø18

quantity 3x6

quantity 6x3

ZX.0846

ZX.0939

ZX.0558

Valves

Seal packing

Complete Oil seals seal packing

Plungers

ZX.1544

ZX.1561

FWS2 3530G *

ZX.0745

FW2 3540S FW2 4022S * FW2 4030S * FWS2 4030E * FWS2 4030G *

Kit Dolly Com51, complete seal packing ø18

Kit Dolly Com53, complete seal packing ø18

Kit Dolly Com18, complete seal packing ø20

quantity 8x1

FW2 4040S FW2 4530S * FWS2 4530E * FW2 4540S FW2 5030S

ZX.1572

FWS2 5030E

ZX.0826

FWS2 5030G FWS2 5040S FWS2 5130S FW2 5522S FWS2 5525S FW2 5530S

Kit Dolly Com54, plunger oil seals ø20x28x5

Dolly Com34, shaft oil seal ø25x52x7

quantity 1x3

quantity 1

ZX.0435

FWS2 5530E FWS2 6020S

•

• • • •

• • • • •

•

• •

• • •

• • • • • • • • •

• • • •

• • •

•

• • • • • • •

• • • • • •

• • • • • • • • • • • • • • • • • • • • • • • •

*Maintenance set available on page 14

ZX.0693-3

ZX.0694-3 11mm

11mm

44mm

18mm

ZX.0435

FWS2 3530E *

• • • • •

ZX.0826

FW2 3530S *

• • • • •

ZX.1572

quantity 1x60

• • • • • • • • • • • • • • •

ZX.0745

quantity 6x3

FWS2 3522E *

ZX.1561

quantity 1x60

FWS2 3030E *

ZX.1544

Set Dolly Com2-60HP, seal packing h.p. ø20x32

ZX.0558

Kit Dolly Com2, seal packing ø20

ZX.1560

Set Dolly Com12-60HP, seal packing h.p. ø18x28

ZX.1311

Fitting pumps

ZX.0694-3

ZX.1543

ZX.0693-3

ZX.1311

ZX.1543

ZX.0029

CLUB DEI RIPARATORI

FITTING COMET SERIES FW2, FWS2

20mm

Kit Dolly Com13, fastening plunger kit,

Set Dolly Com3, ceramic plungers ø18x44

Set Dolly Com4, ceramic plungers ø20x44

quantity 5x3

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING COMET SERIES RW ZX.0029

ZX.1311

ZX.1308

ZX.1314

Kit Dolly Com5, valves + O-rings

Kit Dolly Com47, valves + O-rings

Kit Dolly Com45, seal packing ø18

Set Dolly Com45-60HP, h.p. seals ø18x28

quantity 3x6

quantity 6x3

quantity 1x60

Set Dolly Com46-60HP, h.p. seals ø20x30

quantity 1x60

quantity 6x3

quantity 1x60

ZX.1317

ZX.1312

ZX.1313

Set Dolly Com46-60LP, l.p. seals ø20x28

Kit Dolly Com48, complete seal packing ø18

Kit Dolly Com49, complete seal packing ø20

quantity 1x60

quantity 8x1

quantity 1

ZX.1304

ZX.0693-3

ZX.0694-3 11mm

11mm

44mm

Kit Dolly Com44, fastening plunger kit,

18mm Set Dolly Com3, ceramic plungers ø18x44

20mm Set Dolly Com4, ceramic plungers ø20x44

quantity 5x3

quantity 1x3

• •

• • • • • • • •

• •

•

• • • • • • • • • • • • •

• •

•

Plungers

ZX.1304

quantity 1x3

• • • • • • • • • •

Oil seals

ZX.0826

Dolly Com34, shaft oil seal ø25x52x7

Plunger seal packing

ZX.1572

Kit Dolly Com54, plunger oil seals ø20x28x5

RW 3035 S * RW 3040 S RW 3530 S * RW 3535 S * RW 3540 S RW 4022 S * RW 4030 S * RW 4035 S * RW 4040 S RW 4540 S RW 5022 S * RW 5030 S * RW 5035 S * RW 5040 S RW 5522 S * RW 5530 S * RW 5535 S * RW 6030 S *

Seal packing

ZX.1313

Fitting pumps

Valves

ZX.1309

ZX.0826

ZX.1311

ZX.1572

•

• • • • • • • • • • • • • • • • • •

• • • • • • • • • • • •

• •

•

ZX.0694-3

Kit Dolly Com46, seal packing ø20

ZX.0693-3

Set Dolly Com45-60LP, l.p. seals ø18x26

ZX.1312

ZX.1315

ZX.1308

ZX.1309

ZX.0029

ZX.1316

• • • • • • • • • • • • •

*Maintenance set available on page 15 45

DOLLY SPARE PARTS FOR PUMPS FITTING COMET SERIES TW, TWS, TWN ZX.0814

Kit Dolly Com19, valves + O-rings

Kit Dolly Com20, valves + O-rings

quantity 3x6

quantity 4x6

CLUB DEI RIPARATORI

ZX.0824

ZX.0815

ZX.0952

ZX.0940

Kit Dolly Com21, seal packing ø18

Set Dolly Com21-60HP, h.p. seals ø18x28

Set Dolly Com21-60LP, l.p. seals ø18x26

quantity 6x3

quantity 1x60

ZX.1550

ZX.0941

ZX.0942

Kit Dolly Com22, seal packing ø22

Set Dolly Com22-60HP, h.p. seals ø22x32

Set Dolly Com22-60LP, l.p. seals ø22x30

quantity 6x3

quantity 1x60

ZX.0817

ZX.0959

ZX.0960

Kit Dolly Com23, seal packing ø25

Set Dolly Com23-60HP, h.p. seals ø25x35

Set Dolly Com23-60LP, l.p. seals ø25x33

quantity 6x3

quantity 1x60

DOLLY SPARE PARTS FOR PUMPS FITTING COMET SERIES TW, TWS, TWN

Kit Dolly Com26, complete seal packing ø25

quantity 9x1

quantity 8x1

ZX.0813

ZX.0821

Valves

Seal packing

Plunger seal packing

Oil seals

Plungers

Dolly Com28, shaft oil seal ø30x52x7

quantity 1x3

quantity 1

• • • • •

TW 7036 S * TW 8030 S * TW 8036 S * TW 10025 S

ZX.0435

TW 11025 S

ZX.0823

TWS 5050 S * TWS 5550 S * TWS 7040 S * TWS 8035 S * TWS 9030 S * TWS 10025 S TWS 13020 S TWN 6036 S * TWN 7025 S

• • •

• • • • •

• •

• • • •

•

• • •

• •

Kit Dolly Com13, fastening plunger kit, ø18

Kit Dolly Com29, fastening plunger kit, ø22 and ø25

TWN 8025 S

quantity 5x3

*Maintenance set available on page 15

ZX.0627-3

ZX.0612-3

• • • • • • • • • • • • • • • • • •

• • •

ZX.0823

• • • • • • • • • • • • • • • • • •

• • • • • • • •

• • •

• • • • • • • •

• • • • • • •

ZX.0613-3 14mm

11mm

ZX.0820

ZX.0819

• • •

• • • • • • • • • •

ZX.0818

ZX.0817

ZX.1550

• • •

ZX.0435

TW 5550 S * Kit Dolly Com27, plunger oil seals ø22x32x7

• • •

ZX.0821

TW 5050 S *

ZX.0813

TW 4545 S *

ZX.0814

Fitting pumps

ZX.0613-3

Kit Dolly Com25, complete seal packing ø22

ZX.0612-3

Kit Dolly Com24, complete seal packing ø18

ZX.0627-3

ZX.0820

ZX.0815

ZX.0819

ZX.0824

ZX.0818

14mm

53mm

52mm

18mm

22mm

25mm

Set Dolly Com30, ceramic plungers ø18x52

Set Dolly H6/Com31, ceramic plungers ø22x53

Set Dolly H7/Com32, ceramic plungers ø25x53

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS

DAC-1563A DAC-1571A Kit Dolly D1, valves + O-rings

Kit Dolly D2, valves + O-rings

quantity 3x6

DBC-1504.5C5 DBC-1506.5A DBC-1506A DBC-1507A DBC-1507B

ZX.2032

ZX.2033

ZX.2034

DBC-1507C DBC-1508A DBC-1509A DBC-1509B DBC-1509C DBC-1509C5 DBC-1510A DBC-1510B DBC-1510C DBC-1510GA DBC-1512A

Kit Dolly D4, seal packing ø15

Kit Dolly D5, head rings ø15

Kit Dolly D6, plunger oil seals ø15

quantity 4x3

quantity 1x3

DBC-1512B DBC-1512C DBC-1512C4 DBC-1512GA

ZX.2035

ZX.2036

ZX.2037

DBC-1514B DBC-1514C DBC-1514C4 DBC-1514GA DBD-1807A DBD-1807B DBD-1807C DBD-1807HM DBD-1809A DBD-1809B DBD-1809C

Kit Dolly D7, seal packing ø18

Kit Dolly D8, head rings ø18

Kit Dolly D9, plunger oil seals ø18

quantity 4x3

quantity 1x3

DBD-1809C4 DBD-1810A DBD-1810B DBD-1810C DBD-1810C4

ZX.2038

ZX.2039

DBD-1810HM DBD-1812B DBD-1812C DBD-1812C4 DBD-1812GA DBD-1814B DBD-1814C DBD-1814GA DBD-1814HM DBF-1821 DBF-1821FG2

Set Dolly D10, steel/ceramic plungers ø15x89,5mm

Set Dolly D11, steel/ceramic plungers ø18x106,5mm

quantity 1x3

DBQ-1814B DPF-1851 DPF-1895

• • • • • • • • • • • • • • • • • • • • • • • • • •

Plungers

ZX.2038

• • • • • • • • • • • • • • • • • • • • • • • • • •

ZX.2039

Plunger oil seals

ZX.2037

ZX.2036

Plunger seal packing

ZX.2033

Seal packing

ZX.2035

ZX.2030

Fitting pumps

ZX.2029

Valves

ZX.2032

ZX.2030

CLUB DEI RIPARATORI

ZX.2029

ZX.2034

FITTING DANAU

• • • • • • • • • • • • • • • • • • • • • • • • • •

DOLLY SPARE PARTS FOR PUMPS FITTING FAIP SERIES TK ZX.0440

ZX.0056

ZX.0039

Kit Dolly A, valves + O-rings, fitting Faip: TK12, TK15, TK215

Kit Dolly F12, h.p. seals ø18x30 fitting Faip: TK12

Kit Dolly F8, h.p. seals ø20x30 fitting Faip: TK15, TK215

quantity 3x6

quantity 3x3

ZX.1244-3

ZX.0073

12mm

42mm

18mm

Set Dolly F4, ceramic plungers ø18x42 fitting Faip: TK12

Kit Dolly F2, plunger oil seals ø20x30x7 fitting Faip: TK12, TK15, TK215

quantity 1x3

DOLLY SPARE PARTS FOR HIGH PRESSURE WASHERS FITTING FAIP AMERICAN FIRE AND IDROBASE BRAVA ZX.1305

ZX.0403

Kit Dolly F5, valves + O-rings

Kit Dolly F3, seal packing and oil seals ø14

quantity 2x6 + 1x4

quantity 3x3

DOLLY SPARE PARTS FOR PUMPS FITTING HAWK SERIES D ZX.0943

Set Dolly H13/15-60HP, h.p. seals ø20x30

quantity 3x6

quantity 5x2

quantity 1x60

ZX.0778

ZX.0078

ZX.0610-3

Kit Dolly H15, seal packing ø20

ZX.0078

Kit Dolly H8, valves + O-rings

HC165AL HC165AR HC168R HC170 HC170L HC170R HC190 HC190L HC190R

Plungers

ZX.0778

Fitting pumps

Seal packing Oil seals

ZX.0446

Valves

ZX.0055

ZX.0446

CLUB DEI RIPARATORI

ZX.0055

• • • • • • • • •

• •

• • • • • • • • •

• • • • • •

ZX.0610-3 11mm

38mm

20mm Kit Dolly H34, plunger oil seals ø20x30x7

Dolly H35, shaft oil seal ø25x42x7

Set Dolly H4, ceramic plungers ø20x38

quantity 1x3

quantity 1

quantity 1x3

HC310L HC310R HC320L HC320R Kit Dolly H11, valves + O-rings

Kit Dolly H12, seal packing ø18

Set Dolly H12-60HP, h.p. seals ø18x30

quantity 3x6

quantity 5x3

quantity 1x60

HC330L HC330R HC340L HC340R HC350L

ZX.0072

ZX.0080

HC350R

ZX.0609-3

HC370L 9mm

HC370R HS310 HS330L

39mm

HS330R HS335CL HS335CR

18mm

Kit Dolly H32, plunger oil seals ø16 quantity 1x3

Dolly H36, shaft oil seal ø25x62x10

Set Dolly H3, ceramic plungers ø18x39

quantity 1

quantity 1x3

HS340L HS340R HS350L HS350R HS370L HS370R

Seal packing

• • • • • • • • • • • • • • • • • • • • • • •

• •

• • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • •

• • • • • • • • •

Oil seals

Plungers

ZX.0609-3

Fitting pumps

Valves

ZX.0080

ZX.0944

ZX.0072

ZX.0642

ZX.0692

FITTING HAWK SERIES SST

• • • • • • • • • • • •

• • • • • •

DOLLY SPARE PARTS FOR PUMPS

quantity 3x6

quantity 5x3

ZX.0248

ZX.0943

Set Dolly H12-60HP, h.p. seals ø18x30

Kit Dolly H13, seal packing ø20

Set Dolly H13/15-60HP, h.p. seals ø20x30

quantity 1x60

quantity 5x3

quantity 1x60

ZX.0944

ZX.0768

ZX.0769

Kit Dolly H23, complete seal packing ST ø20

Kit Dolly H24, complete seal packing MT-MTI ø20

quantity 8x1

ZX.0072

ZX.0778

ZX.0078

Kit Dolly H32, plunger oil seals ø16x24x5

Kit Dolly H34, plunger oil seals ø20x30x7

Dolly H35, shaft oil seal ø25x42x7

quantity 1x3

quantity 1

ZX.0079

ZX.0464-3

ZX.A1126

11mm

46mm

18mm

20mm

Dolly H33, shaft oil seal ø25x47x7

Set Dolly H2, ceramic plungers ø18x46

Set Dolly H1, ceramic plungers ø20x46

quantity 1

quantity 1x3

ZX.A1126

ZX.0464-3

ZX.0072

ZX.0769

• • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

ZX.0768

• • • •

ZX.0079

Kit Dolly H12, seal packing ø18

Plungers

ZX.0078

Kit Dolly H20, valves + O-rings

• • • • • • • • • • • • • • • •

Oil seals

ZX.0778

Kit Dolly H8, valves + O-rings

Series ST: HC200A HC200AL HC200AR HC205AL HC205AR HC215R HC235R HC240A HC240AL HC240AR HC240I HC240IL HC240IR HC280A HC280AL HC280AR Series MT: H300 H300L H300R H306 H306R H306A H400 H406 HC450 HC450L HC450R HC456 HC456L HC456R HC460L HC460R HC500 HC500L HC500R HC506 HC506L HC506R HC530L HC530R HC536L HC536R HC550 HC556 HC580L HC580R HC586L HC586R Series MTI: HC450IL HC450IR HC450SIL HC450SIR HC456IL HC456IR HC456SIL HC456SIR HC500IL HC500IR HC500SIL HC500SIR HC506IL HC506IR HC506SIL HC506SIR HC550IL HC550IR HC556IL HC556IR HC570IL HC570IR HC576IL HC576IR

Seal Compl. seal packing packing

ZX.0248

Fitting pumps

Valves

ZX.0642

ZX.1093

ZX.0055

FITTING HAWK SERIES ST-MT-MTI

• • • • • • • • • • • • • • • •

• • •

• • • • • • • • • • • • • • • • • • • •

• • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • 51

DOLLY SPARE PARTS FOR PUMPS ZX.2043

ZX.2396

ZX.2397

Kit Dolly H54, valves + O-rings

Kit Dolly H62, seal packing ø16

Set Dolly H62-60HP, h.p. seals ø16

quantity 3x6

quantity 4x3

quantity 1x60

ZX.2398

ZX.2408

ZX.2400

Set Dolly H62-60LP, l.p. seals ø16

Set Dolly H67, pair of screws for brass head fixing*

Kit Dolly H66, complete seal packing ø16

quantity 1x60

quantity 1x2

quantity 1x5

ZX.2048

ZX.2399

ZX.2045

Kit Dolly H63, plunger oil seals ø18

Dolly H64, shaft oil seal ø25

Set Dolly H65, ceramic plungers ø16x46,55mm

quantity 1x3

quantity 1

quantity 1x3

Plungers

Valves

ZX.2399

ZX.2045

NHDP0412

•

NHDP1315 *

•

NHDP0612

•

NHDP1415 *

•

NHDP8512

•

NHDP1515 *

•

NHDP1012

•

NHDP8520

•

NHDP1112

•

NHDP1020

•

NHDP1212

•

NHDP1120

•

NHDP8515 *

•

NHDP1220

•

NHDP1015 *

•

NHDP1320

•

NHDP1115 *

•

NHDP1420

•

NHDP1215 *

•

NHDP1520

•

ZX.2043

ZX.2048

Plungers

ZX.2408

Shaft oil seal

ZX.2400

Plunger oil seals

ZX.2396

Head screws

ZX.2043

Fitting pumps

Complete Seal seal packing packing

ZX.2045

Shaft oil seal

ZX.2399

Plunger oil seals

ZX.2048

Head screws

ZX.2408

Fitting pumps

Complete Seal seal packing packing

ZX.2400

Valves

ZX.2396

CLUB DEI RIPARATORI

FITTING HAWK SERIES NHDP

*Maintenance set available on page 15 **We suggest replacing the head fixing screws each time the water seals of the NHDP pump are replaced

DOLLY SPARE PARTS FOR PUMPS FITTING HAWK SERIES NMT ZX.1093

ZX.1747

Fitting pumps • NMT 1220S * • NMT 1520S * • NMT 1220 * • NMT 1520 * • NMT 1820 * • NMT 2120 *

*Maintenance set available on page 15 Kit Dolly H20, valves + O-rings

Set Dolly H49-50 O-rings, for valves Kit Dolly H20

quantity 3x6

quantity 1x50

ZX.1748

ZX.1734

ZX.1737

Set Dolly H50-50 O-rings, O-rings for valve caps Kit Dolly H20

Kit Dolly H39, seal packing ø20

Set Dolly H39-60HP, h.p. seals ø20x30

quantity 1x50

quantity 7x3

quantity 1x60

ZX.1736

ZX.1735

ZX.1761

Set Dolly H39/43-60LP, l.p. seals ø20x28

Set Dolly H40, complete seal packing ø20

Set Dolly H52-50 O-rings O-rings for packing retainers for Kit Dolly H40-44-47

quantity 1x60

quantity 9x1

quantity 1x50

ZX.0072

ZX.0079

ZX.A1126 11mm

46mm

20mm Kit Dolly H32, plunger oil seals ø16

Dolly H33, shaft oil seal ø25x47x7

Set Dolly H1, ceramic plungers ø20x46

quantity 1x3

quantity 1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS For Car Wash

FITTING HAWK SERIES NMT CAR WASH ZX.1093

ZX.1747

Fitting pumps

CLUB DEI RIPARATORI

• NMT 1220SCWR/L * • NMT 1520SCWR/L * • NMT 1220CWR/L * • NMT 1520CWR/L * • NMT 1820CWR/L * • NMT 2120CWR/L *

*Maintenance set available on page 15 Kit Dolly H20, valves + O-rings

Set Dolly H49-50 O-rings, for valves Kit Dolly H20

quantity 3x6

quantity 1x50

ZX.1748

ZX.1738

ZX.1743

Set Dolly H50-50 O-rings, O-rings for valve caps Kit Dolly H20

Kit Dolly H43, seal packing ø20

Set Dolly H43/46-60HP, h.p. seals ø20x30

quantity 1x50

quantity 7x3

quantity 1x60

ZX.1736

ZX.1739

ZX.1761

Set Dolly H39/43-60LP, l.p. seals ø20x28

Kit Dolly H44, complete seal packing ø20

Set Dolly H52-50 O-rings O-rings for packing retainers for Kit Dolly H40-44-47

quantity 1x60

quantity 9x1

quantity 1x50

ZX.0072

ZX.0079

ZX.A1126 11mm

46mm

20mm

Kit Dolly H32, plunger oil seals ø16

Dolly H33, shaft oil seal ø25x47x7

Set Dolly H1, ceramic plungers ø20x46

quantity 1x3

quantity 1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS

For car washes and industrial applications up to 85°C

FITTING HAWK SERIES NMT HIGH TEMPERATURES ZX.1093-HT

ZX.1749

Fitting pumps • NMT 1220SHTR/L * • NMT 1520SHTR/L * • NMT 1220HTR/L * • NMT 1520HTR/L * • NMT 1820HTR/L * • NMT 2120HTR/L *

*Maintenance set available on page 15

Kit Dolly H20-HT, high temperature valve + O-rings

Set Dolly H51-50 O-rings, High temperature O-ring for Kit Dolly H20 valves

quantity 3x6

quantity 1x50

ZX.1748-HT

ZX.1744

ZX.1743

Set Dolly H50-HT O-rings, High temperature O-rings for valve caps Kit Dolly H20

Kit Dolly H46, seal packing ø20

Set Dolly H43/46-60HP, h.p. seals ø20x30

quantity 1x50

quantity 6x3

quantity 1x60

ZX.1746

ZX.1745

ZX.1761

Set Dolly H48-60HP, h.p. seals ø20x28

Kit Dolly H47, complete seal packing ø20

Set Dolly H52-50 O-rings O-rings for packing retainers for Kit Dolly H40-44-47

quantity 1x60

quantity 8x1

quantity 1x50

ZX.0072

ZX.0079

ZX.A1126 11mm

46mm

20mm Kit Dolly H32, plunger oil seals ø16

Dolly H33, shaft oil seal ø25x47x7

Set Dolly H1, ceramic plungers ø20x46

quantity 1x3

quantity 1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS

CLUB DEI RIPARATORI

FITTING HAWK SERIES NPM AND NPM-GR ZX.1093

ZX.1747

ZX.1748

Kit Dolly H20, valves + O-rings

Set Dolly H49-50 O-rings, for valves Kit Dolly H20

Set Dolly H50-50 O-rings, O-rings for valve caps Kit Dolly H20

quantity 3x6

quantity 1x50

ZX.2067

ZX.2376

ZX.2438

Kit Dolly H72, seal packing ø15

Kit Dolly H57, seal packing ø18

Kit Dolly H78, complete seal packing ø15

quantity 6x3

quantity 7x3

quantity 8x1

ZX.2437

ZX.1761

ZX.0072

Kit Dolly H77, complete seal packing ø18

Set Dolly H52-50 O-rings O-rings for packing retainers for Kit Dolly H77-78

Kit Dolly H32, plunger oil seals ø16

quantity 9x1

quantity 1x50

quantity 1x3

ZX.0079

ZX.2390

ZX.0464-3 11mm

46mm

18mm

quantity 1

quantity 1x3

NPM1525L NPM1525LN

• • • •

NPM1525RN NPM1825B NPM1825L

• • • •

NPM1825LN NPM1825R NPM1825RN NPM1825HY

• • • • • • • •

ZX.0464-3

• • • • • • • •

ZX.2390

ZX.2376

ZX.0464-3

ZX.2390

• • • •

• • • • • • • •

ZX.0079

NPM1225R

• • • •

NPM1525R

Complete Plunger Shaft oil seal Plungers oil seals seal packing ZX.0072

NPM1225L

Fitting pumps

Seal packing

ZX.2437

NPM1725GR

• • • •

Valves

ZX.1093

NPM1425GR

• • • • • • • •

• • • •

ZX.0079

• • • •

ZX.0072

• • • • • • • •

ZX.2437

NPM1125GR

ZX.2376

ZX.2067

Complete Plunger Shaft oil seal Plungers oil seals seal packing

Fitting pumps

NPM1325GR

Seal packing

ZX.1093

Valves

ZX.2438

Set Dolly H2, ceramic plungers ø18x46

ZX.2067

Dolly H80, shaft oil seal ø42x55x8

ZX.2438

Dolly H33, shaft oil seal ø25x47x7

• • • • • • • •

DOLLY SPARE PARTS FOR PUMPS

quantity 1x60

ZX.0448

ZX.0946

Kit Dolly H18, seal packing ø22

Set Dolly H18-60HP, h.p. seals ø22x35

quantity 5x3

quantity 1x60

•

H500

•

H600

• •

•

H700

•

H700R

•

HC600

•

• •

HC650

•

HC650L

•

HC650R

•

ZX.0953

ZX.0449

HC700

Kit Dolly H23, seal packing ø25

Set Dolly H23-60HP, h.p. seals ø25x35

quantity 5x3

quantity 1x60

ZX.0773

quantity 8x1

ZX.0688

•

HC800

•

HC800L

•

HC800R

•

HC600IR

•

• •

HC650IL

•

HC650IR

•

HC800IL

•

HC800IR

•

Kit Dolly H30, complete seal packing ø25

ZX.0778

•

ZX.0613-3

quantity 5x3

ZX.0612-3

quantity 3x6

H450

Plungers

ZX.0611-3

Set Dolly H16-60HP, h.p. seals ø20x35

Oil seals

ZX.0688

Kit Dolly H16, seal packing ø20

ZX.0447

Kit Dolly H8, valves + O-rings

Compl. seal packing

ZX.0055

Fitting pumps

Seal packing

ZX.0778

Valves

ZX.0773

ZX.0945

ZX.0447

ZX.0449

ZX.0055

ZX.0448

FITTING HAWK SERIES LT-LTI

•

ZX.0611-3

ZX.0612-3

ZX.0613-3

14mm

53mm

20mm

22mm

25mm

Kit Dolly H34, plunger oil seals ø20x30x7

Dolly H37, shaft oil seal ø30x55x7

Set Dolly H5, ceramic plungers ø20x53

Set Dolly H6, ceramic plungers ø22x53

Set Dolly H7, ceramic plungers ø25x53

quantity 1x3

quantity 1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING HAWK SERIES XLT

ZX.0688

ZX.0778

ZX.0775

ZX.0434

ZX.0445

ZX.0433

Fitting pumps

Plungers

Kit Dolly H10, valves + O-rings

HC930A

•

• • •

quantity 3x6

HC930AL

•

• • •

HC930AR

•

• • •

HC932AL

•

• • •

HC932AR

•

• • •

HC932L

•

• • •

HC932R

•

• • •

ZX.0433

ZX.0954

HC940A

•

• • •

•

ZX.0613-3

Oil seals

ZX.0612-3

Seal packing

ZX.0611-3

Valves

ZX.0691

CLUB DEI RIPARATORI

ZX.0691

Kit Dolly H14, seal packing ø20

Set Dolly H14-60HP, h.p. seals ø20x35 + head rings

HC940AL

•

• • •

•

quantity 6x3

quantity 2x60

HC940AR

•

• • •

•

HC950A

•

• •

•

HC950AL

•

• •

•

HC950AR

•

• •

•

HC960A

•

• •

•

HC960AL

•

• •

•

HC960AR

•

• •

•

HC980A

•

• •

HC980AL

•

• •

HC980AR

•

• •

ZX.0445

ZX.0955

Kit Dolly H17, seal packing ø22

Set Dolly H17-60HP, h.p. seals ø22x35 + head rings

quantity 6x3

quantity 2x60

Pump models’ initials ending by "A" have "U" seals

ZX.0434

ZX.0956

ZX.0775

Kit Dolly H19, seal packing ø25

Set Dolly H19-60HP, h.p. seals + head rings ø25x35

Kit Dolly H29, complete seal packing ø22

quantity 6x3

quantity 2x60

quantity 9x1

ZX.0778

ZX.0688

ZX.0611-3

ZX.0612-3

ZX.0613-3

14mm

53mm

20mm

22mm

25mm

Kit Dolly H34, plunger oil seals ø20x30x7

Dolly H37, shaft oil seal ø30x55x7

Set Dolly H5, ceramic plungers ø20x53

Set Dolly H6, ceramic plungers ø22x53

Set Dolly H7, ceramic plungers ø25x53

quantity 1x3

quantity 1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING HOTSY Ø20 ZX.2494

ZX.2495

Fitting pumps HC165

Kit Dolly H91, seal packing ø20

Kit Dolly H92, complete seal packing ø20*

quantity 7x2

quantity 9x1

HC165R *Two (2) kits are required for complete pump repair

FITTING IDROMECCANICA BERTOLINI ZX.0496

ZX.1820

ZX.2041

ZX.0559

ZX.1793

Dolly B1, valves + O-rings

Kit Dolly B123, valves + O-rings

Kit Dolly B141, valves + O-rings

Kit Dolly B17, seal packing ø18

Kit Dolly B76, seal packing ø18

quantity 3x6

quantity 5x3

quantity 6x3

ZX.1245-3

ZX.1822

ZX.0066

11mm

9mm

42mm

32mm

18mm

Set Dolly B3, ceramic plungers ø18x42

Kit Dolly B37, plunger oil seals ø24x35x7

Kit Dolly B65, plunger oil seals

quantity 1x3

RAL 1640-H - 1840-H RAS 5845-H - 5850-H - 5856-H RAL 2035 - 2335 - 2535 TML 1220-1320-1520-1717-1720-2015-2020 TML-F 1528 - 1728 - 2028 TMH 3036-3040-2250-3050-1955-3055 TMH F 3035-4035-2740-4040-3045-4045-2950-4050-2460-3560 TMG 3535-4035-3540-4040-3545-4045-3550-4050-3555 TML 2120-2420 TML-HP 1228 - 1328 - 1528 - 1728 - 2028 TTL 1330 - 1530 - 1730 - 2030 TTK 2130 KTL 1535 - 1735 - 2035 TTL 1320 - 1520 - 1820 - 2120 - 2420 WBL 810-813-816-911-913-917-1010-1012-1016-1109-1111-1115-1312 WBS 1832-2532-1735-2335 WBC 911-1111-1312 WBH 1520-1920-1525-1925-2525-1530-2130-1432-1932 WBXL 1316-1320 WHY 1520 THY 2715 WML 1013-1117-1214-1217-1316-1515-1520B WMS 2530-2035-2535-2040-2540-2545 WMH 1525-1825-2525-2228-1833 WMC 1117-1217-1316-1515 TW 11/140-13/120-13/160-15/150 TWS 11/140-12/120-13/160-15/150-15/200-21/150-21/200 TWSG 2013-2015-2016-2020-2413-2415-2416-2420-3013-3015-3016-3020 KWE 11/140-13/120-13/160-15/150-13/200-15/200-21/150-21/200 WE 703-704-705-766 WEL 703-704-705-733-744 Copyright© Idrobase Group. All rights reserved.

• • • • • • • • • • • • •

•

• • • • • •

• •

• • • • • • • • • • • •

• • • •

Kit Dolly B65 ZX.0066

Oil seals Kit Dolly B37 ZX.1822

Kit Dolly B76 ZX.1793

Kit Dolly B17 ZX.0559

Seal packing Kit Dolly B141 ZX.2041

Kit Dolly B123 ZX.1820

Fitting pumps

Kit Dolly B1 ZX.0496

Valves

Plungers

• • • • • • •

•

Set Dolly B3 ZX.1245-3

Set Dolly B2, ceramic plungers ø18x32

Set Dolly B2 ZX.0002-3

ZX.0002-3

• •

• • • • •

•

• • • • • • • •

•

• 59

DOLLY SPARE PARTS FOR PUMPS IDROBASE ECO SERIES ZX.ESFE-02

Kit Dolly water seals + plunger oil seals

Kit Dolly valves + O-rings

quantity 1x4 + 3x2

quantity 2x4 + 1x3

CLUB DEI RIPARATORI

ZX.ESFE-01

ZX.ESFE-03

ZX.ESFE-05

ZX.ESFE-04

Set Dolly ceramic plungers (for Fog Eco 1)

Set Dolly ceramic plungers (for Fog Eco 05)

Kit Dolly unloader valve

quantity 1x2

quantity 2x2 + 1x8

IDROBASE AX SERIES ZX.1919

ZX.1924

ZX.1920

Kit Dolly Com61, valves + O-rings

Kit Dolly Com62, seal packing ø14

Set Dolly Com67, compl. seal packing ø14

Kit Dolly Com63, plunger oil seals ø14x22

quantity 3x6

quantity 5x3

quantity 6x1

quantity 1x3

ZX.1918

15,80 mm 15,80mm

ZX.1923-3

ZX.1920-CPL

ZX.1574

Set Dolly Com66, oil seals ø14 with spring head rings

Kit Dolly oil seals

Kit Dolly unloader valve

quantity 3x3

quantity 8x1

quantity 1

83,5 mm

14mm

DOLLY SPARE PARTS FOR PUMPS IDROBASE LS SERIES ZX.1918

ZX.0029

ZX.0470

ZX.0409

Kit Dolly Com61, valves + O-rings

Kit Dolly IB5, valves + O-rings

Kit Dolly IB8, seal packing ø15

Kit Dolly IB12, seal packing ø18

quantity 3x6

quantity 4x3

ZX.0742

ZX.0743

ZX.0828

ZX.0830

Kit Dolly IB15, complete seal packing ø15

Kit Dolly IB16, complete seal packing ø18

Kit Dolly IB36, plunger oil seals ø15x24x5

Dolly IB38, shaft oil seal ø25x62x10/7

quantity 5x1

quantity 1x3

quantity 1

15,80 mm 15,80mm

ZX.0463-3

ZX.0530-3

9mm

30mm

15mm

18mm

Set Dolly IB6, ceramic plungers ø15x30

Set Dolly IB11, ceramic plungers ø18x30

quantity 4x3

quantity 1x3

IT.4007 *

LS 100-8 2800g/min

CDR.5017 *

LS 140-8 1750g/min

CDR.5012 *

LS 140-8 1450g/min

CDR.5000 *

LS 140-11 1450g/min

IT.4001 *

LS 117-13 1450g/min

IT.4006 *

LS 140-12 1750g/min

CDR.5046 *

LS 170-11 1450g/min

• • • • • • • •

ZX.0742

ZX.0409

• • • •

• • • • • • • •

Oil seals ZX.0828

LS 100-2 1450g/min

Compl. seal packing ZX.0743

IT.4027 *

ZX.0470

ZX.1918

Fitting pumps

Seal packing ZX.0029

Valves

Plungers ZX.0530-3

Kit Dolly IB14, plunger fastening kit

ZX.0463-3

ZX.0444

• • • • • • • •

DOLLY SPARE PARTS FOR PUMPS IDROBASE FS2 SERIES ZX.1311

ZX.1543

Kit Dolly IB5, valves + O-rings

Kit Dolly IB47, valves + O-rings

Kit Dolly IB50, seal packing ø18

quantity 3x6

quantity 6x3

CLUB DEI RIPARATORI

ZX.0029

ZX.1572

ZX.0826

ZX.0435

ZX.0693-3

•

CDR.5010-2 FS2 200-15 *

•

CDR.5003-2 FS2 150-21 * Kit Dolly IB51, complete seal packing ø18

quantity 6x3

quantity 8x1

IT.4009 FS2 200-18 * CDR.5015-2 FS2 200-21 *

• • •

Plungers

•

*Maintenance set available on page 15

ZX.0745

ZX.1572

ZX.0826

Kit Dolly IB18, complete seal packing plunger ø20

Kit Dolly IB54, plunger oil seals in FPM ø20x28x5

Dolly IB34, shaft oil seal ø25x52x7

quantity 8x1

quantity 1x3

quantity 1

ZX.0435

ZX.0693-3

ZX.0694-3 11mm

11mm

44mm

18mm

Oil seals

ZX.0694-3

ZX.0745

•

ZX.1544

ZX.1543

CDR.5001-2 FS2 150-15 *

ZX.0558

Fitting pumps

ZX.1311

Seal packing

ZX.1544

Kit Dolly IB2, seal packing ø20

Plunger seal packing

Valves

ZX.0029

ZX.0558

20mm

Kit Dolly IB13, plunger fastening kit

Set Dolly IB3, ceramic plungers ø18x44

Set Dolly IB4, ceramic plungers ø20x44

quantity 5x3

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS IDROBASE SERIES ZD CDR.5032 MODEL 205-15 ZX.0029

ZX.1114

ZX.1115

Kit Dolly IB5, valves + O-rings

Kit Dolly IB41, seal packing ø15

Kit Dolly IB42, complete seal packing ø15

quantity 3x6

quantity 5x3

quantity 6x1

ZX.0828

ZX.0463-3

ZX.0444

ZX.1117

9mm

30mm

15mm Kit Dolly IB36, plunger oil seals ø15x24x5

Dolly IB43, shaft oil seal ø40x62x7

Dolly IB14, plunger fastening kit

Set Dolly IB6, ceramic plungers ø15x30

quantity 1x3

quantity 1

quantity 4x3

quantity 1x3

IDROBASE SERIES RN CDR.5019 MODEL 200-11 AND CDR.5020 MODEL 200-15 ZX.0029

ZX.1309

ZX.1313

Kit Dolly IB5, valves + O-rings

Kit Dolly IB46, seal packing ø20

Kit Dolly IB49, complete seal packing ø20

quantity 3x6

quantity 6x3

quantity 8x1

ZX.1572

ZX.0826

ZX.1304

ZX.0694-3 11mm

44mm

20mm

Kit Dolly IB54, plunger oil seals ø20x28x5

Dolly IB34, shaft oil seal ø25x52x7

Kit Dolly IB44, plunger fastening kit

Set Dolly IB4, ceramic plungers ø20x44

quantity 1x3

quantity 1

quantity 5x3

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS IDROBASE SERIES SS CDR.5011 MODEL 275-21 ZX.1732

Kit Dolly IB47, valves + O-rings

Kit Dolly IB57, seal packing ø20

quantity 3x6

quantity 6x3

ZX.1733

ZX.0813

Kit Dolly IB58, complete seal packing ø20

Kit Dolly IB27, plunger oil seals ø22x32x7

quantity 8x1

quantity 1x3

ZX.0821

ZX.0435

Dolly IB28, shaft oil seal ø30x52x7

Kit Dolly IB13, plunger fastening kit

quantity 1

quantity 5x3

CLUB DEI RIPARATORI

ZX.1311

ZX.0694-3 11mm

44mm

20mm Set Dolly IB4, ceramic plungers ø20x44 quantity 1x3

DOLLY SPARE PARTS FOR PUMPS IDROBASE INDUSTRIALE SERIES ZX.0029

ZX.1311

ZX.1308

Kit Dolly IB5, valves + O-rings

Kit Dolly IB47, valves + O-rings

Kit Dolly IB45 seal packing ø18

quantity 3x6

quantity 6x3

ZX.1312

ZX.1309

ZX.1313

Kit Dolly IB48 complete seal packing ø18

Kit Dolly IB46, seal packing ø20

Kit Dolly IB49, complete seal packing ø20

quantity 8x1

quantity 6x3

quantity 8x1

ZX.0693-3

ZX.0694-3

ZX.1304

11mm

44mm

18mm

20mm Kit Dolly IB44, plunger fastening kit

quantity 1x3

quantity 5x3

CDR.IBG003 INDUSTRIALE 200-15 *

• •

CDR.IBG005 INDUSTRIALE 200-21 *

•

quantity 1

*Maintenance set available on page 15

•

ZX.0693-3

•

CDR.IBG008 INDUSTRIALE 275-11

Fastening plunger

•

Dolly IB34, shaft oil seal ø25x52x7

•

Plungers

ZX.1304

CDR.IBG002 INDUSTRIALE 150-21 *

Shaft oil seal

ZX.0694-3

•

Plunger oil seals

ZX.0826

Complete seal packing

ZX.1572

quantity 1x3

CDR.IBG001 INDUSTRIALE 150-15 *

Seal packing

ZX.1313

Kit Dolly Com54, plunger oil seals ø20x28x5

ZX.1311

Fitting pumps

ZX.0029

Valves

ZX.1309

ZX.1572

ZX.1312

Set Dolly IB4, ceramic plungers ø20x44

ZX.1308

Set Dolly IB3, ceramic plungers ø18x44

•

DOLLY SPARE PARTS FOR DOLLY PUMPS IDROBASE PRO SERIES

CLUB DEI RIPARATORI

IDRO.KIT-V2

IDRO.V2-60

IDRO.V2-500

For pumps: • IDRO.150-15

IDRO7

• IDRO.150-21

IDRO8

• IDRO.170-15

IDRO12

• IDRO.200-15

IDRO10

• IDRO.200-21

IDRO11

Kit Dolly V2, valves + O-rings

Set Dolly V2-60, valves + O-rings

Set Dolly V2-500, valves + O-rings

quantity 3x6

quantity 3x60

quantity 3x500

IDRO.ORV2-50

IDRO.KIT-C2

IDRO.KIT-PC2

IDRO.ORC2-50

Set Dolly V2-50 OR, O-ring for valves Kit Dolly V2

Kit Dolly C2, nickeled brass + O-ring

Kit Dolly PC2, nickeled brass with threaded hole G1/4” F + O-ring

Set Dolly C2-50 OR, O-rings for Kit Dolly C2 and PC2

quantity 1x50

quantity 2x6

quantity 2x1

quantity 1x50

IDRO.10-23

IDRO.KIT-CR2

IDRO.KIT-PF2

IDRO.KIT-LPF2

Nickeled brass head, for Dolly Pumps PRO series

Kit Dolly CR2, pre-assembled connecting rod-plunger guides

Kit Dolly PF2, piston screws

Kit Dolly LPF2, O-ring and washers for plunger bolts

quantity 1

quantity 1x3

quantity 5x3

quantity 4x3

IDRO.KIT-P2

IDRO.KIT-S2

IDRO.HPS2-60

IDRO.HPS2-500

Kit Dolly P2, ceramic plungers ø20x50

Kit Dolly S2, seal packing ø20

Set Dolly S2-60 HP, h.p. seals ø20x35

Set Dolly S2-500 HP, h.p. seals ø20x35

quantity 1x3

quantity 4x3

quantity 1x60

quantity 1x500

IDRO.LPS2-60

IDRO.LPS2-500

IDRO.RSS2-60

IDRO.RSS2-500

Set Dolly S2-60 LP, l.p. seals ø20x35

Set Dolly S2-500 LP, l.p. seals ø20x35

Set Dolly S2-60 RS, restop rings ø20

Set Dolly S2-500 RS, restop rings ø20

quantity 1x60

quantity 1x500

quantity 1x60

quantity 1x500

14mm

50mm

20mm

DOLLY SPARE PARTS FOR DOLLY PUMPS IDROBASE PRO SERIES IDRO.KIT-R2

IDRO.KIT-RR2

IDRO.KIT-PR2

IDRO.ORPR2-50

Kit Dolly R2, complete seal packing ø20x35

Kit Dolly RR2, intermediate rings + restop ø20

Kit Dolly PR2, packing retainers + O-rings ø20

Set Dolly PR2-50 OR, O-ring for Kit Dolly PR2

quantity 7x1

quantity 2x3

quantity 1x50

IDRO.KIT-HR2

IDRO.HR2-60

IDRO.HR2-500

Kit Dolly HR2, head rings ø20

Set Dolly HR2-60, head rings ø20

Set Dolly HR2-500, head rings ø20

quantity 1x6

quantity 1x60

quantity 1x500

IDRO.KIT-OS2

IDRO.OS2-60

IDRO.OS2-500

Kit Dolly OS2, plunger oil seals ø22x32x7

Set Dolly OS2-60, plunger oil seals ø22x32x7

Set Dolly OS2-500, plunger oil seals ø22x32x7

quantity 1x3

quantity 1x60

quantity 1x500

IDRO.KIT-OC2

IDRO.KIT-OL2

IDRO.KIT-CC2

Kit Dolly OC2, shaft oil seals ø30x55x7

Kit Dolly OL2, oil level indicator

Kit Dolly CC2, complete red crankcase cover

quantity 1x2

quantity 1

DOLLY SPARE PARTS FOR PUMPS IDROBASE TS SERIES ZX.0824

ZX.0815

Kit Dolly IB20, valves + O-rings

Kit Dolly IB19, valves + O-rings

Kit Dolly IB21, seal packing ø18

quantity 4x6

quantity 3x6

quantity 6x3

ZX.1550

ZX.0817

ZX.0818

Kit Dolly IB22, seal packing ø22

Kit Dolly IB23, seal packing ø25

Kit Dolly IB24, complete seal packing ø18

quantity 6x3

quantity 8x1

ZX.0819

ZX.0820

ZX.0813

Kit Dolly IB25, complete seal packing ø22

Kit Dolly IB26, complete seal packing ø25

Kit Dolly IB27, plunger oil seals ø22x32x7

quantity 8x1

quantity 1x3

CLUB DEI RIPARATORI

ZX.0814

DOLLY SPARE PARTS FOR PUMPS IDROBASE TS SERIES ZX.0435

ZX.0823

Kit Dolly IB13, fastening plunger kit, ø18

Kit Dolly IB29, fastening plunger kit, ø22 e ø25

quantity 5x3

ZX.0821

ZX.0627-3 11mm

52mm

Dolly IB28, shaft oil seal ø30x52x7

Set Dolly IB30, ceramic plungers ø18x52

quantity 1

quantity 1x3

ZX.0612-3

18mm

ZX.0613-3 14mm

14mm

53mm

Set Dolly IB31, ceramic plungers ø22x53

53mm

25mm Set Dolly IB32, ceramic plungers ø25x53

22mm

quantity 1x3

Valves

Seal packing

Complete seal packing

Fastening plunger kit

Oil seals

Plungers

CDR.5004 TS 250-26 *

•

CDR.5006 TS 200-33 *

•

CDR.5005 TS 170-42 *

•

CDR.5014 TS 345-18 *

• •

•

• •

•

ZX.0613-3

ZX.0612-3

ZX.0627-3

ZX.0435

ZX.0823

ZX.0821

ZX.0813

ZX.0820

ZX.0819

ZX.0818

ZX.1550

ZX.0817

ZX.0815

ZX.0824

ZX.0814

Fitting pumps

• •

•

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP: SEARCH

CLUB DEI RIPARATORI

Use the table below to identify, according to the pump you have to service, the series and page where you can find all the spare parts necessary to service your pump.

Fitting pumps

Series Page

Fitting pumps

Series Page

Fitting pumps

Series Page

Fitting pumps

Serie Page

E1B1807 - E1B1808 - E1B1809

W97

WS149

T731

E1B1810 - E1C1808 - E1C1810

W98

WS151

T911

E1C1811 - E1D1807 - E1D1808

W99

WS152

T921

E1D1810 - E1D1811 - E1D1813

W101

WS153

T981

E1D1814 - E1E1808 - E1E1810

W112

WS162

T991

E1E1812 - E1E1813 - E1E1814

W124

WS171

T1011

E1B1611 - E1B1612 - E1B1614

W130

WS201

T1209

E1C1609 - E1C1612 - E1C1613

W131

WS202

T1212

E1C1614 - E1B1613 - E1B1610

W132

WW55

T1311

E2B1618

W140

WW56

T1321

E2B1711

W150

WW74

T1508

E2B1712

W151

WW75

T1511

E2B1713

W154

WW90

T1551

E2B2014

W155

WW93

T1591

E2B2042

W159

WW94

T1621

E2C1713

W162

WW95

T1631

E2C1714

W163

WW116

T2011

E2C1715

W170

WW136

T2031

E2C2016

W201

WW141

T3551

E3A1515 - E3A1713

W203

WW156

T4251

E3A2113 - E3A2115

W355

WW161

T9121

E3B1021 - E3B1218

W425

WW176

T9131

E3B1515 - E3B1713

W912

WW186

T9161

E3B1911

W913

WW189

T9211

E3B2118 - E3B2121 - E3B2511

W916

WW206

T9321

E3B2513 - E3B2515

W921

WW209

T9731

E3C1021 - E3C1218 - E3C1515

W950

WW906

T9791

E3C1713

W951

WW907

T9951

E3C2513

W952

WW909

T9961

E3C2515 - E3C2518 - E3C2521

W953

WW935

T9971

E3E2517 - E3E2520

W954

WW944

TS821

E3E2813 - E3E2815

W955

WW960

TS921

EH1413

W956

WW961

TS1011

EH1416

W957

WW962

TS1021

EH2009

W958

WW963

TS1041

EH2011

W959

WW964

TS1311

EL1411

W972

WW965

TS1321

EL1413

W973

WW1508

TS1331

EL1714

W979

WW1509

TS1351

EL2007

W995

WW1510

TS1371

EL2009

W996

WW1511

TS1491

T1750

W997

WW1513

TS1511

T2040

W1208

BIG BANG

MOTO POMPE

TS1521

T2530

W1210

BLUE TIME

MOTO POMPE

TS1531

T2535

W1507

BOXJET

MOTO POMPE

TS1621

T2830

W1550

CLEANMATIC

MOTO POMPE

TS1711

T3025

W2030

FLASH

MOTO POMPE

TS2011

T4018

W2035

FORMULA 99

MOTO POMPE

TS2021

UH2008

W2141

GONG

MOTO POMPE

TT551

UH2011

W2525

GREEN JET

MOTO POMPE

TT561

UH2013

W3021

TURBO

MOTO POMPE

TT741

UH2016

W3025

VERSIONE A-B-C 3/4"- I ø15mm

TT751

UL1413

W3521

VERSIONE A-B-C 3/4"- I ø18mm

TT901

UL1415

W3523

TT931

UL2009

W4015

TT941

UL2011

W4018

TT951

W4518

EZ4040G

TT1411

W5025

EZ4030G34

TT1508

W12

WS82

EZ4035G34

TT1510

W15

WS92

T61

TT1511

W52

WS101

T81

TT1512

W53

WS102

T121

TT1513

W70

WS104

T151

TT1611

W71

WS131

T521

TT9061

W72

WS132

T531

TT9071

W73

WS133

T701

TT9091

W91

WS135

T711

TT9351

W92

WS137

T721

TT9441

Fitting pumps

Serie Page

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 44 - Model W112

FITTING INTERPUMP/GENERALPUMP SERIES 44 Ø13 ZX.1601

ZX.1601-60

ZX.1601-500

ZX.0579

ZX.0166

ZX.0734

Kit Dolly 124, brass caps + O-rings

Brass cap + O-ring, with threaded hole G1/4"F

Kit Dolly 123, valves + O-rings

Set Dolly 123-60, valves + O-rings

Set Dolly 123-500, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 and 123

quantity 3x6

quantity 3x60

quantity 3x500

quantity 1x50

quantity 2x6

quantity 2x1

ZX.1658

ZX.0580

ZX.1488-3

ZX.1987

ZX.1995

ZX.1996

Kit Dolly 153, seal packing ø13

Set Dolly 153-60 HP, seal packing h.p. ø13x21

Set Dolly 153-60 LP, seal packing l.p. ø13x23

32mm

75mm

27mm 10mm

Kit Dolly 158, nickeled brass caps + O-rings

Set Dolly 124/158-50 OR, O-rings for Kit Dolly 4, 5, 124

Set Dolly I27 connecting rods, for pumps fitting Interpump “47” series

quantity 2x6

quantity 1x50

quantity 1x3

quantity 4x3

quantity 1x60

ZX.1986

ZX.1985

ZX.1985-60

ZX.1988

ZX.1989

ZX.0576

Kit Dolly 156, complete seal packing ø13

Kit Dolly 155, head rings ø13

Set Dolly 155-60, head rings ø13

Kit Dolly 152, packing retainers ø13 +O-ring

Kit Dolly 154, intermediate rings ø13

Set Dolly 152-50 OR, O-ring for Kit Dolly 152

quantity 1X7

quantity 1x6

quantity 1x60

quantity 2X3

quantity 1x3

quantity 1x50

ZX.0067

ZX.0398

ZX.1915

ZX.1990

ZX.P13X45

45mm

13mm

Dolly i17 shaft oil seal ø25x62x10

Dolly i18 shaft oil seal ø45x62x8

Set Dolly i33 plungers ø13x45

quantity 1x3

quantity 1x500

quantity 1

quantity 1x3

Kit Dolly 23 ZX.0067

Dolly i17 ZX.1915

• • •

Dolly i18 ZX.1990

Kit Dolly 156 ZX.1986

Oil seals Shaft

Kit Dolly 154 ZX.1989

Plungers

Kit Dolly 152 ZX.1988

• • •

Service complete plunger

Kit Dolly 155 ZX.1985

• • •

Intermediate rings + packing retainers

Kit Dolly 153 ZX.1987

• • •

Seal packing + head rings Kit Dolly 158 ZX.1658

Interpump: WW963 * WW964 * WW965 * Generalpump: EZ4040G * EZ4030G34 * EZ4035G34 *

Kit Dolly 124 ZX.0166

Fitting pumps

Kit Dolly 123 ZX.1601

Valves+ caps

• • •

Connecting Rods

Plungers ZX.P13X45

Set Dolly 23-500, plunger oil seals ø20x30x5

ZX.1488-3

Kit Dolly 23, plunger oil seals ø20x30x5

• • •

For Generalpump models, it is recommended to check the piston size before placing the order.

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 44 - Model W112

CLUB DEI RIPARATORI

FITTING INTERPUMP/GENERALPUMP SERIES 44 Ø15-Ø18 ZX.1601

ZX.1601-60

ZX.1601-500

ZX.0579

Kit Dolly 123, valves + O-rings

Set Dolly 123-60, valves + O-rings

Set Dolly 123-500, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 and 123

quantity 3x6

quantity 3x60

quantity 3x500

quantity 1x50

ZX.0166

ZX.0734

ZX.0580

ZX.1488-3 32mm

75mm

Brass cap + O-ring, with threaded hole G1/4" F

Set Dolly 4/5/124-50 OR, O-rings for Kit Dolly 4, 5, 124

Set Dolly I28 connecting rods, for pumps fitting Interpump “44” series

quantity 2x6

quantity 2x1

quantity 1x50

quantity 1x3

ZX.1537

ZX.1537-SP

ZX.A1258

ZX.A1487

9mm

27mm

ZX.1367

9mm 37,5mm

37,5mm

15mm

10mm

Kit Dolly 124, Brass caps + O-rings

18mm

Kit Dolly 137, Service kit by-pass valve

Kit Dolly 137 SP, Service kit by-pass valve

Set Dolly i3, ceramic plungers ø15x37.5

Set Dolly i4, ceramic plungers ø18x37.5

Kit Dolly i13, plunger fastening series 44

quantity 17x1

quantity 14x1

quantity 1x3

quantity 5x3

ZX.0155

ZX.0047

ZX.0402

ZX.0530

ZX.0849

Kit Dolly 88, seal packing ø15

Set Dolly 97-60HP, h.p. seals ø15x25

Set Dolly 97-500HP, h.p. seals ø15x25

Set Dolly 88-60LP, l.p. seals ø15x25

Set Dolly 88-500LP, l.p. seals ø15x25

quantity 4x3

quantity 1x60

quantity 1x500

quantity 1x60

quantity 1x500

ZX.0938

ZX.0425

ZX.0093

ZX.0045

ZX.0395

Set Dolly 88-60RS, restop rings ø15

Set Dolly 88-500RS, restop rings ø15

Kit Dolly 127, seal packing ø18

Set Dolly 127-60HP, h.p. seals ø18x30

Set Dolly 127-500HP, h.p. seals ø18x30

quantity 1x60

quantity 1x500

quantity 4x3

quantity 1x60

quantity 1x500

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 44 - Model W112

FITTING INTERPUMP/GENERALPUMP SERIES 44 Ø15-Ø18 ZX.0396

ZX.0158

ZX.0524

Set Dolly 127-60LP, l.p. seals ø18x30

Set Dolly 127-500LP, l.p. seals ø18x30

Set Dolly 127-60RS, restop rings ø18

Set Dolly 127-500RS, restop rings ø18

Kit Dolly 90, head rings ø15

Set Dolly 90-60, head rings ø15

quantity 1x60

quantity 1x500

quantity 1x60

quantity 1x500

quantity 1x6

quantity 1x60

ZX.0399

ZX.0164

ZX.0525

ZX.0159

ZX.0156

ZX.0576

Set Dolly 90-500, head rings ø15

Kit Dolly 129, head rings ø18

Set Dolly 129-60, head rings ø18

Kit Dolly 125, packing retainers + O-rings ø15

Kit Dolly 126, packing retainers + O-rings ø18

Set Dolly 22-50 OR, O-rings for Kit Dolly 125 and 126

quantity 1x500

quantity 1x6

quantity 1x60

quantity 2x3

quantity 1x50

ZX.0157

ZX.0163

ZX.0162

ZX.0165

ZX.0067

ZX.0398

Kit Dolly 89, intermediate rings ø15

Kit Dolly 128, intermediate rings ø18

Kit Dolly 130, complete seal packing ø15

Kit Dolly 131, complete seal packing ø18

Kit Dolly 23, plunger oil seals ø20x30x5

Set Dolly 23-500, plunger oil seals ø20x30x5

quantity 1x3

quantity 7x1

quantity 1x3

quantity 1x500

W150 *

•

W154 *

•

W170, W953, W952, W951, W950 *

•

W954, W955, W956,W958 W959 *

•

WW116, WW136, WW156, WW176, WW186, WW189, WW206, WW209, WW960, WW961, WW962 *

•

• •

•

• • • •

• •

•

Plungers

• •

•

• •

•

• •

•

• •

•

Oil seals

• •

Set Dolly i4 ZX.A1487

•

Complete seal packing

Set Dolly i3 ZX.A1258

•

Kit Dolly 126 ZX.0156

W140 *

•

Kit Dolly 125 ZX.0159

•

Kit Dolly 128 ZX.0163

•

Kit Dolly 89 ZX.0157

W130 *

•

Intermediate rings + packing retainers

Kit Dolly 129 ZX.0164

•

Kit Dolly 90 ZX.0158

•

Kit Dolly 127 ZX.0093

Kit Dolly 124 ZX.0166

W97, W112, W124 *

Seals + head rings

Kit Dolly 88 ZX.0155

Fitting pumps

Kit Dolly 123 ZX.1601

Valves + caps

Kit Dolly 23 ZX.0067

ZX.1113

Kit Dolly 131 ZX.0165

ZX.0397

Kit Dolly 130 ZX.0162

ZX.0531

• •

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 47 - Model WS151

FITTING INTERPUMP/GENERALPUMP SERIES 47-48 Ø20 ZX.1600

ZX.1600-60

ZX.1600-500

ZX.0579

CLUB DEI RIPARATORI

Kit Dolly 1, valves + O-rings

Set Dolly 1-60, valves + O-rings

Set Dolly 1-500, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 and 123

quantity 3x6

quantity 3x60

quantity 3x500

quantity 1x50

ZX.0151

ZX.0732

ZX.0169

ZX.0733

ZX.0580

Kit Dolly 4, brass caps + O-rings

Brass cap + O-ring, with threaded hole G1/4"F

Kit Dolly 5, nickeled brass caps + O-rings

Nickeled brass cap + O-ring, with threaded hole G1/4" F

Set Dolly 4/5/124-50 OR, O-rings for Kit Dolly 4, 5, 124

quantity 2x6

quantity 2x1

quantity 2x6

quantity 2x1

quantity 1x50

CDR.0639

IDRO.10-23

ZX.1487-3

A ESAURIMENTO TO BE DISCONTINUED

40mm

95mm

30mm

13mm

Brass head, fitting Interpump pumps series 47

Nickeled brass head, fitting Interpump pumps series 47

Set Dolly I27 connecting rods, fitting Interpump pumps series 47

quantity 1

quantity 1x3

ZX.0135

ZX.0345

ZX.A1979 14mm

50mm

Kit Dolly 6, piston screws

Kit Dolly 6IP, O-ring and washers for plunger bolts

20mm Set Dolly i2, ceramic plungers ø20x50

quantity 5x3

quantity 4x3

quantity 1x3

ZX.0087

ZX.0086

ZX.0038

Kit Dolly 69, seal packing ø20

Kit Dolly 8, high and low pressure seals ø20x35

Kit Dolly 8 OLD, h.p. seals ø20x35

quantity 4x3

quantity 3x3

quantity 1x6 + 1x3

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 47 - Model WS151

FITTING INTERPUMP/GENERALPUMP SERIES 47-48 Ø20 ZX.0041

ZX.0288

ZX.0533

ZX.0308

Set Dolly 8 OLD-60, h.p. seals ø20x35

Set Dolly 8 OLD-500, h.p. seals ø20x35

Set Dolly 8-60LP, l.p. seals ø20x35

Set Dolly 8-500LP, l.p. seals ø20x35

quantity 1x60

quantity 1x500

quantity 1x60

quantity 1x500

ZX.0727

ZX.0320

ZX.0136

ZX.0523

ZX.0325

Set Dolly 69-60RS, restop rings ø20

Set Dolly 69-500RS, restop rings ø20

Kit Dolly 7, head rings ø20

Set Dolly 7-60, head rings ø20

Set Dolly 7-500, head rings ø20

quantity 1x60

quantity 1x500

quantity 1x6

quantity 1x60

quantity 1x500

ZX.0141

ZX.0289

ZX.0020

ZX.0390

ZX.0137

Kit Dolly 71, intermediate rings + restop ø20

Kit Dolly 9, intermediate rings + long life ø20

Set Dolly LONG LIFE-60

Kit Dolly 10, packing retainers + O-rings (with FLARED RETAINER) ø20

Kit Dolly 10 OLD, packing retainers + O-rings ø20

quantity 2x3

quantity 1x60

quantity 2x3

ZX.0573

ZX.0391

ZX.0090

ZX.0290

Set Dolly 10-50 OR, O-ring for Kit Dolly 10, 10 OLD and 14

Kit Dolly 28, complete seal packing (with FLARED RETAINER) ø20x35

Kit Dolly 28, complete seal packing ø20x35

Kit Dolly 28 OLD, complete seal packing (with LONG LIFE) ø20x35

quantity 1x50

quantity 7x1

quantity 8x1

ZX.0110

ZX.0436

ZX.0068

ZX.0074

Kit Dolly 2, plunger oil seals ø22x32x5.5

Kit Dolly 2-500, plunger oil seals ø22x32x5.5

Kit Dolly 24, plunger oil seals ø22x35x8

Kit Dolly 3, shaft oil seals ø30x55x7

quantity 1x3

quantity 1x500

quantity 1x3

quantity 1x2

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 47 - Model WS151

For car washes and industrial applications up to 85°C

ZX.0537

ZX.0170

ZX.0536

Kit Dolly 101 high temperature, valves + O-rings

Kit Dolly 100HP high temperature, seals + O-ring ø20

Kit Dolly 100 high temperature, complete seal packing ø20 + 6 valves

quantity 6x3

WS135 *

•

WS151 *

•

WS152 *

•

WS171 *

•

WS201, WS202 *

•

Set Dolly i2 ZX.A1979

•

Kit Dolly 6 ZX.0135

•

Kit Dolly 3 ZX.0074

WS82, WS101, WS102, WS131, WS133 *

Kit Dolly 2 ZX.0110

•

Kit Dolly 28 OLD ZX.0290

W916, W921 *

Kit Dolly 28 ZX.0090

•

Kit Dolly 28 ZX.0391

•

Kit Dolly 10 OLD ZX.0137

W912, W913 *

Kit Dolly 10 ZX.0390

•

Kit Dolly 9 ZX.0289

•

Kit Dolly 71 ZX.0141

W203 *

High temp. kit

Kit Dolly 7 ZX.0136

•

Plungers + bolts

Oil seals

Kit Dolly 8 OLD ZX.0038

W201 *

Complete seal packing

Kit Dolly 8 ZX.0086

•

Intermediate rings + packing retainers

Kit Dolly 69 ZX.0087

•

Seal packing + head rings NICKELED head IDRO.10-23

Kit Dolly 4 ZX.0151

W101, W131, W151 *

BRASS head CDR.0639

Kit Dolly 1 ZX.1600

Fitting pumps

Kit Dolly 5 ZX.0169

Valves + caps + heads

quantity 2x6 - 8x3

•

Kit Dolly 101 ZX.0537 Kit Dolly 100 ZX.0536

quantity 3x6

Kit Dolly 24 ZX.0068

CLUB DEI RIPARATORI

FITTING INTERPUMP/GENERALPUMP SERIES 47-48 Ø20

Interpump:

• •

•

• • •

• •

•

Generalpump: T1011, T1311, T1511 *

•

T2011 *

•

T2031 *

•

T9121, T9131 *

•

T9161, T9211 *

•

TS821, TS1011, TS1021, TS1311, TS1331 *

•

TS1351 *

•

TS1511 *

•

TS1521 *

•

TS1711 *

•

TS2011, TS2021 *

•

• •

•

• • •

• •

•

*Maintenance set available on page 15-16 Dolly kits marked with the red dot are fitted on the 1st version Interpump and Generalpump pumps, equipped with the LONG LIFE seal.

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 47 - Model WS151

FITTING INTERPUMP/GENERALPUMP SERIES 47-48 Ø22 ZX.1600

ZX.1600-60

ZX.1600-500

ZX.0579

Kit Dolly 1, valves + O-rings

Set Dolly 1-60, valves + O-rings

Set Dolly 1-500, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 and 123

quantity 3x6

quantity 3x60

quantity 3x500

quantity 1x50

ZX.0151

ZX.0732

ZX.0169

ZX.0733

ZX.0580

Kit Dolly 4, brass caps + O-rings

Brass cap + O-ring, with threaded hole G1/4"F

Kit Dolly 5, nickeled brass caps + O-rings

Nickeled brass cap + O-ring, with threaded hole G1/4" F

Set Dolly 124/158-50 OR, O-rings for Kit Dolly 4, 5, 124

quantity 2x6

quantity 2x1

quantity 2x6

quantity 2x1

quantity 1x50

CDR.0639

IDRO.10-23

ZX.1487-3

A ESAURIMENTO TO BE DISCONTINUED

40mm

95mm

30mm

13mm

Brass head, fitting Interpump pumps series 47

Nickeled brass head, fitting Interpump pumps series 47

Set Dolly I27 connecting rods, fitting Interpump pumps series 47

quantity 1

quantity 1x3

ZX.0135

ZX.0345

ZX.A1234 14mm

50mm

Kit Dolly 6, piston screws

Kit Dolly 6IP, O-ring and washers for plunger bolts

22mm Set Dolly i5, ceramic plungers ø22x50

quantity 5x3

quantity 4x3

quantity 1x3

ZX.0220

ZX.0057

ZX.0042

ZX.0044

Kit Dolly 148, seal packing ø22

KIt Dolly 12, high and low pressure seals ø22x35

KIt Dolly 12 OLD, h.p. seals ø22x35

Set Dolly 12 OLD-60, h.p. seals ø22x35

quantity 4x3

quantity 3x3

quantity 1x6 + 1x3

quantity 1x60

DOLLY SPARE PARTS FOR PUMPS ZX.0534

ZX.0848

ZX.0217

ZX.0526

Set Dolly 12-60LP, l.p. seals ø22x35

Set Dolly 148-60RS, restop rings ø22

Kit Dolly 11, head rings ø22

Set Dolly 11-60, head rings ø22

quantity 1x60

quantity 1x6

quantity 1x60

ZX.0221

ZX.0218

ZX.0573

ZX.0219

Kit Dolly 149, intermediate rings + restop ø22

Kit Dolly 14, packing retainers + O-rings ø22

Set Dolly 10-50 OR, for Kit Dolly 10, 10 OLD and 14

Kit Dolly 29, complete seal packing ø22

quantity 2x3

quantity 1x50

quantity 7x1

ZX.0110

ZX.0068

ZX.0074

Kit Dolly 2, plunger oil seals ø22x32x5,5

Kit Dolly 24, plunger oil seals ø22x35x8

Kit Dolly 3, shaft oil seals ø30x55x7

quantity 1x3

quantity 1x2 Complete seal packing

Kit Dolly 14 ZX.0218

Kit Dolly 29 ZX.0219

• • • • • • • •

• • •

• • • • • • •

• • • • •

• • • • • • •

• • •

Set Dolly i5 ZX.A1234

Kit Dolly 149 ZX.0221

• • • • • • • •

Kit Dolly 6 ZX.0135

Kit Dolly 11 ZX.0217

• • • • • • •

Kit Dolly 3 ZX.0074

Kit Dolly 12 OLD ZX.0042

• • • • • • •

Kit Dolly 2 ZX.0110

Kit Dolly 12 ZX.0057

• • • • • • • •

Kit Dolly 148 ZX.0220

Plungers + bolts

Oil seals

Kit Dolly 24 ZX.0068

Intermediate rings + pack. retainers

Seal packing

NICKELED head IDRO.10-23

Heads

BRASS head CDR.0639

Kit Dolly 4 ZX.0151

Caps

Kit Dolly 169 ZX.1909

Fitting pumps

Kit Dolly 1 ZX.1600

Valves

Kit Dolly 5 ZX.0169

CLUB DEI RIPARATORI

FITTING INTERPUMP/GENERALPUMP SERIES 47-48 Ø22

• • •

• • • • • • • •

• • • • • • •

Interpump: W92 * W132 * W162 * W163 * WS92 * WS132 * WS162 *

• • • • • • •

WS1630

• • • • • •

•

• • • •

•

• • • •

•

• • •

Generalpump: T921 * T1321 * T1621 * T1631 * TS921 * TS1321 * TS1621 *

• • • • • • •

• • • • •

•

• • •

•

• • • • • •

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP SERIES 49-50 ZX.1600

ZX.1600-60

ZX.1600-500

ZX.0579

Kit Dolly 1, valves + O-rings

Set Dolly 1-60, valves + O-rings

Set Dolly 1-500, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 e 123

quantity 3x6

quantity 3x60

quantity 3x500

quantity 1x50

ZX.0151

ZX.0732

ZX.0580

ZX.0155

Kit Dolly 4, brass caps + O-rings

Brass cap + O-ring with threaded hole G1/4"F

Set Dolly 124/158-50 OR, O-rings for Kit Dolly 4, 5, 124

Kit Dolly 88, seal packing ø15

quantity 2x6

quantity 2x1

quantity 1x50

quantity 4x3

ZX.0047

ZX.0402

ZX.0530

ZX.0938

Set Dolly 97-60HP, h.p. seals ø15x25

Set Dolly 97-500HP, h.p. seals ø15x25

Set Dolly 88-60LP, l.p. seals ø15x25

Set Dolly 88-60RS, restop rings ø15

quantity 1x60

quantity 1x500

quantity 1x60

ZX.0135

ZX.0345

ZX.A1258

ZX.A1980 14mm

9mm

37,5mm 40mm 15mm

20mm

Kit Dolly 6, piston screws

Kit Dolly 6IP, O-ring and washers for plunger bolts

Set Dolly i3, ceramic plungers ø15x37.5

Set Dolly i1, ceramic plungers ø20x40

quantity 5x3

quantity 4x3

quantity 1x3

ZX.0088

ZX.0085

ZX.0046

ZX.0392

Kit Dolly 19, high and low pressure seals ø20x30

Kit Dolly 19 OLD, h.p. seals ø20x30

Set Dolly 19 OLD-60, h.p. seals ø20x30

Set Dolly 19 OLD-500, h.p. seals ø20x30

quantity 3x3

quantity 1x6 + 1x3

quantity 1x60

quantity 1x500

DOLLY SPARE PARTS FOR PUMPS

CLUB DEI RIPARATORI

FITTING INTERPUMP/GENERALPUMP SERIES 49-50

ZX.0532

ZX.0393

ZX.0158

ZX.0524

Set Dolly 19-60LP, l.p. seals ø20x30

Set Dolly 19-500LP, l.p. seals ø20x30

Kit Dolly 90, head rings ø15

Set Dolly 90-60, head rings ø15

quantity 1x60

quantity 1x500

quantity 1x6

quantity 1x60

ZX.0399

ZX.0089

ZX.0522

ZX.0394

Set Dolly 90-500, head rings ø15

Kit Dolly 21, head rings ø20

Set Dolly 21-60, head rings ø20

Set Dolly 21-500, head rings ø20

quantity 1x500

quantity 1x6

quantity 1x60

quantity 1x500

ZX.0157

ZX.0138

ZX.0603

Kit Dolly 89, intermediate rings ø15

Kit Dolly 20, intermediate rings ø20

Kit Dolly 91, packing retainers + O-rings ø15

quantity 1x3

quantity 2x3

ZX.0139

ZX.0576

ZX.0604

Kit Dolly 22, packing retainers + O-rings ø20

Set Dolly 22-50 OR, O-rings for Kit Dolly 22 and 91

Kit Dolly 92, complete seal packing ø15

quantity 2x3

quantity 1x50

quantity 7x1

ZX.0140

ZX.0067

ZX.0398

Kit Dolly 27, complete seal packing ø20x30

Kit Dolly 23, plunger oil seals ø20x30x5

Set Dolly 23-500, plunger oil seals ø20x30x5

quantity 6x1

quantity 1x3

quantity 1x500

DOLLY SPARE PARTS FOR PUMPS

• • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • •

Set Dolly i1 ZX.A1980

• • • • • • • • • • • • • • • • •

Set Dolly i3 ZX.A1258

Plunger + bolts

Kit Dolly 6 ZX.0135

Oil seals

Kit Dolly 23 ZX.0067

Complete seal packing

Kit Dolly 27 ZX.0140

Kit Dolly 22 ZX.0139

Kit Dolly 91 ZX.0603

Kit Dolly 20 ZX.0138

Kit Dolly 89 ZX.0157

• • • • • • • • • • • • • • • • •

Kit Dolly 21 ZX.0089

• • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • •

Intermediate rings + packing retainers

Kit Dolly 90 ZX.0158

• • • • • • • • • • • • • • • • • • • •

Kit Dolly 19 OLD ZX.0085

• • • • • • • • • • • • • • • • • • • • •

Kit Dolly 19 ZX.0088

• • • • • • • • • • • • • • • • • • • • •

Kit Dolly 88 ZX.0155

Kit Dolly 4 ZX.0151

Fitting pumps

Seal packing + head rings

Kit Dolly 1 ZX.1600

Valves + caps

Kit Dolly 92 ZX.0604

FITTING INTERPUMP/GENERALPUMP SERIES 49-50

Interpump: W52 W53 W70 W71 W72 W73 W91 W98 W99 W972 W973 W979 W995 W996 W997 WS137 WS149 WW141 WW161 WW935 WW944

• • • •

• • • • • • • • • • • • • • • • • • • • •

• • • •

• • • • • • • • • • • • • • • • • • • • •

Generalpump: T521 T531 T701 T711 T721 T731 T911 T981 T991 T9321 T9731 T9791 T9951 T9961 T9971 TS1371 TS1491 TT1411 TT1611 TT9351

• • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • 81

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 51 - Model FE5108

CLUB DEI RIPARATORI

FITTING INTERPUMP/GENERALPUMP SERIES 51 ZX.1600

ZX.1600-60

ZX.1600-500

Kit Dolly 1, valves + O-rings

Set Dolly 1-60, valves + O-rings

Set Dolly 1-500, valves + O-rings

quantity 3x6

quantity 3x60

quantity 3x500

ZX.1601

ZX.1601-60

ZX.1601-500

ZX.0579

Kit Dolly 123, valves + O-rings

Set Dolly 123-60, valves + O-rings

Set Dolly 123-500, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 and 123

quantity 3x6

quantity 3x60

quantity 3x500

quantity 1x50

ZX.0535

ZX.0047

ZX.0402

ZX.0702

ZX.0933

Kit Dolly 97, seal packing ø15

Set Dolly 97-60HP, h.p. seals ø15x25

Set Dolly 97-500HP, h.p. seals ø15x25

Kit Dolly 141, seal packing ø18

Set Dolly 141-60HP, h.p. seals ø18x26 + head rings

quantity 4x3

quantity 1x60

quantity 1x500

quantity 4x3

quantity 2x60

ZX.0645

ZX.0707

ZX.0574

ZX.0644

ZX.0701

Kit Dolly 86, packing retainers + O-rings ø15

Kit Dolly 139, packing retainers + O-rings ø18

Set Dolly 86/139-50 OR, O-ring packing retainers for Kit Dolly 86 e 139

Kit Dolly 96, complete seal packing ø15

Kit Dolly 140, complete seal packing ø18

quantity 3x3

quantity 1x50

quantity 5x1

ZX.0065

ZX.0005-3

ZX.0642-3 9mm

9mm

25mm

18mm

15mm

Kit Dolly 83, plunger oil seals ø15x24x5

Set Dolly i6, ceramic plungers ø15x25

Set Dolly i7, ceramic plungers ø18x25

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP SERIES MISTING ZX.1830

ZX.1831

ZX.1832

ZX.1833

Kit Dolly 196, seal packing ø15

Kit Dolly 197, seal packing ø18

Kit Dolly 226, complete seal packing ø15

Kit Dolly 227, complete seal packing ø18

quantity 4x3

quantity 6x1

ZX.1857-3

ZX.1858-3

30mm

18mm

ZX.1858-3

Plungers

ZX.1857-3

Oil seals

ZX.0642-3

ZX.0644

Complete seal packing

ZX.1831

ZX.1830

ZX.0702

ZX.0535

Seal packing

ZX.1600

Fitting pumps

ZX.1601

Valves

ZX.0005-3

quantity 1x3

ZX.0065

quantity 1x3

ZX.1833

Set Dolly i16, ceramic plungers ø18x30

ZX.1832

Set Dolly i15, ceramic plungers ø15x30

ZX.0701

15mm

MISTING Serie 51 FE5101 FE5102 FE5104 FE5106 FE5108

• • • • •

• • • •

• • • • •

•

• • • • •

MISTING Serie 60 FE6004 FE6006 FE6008 FE6010 FE6012

• • • • •

• • •

• • • • •

• •

• • • • •

MISTING Serie QUIKY-HU QUIKY-HU 1/70 EU QUIKY-HU 2/70 EU QUIKY-HU 4/70 EU QUIKY-HU 8/70 EU

• • • •

•

• •

•

• •

•

• • • •

• • • • 83

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP SERIES 51

Kit Dolly 83 ZX.0065

• •

• • • • • • • • • • • • • • • • • • •

Plungers

Set Dolly i6 ZX.0005-3

Kit Dolly 140 ZX.0701

Oil seals

Set Dolly i7 ZX.0642-3

Complete seal packing

Kit Dolly 96 ZX.0644

Kit Dolly 139 ZX.0707

Packing retainers

Kit Dolly 86 ZX.0645

Kit Dolly 141 ZX.0702

Kit Dolly 97 ZX.0535

Seal packing

Kit Dolly 123 ZX.1601

Fitting pumps

Kit Dolly 1 ZX.1600

CLUB DEI RIPARATORI

Valves

Interpump:

• • •

W1208 W1210 W1507 WW55 WW56 WW74 WW75 WW90 WW93 WW94 WW95

• • • • • • • • • • • • • • • •

WW906 WW907 WW909 WW1508 WW1509 WW1510 WW1511 WW1513

• • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • •

Generalpump:

• • •

T1209 T1212 T1508 TT551 TT561 TT741 TT751 TT901 TT931 TT941 TT951 TT1508 TT1510 TT1511 TT1512 TT1513 TT9061 TT9071 TT9091

• • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • •

DOLLY SPARE PARTS FOR PUMPS

Interpump Pump - Evolution 1: how to replace the spare parts

FITTING INTERPUMP/GENERALPUMP SERIES 53 - EVOLUTION 1 Ø15-Ø18 ZX.1957

ZX.1957-60N

ZX.1901-60S

ZX.1906

ZX.1964

20,30 mm

15,70mm Kit Dolly 309, valves + O-rings

Set Dolly 309-60N, valves + O-rings

Set Dolly 269-60S, valves + O-rings

Set Dolly 269/309-50 OR O-ring for valves Kit Dolly 269 and 309

Set Dolly 313/315-50 OR O-ring for Kit Dolly 313 and 315

quantity 6x3

quantity 3x60

quantity 1x50

ZX.1958

ZX.1982

ZX.1997

ZX.0929

ZX.P15X38.5

Kit Dolly 312 seals ø15

Kit Dolly 313 plunger seal packing ø15

Set Dolly 160-60HP, h.p. seals ø15x24

Set Dolly 160-60LP, l.p. seals ø15x22

Set ceramic plungers ø15x38,5

quantity 5x3

quantity 7x1

quantity 1x60

quantity 1x3

ZX.1959

ZX.1992

ZX.1998

ZX.0931

ZX.P18X38.5

Kit Dolly 314 seals ø18

Kit Dolly 315 compl. seal packing ø18

Set Dolly 161-60HP, h.p. seals ø18x28

Set Dolly 161-60LP, l.p. seals ø18x25

Set ceramic plungers ø18x38,5

quantity 5x3

quantity 7x1

quantity 1x60

quantity 1x3

Oil seals Shaft

Plungers

•

E1B1810 - E1C1808 - E1C1810

•

quantity 1x3

E1C1811 - E1D1807 - E1D1808

•

E1D1810 - E1D1811 - E1D1813

•

E1D1814 - E1E1808 - E1E1810

•

E1E1812 - E1E1813 - E1E1814

•

E1B1611 - E1B1612 - E1B1614

•

E1C1609 - E1C1612 - E1C1613

•

ZX.1915

E1C1614 - E1B1613 - E1B1610

•

Dolly I17 shaft oil seal ø25x62x10

VERSIONE A-B-C 3/4"- I ø15mm

•

quantity 1

VERSIONE A-B-C 3/4"- I ø18mm

•

• •

•

ZX.P18X38.5

•

Kit Dolly 315 ZX.1992

•

Kit Dolly 311 plunger oil seals ø18x24x4

Kit Dolly 313 ZX.1982

E1B1807 - E1B1808 - E1B1809

Fitting pumps

Kit Dolly 314 ZX.1959

ZX.P15X38.5

plungers

Dolly I17 ZX.1915

Complete seal packing

Kit Dolly 311 ZX.1979

Seal packing

Kit Dolly 312 ZX.1958

Valves

Kit Dolly 309 ZX.1957

ZX.1979

• • 85

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP SERIES 58 - EVOLUTION 2

CLUB DEI RIPARATORI

ZX.1901

ZX.1901-60B

ZX.1901-60S

ZX.1905

20,30 mm

15,70mm

21,80mm Kit Dolly 269, valves + O-rings

Set Dolly 269-60B, valves + O-rings

Set Dolly 269-60S, valves + O-rings

Kit Dolly 270, Caps + O-ring

quantity 4x3

quantity 3x60

quantity 4x3

ZX.1903

ZX.1916

ZX.1917

ZX.1904

Kit Dolly 274, seal packing ø18

Set Dolly 274-60 HP, seal packing ø18

Set Dolly 274-60 LP, seal packing ø18

Kit Dolly 277, complete seal packing ø18

quantity 5x3

quantity 1x60

quantity 7x1

ZX.1941

ZX.1902

ZX.1915

ZX.P18X42

42mm

18mm

Set Dolly 277-50 OR, O-ring for packing retainer kit dolly 277

Kit Dolly 271, plunger oil seals ø15x24

Dolly i17, shaft oil seal ø25x62x10

Set Dolly i22, plungers ø18x42

quantity 1x50

quantity 1x3

quantity 1

quantity 1x3

Kit Dolly 271 ZX.1902

Dolly i17 ZX.1915

ZX.P18X42

Plungers

Kit Dolly 277 ZX.1904

Shaft oil seals

Kit Dolly 274 ZX.1903

Plunger oil seals

Kit Dolly 270 ZX.1905

Complete seal packing

E2B1618

•

E2B1711

•

E2B1712

•

E2B1713

•

E2B2014

•

E2B2042

•

E2C1713

•

E2C1714

•

E2C1715

•

E2C2016

•

Fitting pumps

Seal packing

Kit Dolly 269 ZX.1901

Valves+ caps

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP SERIES 59 - EVOLUTION 3 ZX.1901

ZX.1901-60B

ZX.1901-60S

20,30 mm

ZX.1905

20,30 mm

21,80mm

15,70mm

Kit Dolly 269, valves + O-rings

Set Dolly 269-60B, valves + O-rings

Set Dolly 269-60S, valves + O-rings

Kit Dolly 270, caps + O-ring

quantity 4x3

quantity 3x60

quantity 4x3

ZX.1907

ZX.1993

ZX.1804

ZX.1816

Kit Dolly 292, caps + O-ring

Kit Dolly 285, seal packing ø20

Set Dolly 285-60 HP, seal packing ø20

Set Dolly 285-60 LP, seal packing ø20

quantity 4x3

quantity 5x3

quantity 1x60

ZX.1994

ZX.1902

ZX.1991

ZX.P20X42

42mm

20mm

quantity 1x3

quantity 1

quantity 1x3

E3A1515 - E3A1713 E3A2113 - E3A2115 E3B1021 - E3B1218 E3B1515 - E3B1713 E3B1911 E3B2118 - E3B2121 - E3B2511 E3B2513 - E3B2515 E3C1021 - E3C1218 - E3C1515 E3C1713 E3C2513 E3C2515 - E3C2518 - E3C2521 E3E2517 - E3E2520 E3E2813 - E3E2815 Copyright© Idrobase Group. All rights reserved.

• • • • • • • • • • • • •

•

Kit Dolly 292 ZX.1907

Kit Dolly 270 ZX.1905

Fitting pumps

Head rings

Kit Dolly 269 ZX.1901

Valves

Seal packing

Complete seal packing

Plunger oil seals

Shaft oil seals

• • • • • • • • • • • •

•

• •

•

• • • • • • • • • • • • •

• • • • • • • • • • •

Plungers

ZX.P20X42

quantity 7x1

Dolly i19 ZX.1991

Set Dolly i23, plungers Ø20x42

Kit Dolly 271 ZX.1902

Dolly i21, shaft oil seal ø30x55x7

Kit Dolly 290 ZX.1994

Kit Dolly 271, plunger oil seals ø15x24

Kit Dolly 285 ZX.1993

Kit Dolly 290, complete seal plunger ø20

•

• •

•

DOLLY SPARE PARTS FOR PUMPS

CLUB DEI RIPARATORI

FITTING INTERPUMP/GENERALPUMP SERIES 61-62 ZX.0700

ZX.0694

ZX.0038

ZX.0041

ZX.0288

Kit Dolly 122, valves + O-rings

Kit Dolly 77, seal packing ø20

Kit Dolly 8 OLD, h.p. seals ø20x35

Set Dolly 8 OLD-60, h.p. seals ø20x35

Set Dolly 8 OLD-500, h.p. seals ø20x35

quantity 2x6 + 3x3

quantity 4x3

quantity 1x6 + 1x3

quantity 1x60

quantity 1x500

ZX.0533

ZX.0308

ZX.0136

ZX.0523

Set Dolly 8-60LP, l.p. seals ø20x35

Set Dolly 8-500LP, l.p. seals ø20x35

Kit Dolly 7, head rings ø20

Set Dolly 7-60, head rings ø20

quantity 1x60

quantity 1x500

quantity 1x6

quantity 1x60

ZX.0325

ZX.0758

ZX.0759

ZX.0932

ZX.0695

Set Dolly 7-500, head rings ø20

Kit Dolly 75, intermediate rings ø20

Kit Dolly 76, packing retainers + O-rings ø20

Kit Dolly 76-50 OR, O-rings for Kit Dolly 76

Kit Dolly 78, complete seal plunger ø20

quantity 1x500

quantity 1x3

quantity 2x3

quantity 1x50

quantity 7x1

ZX.0070

ZX.0719-3

ZX.1468

115mm

Kit Dolly 44, plunger oil seals ø35x52x7

Kit Dolly 32, shaft oil seals ø35x52x8

20mm Set Dolly i10, plungers + snap rings ø20x115

quantity 1x3

quantity 1x2

quantity 2x3

Seal packing + head rings

Kit Dolly 32 ZX.1468

Set Dolly i10 ZX.0719-3

T4251

Kit Dolly 44 ZX.0070

T3551

Kit Dolly 78 ZX.0695

Generalpump:

Kit Dolly 76 ZX.0759

W425

Plungers

Kit Dolly 75 ZX.0758

W355

Oil seals

Kit Dolly 7 ZX.0136

Interpump:

Complete seal packing

Kit Dolly 77 ZX.0694

Fitting pumps

Intermediate ring + packing retainers

Kit Dolly 122 ZX.0700

Valves

• •

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 63 - Model EL1411

FITTING INTERPUMP/GENERALPUMP SERIES 63 ZX.0579

ZX.0166

ZX.0734

Kit Dolly 123, valves + O-rings

Set Dolly 123-60, valves + O-rings

Set Dolly 123-500, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 e 123

Kit Dolly 124, brass caps + O-rings

Brass caps + O-rings, with threaded hole G1/4" F

quantity 3x6

quantity 3x60

quantity 3x500

quantity 1x50

quantity 2x6

quantity 2x1

ZX.0703

ZX.1997

ZX.0929

ZX.0704

ZX.1998

ZX.0931

Kit Dolly 160, seal packing ø15

Set Dolly 160-60HP, h.p. seals ø15x24

Set Dolly 160-60LP, l.p. seals ø15x22

Kit Dolly 161, seal packing ø18

Set Dolly 161-60HP, h.p. seals ø18x28

Set Dolly 161-60LP, l.p. seals ø18x25

quantity 5x3

quantity 1x60

quantity 5x3

quantity 1x60

ZX.0705

ZX.0706

ZX.0709

ZX.0710

ZX.0711

ZX.0708

Kit Dolly 166, complete seal plungers ø15

Kit Dolly 167, complete seal plungers ø18

Kit Dolly 163, packing retainers ø18

Kit Dolly 164, intermediate rings ø15

Kit Dolly 165, intermediate rings ø18

Kit Dolly 162, packing retainers ø15

quantity 7x1

quantity 1x3

ZX.0413

ZX.1640

Kit Dolly 159, plunger oil seals ø18x26x6

Kit Dolly i14, plunger fastening

quantity 1x3

quantity 5x3

EH2009 EH2011 EL1411 EL1413 EL1714

ZX.A1258

ZX.A1487

EL2007

9mm

EL2009 UH2008

37,5mm

15mm Set Dolly i3, ceramic plungers ø15x37.5

18mm Set Dolly i4, ceramic plungers ø18x37.5

quantity 1x3

UH2011 UH2013 UH2016 UL1413 UL1415 UL2009 UL2011

• • • • • • • •

• • •

• •

• • • •

• • • • • • • •

• • •

• •

• • • •

• • • • • • • •

• • •

• •

Complete seal packing

Oil seals

• • • • • • • • • • • • • • • • •

• • • •

• • • • • • • •

• • •

• •

Plungers

• • • • • • • •

Set Dolly i4 ZX.A1487

Kit Dolly 167 ZX.0706

Kit Dolly 163 ZX.0709

• • • •

Kit Dolly 162 ZX.0708

• • • • • • • • • • • • • • • • •

Kit Dolly 165 ZX.0711

Kit Dolly 160 ZX.0703

• • • • • • • • • • • • • • • • •

Kit Dolly 164 ZX.0710

Kit Dolly 124 ZX.0166

EH1413

Kit Dolly 161 ZX.0704

Fitting pumps

EH1416

Intermediate rings + packing retainers

Seal packing

Kit Dolly 123 ZX.1601

Valves + caps

Set Dolly i3 ZX.A1258

ZX.1601-500

Kit Dolly 159 ZX.0413

ZX.1601-60

Kit Dolly 166 ZX.0705

ZX.1601

• • •

• •

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP SERIES 66 ZX.1909-60

CLUB DEI RIPARATORI

ZX.1909

ZX.1911-60

ZX.1911

20,70 mm

25,70 mm

21,80mm

28,80mm

Kit Dolly 169, valves + O-rings

Kit Dolly 169-60, valves + O-rings

Kit Dolly 150, valves + O-rings

Kit Dolly 150-60, valves + O-rings

quantity 3x6

quantity 3x60

quantity 3x6 + 1x3

quantity 3x60 + 1x30

ZX.2377

ZX.1912

ZX.1913

ZX.2374

Kit Dolly 174, seal packing ø16

Kit Dolly 180, seal packing ø18

Kit Dolly 170, seal packing ø20

Kit Dolly 172, seal packing ø22

quantity 6x3

quantity 5x3

ZX.2392

ZX.2493

ZX.1910

ZX.1914

Kit Dolly 248, seal packing ø28

Kit Dolly 175, complete seal packing ø16

Kit Dolly 176, complete seal packing ø18

Kit Dolly 171, complete seal packing ø20

quantity 6x3

quantity 8x1

quantity 7x1

ZX.2483

ZX.2409

ZX.0110

ZX.0074

Kit Dolly 173, complete seal packing ø22

Kit Dolly 247, complete seal packing ø28

Kit Dolly 2, plunger oil seals ø22x32x5.5

Kit Dolly 3, shaft oil seals ø30x55x7

quantity 7x1

quantity 8x1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP SERIES 66 ZX.P16X54

ZX.P18X54

ZX.P22X54

ZX.P20X54

54mm

16mm

54mm

18mm

22mm

20mm

Set Dolly i31, ceramic plungers ø16x54

Set Dolly i19, ceramic plungers ø18x54

Set Dolly i20, ceramic plungers ø20x54

Set Dolly i32, ceramic plungers ø22x54

quantity 1x3

Seal packing

Complete seal packing

ZX.P28X54

54mm

28mm

Set Dolly i24, ceramic plungers ø28x54

W2035 W2141 W2525 W3018 W3021 W3025

• • • • • • • •

W3521 W3523 W4015 W4018 W4518 W5015 W5018 T1750 T2040 T2530 T2535 T2830 T3021 T3025 T4018 T5015 T5018

• • • • • • •

• • • • • • • • •

• • •

• • • • •

• • •

• •

• • • •

• • • • • •

• •

•

• • •

• •

• • •

•

• • • •

• • • • •

• • •

• •

Set Dolly i24 ZX.P28X54

Set Dolly i32 ZX.P22X54

Set Dolly i20 ZX.P20X54

• • • • • • • • • • • • • • • • • • • • • • • • •

Set Dolly i19 ZX.P18X54

• • • • • • • • • • • • • • • • • • • • • • • • •

Plungers Set Dolly i31 ZX.P16X54

Kit Dolly 247 ZX.2409

Kit Dolly 173 ZX.2483

Kit Dolly 171 ZX.1914

•

• • •

Kit Dolly 176 ZX.1910

Kit Dolly 175 ZX.2493

Kit Dolly 248 ZX.2392

Kit Dolly 172 ZX.2374

Kit Dolly 180 ZX.1912

Kit Dolly 174 ZX.2377

• •

Kit Dolly 3 ZX.0074

W2030

Plunger Shaft oil oil seals seals

Kit Dolly 2 ZX.0110

W1550

Kit Dolly 150 ZX.1911

Fitting pumps

Kit Dolly 169 ZX.1909

Valves

Kit Dolly 170 ZX.1913

quantity 1x3

•

• •

• • •

•

DOLLY SPARE PARTS FOR PUMPS

CLUB DEI RIPARATORI

FITTING INTERPUMP/GENERALPUMP SERIES 69 ZX.0713

ZX.0087-69

ZX.0038

ZX.0041

ZX.0288

Kit Dolly 62, valves + O-rings

Kit Dolly 69, seal packing ø20

Kit Dolly 8 OLD, h.p. seals ø20x35

Set Dolly 8 OLD-60HP, h.p. seals ø20x35

Set Dolly 8 OLD-500HP, h.p. seals ø20x35

quantity 3x6

quantity 4x3

quantity 1x6 + 1x3

quantity 1x60

quantity 1x500

ZX.0086-69

ZX.0533

ZX.0308

ZX.0136

ZX.0523

ZX.0325

Kit Dolly 8, high and low pressure seals ø20x35

Set Dolly 8-60LP, l.p. seals ø20x35

Set Dolly 8-500LP, l.p. seals ø20x35

Kit Dolly 7, head rings ø20

Set Dolly 7-60, head rings ø20

Set Dolly 7-500, head rings ø20

quantity 3x3

quantity 1x60

quantity 1x500

quantity 1x6

quantity 1x60

quantity 1x500

ZX.0141

ZX.0712

ZX.0927

ZX.0714

Kit Dolly 71, intermediate rings + restop ø20

Kit Dolly 57, packing retainers + O-rings ø20

Set Dolly 57-50 OR, O-rings for kit Dolly 57

Kit Dolly 82, complete seal packing ø20

quantity 2x3

quantity 1x50

quantity 7x1

ZX.0069

ZX.1468

ZX.A1979 14mm

50mm

20mm Kit Dolly 37, plunger oil seals ø35x42x7

Kit Dolly 32, shaft oil seals ø35x52x8

Set Dolly i2, ceramic plungers ø20x50

quantity 1x3

quantity 1x2

quantity 1x3

Seal packing + head rings

Kit Dolly 32 ZX.1468

Set Dolly i2 ZX.A1979

TS1531

Kit Dolly 37 ZX.0069

TS1041

Kit Dolly 82 ZX.0714

Generalpump:

Kit Dolly 57 ZX.0712

WS153

Plungers

Kit Dolly 71 ZX.0141

WS104

Oil seals

Kit Dolly 7 ZX.0136

Interpump:

Complete seal packing

Kit Dolly 69 ZX.0087-69

Fitting pumps

Intermediate rings + packing retainers

Kit Dolly 62 ZX.0713

Valves

• •

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP/GENERALPUMP SERIES 76-77 ZX.0693

ZX.0698

ZX.0696

ZX.0760

ZX.0763

Kit Dolly 43, valves + O-rings

Kit Dolly 113, seal packing ø30

Kit Dolly 79, seal packing ø45

Kit Dolly 65, head rings ø30

Kit Dolly 48, head rings ø45

quantity 3x6

quantity 4x3

quantity 1x6

ZX.0761

ZX.0765

ZX.0762

ZX.0764

ZX.0699

Kit Dolly 66, intermediate rings ø30

Kit Dolly 81, intermediate rings + restop ø45

Kit Dolly 114, packing retainers + O-rings ø30

Kit Dolly 47, packing retainers + O-rings ø45

Kit Dolly 115, complete seal packing ø30

quantity 1x3

quantity 2x3

quantity 7x1

ZX.0697

ZX.0070

ZX.1468

ZX.0643-3

ZX.0644-3

22mm

70mm

30mm

45mm

Kit Dolly 80, complete seal packing ø45

Kit Dolly 44, plunger oil seals ø35x52x7

Kit Dolly 32, shaft oil seals ø35x52x8

Set Dolly i8, ceramic plungers ø30x70

Set Dolly i9, ceramic plungers ø45x70

quantity 7x1

quantity 1x3

quantity 1x2

quantity 1x3

• • • • • •

• • • • •

Set Dolly i9 ZX.0644-3

• • • •

Set Dolly i8 ZX.0643-3

Kit Dolly 32 ZX.1468

Plungers

Kit Dolly 44 ZX.0070

Oil seals

Kit Dolly 80 ZX.0697

Kit Dolly 115 ZX.0699

Complete seal packing

Kit Dolly 47 ZX.0764

Kit Dolly 114 ZX.0762

Kit Dolly 47 ZX.0765

Kit Dolly 66 ZX.0761

Intermediate rings + packing retainers

Kit Dolly 48 ZX.0763

Kit Dolly 65 ZX.0760

Kit Dolly 113 ZX.0698

Kit Dolly 43 ZX.0693

Fitting pumps

Kit Dolly 79 ZX.0696

Seal packing + head rings

Valves

Interpump: W6 W8 W12 W15 W155 W159

• • • • • •

• •

• • • • • •

Generalpump: T61 T81 T121 T151 T1551

• • • • •

• • • • • 93

DOLLY SPARE PARTS FOR MOTOR PUMPS FITTING INTERPUMP ZX.1600

ZX.1600-60

ZX.1600-500

ZX.0579

ZX.0717

CLUB DEI RIPARATORI

Kit Dolly 1, valves + O-rings

Set Dolly 1-60, valves + O-rings

Set Dolly 1-500, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 and 123

Kit Dolly 134, valves + O-rings

quantity 3x6

quantity 3x60

quantity 3x500

quantity 1x50

quantity 3x6

ZX.0716

ZX.0535

ZX.0047

ZX.0402

Kit Dolly 87, seal packing ø15

Kit Dolly 97, seal packing ø15

Set Dolly 97-60HP, h.p. seals ø15x25

Set Dolly 97-500HP, h.p. seals ø15x25

quantity 4x3

quantity 1x60

quantity 1x500

ZX.0645

ZX.0718

ZX.0715

ZX.0644

Kit Dolly 86, packing retainers + O-rings ø15

Kit Dolly 146, complete seal packing ø12

Kit Dolly 85, complete seal packing ø15

Kit Dolly 96, complete seal packing ø15

quantity 3x3

quantity 5x3

quantity 5x1

ZX.0728

ZX.0065

ZX.0005-3

ZX.0641-3

9mm

12mm

25mm

62,5mm

15mm

Kit Dolly 147, plunger oil seals ø12x22x4/6

Kit Dolly 83, plunger oil seals ø15x24x5

Set Dolly i6, ceramic plungers ø15x25

Set Dolly i11, plungers assembly ø12x62.5

quantity 1x3

DOLLY SPARE PARTS FOR MOTOR PUMPS FITTING INTERPUMP

TURBO 15 TURBO 19 TURBO 21 F.122 F.124

BIG BANG FORMULA 99 GONG FLASH

X.117S X.161 X.220S X.230 X.240S 15 19 21 8.70

TURBO

8.90 10.100 11.50 11.70 11.120 13.90 CL 10 CL 11

CLEANMATIC

CL 22 CL 24 CL 26 GX 10 GX 11

GREEN JET

GX 22 GX 24 GX 26 BT 10 BT 12

BLUE TIME

BT 22 BT 24 BT 26

• • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • •

Set Dolly i11 ZX.0641-3

Kit Dolly 147 ZX.0728

Kit Dolly 96 ZX.0644

Kit Dolly 85 ZX.0715

Kit Dolly 146 ZX.0718

• • • • • • • • • •

• • • • • • • • • • • • •

Plungers

Set Dolly i6 ZX.0005-3

11.50

• • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • •

Oil seals

Kit Dolly 83 ZX.0065

BOXJET

Kit Dolly 86 ZX.0645

8.90

• • • • • • • • • • • • • • • • • • • • • • •

Complete seal packing

Packing retainers

Kit Dolly 97 ZX.0535

8.70

Seal packing

Kit Dolly 134 ZX.0717

Model

Kit Dolly 1 ZX.1600

Series

Valves

Kit Dolly 87 ZX.0716

Fitting power unit pumps

• • • • • • • • • • • • • • • 95

CLUB DEI RIPARATORI

How to replace valves and O-rings of a professional h.p. washer?

Special tools for pumps preventive maintenance

CHOOSE THE POWER OF COMPATIBILITY The kits in the Dolly Spare Parts line allow you to have spare parts perfectly suited to the pumps and h.p. washers made by the widest range of manufacturers. All the advantages and features of the original pieces, but with the extra benefit of 25% lower prices on average. Our valves and seals are perfect for use in car washes and industrial applications. Providing excellent performance with operating temperatures up to 85°C.

Spring in AISI 302 stainless steel

Cage made of POM, a sturdy moisture-resistant resin

Seat and plate in AISI 303 stainless steel Test on long-lasting operation, in extreme operating and environmental conditions

Materials carefully selected to ensure the best product quality

DOLLY SPARE PARTS FOR PUMPS

For car washes and industrial applications up to 85°C

FITTING INTERPUMP SERIES 47.HT HIGH TEMPERATURE ZX.1628

ZX.1628-60

Fitting pumps HT 4715 HT 4718 HT 4721

Kit Dolly 201, valves + O-rings

Kit Dolly 201-60, valves + O-rings

quantity 4x6

quantity 4x60

ZX.0169

ZX.0733

ZX.0580

Kit Dolly 5, nickeled brass caps + O-rings

Nickeled brass cap + O-ring, with threaded hole G1/4"F

Set Dolly 5-50 OR, O-rings for caps Kit Dolly 5

quantity 2x6

quantity 2x1

quantity 1x50

ZX.0135

ZX.0345

HT 4723

ZX.A1234

ZX.1487-3 14mm

50mm

Kit Dolly 6, piston screws

Kit Dolly 6IP, O-ring-and washers for plunger bolts

22mm Set Dolly i5, ceramic plungers ø22x50

Set Dolly I27 connecting rods, for pumps fitting Interpump “47” series

quantity 5x3

quantity 4x3

quantity 1x3

ZX.0110

ZX.0436

ZX.0074

ZX.1634

Kit Dolly 2, plunger oil seals ø22x32x5.5

Kit Dolly 2-500, plunger oil seals ø22x32x5.5

Kit Dolly 3, shaft oil seals ø30x55x7

Set Dolly 203-50 OR, O-rings for packing retainer Kit Dolly 203

quantity 1x3

quantity 1x500

quantity 1x2

quantity 1x50

ZX.1622

ZX.1631

ZX.1632

ZX.1623

Kit Dolly 202, seal packing ø22

Set Dolly 202-60HP, h.p. seals ø22x35

Set Dolly 202-60LP, l.p. seals ø22x28,15

Kit Dolly 203, complete seal packing ø22

quantity 2x3

quantity 1x60

quantity 5x1

DOLLY SPARE PARTS FOR PUMPS

Dolly Spare Parts - Fitting Interpump/ Generalpump - Series 63 - Model EL1411

For car washes and industrial applications up to 85°C

FITTING INTERPUMP SERIES 63 HT-HTS HIGH TEMPERATURE ZX.1601

ZX.1601-60

CLUB DEI RIPARATORI

Fitting pumps HT 6311 - HTS 6311 HT 6313 - HTS 6313 Kit Dolly 123, valves + O-rings

Set Dolly 123-60, valves + O-rings

quantity 3x6

quantity 3x60

ZX.1601-500

ZX.0579

ZX.1658

Set Dolly 123-500, valves + O-rings

Set Dolly 123-50 OR, O-rings for valves Kit Dolly 1 and 123

Kit Dolly 158, nickeled brass caps + O-rings

quantity 3x500

quantity 1x50

quantity 2x6

ZX.0580

ZX.1640

ZX.A1487

HT 6315 - HTS 6315

9mm

37,5mm

Set Dolly 158-5- OR, O-rings for caps Kit Dolly 158

Kit Dolly i14, plunger fastening Serie 63

18mm Set Dolly i4, ceramic plungers ø18x37.5

quantity 1x50

quantity 5x3

quantity 1x3

ZX.0413

CDR.1638

ZX.1639

Kit Dolly 159, plunger oil seals ø18x26x6

Shaft oil seal, ø25x62x10

Set Dolly 205-50 OR, O-rings for packing retainer Kit Dolly 205

quantity 1x3

quantity 1

quantity 1x50

ZX.1624

ZX.1635

ZX.1636

ZX.1627

Kit Dolly 204, seal packing ø18

Set Dolly 204-60HP, h.p. seals ø18x28

Set Dolly 204-60LP, l.p. seals ø18x22.5

Kit Dolly 205, complete seal packing ø18

quantity 2x3

quantity 1x60

quantity 5x1

DOLLY SPARE PARTS FOR PUMPS FITTING GENERALPUMP SERIES TSF ZX.1909

ZX.1909-60

25,70 mm

25,70 mm 28,80mm

28,80mm

Kit Dolly 169, valves + O-rings

Kit Dolly 169-60, valves + O-rings

quantity 3x6

quantity 3x60

ZX.1912

ZX.1913

ZX.1910

ZX.1914

Kit Dolly 180, seal packing ø18

Kit Dolly 170, seal packing ø20

Kit Dolly 176, complete seal packing ø18

Kit Dolly 171, complete seal packing ø20

quantity 6x3

quantity 5x3

quantity 8x1

quantity 7x1

ZX.0110

ZX.0074

ZX.P18X54

ZX.P20X54

54mm

18mm

20mm

Kit Dolly 2, plunger oil seals ø22x32x5.5

Kit Dolly 3, shaft oil seals ø30x55x7

Set Dolly i19, ceramic plungers ø18x54

Set Dolly i20, ceramic plungers ø20x54

quantity 1x3

quantity 1x2

quantity 1x3

•

TSF2019

•

TSF2019 Alternate Spec

•

TSF2019 DS

Plungers

Kit Dolly 3 ZX.0074

ZX.P18X54

Shaft oil seals

Kit Dolly 2 ZX.0110

Plunger oil seals

ZX.P20X54

•

Kit Dolly 171 ZX.1914

Kit Dolly 180 ZX.1912

TSF1819

Kit Dolly 170 ZX.1913

Kit Dolly 169 ZX.1909

Complete seal packing

Kit Dolly 176 ZX.1910

Seal packing

Valves

•

TSF2021

•

TSF2021 Alternate Spec

•

Fitting pumps

•

DOLLY SPARE PARTS FOR PUMPS FITTING GENERALPUMP SERIES CW47 ZX.1600

ZX.1600-60

ZX.0579

ZX.0151 Fitting pumps

CLUB DEI RIPARATORI

• CW24 • CW2004 • CW2040 • CW3040

Kit Dolly 1, valves + O-rings

Set Dolly 1-60, valves + O-rings

Set Dolly 1/123-50 OR, O-rings for valves Kit Dolly 1 and 123

Kit Dolly 4, brass caps + O-rings

quantity 3x6

quantity 3x60

quantity 1x50

quantity 2x6

ZX.0732

ZX.0580

ZX.1487-3

ZX.0135

ZX.0345

40mm

95mm

30mm

Brass cap + O-ring, with threaded hole G1/4"F

Set Dolly 4/5/124-50 OR, O-rings for Kit Dolly 4, 5, 124

Set Dolly I27 connecting rods, for pumps fitting Interpump “47” series

Kit Dolly 6, piston screws

Kit Dolly 6IP, O-rings and washers for plunger bolts

quantity 2x1

quantity 1x50

quantity 1x3

quantity 5x3

quantity 4x3

13mm

ZX.A1979-3

ZX.2186

ZX.0041

20mm Set Dolly i2, ceramic plungers ø20x50

Kit Dolly 969, seal packing ø20 fitting GP CW47

Set Dolly 8 OLD-60, h.p. seals ø20x35

quantity 1x3

quantity 4x3

quantity 1x60

14mm

50mm

100

ZX.2186-BP60

ZX.0727

ZX.0136

ZX.0523

Set Dolly 969-60LP, l.p. seals ø20 fitting GP

Set Dolly 69-60RS, restop rings ø20

Kit Dolly 7, head rings ø20

Set Dolly 7-60, head rings ø20

quantity 1x60

quantity 1x6

quantity 1x60

ZX.0141

ZX.0573

ZX.0110

ZX.0074

Kit Dolly 71, intermediate rings + restop ø20

Set Dolly 10-50 OR, O-rings for Kit Dolly 10, 10 OLD and 14

Kit Dolly 2, plunger oil seals ø22x32x5.5

Kit Dolly 3, shaft oil seals ø30x55x7

quantity 2x3

quantity 1x50

quantity 1x3

quantity 1x2

DOLLY O-RINGS FITTING INTERPUMP/GENERALPUMP PUMPS ZX.0584 ZX.0574

ZX.0575

ZX.0577

ZX.0578

ZX.0579

ZX.0580

ZX.0573

ZX.0576 Box of Dolly O-rings, fitting Interpump and Generalpump. 8 different types of O-rings in one package for a total of 400pcs

ZX.0573

ZX.0574

ZX.0575

ZX.0576

Set Dolly 10-50 OR, O-rings packing retainers Fitting series: • 47-48

Set Dolly 86/139-50 OR, O-rings packing retainers Fitting series: • 51

Set Dolly 166/167-50 OR, O-rings packing retainers Fitting series: • 63

Set Dolly 22-50 OR, O-rings packing retainers Fitting series: • 44 • 49-50

quantity 1x50

ZX.0577

ZX.0578

ZX.0579

ZX.0580

Set Dolly 12-50 OR, O-rings plunger bolts Fitting series: • 47-48 • 49-50

Set Dolly 13-50 OR, O-rings piston nuts of kit ZX.1367 Fitting series: • 44 • 51 • 63

Set Dolly 1/123-50 OR, O-rings valves Fitting series: • 44 • 47-48 • 49-50 • 51 • 63 • Motorpump

Set Dolly 4/5-50 OR, O-rings brass cap Fitting series: • 47-48 • 49-50

quantity 1x50

101

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGER Ø14

CLUB DEI RIPARATORI

ZX.0724

Set Dolly X891, fitting Kärcher pumps plunger ø14

ZX.0462

CDR.0918 10

19,4mm

10 17mm

CDR.0921

THE SET CONTAINS: • ZX.0462 - 6 pcs • ZX.0918 - 1 pcs • CDR.0921 - 1 pz • CDR.0919 - 1pcs • CDR.0920 - 2 pcs • GUA.0001 - 3 pcs • CDR.0655 - 3 pcs • CDR.0657 - 2 pcs • CDR.0941 - 1 pcs • CDR.0923 - 1 pcs • CDR.0924 - 1 pcs • ZX.0962 - 2 pcs • CDR.0942 - 3 pcs

• ZX.0963 - 1 pcs • CDR.0907 - 6 pcs • CDR.0913 - 2 pcs • CDR.0943 - 1 pcs • CDR.0929 - 6 pcs • CDR.0471 - 3 pcs • CDR.0205 - 3 pcs • CDR.0200 - 3 pcs

Fitting h.p. washers pumps

H 2500

HDS 558 CSX

HDS 2.3/13 C ED

HDS 698 C

HDS 7/13 C

HDS 698 C

HDS 558 C Complete valve

Complete valve

HDS 558 C

quantity 1

HDS 558 C ECO

CDR.0919

CDR.0920

GUA.0001

CDR.0655

HDS 698 CSX ST HDS 558

CDR.0657

CDR.0941

Valve plate

Plastic fork

White disc ø14x24

Brass disc ø14

Disc

Valve rod

quantity 1

CDR.0923

CDR.0924

ZX.0962

CDR.0942

ZX.0963

CDR.0907

O-ring

quantity 1

quantity 2x1

CDR.0913

CDR.0943

CDR.0929

*GB

*CDN

102

HDS 698 C ECO

O-ring retainer

O-ring

quantity 1

quantity 2x1

quantity 1

CDR.0471

CDR.0205

CDR.0200

O-ring

O-ring carter

O-ring

Plunger oil seal ø14x22

H.p. seal ø14x22

L.p. seal ø14x20

quantity 1

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGER Ø18 ZX.0720

THE SET CONTAINS: • ZX.0462 - 6 pcs • CDR.0930 - 3 pcs • CDR.0931 - 3 pcs • CDR.0924 - 1 pcs • CDR.0932 - 1 pcs • CDR.0933 - 3 pcs • CDR.0934 - 1 pcs • CDR.0935 - 3 pcs • ZX.0964 - 2 pcs

• CDR.0908 - 1 pcs • ZX.0965 - 1 pcs • CDR.0940 - 1 pcs • CDR.0201 - 3 pcs • CDR.0207-G - 3 pcs • CDR.0472 - 3 pcs

Fitting h.p. washers pumps

Set Dolly X172, fitting Kärcher pumps, plunger ø18

ZX.0462

CDR.0930

19,4mm

17mm

H 2700

HDS 790 CS

Complete valve

Disc ø18x28

HDS 555 CS

HDS 795 JAPAN

quantity 1

HDS 590 C

CDR.0931 10

HDS 600 C

CDR.0924 10

O-ring

quantity 1

HDS 797 CI HDS 797 CI

HDS 600 C (290)

HDS 797 CI

*VEX

HDS 600 C (340)

HDS 890 C

*CH

HDS 600 C SPEZ.

HDS 890 C

*GB/AUS

HDS 600 CI

HDS 890 C

*VEX

HDS 600 CI O-ring

*VEX

*EUR

HDS 890 C (480)

HDS 600 CS (340)

HDS 890 C (490)

HDS 655

*GB

HDS 695

CDR.0933 10

O-ring for bolt cover

quantity 1

CDR.0934 10

CDR.0935 10

HDS 895 (460)

HDS 790 CI

HDS 895 SPECIAL

HDS 790 CI

*EUR

HDS 900 C

*USA/CD

HYDRO LAV

*BR

HDS 790 CS

*CH

SB-HDS 695

HDS 790 CS

*EUR

SB-HDS 695 WERT

HDS 790 CS

*EURO

SB-HDW

HDS 790 CS

*SF

1500 SUPER

O-ring retainer

O-ring

quantity 1

quantity 2x1

CDR.0908

ZX.0965

CDR.0940

O-ring

O-ring carter

quantity 1

quantity 2x1

quantity 1

CDR.0201

CDR.0207-G

CDR.0472

L.p. seal ø18x28

H.p. seal ø18x26

Plunger oil seal ø18x26

quantity 1

*EUR

ZX.0964

O-ring

HDS 890 C (550) HDS 895 (350)

HDS 790 CS

O-ring for cover

HDS 890 C (360)

HDS 600 CS (150)

HDS 790 C

CDR.0932

*VEX

103

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGERS Ø18

THE SET CONTAINS:

CLUB DEI RIPARATORI

ZX.SP008

• ZX.0462-3 - 2 pcs • ZX.008-HL - 1 pc • ZX.008-MM - 1 pc • ZX.008-OR - 1 pc • ZX.2444-025 - 1 pc

Set Dolly X008, fitting Kärcher pumps, plunger ø18

ZX.0966-60

Fitting h.p. washers pumps 19,4mm

19,4mm

ZX.0462-3

17mm

104

Kit Dolly X512, valves with O-ring

Set Dolly X329-60, valves with O-ring

quantity 1x3

quantity 1x60

17mm

HDS 8/18-4 C HDS 7/16-4 C Classic HDS 6/14-4 C Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.

ZX.008-HL

ZX.0544

Set Dolly X008-HL, seal packing ø18

Set Dolly X9, h.p. seals ø18x26

quantity 4x3

quantity 1x60

ZX.0650

ZX.0543

Set Dolly X27, l.p. seals ø18x28

Set Dolly X8, discs ø18x28

quantity 1x60

ZX.008-MM

ZX.008-OR

ZX.2444-025

Set Dolly X008-MM, valve with O-ring, washers and plastic forks

Set Dolly X008-OR, O-rings for caps, manifold and stainless steel pin

Technical grease, for the maintenance of high pressure pumps, 25ml

quantity 2x2 + 1x1

quantity 9 pcs

quantity 1

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGERS Ø18

THE SET CONTAINS:

ZX.SP883

• ZX.0462-3 - 2 pcs • ZX.008-HL - 1 pc • ZX.883-OR - 1 pc • ZX.2444-025 - 1 pc

Set Dolly X883, fitting Kärcher pumps, plunger ø18

ZX.0462-3

ZX.0966-60

Kit Dolly X512, valves with O-ring

19,4mm

Fitting h.p. washers pumps

17mm

quantity 1x3

17mm Set Dolly X329-60, valves with O-ring

HD 7/18-4M Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.

quantity 1x60

ZX.008-HL

ZX.0544

Set Dolly X008-HL, seal packing ø18

Set Dolly X9, h.p. seals ø18x26

quantity 4x3

quantity 1x60

ZX.0650

ZX.0543

Set Dolly X27, l.p. seals ø18x28

Set Dolly X8, discs ø18x28

quantity 1x60

ZX.883-OR

ZX.2444-025

Set Dolly X883-OR, O-rings for manifold

Technical grease, for the maintenance of high pressure pumps, 25ml

quantity 1x3 + 1x1

quantity 1

105

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGERS Ø18 ZX.0462-3

19,4mm

CLUB DEI RIPARATORI

ZX.2572

17mm

quantity 3x6

quantity 1x3

ZX.2573

ZX.2575

ZX.2574

Set Dolly X61, seal packing ø18

Set Dolly X62, seal packing ø18

Set Dolly X31-3, plunger oil seals ø18

quantity 7x3

quantity 1x6 + 2x3

quantity 1x3

Set Dolly X61 ZX.2573

Seal packing

Kit Dolly X512 ZX.0462-3

Fitting h.p. washers pumps

Set Dolly X52 ZX.2572

Valves

Plunger oil seals

Set Dolly X31-3 ZX.25

Set Dolly X512, valves with O-ring

Set Dolly X62 ZX.2575

Set Dolly X52, valves + O-rings

HD 9/18-4 Cage Classic

•

HD 6/15-4 Classic

•

HD 7/11-4 Cage Classic

•

HD 7/18-4 Classic

•

HD 7/11-4 Classic

•

HD 9/20-4 Classic

•

HD 7/11-4M Plus *GB

•

Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.

106

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGER Ø20

THE SET CONTAINS:

ZX.1673

• CDR.0588 - 3 pcs • CDR.0226-C - 3 pcs • PK.0001 - 3 pcs • CDR.0910 - 3 pcs • ZX.1672 - 3 pcs

Set Dolly X56, fitting Kärcher pumps, plunger ø20

CDR.0588

CDR.0226-C

Fitting h.p. washers pumps

Head ring X378, for seal CDR.0226-C

Seal X377 ø20x30

quantity 1

PK.0001

HD 10/25 S

*GB

HD 10/21 S

*KAP

HD 10/25 4S

*VEX

HD 10/21 S Plus

*EU-I

HD 10/21-4 Cage

*EU-I

D 10/25 4 CAGE

CDR.0910

Fitting h.p. washers pumps

HD 10/25 S

*VEX

HD 10/21-4 S lancia doppia *EU

HD 10/25-4 Cage Plus

*EU-I

HD 10/21-4 S

*AR

HD 10/25 S PLUS

*EU-II

HD 10/21-4 S

*EU

HD 10/25 S 4-POL

*EU-I

HD 10/21 S

*KAP

HD 10/25 S R-II

*EU-II

HD 10/21 4SX PLUS

*EU-I

HD 10/25 -4S PLUS

*EU-I

HD 10/21 -4S

*AR

Disc X538 ø20x30

O-ring retainer X092

HD 10/25 -4S Classic

*VEX

HD 10/21 -4S

*EU

quantity 1

HD 10/23-4S PLUS

*EU-I

HD 10/21 -4SX PLUS

*EU-I

HD 10/23-4S

*EU-I

HD 10/21 4S PLUS

*EU-I

HD 10/23-4SX PLUS

*EU-I

HD 10/21-4 S

*EU-I

HD 10/25 -4S Classic

*VEX

HD 10/21-4 S

*KAP

HD 10/22-4 S

*JP

ZX.1672

ZX.0539

10 19,4mm 17mm

Seal X380 ø20x28, + head ring

Check valve X594, pump delivery

quantity 2x1

quantity 1

CDR.0473

ZX.1674

HD 10/25 -4S HD 10/25-4 S

*EU-I

HD 10/22 SX 180-240V 50Hz

*JP

HD 10/25-4 S

*GB

HD 10/22 SX 180-240V 60Hz

*JP

HD 3.7/22 -4 S Eg

HD 10/22-4 SX

*JP

HD 3.5/30-4 S Ea

HD 10/23-4 SX Plus

*EU-I

HD 10/23-4 S Plus

*EU-I

HD 4.5/32-4 S Eb - Ec

HD 10/23-4 S

*KAP

HD 10/25SX

HD 10/23-4 S

*EU-I

HD 10/25SX PL

Plunger oil seal X052 ø20x28

Set plunger oil seals ø20x28

quantity 1

quantity 1x3

ZX.0462-3

17mm

19,4mm

ZX.0966-60

Kit Dolly X512, valves with O-ring

17mm Set Dolly X512-60, valves with O-ring

quantity 1x3

quantity 1x60

*EU

HD 10/25-4SX PLUS

*EU

HD 10/22 S 200V 60Hz

*JP

HD 10/25-4 S Classic

*VEX

HD 10/22 S 180-240V 50Hz

*JP

HD 10/25-4 S

*VEX

HD 10/21-4 SX

*EU

HD 10/25-4 S

*KAP

HD 10/21-4 S Plus

*EU-I

HD 10/25-4 S Classic

*EU-I

HD 10/21-4 S

*KAP

HD 10/25-4 S Plus

*EU-I

HD 10/21-4 SX

*EU

HD 10/25-4 SX Plus I

*EU-II

HD 10/21-4 SX Plus

*EU-I

HD 10/25-4 SX Plus

*EU-I

HD 10/21-4S Plus Sochi

*EU-I

HD 10/25-4 S Plus I

*EU-II

HD 10/21-4 SX mit Doppelstrahlrohr

HD 10/23-4S

*MX

HD 10/21-4 SX Plus

HD 10/21 S Plus

*EU-I

DELAVAL C 2400

*EU-I

107

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGER Ø20

CLUB DEI RIPARATORI

ZX.0723

THE SET CONTAINS: • ZX.0463 - 5 pcs • ZX.0452 - 2 pcs • ZX.0451 - 1 pcs • PK.0001 - 3 pcs • CDR.0904 - 2 pcs • ZX.0018 - 1 pcs • CDR.0907 - 1 pcs • CDR.0908 - 1 pcs • CDR.0909 - 3 pcs • CDR.0910 - 3 pcs

• ZX.0961 - 4 pcs • CDR.0913 - 1 pcs • CDR.0914 - 1 pcs • CDR.0915 - 3 pcs • CDR.0916 - 1 pcs • CDR.0473 - 3 pcs • CDR.0202 - 3 pcs • CDR.0208 - 3 pcs

Set Dolly X322, fitting Kärcher pumps, plunger ø20

ZX.0463

ZX.0452

ZX.0451

Fitting h.p. washers pumps HDS 655/745

Complete valve

quantity 1

CDR.0904

ZX.0018

HDS 745 HDS 745

*GB

HDS 755

PK.0001 10

HDS 755

*GB

HDS 945

*CSA/CDN

HDS 1000 Disc ø20x30

O-ring

quantity 1

CDR.0907

CDR.0908

CDR.0909

HDS 1055

*CDN

HDS 1055

*USA

HDS 2245 HDS 3005 MODUL - AUFBAU

SB-C SB-C 5/10-2

O-ring

O-ring retainer ø34,65

SB-C 1001/12

quantity 1

SB AB BJ2004

CDR.0910

ZX.0961

O-ring retainer ø34.65

O-ring

quantity 1

quantity 2x1

quantity 1

CDR.0914

CDR.0915

CDR.0916

CDR.0473

O-ring

O-ring carter

Plunger oil seal ø20x28

quantity 1

CDR.0202 10

108

CDR.0913

CDR.0208

ZX.A1399 11mm

L.p. seal ø20x30

H.p. seal ø20x28

Set Dolly X1, ceramic plungers ø20x35

quantity 1

quantity 1x3

35mm

20mm

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGER Ø20

THE SET CONTAINS:

ZX.0721

• ZX.0462 - 5 pcs • CDR.0918 - 1 pcs • CDR.0921 - 1 pcs • ZX.0450 - 1 pcs • CDR.0919 - 1 pcs • CDR.0920 - 2 pcs • CDR.0656 - 3 pcs • PK.0001 - 3 pcs • CDR.0657 - 2 pcs • CDR.0922 - 1 pcs • CDR.0923 - 1 pcs • CDR.0924 - 1 pcs

Set Dolly X913, fitting Kärcher pumps, plunger ø20

ZX.0462

CDR.0918

• ZX.0962 - 2 pcs • ZX.0963 - 1 pcs • CDR.0907 - 6 pcs • CDR.0909 - 3 pcs • CDR.0913 - 2 pcs • CDR.0916 - 1 pcs • CDR.0929 - 6 pcs • CDR.0473 - 3 pcs • CDR.0202 - 3 pcs • CDR.0208 - 3pcs

CDR.0921

Fitting h.p. washers pumps

17mm

19,4mm

Brass disc ø20

Black disc ø20

Disc

quantity 1

FT 1000 TS HD 7/11 HDS 3.5/30 HDS 4.0/20 HDS 4.5/22 HDS 655 HDS 655 M ECO HDS 695 M ECO HDS 695 S HDS 745 HDS 850 4M BASIC HDS 895 M ECO HDS 895 S HDS 895 4M ECO HDS 945 HDS 995 HDS 995 M ECO HDS 1000 HDS 1055 HDS 1155 M ECO HDS M ECO BENELUX POWER AMERICA 1540 SB-HDS 9/15 SB-WASH

CDR.0922

CDR.0923

CDR.0924

ZX.0962

Complete valve

quantity 1

ZX.0450

CDR.0919

CDR.0920

Complete valve

Valve plate

Plastic fork

quantity 1

CDR.0656

PK.0001

CDR.0657

Brass pin

O-ring

quantity 1

quantity 2x1

ZX.0963

CDR.0907

CDR.0909

CDR.0913

O-ring

O-ring retainer

O-ring

O-ring carter

quantity 2x1

quantity 1

CDR.0473 10

CDR.0202 10

*EUR *CY *USA-CDN +EUR *USA *USA-CDN

CDR.0208 10

O-ring

Plunger oil seal ø20x28

L.p. seal ø20x30

H.p. seal ø20x28

quantity 2x1

quantity 1

*EUR *USA

CDR.0916

CDR.0929

*EUR

109

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGERS Ø20

THE SET CONTAINS:

CLUB DEI RIPARATORI

ZX.SP034

• ZX.0462-3 - 2 pcs • ZX.034-HL - 1 pc • ZX.034-WS - 1 pc • ZX.034-MM - 1 pc • ZX.034-OR - 1 pc • ZX.2444-025 - 1 pc

Set Dolly X034, fitting Kärcher pumps, plunger ø20

ZX.0966-60

Kit Dolly X512, valves with O-ring

110

17mm

19,4mm

ZX.0462-3

Set Dolly X329-60, valves with O-ring

Fitting h.p. washers pumps HDS 10/20-4 M

17mm

HDS 10/21-4 M

quantity 1x3

quantity 1x60

ZX.034-HL

ZX.1131-C

ZX.0651

Set Dolly X034-HL, seal packing ø20

Set Dolly X51, h.p. seals ø20x30

Set Dolly X28, l.p. seals ø20x30

quantity 5x3

quantity 1x60

ZX.1457

ZX.034-WS

ZX.034-MM

Set Dolly X24, discs ø20x30

Set Dolly X034-WS, washers and discs

Set Dolly X034-MM, valve with O-ring and plastic forks

quantity 1x60

quantity 1x2 + 1x3

quantity 1x1 + 1x2

ZX.034-OR

ZX.2444-025

Set Dolly X034-OR, O-rings for caps, manifold and stainless steel pin

Technical grease, for the maintenance of high pressure pumps, 25ml

quantity 10 pz

quantity 1

Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGER Ø22 ZX.0722

THE SET CONTAINS: • ZX.0463 - 5 pcs • ZX.0452 - 2 pcs • ZX.0451 - 1 pcs • CDR.0944 - 3 pcs • CDR.0904 - 2 pcs • ZX.0018 - 1 pcs • CDR.0907 - 1 pcs • CDR.0908 - 1 pcs • CDR.0909 - 3 pcs • CDR.0910 - 3 pcs

• ZX.0961 - 4 pcs • CDR.0913 - 1 pcs • CDR.0914 - 1 pcs • CDR.0915 - 3 pcs • CDR.0916 - 1 pcs • CDR.0209 - 3 pcs • CDR.0203 - 3 pcs • CDR.0474 - 3 pcs

Fitting h.p. washers pumps

HD 2000

HDS 995 (680)

HD 2000 SUPER

HDS 1195

*USA

HDS 9/14 ST

HDS 1195

*VEX

HDS 9/15 ST GAS

HDS 1291 ST

HDS 9/16 ST GAS+LPG

HDS 1295

HDS 12/14 ST

HDS 1295

*EUROPA

HDS 695

HDS 1295

HDS 695 PWP

HDS 2000 SUPER

HDS 695 S

HDS 2245

Set Dolly X302, fitting Kärcher pumps, plunger ø22

ZX.0463

ZX.0452

Complete valve

quantity 1

ZX.0451

CDR.0944

Complete valve

Disc ø22x32

quantity 1

HDS 891 ST

HDS 3000 (210)

CDR.0904

ZX.0018

HDS 895

HDS 3000 (980)

HDS 895 S

HDS 3005

HDS 995 (700)

SB-HDW S SB-HDW S 2

O-ring

HDS 995 (770)

quantity 1

quantity 2x1

HDS 995 (430)

CDR.0907

CDR.0908

CDR.0909 10

CDR.0910

O-ring

O-ring retainer

O-ring retainer ø36

quantity 1

ZX.0961

CDR.0913

CDR.0914

CDR.0915

O-ring

O-ring retainer

O-ring

quantity 2x1

quantity 1

CDR.0916

CDR.0209

CDR.0203

CDR.0474

O-ring carter

H.p. seal ø22x30

L.p. seal ø22x32

Plunger oil seal ø22x30

quantity 1

111

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER ZX.0966-60

ZX.0967-60

ZX.0682

ZX.0641

Set Dolly X329-60, valves Ref. Set Dolly pump X891-X172-X913 Code ZX.0724-ZX.0720-ZX.0721

Set Dolly X229-60, valves

Set Dolly X48, h.p. seals ø12x20

Set Dolly X21, h.p. seals ø14x22 (black)

quantity 1x60

112

19,4mm

CLUB DEI RIPARATORI

17mm

ZX.0640

ZX.0544

ZX.1108

ZX.0549

ZX.1110

Set Dolly X48, h.p. seals ø14x22 (brown) Ref. Set Dolly pump X891 Code ZX.0724 Code ZX.0724

Set Dolly X9, h.p. seals ø18x26 Ref. Set Dolly pump X172 Code ZX.0720

Set Dolly X17, h.p. seals. ø20x28 Ref. Set Dolly pump X322-X913 Code ZX.0723-ZX.0721

Set Dolly X14, h.p. seals ø22x30 Ref. Set Dolly pump X302 Code ZX.0722

Set Dolly X50, h.p. seals ø24x34

quantity 1x60

ZX.0649

ZX.0650

ZX.0651

ZX.0652

Set Dolly X26, l.p. seals ø14x20 Ref. Set Dolly pump X891 Code ZX.0724

Set Dolly X27, l.p. seals ø18x28 Ref. Set Dolly pump X172 Code ZX.0720

Set Dolly X28, l.p. seals ø20x30 Ref. Set Dolly pump X322-X913 Code ZX.0723-ZX.0721

Set Dolly X29, l.p. seals ø22x32 Ref. Set Dolly pump X302 Code ZX.0722

quantity 1x60

ZX.1458

ZX.0543

ZX.1457

ZX.0548

Set Dolly X23, discs ø14x24 Ref. Set Dolly pump X891 Code ZX.0724

Set Dolly X8, discs ø18x28 Ref. Set Dolly pump X172 Code ZX.0720

Set Dolly X24, discs ø20x30 Ref. Set Dolly pump X322-X913 Code ZX.0723-ZX.0721

Set Dolly X13, discs ø22x32 Ref. Set Dolly pump X302 Code ZX.0722

quantity 1x60

ZX.0968

ZX.0969

ZX.0970

ZX.0971

Set Dolly X340, plunger oil seals ø14x22x5/7 Ref. Set Dolly pump X891 Code ZX.0724

Set Dolly X334, plunger oil seals ø18x26x6/8 Ref. Set Dolly pump X172 Code ZX.0720

Set Dolly X052, plunger oil seals ø20x28x6/8 Ref. Set Dolly pump X322-X913 Code ZX.0723-ZX.0721

Set Dolly X059, plunger oil seals ø22x30x6/8 Ref. Set Dolly pump X302 Code ZX.0722

quantity 1x15

DOLLY O-RINGS FITTING KÄRCHER H.P. WASHERS ZX.0657

ZX.2412

ZX.0658

ZX.1361

1 3

ZX.0154

3 ZX.0659

ZX.0660

ZX.1362 Box Dolly O-rings fitting Kärcher. Connections and valves 10 different types of O-rings in a single package for a total of 1000pcs

Set Dolly O-rings X001, Fitting: Kärcher Easy Lock h.p. nozzle, lance inlet coupling and h.p. pipe quantity

3x3

ZX.0658

ZX.1361

ZX.1362

Set Dolly O-rings X38, for gun/hose quick coupling ø10mm

Set Dolly O-rings X52 O-ring for valve ZX.0462

Set Dolly O-rings X53 O-ring + anti-extrusion ring for valve ZX.0463

quantity 2x100

quantity 1x100

quantity 2x100

ZX.0659

ZX.0660

ZX.0154

Set Dolly O-rings X39, for gun/hose quick coupling ø11mm

Set Dolly O-rings X40, for hose quick coupling M22x1,5F swivel

Set Dolly O-rings, for hose quick coupling M22x1,5 F and nozzle holder connection

quantity 2x100

quantity 1x100

113

DOLLY SPARE PARTS FOR PUMPS ZX.0787

ZX.0788

ZX.0789

ZX.0783

ZX.0683

Kit Dolly KR11, valves + O-rings

Kit Dolly KR12, valves + O-rings

Kit Dolly KR13, valves + O-rings

Kit Dolly KR7, seal packing ø12

Kit Dolly KR2, seal packing ø14

quantity 3x6

quantity 4x3

ZX.0784

ZX.0421

ZX.0620

ZX.0411

ZX.0786

Kit Dolly KR8, seal packing ø14

Kit Dolly KR5, seal packing ø15

Kit Dolly KR1, seal packing ø18

Kit Dolly KR4, seal packing ø20

Kit Dolly KR10, seal packing ø20

quantity 6x3

quantity 7x3

quantity 6x3

105 115 125 130 135 145 T 150 155 160 TS T 175 T 185 195 TS T 205 T AQ 10-250 AQ 13-230 AQ 15-200 AQ 19-160 AX/10-250 AX/13-220 AX/16-200 AX/20-160 B10/200 B13/150 B16/220 B170 T B200 T B230 T B240 T B270 T D 26/250 D 26/250 TST D 30/180 TST D 30/220 HD 10/100 E

114

• •

•

• • • •

• • • • • • • •

• •

• • • •

• •

•

• • • • • • • •

• • • •

HD 10/100 S HD 10/120 HD 12/130 HD 12/130 S HD 12/140 D HD 10-250 HD 13-230 HD 15-200 HD 16-180 HD 19-160 HD 670 S HD 690 S HD 7/120 HD 9/80 L HD 9/80 E HD 9/80 L JUNIOR 120 JUNIOR 140 1120 1120 T 1150 1150 T 3170 TST 3200 TST 3250 3250 TST 3270 TST POWER JET Profi-jet 10-250 Profi-jet 13-230 Profi-jet 15-200 Profi-jet 16-180 Profi-jet 19-160 Profi-jet 100

• •

•

• • • • • • • • • •

• • • •

•

• • • • •

• • • •

• • • • •

•

• • • • •

Profi-jet 130 Profi-jet 150 D Profi-jet 180 D Quadro 9/170 TST Quadro 11/140 TST Quadro 12/150 TST Quadro 599 TST Quadro 799 TST Quadro 800 TST • Quadro 1000 TS • Quadro 1000 TST • Quadro 1200 TS • Quadro 1200 TST • THERM 600 E THERM 601 E THERM 630 THERM 635 THERM 750 THERM 755 THERM 870 THERM 890 • THERM 895 • THERM 900 E • THERM 1160 • THERM 1165 • THERM C 11/130 THERM C 13/180 THERM C 15/150 THERM CA 11/130 THERM CA 12/150 W11/135 • W13/230 • W15/200 • W19/160 •

• • • • • •

•

ZX.0786

ZX.0411

ZX.0620

ZX.0421

ZX.0784

ZX.0683

Seal packing

ZX.0783

ZX.0789

ZX.0788

Fitting h.p. washer pumps

ZX.0787

ZX.0786

ZX.0411

ZX.0620

• • •

•

• •

Valves

•

• • • • • •

ZX.0421

ZX.0784

ZX.0683

ZX.0783

Seal packing

ZX.0789

ZX.0788

Fitting h.p. washer pumps

ZX.0787

ZX.0786

ZX.0411

•

• •

•

Valves

• • • • • • • • •

• • • • • • • •

ZX.0620

ZX.0421

ZX.0683

ZX.0783

Seal packing

ZX.0789

ZX.0788

Fitting h.p. washer pumps

ZX.0787

Valves

ZX.0784

CLUB DEI RIPARATORI

FITTING KRÄNZLE

• • •

• • • •

• • • • • • •

• • • • •

• • • •

DOLLY SPARE PARTS FOR PUMPS FITTING LAVOR/FASA

LAVOR:

•

BEST EAGLE 21/26 (brass head) Kit Dolly L2, valves + O-rings

Kit Dolly L2/A, valves + O-rings

EQ 21 (brass head)

quantity 2x6

quantity 4x3

JET FIRE 1000

FKX 1321

•

KARJET (KJ) BEST

ZX.0806

ZX.0802

KARJET (KJ) OMNIA KLEANER (KN) (brass head) KW (SPACE) LASER (LS)

•

LAVORJET LKX LMX Kit Dolly L34, valves + O-rings

Kit Dolly L74, valves + O-rings

Kit Dolly L108, valves + O-rings

quantity 2x6

quantity 4x3

quantity 2x6

LWX 1500

•

• • • •

NPX 4 NPX 1500

ZX.0529

• • •

•

OMNIA THERMIC 5 THERMIC 5/S

•

VULKER

FASA: ARTIC Kit Dolly L3, h.p. seals ø15x22

Set Dolly L3-60HP, h.p. seals ø15x22

quantity 1x6

quantity 1x60

SUNDEK

•

TANGO

•

• • •

• •

• • • • • • •

• • •

•

• • • • • • • • • • • • • •

ZX.0726

ZX.0812

•

• •

•

Oil seals

ZX.0803

ZX.0223

• •

•

ZX.0777

• • •

•

KURSAL

ZX.0806

ZX.0802

•

• •

NPX 1400

ZX.0223

•

• •

•

LWX 1400

Seal packing

• • •

•

JOLLY 4 JOLLY 5

ZX.0779

ZX.0780

Fitting h.p. washer pumps:

ZX.0801

Valves

ZX.0222

ZX.0801

ZX.0780

• • •

•

• • • • • •

Data on the table are indicative: always check the correspondence of machine/manufacturer.

ZX.0222

ZX.0529

ZX.0528

ZX.0777

ZX.0947

Kit Dolly L33, seal packing ø15

Set Dolly L3-60HP, h.p. seals ø15x22

Set Dolly L33-60LP, l.p. seals ø15x25

Kit Dolly L66, h.p. seals ø14x22

Set Dolly L66-60HP, h.p. seals ø14x22

quantity 2x3

quantity 1x60

quantity 1x3

quantity 1x60

ZX.0803

ZX.0529

ZX.0948

ZX.0812

ZX.0726

Kit Dolly L109, seal packing ø15

Set Dolly L3-60HP, h.p. seals ø15x22

Set Dolly L109-60HP, h.p. seals ø15x24

Kit Dolly L5, plunger oil seals ø15x25,4x5/7

Kit Dolly L19, plunger oil seals ø14x22x5/7

quantity 4x3

quantity 1x60

quantity 1x3

115

DOLLY SPARE PARTS FOR PUMPS ZX.0781

ZX.0122

ZX.0527

ZX.0807

ZX.0957

Kit Dolly L20, valves + O-rings

Kit Dolly L18, h.p. seals ø14x22

Set Dolly L18-60HP, h.p. seals ø14x22

Kit Dolly L124, h.p. seals ø12x18

Set Dolly L124-60HP, h.p. seals ø12x18

quantity 4x3

quantity 1x3

quantity 1x60

quantity 1x3

quantity 1x60

Kit Dolly L79, plunger oil seals ø12x20x5/7

quantity 1x3

quantity 1x60

quantity 1x3

Oil seals

Valves Seal packing

LAVOR: BEST 24 BEST 28 BI-CLEANER COBRA 19 COBRA 20 COBRA 130 DERBY DOLPHIN DOUBLE-PR DX DX ‘03 EAGLE 20 EAGLE 24 EAGLE 28 ED EKO EQ FALCON FALCON ø12 FKX 1018 FKX 1123 GT HAPPY HIPPOJET (HJ) HW HW 28 JD JET JET POWER (JP) JOKER (JK) KD KLEANER (KN) (aluminium head)

116

•

• • • •

•

• • • • • •

• •

• • •

•

• •

•

• •

•

• • • • •

•

• • • • • •

• • • •

•

• • • • •

• • • • • • • • • • • • • • • • • • • • • •

KOALA KS KS ø12 LD LD 28 LP LW 1400 S MACH MACH 20 ‘03 MACH 28 MF MISSOURI MODULO (MD) NOVAK PARANA’ PARTNER PJ POWER JET 24 PJ POWER JET 28 POWER 13 POWER 15 POWER 17 RIO 1123 SD SKANER (SK) SONIC SPARK (SP) SUN TANKER (TK) TD TECNICA 130 TF THERMIC 3/S TIGER TIGER ‘03

•

• •

• • • • • • • •

• •

• • • •

• •

•

• •

•

• • • • • • •

• • • • • • • • • • • •

•

• • •

•

• • • • •

• • • • • • • • • • • • • • • • • • • • • • •

TURTLE VIPER ‘03 VIPER ø12 VIPER ø14 WASHER 15 WASHER 17 WASHER 19 WP WP ‘03 WP ø12 YUKON

FASA: AVANT CHRONO CHRONO ‘03 COUNTRY DANCE EXXEL20 EXXEL20 ‘03 FUNKY HIPPO JAZZ KAIMAN KAPPA A KAPPA A ‘03 KAPPA 100 KLIMAT 120 KLIMAT 150 LEADER ROCK 28 SAMBA 19 SOUL SWING W19/160

• • •

•

• • • • • • • •

• •

• • • • • • • •

•

ZX.0804

ZX.0807

Fitting h.p. washer pumps:

ZX.0122

• •

Valves Seal packing

ZX.0781

• • • • • •

ZX.0805

Fitting h.p. washer pumps:

Oil seals

ZX.0726

ZX.0804

ZX.0807

ZX.0122

Fitting h.p. washer pumps:

ZX.0781

Valves Seal packing

• • •

•

• • • • •

• •

• • • • • • • • • • • • • • • •

Oil seals

• • • • • •

ZX.0805

Kit Dolly L19, plunger oil seals ø14x22x5/7

ZX.0726

Set Dolly L132-60HP, h.p. seals ø12x18

ZX.0804

Kit Dolly L132, h.p. seals ø12x18

ZX.0807

ZX.0805

ZX.0122

ZX.0726

ZX.0781

ZX.0958

ZX.0805

ZX.0804

ZX.0726

CLUB DEI RIPARATORI

FITTING LAVOR/FASA

• • • • • • • • • • • • • • • • • • • • • • • • • • •

DOLLY SPARE PARTS FOR PUMPS FITTING LUTIAN ZX.2487

ZX.2488

ZX.2484

Set Dolly Lt4, valves + O-rings

Set Dolly Lt5, valves + O-rings

Set Dolly Lt1, seal packing ø15

quantity 2x6

quantity 4x3

ZX.2485

ZX.2486

ZX.2489

Set Dolly Lt2, seal packing ø18

Set Dolly Lt3, seal packing ø20

Set Dolly Lt6, plunger oil seals ø15

quantity 4x3

quantity 1x3

ZX.2576

ZX.2578

ZX.2577

11mm

8mm

40mm

35mm

20mm

15mm

Set Dolly Lt7, plunger oil seals ø18

Set Dolly Lt10, ceramic plungers ø15x35x8

Set Dolly Lt11, ceramic plungers ø18x106.5

Set Dolly Lt12, ceramic plungers ø20x40x11

quantity 1x3

3ZW-15--

•

3ZW-18--

•

3ZW-20--

•

• •

Set Dolly Lt11 ZX.2577

• •

•

Set Dolly Lt10 ZX.2576

Plungers

Set Dolly Lt7 ZX.2490

Set Dolly Lt6 ZX.2489

Oil seals

Set Dolly Lt3 ZX.2486

Set Dolly Lt2 ZX.2485

Set Dolly Lt1 ZX.2484

Seal packing

Set Dolly Lt5 ZX.2488

Fitting h.p. washer pumps

Set Dolly Lt4 ZX.2487

Valves

Set Dolly Lt12 ZX.2578

ZX.2490

•

• •

117

DOLLY SPARE PARTS FOR PUMPS FITTING MAZZONI SERIES PM ZX.2378

ZX.2411

Kit Dolly MZ1, valves + O-rings

Kit Dolly MZ2, seal packing ø18

Kit Dolly MZ3, complete seal packing ø18

quantity 3x6

quantity 7x3

quantity 9x1

Oil seals

Plungers

Fitting pumps

Kit Dolly MZ5 ZX.2413-3

PM 8170 (R-L) PM 10170 (R-L) PM 11170 (R-L) PM 12170 (R-L) PM 13170 (R-L) PM 14170 (R-L) PM 15170 (R-L) PMD 8200 (R-L) PMD 10200 (R-L) PMD 11200 (R-L) PMD 12200 (R-L) PMD 13200 (R-L) PMD 14200 (R-L) PMD 15200 (R-L)

• • • • • • • • • • • • • •

ZX.2413-3

Kit Dolly MZ4, plunger oil seals ø16x24x5

Kit Dolly MZ5, ceramic plungers ø18x40

quantity 1x3

FITTING MAZZONI SERIES MMD

• • • • • • • • • • • • • •

• • • • • • •

Kit Dolly MZ8, complete seal packing ø20

quantity 3x6

quantity 7x3

quantity 9x1

Valves

Seal packing

Complete seal packing

Oil seals

Plungers

Fitting pumps

Kit Dolly MZ9 ZX.2417-3

Kit Dolly MZ7, seal packing ø20

Kit Dolly MZ4 ZX.2416

Kit Dolly MZ6, valves + O-rings

Kit Dolly MZ8 ZX.2415

ZX.2415

Kit Dolly MZ7 ZX.2380

ZX.2380

Kit Dolly MZ6 ZX.2414

ZX.2414

ZX.2416

MMD 12250 (R-L)

•

MMD 15250 (R-L)

•

MMD 18250 (R-L)

•

ZX.2417-3 ø6,2mm ø10mm

46mm

ø20mm

118

Kit Dolly MZ4 ZX.2416

Complete seal packing Kit Dolly MZ3 ZX.2411

Seal packing Kit Dolly MZ2 ZX.2378

ZX.2416

Valves

Kit Dolly MZ1 ZX.2410

CLUB DEI RIPARATORI

ZX.2410

Kit Dolly MZ4, plunger oil seals ø16x24x5

Kit Dolly MZ9, ceramic plungers ø20x46

MMD 21250 (R-L)

•

quantity 1x3

MMD 12250 (R-L)

•

DOLLY SPARE PARTS FOR PUMPS FITTING SPECK ZX.0790

ZX.0791

ZX.0792

ZX.0793

Kit Dolly SP1, valves + O-rings

Kit Dolly SP2, valves + O-rings

Kit Dolly SP3, valves + O-rings

Kit Dolly SP4, valves + O-rings

quantity 3x6

quantity 6x6

quantity 3x6

quantity 2x6

ZX.0799

ZX.0794

ZX.0800

ZX.0795

Kit Dolly SP10, seal packing ø16

Kit Dolly SP5, seal packing ø18

Kit Dolly SP11, seal packing ø18

Kit Dolly SP6, seal packing ø18

quantity 5x3

quantity 4x3

quantity 6x3

ZX.0798

• • • • •

P10/13-100 P10/15-130 P11/10-100 P11/13-100

ZX.0684-3

ZX.0685-3 11mm

11mm

P11/15-150

ZX.0686-3 11mm

• • • • • • • • • •

39mm

P11/10-100 D P11/13-100 D P21/5-450 P21/7-400

18mm Set Dolly SP12, ceramic plungers ø18x39

20mm Set Dolly SP13, ceramic plungers ø20x39

16mm Set Dolly SP14, ceramic plungers ø16x39

quantity 1x3

P21/15-160 P21/16-200 P21/18-130 P21/23-130

•

• • •

• •

•

• • • • •

P21/18-130 D P21/23-130 D

ZX.0687-3

P22/15-280

ZX.0690-3 11mm

NP10/10-140 11mm

NP10/13-140 NP10/15-140

32,5mm

45mm

NP16/14-210 NP16/15-210 NP16/18-140

18mm Set Dolly SP15, ceramic plungers ø18x32.5

18mm Set Dolly SP16, ceramic plungers ø18x45

quantity 1x3

NP16/21-140 NP25/21-280 NP25/21-350 NP25/25-220

• • • • • • •

• • •

ZX.0690-3

ZX.0687-3

ZX.0686-3

ZX.0685-3

• • • • • • • •

P11/15-150 D 39mm

39mm

ZX.0684-3

ZX.0798

Plungers

ZX.0797

quantity 6x3

ZX.0796

quantity 2x6 + 2x3

ZX.0795

quantity 4x3

ZX.0794

Kit Dolly SP9, seal packing ø18

ZX.0799

Kit Dolly SP8, seal packing ø18

Seal packing

ZX.0793

Kit Dolly SP7, seal packing ø18

ZX.0792

Fitting pumps

ZX.0791

Valves

ZX.0800

ZX.0797-SP

ZX.0790

ZX.0796-SP

• • • • •

•

• • • • • • • • 119

DOLLY SPARE PARTS FOR PUMPS ZX.0904

ZX.0896

ZX.0897

Kit Dolly U1, valves + O-rings

Kit Dolly U7, seal packing ø15

Kit Dolly U8, seal packing ø18

quantity 3x6

quantity 5x3

ZX.0912

ZX.0920

ZX.0918

Kit Dolly U18, plunger oil seals ø15x24x5

Dolly U24, shaft oil seal ø40x52x7

Dolly U54, shaft oil seal ø25x52x10

quantity 1x3

quantity 1

ZX.0880-3

ZX.0882-3 9mm

9mm

30mm

PNC 04/10 S PNC 06/10 S PNC 08/17 I PNC 09/11 S PNC 09/15 S PNC 11/11 S PNC 11/14 S PNC 12/14 I PNC 13/12 S PNC 13/15 S PNC 13/17 S PND 0.5/20 Z PND 1.0/20 Z PND 2.0/20 S PND 2.0/20 Z PND 2.5/20 S PND 3.0/20 S PND 3.0/20 Z

• • • • • •

• • • • • • •

Plungers

• • • • • • • • • • • • • • • • • • •

•

• • • •

• • • • • • • • • • • • •

• • • • • •

Fitting pumps PND 3.0/25 S PND 3.5/20 S PND 3.5/20 Z PND 3.5/25 S PND 4.0/20 S

• • • • • • •

PND 4.0/20 T MI PND 4.0/20 Z PNE 08/14 S PNE 09/11 S PNE 11/11 S PNE 11/14 S PNE 13/12 S PNE 13/15 S PNL 2.0/20 T PNL 2.5/20 T PNL 3.0/20 T PNL 3.0/25 T PNL 3.0/25 T PNL 3.5/22 T

Valves

Seal packing

• • • • • • • • • • • • • • • • • • •

•

• • • • • • • • • • • •

• • • • • •

Oil seals

Plungers

Kit Dolly U18 ZX.0912 Kit Dolly U24 ZX.0920 Kit Dolly U54 ZX.0918 Set Dolly U35 ZX.0880-3 Set Dolly 1891 ZX.0882-3

• • • • • •

Oil seals

Kit Dolly U18 ZX.0912 Kit Dolly U24 ZX.0920 Kit Dolly U54 ZX.0918 Set Dolly U35 ZX.0880-3 Set Dolly 1891 ZX.0882-3

• • • • • • • • • • • • • • • • • • •

Kit Dolly U8 ZX.0897

Seal packing

Kit Dolly U7 ZX.0896

PNC 02/10 S

Valves

Kit Dolly U7 ZX.0896

quantity 1x3

Kit Dolly U1 ZX.0904

quantity 1x3

Fitting pumps

120

18mm Set Dolly U36, ceramic plungers ø18x30

Kit Dolly U1 ZX.0904

15mm Set Dolly U35, ceramic plungers ø15x30

Kit Dolly U8 ZX.0897

CLUB DEI RIPARATORI

FITTING UDOR SERIES PNC-PND-PNE-PNL

• • • • • • • • • • • • • • • • • • •

• • •

• • • • • •

• •

•

• • • • • • • •

• • • • • • • • • • • •

• • • • • •

DOLLY SPARE PARTS FOR PUMPS FITTING UDOR SERIES MC-MCW-MD-ME-ML-MKC-MKL

Kit Dolly U2, valves + O-rings

Kit Dolly U30, valves + O-rings

MC 13/20 I

quantity 3x6

MC 15/15 S

• • • • • • • • • • • • • • • • • • •

MC 13/20 S MC 15/20 I MC 15/20 S

ZX.0896

MC 18/20 S MC 20/15 S MC 20/20 S MCW 16/14 S MD 4.0/20 S MD 4.0/20 U MD 4.0/30 S

Kit Dolly U7, seal packing ø15

MD 4.0/30 U

quantity 5x3

MD 5.0/30 U

MD 5.0/30 S ME 15/20 S ML 3.5/30 W

ZX.0902

ML 4.0/30 W ML 5.0/30 W MKC 13/28 S MKC 15/24 S MKC 15/28 S MKC 18/24 S MKC 20/24 S

Kit Dolly U28, seal packing ø18

MKL 4.0/35 W MKL 4.0/40 W

quantity 5x3

MKL 5.0/35 W

• • • • •

• • • • • • • •

• • • • • • • • • • • • • • •

• • • •

• •

•

• • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • •

• • • • •

•

• • • • •

• •

•

• • • • • • • • • • • • •

• • • • •

• • •

• •

ZX.0913

ZX.0916

ZX.0921

Kit Dolly U9, seal packing ø20

Kit Dolly U39, plunger oil seals ø18x30x7

Dolly U40, shaft oil seal ø25x52x7

Dolly U42, shaft oil seal ø40x55x7

quantity 5x3

quantity 1x3

quantity 1

ZX.0883-3 9mm

15mm Set Dolly U30, ceramic plungers ø18x40

quantity 1x3

11mm

40mm

Set Dolly U35, ceramic plungers ø15x30

• •

ZX.0884-3 11mm

30mm

• • • •

•

ZX.0898

ZX.0880-3

Set Dolly U31 ZX.0884-3

Set Dolly U30 ZX.0883-3

Set Dolly U35 ZX.0880-3

Plungers

Kit Dolly U42 ZX.0921

Kit Dolly U40 ZX.0916

Oil seals

Kit Dolly U39 ZX.0913

Kit Dolly U9 ZX.0898

Kit Dolly U2 ZX.1536

Fitting pumps

Seal packing

Kit Dolly U7 ZX.0896

Valves

Kit Dolly U28 ZX.0902

ZX.0908

Kit Dolly U30 ZX.0908

ZX.1536

18mm

Set Dolly U31, ceramic plungers ø20x40

20mm

quantity 1x3

121

DOLLY SPARE PARTS FOR PUMPS

Kit Dolly U2, valves + O-rings

Kit Dolly U30, valves + O-rings

quantity 3x6

BC 15/15 S BC 15/20 I BC 15/20 S BC 15/20 T MI BC 18/20 I

ZX.2613

BC 18/20 S

ZX.0902

BC 21/15 S BC 21/20 S BC 21/20 T MI BD 3.5/30 S BD 4.0/20 S BD 4.0/20 U BD 4.0/30 S

Kit Dolly U109, seal packing ø15

Kit Dolly U28, seal packing ø18

quantity 5x3

BD 4.0/30 U BD 5.0/30 S BD 5.0/30 U BD 6.0/30 S BKC 13/30 S BKC 15/25 S

ZX.2615

BKC 15/30 S BKC 15/30 T MI BKC 18/25 S BKC 21/25 S BKC 21/25 T MI BKD 4.0/44 S BKD 5.0/36 S BKL 4.0/36 W

Kit Dolly U24, complete seal packing ø15

BKL 4.0/44 W BKL 5.0/36 W

quantity 7x1

• •

BL 4.0/30 W BL 5.0/30 W

• •

•

• • • • •

• • • • • • • • • • • •

• •

• • • • • •

• • • • • • • •

• • • • • • • • •

• •

•

• • • • •

• •

• • • • • •

• • • • • • • •

• • • • • • • • •

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

• • • • • • • • • • • • • • • • • •

ZX.2616

ZX.0912

ZX.0919

Kit Dolly U24, complete seal packing ø18

Kit Dolly U18, plunger oil seals ø15x24x5

Dolly U38, shaft oil seal ø30x52x7

quantity 7x1

quantity 1x3

quantity 1

ZX.2614

ZX.2617

•

• •

• • •

•

• • • • •

• • • • • • • • •

•

• • • • • •

Kit Dolly U47 ZX.2618

Plungers

• • • • • • • •

• • • • • • • • •

ZX.2618 8mm

8mm

44mm

15mm

122

Shaft oil seal

Dolly U38 ZX.0919

Kit Dolly U18 ZX.0912

Kit Dolly U42 ZX.2615

Plun. oil seals

Kit Dolly U46 ZX.2617

BC 13/20 S

Complete seal packing

Kit Dolly U37 ZX.2614

• • • • • • • • • • • • • • • • • • •

BC 13/20 I

Seal packing Kit Dolly U28 ZX.0902

Fitting pumps

Kit Dolly U30 ZX.0908

Valves

Kit Dolly U109 ZX.2613

ZX.0908

Kit Dolly U2 ZX.1536

CLUB DEI RIPARATORI

ZX.1536

Kit Dolly U44 ZX.2616

FITTING UDOR SERIES BC-BD-BKC-BKD-BKL-BL

18mm

Kit Dolly U37, shaft oil seals ø50x65x8

Set Dolly U46, ceramic plungers ø15

Set Dolly U47, ceramic plungers ø18

quantity 1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS FITTING UDOR SERIES GHC-GHD-GKC-GKD

•

GHC 16/50 S

•

Kit Dolly U3 ZX.0906

Kit Dolly U3, valves + O-rings

Kit Dolly U41, valves + O-rings

GHD 3.0/75 S

•

quantity 3x6

quantity 4x6

GHD 4.5/75 S

•

GKC 17/28 S

ZX.1535

ZX.0903

• •

GKC 17/35 S GKC 19/40 S

•

GKC 21/28 S

•

GKC 21/35 S

quantity 6x3

GKD 7.0/40 S

•

GKD 5.5/40 S GKD 6.0/50 S

• •

GKD 4.5/50 S

Kit Dolly U88, seal packing ø15

•

GKC 26/28 S

Kit Dolly U86, valves + O-rings

•

• •

•

ZX.0898

ZX.0899

ZX.0915

ZX.0919

Kit Dolly U9, seal packing ø20

Kit Dolly U10, seal packing ø22

Kit Dolly U43, plunger oil seals ø22x32x7

Dolly U38, shaft oil seal ø30x52x7

quantity 5x3

quantity 1x3

quantity 1

ZX.0881-3

ZX.0884-3

46mm

15mm

• • • • • • •

13mm

40mm

45mm

20mm

22mm

Set Dolly U45, ceramic plungers ø15x46

Set Dolly U31, ceramic plungers ø20x40

Set Dolly U32, ceramic plungers ø22x45

quantity 1x3

•

ZX.0879-3 11mm

9mm

Set Dolly U32 ZX.0879-3

Set Dolly U45 ZX.0881-3

•

Kit Dolly U10 ZX.0899

GHC 12/50 S

Fitting pumps

Kit Dolly U9 ZX.0898

Dolly U38 ZX.0919

Plungers

Kit Dolly U43 ZX.0915

Oil seals

Kit Dolly U88 ZX.0903

Seal packing

Kit Dolly U86 ZX.1535

Valves

Set Dolly U31 ZX.0884-3

ZX.0910

Kit Dolly U41 ZX.0910

ZX.0906

123

DOLLY SPARE PARTS FOR PUMPS FITTING UDOR SERIES GB-GC-GD

GB 26/20 S

•

Set Dolly U34 ZX.0887-3

Set Dolly U33 ZX.0886-3

Set Dolly U32 ZX.0879-3

•

Kit Dolly U12 ZX.0901

•

Kit Dolly U3, valves + O-rings

Kit Dolly U10, seal packing ø22

GB 30/20 S

•

quantity 3x6

quantity 5x3

GB 34/20 S

•

GC 21/20 S

•

GC 26/20 S

•

GC 30/20 S

•

GC 34/17 S

•

GC 38/15 S

•

GC 42/14 S

•

GC 50/12 S

•

GD 5.5/30 S

•

ZX.0900

ZX.0901

Kit Dolly U11, seal packing ø25

Kit Dolly U12, seal packing ø28

GD 7.0/30 S

•

quantity 5x3

GD 8.5/30 S

•

ZX.0915

ZX.0919

ZX.0879-3

ZX.0886-3 13mm

ZX.0887-3 13mm

45mm

22mm

124

Plungers

Kit Dolly U38 ZX.0919

•

Oil seals

Kit Dolly U43 ZX.0915

GB 21/20 S

Seal packing

Kit Dolly U10 ZX.0899

Fitting pumps

Kit Dolly U31 ZX.0906

Valves

Kit Dolly U11 ZX.0900

ZX.0899

CLUB DEI RIPARATORI

ZX.0906

13mm

45mm

25mm

28mm

Kit Dolly U43, plunger oil seals ø22x32x7

Dolly U38, shaft oil seal ø30x52x7

Set Dolly U32, ceramic plungers ø22x45

Set Dolly U33, ceramic plungers ø25x45

Set Dolly U34, ceramic plungers ø28x45

quantity 1x3

quantity 1

quantity 1x3

DOLLY SPARE PARTS FOR PUMPS SET OIL SEALS Plunger oil seals

Description

Size

Quantity

ZX.0194

Set Dolly L1 (quantity 1x15) fitting: Annovi Reverberi, Comet, Generalpump, Interpump, Idromeccanica Bertolini

ø15x24x5

ZX.0195

Set Dolly L2 (quantity 1x15) fitting: Annovi Reverberi

ø20x28x6

ZX.0196

Set Dolly L3 (quantity 1x15) fitting: Comet, Generalpump, Interpump

ø20x30x5

ZX.0197

Set Dolly L4 (quantity 1x15) fitting: Generalpump, Interpump

ø22x35x7

ZX.0198

Set Dolly L5 (quantity 1x15) fitting: Generalpump, Interpump

ø32x42x7

ZX.0199

Set Dolly L6 (quantity 1x15) fitting: Generalpump, Interpump, Idromeccanica Bertolini

ø35x52x7

ZX.0201

Set Dolly L8 (quantity 1x15) fitting: Hawk, Idromeccanica Bertolini

ø16x24x5

ZX.0202

Set Dolly L9 (quantity 1x15) fitting: Faip, Hawk

ø20x30x7

ZX.0211

Set Dolly L10 (quantity 1x15) fitting: Generalpump, Interpump

ø22x32x5.5

Description

Size

Quantity

ZX.0203

Set Dolly M1 (quantity 1x10) fitting: Generalpump, Interpump, Hawk

ø30x55x7

ZX.0204

Set Dolly M2 (quantity 1x5) fitting: Annovi Reverberi

ø25x45x10

ZX.0205

Set Dolly M3 (quantity 1x5) fitting: Annovi Reverberi, Comet, Generalpump

ø25x52x7

ZX.0206

Set Dolly M4 (quantity 1x5) fitting: Annovi Reverberi

ø30x42x7

ZX.0207

Set Dolly M5 (quantity 1x5) fitting: Generalpump, Interpump, Hawk

ø25x42x7

ZX.0208

Set Dolly M6 (quantity 1x5) fitting: Faip, Hawk

ø25x47x7

ZX.0209

Set Dolly M7 (quantity 1x5) fitting: Comet, Hawk, Interpump

ø25x62x10

ZX.0210

Set Dolly M8 (quantity 1x5) fitting: Lavor

ø20x35x6

ZX.0471

Set Dolly M9 (quantity 1x5) fitting: Generalpump, Interpump serie 63

ø45x62x8

ZX.1133

Set Dolly M10 (quantity 1x5) fitting: Annovi Reverberi serie XT

ø40x52x7

Shaft oil seals

125

DOLLY SPARE PARTS FOR PUMPS CODE CORRESPONDENCE TABLE

CLUB DEI RIPARATORI

Example Competitor code

Idrobase Group code

5025.0011

ZX.0029

5025.0011 competitor code

Competitor code

Idrobase Group code

Page

Alto/WAP

Competitor code

Idrobase Group code

Page

KIT 2650

ZX.0875

KIT 2739

ZX.0884

28-35

KIT 2740

ZX.0880

KIT 2741

ZX.0647

KIT 2745

ZX.0881

28-34-35

KIT 2746

ZX.0885

28-35

KIT 2747

ZX.0643

KIT 2757

ZX.0096

KIT 2758

ZX.0492

KIT 2759

ZX.0868

KIT 2780

ZX.0869

KIT 47110

ZX.2402

6343

S.L103510SA

KIT 2781

ZX.0874

301000173

CDR.1239

KIT 2782

ZX.0870

1753 / 1756

CDR.0708

KIT 2783

ZX.0871

KIT 2784

ZX.0872

Annovi Reverberi KIT 1815

ZX.0865

KIT 2785

ZX.0873

KIT 1816

ZX.0866

KIT 2786

ZX.0882

KIT 1828

ZX.0685

31-35

KIT 2787

ZX.0883

KIT 1829

ZX.0864

KIT 2864

ZX.0852

31-35

KIT 1855

ZX.0112

KIT 2872

ZX.0890

33-36

KIT 1855 NEW

ZX.2624

KIT 2873

ZX.2018

30-36

KIT 1856

ZX.0867

KIT 42169

ZX.0886

33-36

KIT 1857

ZX.0097

KIT 42170

ZX.0889

KIT 1860

ZX.0878

KIT 42171

ZX.0887

KIT 1864

ZX.0861

25-26-28

KIT 42172

ZX.0888

33-36

KIT 1865

ZX.0099

KIT 42467

ZX.2759

KIT 1866

ZX.1534

25-26

KIT 42468

ZX.2305

KIT 1872

ZX.0111

KIT 42469

ZX.2407

KIT 1874

ZX.1533

24-26

KIT 42474

ZX.2758

KIT 1887

ZX.0494

KIT 42475

ZX.2304

KIT 1888

ZX.0863

KIT 42476

ZX.2318

KIT 1891

ZX.0876

KIT 42494

ZX.2406

KIT 2040

ZX.0862

KIT 42547

ZX.2404

KIT 2125

ZX.0879

KIT 42549

ZX.2401

KIT 2186

ZX.2320

KIT 42555

ZX.2405

KIT 2191

ZX.2312

34-35

KIT 42556

ZX.2403

KIT 2520

ZX.0493

Cat

KIT 2628

ZX.0098

25-26

30488

ZX.1935

KIT 2629

ZX.0117

25-26

30623

ZX.1938

Dolly Spare Parts by Idrobase Group, and in any case all spare parts in this offer, are not original spare parts, but they are high quality spare parts. Dolly Spare Parts are fitting machines and accessories of other manufacturers although made according to the technical specifications and production standards of Idrobase. The original item number, original brand name and any other reference or information about that manufacturer shall be provided for the exclusive and sole purpose of making known to the reseller and to the end-user that Idrobase product has a self-serving purpose or anyway related to the original product to which the mark refers, that is to say the sole and exclusive practical purpose of indicating the correct use of the Idrobase spare part and its destination. The references cited are purely indicative: the retailer and the final user must check on the catalog page that the item presented has the required characteristics.

126

DOLLY SPARE PARTS FOR PUMPS Competitor code

Idrobase Group code

Page

Competitor code

Idrobase Group code

Page

30821

ZX.1927

5019.0025

ZX.0469

30914

ZX.1936

5019.0035

ZX.0470

30915

ZX.1930

5019.0037

ZX.0409

33062

ZX.1932

5019.0038

ZX.0557

33628

ZX.1940

5019.0039

ZX.0558

43-44

33820

ZX.1931

5019.0064

ZX.1114

33983

ZX.1937

5019.0077

ZX.1919

34052

ZX.1872

5019.0078

ZX.1919

34053

ZX.1934

5019.0218

ZX.1543

34054

ZX.1939

5019.0631

ZX.1560

34055

ZX.1928

5019.0645

ZX.0815

34062

ZX.1933

5019.0646

ZX.1550

34260

ZX.1929

5019.0647

ZX.0817

34262

ZX.1871

5019.0672

ZX.1309

76975 + 76976

ZX.2584

5019.0673

ZX.1308

ZX.2440

5025.0007

ZX.0831

5025.0011

ZX.0029

40-41-4344-45

5025.0014

ZX.1918

5025.0020

ZX.0814

5025.0021

ZX.0824

5025.0025

ZX.1311

44-45

KIT A - 21080200

ZX.0440

KIT 2 - 21080400

ZX.0073

KIT 8 - 22080300

ZX.0039

KIT 12 - 21080900

ZX.0056

KIT 110 YKI52083000

ZX.1305

KIT 216 YKI15501700

ZX.0403 **

21031200 (1pc)

ZX.1244-3 (3pcs)

KIT 1

ZX.1600

100

KIT 2

ZX.0110

97-99

KIT 3

ZX.0074

97-99

KIT 4

ZX.0151

100

KIT 6

ZX.0135

100

KIT 7

ZX.0136

100

KIT 71

ZX.0141

100

KIT 169

ZX.1909

KIT 170

ZX.1913

Comet 0019.0007

ZX.0826

43-44-45

0019.0032

ZX.0821

0019.0034

ZX.1921

0019.0036

ZX.1922

0019.0052

ZX.0827

0019.0066 (1pc)

ZX.0825

0019.0075

ZX.0829

0019.0081 (1pc)

ZX.0832

0019.0094

ZX.0830

0019.0095 (1pc)

ZX.0828

0019.0102

ZX.1117

0019.0122 (1pc)

ZX.0813

(3pcs)

0019.0123 (1pc)

ZX.1920

(3pcs)

0019.0128 (1pc)

ZX.1572

(3pcs)

44-45

0202.0018

ZX.0530-3 (3pcs)

0202.0020 (1pc)

ZX.0463-3 (3pcs)

40-41

0202.0022 (1pc)

ZX.0693-3 (3pcs)

43-44-45

0202.0024 (1pc)

ZX.0694-3 (3pcs)

43-44-45

0202.0042 (1pc)

ZX.0627-3 (3pcs)

0202.0043 (1pc)

ZX.0612-3 (3pcs)

0202.0044 (1pc)

ZX.0613-3 (3pcs)

2409.0057 (1pc)

ZX.0484-3 (3pcs)

2409.0087 (1pc)

ZX.1925-3 (3pcs)*

2409.0089 (1pc)

ZX.1923-3 (3pcs)*

(3pcs)

43 41

(3pcs)

40 40-41

(3pcs)

40-41 40

Faip

Generalpump

* includes seegers and spring holders / ** without brass rings

127

CLUB DEI RIPARATORI

DOLLY SPARE PARTS FOR PUMPS Competitor code

Idrobase Group code

Page

Competitor code

Idrobase Group code

Page

KIT 171

ZX.1914

ZX.0769

KIT 176

ZX.1910

1.099-892.0 / 260800

KIT 180

ZX.1912

1.099-901.0 / 260000

ZX.0447

KIT 969

ZX.2186

100

ZX.0448

47.0300.01

ZX.1487-3

100

1.099-902.0 / 260100

47.0404.09 (1pc)

ZX.A1979 (3pcs)

100

1.099-903.0 / 260200

ZX.0449

66.0400.09 (1pc)

ZX.P20X54 (3pcs)

1.099-906.0 / 260201

ZX.0773

66.0403.09 (1pc)

ZX.P18X54 (3pcs)

1.099-915.0 / 262905

ZX.0433

120009

ZX.0464-3 (3pcs)

1.099-916.0 / 262906

ZX.0445

000102

ZX.0079

51-53-5455

1.099-917.0 / 262907

ZX.0434

000106

ZX.0078

50-51

000110

ZX.0080

1.099-920.0 / 262902

ZX.0775

1.905-652.0

ZX.2437

1.099-974.0 / 260808

ZX.0446

1.905-653.0

ZX.2438

1.099-738.0

ZX.2045

(3pcs)

1.904-488.0 / 260815

ZX.0768

1.099-739.0 / 260012 (1pc)

ZX.0692

(6pcs)

1.905-543.0 / 260008

ZX.1093

51-53-54

1.099-749.0 / 260107* (1pc)

ZX.A1126

(3pcs)

51-53-5455

1.905-708.0

ZX.1093-HT

1.099-740.0

ZX.2048

1.905-578.0 (3pcs)

ZX.1735 (1pc)

1.099-747.0 / 260077

ZX.1734

1.905-579.0 / 260124

ZX.1739

1.099-751.0 / 260803

ZX.0072

50-51-5354-55

1.905-617.0

ZX.2043

1.905-624.0

ZX.2399

1.099-754.0

ZX.2376

1.905-762.0

ZX.2396

1.099-766.0 / 260003

ZX.0778

50-51-5758

ZX.2400 (1pc)

1.099-779.0 / 260010 (1pc)

1.905-763.0 (3pcs)

ZX.0691 (6pcs)

120011 (1pc)

ZX.0611-3 (3pcs)

57-58

1.099-835.0

ZX.2067

120012 (1pc)

ZX.0612-3 (3pcs)

57-58

1.099-849.0 / 260123

ZX.1738

120013 (1pc)

ZX.0613-3 (3pcs)

57-58

1.099-852.0

ZX.1744

120010 (1pc)

ZX.A1126 (3pcs)

51-53-5455

1.099-853.0 / 260122

ZX.1745

120016 (1pc)

ZX.0610-3 (3pcs)

1.099-872.0 / 262701

120022 (1pc)

ZX.0770

ZX.0609-3 (3pcs)

1.099-874.0 / 260002 (1pc)

ZX.0688

57-58

ZX.0055 (6pcs)

50-51-57

9.850-000.0 / 000100

1.099-875.0 / 261206

ZX.0642

50-51

8.750-001.0

ZX.2494

1.099-891.0 / 260801

ZX.0248

8.725-408.0

ZX.2495

Hawk

Hotsy

*Also include o-rings and washers fastening plungers

128

DOLLY SPARE PARTS FOR PUMPS Competitor code

Idrobase Group code

Page

Idromeccanica Bertolini

Competitor code

Idrobase Group code

Page

KIT 48

ZX.0763

KIT 1

ZX.0496

KIT 57

ZX.0712

KIT 17

ZX.0559

KIT 62

ZX.0713

KIT 37

ZX.1822

KIT 65

ZX.0760

KIT 65

ZX.0066

KIT 66

ZX.0761

KIT 76

ZX.1793

KIT 69

ZX.0087

74-92

KIT 123

ZX.1820

KIT 71

ZX.0141

75-92

KIT 141

ZX.2041

KIT 75

ZX.0758

050010182 (1pc)

ZX.0002-3 (3pcs)

KIT 76

ZX.0759

070008182 (1pc)

ZX.1245-3 (3pcs)

KIT 77

ZX.0694

KIT 78

ZX.0695

KIT 79

ZX.0696

KIT 1

ZX.1600

74-77-7982-94

KIT 80

ZX.0697

KIT 2

ZX.0110

75-78-9097

KIT 81

ZX.0765

KIT 82

ZX.0714

KIT 3

ZX.0074

75-78-9097

KIT 83

ZX.0065

82-94

KIT 4

ZX.0151

74-77-79

KIT 85

ZX.0715

KIT 5

ZX.0169

74-77-97

KIT 86

ZX.0645

82-94

KIT 6

ZX.0135

74-77-7997

KIT 87

ZX.0716

KIT 88

ZX.0155

72-79

KIT 7

ZX.0136

75-88-92

KIT 89

ZX.0157

73-80

KIT 8

ZX.0086

74-92

KIT 90

ZX.0158

73-80

KIT 9

ZX.0289

KIT 91

ZX.0603

KIT 10

ZX.0390

KIT 92

ZX.0604

KIT 11

ZX.0217

KIT 96

ZX.0644

82-94

KIT 12

ZX.0057

KIT 97

ZX.0535

82-94

KIT 14

ZX.0218

KIT 100

ZX.0536

KIT 19

ZX.0088

KIT 101

ZX.0537

KIT 20

ZX.0138

KIT 113

ZX.0698

KIT 21

ZX.0089

KIT 114

ZX.0762

KIT 22

ZX.0139

KIT 115

ZX.0699

KIT 23

ZX.0067

71-73-80

KIT 122

ZX.0700

KIT 24

ZX.0068

75-78

KIT 27

ZX.0140

KIT 123

ZX.1601

71-72-8289-98

KIT 28

ZX.0391

KIT 124

ZX.0166

71-72-89

KIT 29

ZX.0219

KIT 125

ZX.0159

KIT 32

ZX.1468

88-92-93

KIT 126

ZX.0156

KIT 37

ZX.0069

KIT 127

ZX.0093

KIT 43

ZX.0693

KIT 128

ZX.0163

KIT 44

ZX.0070

88-93

KIT 129

ZX.0164

KIT 47

ZX.0764

KIT 130

ZX.0162

Interpump

129

CLUB DEI RIPARATORI

DOLLY SPARE PARTS FOR PUMPS Competitor code

Idrobase Group code

Page

Competitor code

Idrobase Group code

Page

KIT 131

ZX.0165

KIT 205

ZX.1627

KIT 134

ZX.0717

KIT 226

ZX.1832

KIT 137

ZX.1537

KIT 227

ZX.1833

KIT 139

ZX.0707

KIT 247

ZX.2409

KIT 140

ZX.0701

KIT 248

ZX.2392

KIT 141

ZX.0702

KIT 269

ZX.1901

86-87

KIT 146

ZX.0718

KIT 270

ZX.1905

86-87

KIT 147

ZX.0728

KIT 271

ZX.1902

86-87

KIT 148

ZX.0220

KIT 274

ZX.1903

KIT 149

ZX.0221

KIT 277

ZX.1904

KIT 150

ZX.1911

KIT 285

ZX.1993

KIT 152

ZX.1988

KIT 290

ZX.1994

KIT 153

ZX.1987

KIT 292

ZX.1907

KIT 154

ZX.1989

KIT 309

ZX.1957

KIT 155

ZX.1985

KIT 311

ZX.1979

KIT 156

ZX.1986

KIT 312

ZX.1958

KIT 158

ZX.1658

71-98

KIT 313

ZX.1982

KIT 159

ZX.0413

89-98

KIT 314

ZX.1959

KIT 160

ZX.0703

KIT 315

ZX.1992

KIT 161

ZX.0704

44.0300.22

ZX.1488-3

71-72

KIT 162

ZX.0708

44.0401.09 (1pc)

ZX.A1487

KIT 163

ZX.0709

44.0402.66 (1pc)

ZX.P13X45 (3pcs)

KIT 164

ZX.0710

47.0300.01

ZX.1487-3

74-77-97

KIT 165

ZX.0711

47.0404.09 (1pc)

ZX.A1979

(3pcs)

74-92

KIT 166

ZX.0705

47.0405.09 (1pc)

ZX.A1234

(3pcs)

77-97

KIT 167

ZX.0706

47.1201.41

CDR.0639

74-77

KIT 169

ZX.1909

47.1202.41

IDRO.10-23

74-77

KIT 170

ZX.1913

50.0404.09 (1pc)

ZX.A1980

KIT 171

ZX.1914

51.0400.09 (1pc)

ZX.0005-3 (3pcs)

82-94

KIT 172

ZX.2374

51.0401.09 (1pc)

ZX.0642-3 (3pcs)

KIT 173

ZX.2483

52.0400.09 (1pc)

ZX.A1258

72-79-89

KIT 174

ZX.2377

53.0400.09 (1pc)

KIT 175

ZX.2493

ZX.P15X38.5 (3pcs)

KIT 176

ZX.1910

56.0401.01 (1pc)

ZX.0641-3 (3pcs)

KIT 180

ZX.1912

58.0402.09 (1pc)

ZX.P18X42 (3pcs)

KIT 196

ZX.1830

59.0400.09 (1pc)

ZX.P20X42 (3pcs)

KIT 197

ZX.1831

60.0400.09 (1pc)

ZX.1857-3

(3pcs)

KIT 201

ZX.1628

60.0401.09 (1pc)

ZX.1858-3 (3pcs)

KIT 202

ZX.1622

61.0400.56 (1pc)

ZX.0719-3 (3pcs)

KIT 203

ZX.1623

63.0405.09 (1pc)

ZX.P18X38.5 (3pcs)

KIT 204

ZX.1624

66.0402.09 (1pc)

ZX.P16X54 (3pcs)

(3pcs)

72-89-98

130

DOLLY SPARE PARTS FOR PUMPS Competitor code

Idrobase Group code

Page

Competitor code

Idrobase Group code

66.0401.09 (1pc)

ZX.P22X54 (3pcs)

2.883-406.0

DT.FUH12508

66.0400.09 (1pc)

ZX.P20X54 (3pcs)

2.883-891.0

ZX.0724

102

66.0403.09 (1pc)

ZX.P18X54 (3pcs)

2.883-913.0

ZX.0721

109

66.0410.09

(1pc)

ZX.P28X54 (3pcs)

2.884-085.0

ZX.0605

76.0400.56 (1pc)

ZX.0643-3 (3pcs)

2.884-512.0

ZX.0462-3

107

76.0402.09 (1pc)

ZX.0644-3 (3pcs)

ZX.0452 (1pc)

108-111

90.1641.00

CDR.1638

2.884-903.0 (2pcs)

90.1641.00

ZX.1915

71-85-86

2.884-906.0 (3pcs)

ZX.0463 (1pc)

108-111

90.1648.00

ZX.1991

4.401-076.0

ZX.7038

90.1690.00

ZX.1990

4.403-002.0

CDR.7062-L

4.580-230.0

ZX.0452

108-111

4.580-237.0

ZX.0451

108-111

4.580-262.0

CDR.0918

102-109

IPC

Page

LAFN06313 / LAFN11329

CDR.0488

MECA12525

ZX.0143

MECA18232 (1pc)

ZX.0109 (2pcs)

4.580-329.0

ZX.0462

102-103109

MECA40844 (1pc)

ZX.0107 (2pc)

4.580-349.0

CDR.0921

102-109

MECA61936 (1pc)

ZX.0108 (2pc)

4.580-589.0

ZX.0450

109

RCIN17663

CDR.1918

4.580-594.0

ZX.0539

107

4.582-019.0

CDR.0919

102-109

4.680-063.0

CDR.0439

4.680-070.0 / 4.680-098.0

CDR.0438

4.680-077 / 4.680-127.0

CDR.0477

4.680-097.0

CDR.0481

4.680-123.0

CDR.1945

Kärcher 2.880-001.0

ZX.2412

113

2.880-177.0

ZX.0118

2.880-296.0

ZX.0154

2.883-172.0

ZX.0720

2.883-302.0

ZX.0722

2.883-322.0

ZX.0723

2.883-388.0

DT.FUH11504

4.680-123.0 / 4.680-135.0

CDR.0669

2.883-389.0

DT.FUH115045

4.680-126.0

CDR.1942

2.883-390.0

DT.FUH115055

4.680-130.0

CDR.1942-SS

2.883-391.0

DT.FUH11506

4.680-144.0

CDR.1943

2.883-392.0

DT.FUH11507

4.680-145.0

CDR.1944

2.883-393.0

DT.FUH115075

4.680-146.0

CDR.1946

2.883-394.0

DT.FUH11508

4.762-015.0

ZX.1295

2.883-397.0

DT.FUH12504

2.883-398.0

DT.FUH125045

4.762-284.0 / 4.762-287.0

ZX.1294

2.883-399.0

DT.FUH12505

5.034-494.0

CDR.0920

102-109

2.883-401.0

DT.FUH125055

5.110-220.0 (1pc)

ZX.A1399 (3pcs)

108

2.883-402.0

DT.FUH12506

5.115-465.0

GUA.0001

102

2.883-403.0

DT.FUH125065

5.115-537.0

CDR.0656

109

2.883-404.0

DT.FUH12507

5.115-538.0

PK.0001

107-108109

2.883-405.0

DT.FUH125075

5.115-744.0

CDR.0655

102

113

131

CLUB DEI RIPARATORI

DOLLY SPARE PARTS FOR PUMPS Competitor code

Idrobase Group code

Page

Competitor code

Idrobase Group code

Page

5.115-796.0

CDR.0657

102-109

6.365-340.0

CDR.0471

102

5.401-210.0

CDR.7023

6.365-341.0

CDR.0205

102

5.584-060.0

CDR.0941

102

6.365-377.0

CDR.0226-C

107

5.584-122.0

CDR.0922

109

6.365-378.0

CDR.0588

107

6.362-092.0

CDR.0910

108-111

6.365-380.0

ZX.1672

107

6.362-151.0

CDR.0923

102-109

6.365-394.0 (1pc)

ZX.0682 (60pcs)

112

6.362-153.0

CDR.0904

108-111

6.365-438.0

CDR.0200

102

6.362-160.0

CDR.0931

103

6.389-635.0

OT.0004

6.362-169.0

CDR.0924

102-103109

6.414-413.0

CDR.7004

6.362-204.0

CDR.0932

103

6.415-050.0

DA.030H6134

6.362-368.0

ZX.0962

102-109

6.415-539.0

DA.030F6928

6.362-376.0

CDR.0942

102

6.415-595.0

DA.030F6926

6.362-384.0

CDR.0933

103

6.415-651.0

DA.030H6132

6.362-402.0

CDR.0934

103

6.415-660.0

DA.030H6924

6.362-406.0

CDR.0935

103

6.415-676.0

DA.030F6912

6.362-422.0

ZX.0018

108-111

6.415-677.0

DA.030F6922

6.362-468.0

ZX.0963

102-109

6.415-678.0

DA.030F6924

6.362-477.0

ZX.0964

103

6.415-682.0

DA.030H6926 DA.030F6132

CDR.0907

102-108109-111

6.415-697.0

6.362-481.0

6.415-758.0

DA.030H6922

6.362-482.0

CDR.0908

103-108-111

6.472-113.0

CDR.0708

6.362-484.0

CDR.0909

108-109-111

6.472-128.0

CDR.0710

6.362-500.0

ZX.0961

108-111

6.472-925.0

CDR.0702

6.362-547.0

CDR.0913

102-108109-111

6.490-087.0

CDR.RW12B4C

6.362-575.0

ZX.0965

103

6.490-115.0

CDR.1219-RN

6.362-613.0

CDR.0940

103

6.490-135.0

CDR.1214-RN

6.362-703.0

CDR.0914

108-111

6.622-036.0

ZX.0092

6.362-768.0

CDR.0943

102

6.622-086.0

ZX.0091

6.362-796.0

CDR.0916

108-109-111

2.884-008.0

ZX.SP008

104

6.362-797.0

CDR.0915

108-111

2.884-883.0

ZX.SP883

105

6.363-003.0

CDR.0929

102-109

9.751-004.0 (1pc)

ZX.2572

106

6.365-052.0

CDR.0473

107-108-109

6.365-334.0 (1pc)

ZX.2574 (3pcs)

106

6.365-053.0

CDR.0202

108-109

2.885-034.0

ZX.SP034

110

6.365-055.0

CDR.0209

111

6.365-377.0 (1pc)

ZX.1131-C

110

6.365-056.0

CDR.0203

111

2.884-512.0

ZX.0462-3

104-106107-110

6.365-059.0

CDR.0474

111

CDR.0208

108-109

ZX.0966-60 (60pcs)

104-105-110

6.365-330.0

2.884-512.0 (3pcs)

6.365-332.0

CDR.0201

103

5.115-431.0 (1pc)

ZX.0543 (60pcs)

104-105

6.365-333.0

CDR.0207-G

103

5.115-538.0 (1pc)

ZX.1457 (60pcs)

110

6.365-334.0

CDR.0472

103

6.365-332.0 (1pc)

ZX.0650 (60 pcs)

104-105

132

DOLLY SPARE PARTS FOR PUMPS Competitor code

Idrobase Group code

Page

6.365-333.0 (1pc)

ZX.0544 (60 pcs)

104-105

Kränzle 40 062 1

ZX.0787

114

40 065

ZX.0786

114

40 517

ZX.0411

114

41 049 1

ZX.0620

114

41 648

ZX.0789

114

41 649 1

ZX.0784

114

41 748 1

ZX.0788

114

42 911

ZX.0421

114

43 060

ZX.0683

114

43 098

ZX.0783

114

Lavorwash/Fasa 4.614.0004

ZX.0468

KIT 108

ZX.0806

115

KIT 109

ZX.0803

115

KIT 124

ZX.0807

116

KIT 132

ZX.0804

116

KIT 18

ZX.0122

116

KIT 19

ZX.0726

115

KIT 19

ZX.0726

116

KIT 2

ZX.0780

115

KIT 20

ZX.0781

116

KIT 3

ZX.0223

115

KIT 33

ZX.0222

115

KIT 34

ZX.0779

115

KIT 5

ZX.0812

115

KIT 66

ZX.0777

115

KIT 74

ZX.0802

115

KIT 79

ZX.0805

116

KIT2/A

ZX.0801

115

Mazzoni

Competitor code

Idrobase Group code

Page

11.0115 (1pc)

ZX.0684-3 (3pcs)

119

11.0124 (1pc)

ZX.0685-3 (3pcs)

119

11.0280 (1pc)

ZX.0686-3 (3pcs)

119

11.0575 (1pc)

ZX.0690-3 (3pcs)

119

11.0589 (1pc)

ZX.0687-3 (3pcs)

119

14.0305

ZX.0799

119

14.0335

ZX.0790

119

14.0364

ZX.0792

119

14.0398

ZX.0798

119

14.0444

ZX.0796

119

14.0454

ZX.0797

119

14.0494

ZX.0794

119

14.0494

ZX.0800

119

14.0496

ZX.0791

119

14.0498

ZX.0795

119

14.0643

ZX.0793

119

0007.24

ZX.0920

120

0007.38

ZX.0919

122

0007.40

ZX.0916

121

0007.41

ZX.0921

121

0007.54

ZX.0918

120

1205.30 (1pc)

ZX.0883-3 (3pcs)

121

1205.31 (1pc)

ZX.0884-3 (3pcs)

121

1205.32 (1pc)

CDR.0879-3 (3pcs)

123

1205.33 (1pc)

CDR.0886-3 (3pcs)

124

1205.34 (1pc)

CDR.0887-3 (3pcs)

124

1205.35 (1pc)

ZX.0880-3 (3pcs)

120

Speck

Udor

P9.001.002

ZX.2410

118

1205.36 (1pc)

ZX.0882-3 (3pcs)

120

P9.003.003

ZX.2378

118

1205.45 (1pc)

ZX.0881-3 (3pcs)

123

P9.003.004

ZX.2411

118

KIT 1

ZX.0904

120

P1.071.002 (1pc)

ZX.2413-3 (3pcs)

118

KIT 10

ZX.0899

123

P9.001.005

ZX.2414

118

KIT 11

ZX.0900

124

P9.003.025

ZX.2380

118

KIT 12

ZX.0901

124

P9.003.026

ZX.2415

118

KIT 18

ZX.0912

120

P1.071.013 (1pc)

ZX.2417-3 (3pcs)

118

KIT 2

ZX.1536

122

P3.039.001 (1pc)

ZX.2416

118

133

CLUB DEI RIPARATORI

DOLLY SPARE PARTS FOR PUMPS Competitor code

Idrobase Group code

Page

KIT 28

ZX.0902

121

KIT 3

ZX.0906

123-124

KIT 30

ZX.0908

121

KIT 39

ZX.0913

121

KIT 41

ZX.0910

123

KIT 43

ZX.0915

123

KIT 7

ZX.0896

121

KIT 8

ZX.0897

120

KIT 86

ZX.1535

123

KIT 88

ZX.0903

123

KIT 9

ZX.0898

122

KIT 109

ZX.2613

122

0007.73

ZX.2614

122

1205.72 (1pc)

ZX.2617 (3pcs)

122

1205.72 (1pc)

ZX.2618 (3 pcs)

122

134

CLUB DEI RIPARATORI

SINCE 1986

ENGLISH

FOR SEMI-PROFESSIONAL H.P. WASHERS

Idrobase Group Case History 1999: Dolly Spare Parts

135

DOLLY SPARE PARTS FOR PUMPS FITTING COMET

15,80 mm

15,80mm

Set Dolly Com80, valves with O-ring

Kit Dolly Com61, valves + O-rings

Kit Dolly Com288, seal packing ø12

quantity 3x3

quantity 1x6

quantity 3x6

quantity 1x3

ZX.2563

ZX.2570

ZX.1919

ZX.1924

Set Dolly Com81, complete seal packing ø12

Kit Dolly Com84, seal packing ø14

Kit Dolly Com62, seal packing ø14

Set Dolly Com67, complete seal packing ø14

quantity 6x1

quantity 4x3

quantity 5x3

quantity 6x1

ZX.2557

ZX.2568

ZX.1920

Set Dolly Com78, plunger oil seals ø12x20

Kit Dolly Com82, oil seals

Set Dolly Com63, plunger oil seals ø14x22

quantity 1x3

quantity 2x1 + 1x3

quantity 1x3

KSX 1850 GOLD CLASSIC 230-240V~50Hz

•

KSX 1850 GOLD EXTRA 230-240V~50Hz

•

Set Dolly Com63 ZX.1920

Plunger oil seals

Set Dolly Com78 ZX.2557

Set Dolly Com67 ZX.1924

Set Dolly Com81 ZX.2563

Kit Dolly Com62 ZX.1919

Kit Dolly Com288 ZX.2562

Kit Dolly Com61 ZX.1918

Set Dolly Com80 ZX.2567

Kit Dolly Com287 ZX.2566

Fitting h.p. washers pumps

Complete seal packing

Seal packing

Plunger and shaft oil seals

Kit Dolly Com82 ZX.2568

Kit Dolly Com287, valves and caps with O-rings

Valves

136

ZX.2562

ZX.1918

ZX.2567

Kit Dolly Com84 ZX.2570

CLUB DEI RIPARATORI

ZX.2566

KSX 1950 GOLD CLASSIC 230V/50Hz

•

KSX 1950 GOLD EXTRA 230V/50Hz

•

KSX 1950 GOLD PLUS 230V/50Hz

•

K 200 10/150 M Classic

•

K 200 10/150 M Extra

•

K 200 12/130 M Classic

•

K 200 12/130 M Extra

•

K 200 12/200 T Classic

•

K 200 12/200 T Extra

•

DOLLY SPARE PARTS FOR PUMPS FITTING COMET ZX.2554

ZX.2552

ZX.2551

15,80 mm

15,80mm

Kit Dolly Com77, valves + O-rings

Kit Dolly Com75, valves + O-rings

quantity 2x3 + 2x6

quantity 2x6 + 3x3

quantity 3x6

ZX.2569

ZX.2571

ZX.0409

ZX.0743

Kit Dolly Com83, seal packing ø14

Kit Dolly Com85, seal packing ø14

Kit Dolly Com12, seal packing ø18

Kit Dolly Com16, complete seal packing ø18

quantity 5x3

quantity 4x3

quantity 5x1

ZX.0828

ZX.1920

ZX.2558

Kit Dolly Com36, plunger oil seals ø15x24x5

Set Dolly Com63, plunger oil seals ø14x22

Set Dolly Com79, plunger oil seals ø14x22

quantity 1x3

FDX BLADE S 6.12 12/200G G200F+BXD FDX BLADE S 6.12 12/200G GP200+BXD

FDX BLADE S 6.13 13/180G GX200+BWD

KP Pro Classic 5.12 12/200 T KP Pro Extra 3.10 10/150 M KP Pro Extra 5.12 12/200 T

• • • •

Kit Dolly Com63 ZX.1920

Kit Dolly Com36 ZX.0828

Kit Dolly Com16 ZX.0743

Kit Dolly Com12 ZX.0409

Kit Dolly Com85 ZX.2571

Kit Dolly Com83 ZX.2569

Kit Dolly Com75 ZX.2551

Plunger oil seals

• • • • •

FDX BLADE S 6.13 13/180G G200F+BWD

Complete seal packing

Seal packing

• • •

FDX BLADE S 5.13 13/150G GP160+BXD

KP Pro Classic 3.10 10/150 M

Kit Dolly Com77 ZX.2554

Fitting h.p. washers pumps

Kit Dolly Com76 ZX.2552

Valves

Set Dolly Com79 ZX.2558

Kit Dolly Com76, valves + O-rings

• • • • •

• • • • • •

• • • •

• • • • 137

DOLLY SPARE PARTS FOR PUMPS FITTING INTERPUMP ZX.1601

ZX.1488-3

ZX.1537

ZX.0155

CLUB DEI RIPARATORI

32mm

75mm

27mm 10mm

Kit Dolly 123, valves + O-rings

Set Dolly I28 connecting rods, for pumps fitting Interpump “44” series

Kit Dolly 137, Service kit by-pass valve

Kit Dolly 88, seal packing ø15

quantity 3x6

quantity 1x3

quantity 17x1

quantity 4x3

ZX.0093

ZX.0158

ZX.0164

ZX.0162

Kit Dolly 127, seal packing ø18

Kit Dolly 90, head rings ø15

Kit Dolly 129, head rings ø18

Kit Dolly 130, complete seal packing ø15

quantity 4x3

quantity 1x6

quantity 7x1

ZX.0165

ZX.0067

ZX.A1258

ZX.A1487 9mm

9mm

37,5mm

18mm

15mm

Set Dolly i4, ceramic plungers ø18x37.5

quantity 7x1

quantity 1x3

TSX951 TSX954 TSX957 TSX12.140 TSX14.120 TSX13.180 TSX955 TSX15.150 TSX17.130 TSX956 TSX961

138

•

• • • •

• • • • • • •

• •

• • • •

• • • • • • •

Plunger oil seals

• • • • • • • • • • • • •

•

• •

• • • •

• • • • • • •

Connecting Service kit by-pass valve rod

Plungers

•

• • • •

Set Dolly i4 ZX.A1487

Kit Dolly 131 ZX.0165

Kit Dolly 129 ZX.0164

Kit Dolly 90 ZX.0158

•

Kit Dolly 127 ZX.0093

• • • • • • • • • • • • •

Complete seal packing

• • • • • • •

Kit Dolly 137 ZX.1537

TSX12.100

Head rings

ZX.1488-1

TSX10.130

Kit Dolly 88 ZX.0155

Fitting h.p. washers pumps

Seal packing

Kit Dolly 123 ZX.1601

Valves

Set Dolly i3 ZX.A1258

Set Dolly i3, ceramic plungers ø15x37.5

Kit Dolly 23 ZX.0067

Kit Dolly 23, plunger oil seals ø20x30x5

Kit Dolly 130 ZX.0162

Kit Dolly 131, complete seal packing ø18

• • • • • • • • • • • • •

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGERS Ø12

THE SET CONTAINS:

ZX.SP997

• ZX.916-3 - 2 pcs • ZX.997-HL - 1 pc • ZX.2541 - 1 pc • ZX.997-OR - 1pc • ZX.2444-025 - 1 pc

Set Dolly X997, fitting Kärcher pumps, plunger ø12

ZX.916-60

Kit Dolly X916, valves with O-ring

14mm

quantity 1x3

ZX.997-HL

18,70mm

Fitting h.p. washers pumps

18,70mm

ZX.916-3

Set Dolly X916-60, valves with O-ring quantity 1x60

ZX.0682

Set Dolly X997-HL, seal packing ø12

Set Dolly X48, h.p. seals ø12x20

quantity 1x6 + 2x3

quantity 1x60

ZX.DB997-60

14mm

ZX.2541

HDS 5/15 UX Plus *EU

HD 6/13 CX

HD 1.8/13 C Ed

HD 6/13 CX Plus

HD 2.3/14 C Ed Food

HD 6/15 C

HD 2.3/15 C Ed

HD 6/15 C + FR 30

HD 3.0/20 C Ea

HD 6/15 C PLUS

HD 5/11 C

HD 6/15 CX

HD 5/12 C

HD 6/15 CX PLUS

HD 5/12 C Plus

HD 6/15C PLUS

HD 5/12 CX

HD 7/10 CXF

HD 5/12 CX Plus

HD 7/15 C 200V 50HZ

HD 5/14 C

HD 7/15 C 200V 60HZ

HD 5/14 C PLUS

HD 7/15 CX 200V 50Hz

HD 5/14 C PLUS+FR30

HD 7/15 CX 200V 60Hz

HD 5/14 C+FR30

HD 7/16 C

HD 5/14 CX

HD 7/18 C

HD 5/14 CX PLUS

HD 7/18 C PLUS

HD 5/15 C

HD 7/18 CX

HD 5/15 C + FR

HD 7/18CX-PLUS

HD 5/15 C Plus

HDS 5/15 U

HD 5/15 C Plus +FR

HDS 5/15 U Plus

HD 5/15 CX Plus

HDS 5/15 UX

Set Dolly X60, discs ø12x22

Set Dolly X58, plunger oil seals ø12x20

HD 5/15 CX Plus + FR

HDS 5/15 UX Plus

quantity 1x60

quantity 1x3

HD 5/17 C

XpertHD 7125

HD 5/17 C Plus

XpertHD 7125 Plus

ZX.2444-025

HD 5/17 CX

XpertHD 7125 X

HD 5/17C PLUS

XpertHD 7125 X Plus

HD 5/17C PLUS+FR30

XpertHD 7140

HD 6/13 C

XpertHD 7140 Plus

HD 6/13 C Plus

XpertHD 7140 X

HD 6/13 C Plus + FR

XpertHD 7170

HD 6/13 C Plus Boels

XpertHD 7170 X

ZX.997-OR

Set Dolly X997-OR, O-rings for caps and manifold

Technical grease, for the maintenance of high pressure pumps, 25ml

quantity 8 pz

quantity 1

Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.

139

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGERS Ø14

THE SET CONTAINS:

CLUB DEI RIPARATORI

ZX.SP017

• ZX.916-3 - 2 pcs • ZX.869-HL - 1 pc • ZX.2550-3 - 1 pc • ZX.017-OR - 1 pc • ZX.2444-025 - 1 pc

Set Dolly X017, fitting Kärcher pumps, plunger ø14

ZX.916-60

18,70mm

Fitting h.p. washers pumps

18,70mm

ZX.916-3

Kit Dolly X916, valves with O-ring

14mm

Set Dolly X916-60, valves with O-ring

quantity 1x3

quantity 1x60

ZX.869-HL

ZX.0641

HD 7/18C

14mm

HD 5/17 C

HD 5/17 C Plus

HD 5/17 C Plus+FR30

HD 5/17 CX

140

HD 6/15 C

Set Dolly X869-HL, seal packing ø14

Set Dolly X21, h.p. seals ø14x22 (black)

quantity 4x3

quantity 1x60

ZX.0649

ZX.1458

ZX.2550-3

Set Dolly X26, l.p. seals ø14x20

Set Dolly X23, discs ø14x24

Set Dolly X59, plunger oil seals ø14x22

quantity 1x60

quantity 1x3

ZX.017-OR

ZX.2444-025

Set Dolly X017-OR, O-rings for caps and manifold

Technical grease, for the maintenance of high pressure pumps, 25ml

quantity 1x4 + 1x1

quantity 1

Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.

DOLLY SPARE PARTS FOR PUMPS FITTING KÄRCHER PLUNGERS Ø14

THE SET CONTAINS:

ZX.SP869

• ZX.916-3 - 2 pcs • ZX.869-HL - 1 pc • ZX.869-OR - 1 pc • ZX.2444-025 - 1 pc

Set Dolly X869, fitting Kärcher pumps, plunger ø14

ZX.916-60

Kit Dolly X916, valves with O-ring

14mm

18,70mm

Fitting h.p. washers pumps

18,70mm

ZX.916-3

Set Dolly X916-60, valves with O-ring

quantity 1x3

quantity 1x60

ZX.869-HL

ZX.0641

14mm

HD 600 HD 645 HD 645 Plus HD 650 HD 650 Plus HD 650 SX HD 650 SX Plus

Set Dolly X869-HL, seal packing ø14

Set Dolly X21, h.p. seals ø14x22 (black)

quantity 4x3

quantity 1x60

ZX.0649

ZX.1458

HD 650 SXL HD 651 HD 658 HD 675 Plus HD 690

Set Dolly X26, l.p. seals ø14x20

Set Dolly X23, discs ø14x24

quantity 1x60

HD 690 SX

ZX.869-OR

ZX.2444-025

HD 690 SX Plus

HD 690 Plus

HD 715 HD 715 ST Set Dolly X869-OR, O-rings for caps and manifold

Technical grease, for the maintenance of high pressure pumps, 25ml

quantity 11 pcs

quantity 1

K 7.35M Before ordering, check that the diameter of the plunger matches that of the pump to be repaired.

141

DOLLY SPARE PARTS FOR PUMPS CODE CORRESPONDENCE TABLE

CLUB DEI RIPARATORI

Example Competitor code

Idrobase Group code

KIT 8

ZX.0086

Page

Idrobase Group code

Page

10001-13090 5027.0059

ZX.2557

136

44.0300.22

ZX.1488-3

138

44.0401.09 (1pc)

ZX.A1487

(3pcs)

138

52.0400.09 (1pc)

ZX.A1258 (3pcs)

138

KIT 23

ZX.0067

138

KIT 88

ZX.0155

138

KIT 90

ZX.0158

138

KIT 123

ZX.1601

138

KIT 127

ZX.0093

138

KIT 129

ZX.0164

138

KIT 130

ZX.0162

138

KIT 131

ZX.0165

138

KIT 137

ZX.1537

138

Interpump

KIT 8 competitor code

Competitor code

Idrobase Group code

Page

00003-00053 0019.0058 (1pc)

ZX.1920

(3pcs)

136-137

00003-00081 0019.0095 (1pc)

ZX.0828

(3pcs)

137

00003-00108 0019.0123 (1pc)

ZX.1920

(3pcs)

136-137

00003-00166 0019.0182 (1pc)

ZX.1920

(3pcs)

136-137

00003-00169 0019.0185 (1pc)

ZX.2558

(3pcs)

137

10001-01078 5019.0037

ZX.0409

137

10001-01117 5019.0078

ZX.1919

136

2.883-869.0

ZX.SP869

141

10001-01382 5019.0667

ZX.2569

137

2.883-997.0

ZX.SP997

139

10001-01397 5019.0682

ZX.2570

136

2.884-916.0

ZX.916-3

139

10001-01401 5019.0686

ZX.2571

137

2.884-916.0 (3pcs)

ZX.916-60 (60pcs)

139

10001-01610 5025.0014

ZX.1918

136

2.885-017.0

ZX.SP017

140

10001-01626 5025.0030

ZX.2551

137

4.115-465.0 (1pc)

ZX.1458 (60pcs)

140

10001-01651 5025.0057

ZX.2552

137

5.115-721.0

ZX.DB997-60 (60pcs)

139

10001-01665 5025.0071

ZX.2554

137

6.365-053.0 (1pc)

ZX.0651 (60pcs)

110

10001-09131 5019.0776 (3pcs)

ZX.2563 (1pc)

136

6.365-340.0 (1pc)

ZX.2550-3 (3pcs)

140

10001-08918 3604.0073

ZX.2566

136

6.365-393.0 (1pc)

ZX.2541

(3pcs)

139

10001-08919 5034.0004

ZX.2562

136

6.365-432.0 (1pc)

ZX.0641

(60pcs)

140

10001-09130 5025.0103 (3pcs)

ZX.2567 (6pcs)

136

6.365-438.0 (1pc)

ZX.0649 (60pcs)

140

10001-10062 0019.0211

ZX.2568

136

6.365-477.0 (1pc)

ZX.0682 (60pcs)

139

Comet

Kärcher

(1pc)

142

Copyrights© to this catalogue belong to IDROBASE GROUP® Srl. Reading, reference and dissemination in paper or electronic formats for personal use are permitted. Use for commercial purposes is not permitted, nor is any type of alteration except with the written consent of IDROBASE GROUP® Srl. This catalogue cancels and supersedes the earlier version. This catalogue provides general information on the products supplied by IDROBASE GROUP® Srl. It is intended for retailers, system engineers, designers and more generally, all those who are already adequately familiar with said products, the materials from which they are made, their characteristics, efficiency and operation; it is therefore not intended for consumers who, in order to handle, install or perform any operation with the goods described here, must necessarily contact qualified and skilled personnel. Also, with regard to skilled personnel, this catalogue should be considered a mere commercial tool, not containing the necessary technical specifications - which may be obtained free of charge from Idrobase, and as such, not suitable for use as a single goto reference tool for the design, construction or installation of any kind of system. The illustrations, technical characteristics, functions and other information given here about individual products, systems, installations and the like are based on the current state of the art: however, only the most immediately applicable information can be reproduced here, without any consideration for the global data necessary to design, implement and install any system, which must therefore be carefully assessed by designers, system engineers and installers. Therefore, for specific indications on all products in the catalogue, please contact our main office, where competent staff are always on hand to answer any additional queries. All the illustrations reproduced here may be slightly different from actual products and therefore, they should simply be intended as closely representing real items. We reserve the right to introduce changes in all the products. For this reason, too, it is advisable to directly contact our main office. In case of doubts regarding interpretation, the original Italian text will prevail. When a new reprint is published, the present edition will no longer be valid.

143

A day in Idrobase Group

Idrobase Group Srl Via dell’Industria, N. 25 35010 Borgoricco (PD) Italia T: +39 049 9335903 r.a.

Recognition of maximum commercial reliability

Rev.02_2026-06
