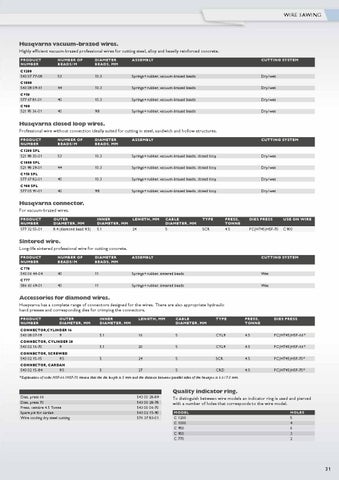

WIRE SAWING
Husqvarna vacuum-brazed wires. Highly efficient vacuum-brazed professional wires for cutting steel, alloy and heavily reinforced concrete. PRODUCT NUMBER
NUMBER OF BEADS / M
DIAMETER BEADS, MM
ASSEMBLY
CUTTING SYSTEM
53
10.3
Springs + rubber, vacuum-brazed beads
Dry / wet
44
10.3
Springs + rubber, vacuum-brazed beads
Dry / wet
40
10.3
Springs + rubber, vacuum-brazed beads
Dry / wet
40
9.8
Springs + rubber, vacuum-brazed beads
Dry / wet
C 1200
543 07 77-08 C 1000
543 08 09-61 C 950
577 67 81-01 C 900
521 95 36-01
Husqvarna closed loop wires. Professional wire without connection ideally suited for cutting in steel, sandwich and hollow structures. PRODUCT NUMBER
NUMBER OF BEADS / M
DIAMETER BEADS, MM
ASSEMBLY
CUTTING SYSTEM
53
10.3
Springs + rubber, vacuum-brazed beads, closed loop
Dry / wet
44
10.3
Springs + rubber, vacuum-brazed beads, closed loop
Dry / wet
40
10.3
Springs + rubber, vacuum-brazed beads, closed loop
Dry / wet
40
9.8
Springs + rubber, vacuum-brazed beads, closed loop
Dry / wet
C 1200 SPL
521 98 30-01 C 1000 SPL
521 98 29-01 C 950 SPL
577 67 82-01 C 900 SPL
577 05 91-01
Husqvarna connector. For vacuum-brazed wires. PRODUCT NUMBER
OUTER DIAMETER, MM
INNER DIAMETER, MM
LENGTH, MM
CABLE DIAMETER, MM
TYPE
PRESS, TONNE
DIES PRESS
USE ON WIRE
577 32 55-01
8.4 (diamond bead 9.5)
5.1
24
5
SCR
4.5
PC(HT45)H5F-70
C 900
Sintered wire. Long-life sintered professional wire for cutting concrete. PRODUCT NUMBER
NUMBER OF BEADS / M
DIAMETER BEADS, MM
ASSEMBLY
CUTTING SYSTEM
40
11
Springs + rubber, sintered beads
Wet
40
11
Springs + rubber, sintered beads
Wet
C 770
543 06 44-04 C 777
586 60 69-01
Accessories for diamond wires. Husqvarna has a complete range of connectors designed for the wires. There are also appropriate hydraulic hand presses and corresponding dies for crimping the connectors. PRODUCT NUMBER
OUTER DIAMETER, MM
INNER DIAMETER, MM
LENGTH, MM
CABLE DIAMETER, MM
TYPE
PRESS, TONNE
DIES PRESS
5.1
16
5
CYL9
4.5
PC(HT45)H5F-66 *
5.1
20
5
CYL9
4.5
PC(HT45)H5F-66 *
5
24
5
SCR
4.5
PC(HT45)H5F-70 *
5
27
5
CRD
4.5
PC(HT45)H5F-70 *
CONNECTOR,CYLINDER 16
543 08 07-19
9
CONNECTOR, CYLINDER 20
543 02 16-70
9
CONNECTOR, SCREWED
543 02 15-15
9.5
CONNECTOR, CARDAN
543 02 15-84
9.5
* Explanation of code: H5F-66 / H5F-70 means that the die length is 5 mm and the distance between parallel sides of the hexagon is 6.6 / 7.0 mm.
Dies, press 66 Dies, press 70 Press, cembre 4.5 Tonne Spare pin for cardan Wire cooling dry steel cutting
543 00 28-89 543 00 28-78 543 00 06-70 543 02 15-90 576 37 83-01
Quality indicator ring. To distinguish between wire models an indicator ring is used and pierced with a number of holes that corresponds to the wire model. MODEL
HOLES
C 1200 C 1000 C 950 C 900 C 770
5 4 6 3 2
31
