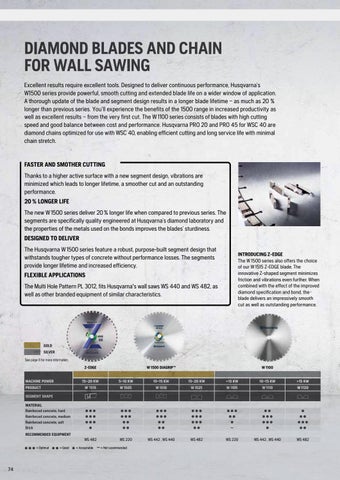

DIAMOND BLADES AND CHAIN FOR WALL SAWING Excellent results require excellent tools. Designed to deliver continuous performance, Husqvarna’s W1500 series provide powerful, smooth cutting and extended blade life on a wider window of application. A thorough update of the blade and segment design results in a longer blade lifetime – as much as 20 % longer than previous series. You’ll experience the benefits of the 1500 range in increased productivity as well as excellent results – from the very first cut. The W 1100 series consists of blades with high cutting speed and good balance between cost and performance. Husqvarna PRO 20 and PRO 45 for WSC 40 are diamond chains optimized for use with WSC 40, enabling efficient cutting and long service life with minimal chain stretch.
FASTER AND SMOTHER CUTTING Thanks to a higher active surface with a new segment design, vibrations are minimized which leads to longer lifetime, a smoother cut and an outstanding performance. 20 % LONGER LIFE The new W 1500 series deliver 20 % longer life when compared to previous series. The segments are specifically quality engineered at Husqvarna’s diamond laboratory and the properties of the metals used on the bonds improves the blades’ sturdiness. DESIGNED TO DELIVER The Husqvarna W 1500 series feature a robust, purpose-built segment design that withstands tougher types of concrete without performance losses. The segments provide longer lifetime and increased efficiency.
INTRODUCING Z-EDGE The W 1500 series also offers the choice of our W 1515 Z-EDGE blade. The innovative Z-shaped segment minimizes friction and vibrations even further. When combined with the effect of the improved diamond specification and bond, the blade delivers an impressively smooth cut as well as outstanding performance.
FLEXIBLE APPLICATIONS The Multi Hole Pattern PL 3012, fits Husqvarna's wall saws WS 440 and WS 482, as well as other branded equipment of similar characteristics.
GOLD SILVER See page 8 for more information.
Z-EDGE MACHINE POWER PRODUCT
W 1500 DIAGRIP™
W 1100
15–20 KW
5–10 KW
10–15 KW
15–20 KW
<10 KW
10 –15 KW
>15 KW
W 1515
W 1505
W 1510
W 1525
W 1105
W 1110
W 1120
● ● ●
● ● ●
● ● ●
● ● ●
● ● ●
● ●
●
● ● ●
● ● ●
● ● ●
● ● ●
● ●
● ● ●
● ●
● ● ●
● ●
● ●
● ● ●
●
● ● ●
● ● ●
●
● ●
● ●
● ●
—
●
● ●
WS 482
WS 220
WS 442 , WS 440
WS 482
WS 220
WS 442 , WS 440
WS 482
SEGMENT SHAPE MATERIAL Reinforced concrete, hard Reinforced concrete, medium Reinforced concrete, soft Brick RECOMMENDED EQUIPMENT
● ● ●
74
= Optimal
● ●
= Good
●
= Acceptable
— = Not recommended
