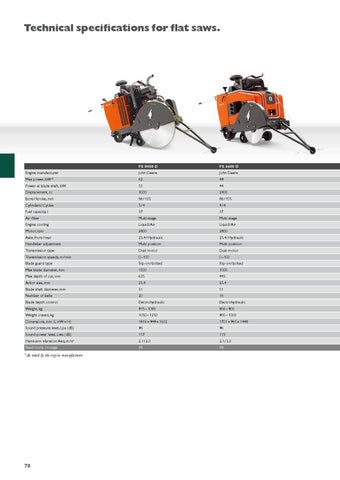

Technical specifications for flat saws.
Engine manufacturer
FS 8400 D
FS 6600 D
John Deere
John Deere
Max power, kW *
62
49
Power at blade shaft, kW
53
44
Displacement, cc
3000
2400
Bore / Stroke, mm
86 / 105
86 / 105
Cylinders / Cycles
5 / 4
4 / 4
Fuel capacity, l
37
37
Air filter
Multi-stage
Multi stage
Engine cooling
Liquid / Air
Liquid / Air
Motor, rpm
2800
2800
Axle, front / rear
25.4 / Hydraulic
25.4 / Hydraulic
Handlebar adjustment
Multi position
Multi position
Transmission type
Dual motor
Dual motor
Transmission speeds, m / min
0 –100
0 –100
Blade guard type
Slip-on / bolted
Slip-on / bolted
Max blade diameter, mm
1500
1000
Max depth of cut, mm
635
445
Arbor size, mm
25.4
25.4
Blade shaft diameter, mm
51
51
Number of belts
20
16
Blade depth control
Electrohydraulic
Electrohydraulic
Weight, kg
915 – 1085
856 – 900
Weight crated, kg
1050 – 1250
900 – 1000
Dimensions, mm (L × W × H)
1816 × 949 × 1632
1701 × 965 × 1448
Sound pressure level, Lpa (dB)
96
96
Sound power level, Lwa (dB)
117
115
Hand-arm vibration Aeq, m / s²
2.1 / 2.0
2.1 / 2.0
Read more on page
66
68
* As rated by the engine manufacturer.
