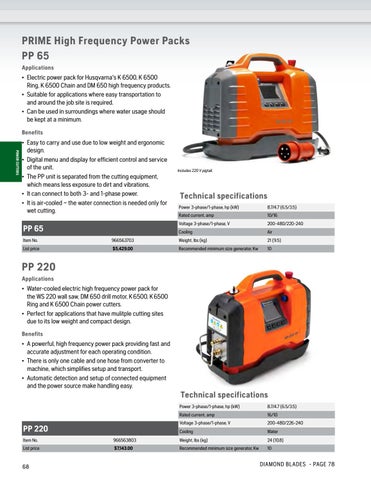

PRIME High Frequency Power Packs PP 65 Applications • Electric power pack for Husqvarna's K 6500, K 6500
Ring, K 6500 Chain and DM 650 high frequency products. • Suitable for applications where easy transportation to
and around the job site is required. • Can be used in surroundings where water usage should
be kept at a minimum. Benefits • Easy to carry and use due to low weight and ergonomic POWER CUTTERS
design. • Digital menu and display for efficient control and service of the unit. • The PP unit is separated from the cutting equipment, which means less exposure to dirt and vibrations. • It can connect to both 3- and 1-phase power. • It is air-cooled – the water connection is needed only for wet cutting.
PP 65
Includes 220 V pigtail.
Technical specifications Power 3-phase/1-phase, hp (kW)
8.7/4.7 (6.5/3.5)
Rated current, amp
10/16
Voltage 3-phase/1-phase, V
200-480/220-240
Cooling
Air
Item No.
966563703
Weight, lbs (kg)
21 (9.5)
List price
$5,429.00
Recommended minimum size generator, Kw
10
PP 220 Applications • Water-cooled electric high frequency power pack for
the WS 220 wall saw, DM 650 drill motor, K 6500, K 6500 Ring and K 6500 Chain power cutters. • Perfect for applications that have mulitple cutting sites due to its low weight and compact design. Benefits • A powerful, high frequency power pack providing fast and
accurate adjustment for each operating condition. • There is only one cable and one hose from converter to machine, which simplifies setup and transport. • Automatic detection and setup of connected equipment and the power source make handling easy.
Technical specifications
PP 220
Power 3-phase/1-phase, hp (kW)
8.7/4.7 (6.5/3.5)
Rated current, amp
16/10
Voltage 3-phase/1-phase, V
200-480/226-240
Cooling
Water
Item No.
966563803
Weight, lbs (kg)
24 (10.8)
List price
$7,143.00
Recommended minimum size generator, Kw
10
68
DIAMOND BLADES - PAGE 78
