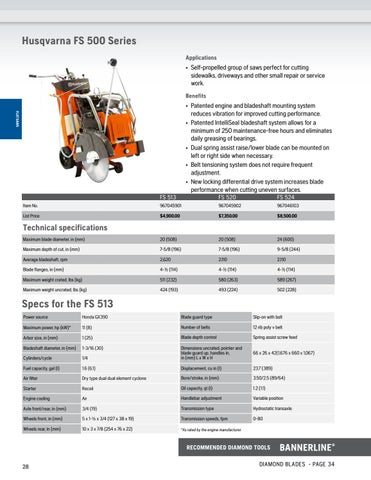

Husqvarna FS 500 Series Applications •• Self-propelled group of saws perfect for cutting
sidewalks, driveways and other small repair or service work. Benefits •• Patented engine and bladeshaft mounting system FLAT SAWS
reduces vibration for improved cutting performance. •• Patented IntelliSeal bladeshaft system allows for a minimum of 250 maintenance-free hours and eliminates daily greasing of bearings. •• Dual spring assist raise/lower blade can be mounted on left or right side when necessary. •• Belt tensioning system does not require frequent adjustment. •• New locking differential drive system increases blade performance when cutting uneven surfaces. FS 513
FS 520
FS 524
Item No.
967045901
967045902
967046103
List Price
$4,900.00
$7,350.00
$8,500.00
Maximum blade diameter, in (mm)
20 (508)
20 (508)
24 (600)
Maximum depth of cut, in (mm)
7-5/8 (196)
7-5/8 (196)
9-5/8 (244)
Average bladeshaft, rpm
2,620
2,110
2,110
Blade flanges, in (mm)
4-1/2 (114)
4-1/2 (114)
4-1/2 (114)
Maximum weight crated, lbs (kg)
511 (232)
580 (263)
589 (267)
Maximum weight uncrated, lbs (kg)
424 (193)
493 (224)
502 (228)
Technical specifications
Specs for the FS 513 Power source
Honda GX390
Blade guard type
Slip-on with bolt
Maximum power, hp (kW)*
11 (8)
Number of belts
12 rib poly v belt
Arbor size, in (mm)
1 (25)
Blade depth control
Spring assist screw feed
Bladeshaft diameter, in (mm)
1-3/16 (30)
Cylinders/cycle
1/4
Dimensions uncrated, pointer and blade guard up, handles in, in (mm) L x W x H
66 x 26 x 42(1,676 x 660 x 1,067)
Fuel capacity, gal (l)
1.6 (6.1)
Displacement, cu in (l)
23.7 (389)
Air filter
Dry type dual dual element cyclone
Bore/stroke, in (mm)
3.50/2.5 (89/64)
Starter
Recoil
Oil capacity, qt (l)
1.2 (1.1)
Engine cooling
Air
Handlebar adjustment
Variable position
Axle front/rear, in (mm)
3/4 (19)
Transmission type
Hydrostatic transaxle
Wheels front, in (mm)
5 x 1-1/2 x 3/4 (127 x 38 x 19)
Transmission speeds, fpm
0-80
Wheels rear, in (mm)
10 x 3 x 7/8 (254 x 76 x 22)
*As rated by the engine manufacturer.
