SURFACE PREPARATION
SURFACE PREPARATION

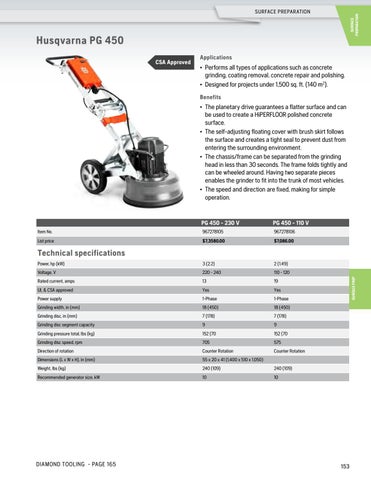

Husqvarna PG 450 CSA Approved
Applications • Performs all types of applications such as concrete
grinding, coating removal, concrete repair and polishing. • Designed for projects under 1,500 sq. ft. (140 m2). Benefits • The planetary drive guarantees a flatter surface and can
be used to create a HiPERFLOOR polished concrete surface. • The self-adjusting floating cover with brush skirt follows the surface and creates a tight seal to prevent dust from entering the surrounding environment. • The chassis/frame can be separated from the grinding head in less than 30 seconds. The frame folds tightly and can be wheeled around. Having two separate pieces enables the grinder to fit into the trunk of most vehicles. • The speed and direction are fixed, making for simple operation.
PG 450 - 230 V
PG 450 - 110 V
Item No.
967278105
967278106
List price
$7,3580.00
$7,086.00
Power, hp (kW)
3 (2.2)
2 (1.49)
Voltage, V
220 - 240
110 - 120
Rated current, amps
13
19
UL & CSA approved
Yes
Yes
Power supply
1-Phase
1-Phase
Grinding width, in (mm)
18 (450)
18 (450)
Grinding disc, in (mm)
7 (178)
7 (178)
Grinding disc segment capacity
9
9
Grinding pressure total, lbs (kg)
152 (70
152 (70
Grinding disc speed, rpm
705
575
Direction of rotation
Counter Rotation
Counter Rotation
Dimensions (L x W x H), in (mm)
55 x 20 x 41 (1,400 x 510 x 1,050)
Weight, lbs (kg)
240 (109)
240 (109)
Recommended generator size, kW
10
10
DIAMOND TOOLING - PAGE 165
SURFACE PREP
Technical specifications
153
