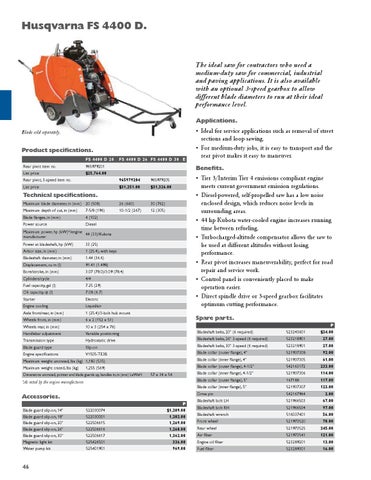

Husqvarna FS 4400 D.
FLAT SAWS
The ideal saw for contractors who need a medium-duty saw for commercial, industrial and paving applications. It is also available with an optional 3-speed gearbox to allow different blade diameters to run at their ideal performance level. Applications. Blade sold separately.
Ideal for service applications such as removal of street
Product specifications.
For medium-duty jobs, it is easy to transport and the
sections and loop sawing. FS 4400 D 20 Rear pivot item no.
965979201
List price
$25,764.00
FS 4400 D 26 FS 4400 D 30 E
Benefits.
Rear pivot, 3-speed item no.
965979204
965979205
List price
$31,251.00
$31,326.00
Tier 3/Interim Tier 4 emissions compliant engine
meets current government emission regulations. Diesel-powered, self-propelled saw has a low noise enclosed design, which reduces noise levels in surrounding areas. 44 hp Kubota water-cooled engine increases running time between refueling. Turbocharged-altitude compensator allows the saw to be used at different altitudes without losing performance. Rear pivot increases maneuverability, perfect for road repair and service work. Control panel is conveniently placed to make operation easier. Direct spindle drive or 3-speed gearbox facilitates optimum cutting performance.
Technical specifications. Maximum blade diameter, in (mm) 20 (508)
26 (660)
30 (762)
Maximum depth of cut, in (mm)
7-5/8 (196)
10-1/2 (267)
12 (305)
6`UXY ÃUb[Yg ]b aa
4 (102)
Power source
Diesel
Maximum power, hp (kW)*/engine 44 (33)/Kubota manufacturer Power at bladeshaft, hp (kW)
33 (25)
Arbor size, in (mm)
1 (25.4), with keys
Bladeshaft diameter, in (mm)
1.44 (36.6)
Displacement, cu in (l)
91.41 (1.498)
Bore/stroke, in (mm)
3.07 (78.0)/3.09 (78.4)
Cylinders/cycle
4/4
Fuel capacity, gal (l)
7.25 (29)
Oil capacity, qt (l)
7.08 (6.7)
Starter
Electric
rear pivot makes it easy to maneuver.
Engine cooling
Liquid/air
Axle front/rear, in (mm)
1 (25.4)/3-bolt hub mount
Wheels front, in (mm)
6 x 2 (152 x 51)
Wheels rear, in (mm)
10 x 3 (254 x 76)
Spare parts. P
Handlebar adjustment
Variable positioning
Bladeshaft belts, 20" (6 required)
Transmission type
Hydrostatic drive
Bladeshaft belts, 26" 3-speed (6 required)
523218901
27.00
Blade guard type
Slip-on
Bladeshaft belts, 30" 3-speed (6 required)
523218901
27.00
9b[]bY gdYW]ÂWUh]cbg
V1505-TE3B
6`UXY Wc``Uf cihYf ÃUb[Y (
521937308
92.00
Maximum weight uncrated, lbs (kg) 1,180 (535)
6`UXY Wc``Uf ]bbYf ÃUb[Y (
521937305
61.00
Maximum weight crated, lbs (kg)
6`UXY Wc``Uf cihYf ÃUb[Y (!%#&
542163172
233.00
1,255 (569)
Dimensions uncrated, pointer and blade guards up, handles in, in (mm) LxWxH
57 x 34 x 54
*As rated by the engine manufacturer.
Accessories. P Blade guard slip-on, 14" Blade guard slip-on, 18" Blade guard slip-on, 20" Blade guard slip-on, 26" Blade guard slip-on, 30" Magnetic light kit Water pump kit
46
522030074 522030001 522506615 522506616 522506617 525426501 525401901
$1,209.00 1,202.00 1,269.00 1,268.00 1,362.00 336.00 969.00
523243601
$24.00
6`UXY Wc``Uf ]bbYf ÃUb[Y (!%#&
521937306
114.00
6`UXY Wc``Uf cihYf ÃUb[Y )
167188
117.00
6`UXY Wc``Uf ]bbYf ÃUb[Y )
521937307
123.00
Drive pin
542167964
2.00
Bladeshaft bolt LH
521966503
67.00
Bladeshaft bolt RH
521966504
97.00
Bladeshaft wrench
516037401
56.00
Front wheel
521973520
78.00
Rear wheel
521973525
245.00
5]f Â`hYf
521973541
121.00
9b[]bY c]` Â`hYf
523289201
13.00
:iY` Â`hYf
523289301
16.00
