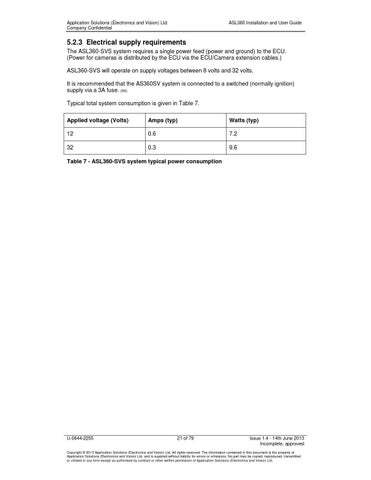

5.2.3 Electrical supply requirements The ASL360-SVS system requires a single power feed (power and ground) to the ECU. (Power for cameras is distributed by the ECU via the ECU/Camera extension cables.) ASL360-SVS will operate on supply voltages between 8 volts and 32 volts. It is recommended that the AS360SV system is connected to a switched (normally ignition) supply via a 3A fuse. [R6] Typical total system consumption is given in Table 7. Applied voltage (Volts)
Amps (typ)
Watts (typ)
12
0.6
7.2
32
0.3
9.6
Table 7 - ASL360-SVS system typical power consumption
