NS Bikes 2017

Page 26

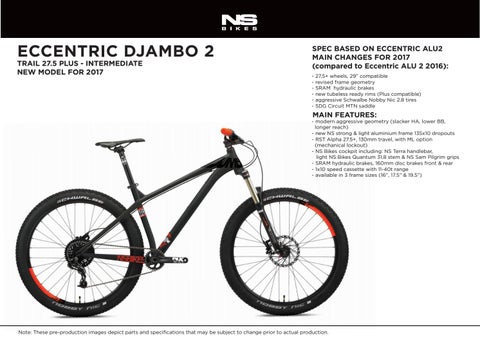

ECCENTRIC DJAMBO 2

TRAIL 27.5 PLUS - INTERMEDIATE NEW MODEL FOR 2017

SPEC BASED ON ECCENTRIC ALU2 MAIN CHANGES FOR 2017 (compared to Eccentric ALU 2 2016): -

27,5+ wheels, 29” compatible revised frame geometry SRAM hydraulic brakes new tubeless ready rims (Plus compatible) aggressive Schwalbe Nobby Nic 2.8 tires SDG Circuit MTN saddle

MAIN FEATURES:

- modern aggressive geometry (slacker HA, lower BB, longer reach) - new NS strong & light aluminium frame 135x10 dropouts - RST Alpha 27.5+, 130mm travel, with ML option (mechanical lockout) - NS Bikes cockpit including: NS Terra handlebar, light NS Bikes Quantum 31.8 stem & NS Sam Pilgrim grips - SRAM hydraulic brakes, 160mm disc brakes front & rear - 1x10 speed cassette with 11-40t range - available in 3 frame sizes (16”, 17.5” & 19.5”)

Note: These pre-production images depict parts and specifications that may be subject to change prior to actual production.
