1.4 Type labels and component numbers

Serial number

The serial number is stamped on the machine chassis. It is also located on the type label. The type label is located at the front left on the machine chassis, under the control stand.

Type label information Field below Wacker Neuson logo: HYDRAULIC EXCAVATOR Fahrzeug Seriennummer/serial no./no. de série: Serial number of machine Fahrzeug Modell/model/modèle: Machine designation Leistung/performance: Engine output Typ/version: Machine type Betriebsgewicht/operating weight/poids en charge: Operating weight Transportgewicht/transport weight/poids en transport: Transport weight G. Gew./GWR/PTAC: Gross weight rating (admissible) Max. Nutzlast/max. payload/max. charge utile: Maximum payload Zul. Achslast vorne/front GAWR/PNBE AV: Front gross axle weight rating Zul. Achslast hinten/rear GAWR/PNBE AR: Rear gross axle weight rating

Option

EWG Nr./CEE no.: EEC check number Baujahr/model year/année fabr.: Year of construction Other information –see chapter2 Specifications on page2-2

Cab number

The type label (arrow) is located on the chassis of the cab, at the upper left beside the door.

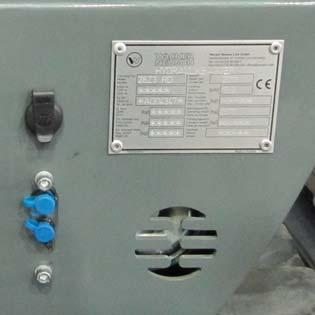

Fig. 1: Type label: location

HYDRAULIC EXCAVATOR

Fig. 2: Type label

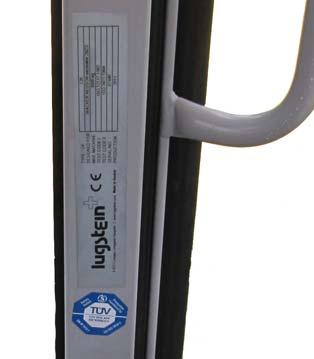

Fig. 3: Cab type label
